Description
Introducing the GX12 Radio Controller, a groundbreaking fusion of cutting-edge technology from ExpressLRS and EdgeTX. The GX12 is the first radio to feature ExpressLRS Gemini-XROSSBAND (GEM-X), allowing for simultaneous transmission on both 2.4GHz and 915MHz, ensuring unmatched interference rejection.
n
Designed with integrated folding dual-band antennas, the GX12 supports all current 2.4GHz and 900MHz ExpressLRS receivers, as well as the new generation of Gemini Xrossband (Gem-X) receivers, providing extended range and exceptional performance. Elevate your flying experience with the ultimate in radio control innovation!
n
The GX12 redefines your RC experience with remarkable flexibility and cutting-edge features. Removable switch panels allow for personalized setups using the included modular panel system, while DIY SMA ports let you choose the perfect antennas for your needs.
n
Folding gimbal sticks ensure compact storage and easy transport. With all-new 1000Hz digital aluminum gimbals, the GX12 delivers unparalleled resolution, precision, and responsiveness in an EdgeTX radio.
n
Featuring 512MB of internal flash storage, the need for TF cards is eliminated, and a single USB-C port simplifies both charging and data/simulator connectivity. The GX12 also includes individually programmable 6-position buttons and SA/SD switches, along with customizable RGB indicators to enhance both functionality and style.
n
The controller is designed with both a standard, accommodating your power requirements to maximize flight time. Whether you’re a hobbyist or a professional, the GX12 Radio Controller is your gateway to the future of RC. Embrace true innovation and elevate your flying experience with the GX12!
n
Features
n
● Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters
n
○ Experience unmatched range and reliability with ExpressLRS Gemini Xrossband (Gem-X) dual-band transmission capabilities.
n
● Integrated Folding Dual-Band Antennas
n
○ Sleek design with foldable antennas for easy transport and storage.
n
○ Compatible with both 2.4GHz and Sub-G 900MHz frequencies.
n
● GX01 Gimbals -Fully CNC Aluminum 3D Digital Hall Sensor Gimbals
n
○ Precision-engineered aluminum gimbals with 3D Hall sensors for superior control and durability.
n
● 1000Hz Digital Gimbals with EdgeTX Sync
n
○ Achieve exceptional precision and responsiveness with high-frequency digital gimbals featuring EdgeTX sync.
n
● Folding Gimbal Sticks
n
○ Foldable gimbal sticks for convenient storage and transport.
n
● Removable Switch Panels
n
○ Customize your setup with our modular switch panels, allowing for easy switch changes to suit your preferences.
n
● DIY SMA Ports
n
○ Enjoy flexibility in antenna installation with SMA port integration.
n
● OLED Display
n
○ Crisp and clear OLED with high contrast display
n
● Internal Storage
n
○ 512MB of integrated high-speed flash storage—no need for TF cards!
n
● USB-C Connectivity
n
○ The GX12 features a single USB-C port that manages smart balance charging, SIM connectivity, firmware updates and direct access to the integrated high speed flash memory.
n
● Integration of the 6-Position Switch and SA/SD Switches
n
○ Individually programmable 6-position SA/SD switches offer versatile control options tailored to your unique setup.
n
● Programmable RGB Indicators on 6-Position and SA/SD Switches
n
○ Customizable RGB lights provide visual feedback on switch status.
n
● Powerful Efficient Cooling System
n
○ With dual 1-watt transmitters, the GX12 boasts serious power, featuring an advanced cooling system to keep your radio cool even on the hottest days.
n
● PCB Nano coating
n
○ Engineered for the Extremes! The GX12 is built to thrive in demanding environments. With thicker plastics and a hydrophobic PCB coating, this controller is designed to withstand hot, cold, dry, and humid conditions. Count on the GX12 to deliver, no matter where your adventures take you!
n
Specifications
n
Item: GX12 Radio
n
Color: Black
n
Size: 183*148*78mm
n

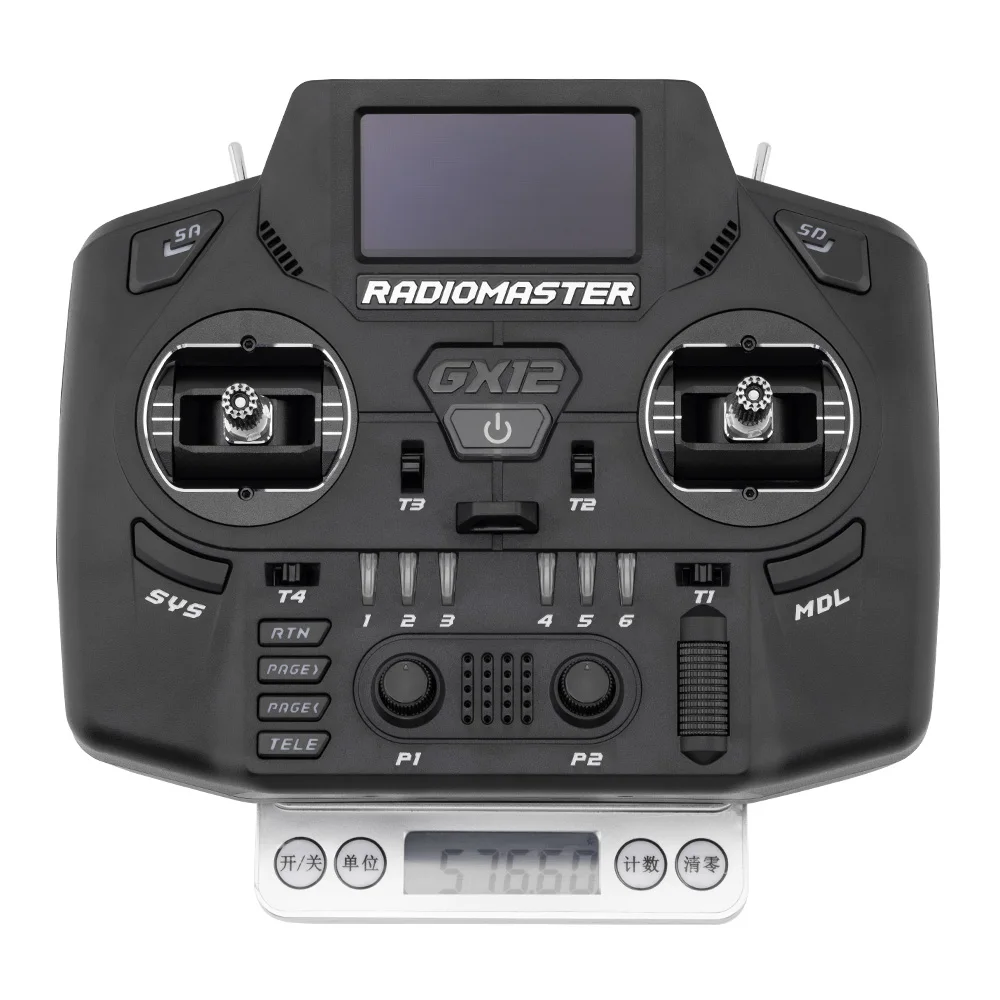

Weight: 573g
n
Frequency: 2.400GHz and Sub-G 900MHz
n
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
n
Supported Protocols: Express-LRS
n
Cooling Fan: Yes
nAntenna: Dual folding 2.4GHz/ Sub-G 900MHz omni directional
nRF: (Dual 1,000mW | Dual band XROSSBAND ELRS)
n
Voltage Range: 6.6 – 8.4V DC
n
Current: 390mA – 1000mA (Depending on Rf output)
n
Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
n
Channels: Max 16 channels (Receiver dependent)
n
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells /21700 5000mAh Battery (batteries not included)
n
Charging: 2S Smart Balance Charging
n
Connectivity: USB-C
n
Display: 128*64 Monochrome OLED display
n
Gimbal: GX01 1000Hz, 3D Digital CNC Hall Effect Gimbal with folding sticks
n
Gimbal Sticks: 3mm
n
External Module: Nano / Crossfire compatible
n
Upgrade Method: USB / EdgeTX Companion PC software
n
Memory: 512Mb Integrated Flash
n
