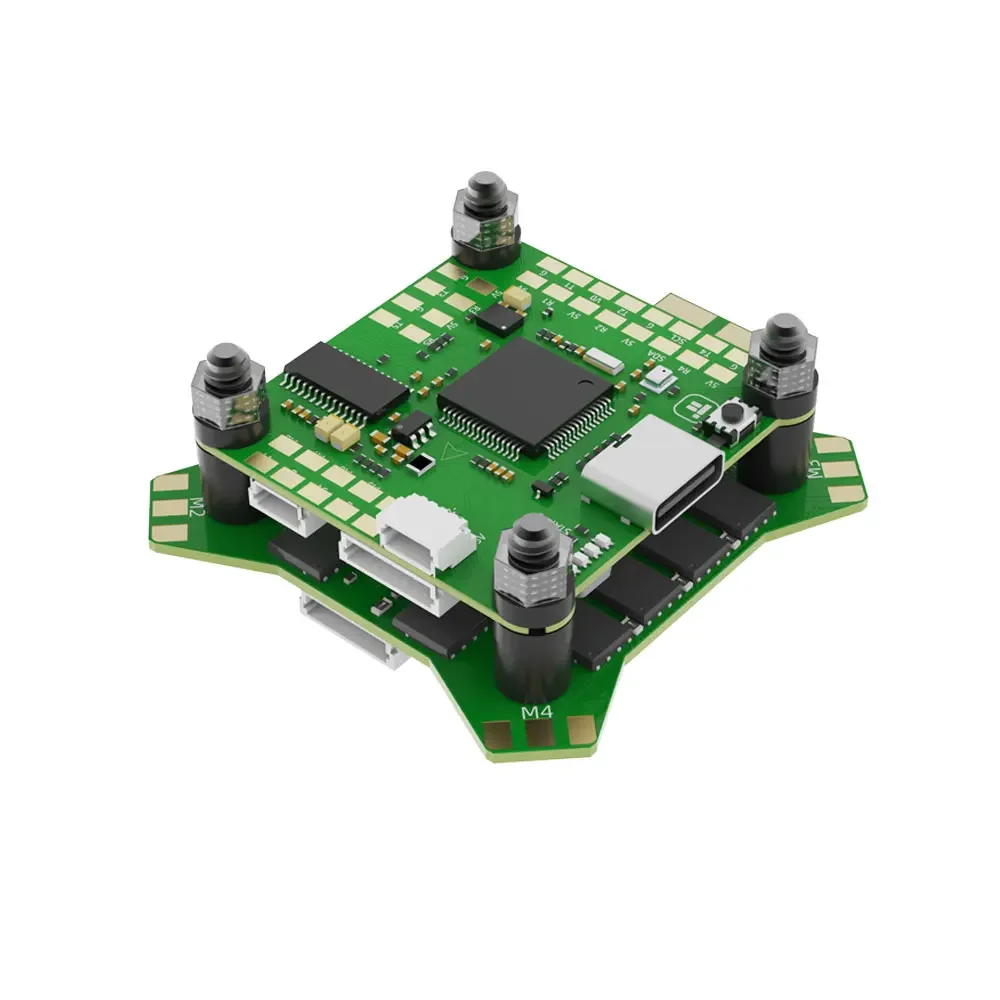

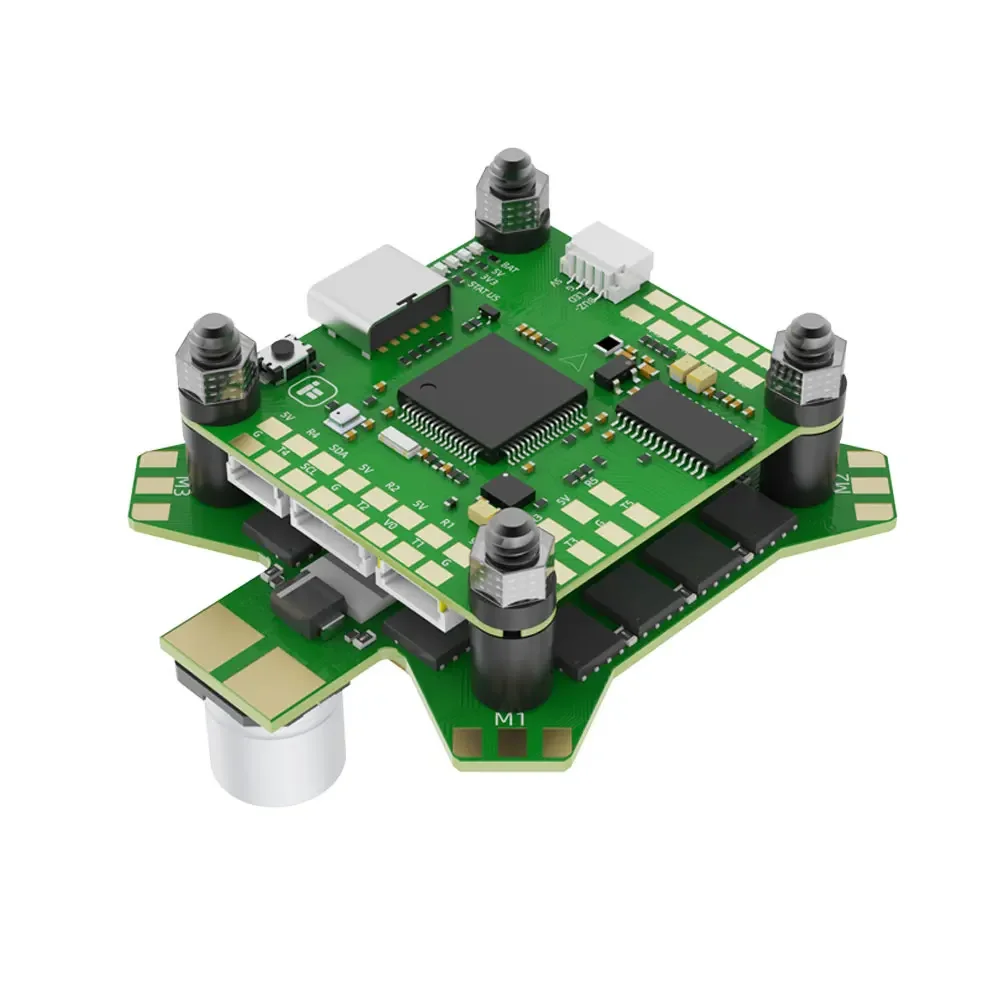

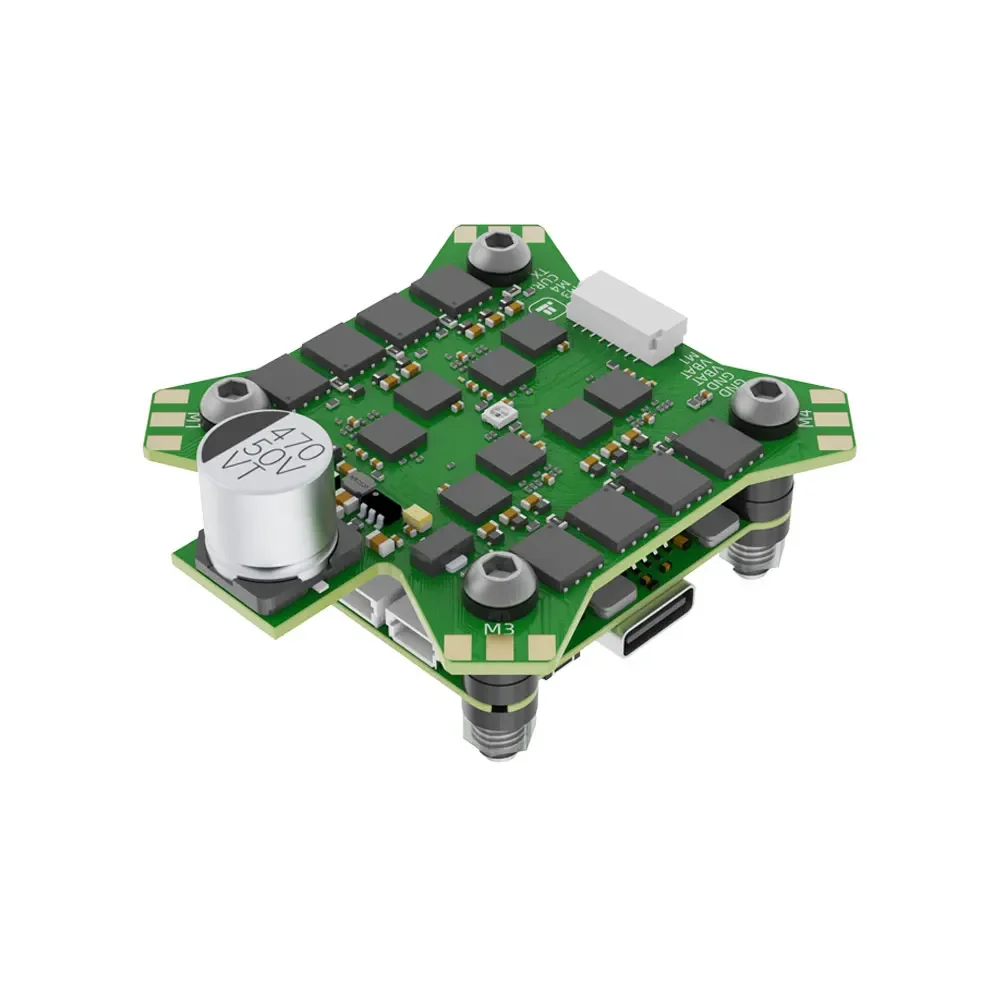

IFlight BLITZ F7 Stack F722 F7 Flight Controller W/ BLITZ E55 55A BLHELI32 4in1 ESC 2-6S for RC FPV Drone

Description

Features
nImproved circuit design, better components and lower electrical noise!
nDJI HD VTX Connector (Plug-and-Play / No soldering required)
nFC indicator LEDs for visual debugging
nWith LC filter
nChangelog
nJan. 11, 2024: Gyroscope changed from BMI270 to ICM42688.

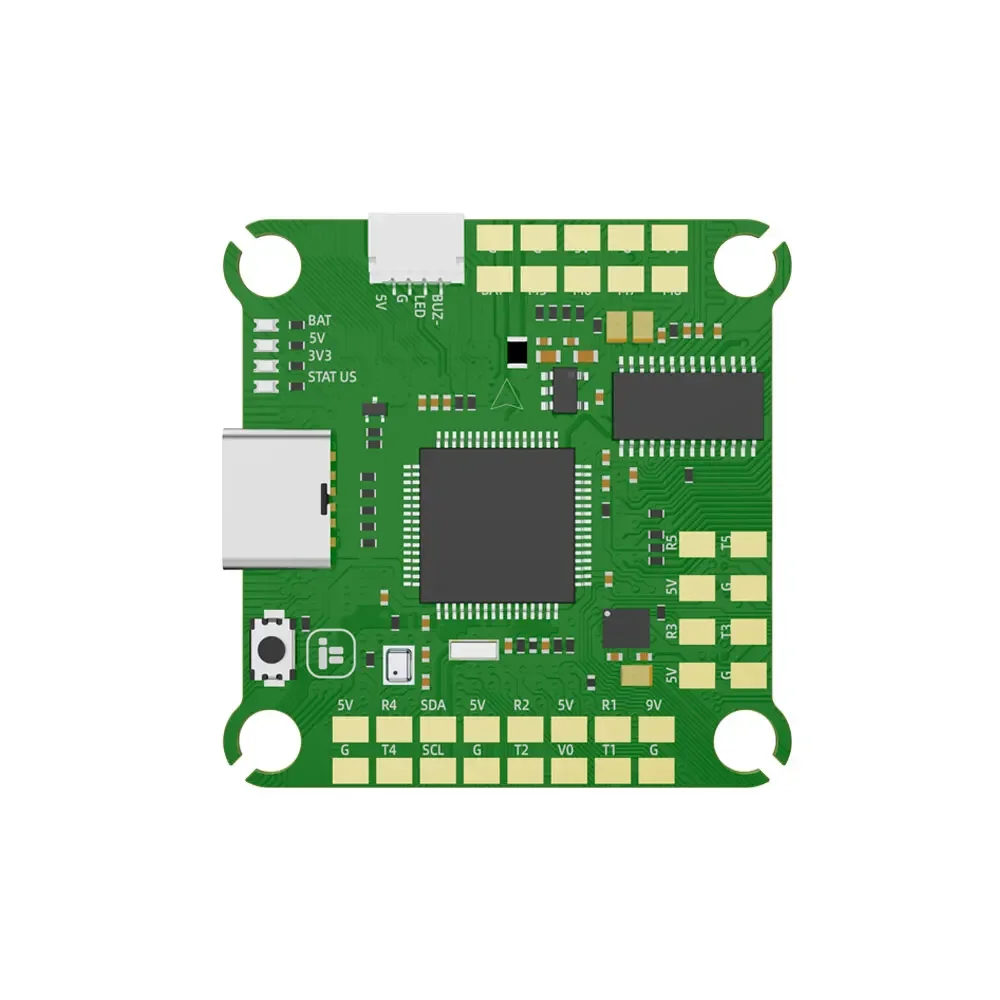

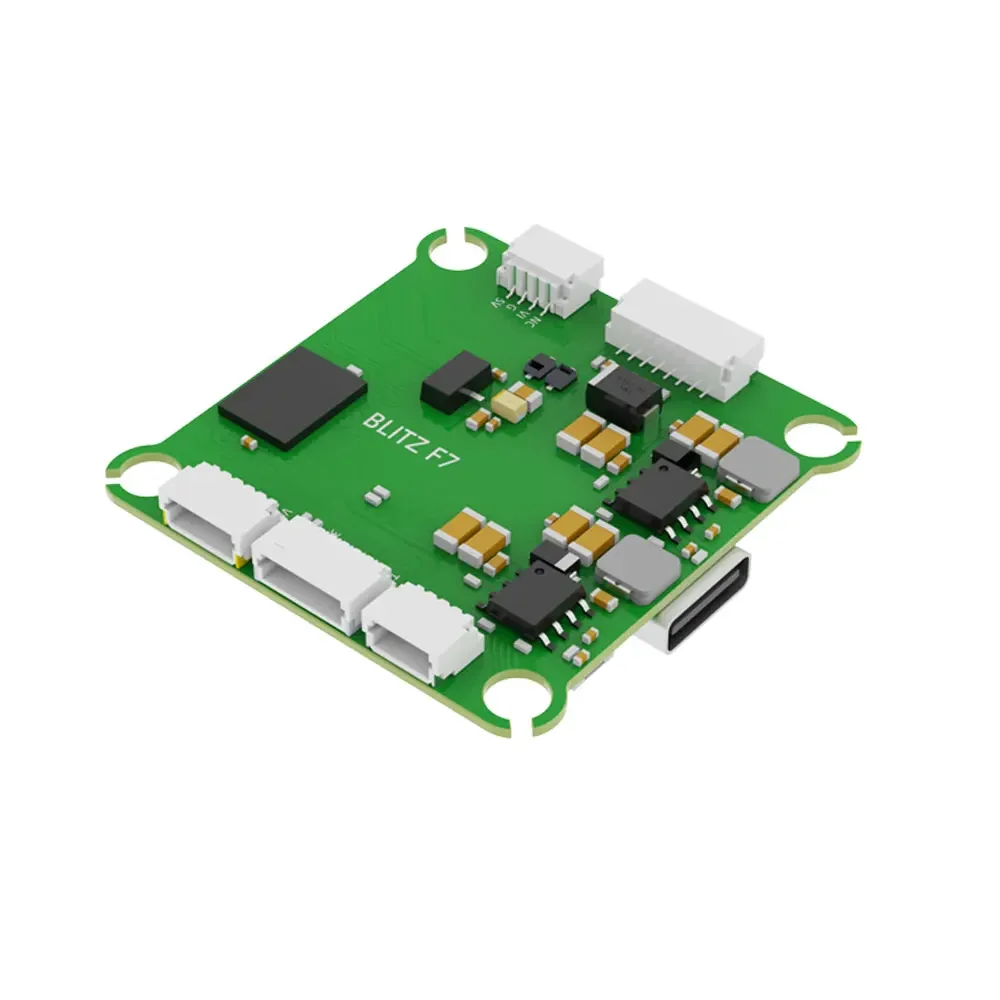

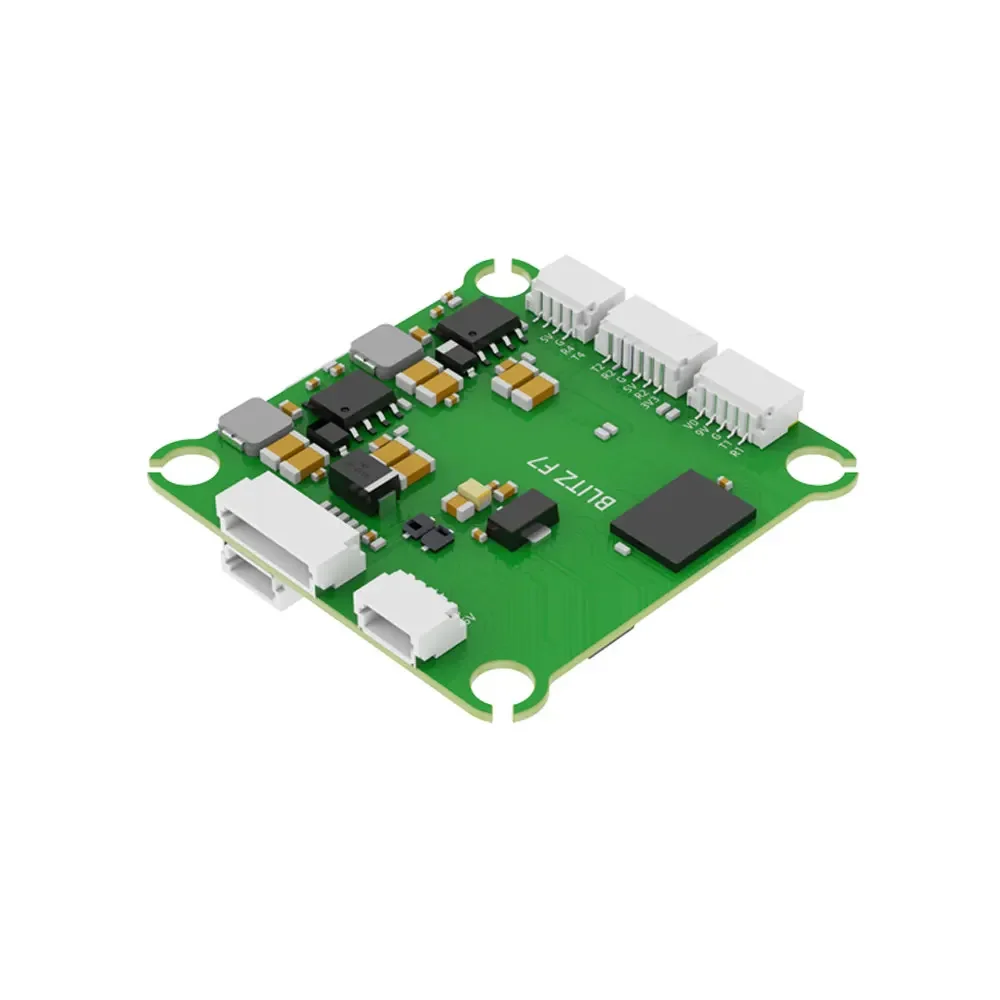

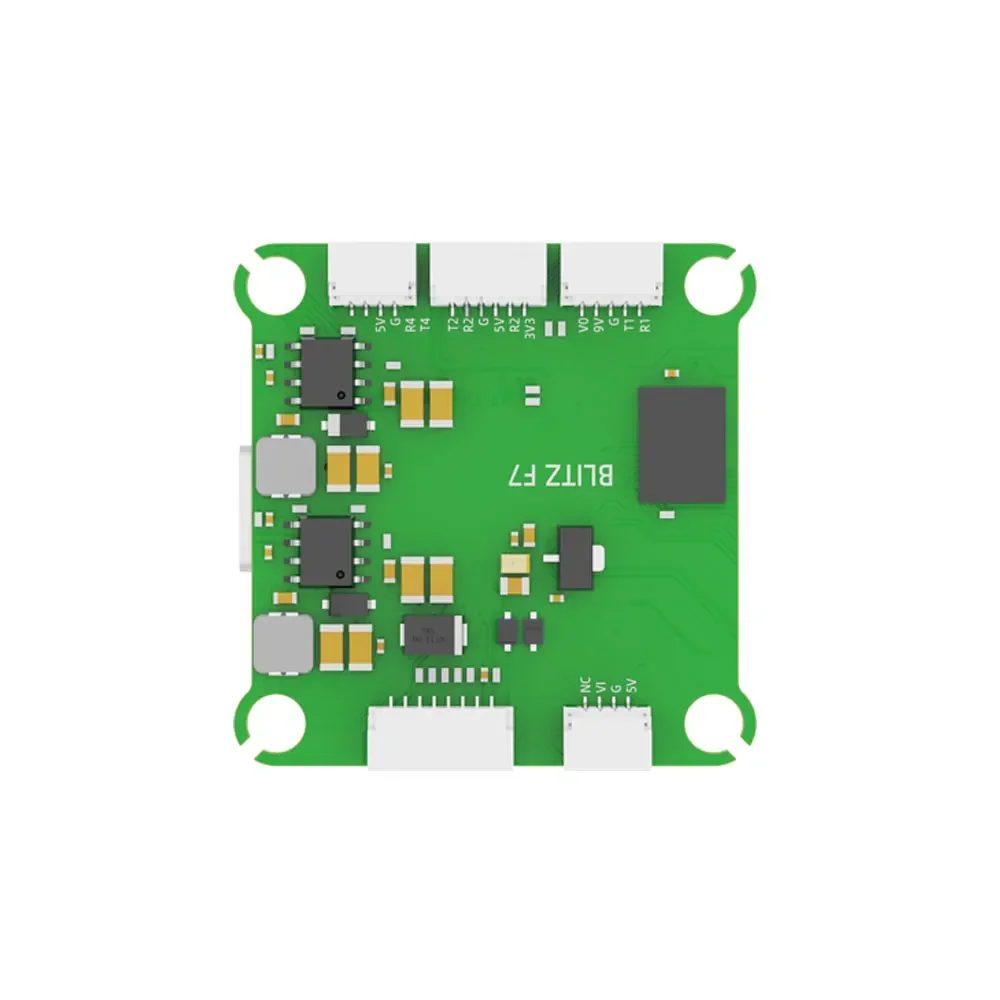

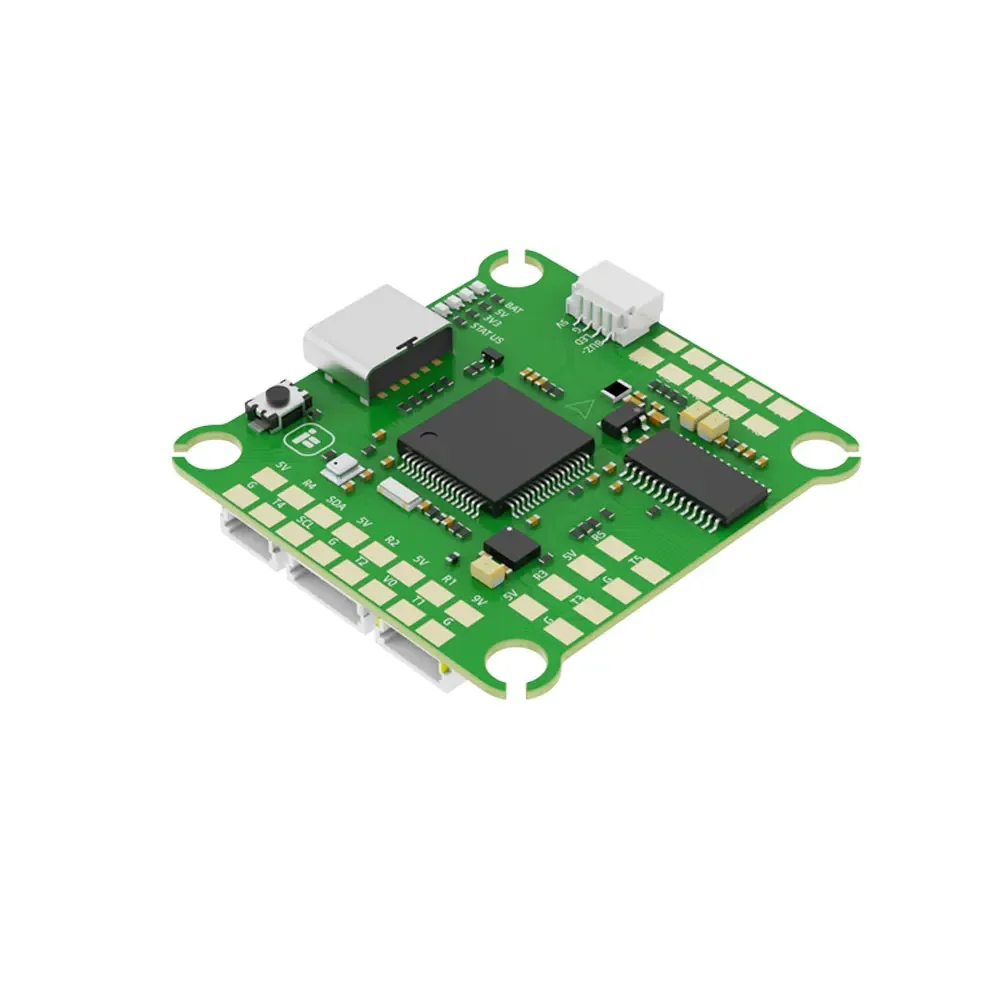

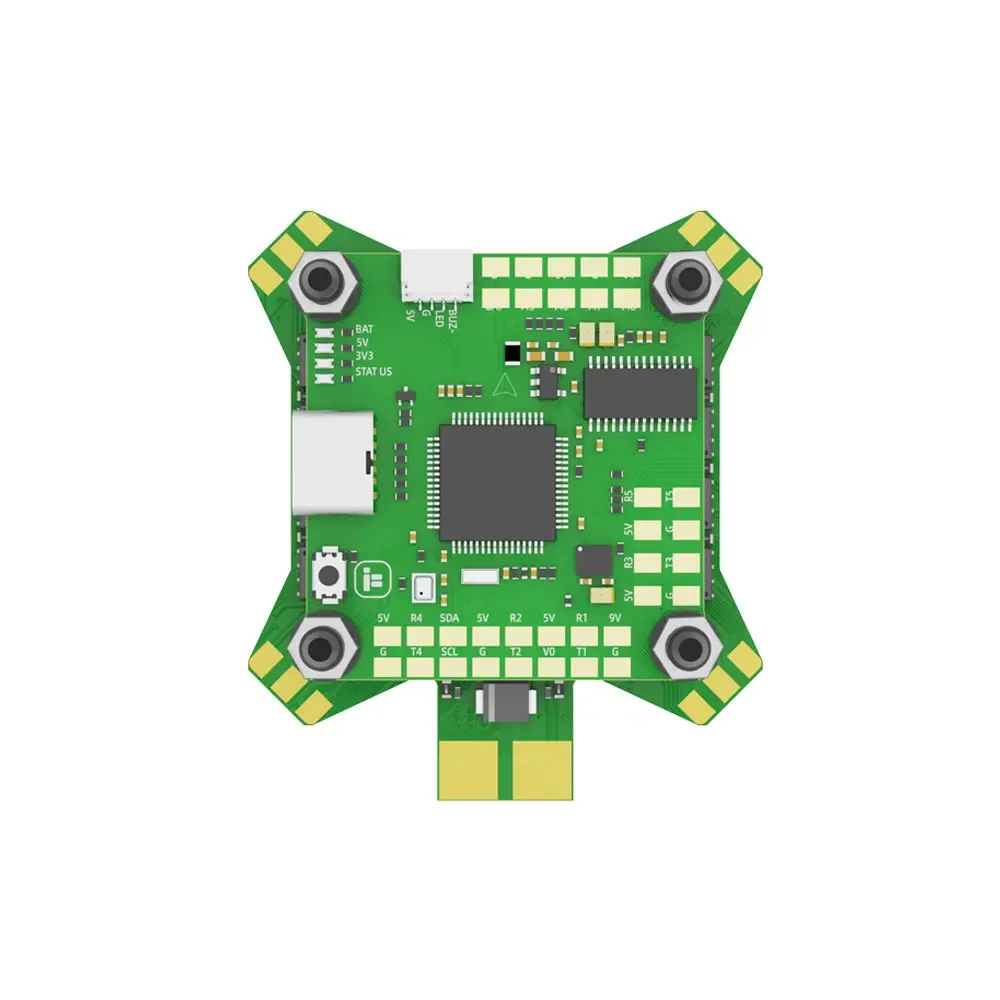

nFC Specifications
nMCU: STM32 F722
nGyro: ICM42688
nBarometer: DPS310
nOSD Chip: AT7456E
nFlash: 32MB (Blackbox flash)
nUARTS: 6
nMotor outputs: 4x (SH1.0 connector)
nI2C serial: SDA / SLA pads
nSmartaudio / IRC Tramp VTX protocol supported
nLED controller: Yes
nBeeper pad: Yes
nFirmware target: IFRC-IFLIGHT_BLITZ_F722
nMount pattern: 30.5*30.5mm / 4mm PCB hole diameter
nDimensions: 36.5*35 mm
nWeight: 7.8g
nBEC: 5V 2.5A / 9V 2A

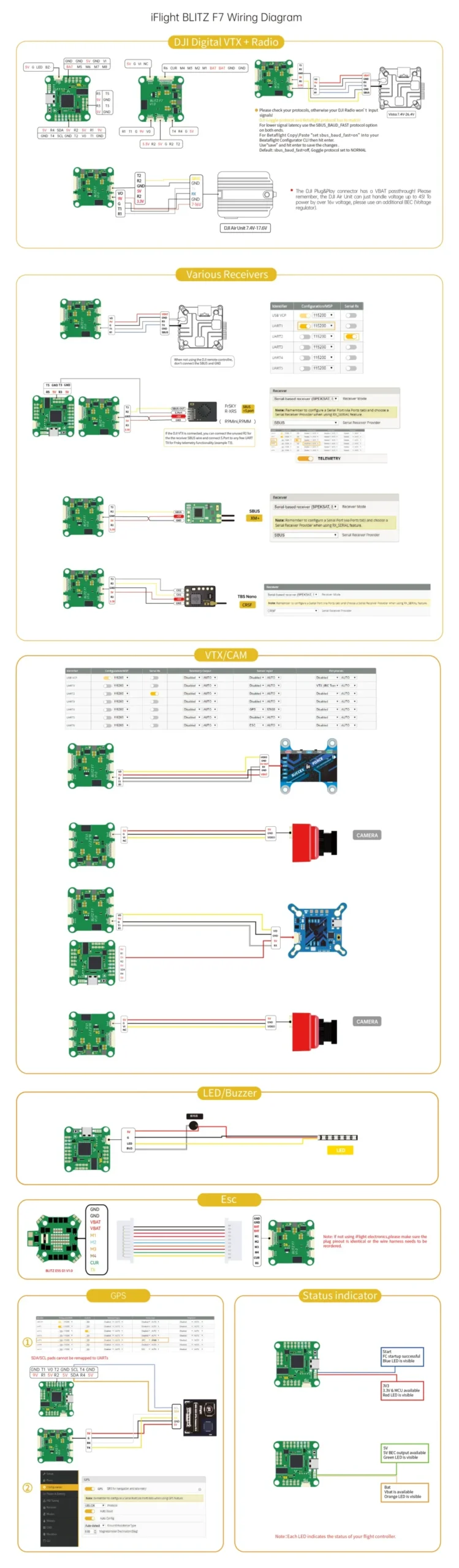

nWiring Suggestion
nUART 1 for VTX HD / Analog
nUART 2 for a Receiver
nUART 3/4/5 for GPS or other sensors that require a serial port
nUART 6 for ESC Telemetry

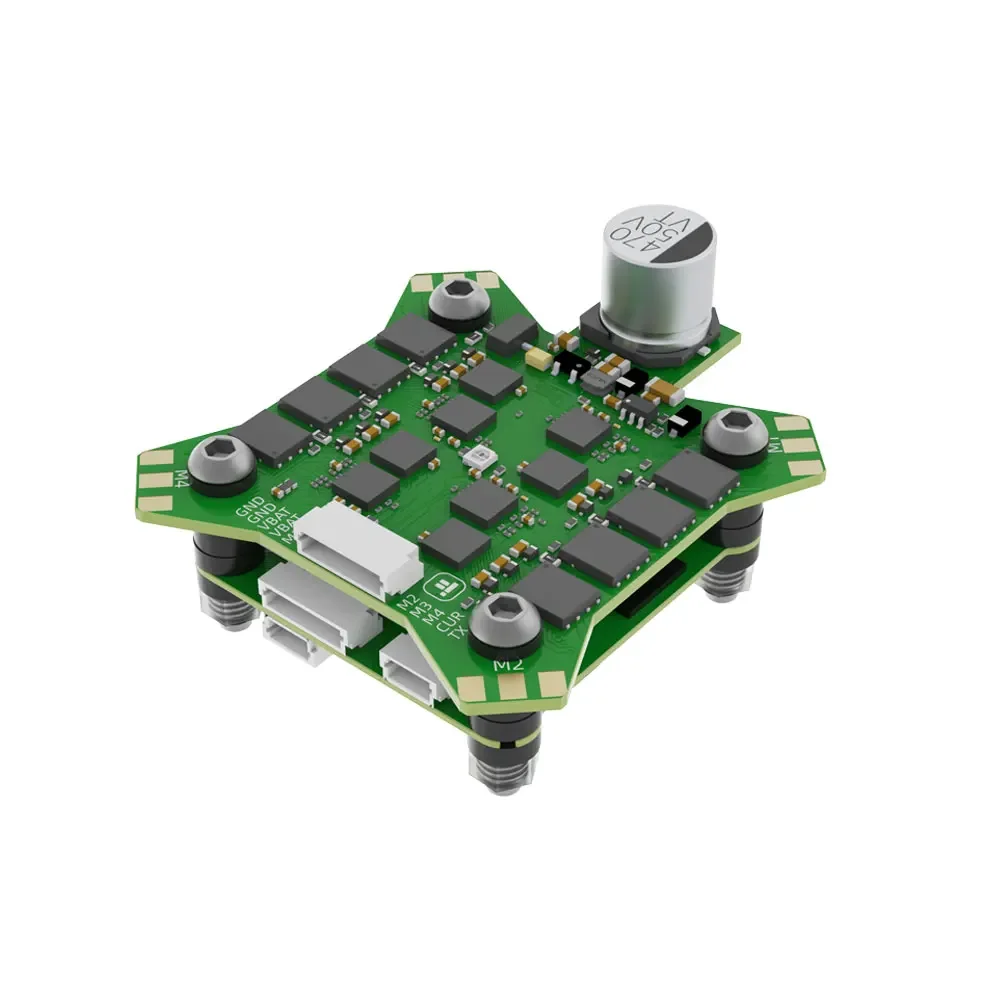

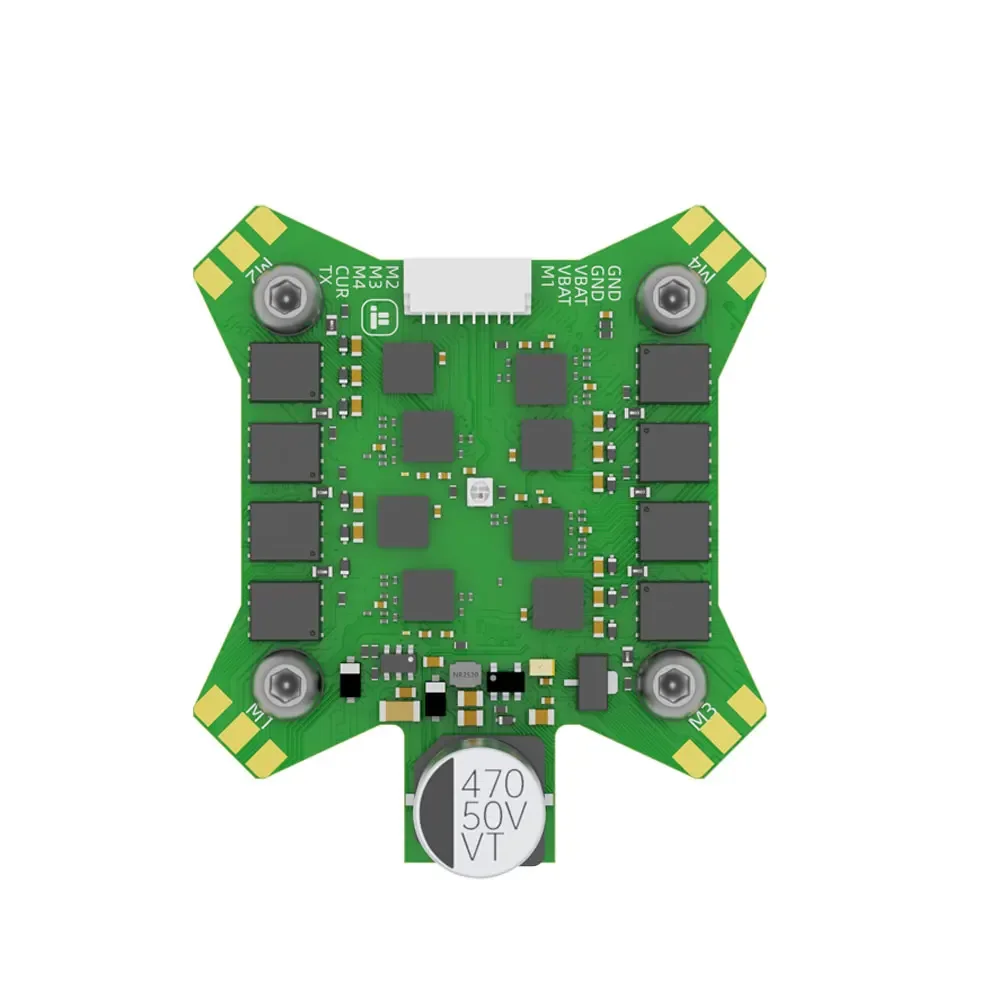

nESC Specifications
nMounting Holes: 30.5*30.5mm/Φ4mm
nWeight: 15.3g
nSupports 2-6S lipo input
nMCU: G071
nConstant: 55 Amps
nBurst: 65 Amps
nCurrent sensor: Yes
nBEC: No
nCurrent rate: 200
nSupports: DShot DShot150/300/600/MultiShot/ OneShot etc.
nTarget: IFLIGHT_BLITZ_G3 32.9

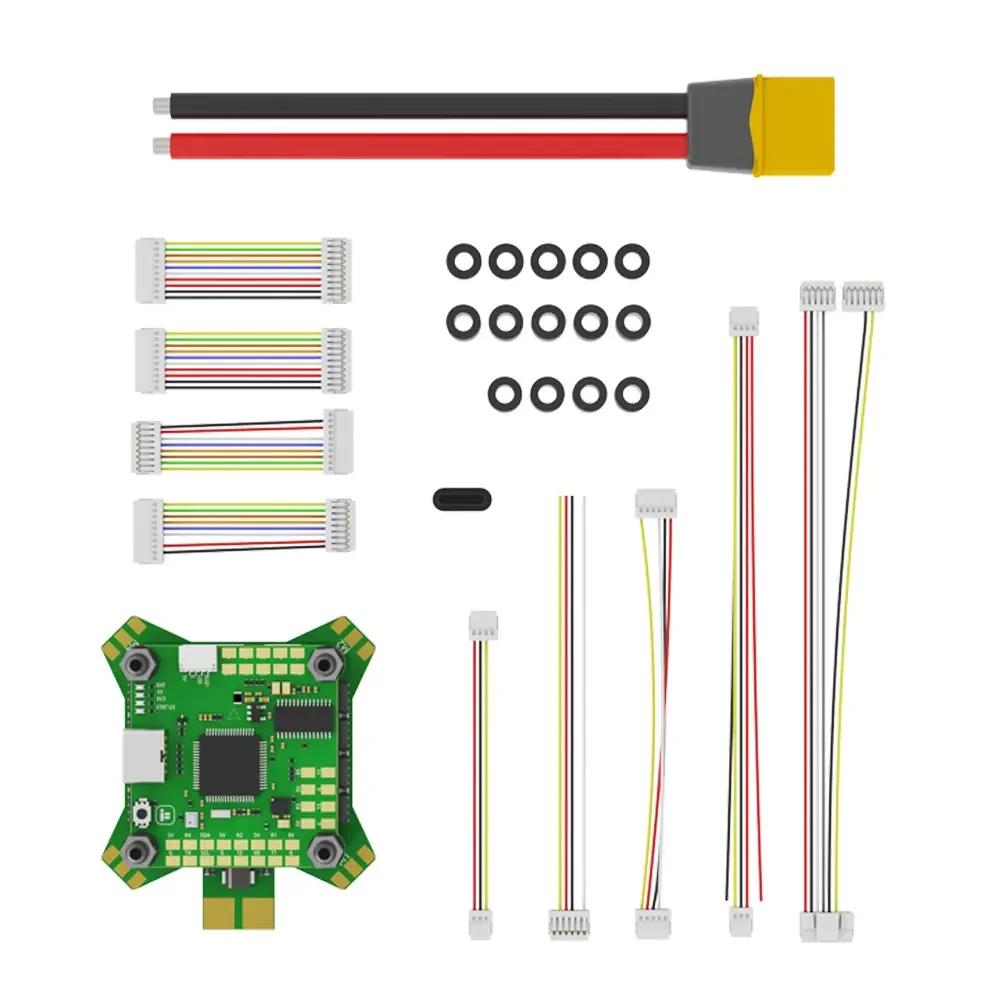

nPacking List
n1 x BLITZ F7 V1.2 Flight Controller

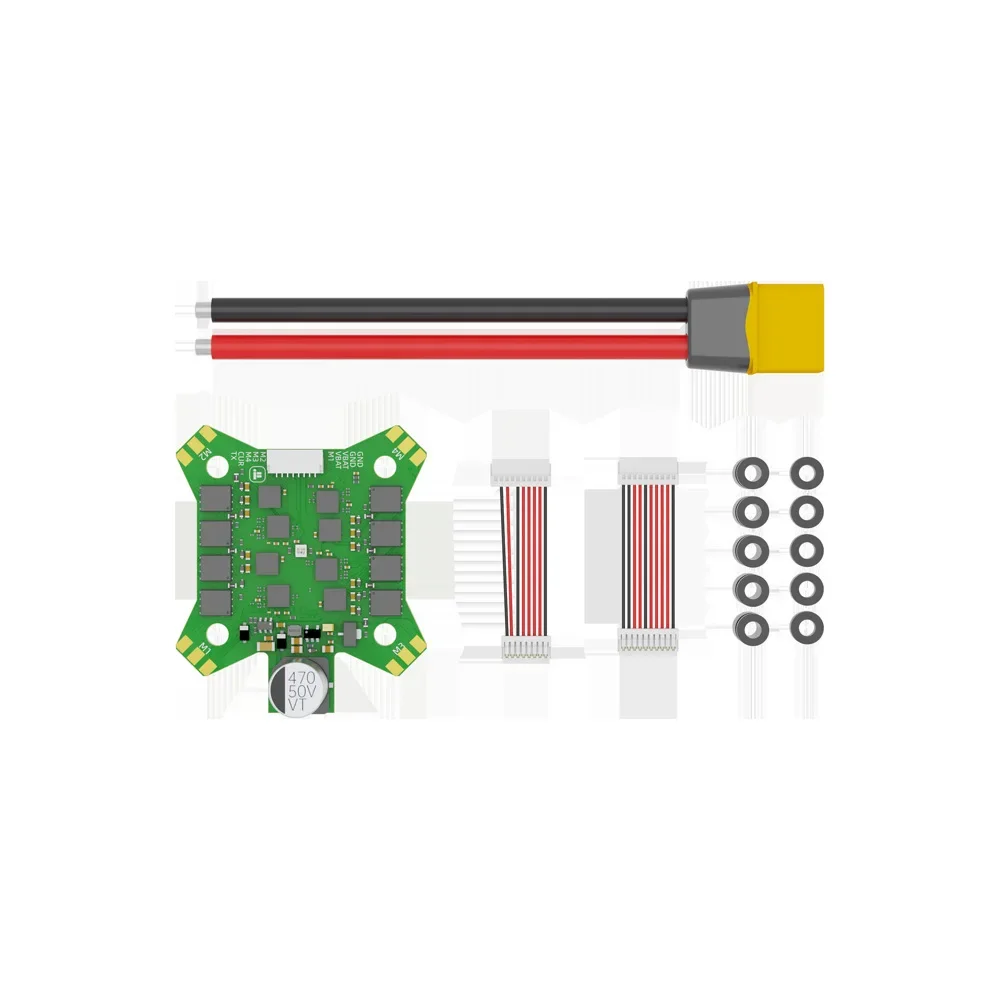

n1 x BLITZ E55 4-IN-1 2-6S ESC
n1 x silicon grommets

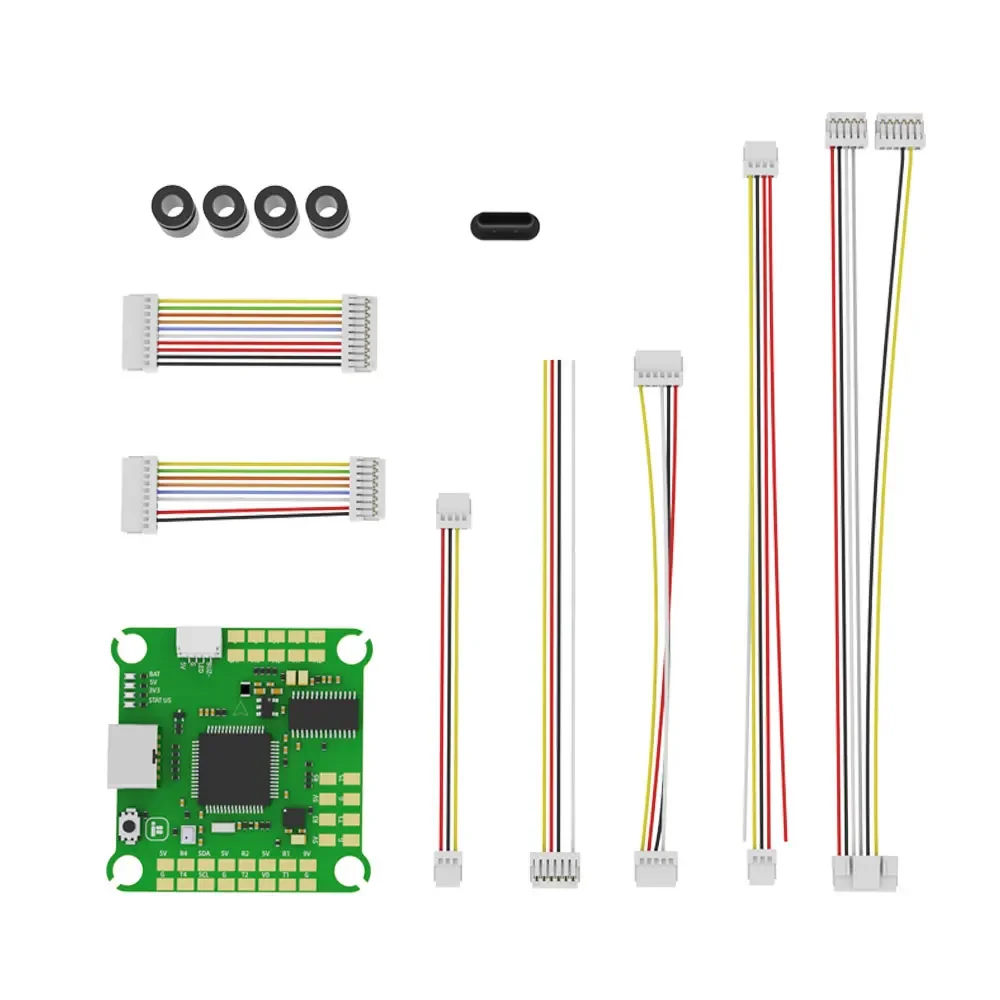

n1 x wire harness for F7 Flight controller
