Description

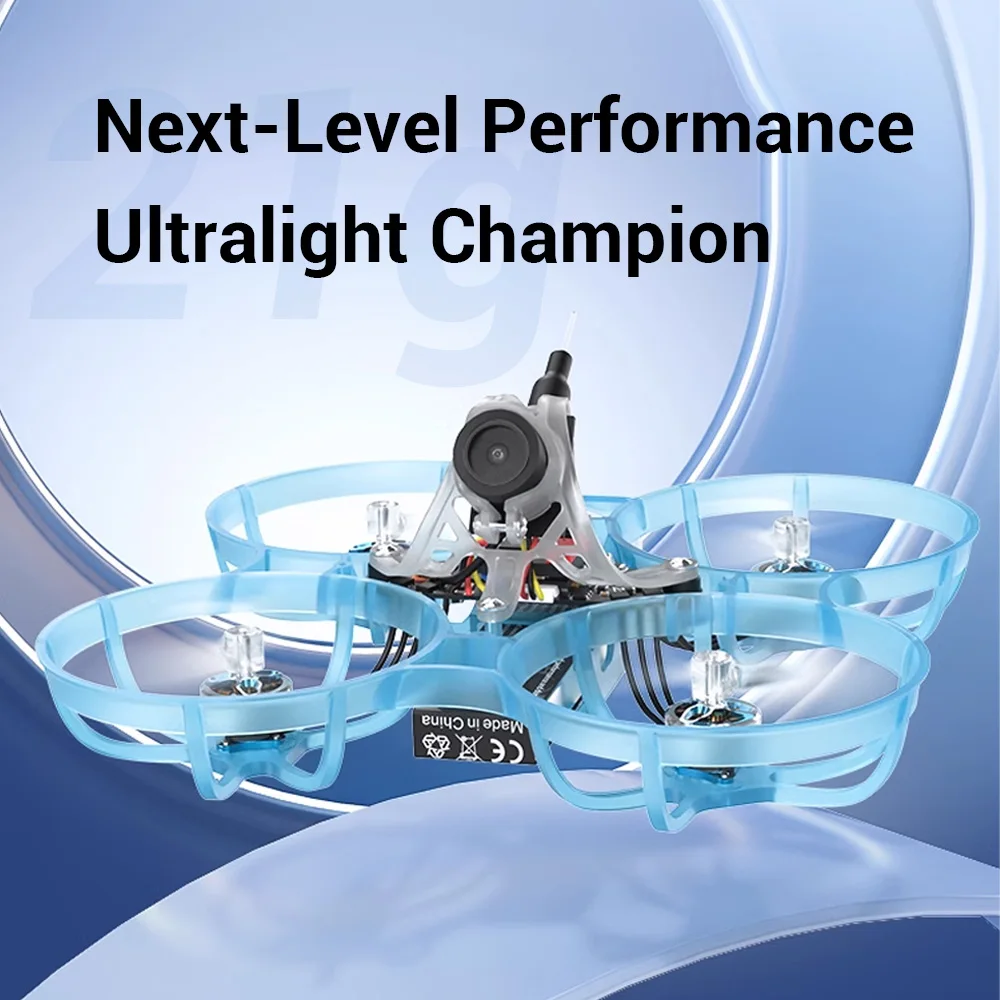

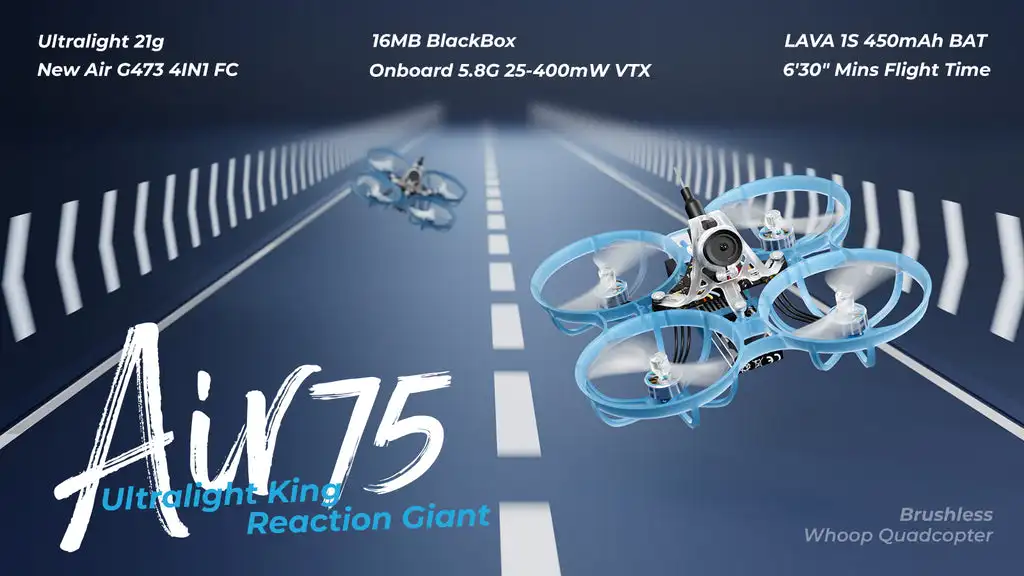

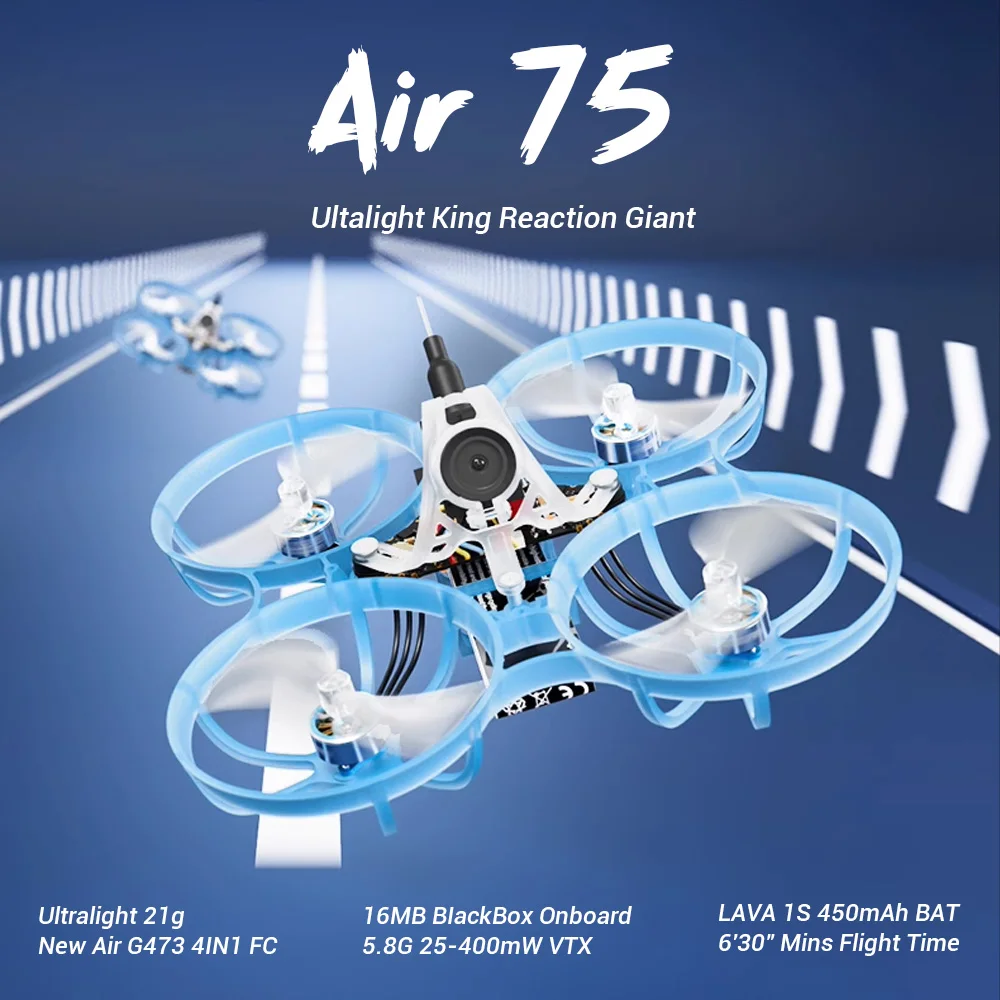

In this millisecond decision victory era, with galloping indulgence and challenging speed, seize your championship with Air75! Prepare for an explosive upgrade, now upgraded and more impressive than the Meteor Series. Weighing a mere lighter 21g yet boasts next-level performance. Equipped with Air Canopy, Air75 Frame, Air Brushless Flight Controller(4IN1), and the new optional LAVA 1S 450mAh 75C Batteryenhances the ultra-lightweight feature. It reigns as the Ultralight King and Reaction Giant!
nNote: BETAFPV is immensely grateful to this testing team including ”
nDon Johnson
n,
nTokyo_Dom
n, BLACKHORSE, wKich, Travis,
nCoitti FPV
n,
nTdog
n,
nAnthony Knight
n,
nIssac
n,
nAlbert
n,
nsub250g
n, Wk Breeze” for valuable ideas in the design of this Air75.
nBullet Point
nExperience a New Level of Lightweight flying with our 1S 75mm Indoor Whoop. Weighing in at just 21g, it offers an exhilarating and agile flying experience.
n
nAir Brushless Flight Controller(4IN1) is the first 1S FC that uses the G473 processor which has superior computing power and is equipped with ICM42688P gyroscope, This all-in-one solution seamlessly integrates FC, ESC, OSD, and Onboard 5.8G 25mw~400mw VTX. and even offers an optional ELRS receiver, weighing only 2.9g.
n
nFor a smooth and elegant free flight experience, the Air75 features the Gemfan 40mm 2-Blade Props and 0802SE | 23000KV Motor, allowing for timely responses and precise follow-up actions for incredible speed bursts and agile steering.
nDiscover the Air75, accompanied by the Z-Folding LAVA 1S 450mAh 75C Battery, enabling the ultimate lightweight flight experience. Take to the skies with unparalleled agility and weightlessness.
nExpress your unique style with various part options. From 75mm frames to canopies and propellers, offering pilots a diverse selection of captivating colors. Combine with BETAFPV waterslide decals to effortlessly infuse your whoop drones with a personalized.
nSpecification

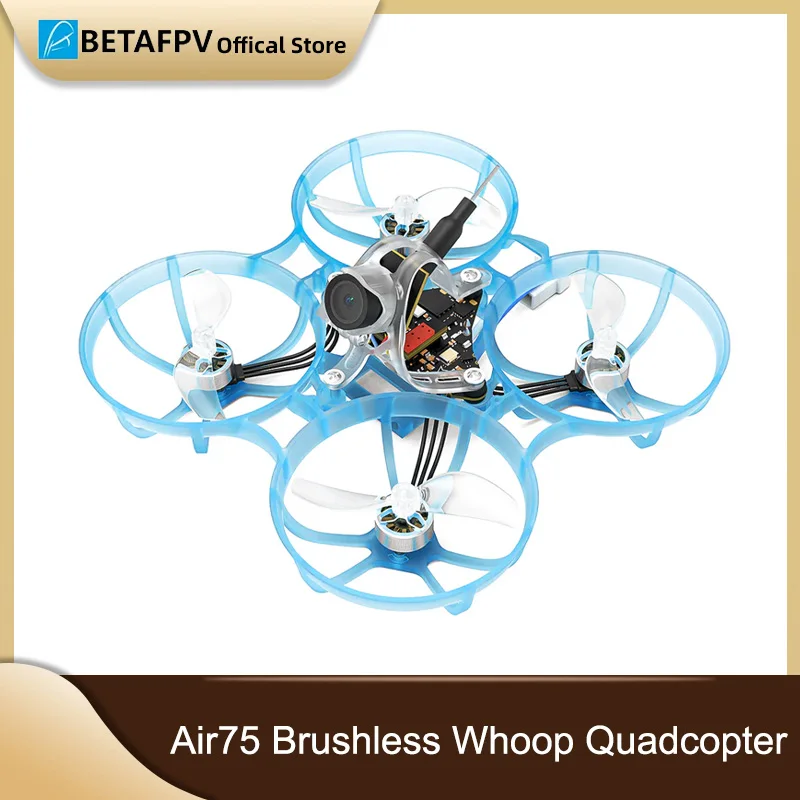

nItem: Air75 Brushless Whoop Quadcopter
nWeight: 21g
nWheelbase: 75mm
nFrame: Air75
nCanopy: Air Canopy
nFC & ESC: Air Brushless Flight Controller(4IN1 Version)
nVTX: Onboard 5.8G 25mw~400mw VTX
nCamera: C03 Camera
nMotor: 0802SE | 23000KV
nProps: Gemfan 40mm 2-Blade
nBattery Connector: BT2.0 U Cable Pigtail
nRecommend Battery: LAVA 1S 450mAh 75C
nFlight Time(4.35v-3.3v): 6.5min
nRX Version: External ELRS 2.4G Lite / TBS

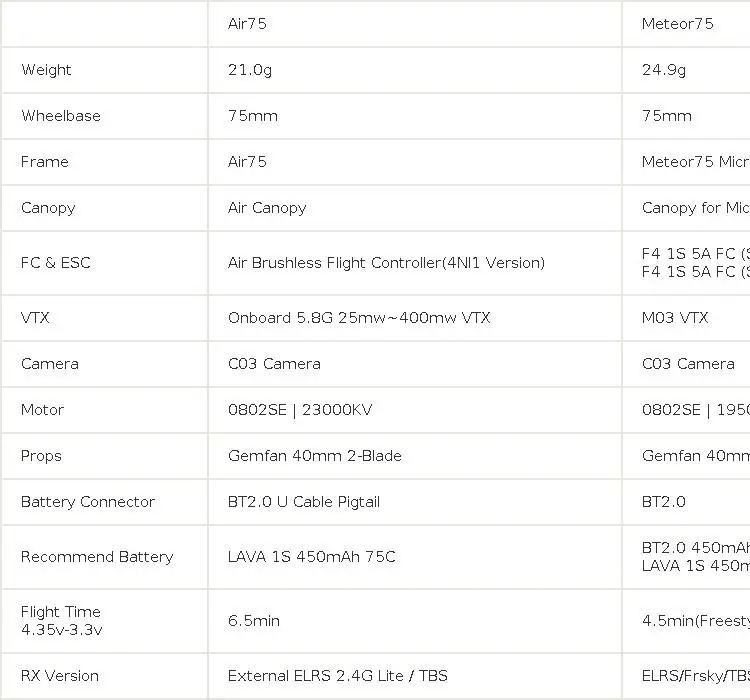

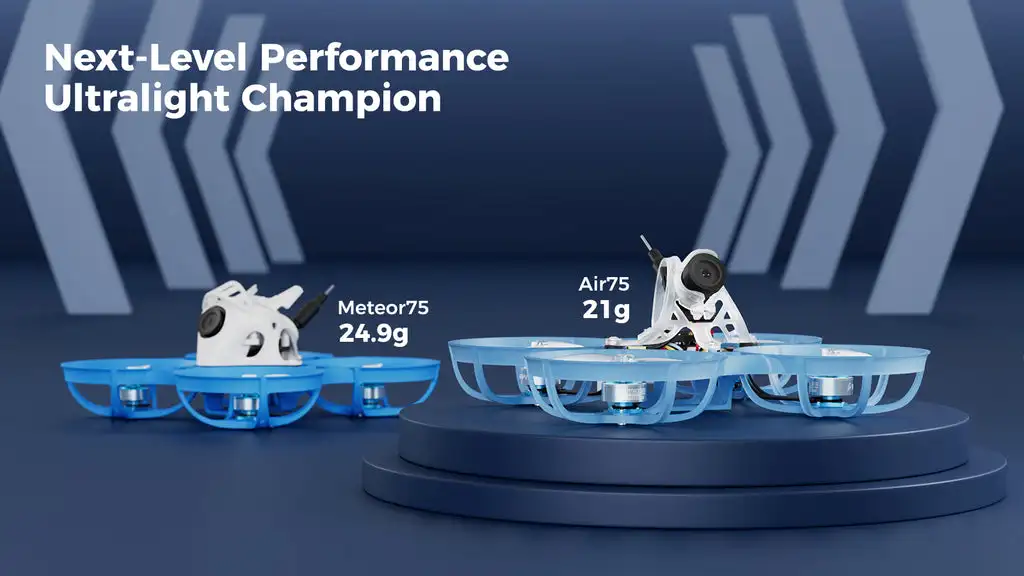

nComparison Air75 & Meteor75

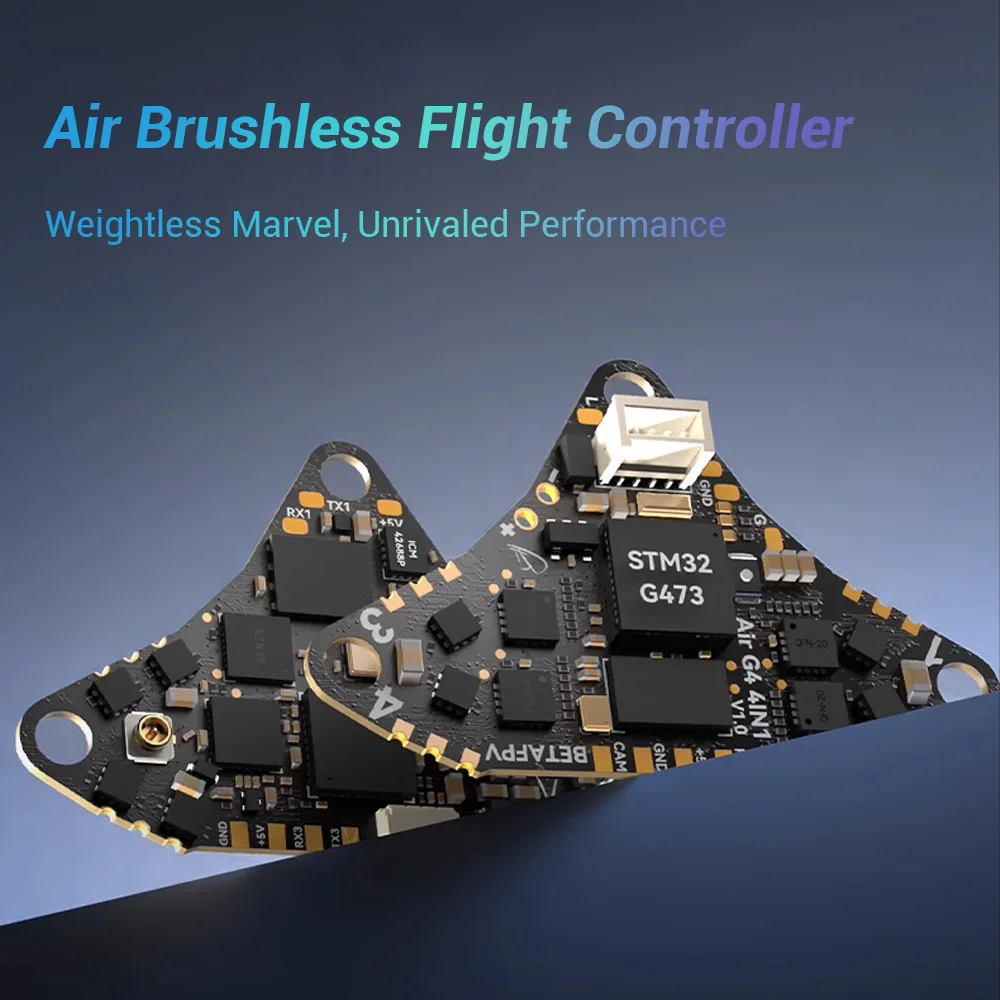

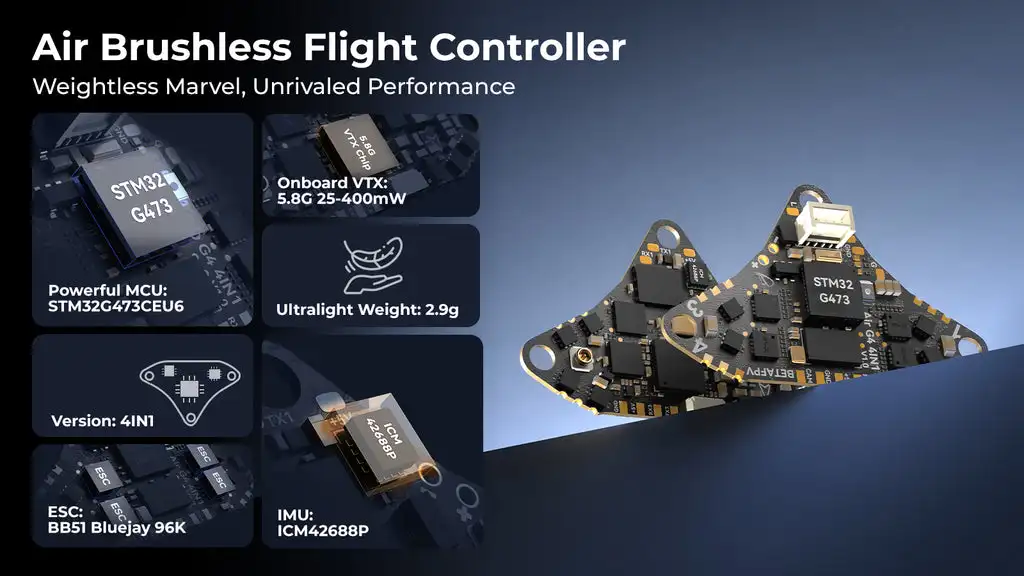

nFlight Controller & ESC
nThe first 1S FC that uses the G473 processor, Air Brushless Flight Controller(4IN1) with balanced performance and lightness, only 2.9g. Powered and Industry-leading ICM42688P gyroscope, powering superior computing power and lightning-fast response times for precise flight execution compared to the F411. With multiple UART port options, it supports various function expansions. This all-in-one solution seamlessly integrates FC, ESC, OSD, and VTX, and even offers an optional ELRS receiver. The micro-sized OSD chip is customed. Immerse yourself effortlessly in the racing and freestyle world of Finger-Tip control, where unparalleled precision and responsiveness of the Air75 await.

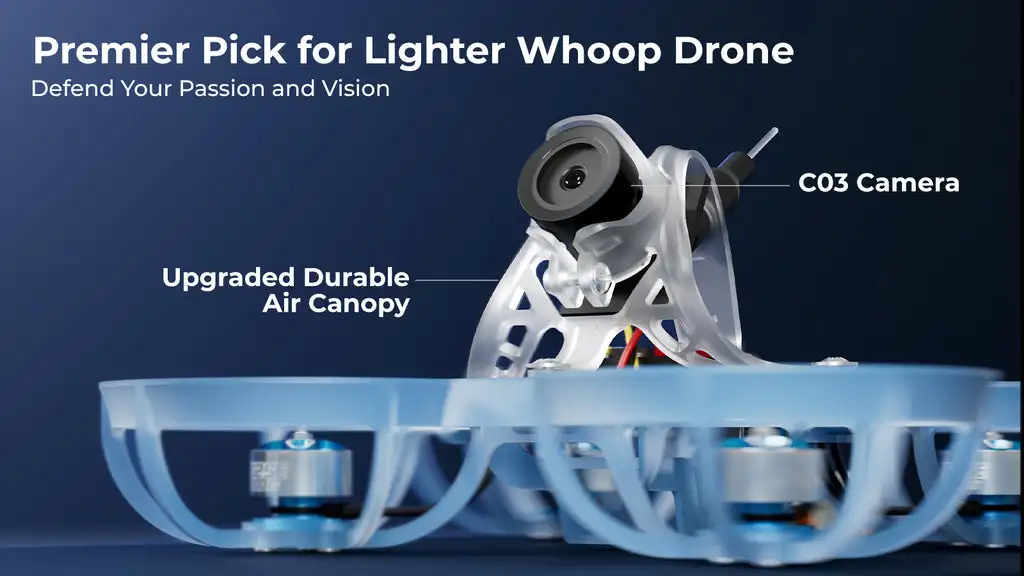

nUpgraded Air Canopy
nExperience high-quality, clear, and sharper images with the lightweight C03 FPV Micro Camera, weighing just 1.45g. We’ve redesigned the Air Canopy structure to be more flexible, impact-resistant, and durable. The improved bending effect enhances flexibility, reduces the chances of breakage, and greatly enhances explosion resistance for easier installation. Effortlessly accommodates an assortment of Micro and Nano Analog cameras. Supporting angle adjustment from 25° to 50°. With it, Air75 can chase the limit of racing victory worry less.

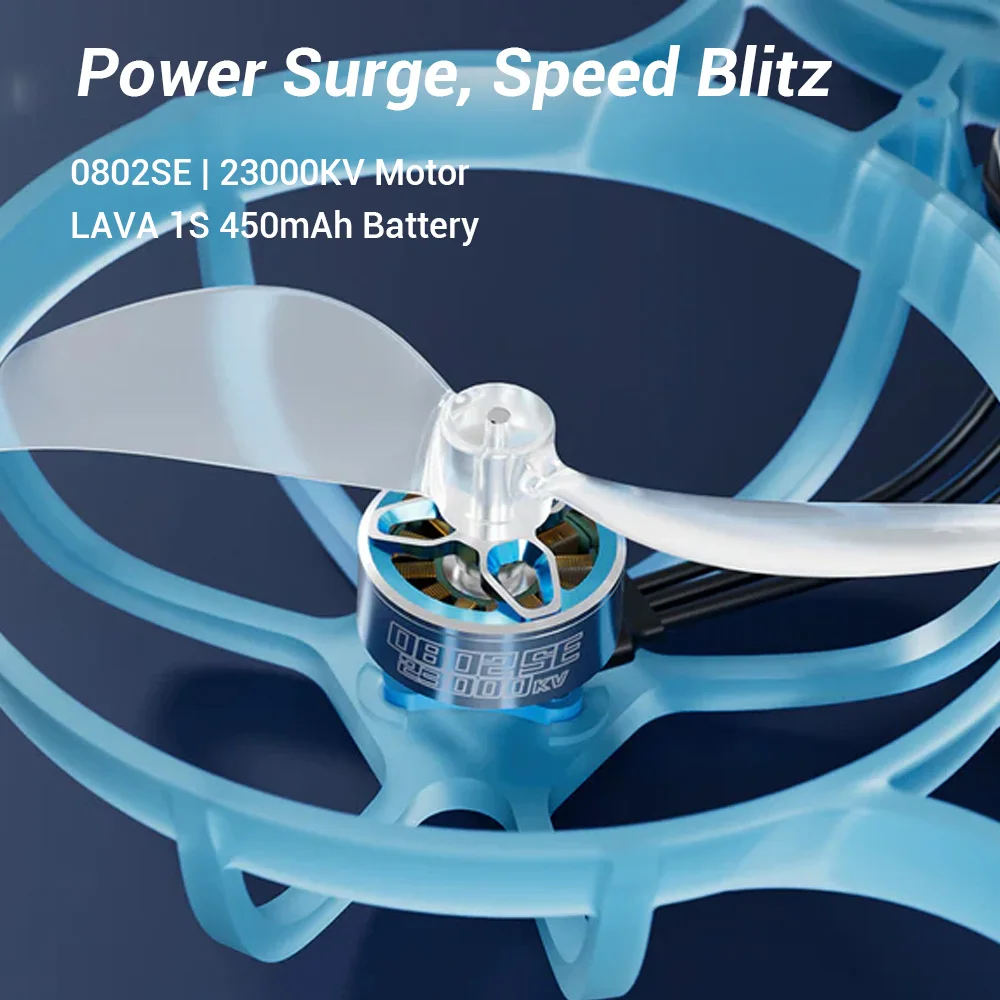

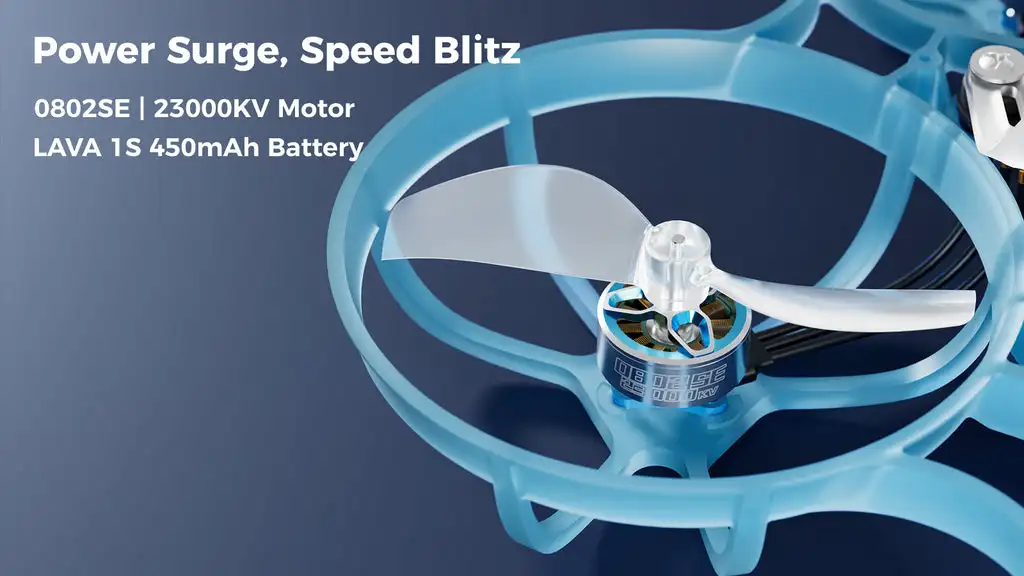

nPropulsion System
nFor a smooth and elegant free flight experience, the Air75 features the Gemfan 40mm 2-Blade Props, a larger pitch tip of the props, quick response, and crisp action, and0802SE | 23000KV Motor, allowing for timely responses and precise follow-up actions for incredible speed bursts and agile steering. Equipped with the ultralight LAVA 1S 450mAh 75C Battery that features the groundbreaking Z-Folding Process for the Air75 more concentrated center gravity, crisper response, greater acceleration, and enhanced maneuverability.

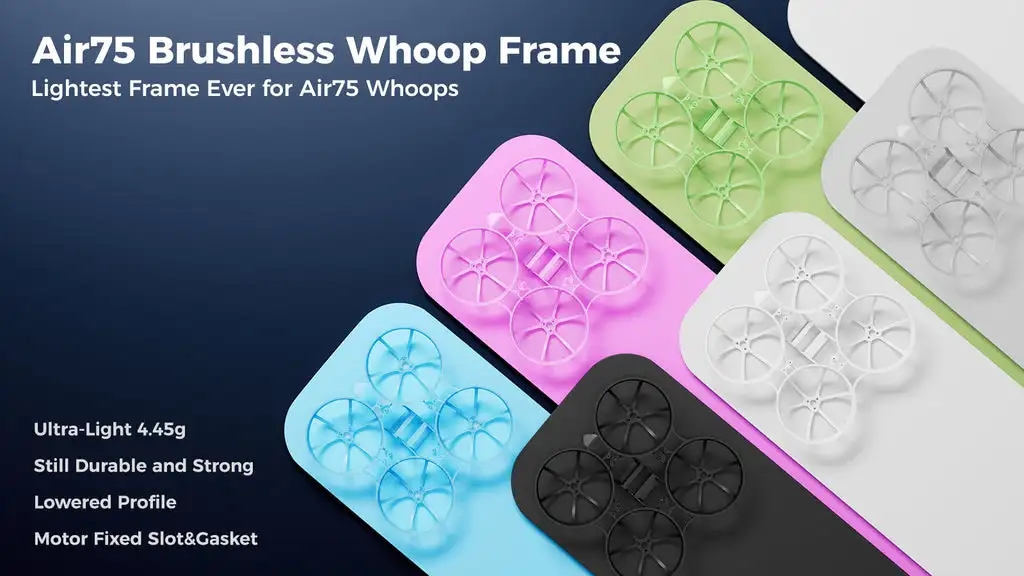

nAir75 Frame
nTo enhance the flying experience, DIY enthusiasts have diligently worked on reducing the weight of the 75mm whoop drones, especially frames for an ultra-light structure. We upgraded the Meteor75 Micro Frame to the Air75 Frame, which achieves a remarkable weight lighter from 5.68g to 4.45g. It maintains exceptional strength and durability while introducing a new motor fixed slot, and optimizing a low-profile design. Having 8 color choices, it indisputably emerges as the top topgallant choice for pilots seeking an unparalleled ultra-light Sub20g 75mm 1S Whoop drone and personality.
nRecommended Parts
nRadio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
nGoggles: VR03 FPV Goggles, VR02 FPV Goggles
nFC: Air Brushless Flight Controller(4IN1)
nReceiver: ELRS Lite Receiver, ELRS Nano Receiver
nBattery: LAVA 1S 450mAh 75C Battery
nProps: Gemfan 40mm 2-Blade Props
nColorful Frame: Air75 Brushless Whoop Frame
nColorful Canopy: Air Canopy
nScrews: Meteor Series Motor Fixing Screws Pack (40PCS)
nSticker: BETAFPV Waterslide Decals

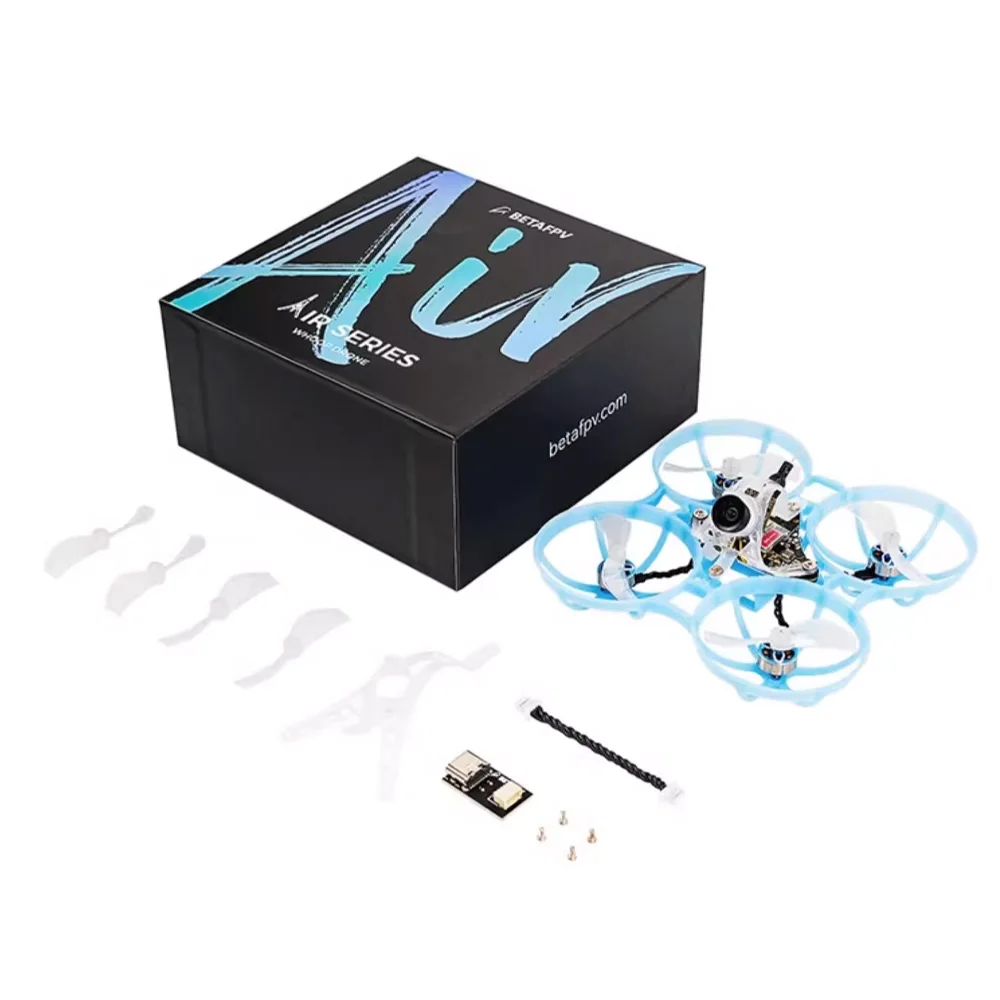

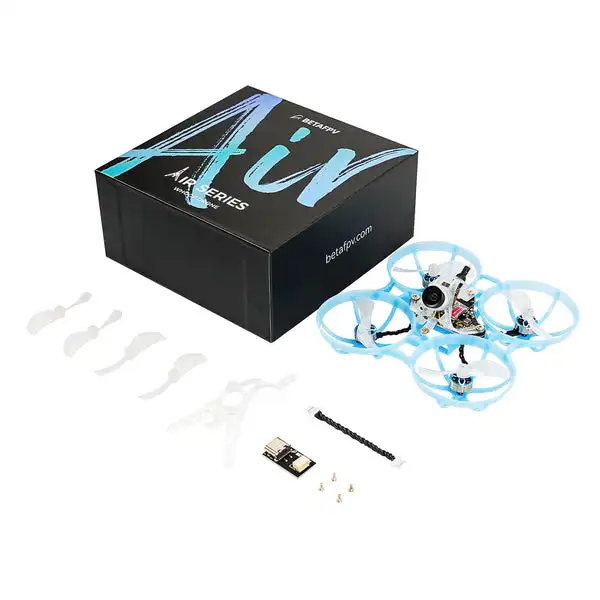

nPackage
n1 * Air75 Brushless Whoop Quadcopter
n1 * Air Canopy
n4 * Gemfan 40mm 2-Blade Propellers
n1 * Pack of Screws
n1 * 4Pin Adapter Cable
n1 * USB Type-C Adapter Board
n
n
