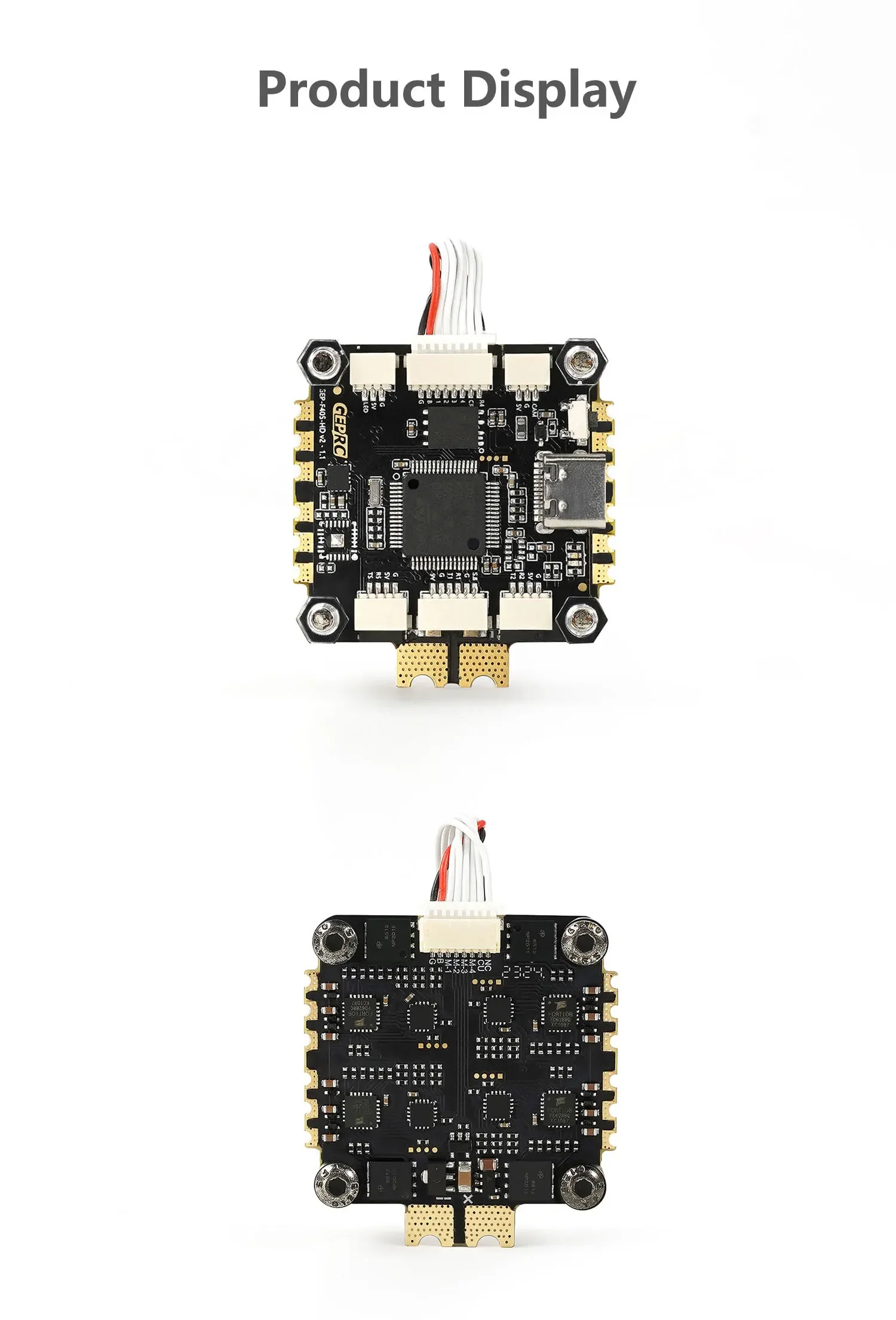

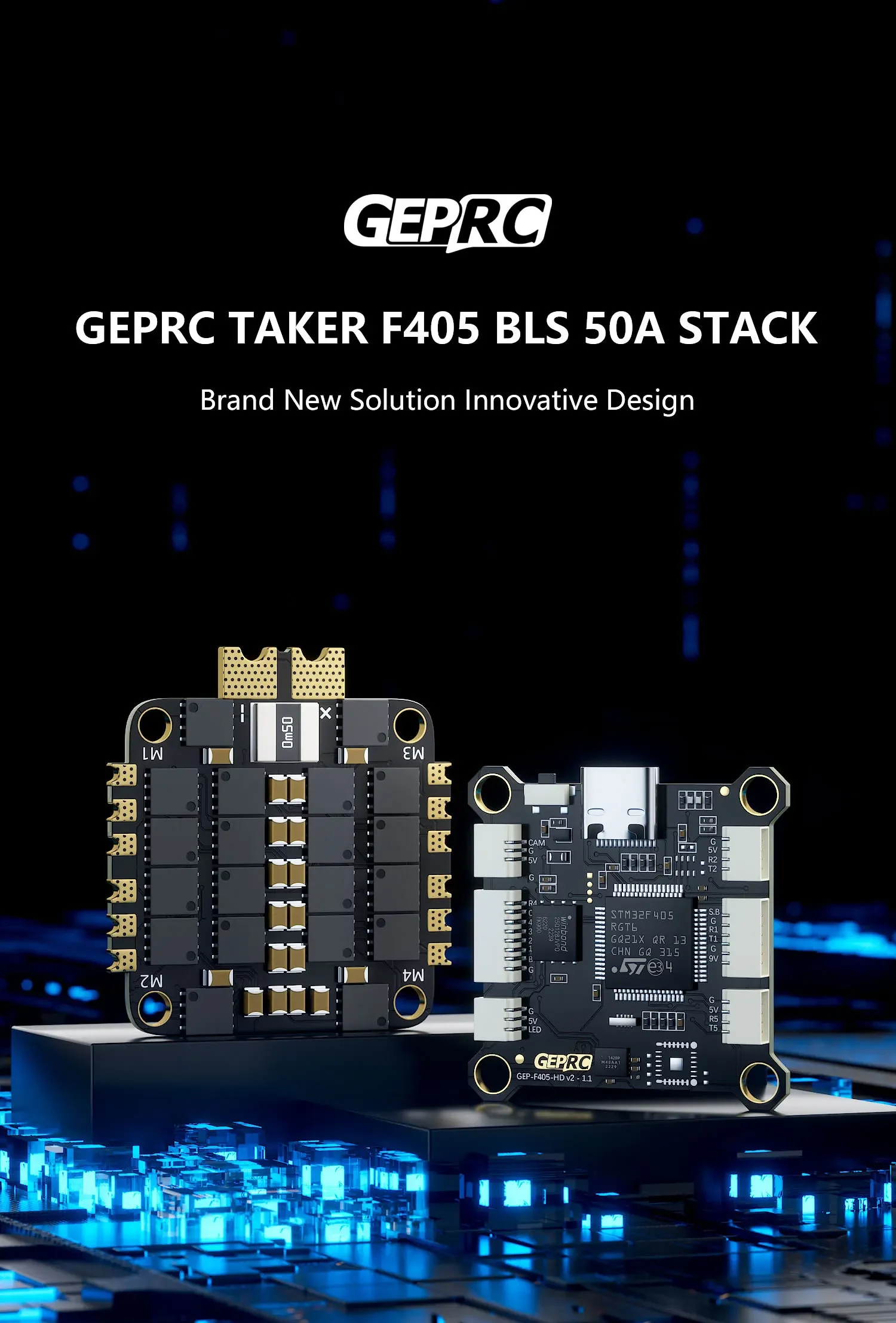

GEPRC TAKER F405 BLS 50A Stack – 30X30mm

Description

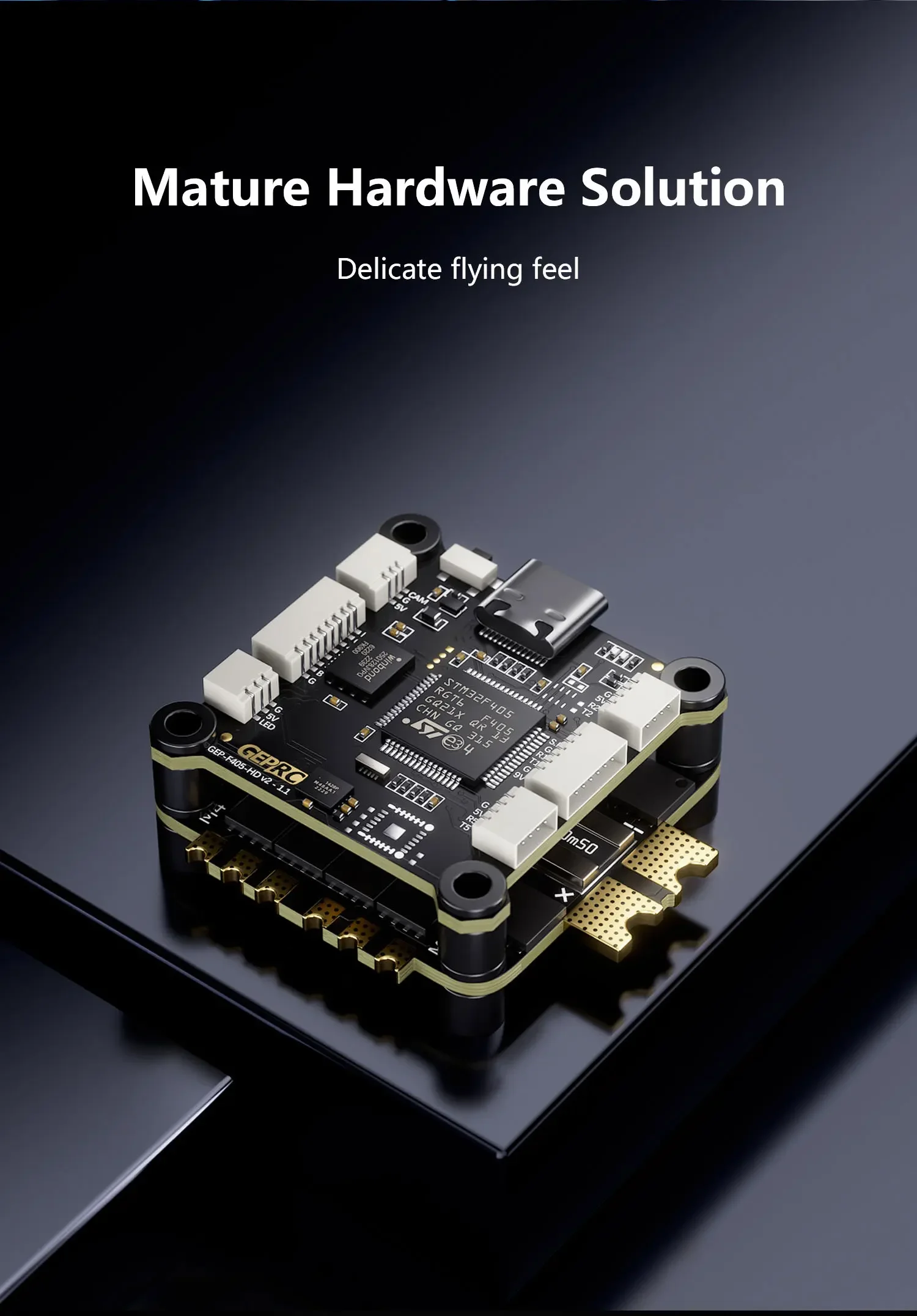

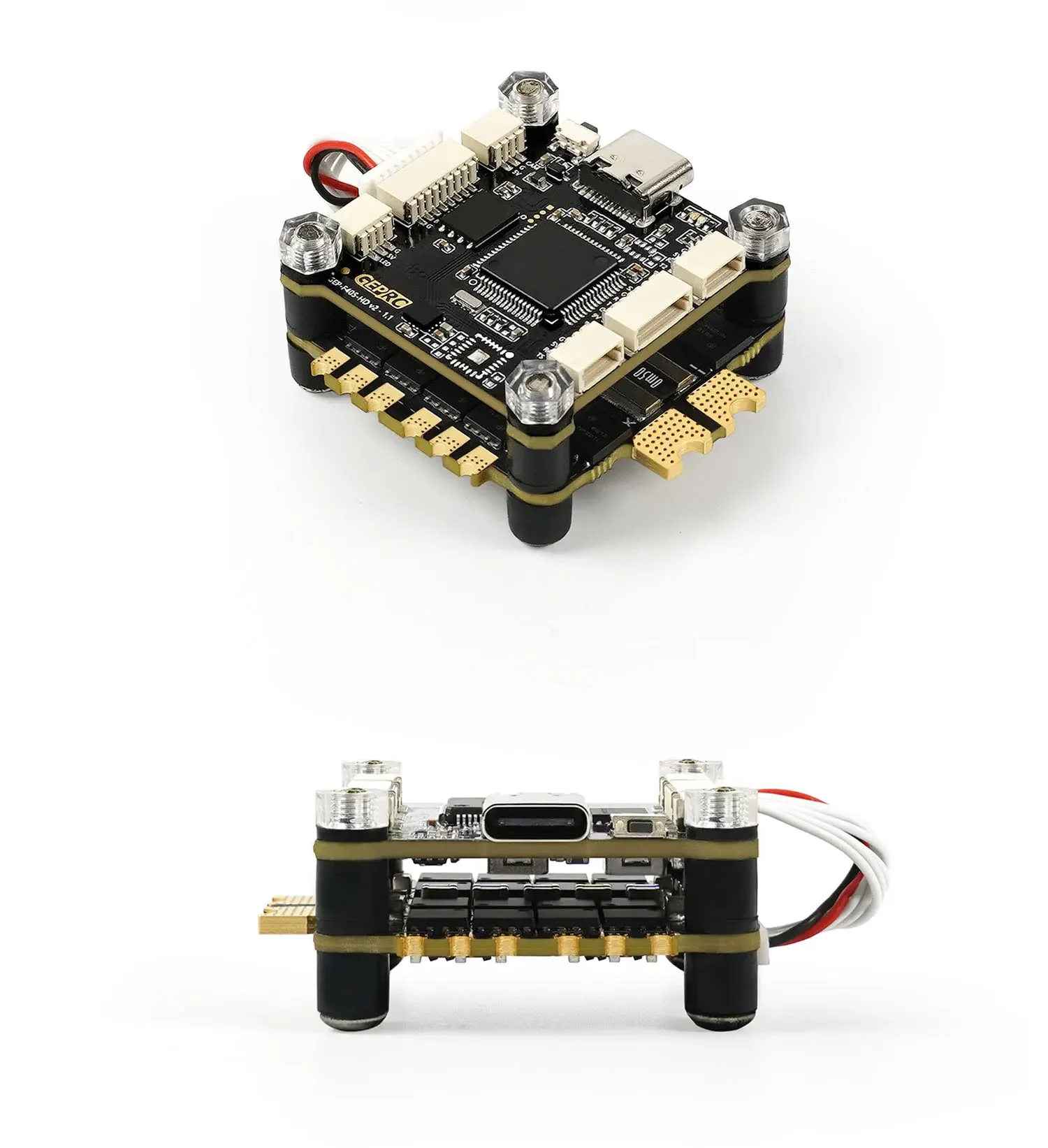

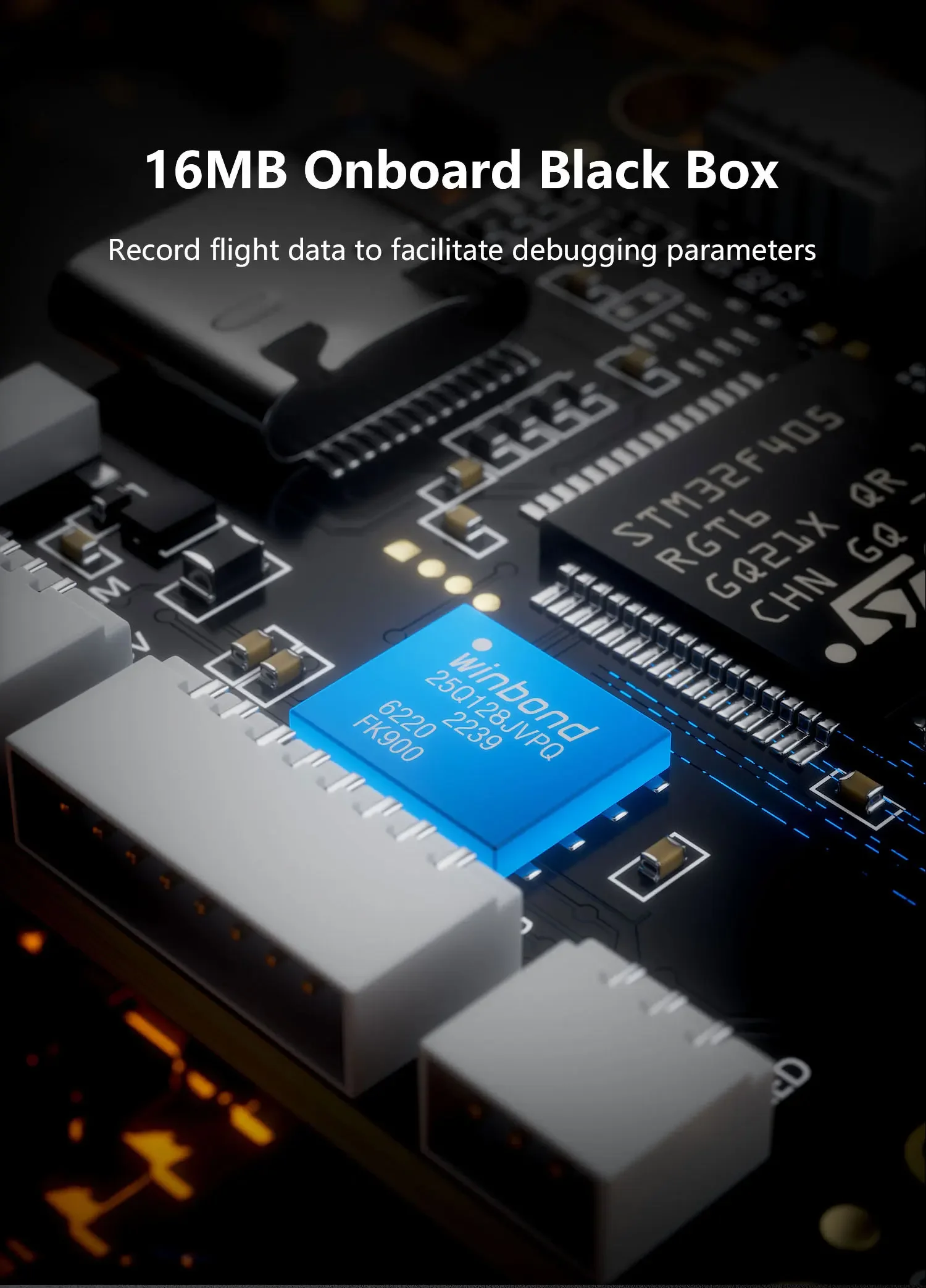

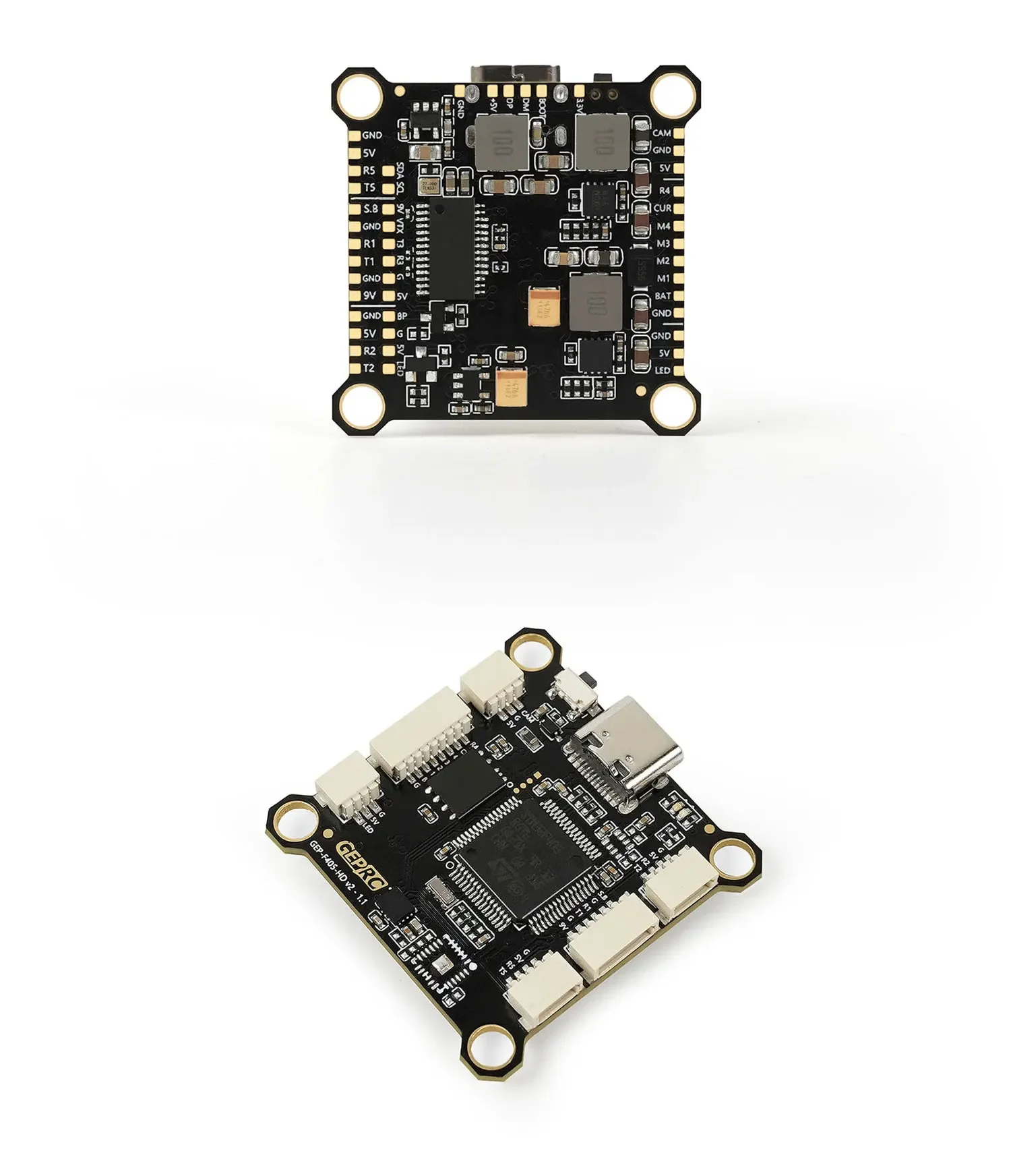

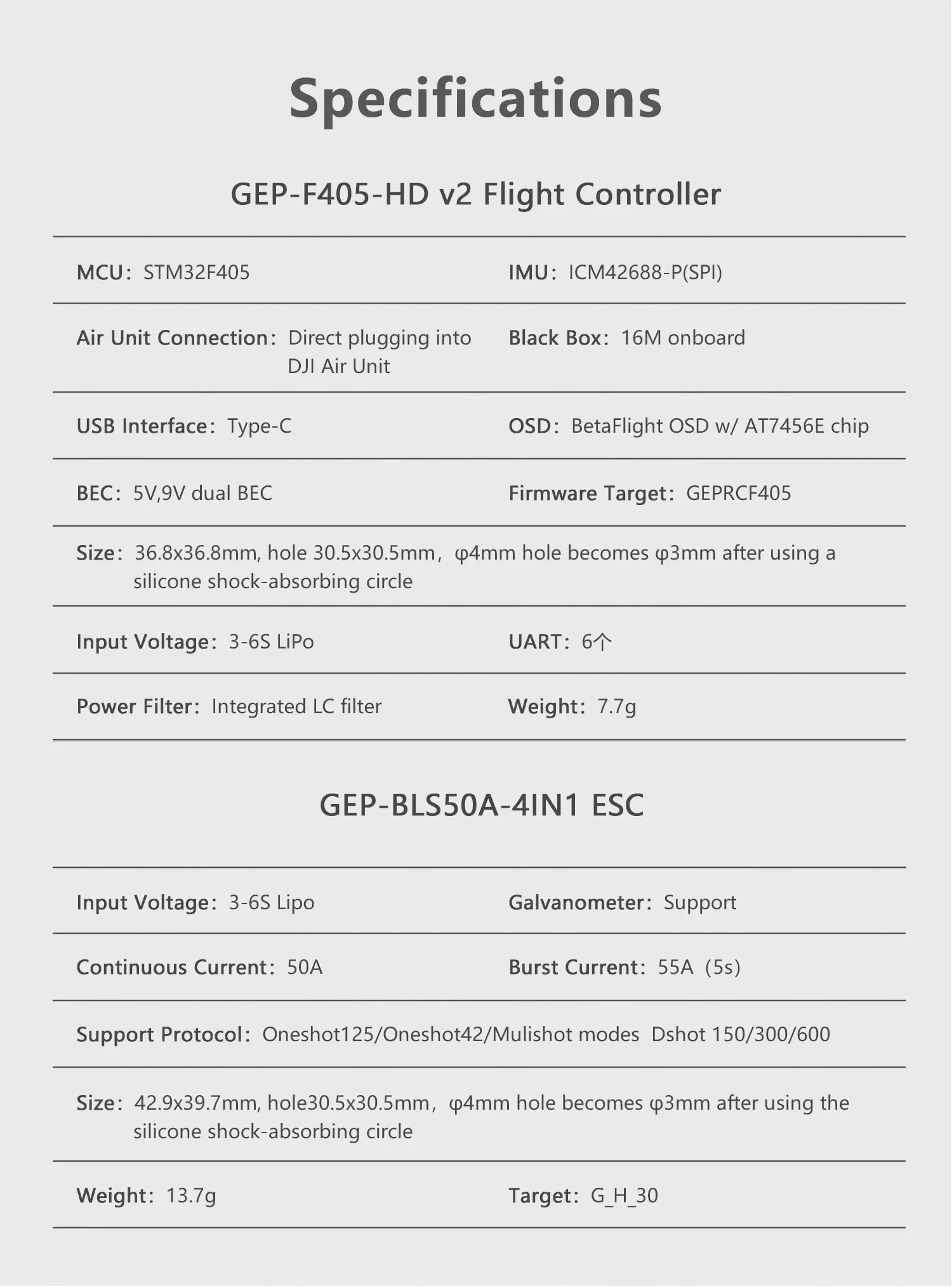

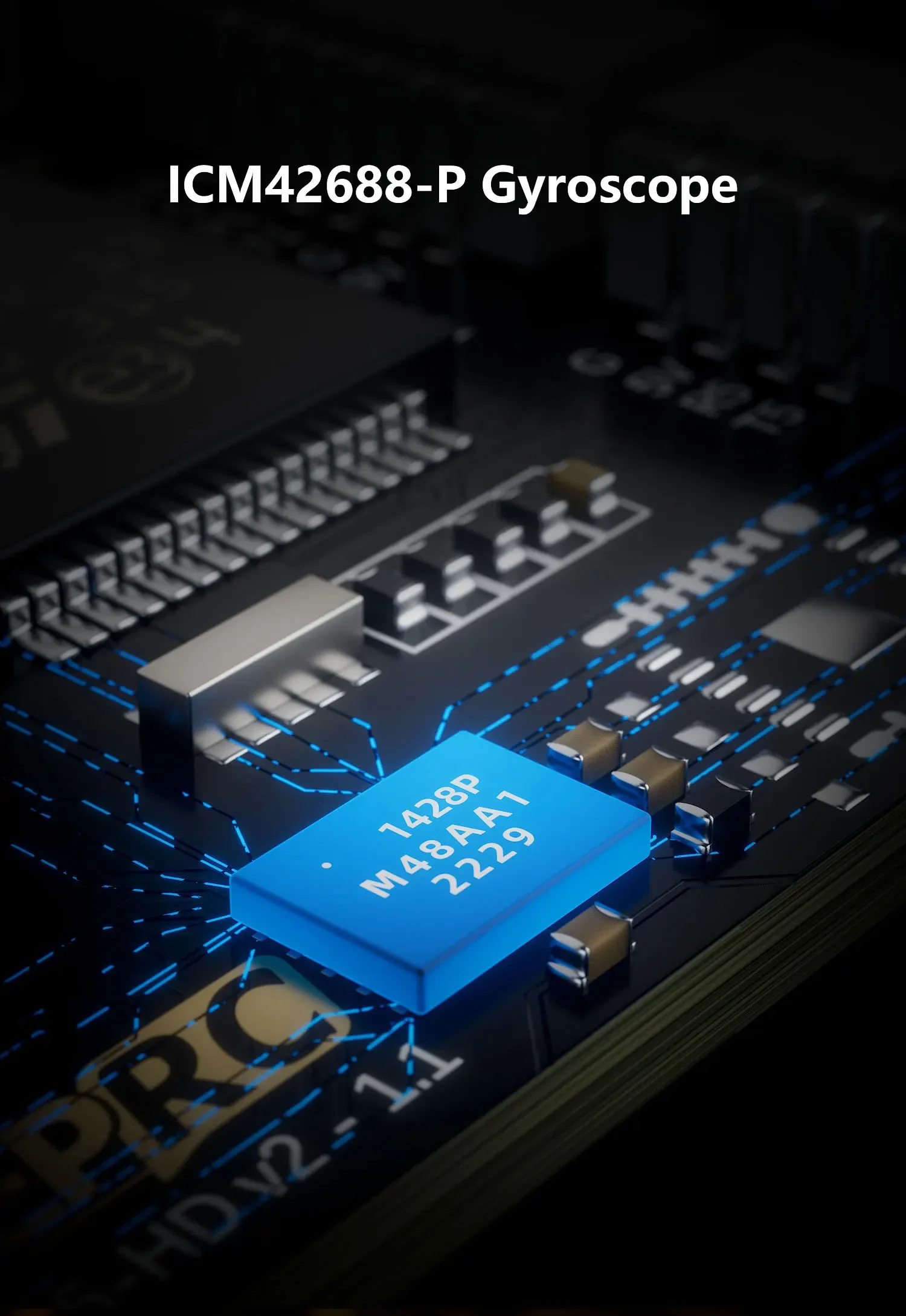

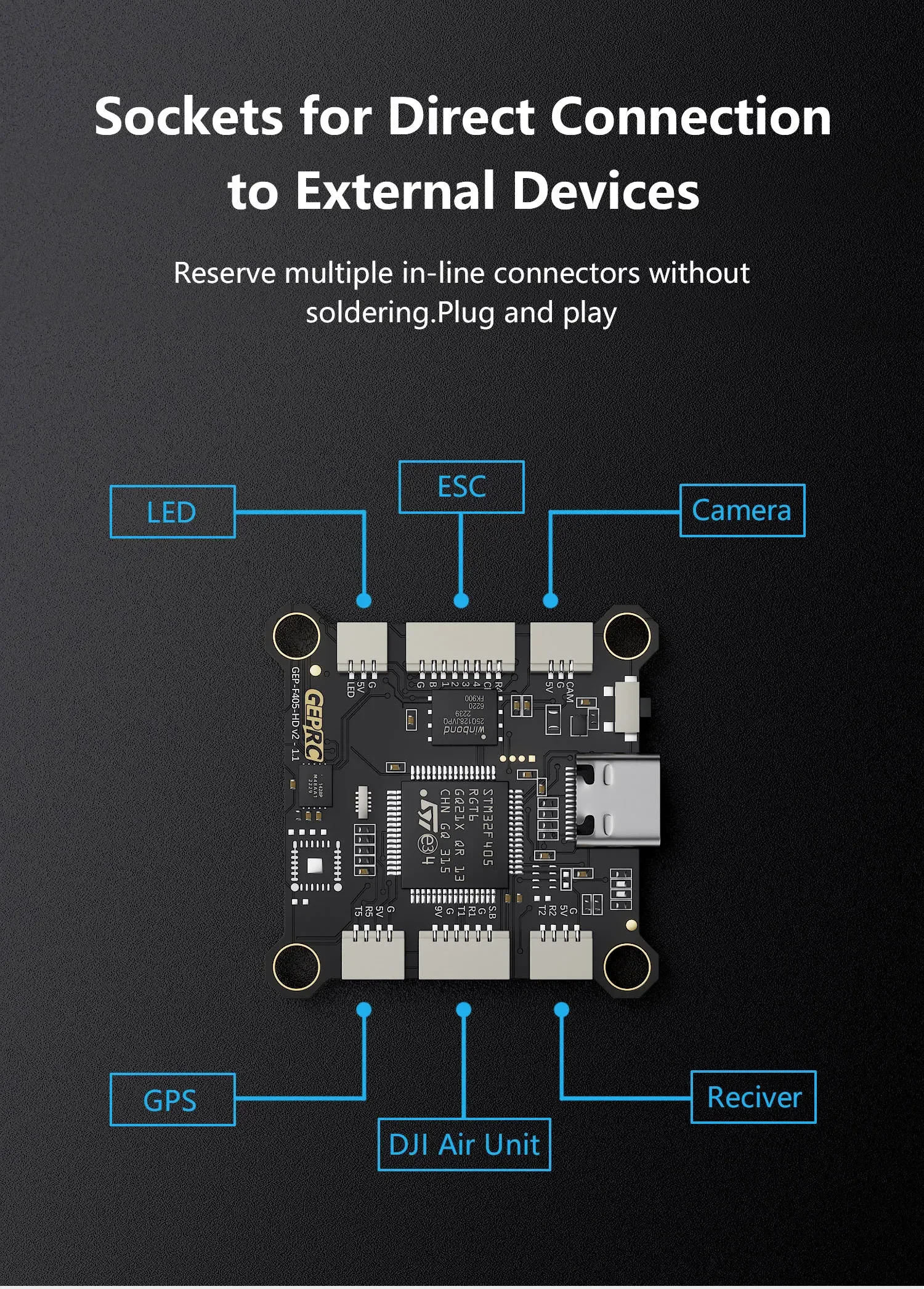

SummarynGEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for DJI Air Unit. Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.nThe GEPRC TAKER F405 BLS 50A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.nFeaturesnUse mainstream STM32F405 chipnEquipped with the latest 42688-P gyroscopen16M black box storagenIntegrated LC filternUpgrade type-C USB interfacenDirectly plugged into the DJI Air UnitnWith GEP-BLS50A-4IN1 ESC, the flying feel is silkynSimple and reasonable installation method, the shock absorber can make the gyroscope work very stablyn9V 2.5A + 5V 3A dual independent BECnSpecificationsnGEP-F405-HD v2 Flight ControllernMCU: STM32F405nIMU: ICM42688-P(SPI)nAir Unit Connection: Direct plugging into DJI Air UnitnBlack Box: 16M onboardnUSB Connector: Type-CnOSD: BetaFlight OSD w/ AT7456E chipnBEC: 5V,9V dual BECnFirmware Target: GEPRCF405nSize: 36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.nInput Voltage: 3-6S LiPonUART: 6nPower Filter: Integrated LC filternWeight: 7.7gnGEP-BLS50A-4IN1 ESCnInput Voltage: 3-6S LiponGalvanometer: SupportnContinuous Current: 50AnBurst Current: 55A（5s）nSupport Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600nSize: 42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.nWeight:13.7gnTarget: G_H_30nIncludesn1 x Flight Controllern1 x ESCn1 x Capacitorn1 x DJI Air Unit Adapter Cablen1 x Flight Controller Adapter Cablen1 x XT60 Power cablen4 x M3*30 Screwsn4 x M3*24 Screwsn8 x Nylon nutsn8 x Silicone grommetsn2 x sh1.0 4pinsilicone cablen1 x Camera connection cable
