Description

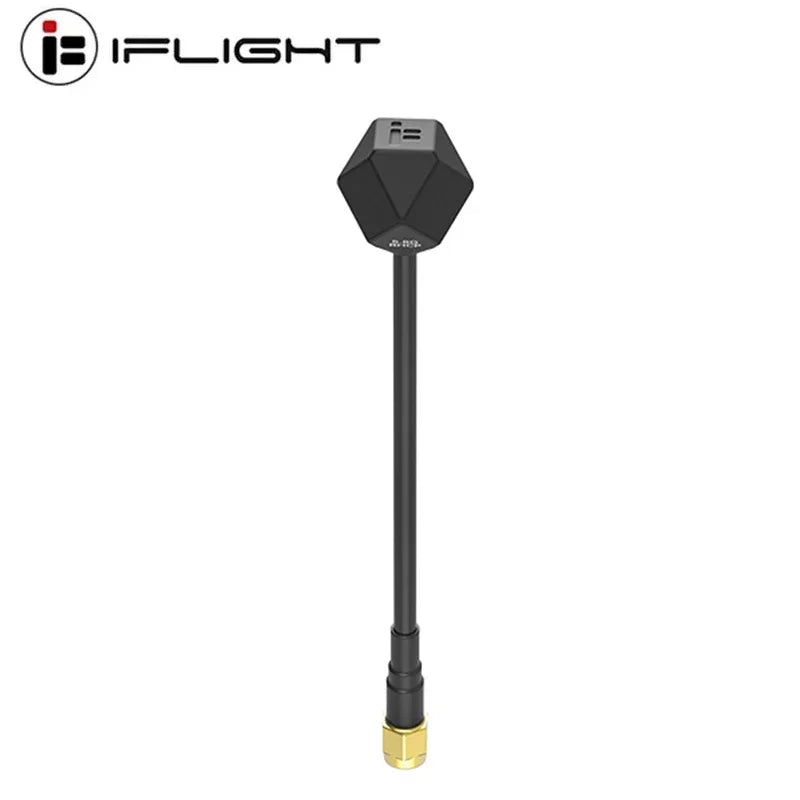

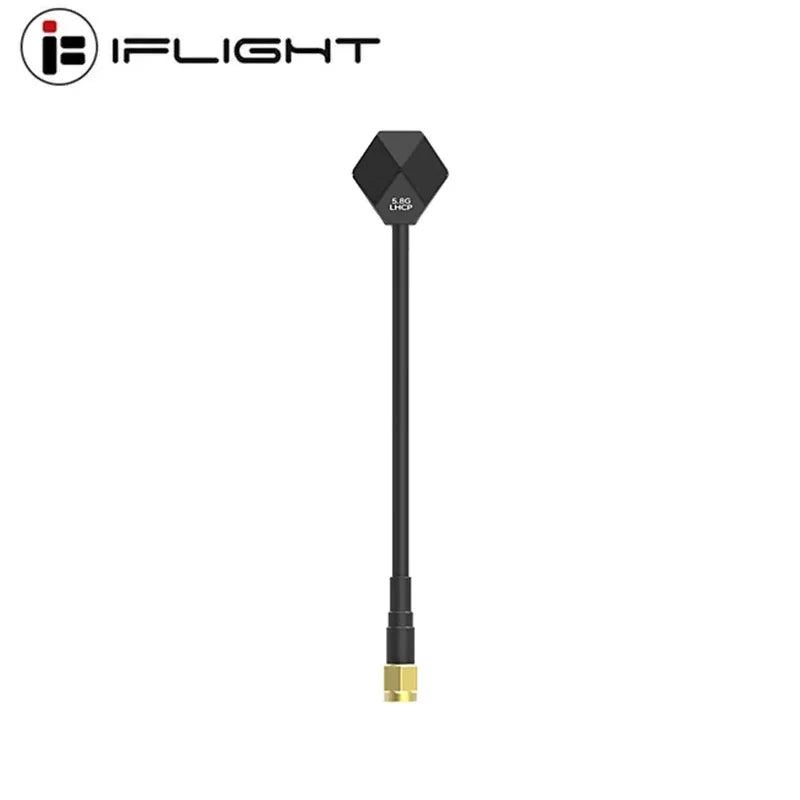

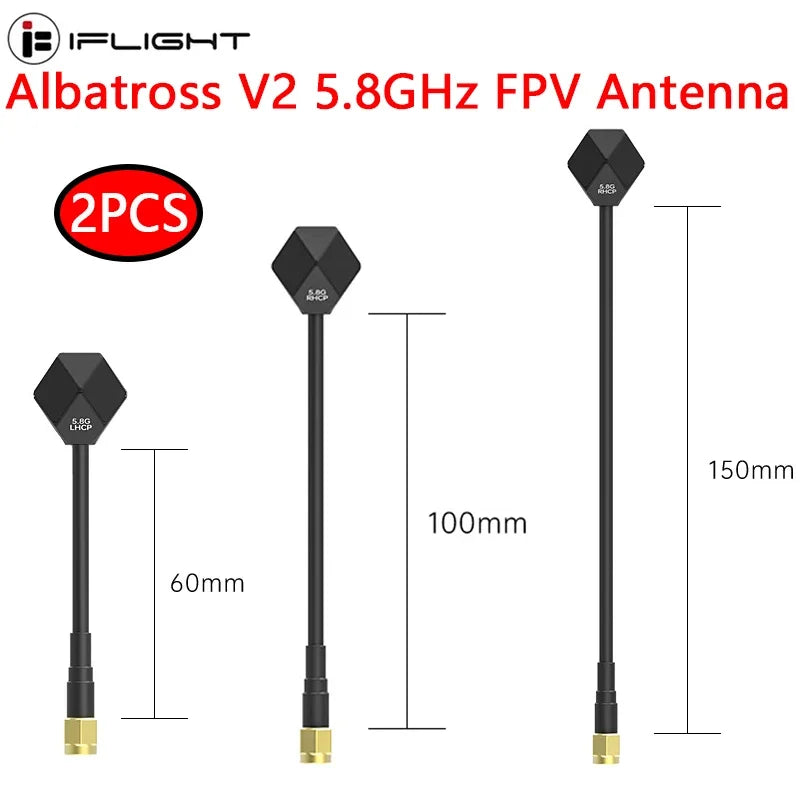

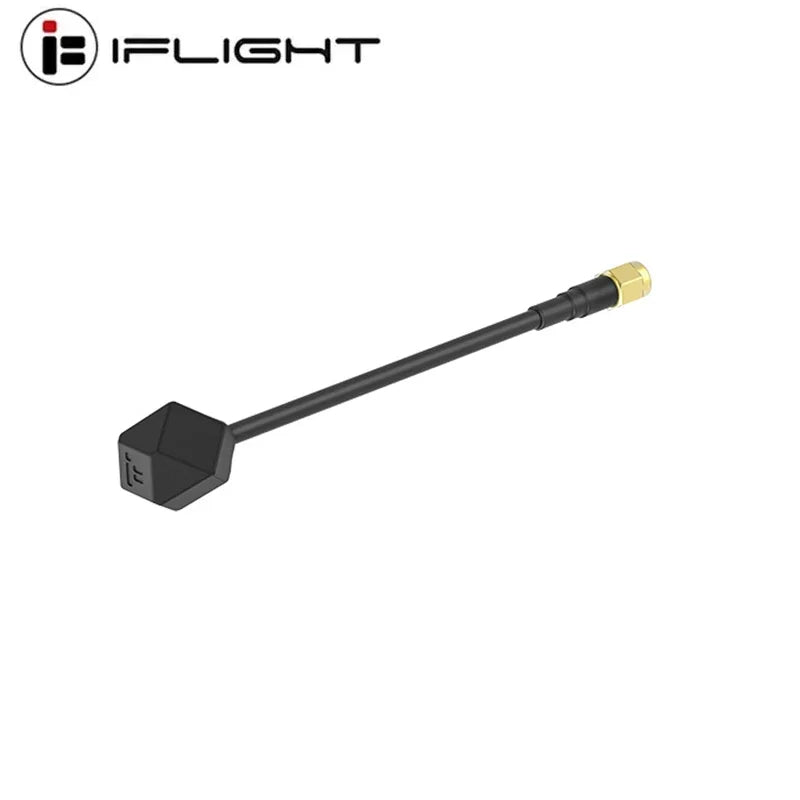

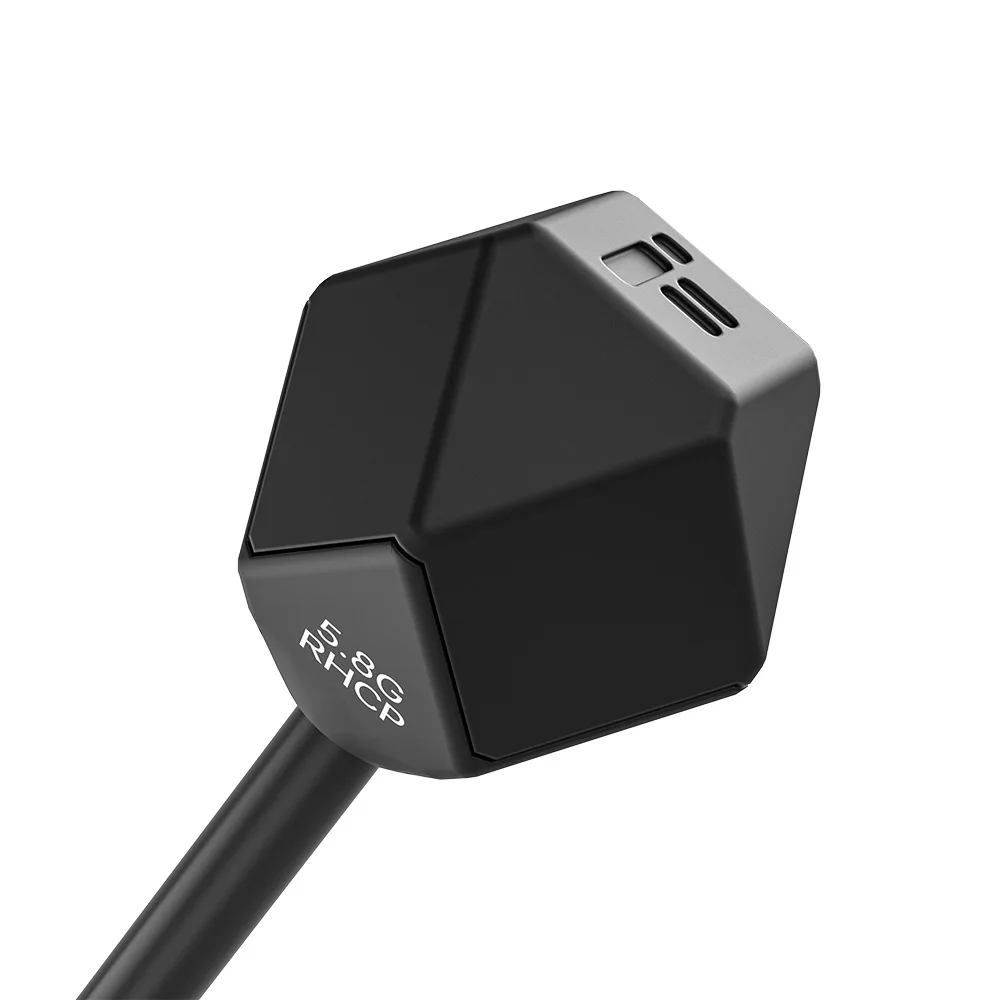

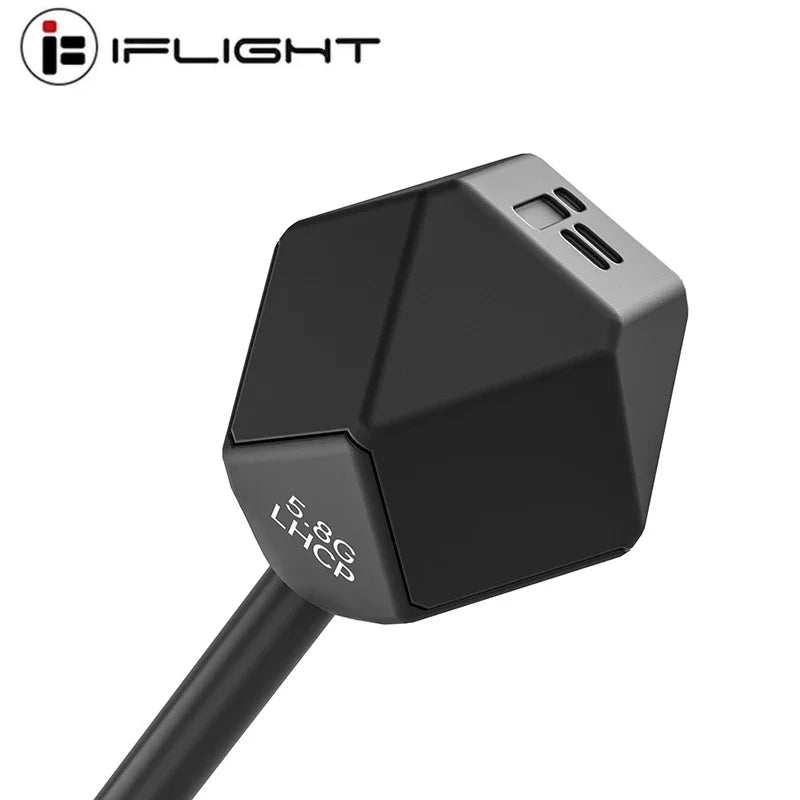

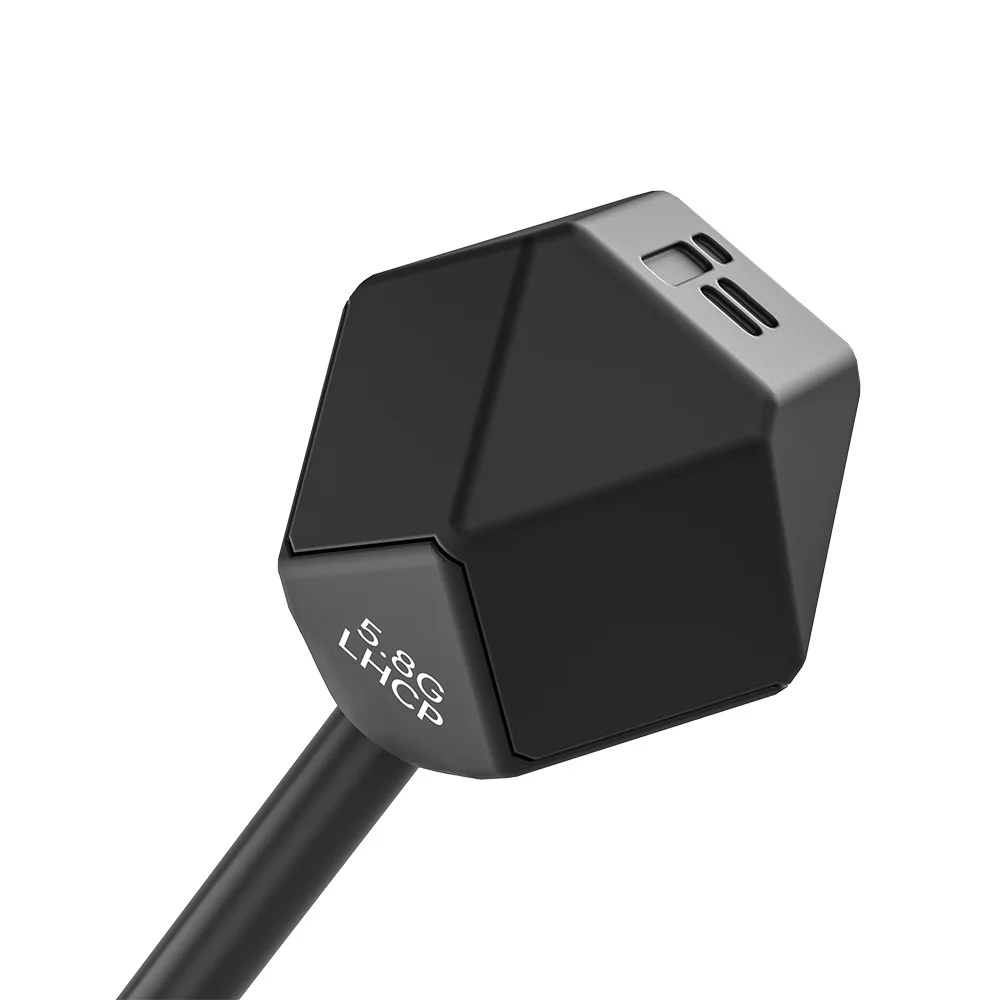

2PCS iFlight Albatross V2 5.8GHz LHCP RPSMA RHCP SMA FPV Antenna 100mm for FPV RC Drone Parts

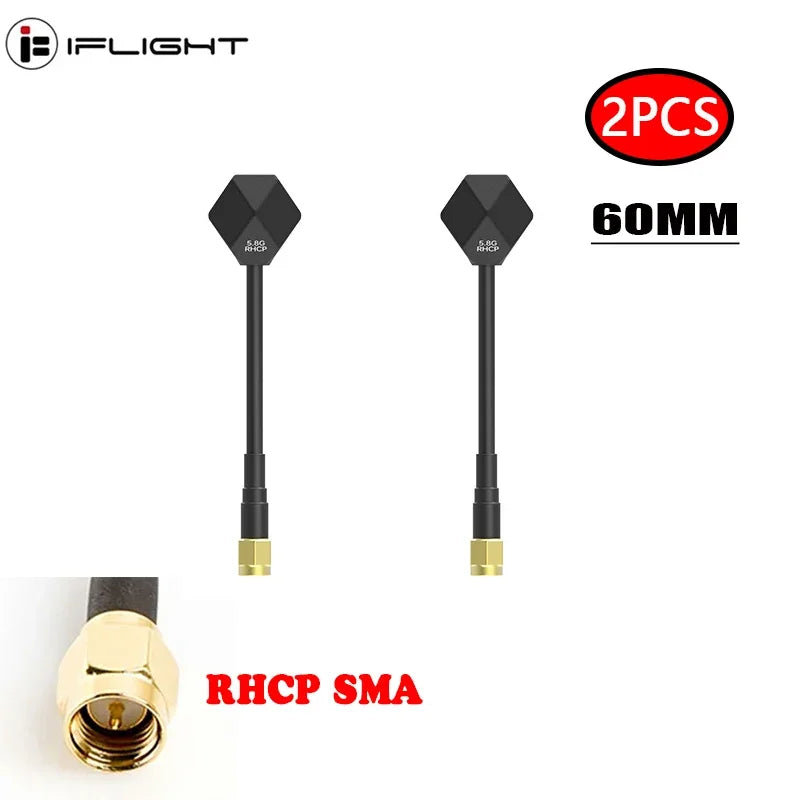

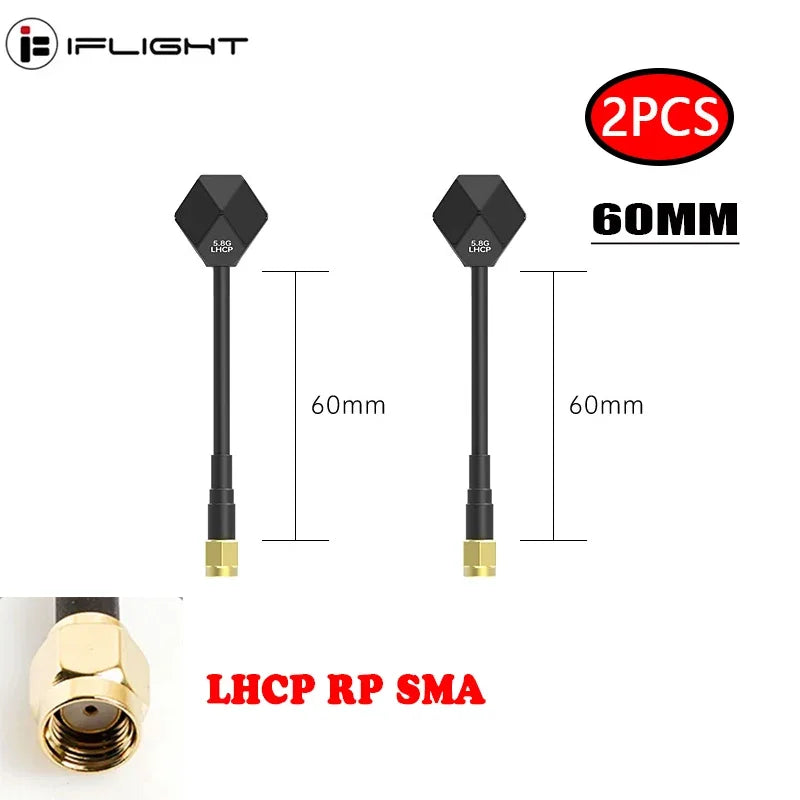

Specifications :60MM
Frequency:5.3GHz-6GHz
MAX Gain:2.65dbi(5695MHz)
MIN Gain:2.06dbi(5362MHz)
AVG Gain:2.4dbi
MAX VSWR:1.75(5917MHz)
MIN VSWR:1.46(5621MHz)
AVG VSWR:1.75
MAX radiation efficiency:86%(5436MHz)
MIN adiation efficiency:76%(5917MHz)
AVG adiation efficiency:83%
Polarization:LHCP/RHCP
Cross polarization suppression:-25dB
Axial Ratio:≤ 3
Cable:RG141
Weight:7g
Size:Line length60mm/total length83mm
Connector:RPSMA /SMA

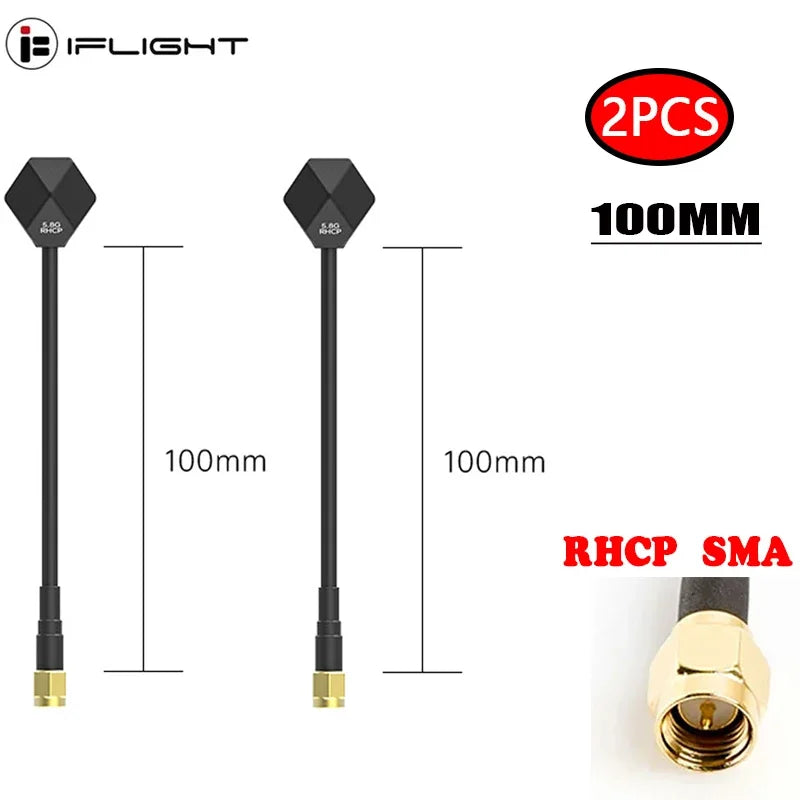

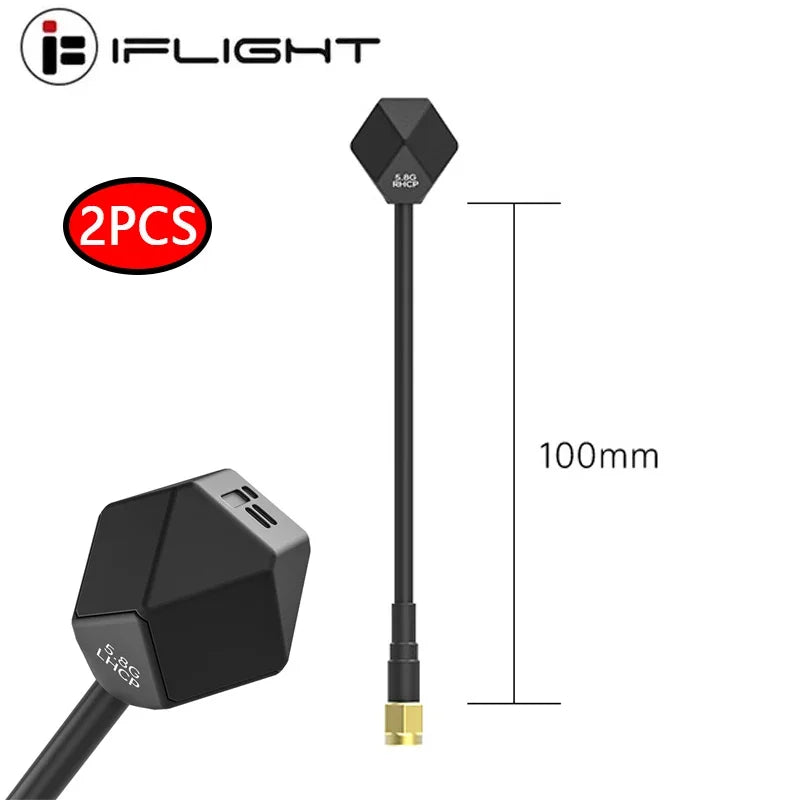

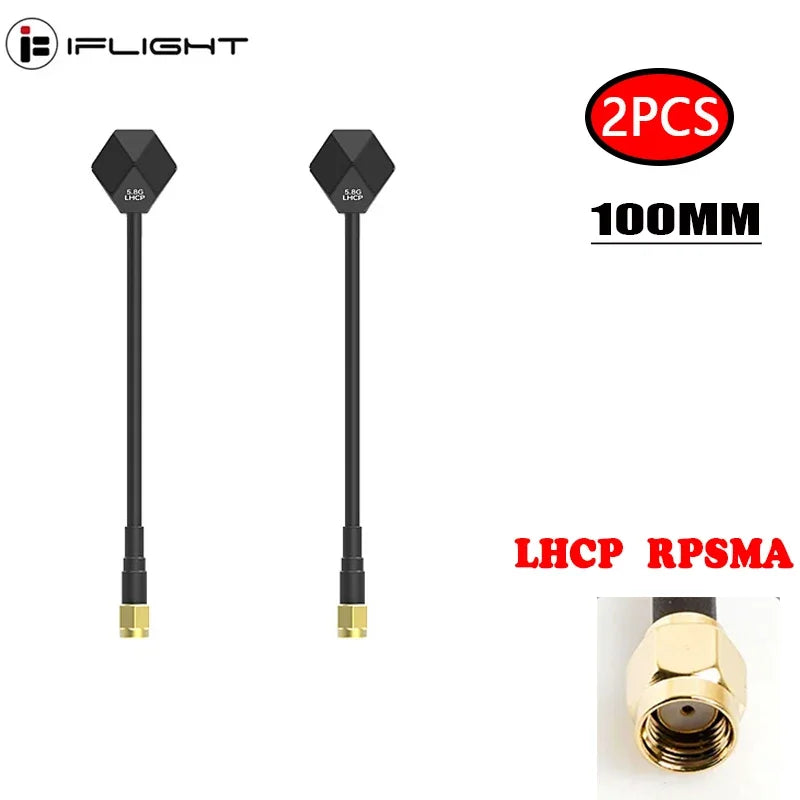

Specifications :100MM
Frequency:5.3GHz-6GHz
MAX Gain:2.65dbi(5695MHz)
MIN Gain:2.06dbi(5362MHz)
AVG Gain:2.4dbi
MAX VSWR:1.76(5917MHz)
MIN VSWR:1.46(5621MHz)
AVG VSWR:1.75
MAX radiation efficiency:86%(5436MHz)
MIN adiation efficiency:76%(5917MHz)
AVG adiation efficiency:83%
Polarization:LHCP/RHCP
Cross polarization suppression:-25dB
Axial Ratio:≤ 3
Cable:RG141
Weight:9.5g
Size:line length 100mm/Total length 125mm
Connector:SMA RP/SMA

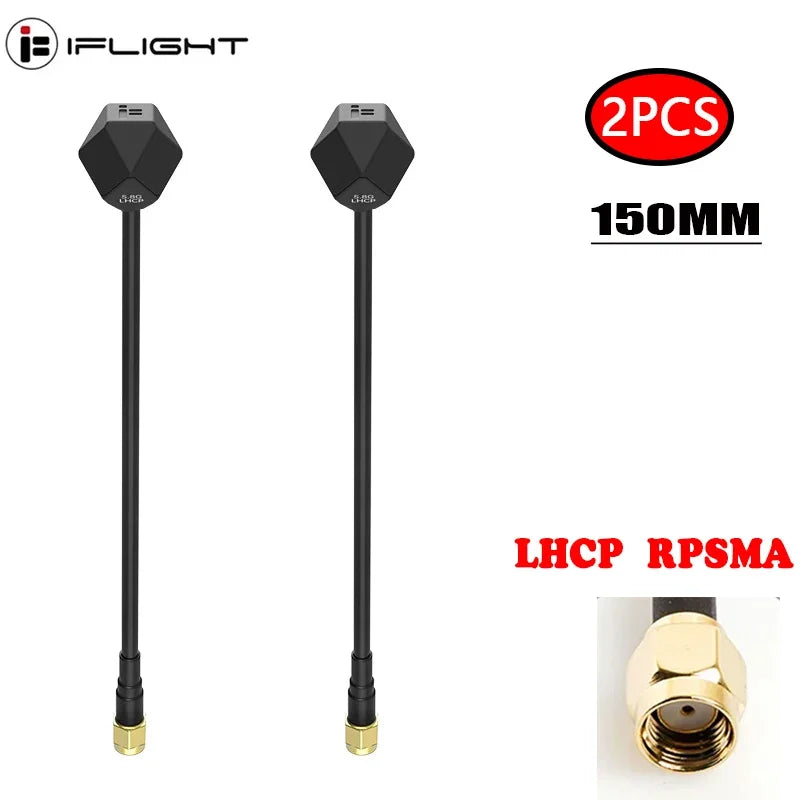

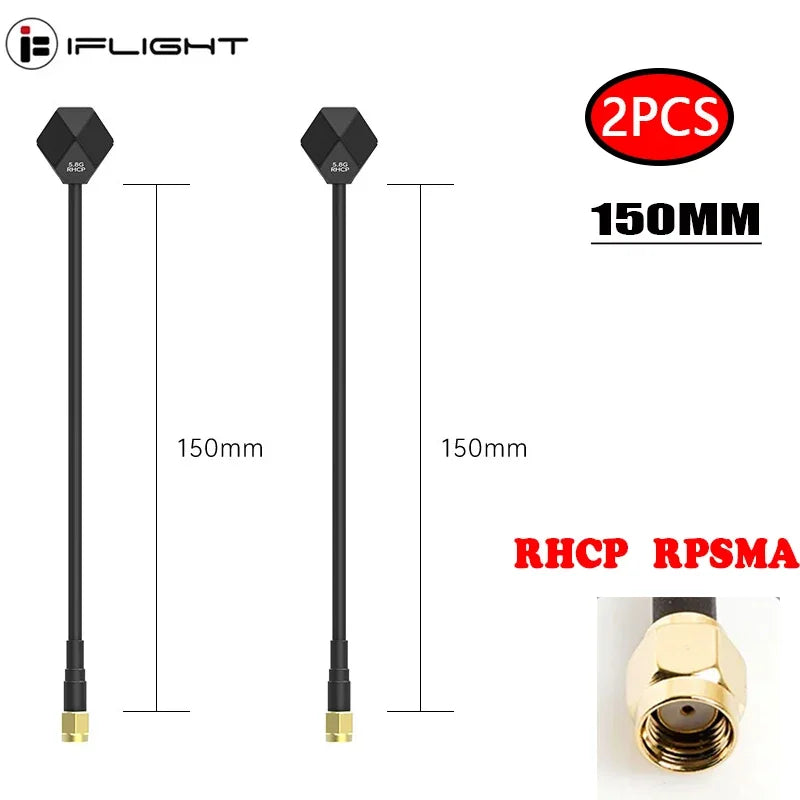

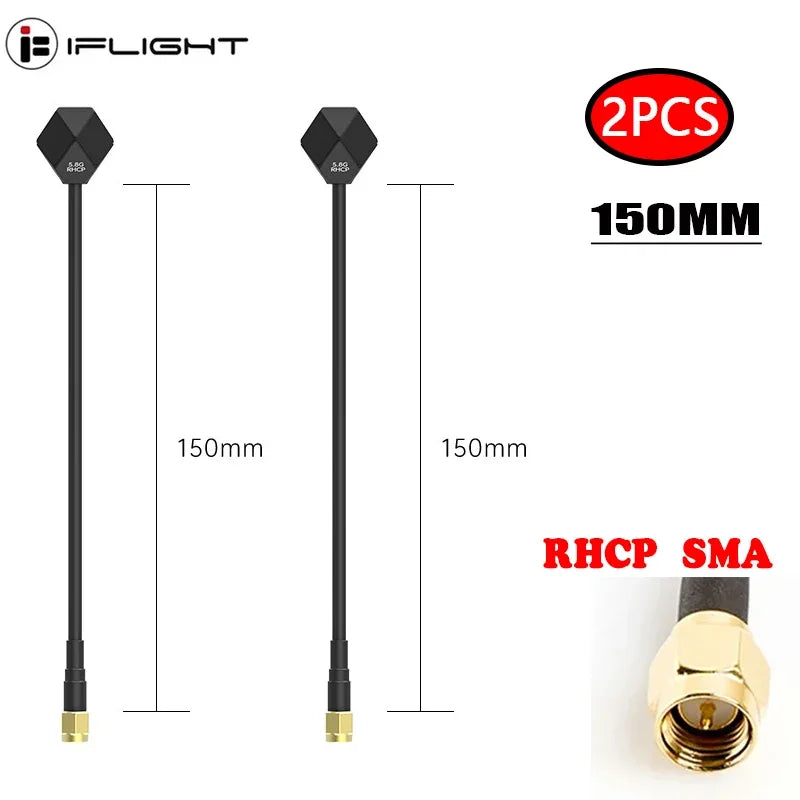

Specifications:150MM
Frequency:5.3GHz-6GHz
MAX Gain:2.65dbi(5695MH)
MIN Gain:2.06dbi(5362MHz)
AVG Gain:2.4dbi
MAX VSWR:1.76(5917MHz)
MIN VSWR:1.46(5621MHz)
AVG VSWR:1.75
MAX radiation efficiency:86%(5436MHz)
MIN adiation efficiency:76%(5917MHz)
AVG adiation efficiency:83%
Polarization:LHCP/RHCP
Cross polarization suppression:-25dB
Axial Ratio:≤ 3
Cable:RG141
Weight:11.5g
Size:Line length 150mm/Total length 175mm
Connector:SMA RP/SMA
