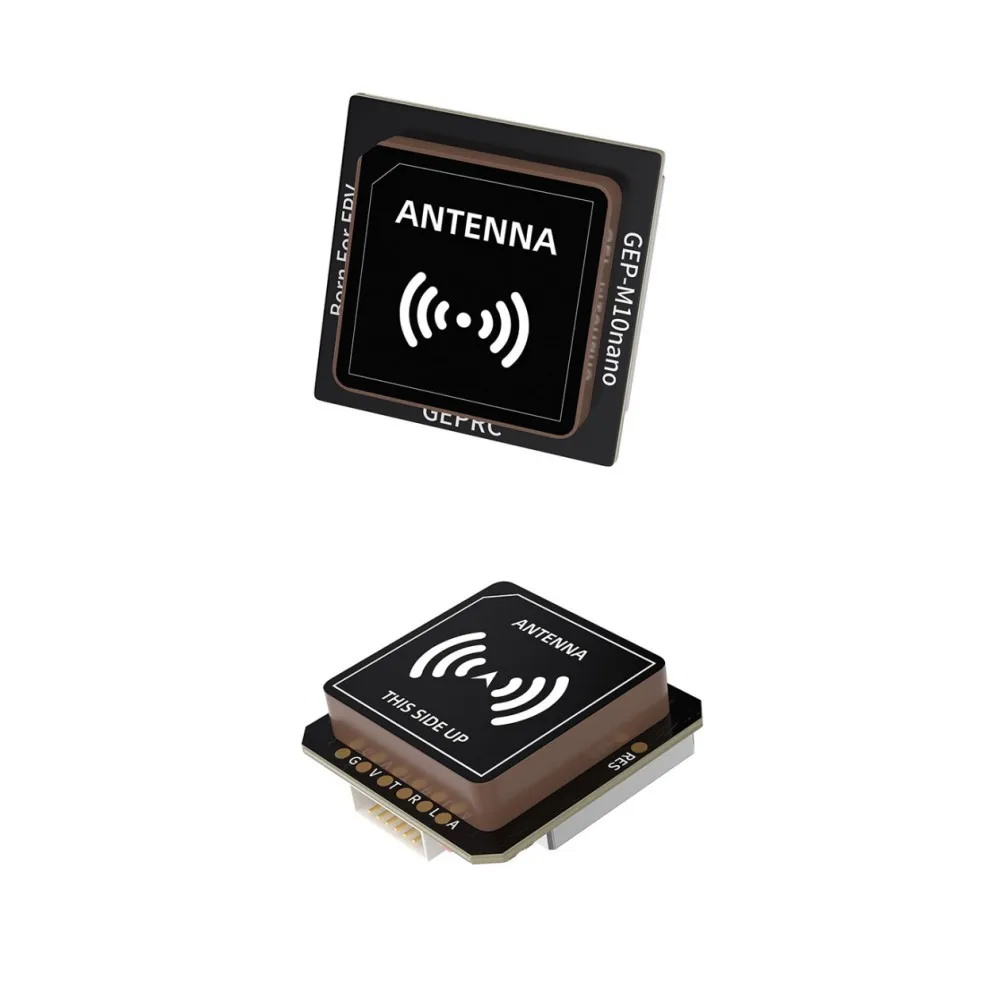

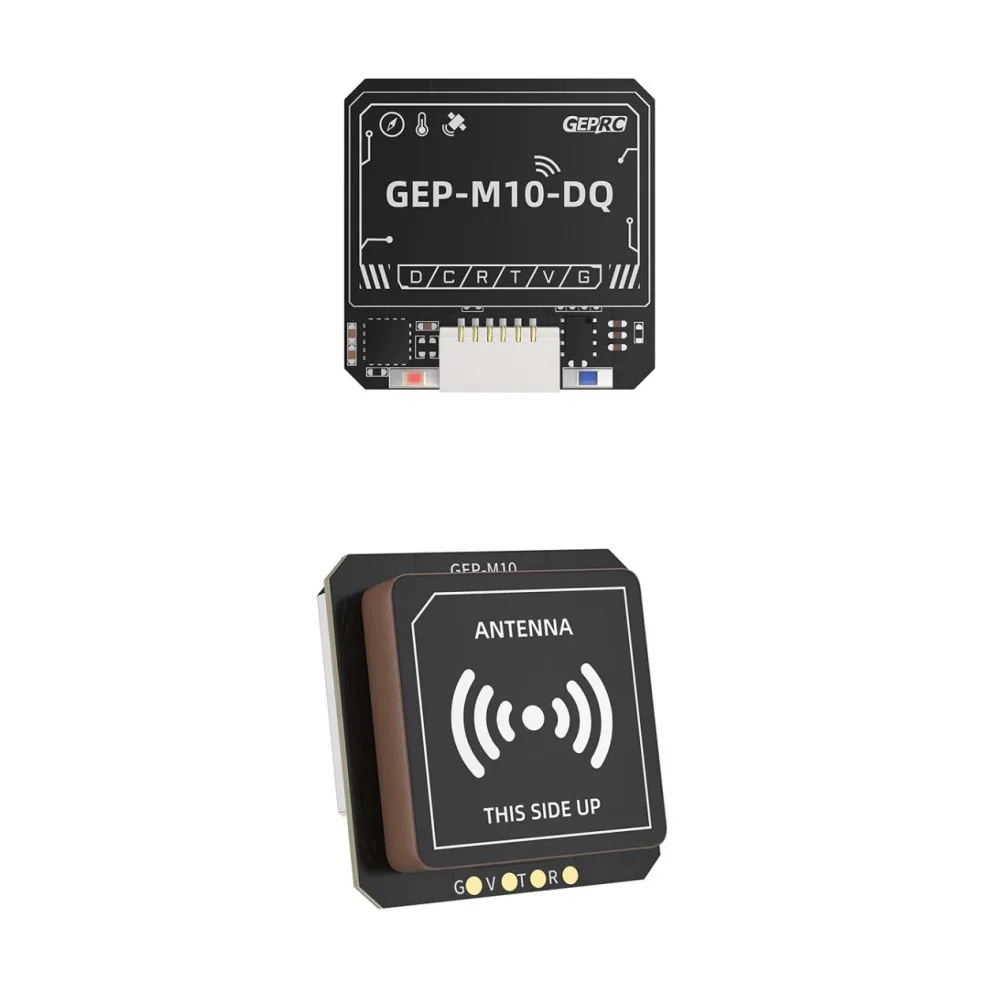

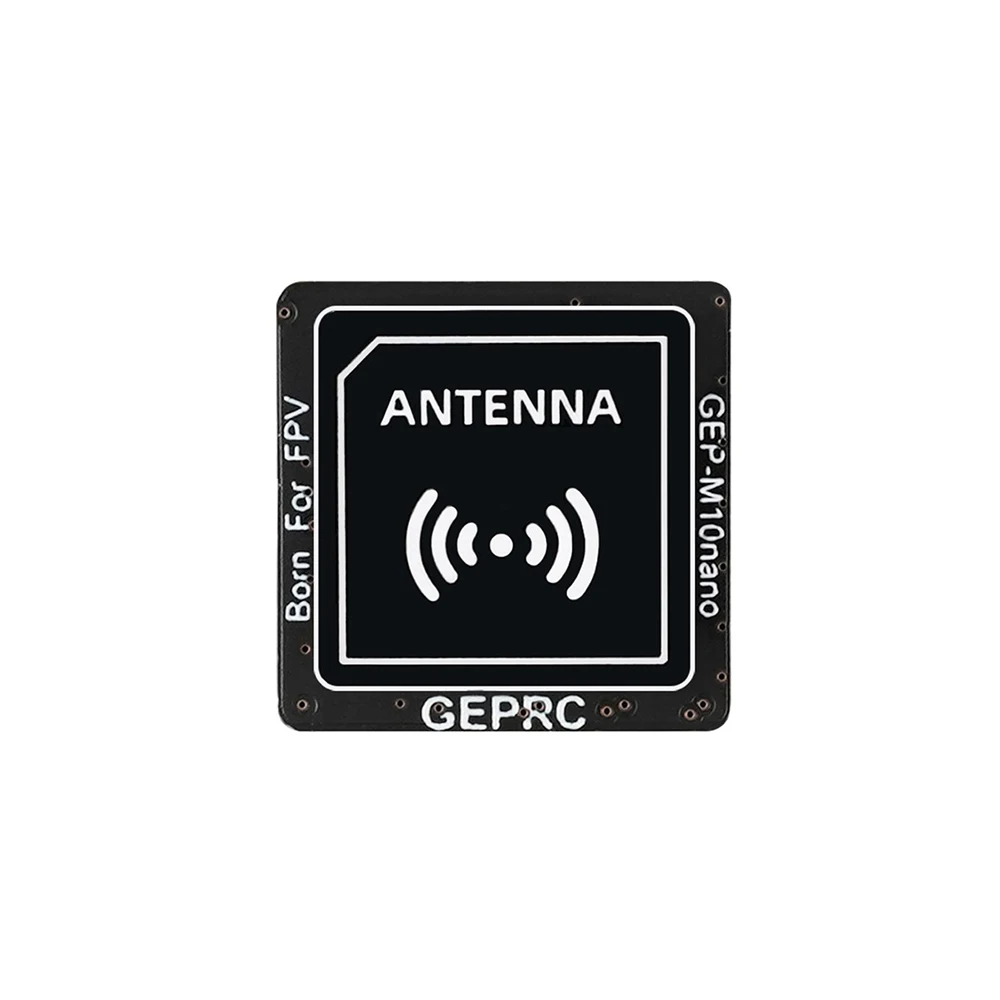

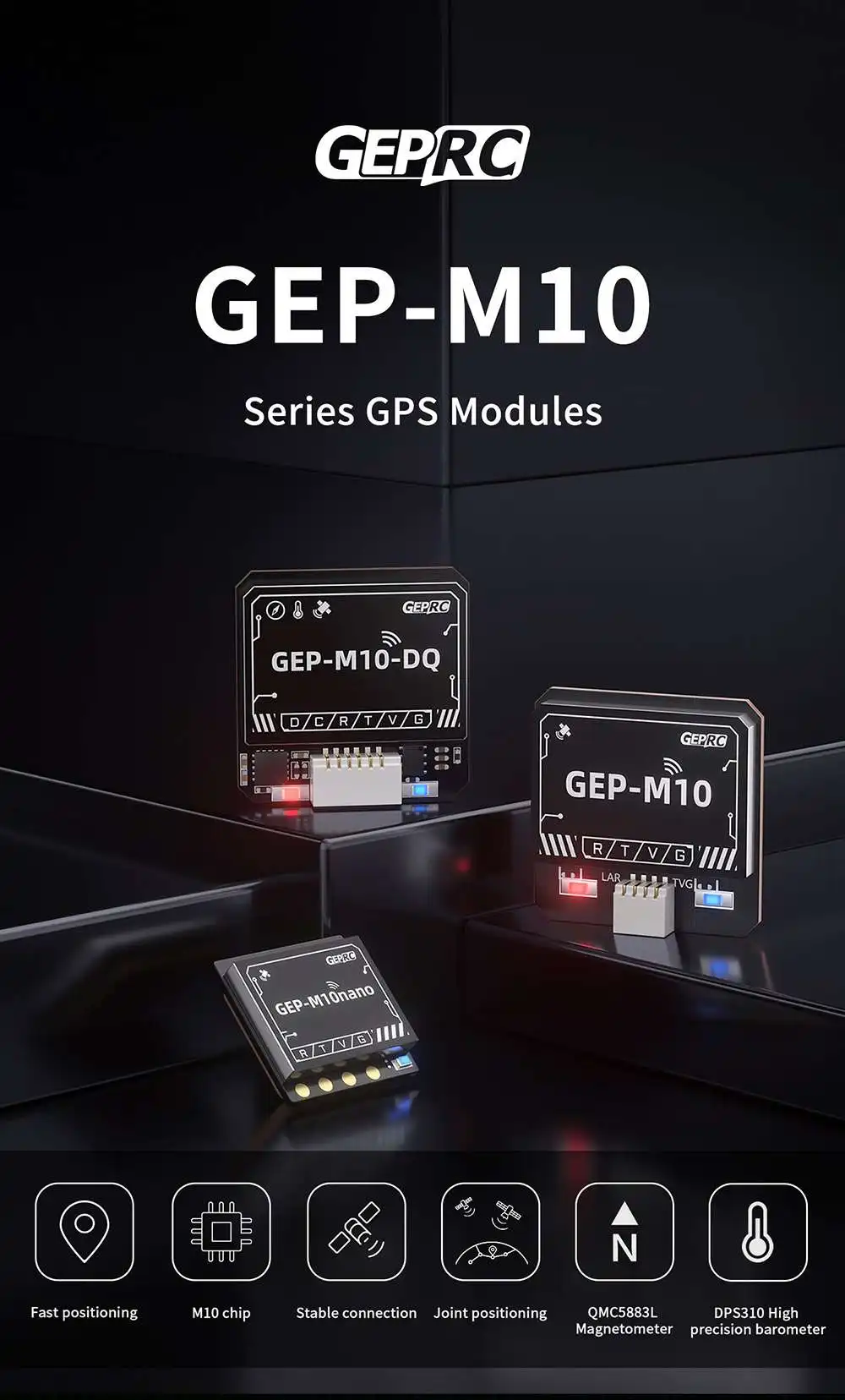

GEP-M10 Series GPS Module GEP-M10nano / GEP-M10 / GEP-M10-DQ for FPV Racing Drone RC Airplane Mulit-Rotor Quacopter

Description

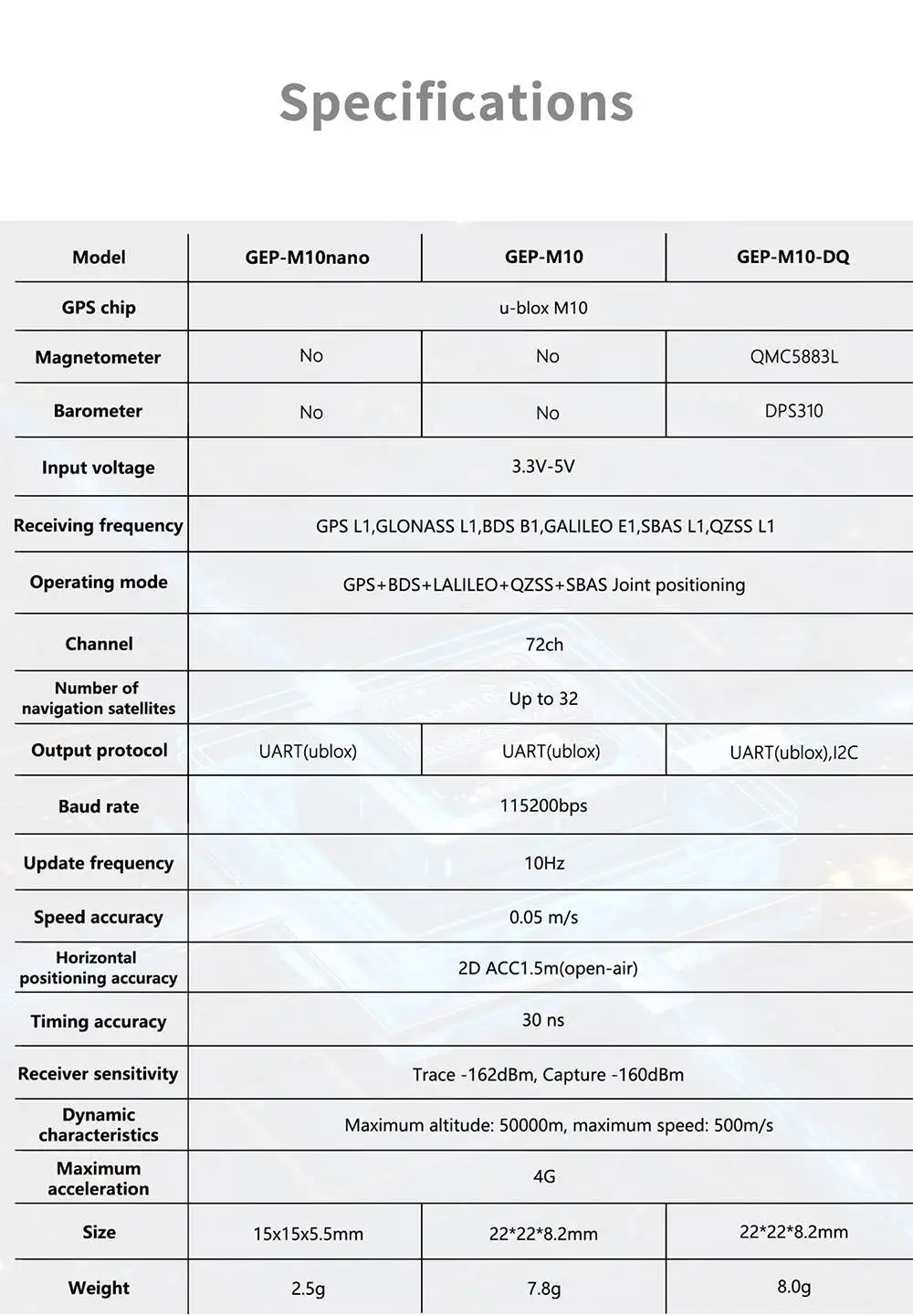

Specifications:
nBrand: Gerpc
nModel: M10 GPS

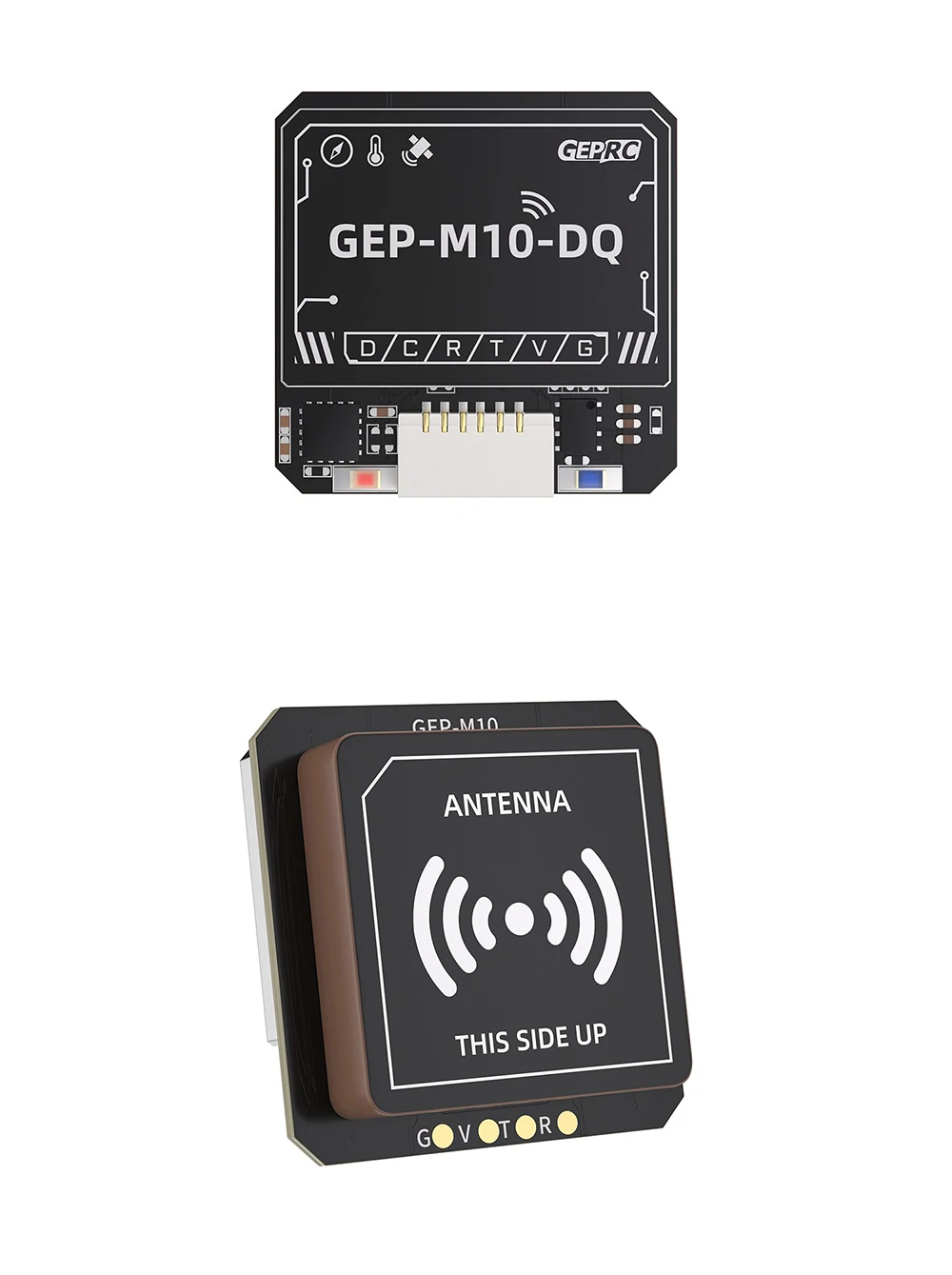

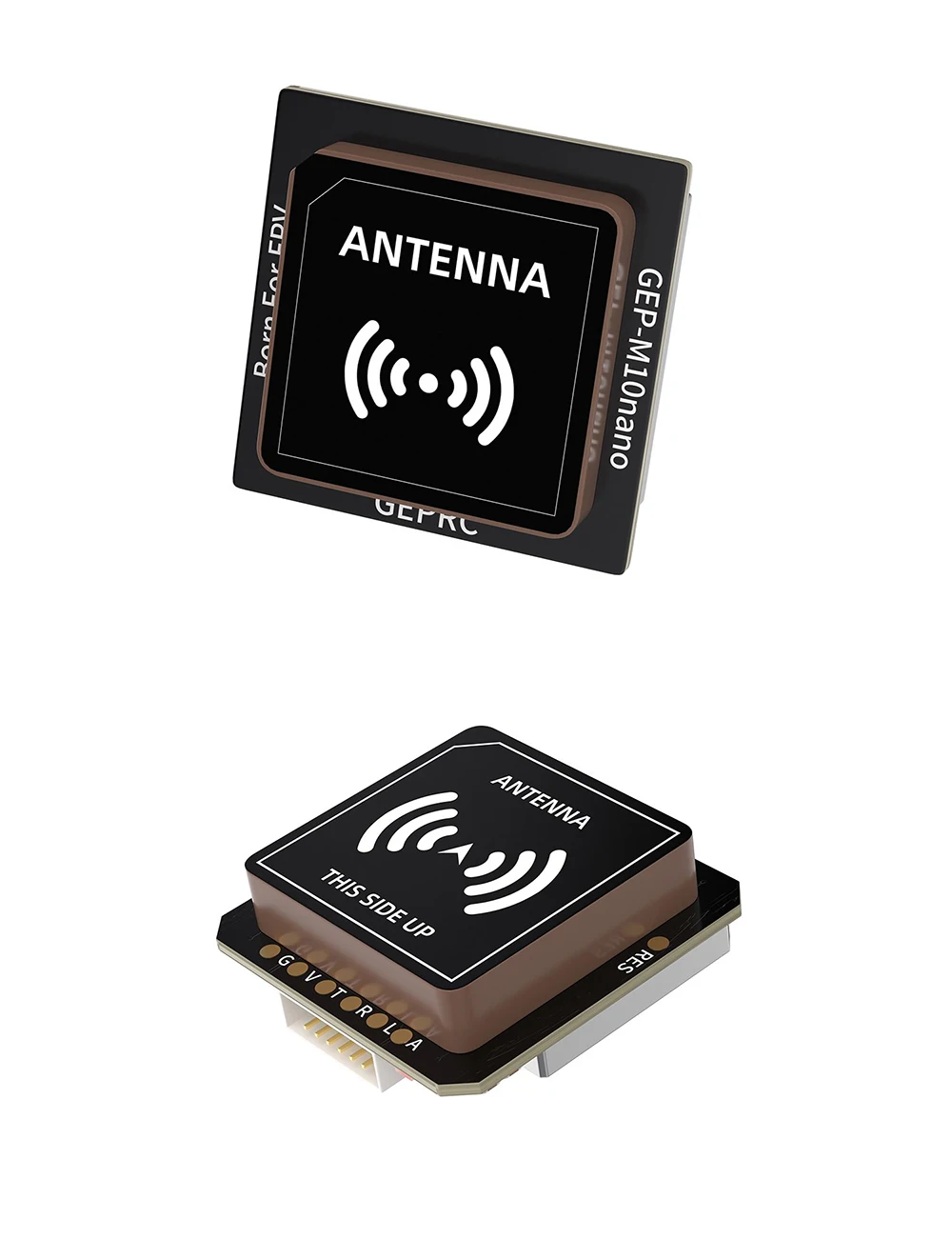

nOptional Version: M10 Nano / M10 / M10 DQ
nInput Voltage: 3.3V-5V
nReceiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
nOperating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
nChannel: 72ch
nNavigation satellites: Up to 32 pieces
nBaud rate: 115200bps
nOutput Frequency: 10Hz
nSpeed Accuracy: 0.05 m/s
nHorizontal positioning accuracy: 2D ACC1.5m(Weather)
nTiming accuracy: 30 ns
nReceiver sensitivity: Trace-162dBm, Capture-160dBm
nDynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
nMaximum acceleration: 4G
nFeatures:

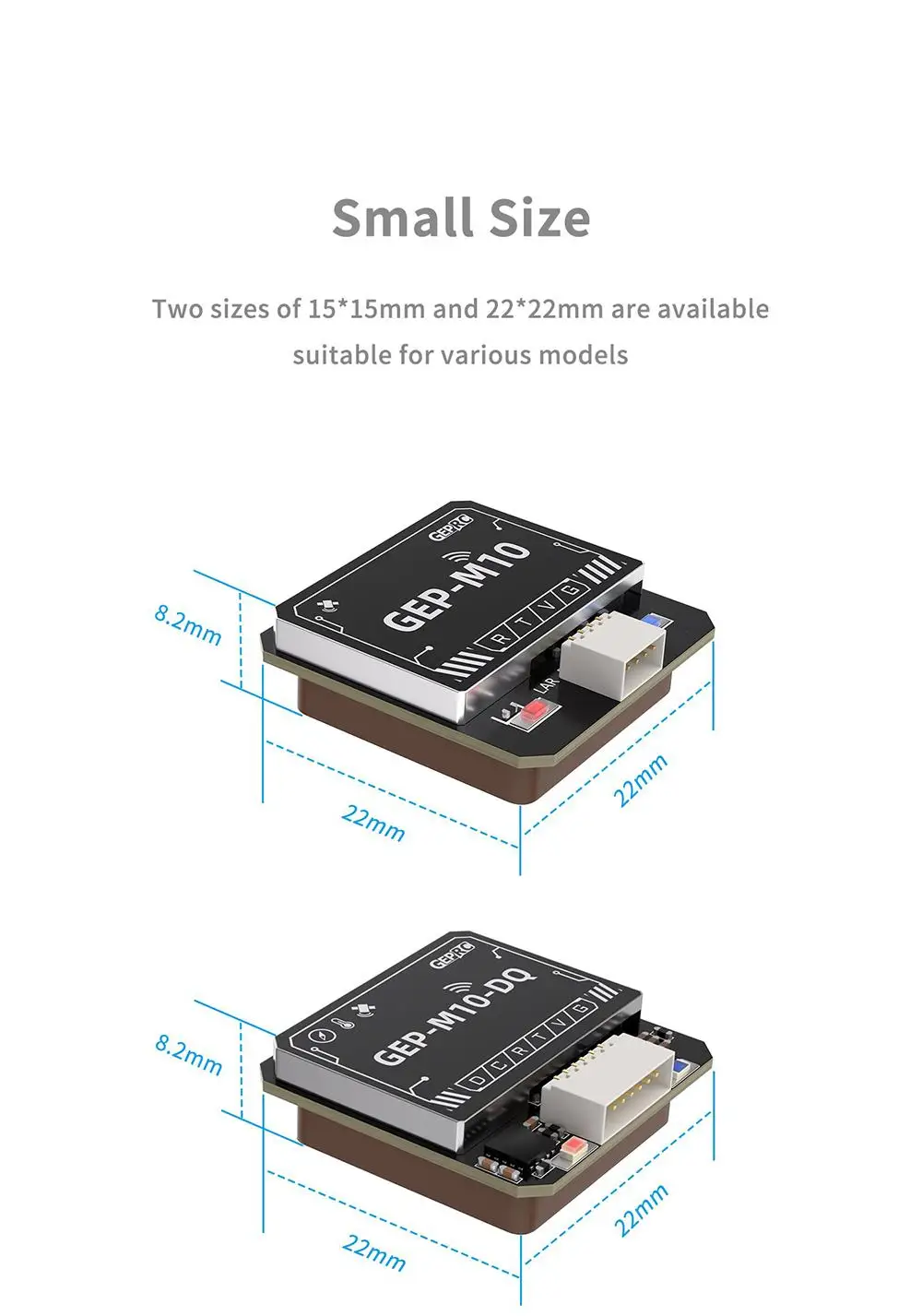

n- Compact Size: The GEP-M10 series GPS positioning module features a small size, making it ideal for FPV drones, multi-rotors, fixed-wing aircraft, and other model products. Its compact design allows for easy integration without adding excessive weight or bulk.
n- High-Speed Positioning: Equipped with the M10 chip, the GPS module offers rapid positioning speed, saving you valuable time during your drone flights.
n- Multiple Satellit Positioning: Supports GPS+BDS+Galileo+QZSS+SBAS joint positioning and is capable of connecting to up to 32 satellites, ensuring accurate and reliable location data.
n- Convenient Use: The built-in Flash chip and Farad capacitor enable the module to save configuration parameters, ensuring a fast hot start.

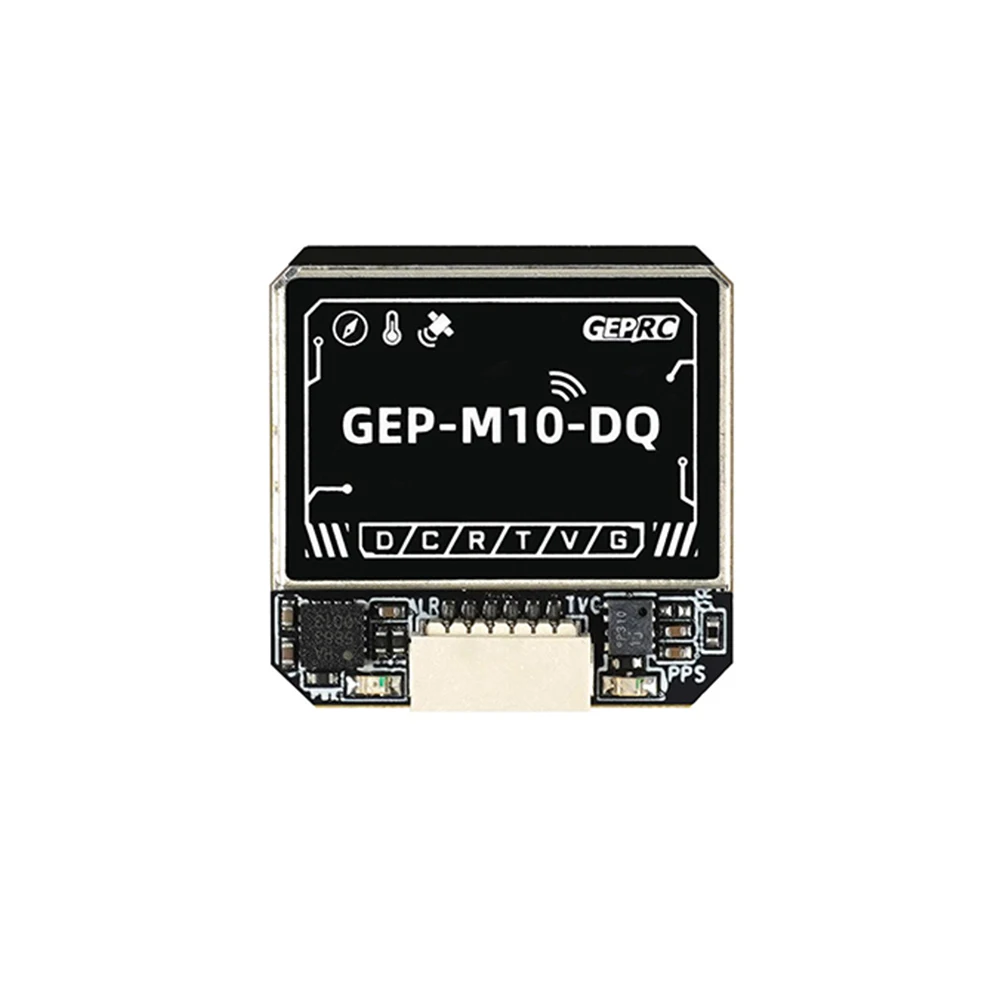

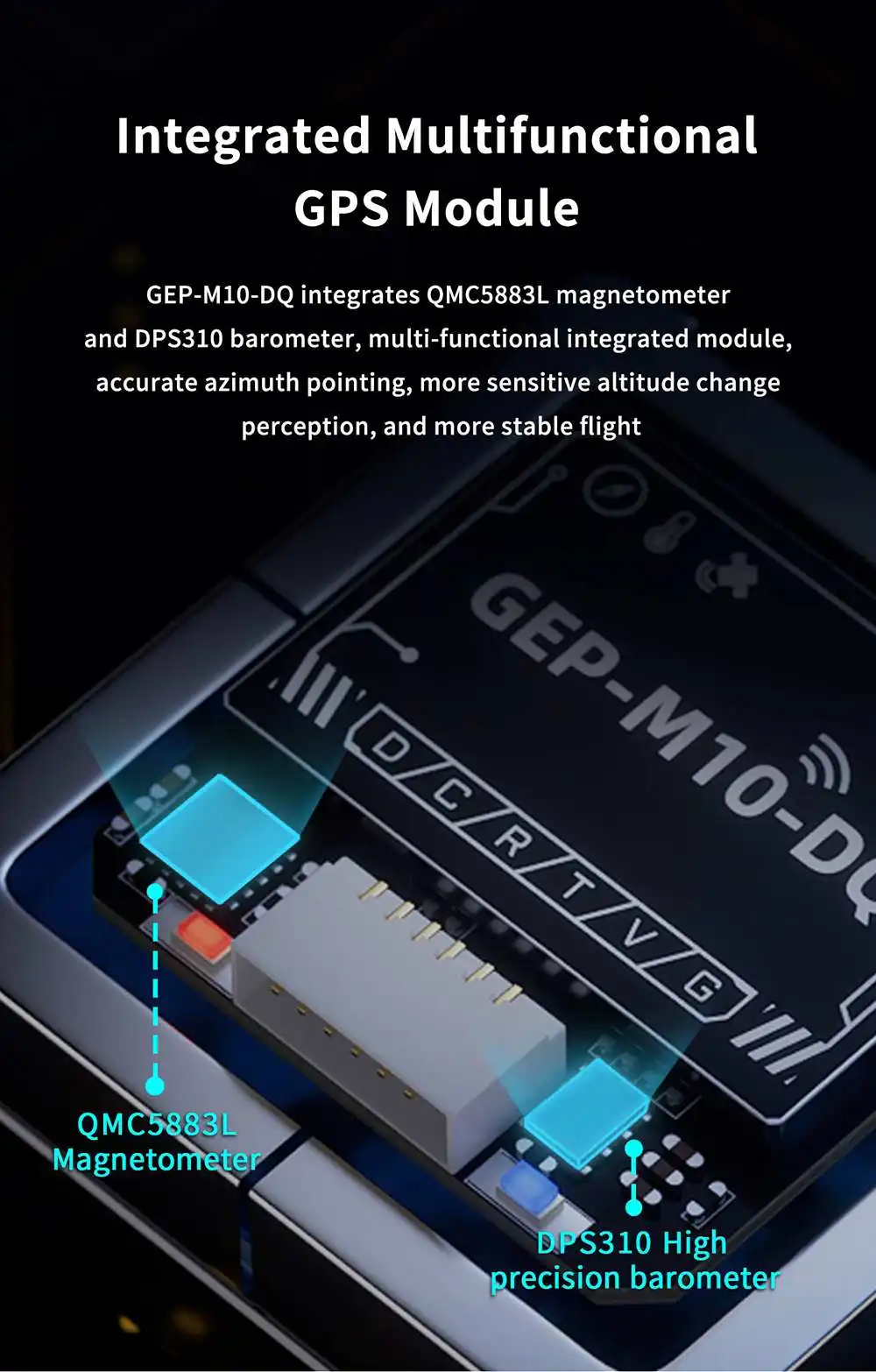

n- Enhanced Sensing: Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing, and other model products.
nPackage Includes:
n1 x GPS module
n1 x Terminal wire
n1 x Instruction manual
n1 x GEPRC sticker
n1 x Heat shrink tubing
