Description
Summary

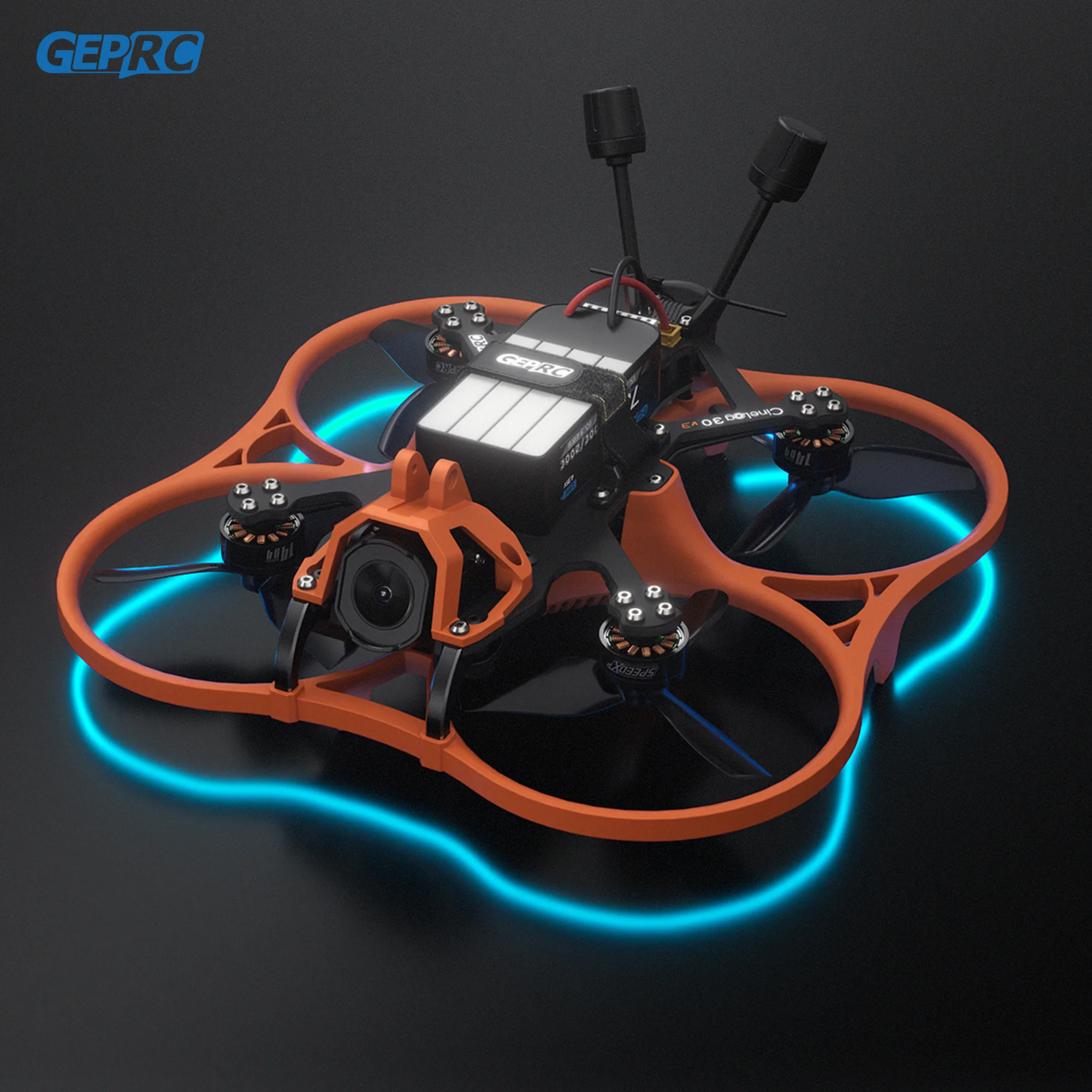

nThe Cinelog30 V3 features the O4 Air Unit PRO VTX, delivering superior image quality with precise color accuracy and fine detail with its advanced processing chip.

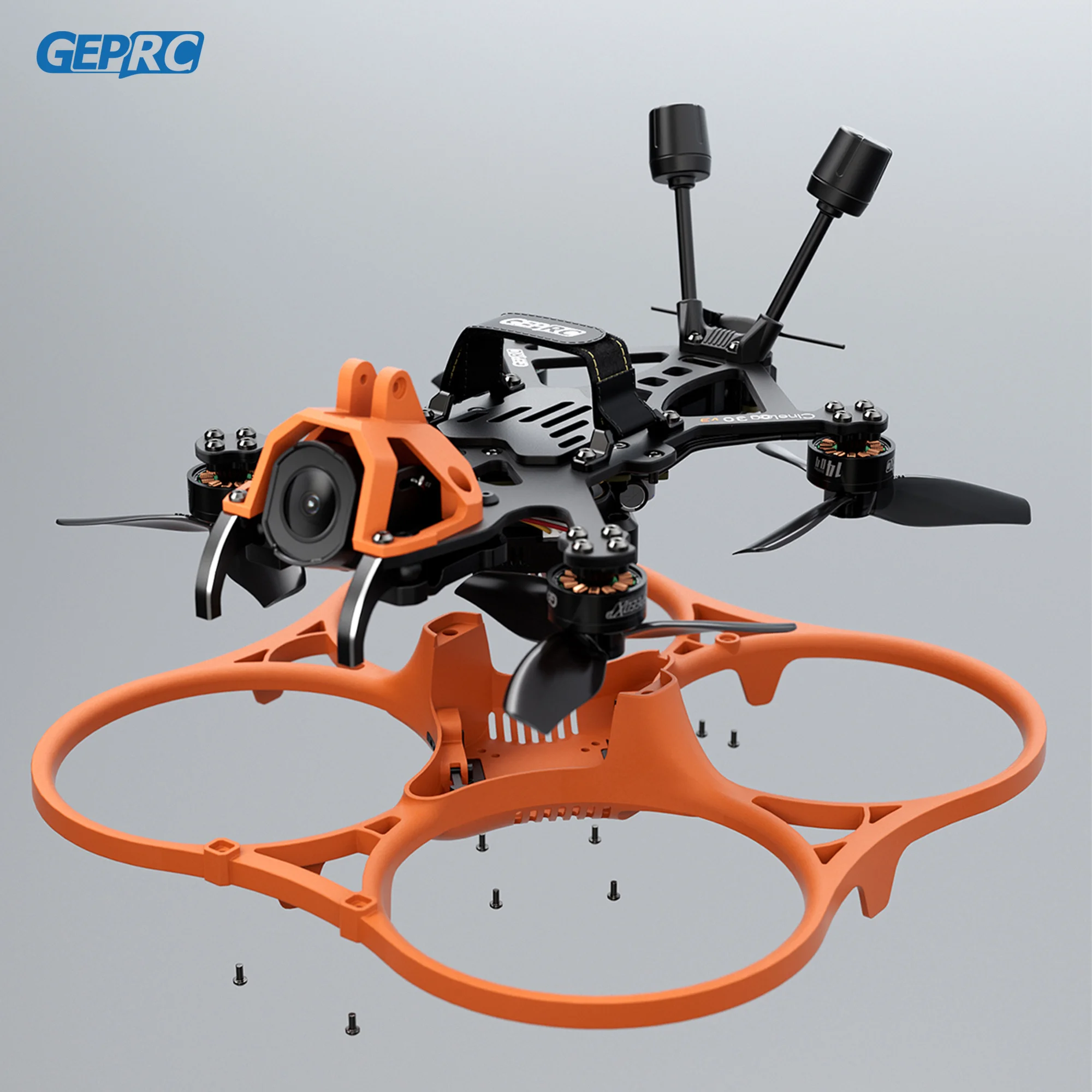

nThe frame is reinforced with aluminum for added strength, while the electronic compartment is designed with a wrap-around structure to protect internal components better. Dust-proof plugs safeguard the data ports, and the canopy shields the camera from impacts. The rear PDB promotes clean wiring and an efficient layout.
nPowered by the TAKER F722 45A 32-bit AIO, 1404 3850KV motors, HQprop DT76mm x3 props, and a LiHV 4S 720mAh battery, the Cinelog30 V3 achieves up to 8:10 of flight time. With O4’s advanced imaging capabilities, it delivers smooth, high-quality cinematic footage.
nFeature
nEquipped with the latest O4 Air Unit PRO, offering sharp detail, high resolution, and excellent low-light performance.
nRefined frame with a wrap-around design for enhanced protection of electronic components.
nAluminum-reinforced front and protective frame for added strength.
nSleek front cover to shield the O4 Air Unit PRO lens from impact.
nDust-proof plugs for data ports to prevent debris during takeoff and landing.
nCustom PDB with receiver, buzzer, LED BEC, TVS, and anti-spark features.
nCinelog series underslung gimbal mount for stable, smooth footage with the O4 Air Unit PRO.
nPrecision-tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control.
nSpecfication—Cinelog30 V3 O4 Pro
nModel: Cinelog30 V3 O4 Pro Quadcopter
nFrame Model: GEP-CL30 V3
nCarbon Fiber Plate Thickness: 2.5mm
nWheelbase: 128mm
nFlight System: TAKER F722 45A 32Bit AIO
nMCU: STM32F722RET6
nGyro: ICM 42688-P
nFC Firmware: GEPRC_F722_AIO
nFlash: 16MB
nESC: 32Bit 45A
nMotor: SPEEDX2 1404 3850KV
nProp: HQprop DT76mmx3 V2
nBattery Connector: XT30
nVTX: O4 AIR Unit Pro
nCamera: O4
nAntenna: O4 original
