GEPRC Momoda2 4.9G DUAL Antenna Long Suitable RHCP SMA Gain 3.65dbi DIY RC FPV Quadcopter Drone Freestyle Accessories Parts

Description

Summary:
nThe GEPRC Momoda2 4.9G DUAL antenna features a dual RF solution with a gain of up to 3.65dBi, providing comprehensive signal coverage and effectively reducing FPV image instability caused by signal dead spots. This antenna is ideal for video transmission solutions within the 4.9GHz-5.3GHz frequency band.
nFeatures:
n1. Stylish mechanical design with visual appeal.
n2. Compact dual RF solution with ultra-high gain.
n3. Superior signal coverage with no dead zones.
n4. Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.
nSpecifications:
nModel: GEPRC Momoda2 4.9G DUAL antenna
nCenter Frequency: 5.1GHz
nBandwidth: 4.9GHz~5.3GHz
nPolarization: RHCP
nGain: 3.65dbi
nAxial Ratio: ≤3
nSWR: ≤1.45
nRadiation Efficiency: 85%
nCross Polarization Suppression: -25dB

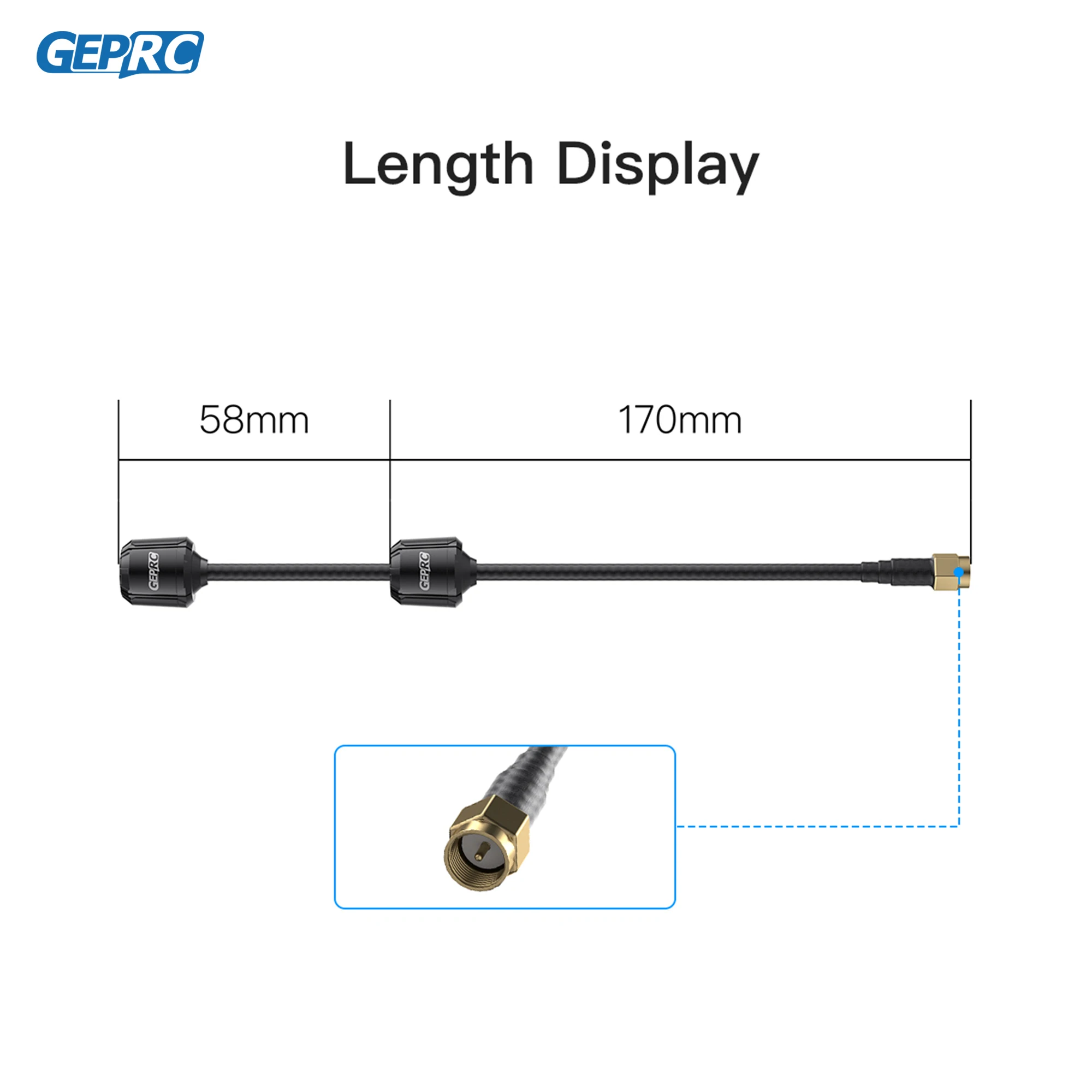

nLength: 170mm
nAntenna Design: FPC+PCB
nAntenna Weight: 16.6g
nEnclosure Material: ABS
nConnector Type: SMA
nInclude:
n1*Momoda 4.9G DUAL antenna
