GEPRC SPEEDX2 1404 3000KV 3850KV 4600KV Motor Suitable for Tern-LR40 FPV Drones 2 4-inch RC FPV Quadcopter Freestyle Drone

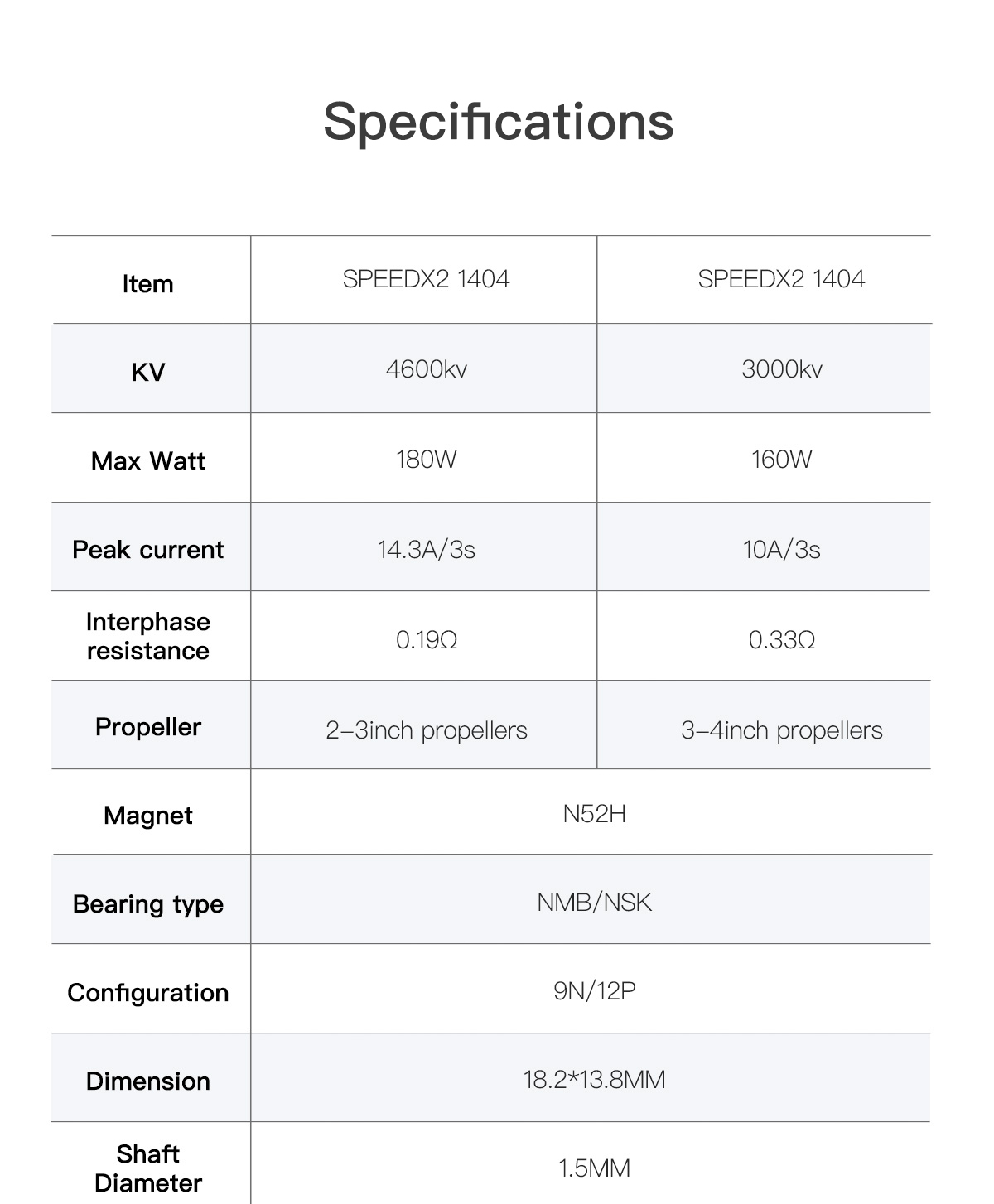

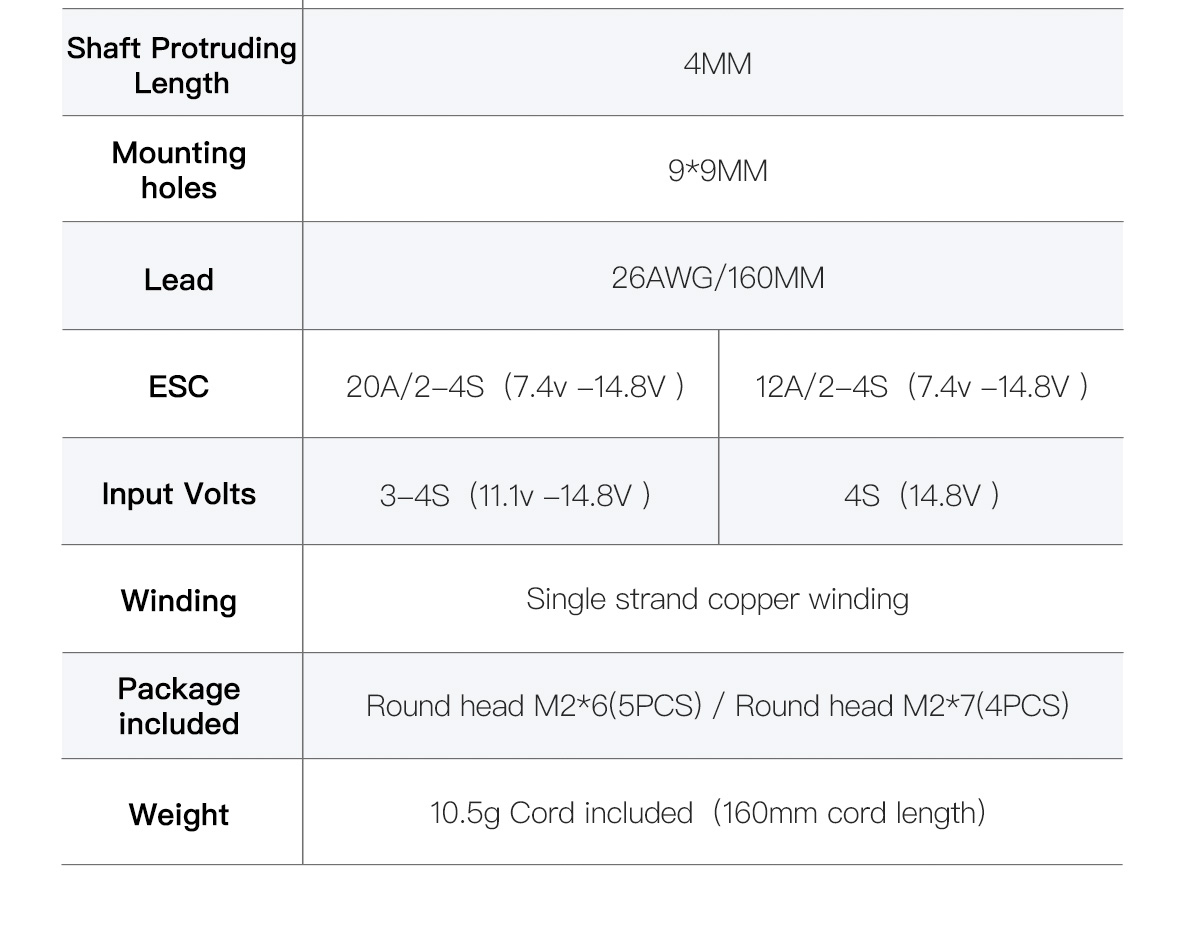

Specifications:

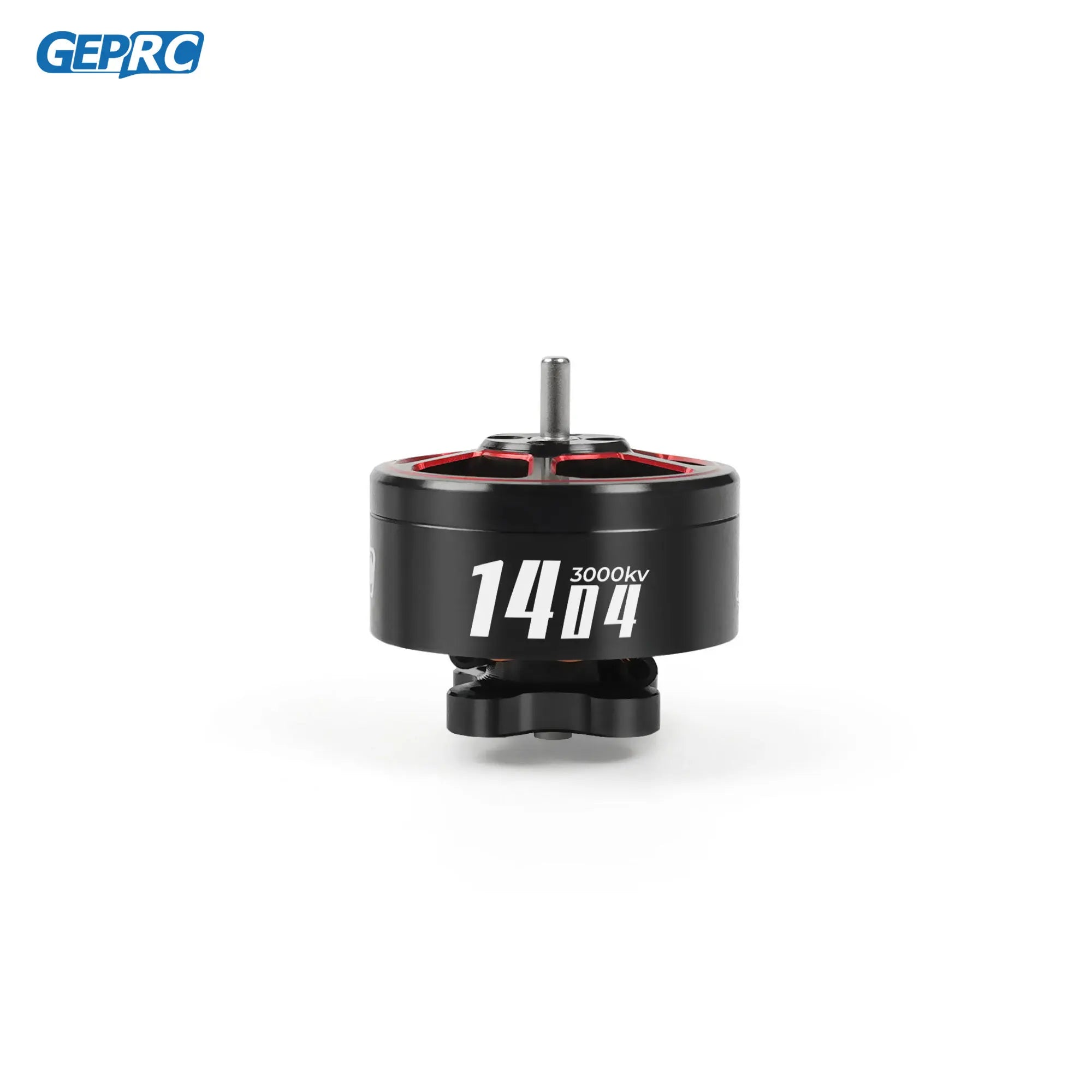

• Model: SPEEDX2 1404 3000KV Motor

• Max Watt: 160W

• Peak current: 10A/3″

• Interphase resistance: 0.33Ω

• Magnet: N52H

• Bearing type: NSK/NMB

• Configuration: 9N12P

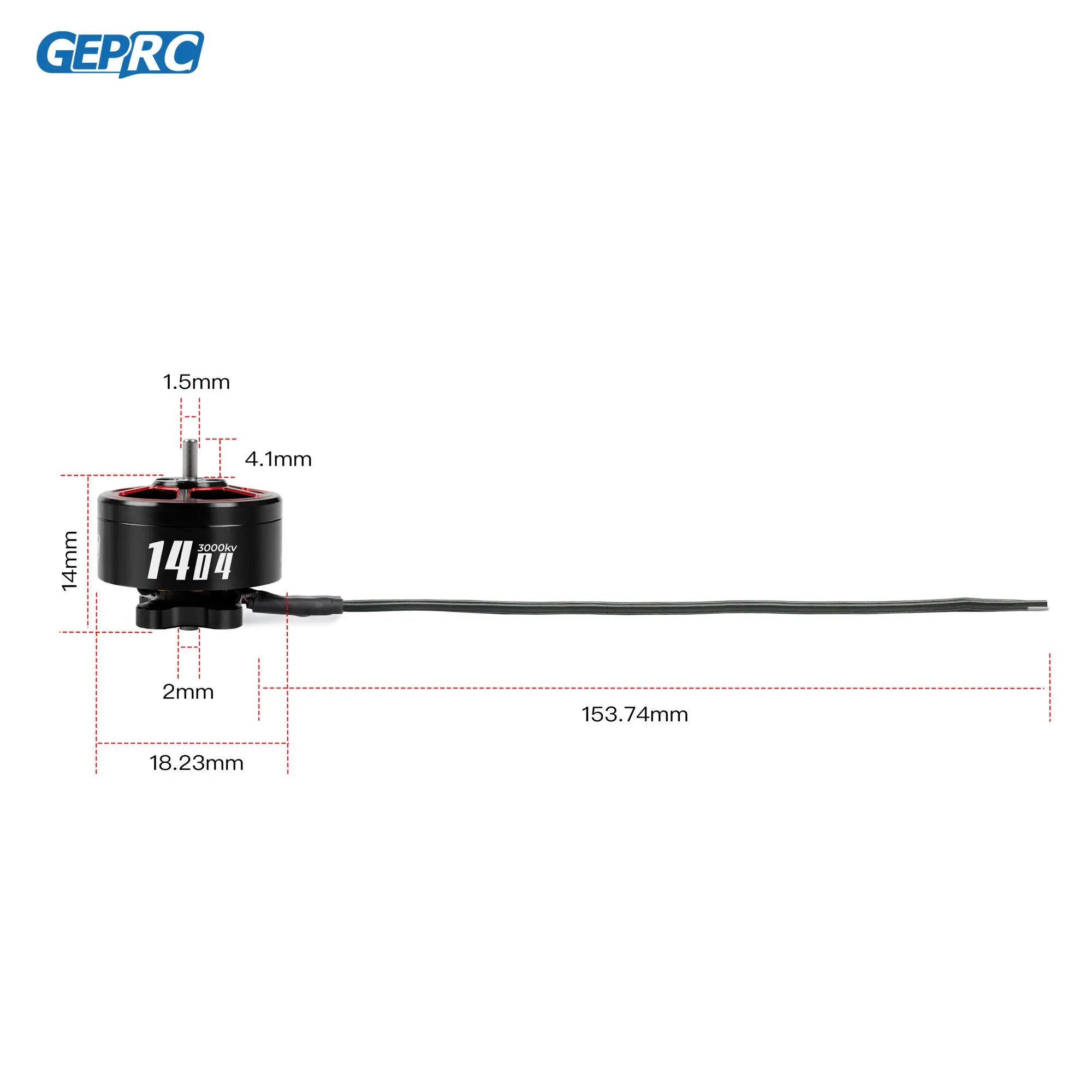

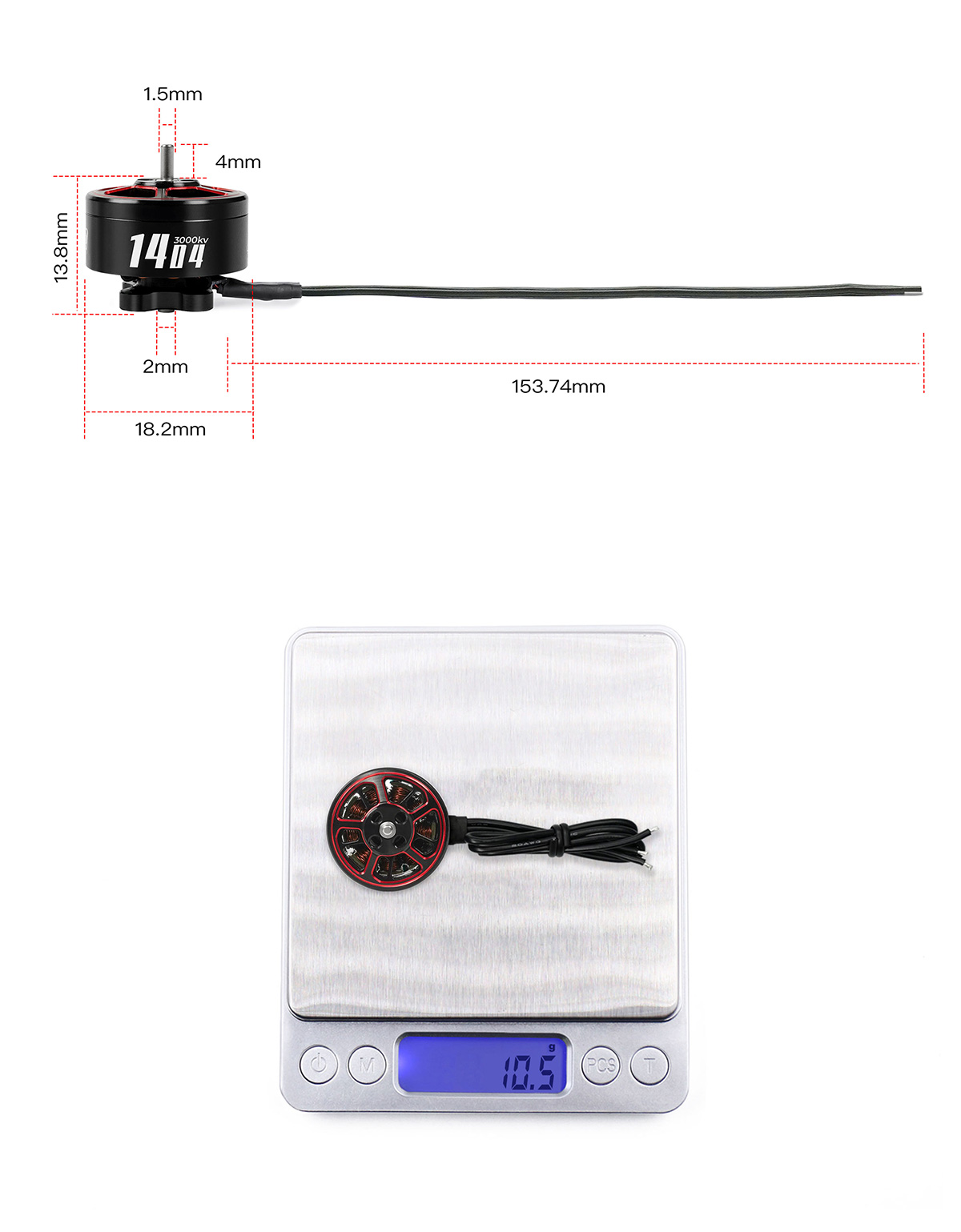

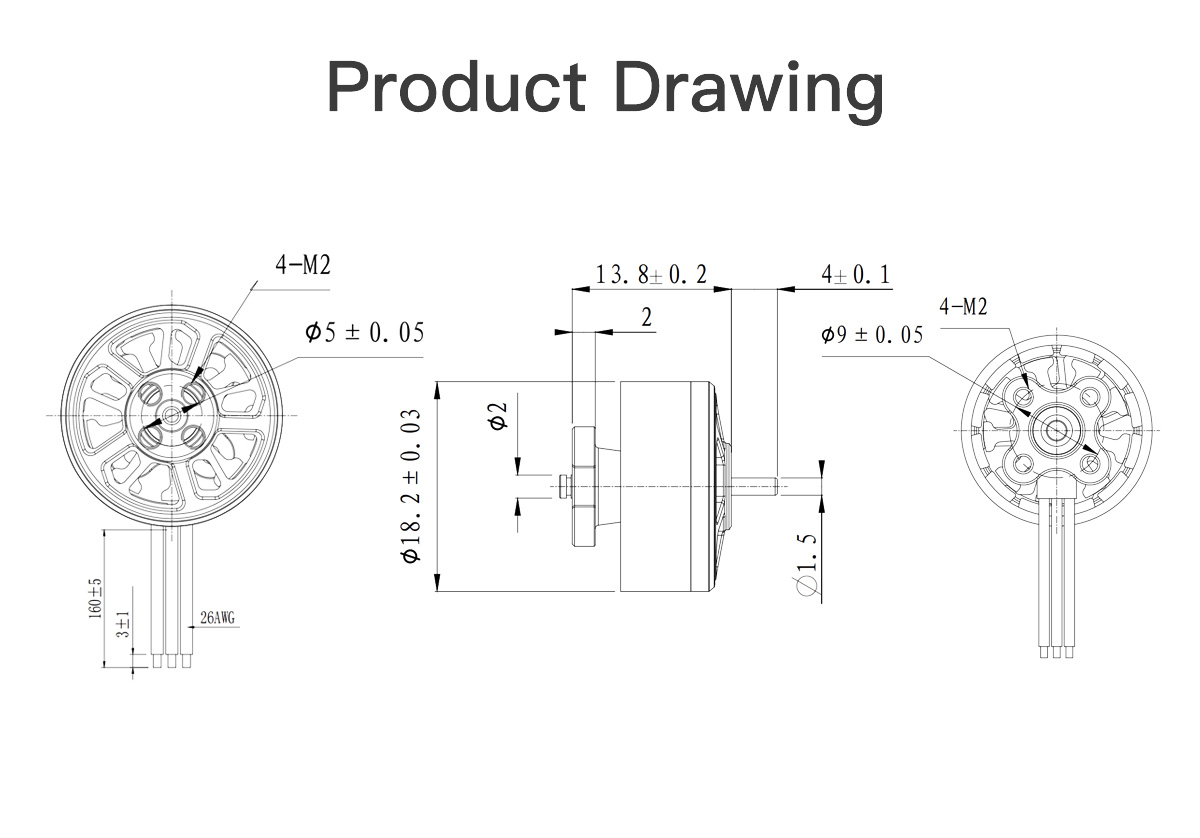

• Dimension: φ18.2mm*13.8mm

• Shaft Diameter: φ1.5mm

• Shaft Protruding Length: 4mm

• Mounting holes: 9mm*9mm（M2）

• Lead: 160mm/26AWG

• ESC: 12A/2-4S（7.4V-14.8V）

• Input Volts: 14.8V（4S LiPo)

• Winding: Single strand copper winding

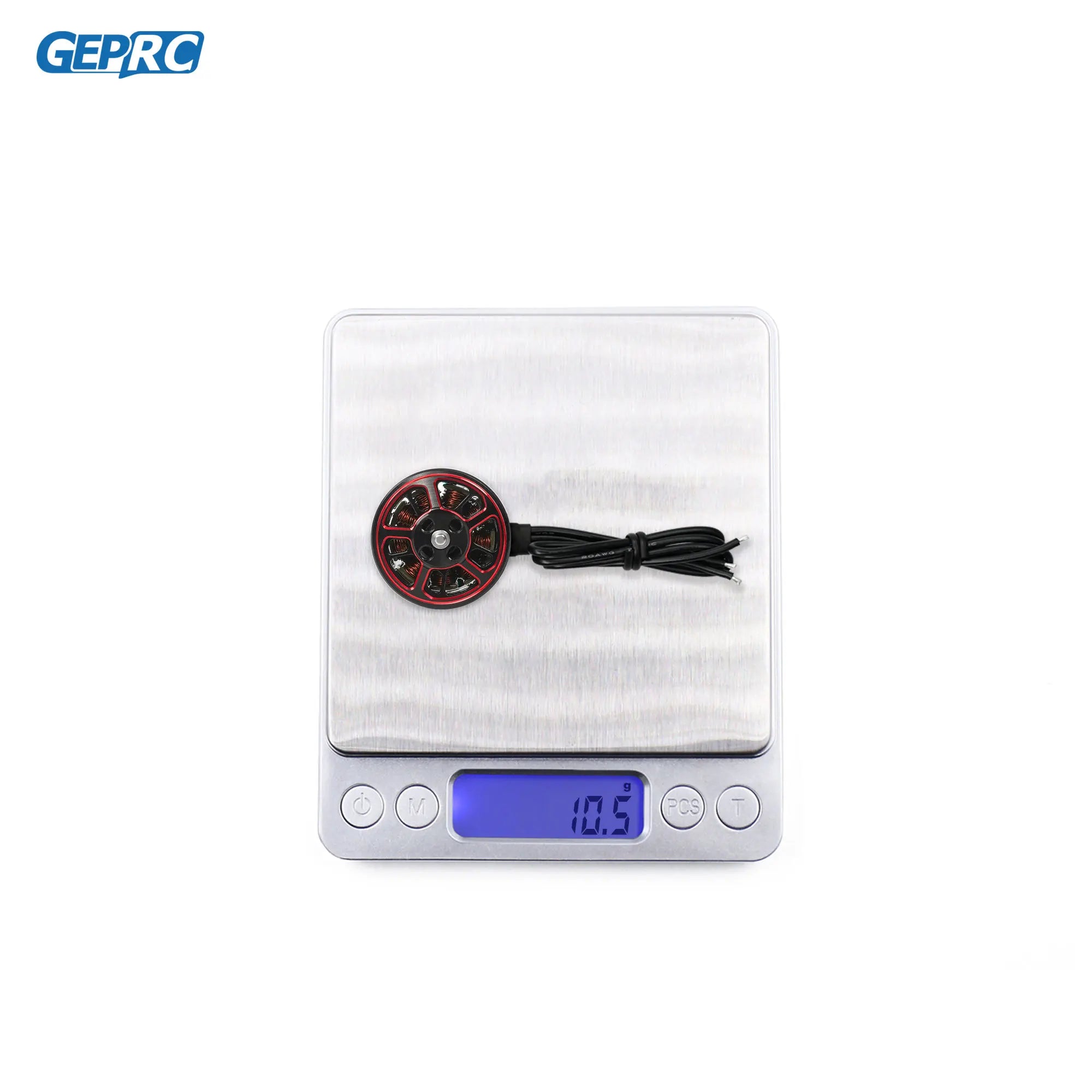

• Weight: 10.5g (included wire)

• Suitable for: 3 inch – 4 inch lightweight models

• Model: SPEEDX2 1404 4600KV Motor

• Max Watt: 180W

• Peak current: 14.3A/3″

• Interphase resistance: 0.19Ω

• Magnet: N52H

• Bearing type: NSK/NMB

• Configuration: 9N12P

• Dimension: φ18.2mm*13.8mm

• Shaft Diameter: φ1.5mm

• Shaft Protruding Length: 4mm

• Mounting holes: 9mm*9mm（M2）

• Lead: 160mm/26AWG

• ESC: 20A/2-4S（7.4V-14.8V）

• Input Volts: 11.1V – 14.8V（3S – 4S LiPo)

• Winding: Single strand copper winding

• Weight: 10.5g (included wire)

• Suitable for: 2 inch – 3 inch lightweight models

Feature

1.Red with black color is obviously high-end.
2.Use bearings with excellent performance and strong anti-wear ability.
3.Lightweight silhouette, strong power.
4.Suitable for 2-inch-4-inch lightweight chassis.
