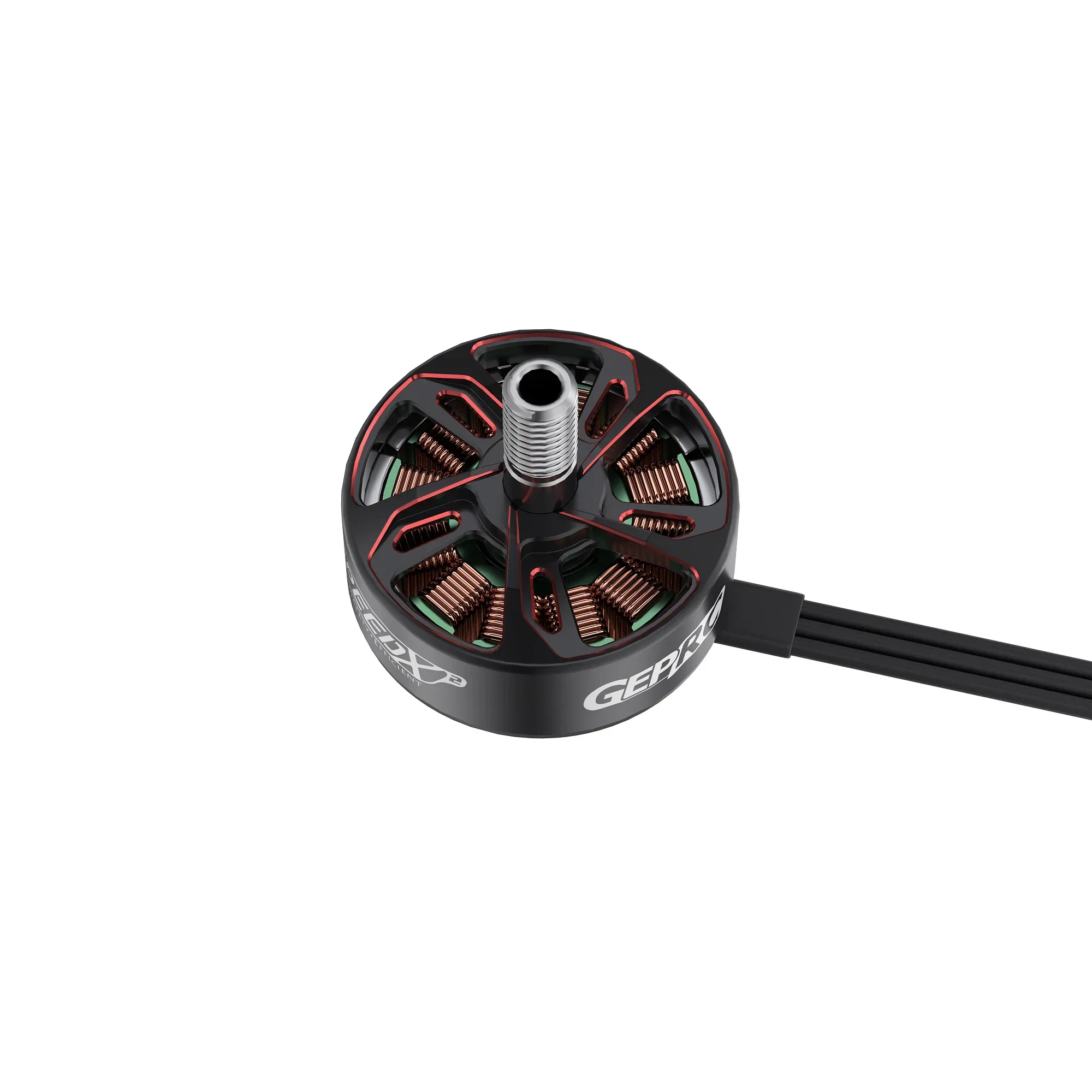

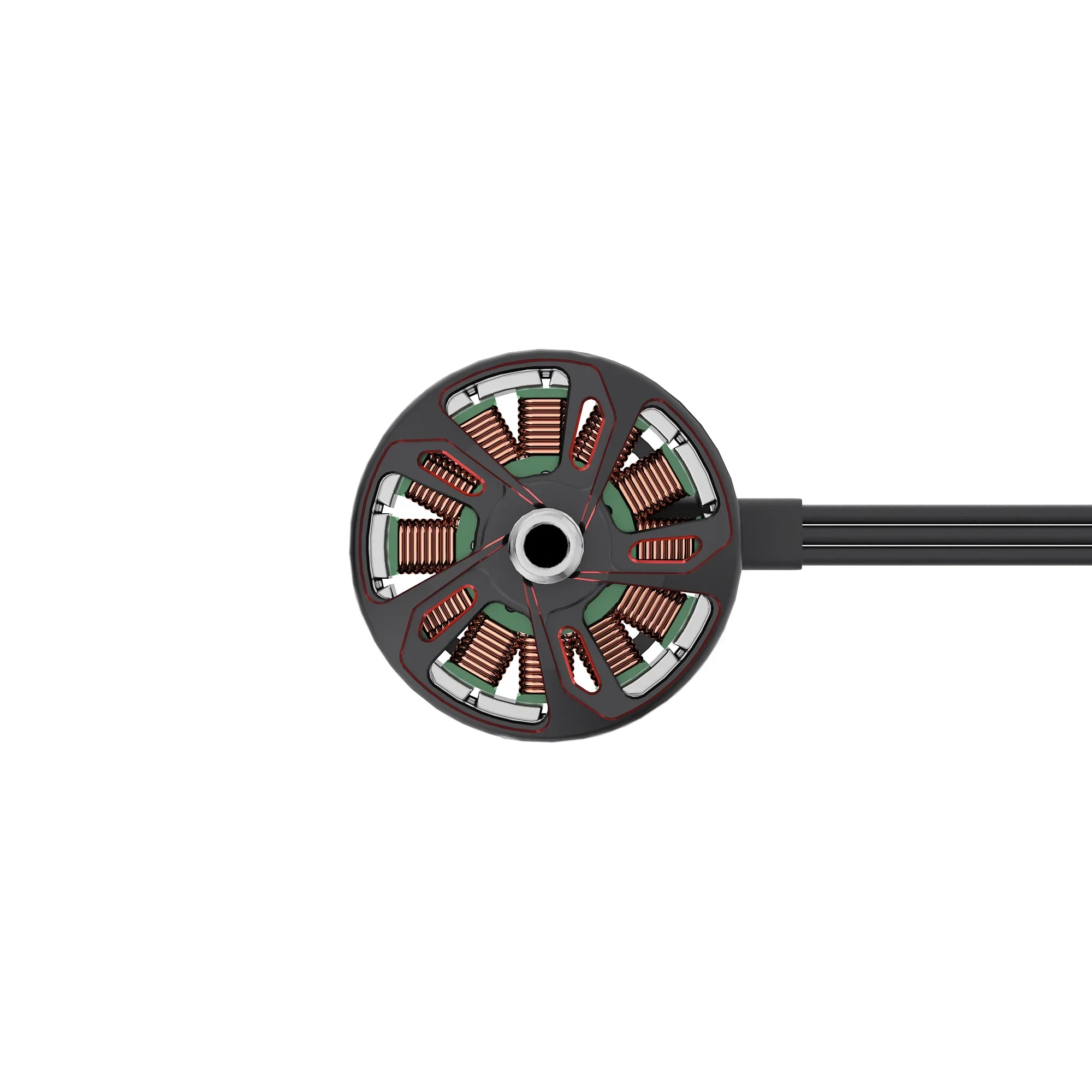

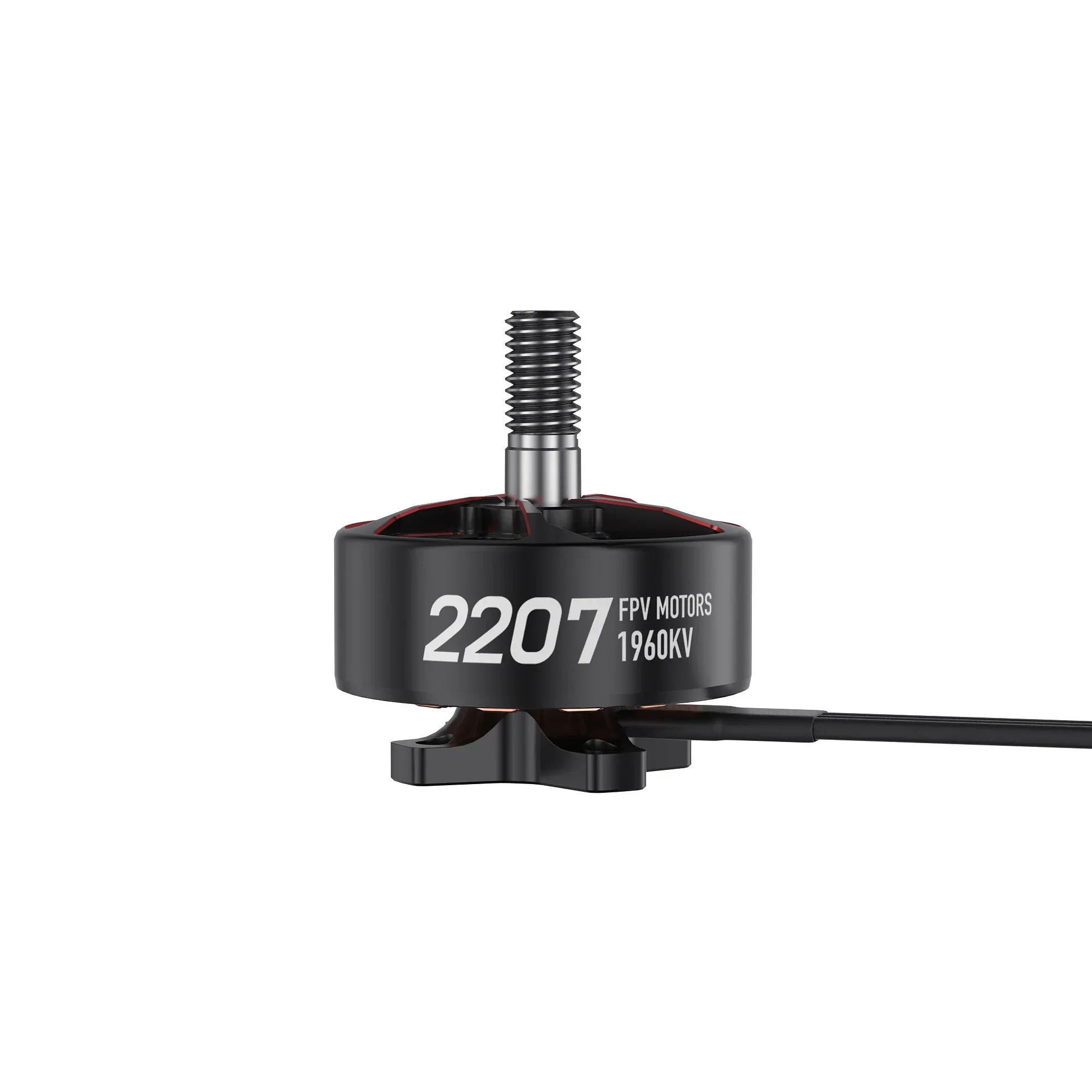

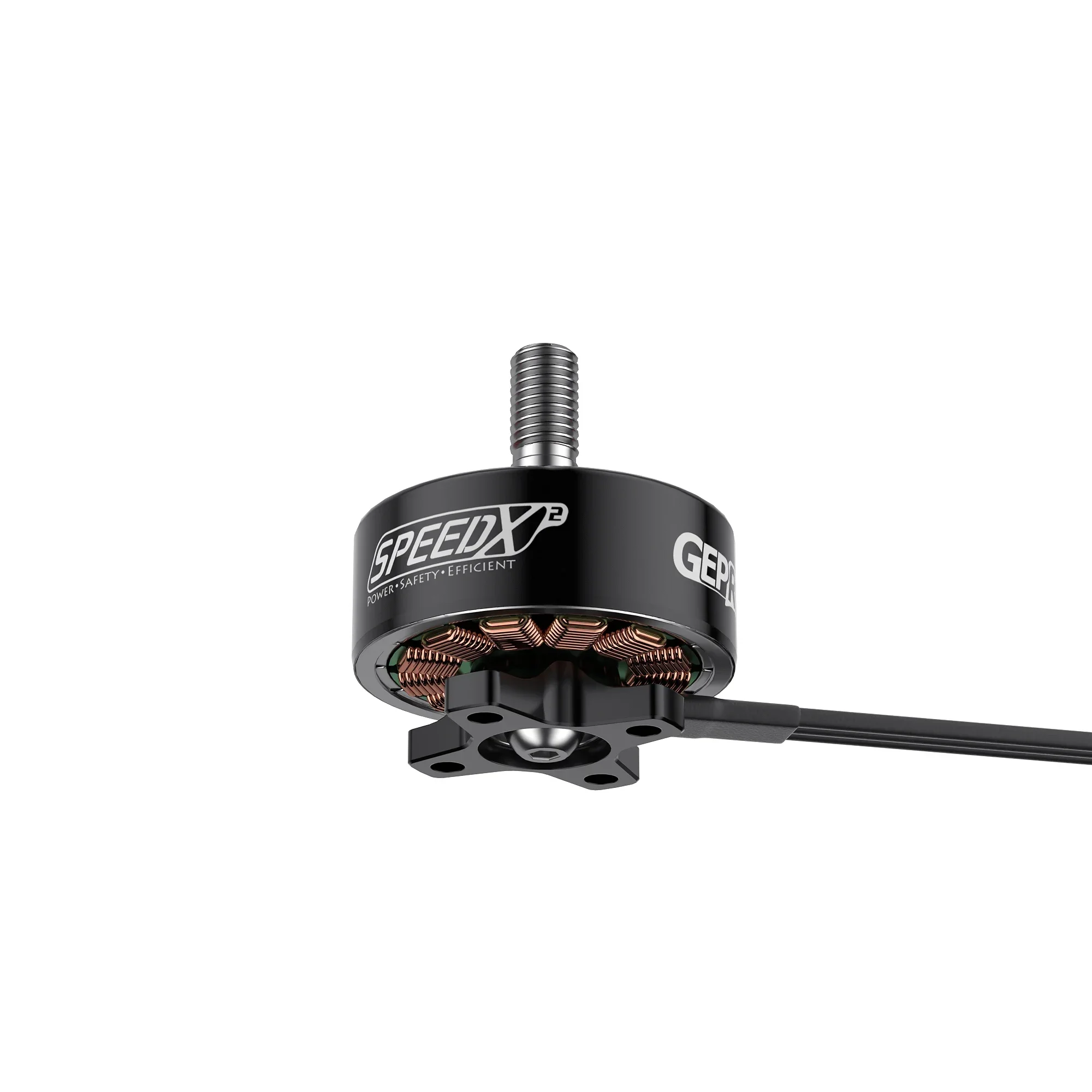

GEPRC SPEEDX2 2207 Motor 1960KV 2050KV 6S LiPo for FPV Freestyle Drones DIY Parts Racer 5inch

Description

Summary
nThe SPEEDX2 2207 motor is specially designed for FPV competitions. This motor focuses on violent high performance and high-response design ideas. The material used is enameled wire with a temperature resistance of 360°C. Even if the motor temperature is high, it can avoid burning the motor. The gap between the motor magnet and the stator is controlled to a precise width of 0.13mm, which can achieve higher response speed.
nThe KV values of the SPEEDX2 2207 racing motor are: 1960KV suitable for novice racing pilots, and 2050KV suitable for professional racing pilots.
nFeature
n1. The enameled wire has a temperature resistance of up to 360°C, a smaller gap between the rotor and the stator, and a faster response.

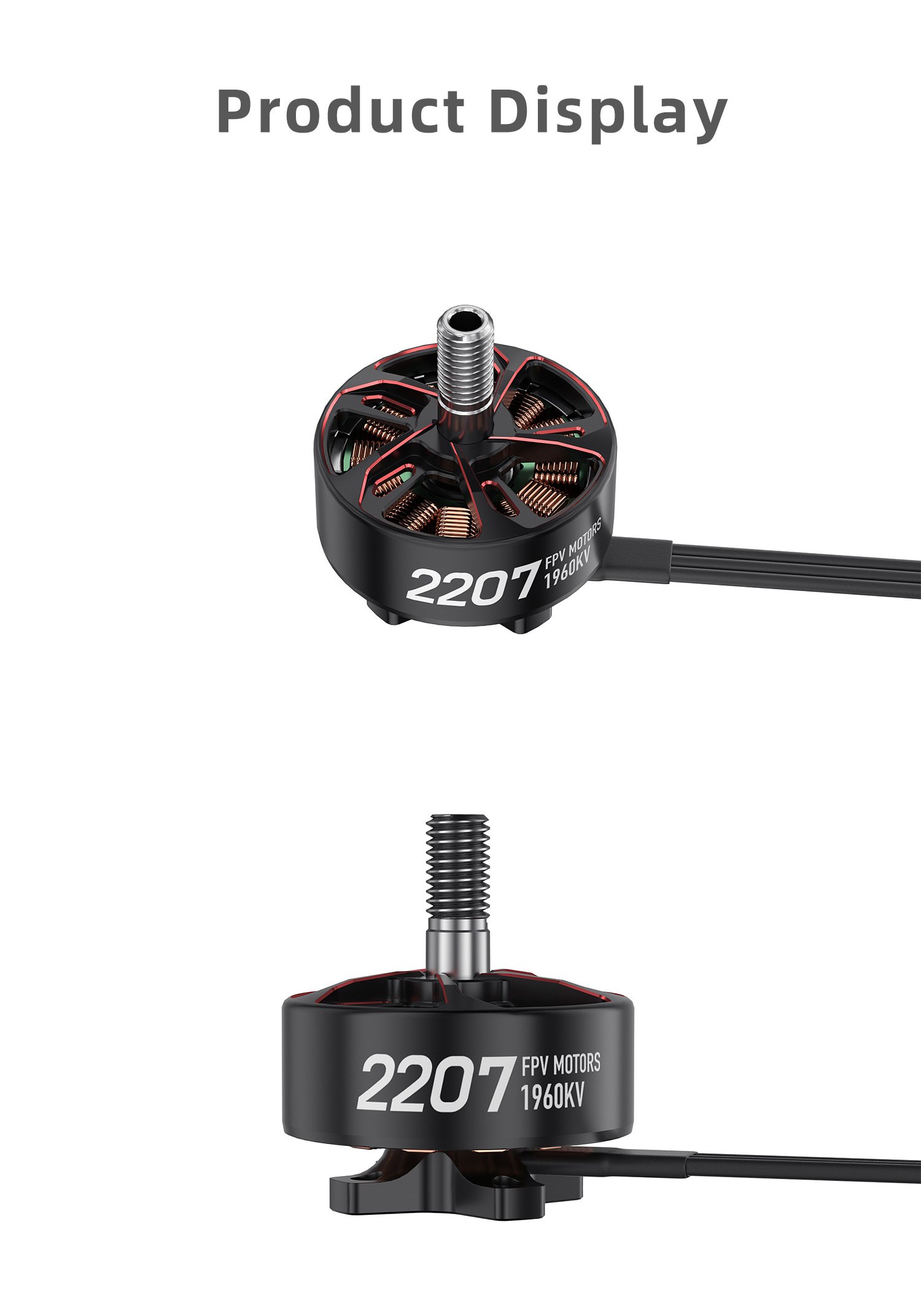

n2. The appearance of SPEEDX2 2207 is black and red, highlighting the exquisite details.
n3. In terms of motor magnetic circuit design, choose a solution with high explosive force and high response.
n4. The surface of the motor is treated with fine CD texture, which can effectively prevent scratches from affecting the appearance.
n5. Made of 7075 aviation aluminum alloy, high-precision CNC integrated molding, lighter weight.

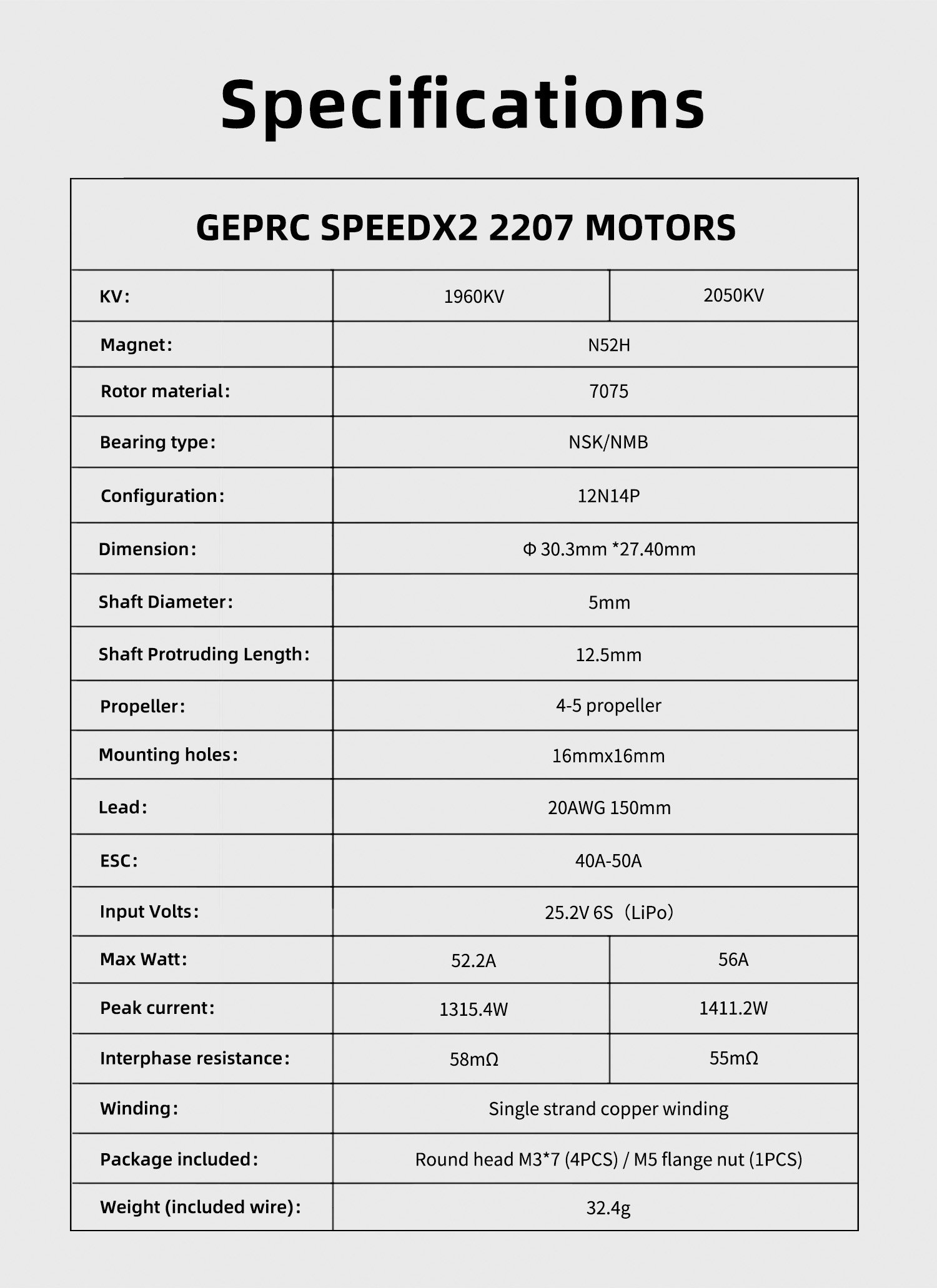

nSpecifications
nSPEEDX2 2207 1960KV Motor
nKV: 1960KV
nConfiguration: 12N14P
nMagnet: N52H ARC
nRotor material: 7075-T6 aviation aluminum alloy
nStator diameter: 22mm
nStator height: 7mm
nOutput shaft diameter: Φ5mm

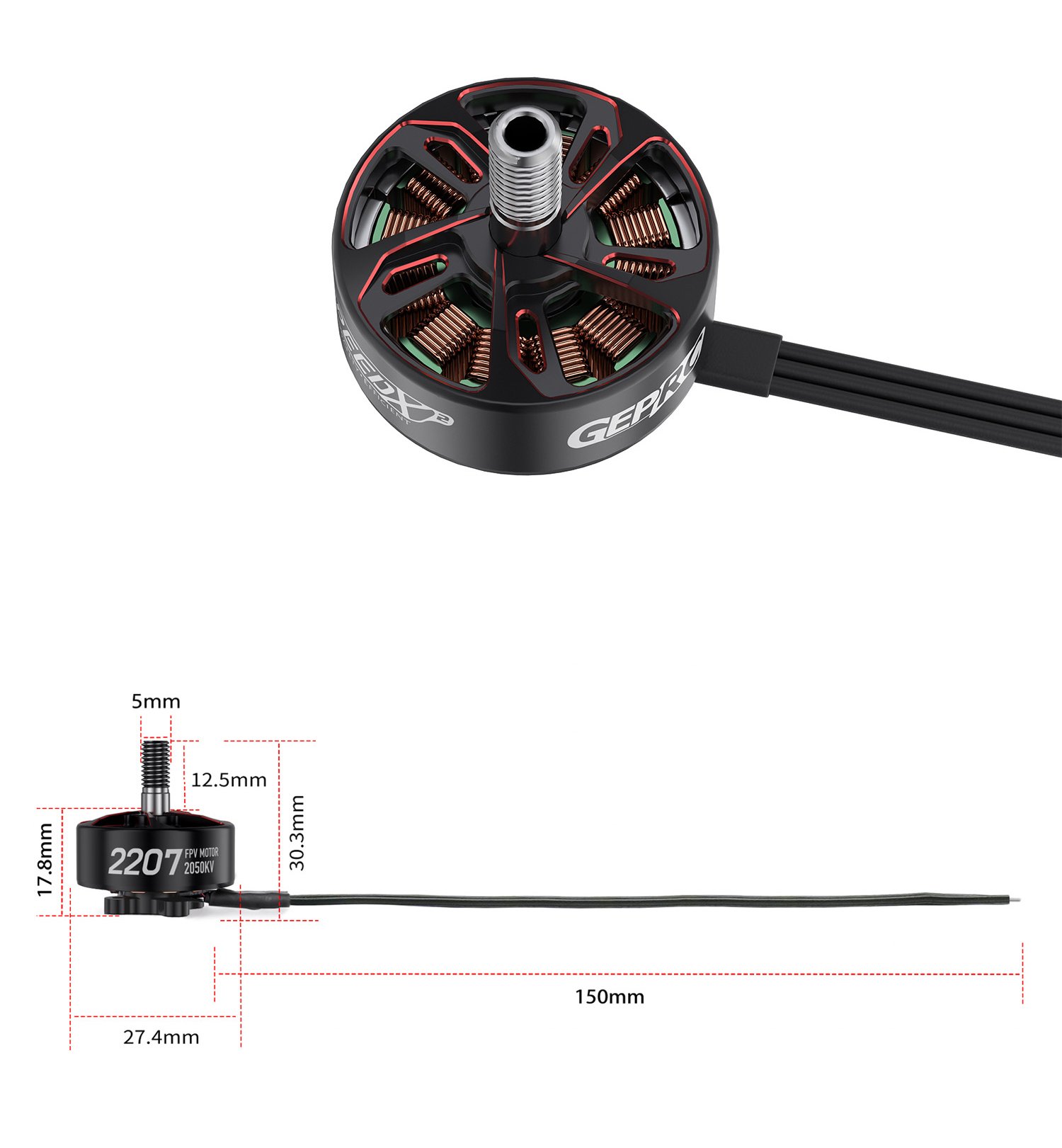

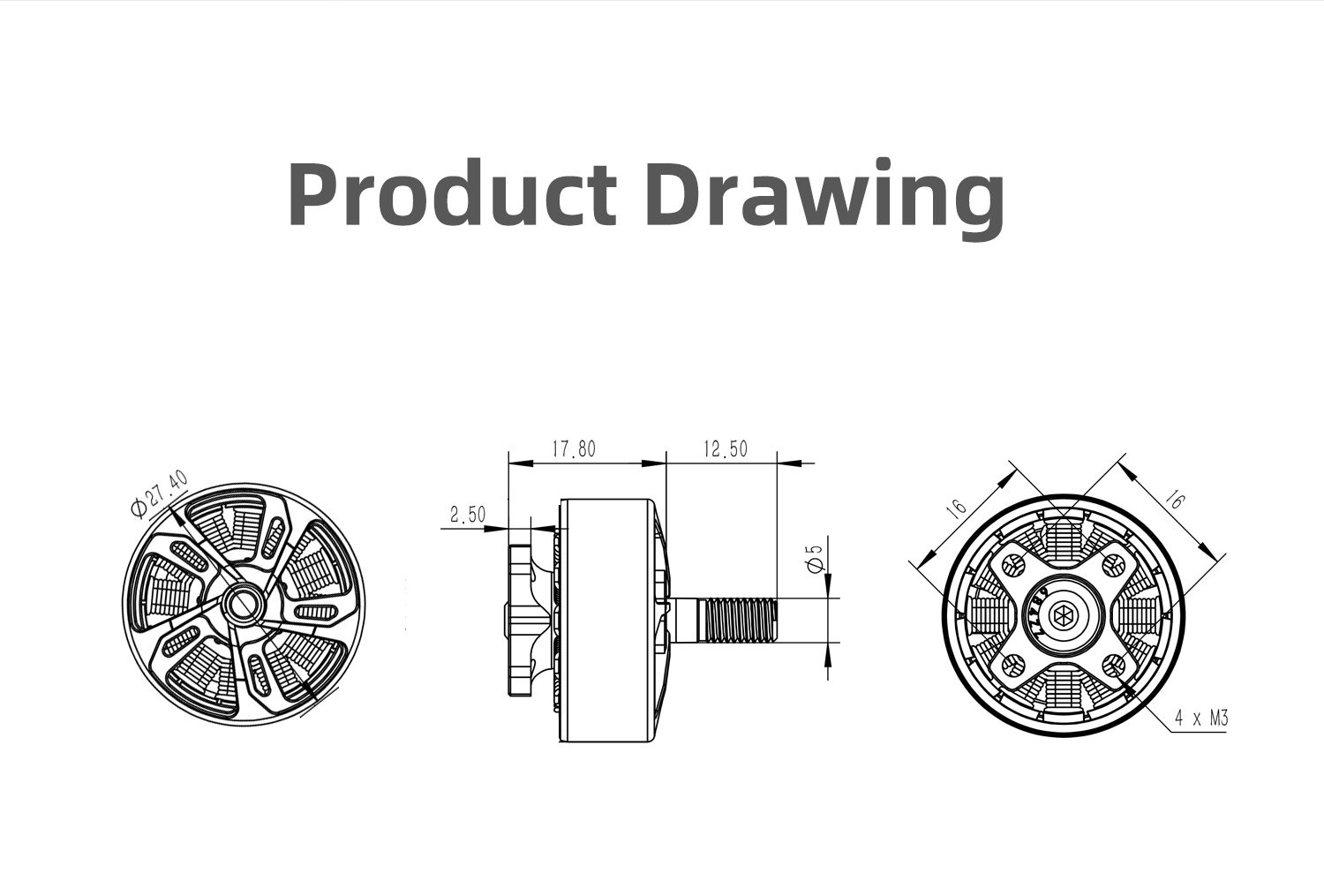

nDimensions: Φ30.3mm *27.40mm
nOutlet specification: 20AWG 150mm
nRated voltage: 25.2V 6S LiPo
nMaximum power: 1315.4W
nMaximum current: 52.2A
nMounting hole: 16x16mm (M3)
nColor: black with red
nWeight: 32.4g (including wire)
nApplicable models: Suitable for 4inch-5inch racing FPV quads
nSPEEDX2 2207 2050KV Motor
nKV: 2050KV
nConfiguration: 12N14P
nMagnet: N52H ARC
nRotor material: 7075-T6 aviation aluminum alloy
nStator diameter: 22mm
nStator height: 7mm
nOutput shaft diameter: Φ5mm
nDimensions: Φ30.3mm *27.40mm
nOutlet specification: 20AWG 150mm
nRated voltage: 25.2V 6S LiPo
nMaximum power: 1411.2W
nMaximum current: 56A
nMounting hole: 16x16mm (M3)
nColor: black with red
nWeight: 32.4g (including wire)
nApplicable models: Suitable for 4inch-5inch racing FPV quads

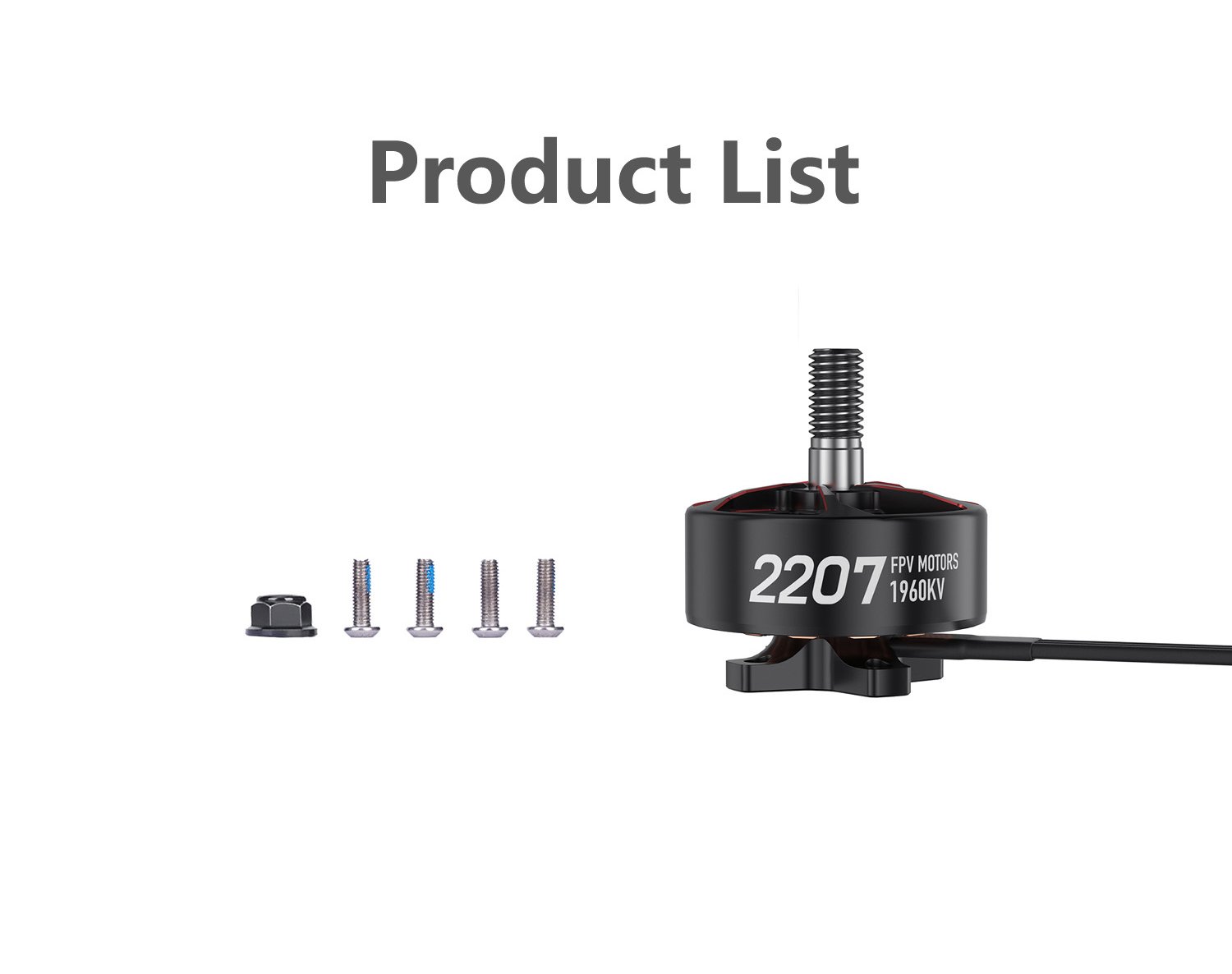

nInlcudes
n1 x SPEEDX2 2207 motor
n4 x M3*7 round head screws
n1 x M5 anti-slip nut
