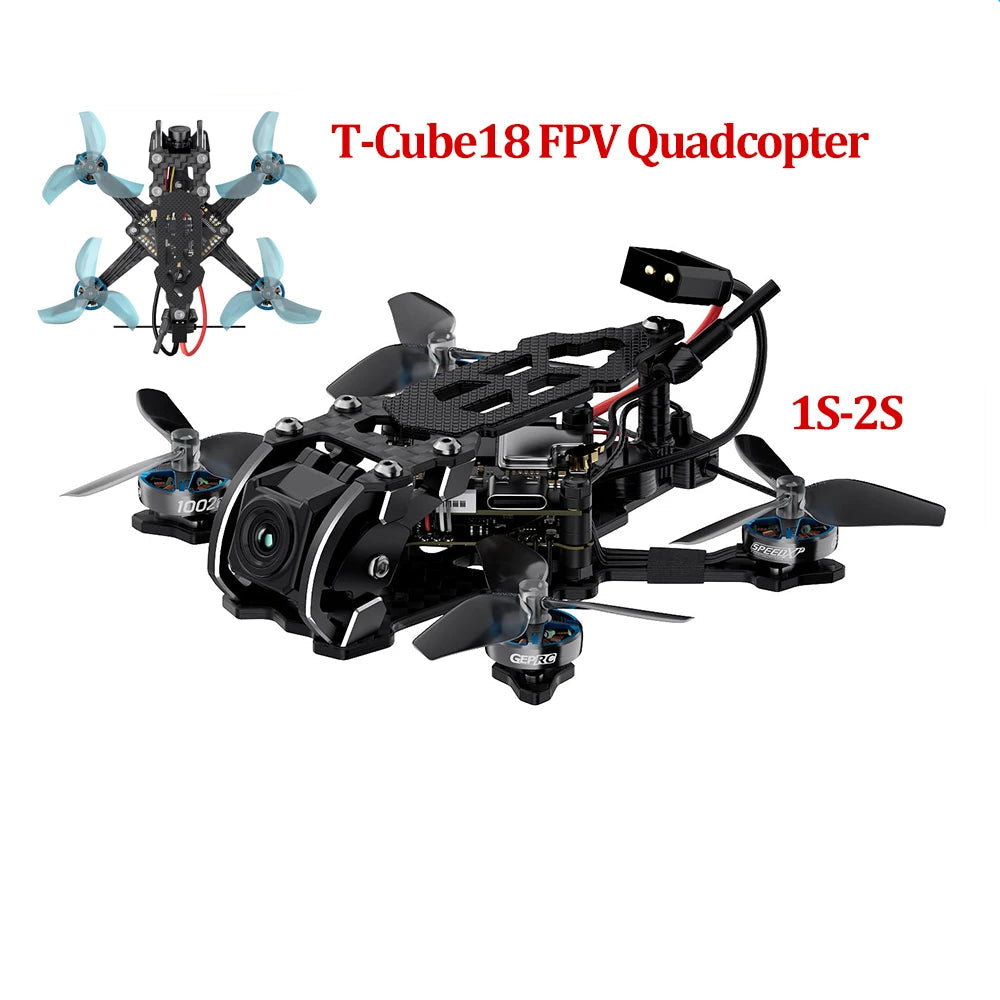

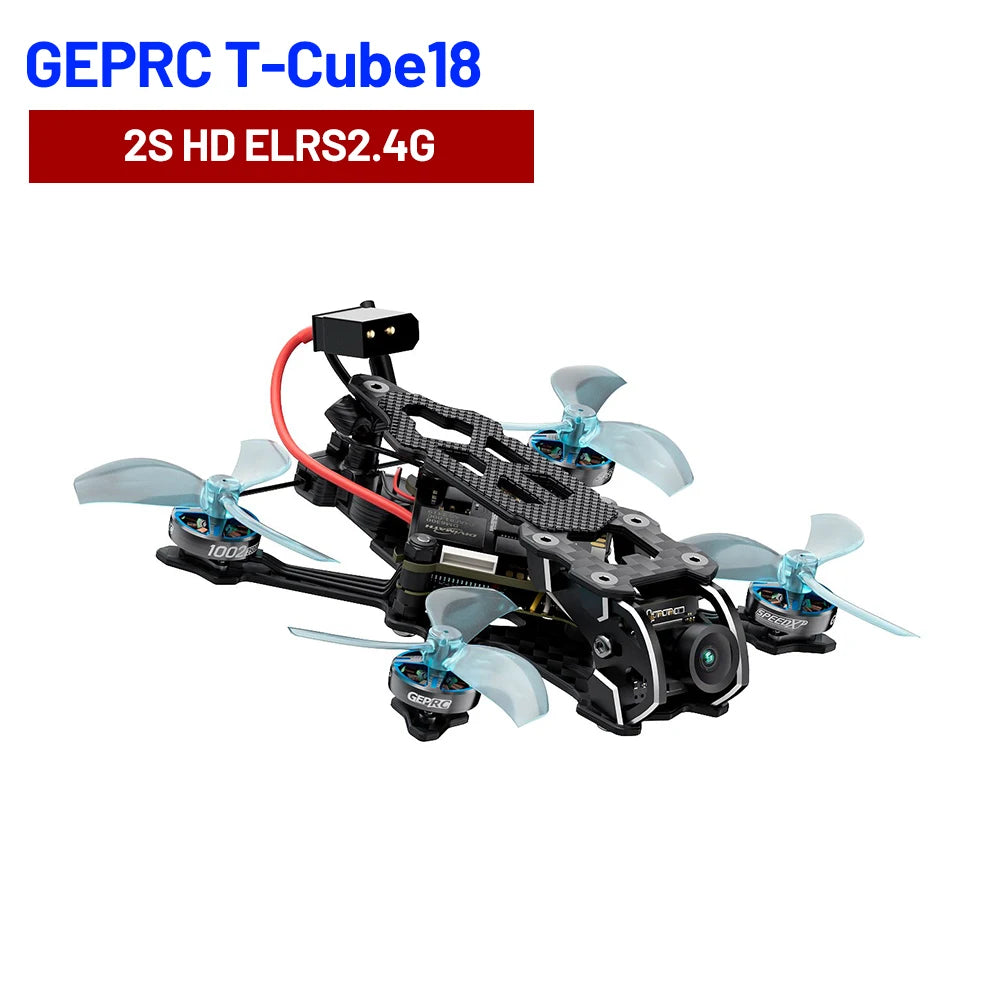

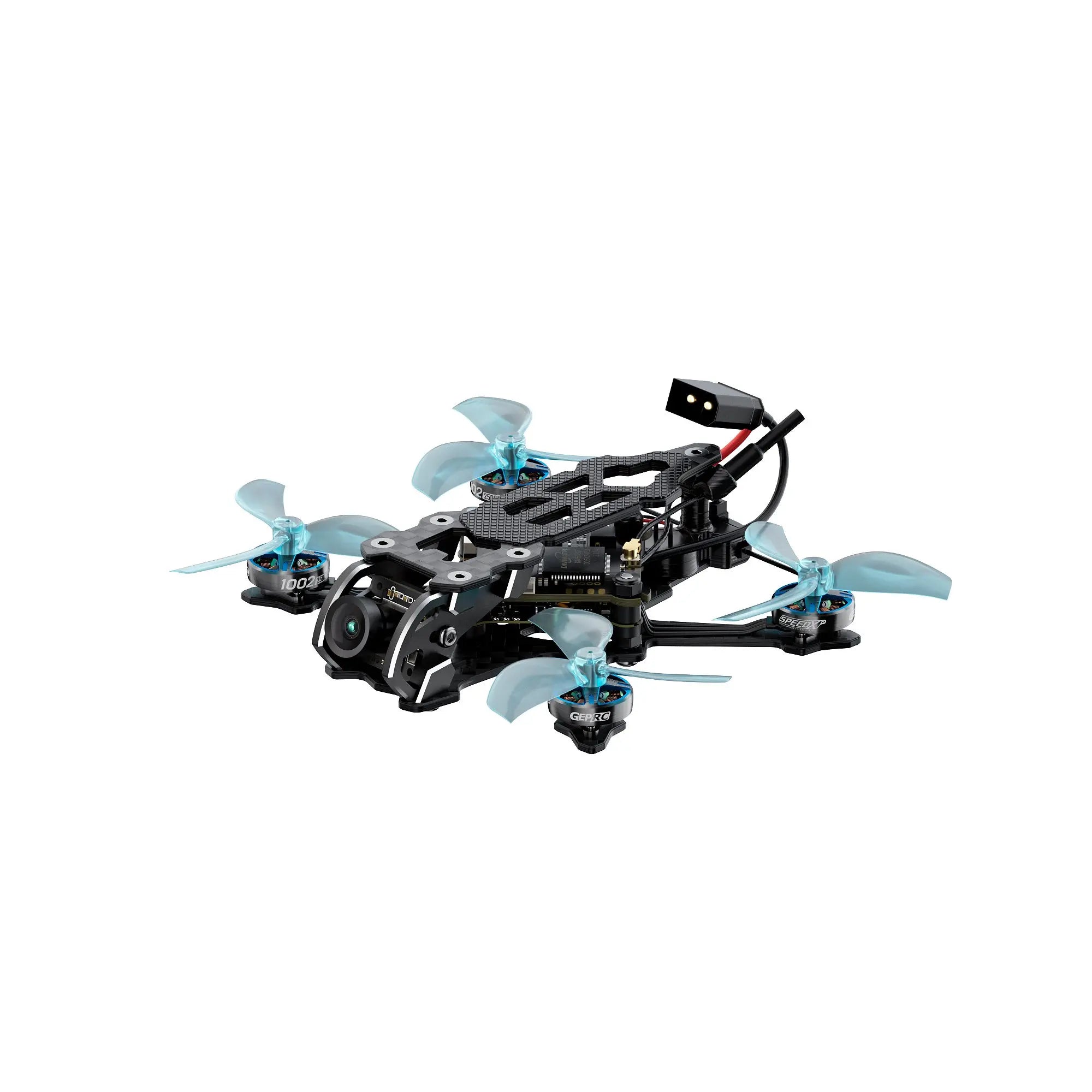

GEPRC T-Cube18 1-2S Analog ELRS2.4G / HD O4 Elrs 2.4G 1.8Inch FPV Quadcopter TAKER F411-12A Mini RC Quadcopter Freestyle Drones

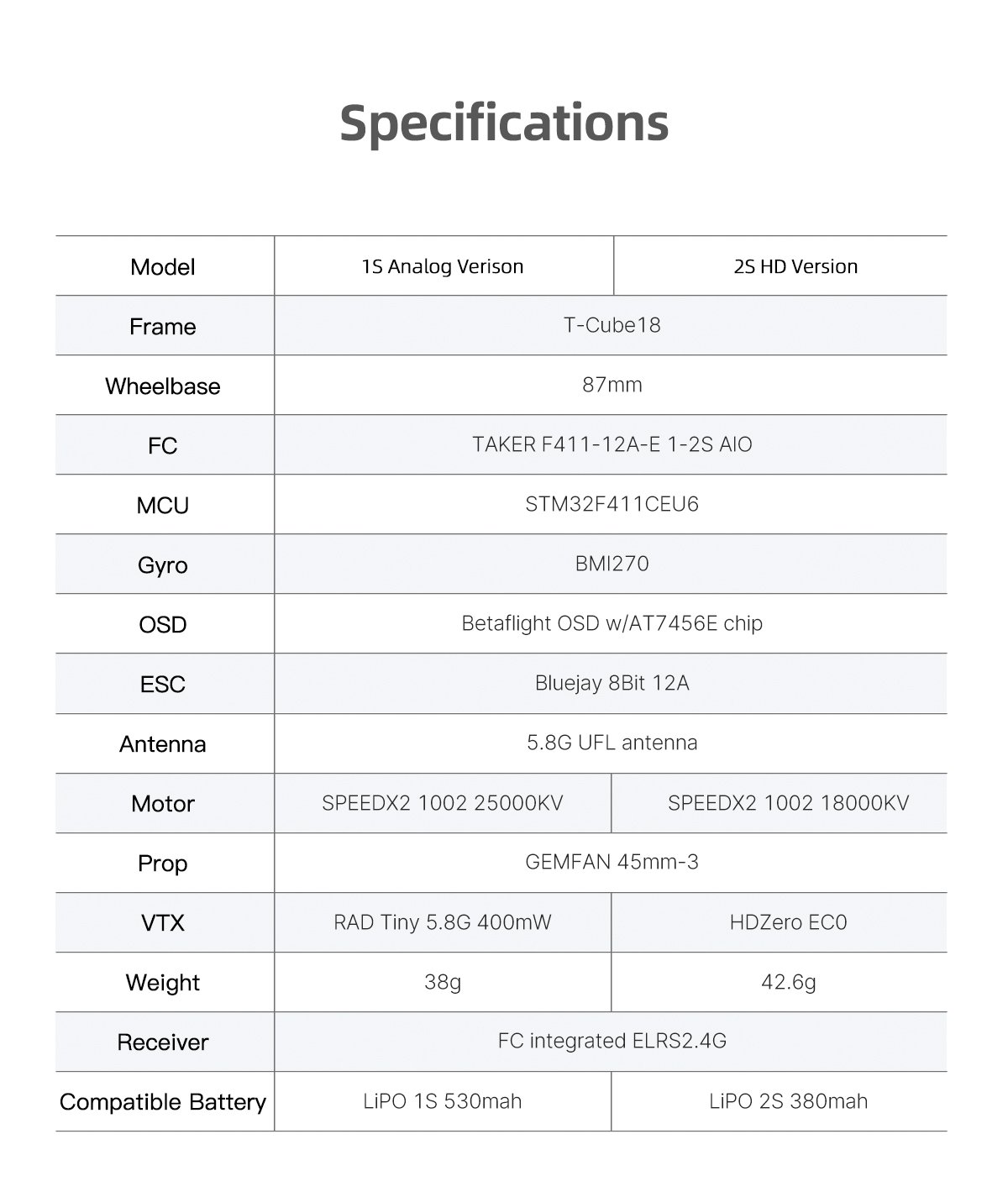

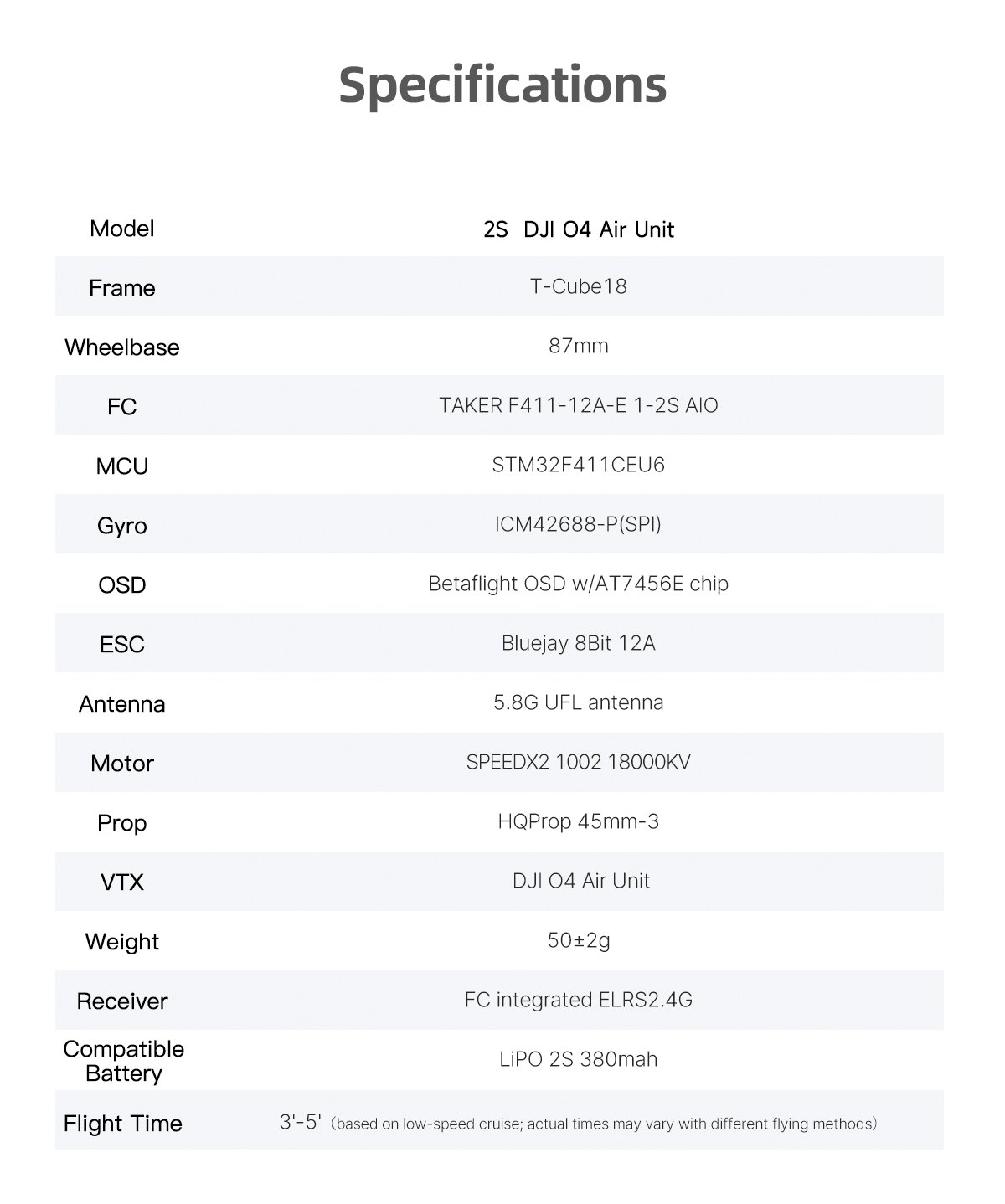

HD O4 Specifications

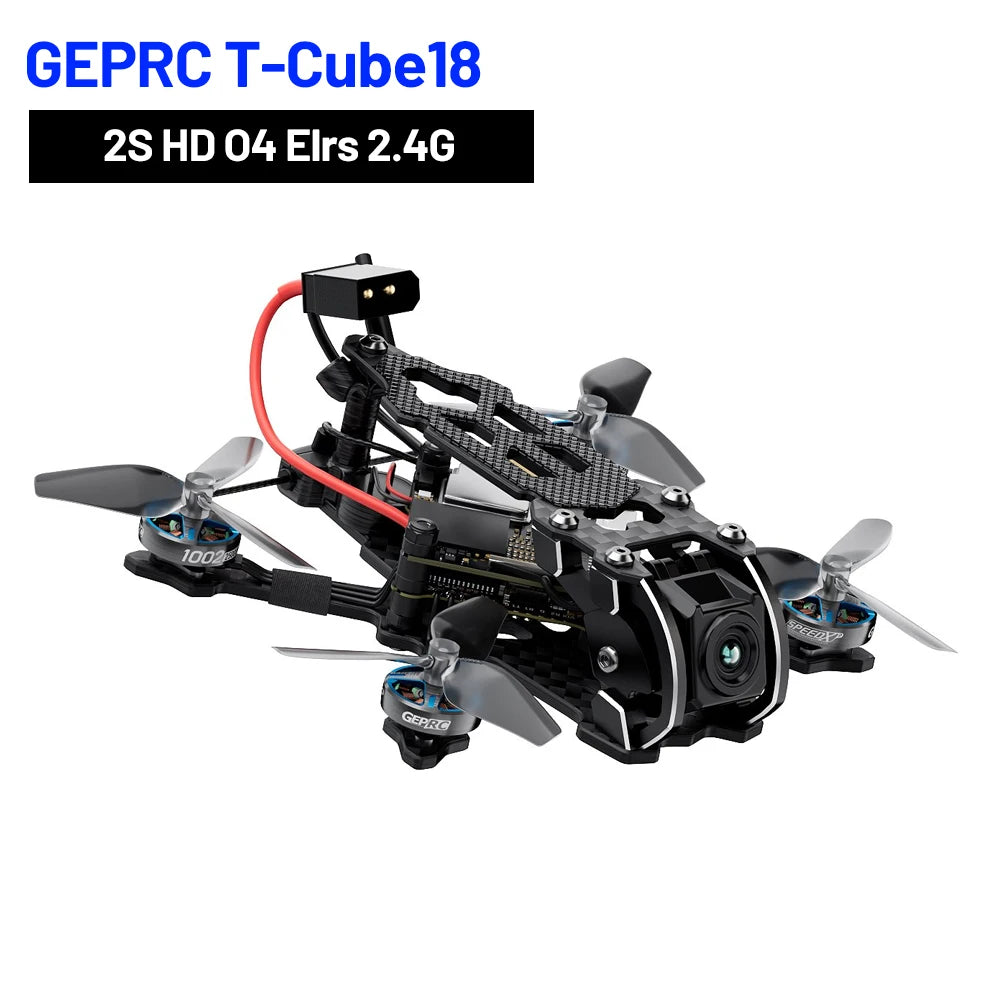

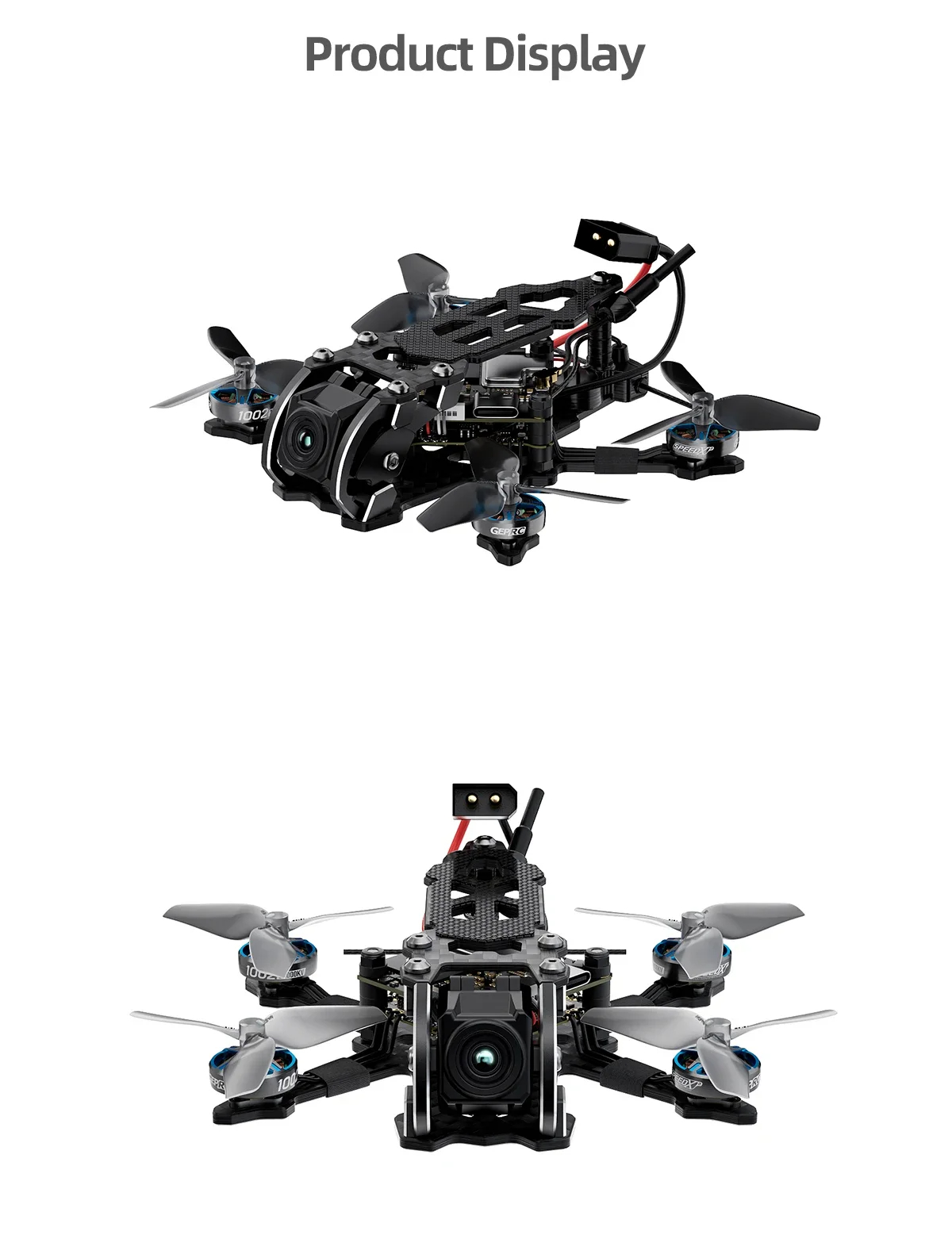

• Model: T-Cube18 HD O4 Quadcopter

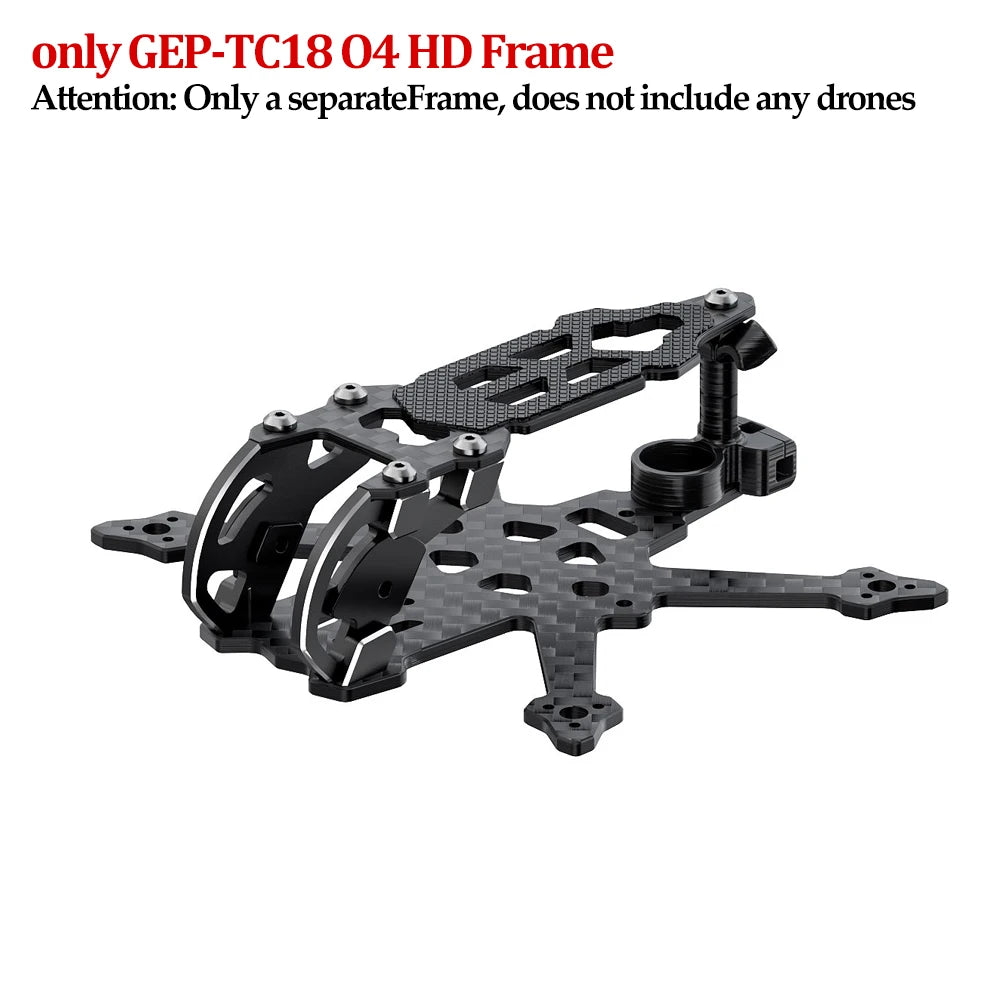

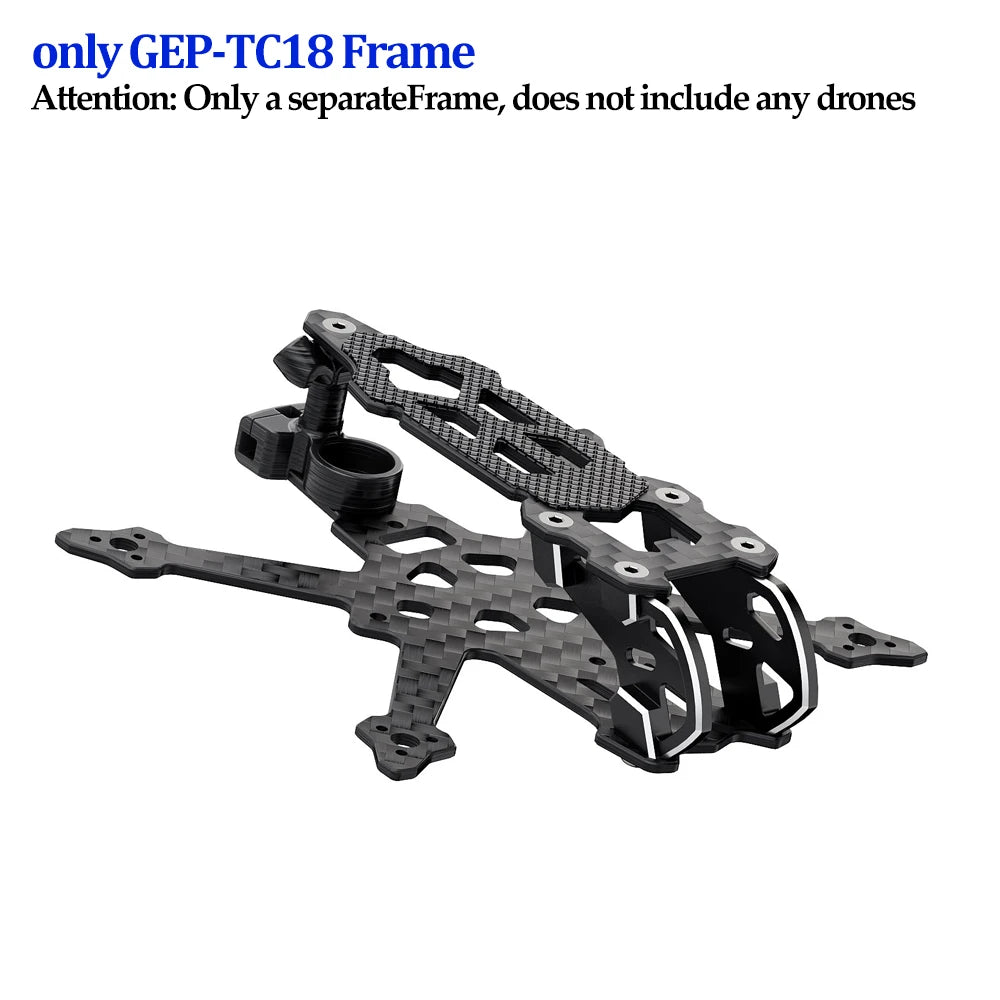

• Frame: T-Cube18

• Wheelbase: 87mm

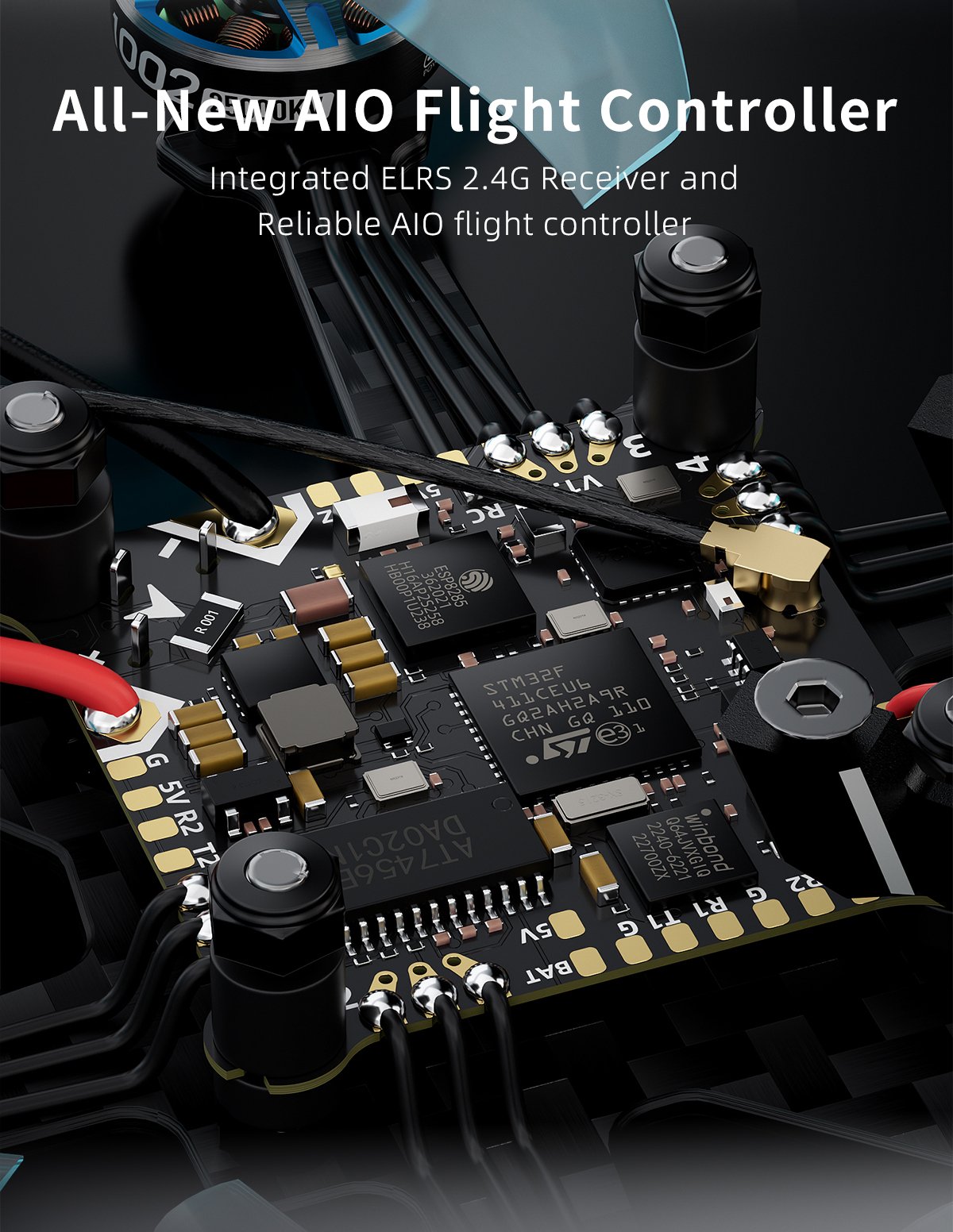

• Flight System: TAKER F411-12A-E 1-2S AIO

• MCU: STM32F411CEU6

• Gyro: ICM42688

• ESC: 12A 8Bit ESC

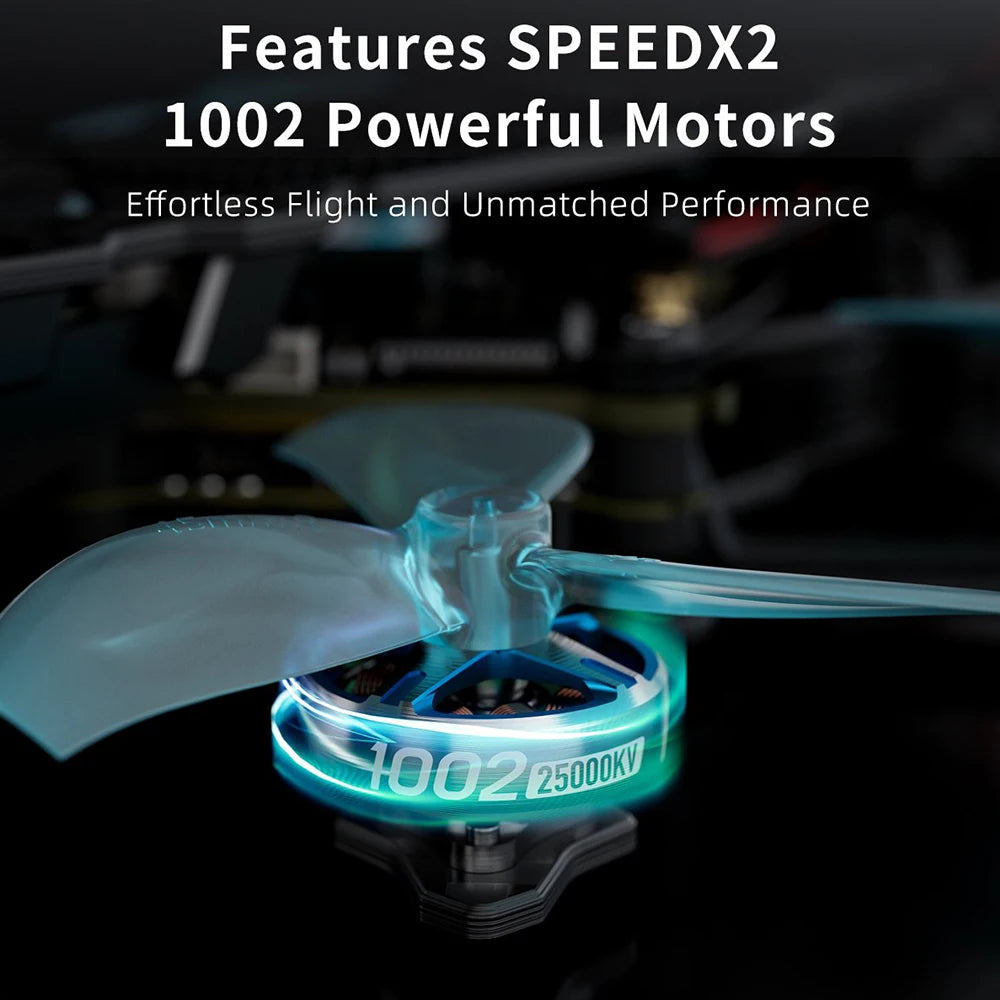

• Motor: SPEEDX2 1002 18000KV

• Prop: HQProp 45mm

• Battery Connector: XT30

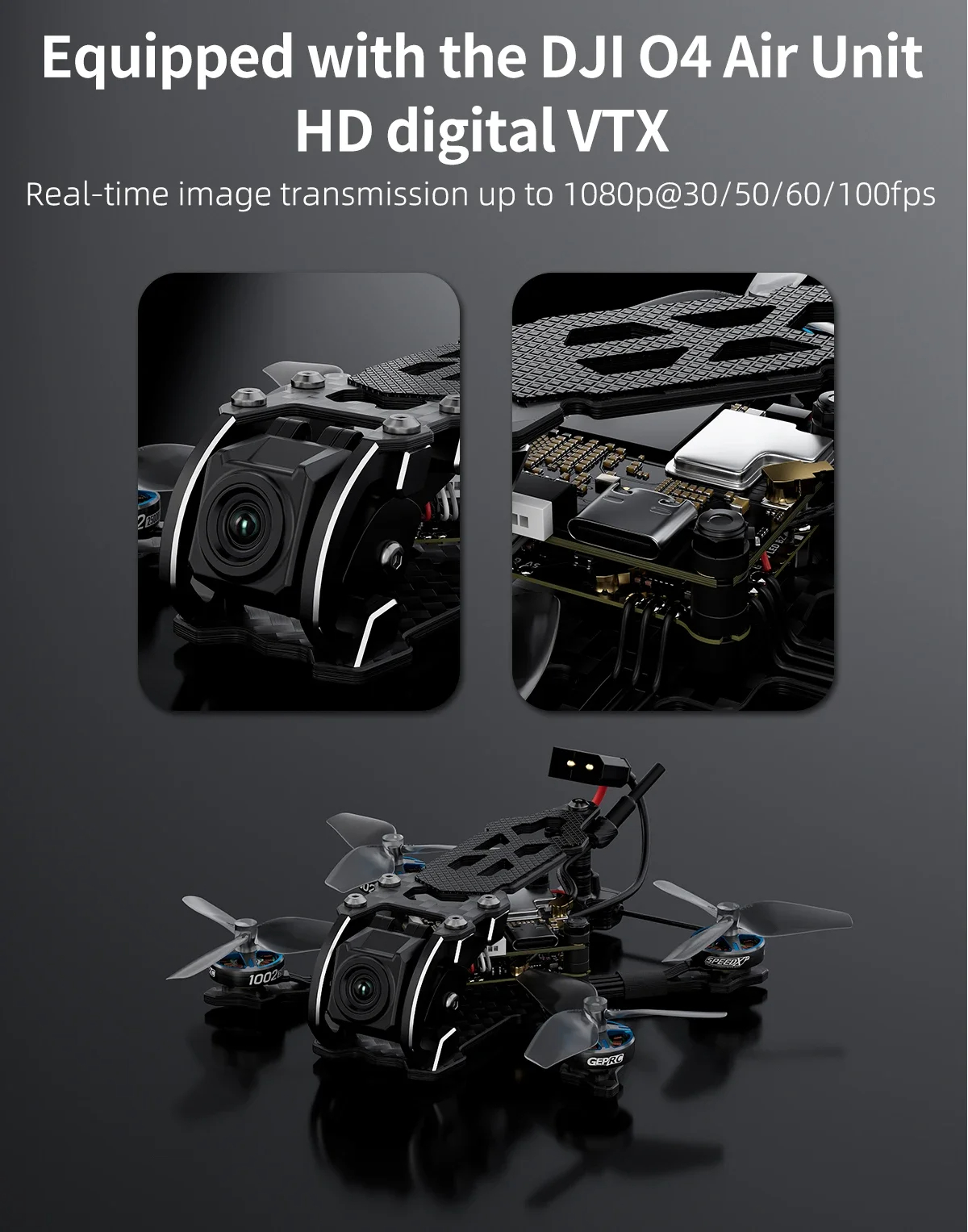

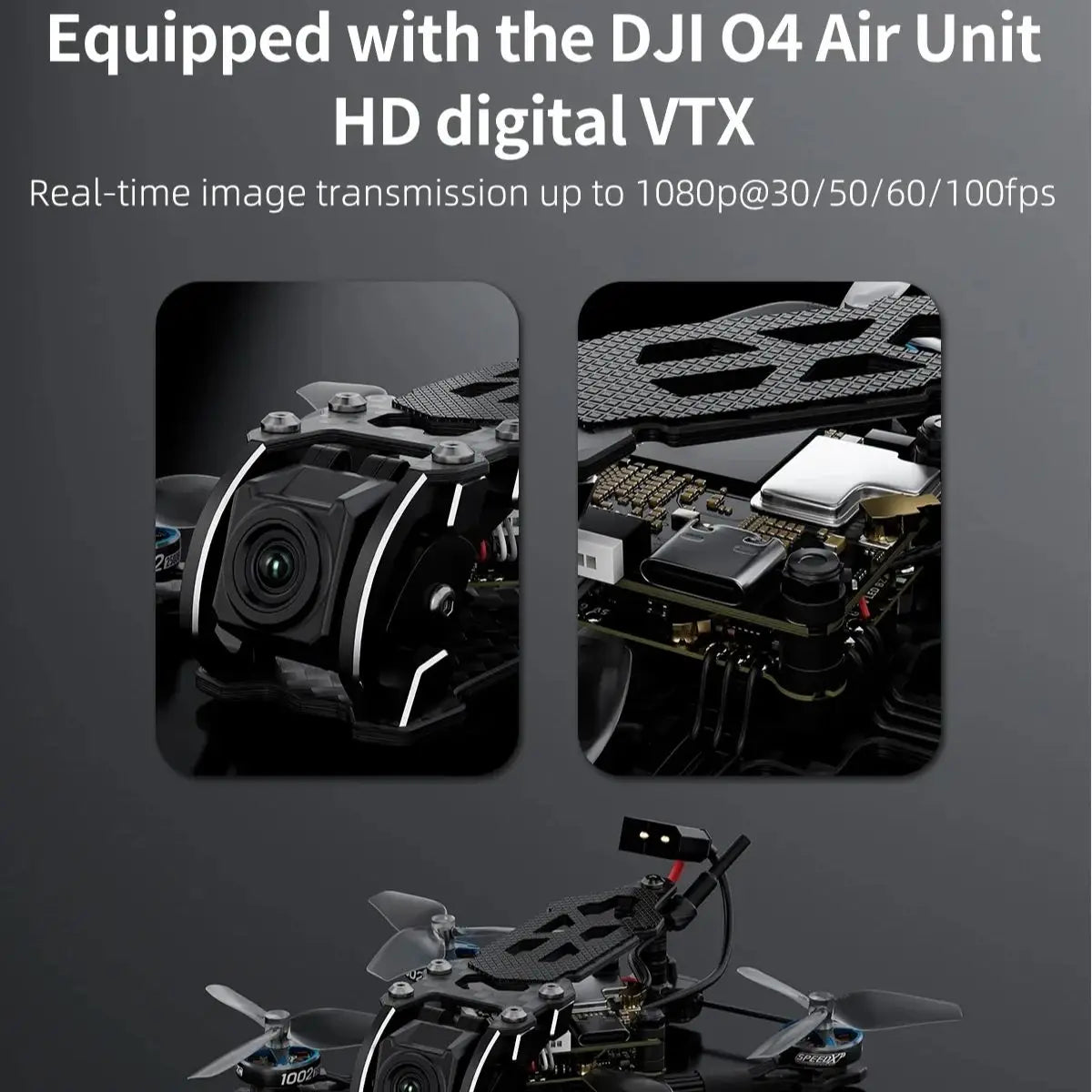

• VTX: DJI O4 Air Unit

• Receiver: Built-in ELRS2.4G

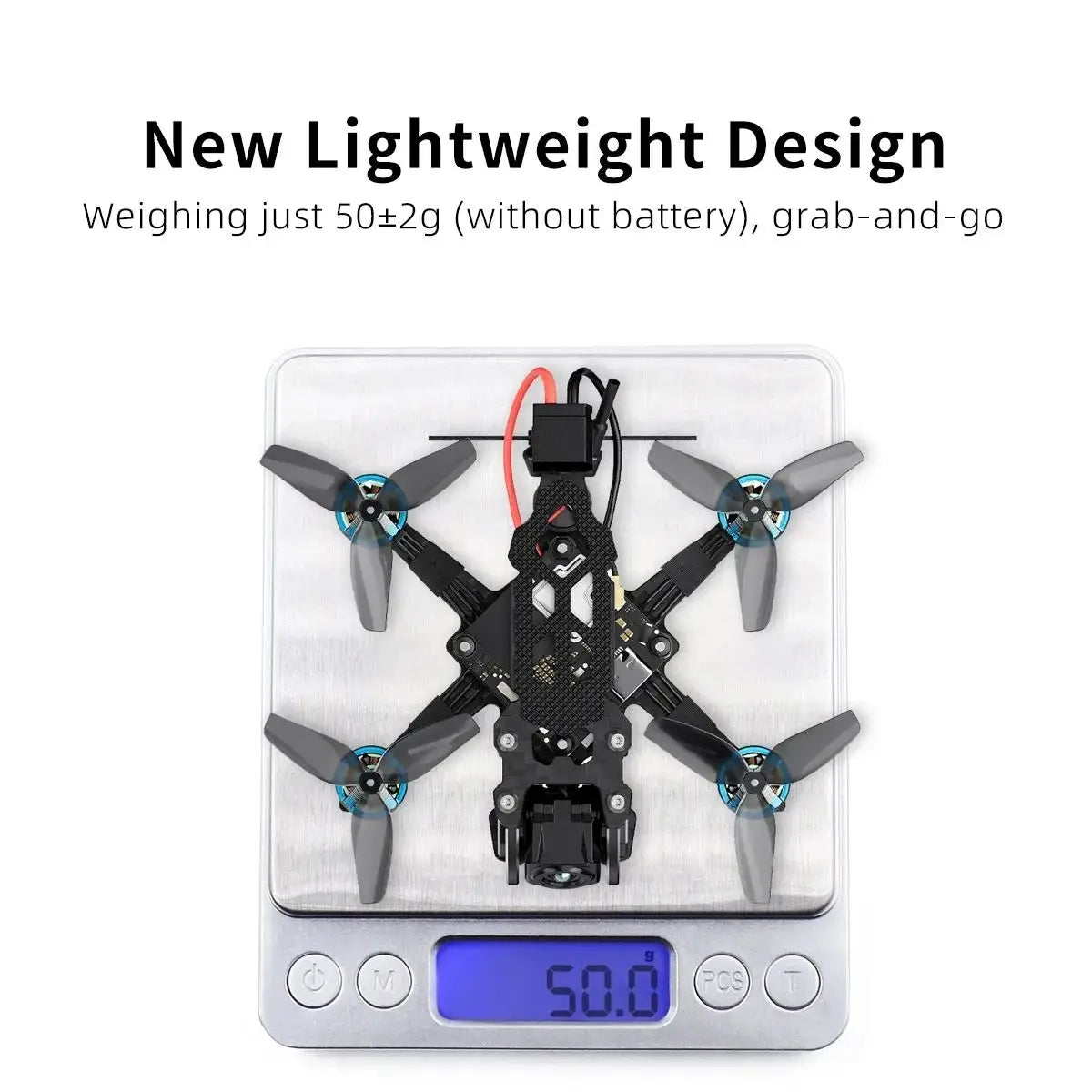

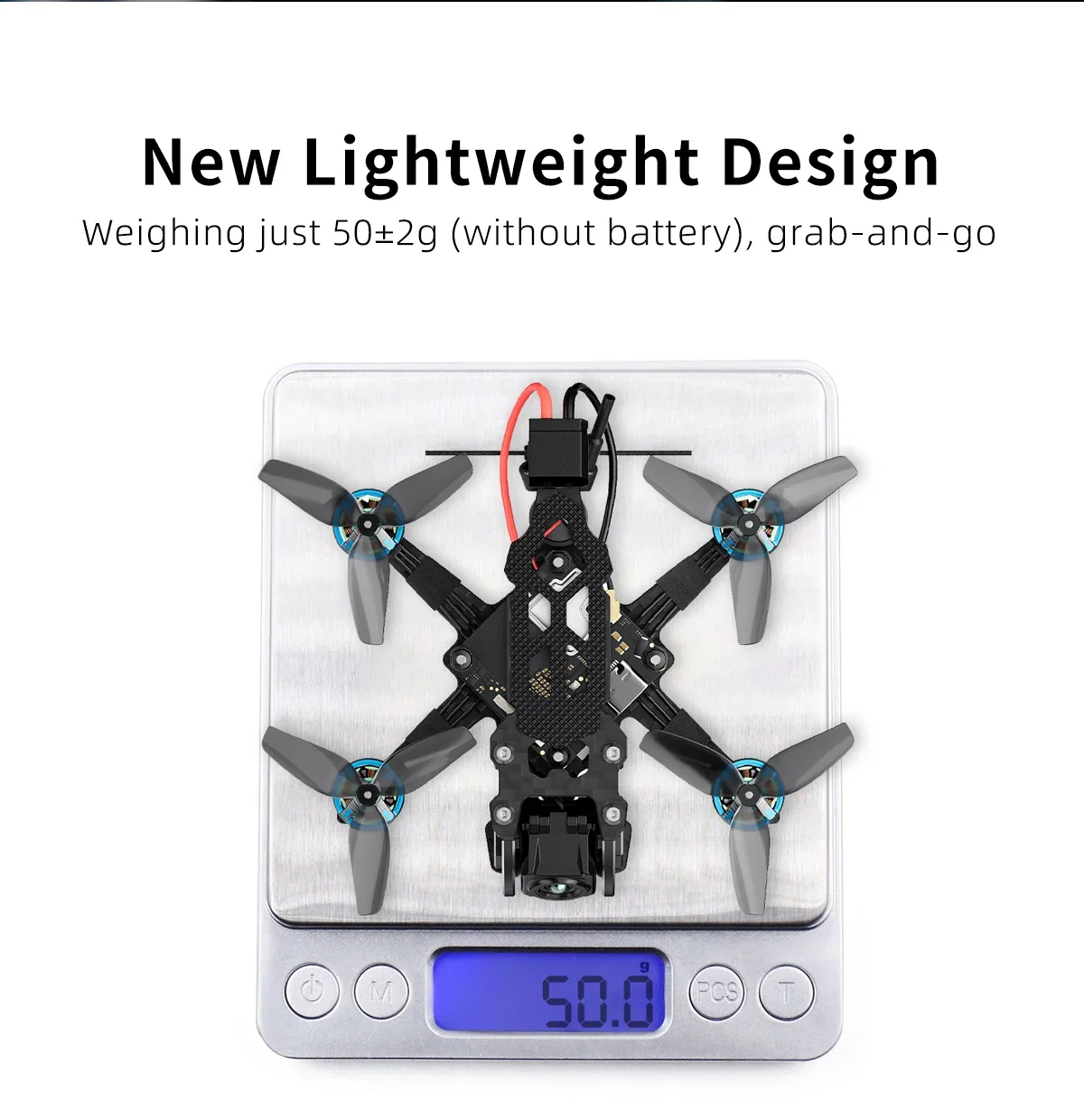

• Weight: 50g+2g

• Recommended Battery: LiHV 2S 380mAh

• Flight Time: 3-5’（based on low-speed cruise; actual times may vary with different flying methods）

Includes

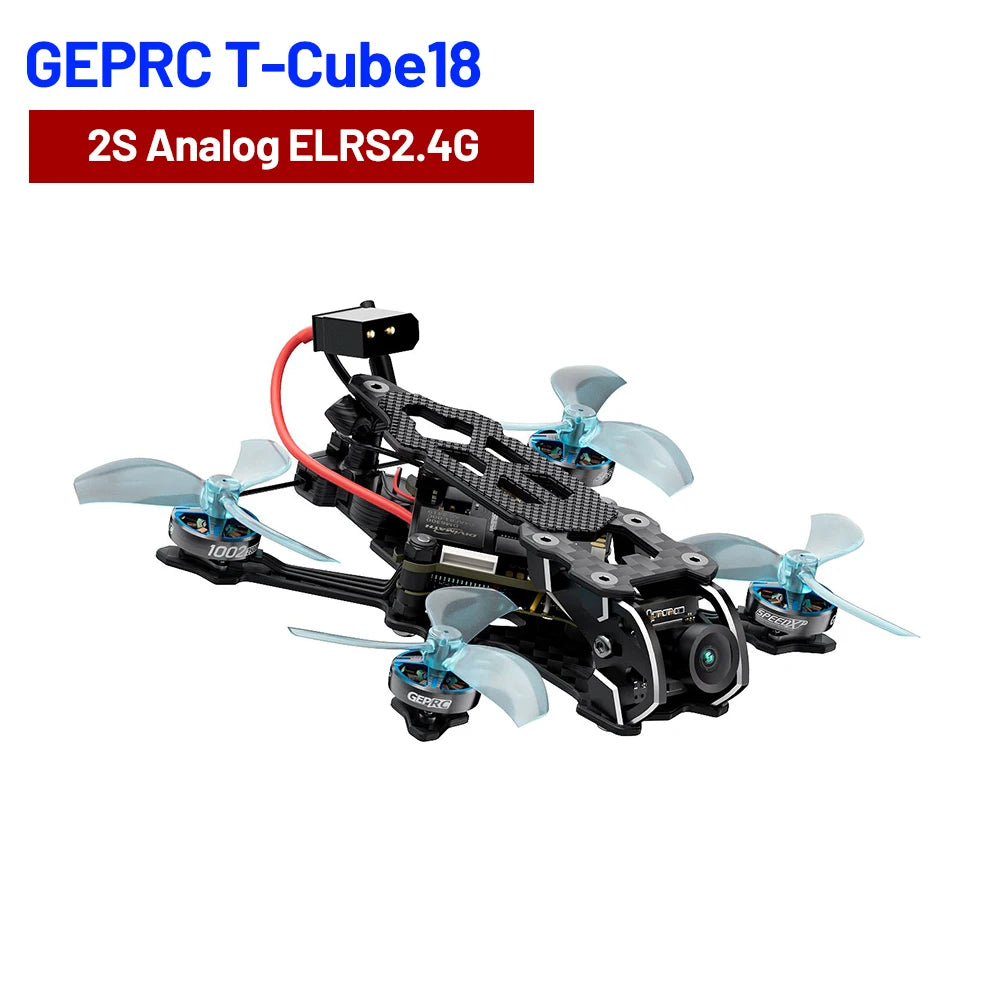

• Model: T-Cube18 Analog Quadcopter

• Frame: T-Cube18

• Wheelbase: 87mm

• FC: TAKER F411-12A-E 1-2S AIO

• MCU: STM32F411CEU6

• Gyro: BMI270

• ESC: 12A 8Bit ESC

• Motor: SPEEDX2 1002 18000KV

• Prop: Gemfan 45mm x8

• Battery Connector: XT30

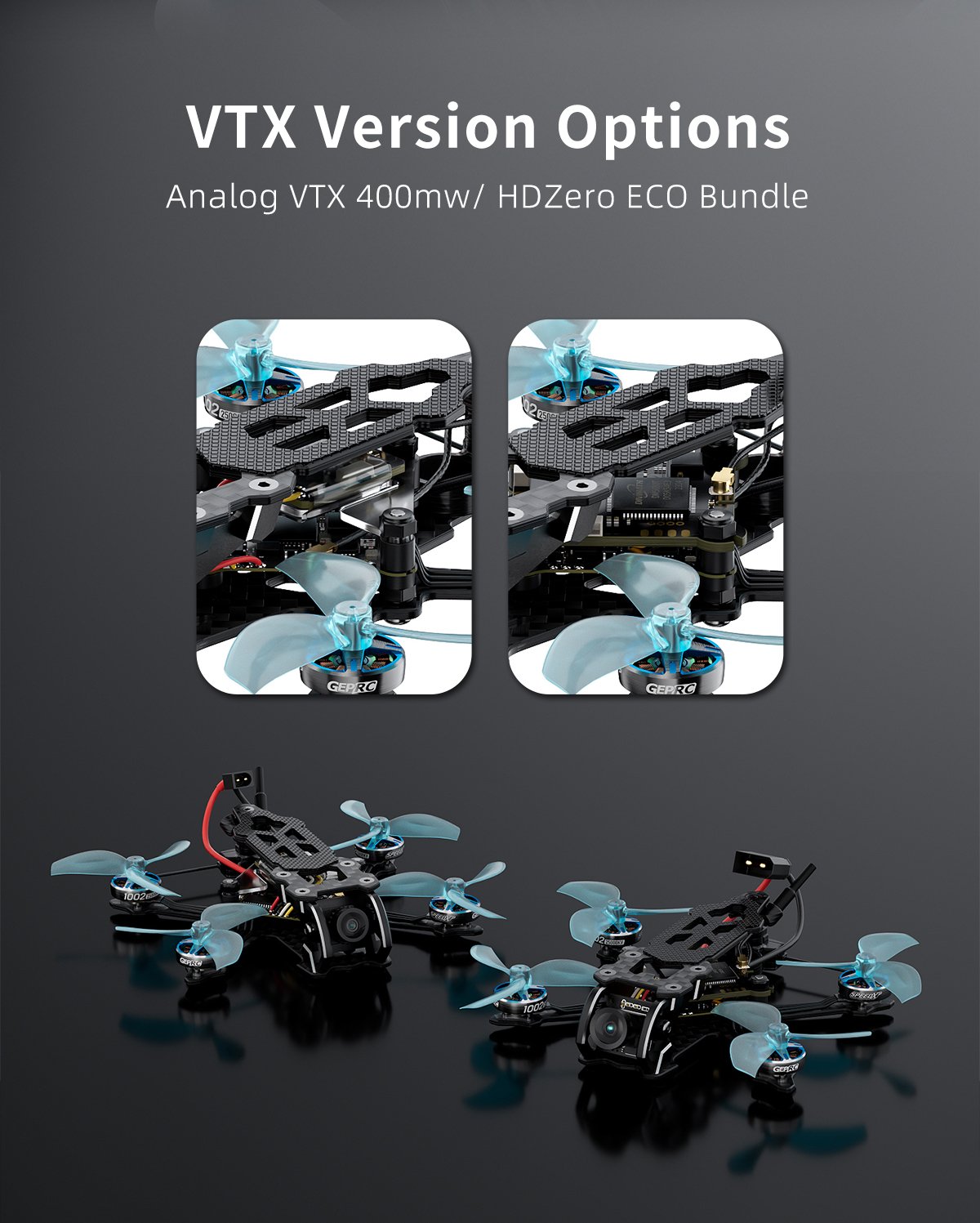

• VTX: RAD Tiny 5.8G 400mW

• Camera: CADDX ANT

• Receiver: Built-in ELRS2.4G

• Weight: 38g±1g

• Recommended Battery: LiHV 2S 500mAh

• Flight Time: 3′-5’（based on low-speed cruise; actual times may vary with different flying methods）

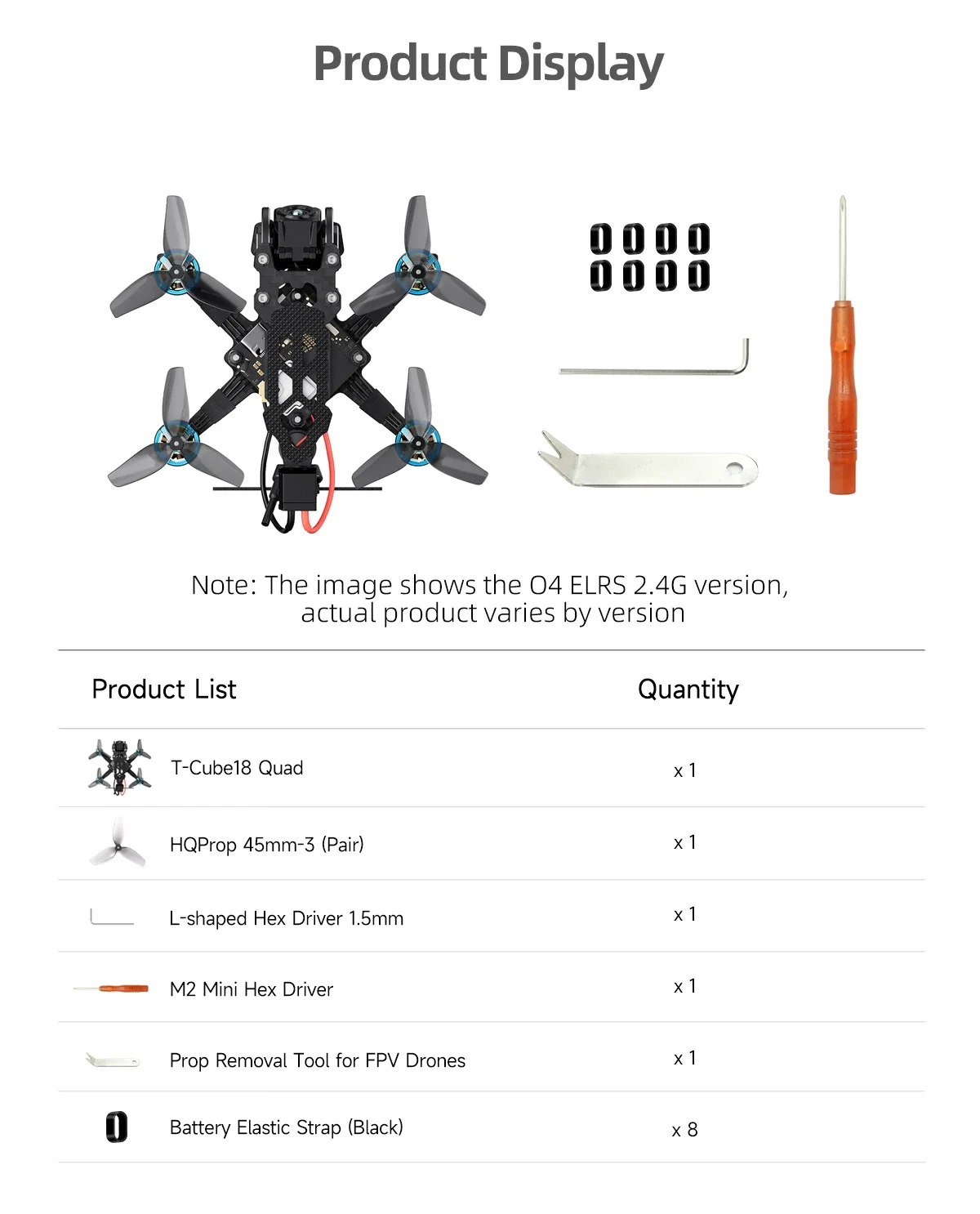

Includes

1 x T-Cube18 Quadcopter
1 x Gemfan 45mm x4（2pairs）
1 x Plum screwdriver
1 x L-shaped screwdriver 1.5mm
8 x Rubber band for battery fixing
