Description

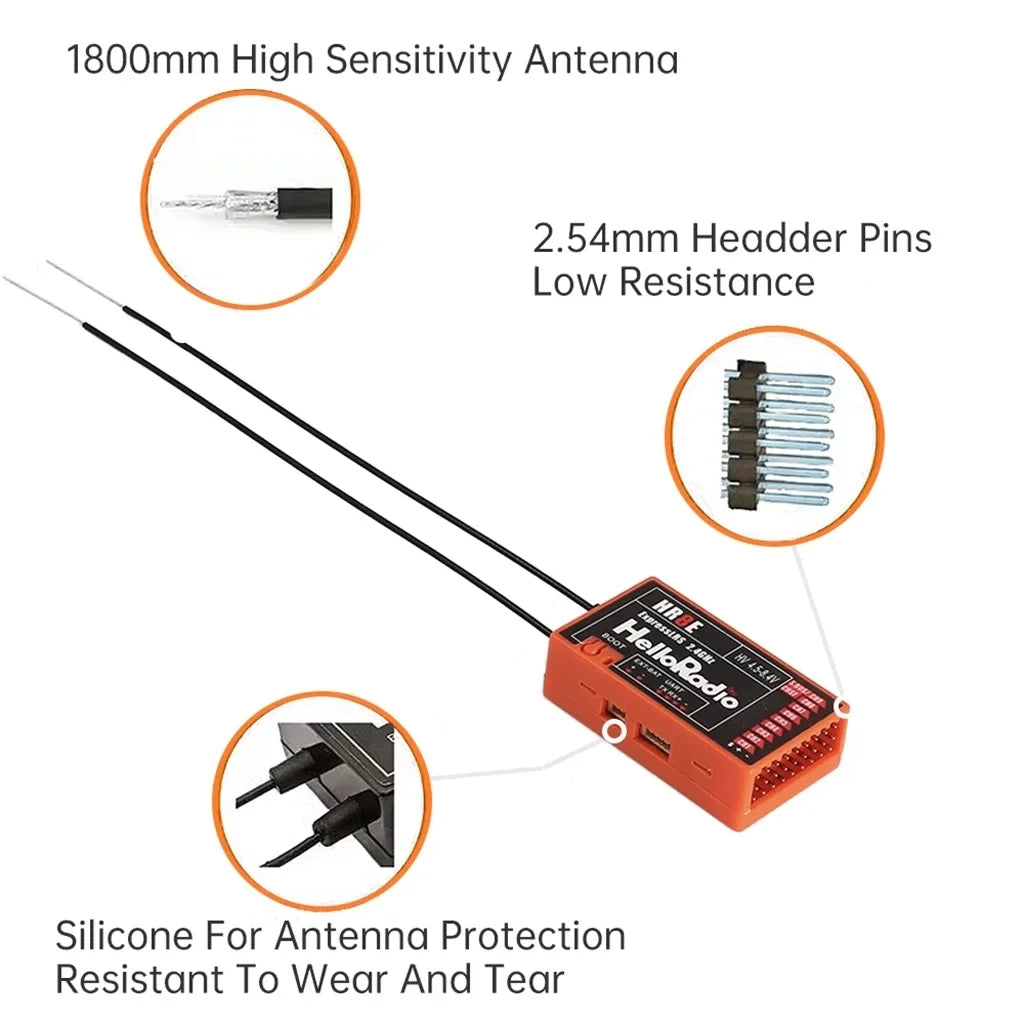

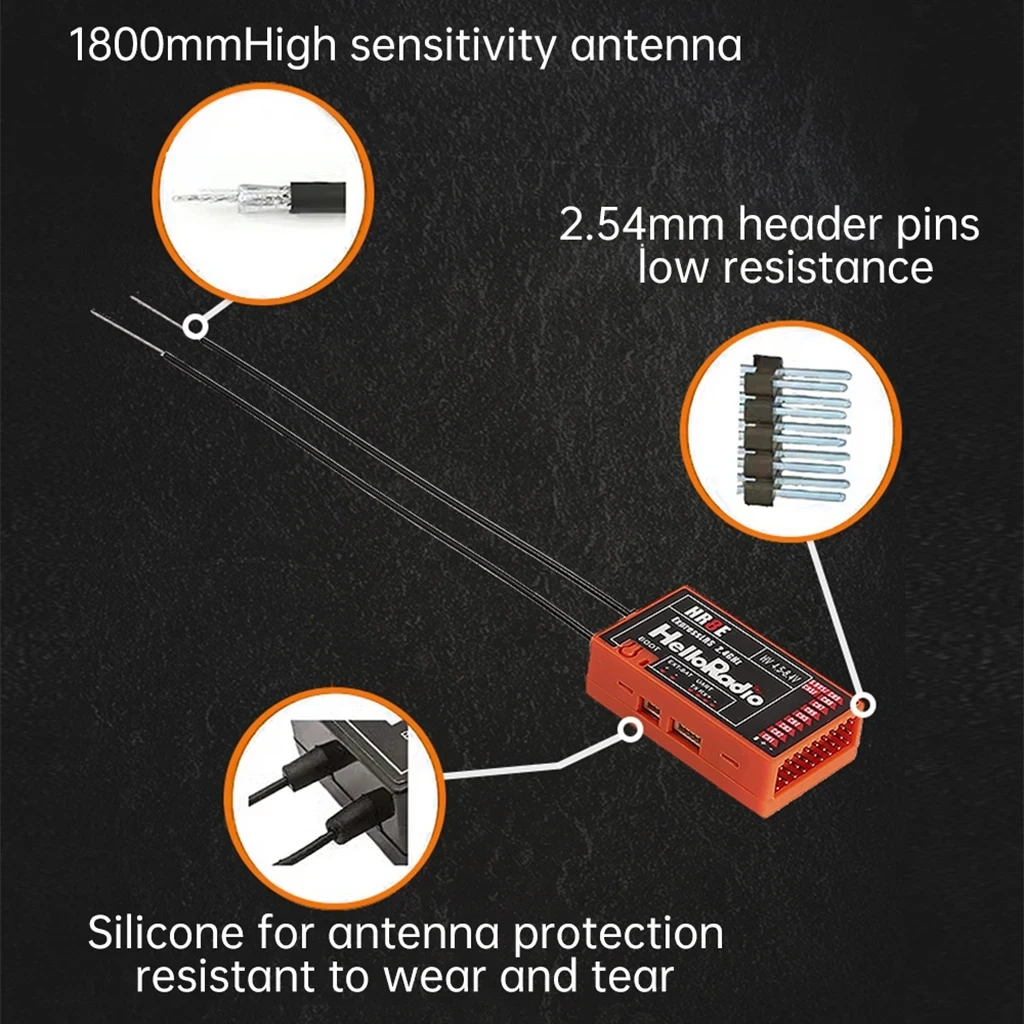

1800mm high sensitivity double antennae, stable reception.
High quality 2.54mm pin, low resistance, good conductivity.

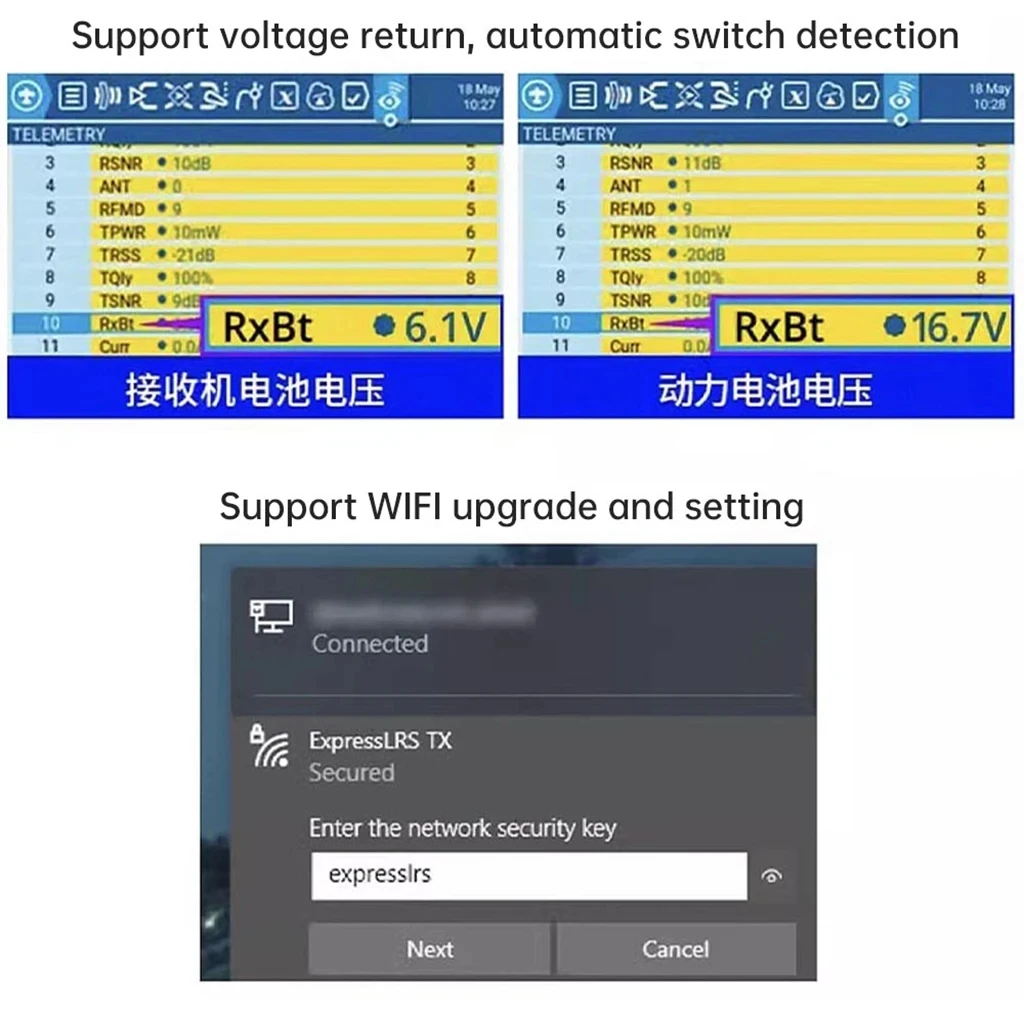

Support voltages feedback and automatic switching detection.
Small in size, easy to install.

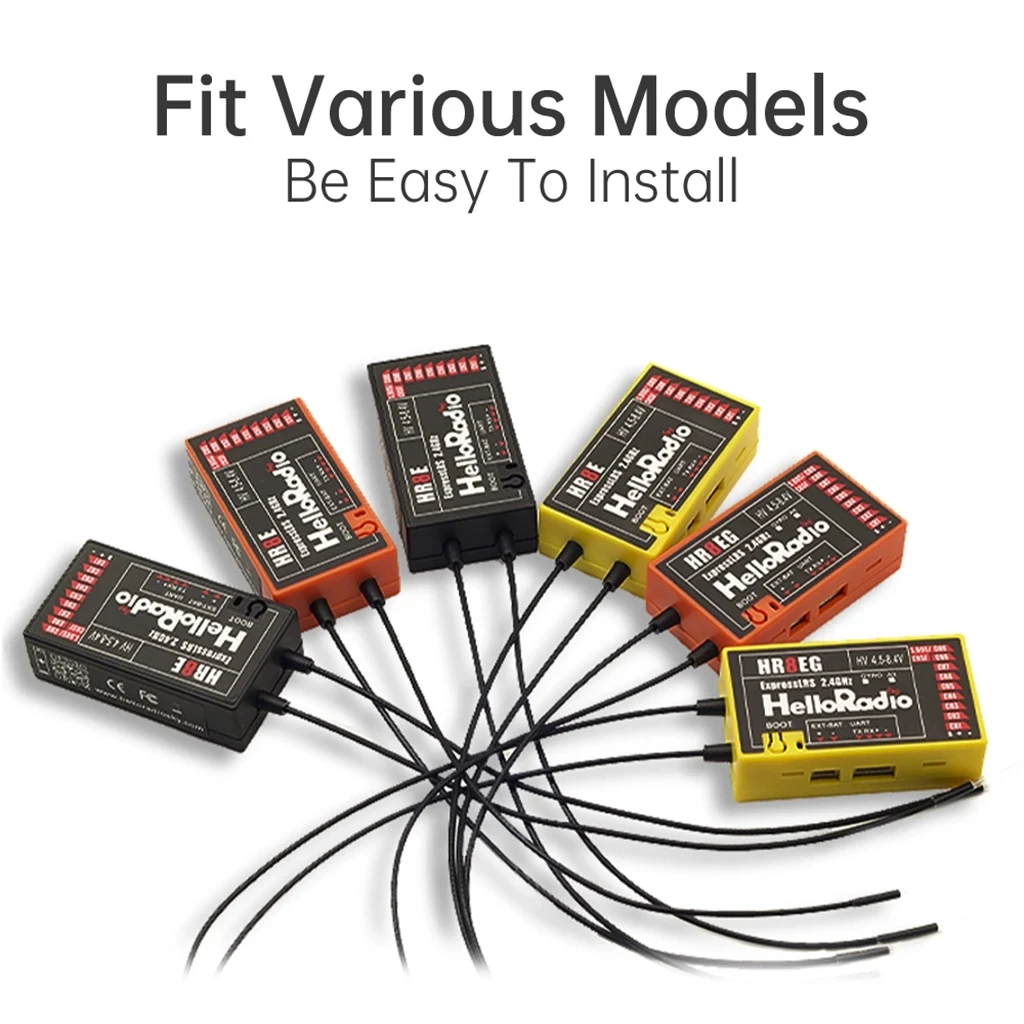

Adapt to various models of fixed wing unmanned aerial vehicle vehicle models.
Specifications:

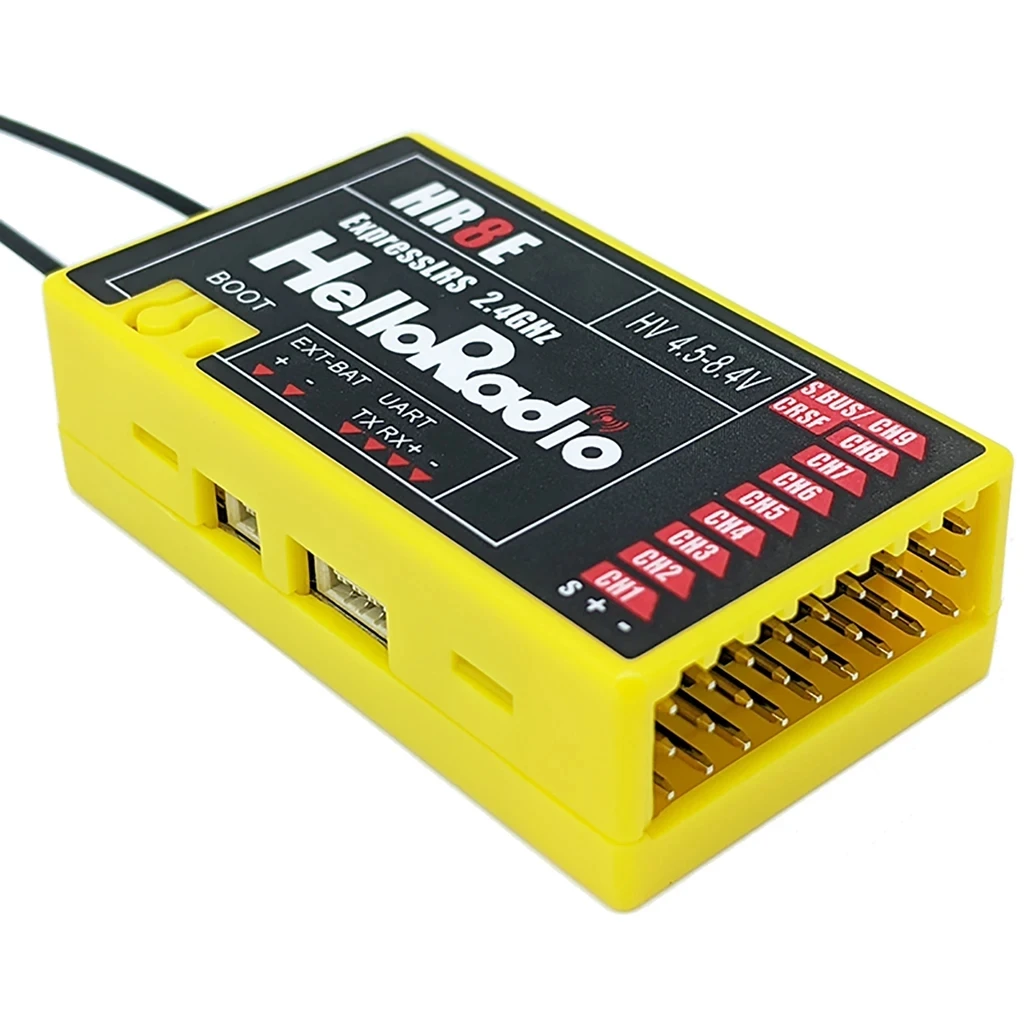

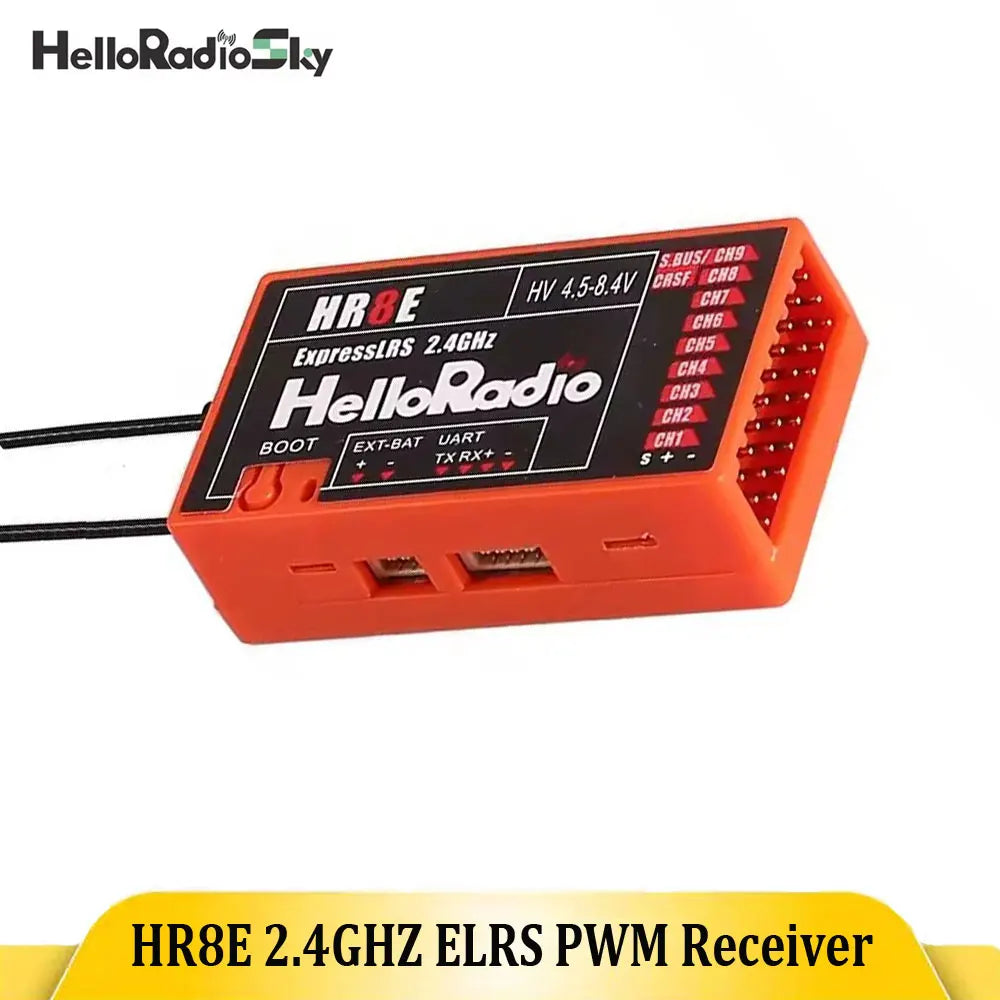

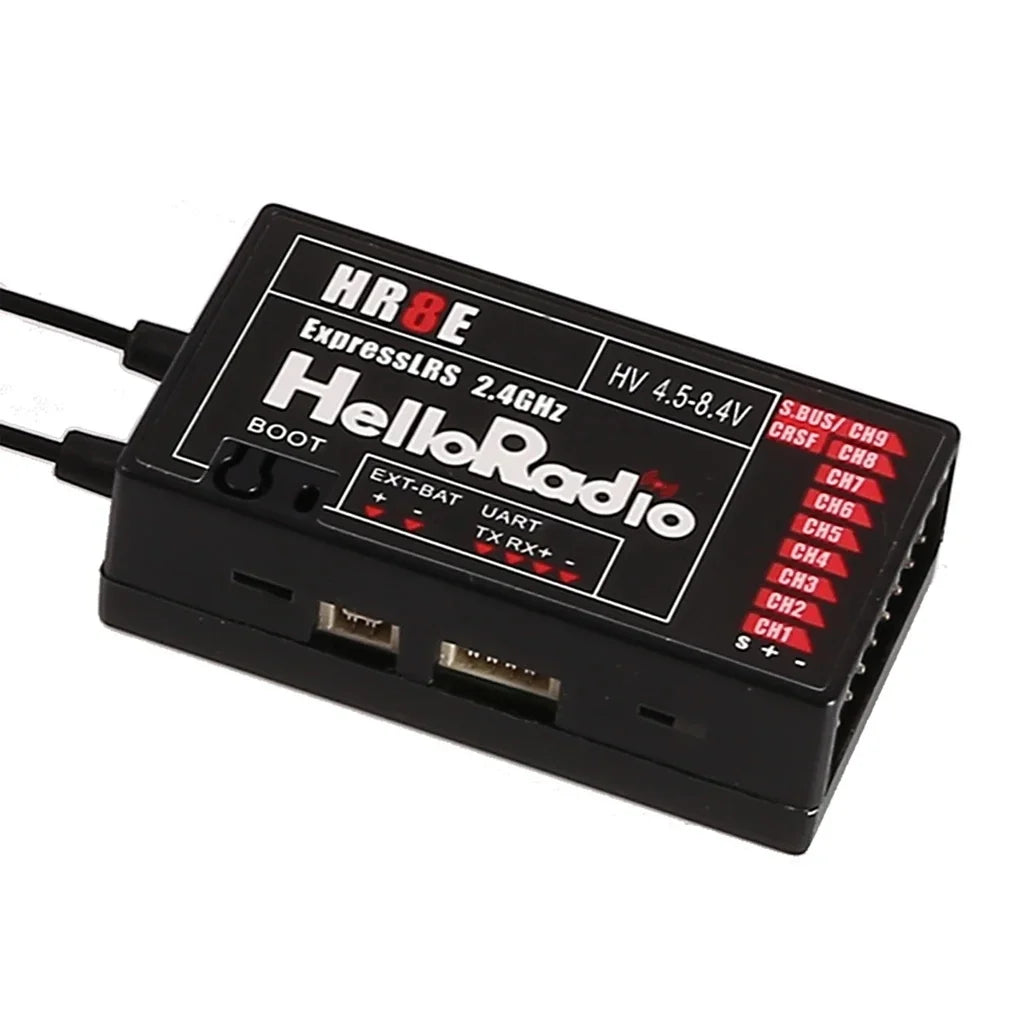

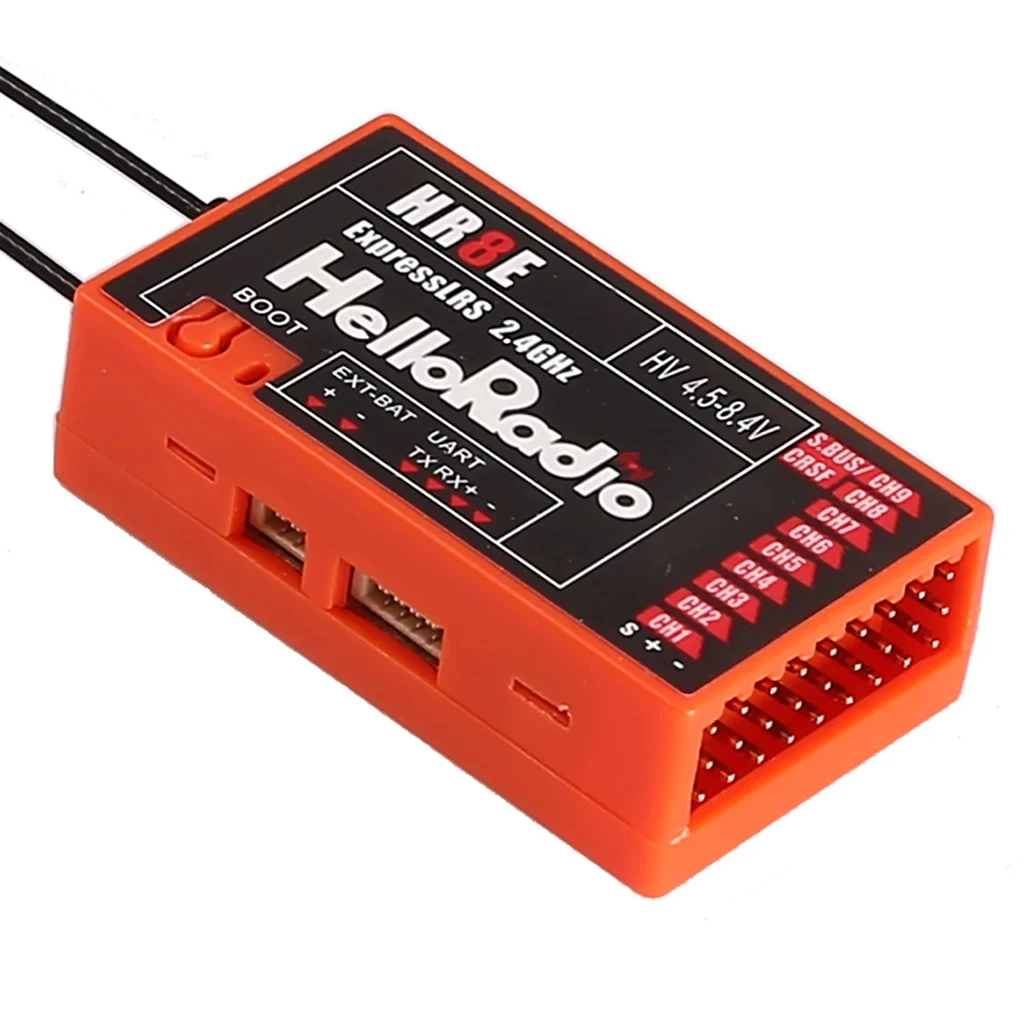

Product: HR8E 2.4GHZ ELRS PWM Receiver
Material: ABS
Color: redness, yellow, black(optional)
Size: approx. 48x27x15mm/1.88×1.06×0.59inch
Power Supply: DC4.5-8.4V
Antennae type: 20cm high sensitivity double antenne
Wireless Pre installed ExpressLRS 3.3.0
Output channel: 9CH PWM
Return power: 100mw
Return battery voltages detection: DC4.0~35V

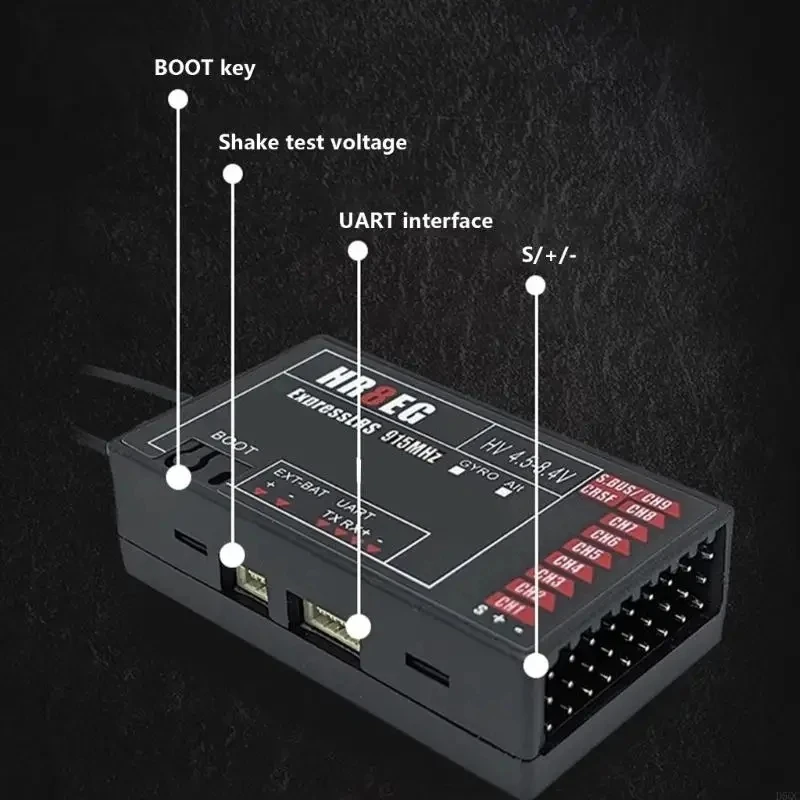

Bus interfaces: CRSF

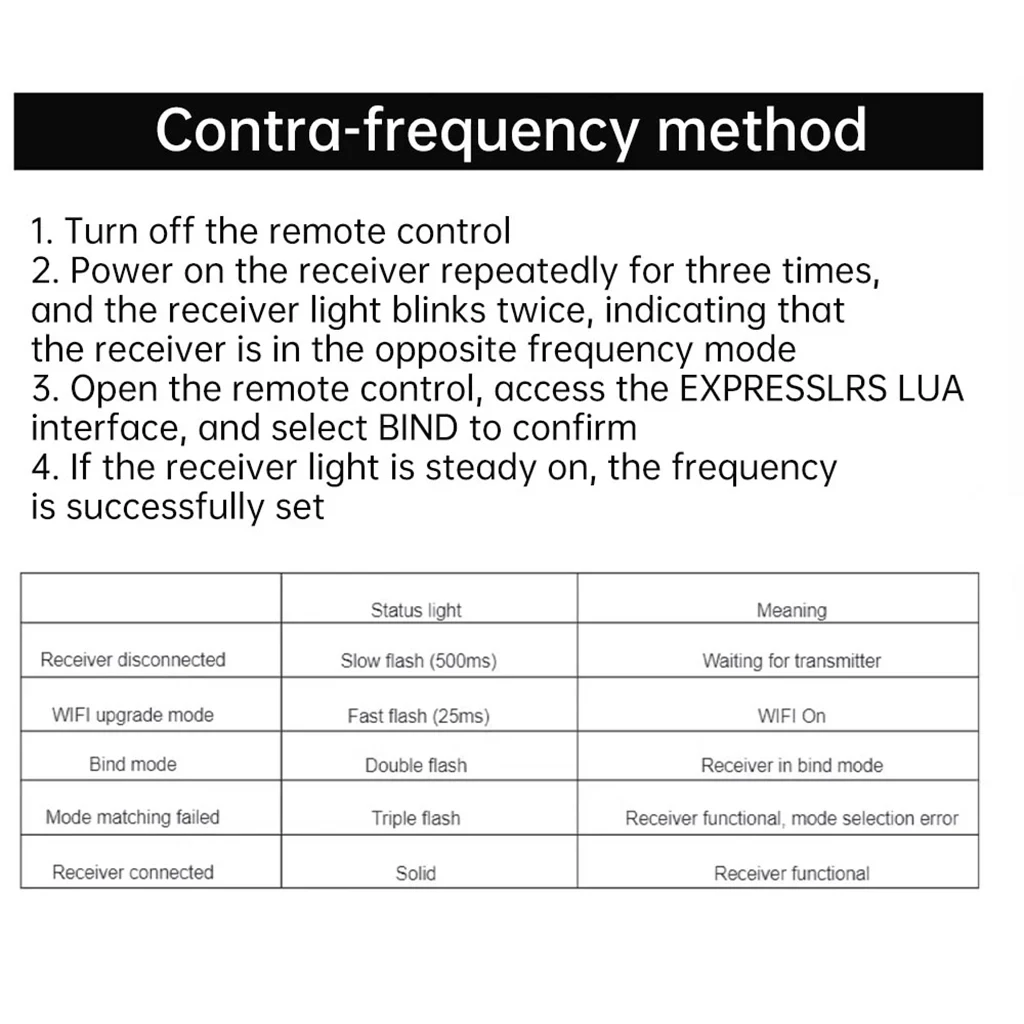

1. Turn off the remote control
2. Power on the receiver repeatedly for three timesand the receiver light blinks twice, indicating thatthe receiver is in the opposite frequency mode
3. Open the remote control, access the EXPRESSLRS LUAinterface, and select BlND to confirm
4. lf the receiver light is steady on, the frequencyis successfully set
Package Includes:
1Pc HR8E 2.4GHZ ELRS PWM Receiver
