Description

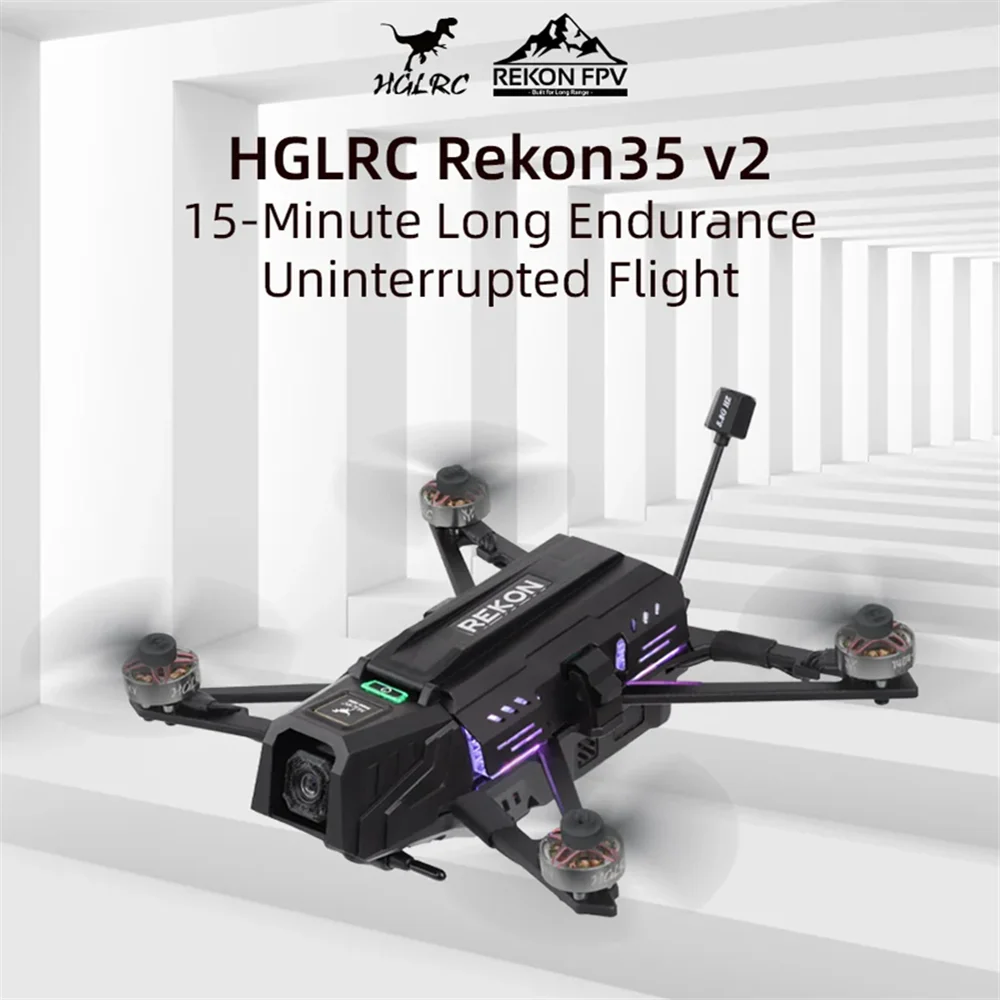

HGLRC Rekon35 v2
15-Minute Long Endurance | Uninterrupted Flight
*Optional Versions：Analog Version/O4 Lite HD Version/Power Kit Version
*Using two 18650 power batteries, achieve up to 15 minutes long-Endurance flying
*Supports 15W fast charging.Connect charging cable to initiate safe, balanced charging (auto-stop when full).
*Power button lights with One-Button Startup
*Its new-gen STM32H743 High-Performance FC brings powerful processing, rapid response, and seamless control.
*Fully Enclosed Injection-Molded Body can protects internal hardware effectively.
*Multi-function Buzzer Prompt/Customizable RGB Light Strip/Use M100 Mini GPS to compact and precise positioning.
Notes：
Do not store batteries inside the drone for more than 3 days. After flight or charging, please remove the battery from the drone to prevent over-discharge.
Initial satellite acquisition may take longer. Please connect via USB for satellite locking instead of using the battery to avoid VTX overheating. If satellites cannot be locked, stay away from high-power electrical equipment and interference sources.
Power Kits match with DJI O4 VTX. The original DJI O4 coaxial cables are incompatible due to length constraints.Please replace with compatible coaxial cables for proper installation.

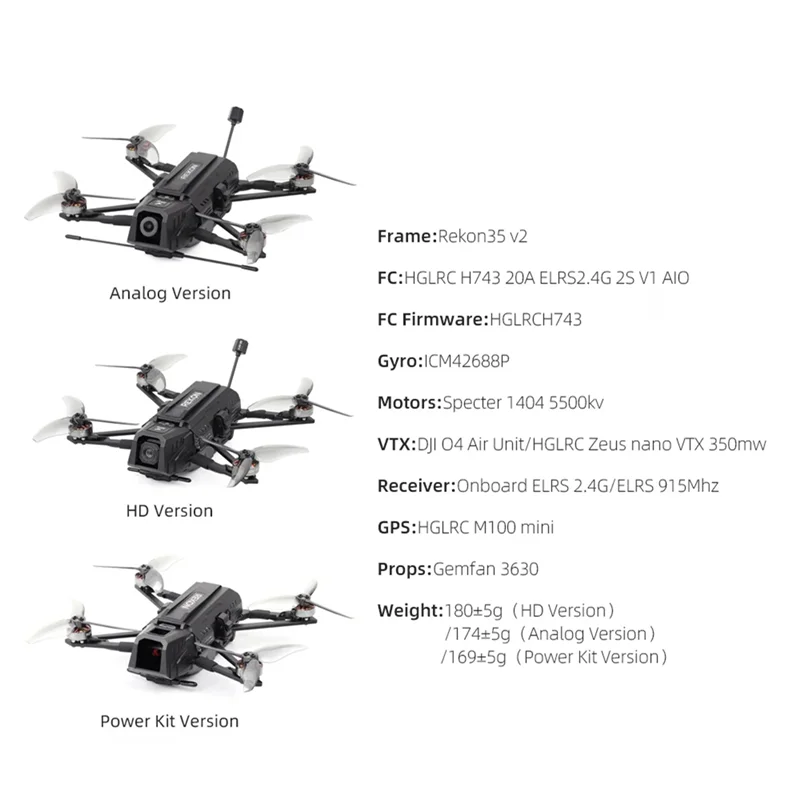

Product Specifications
Frame：Rekon35 v2
FC：HGLRC H743 20A ELRS2.4G 2S V1 AIO
FC Firmware：HGLRCH743
Gyro ：ICM42688P
Motors：Specter 1404 5500kv
VTX：DJI O4 Air Unit/HGLRC Zeus nano VTX 350mw
Receiver：Onboard ELRS 2.4G/ELRS 915Mhz
GPS：HGLRC M100 mini
Props：Gemfan 3630
Weight：180±5g（HD Version）
174±5g（Analog Version）
169±5g（Power Kit Version）
Total Package Weight：
O4 Version Weight：356±5g（Does not include batteries）
Analog Version Weight：351±5g（Does not include batteries）
Power kit Version Weight：345±5g（Does not include batteries）
Package Dimensions：175*158*75mm
Recommended Battery：HGLRC 18650 Battery
Charging Time：70minutes（7.0v-8.4v）
