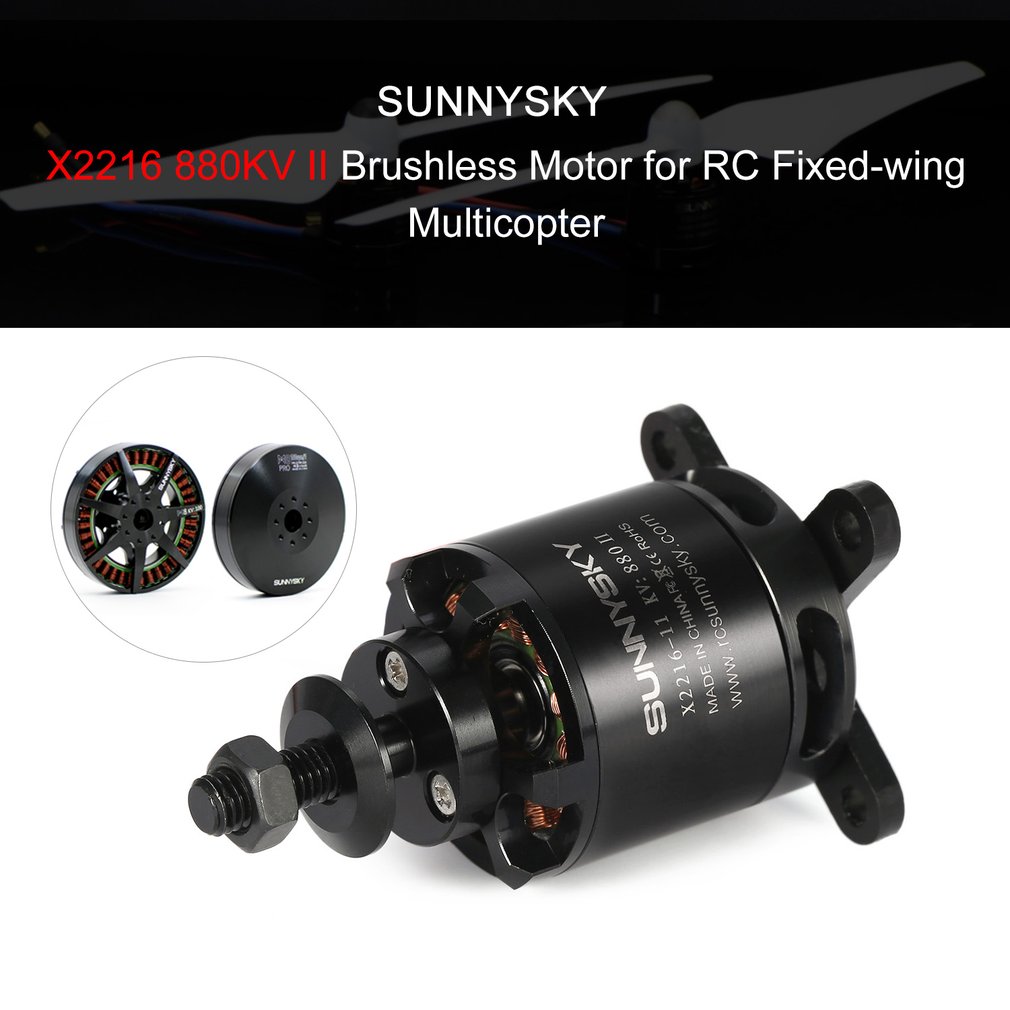

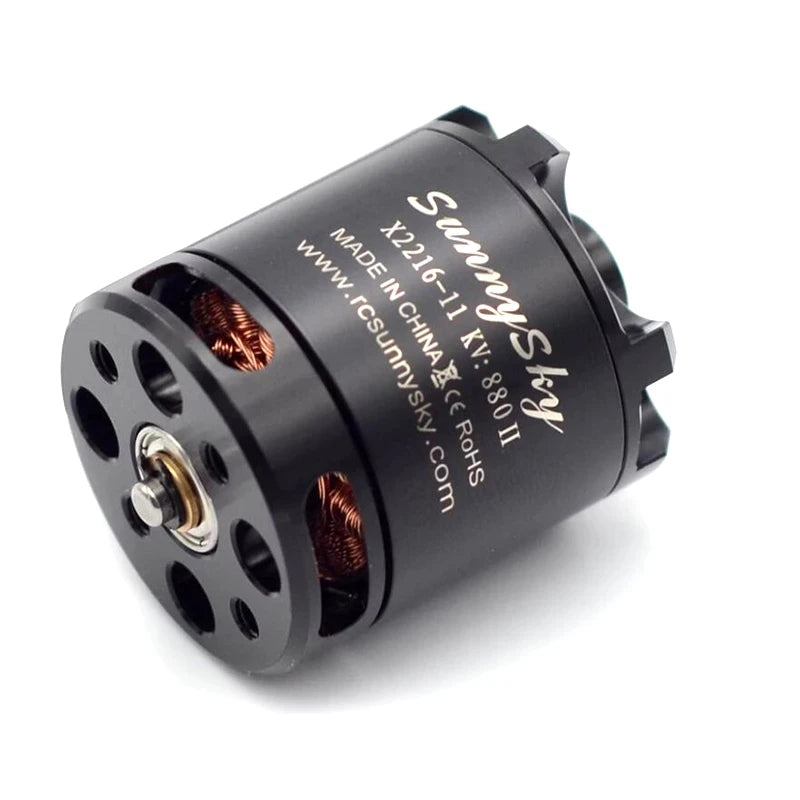

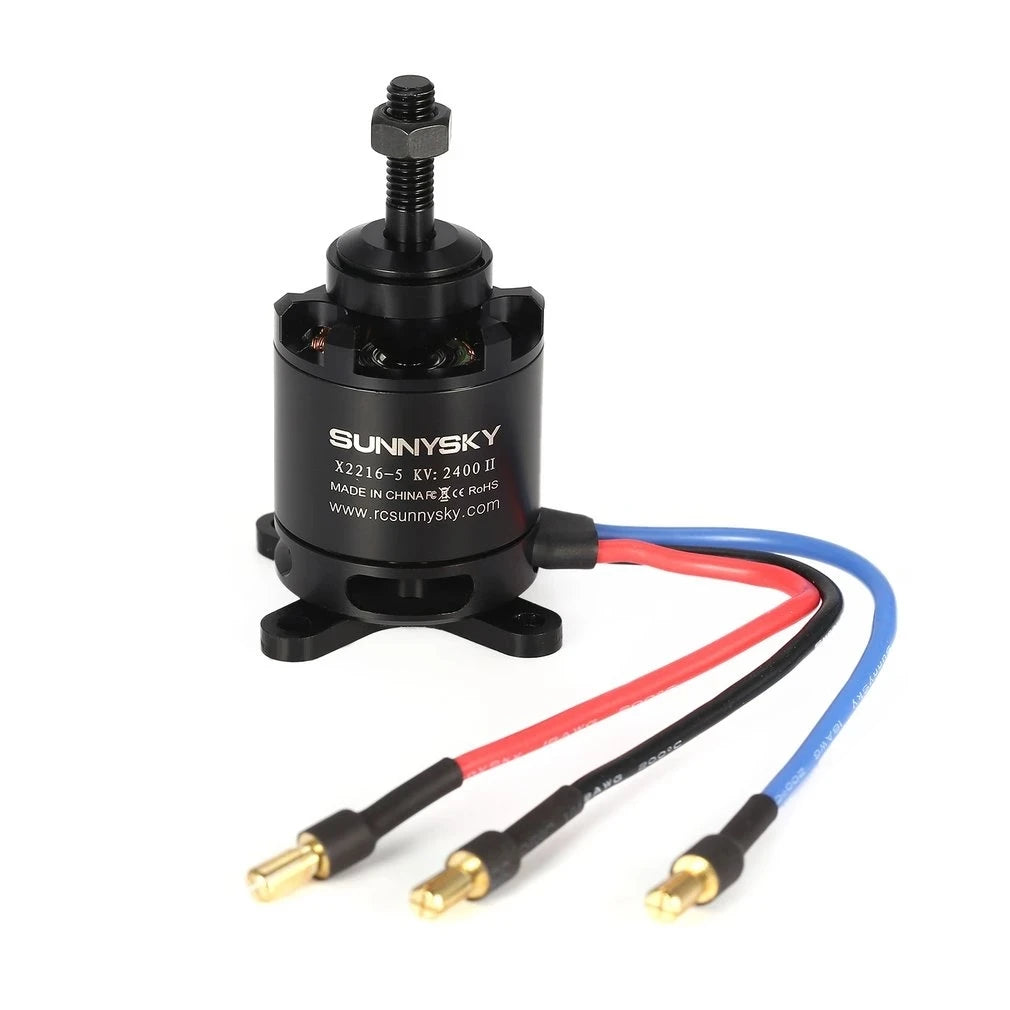

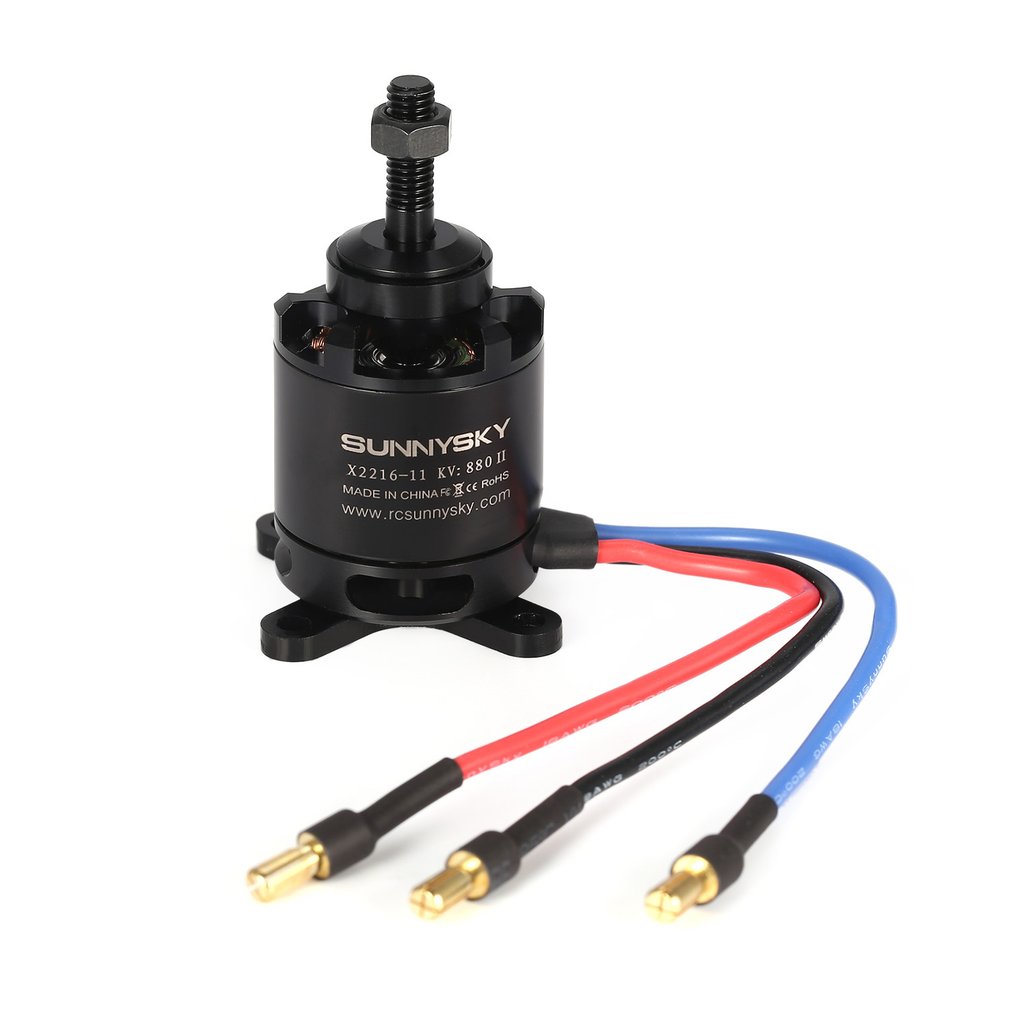

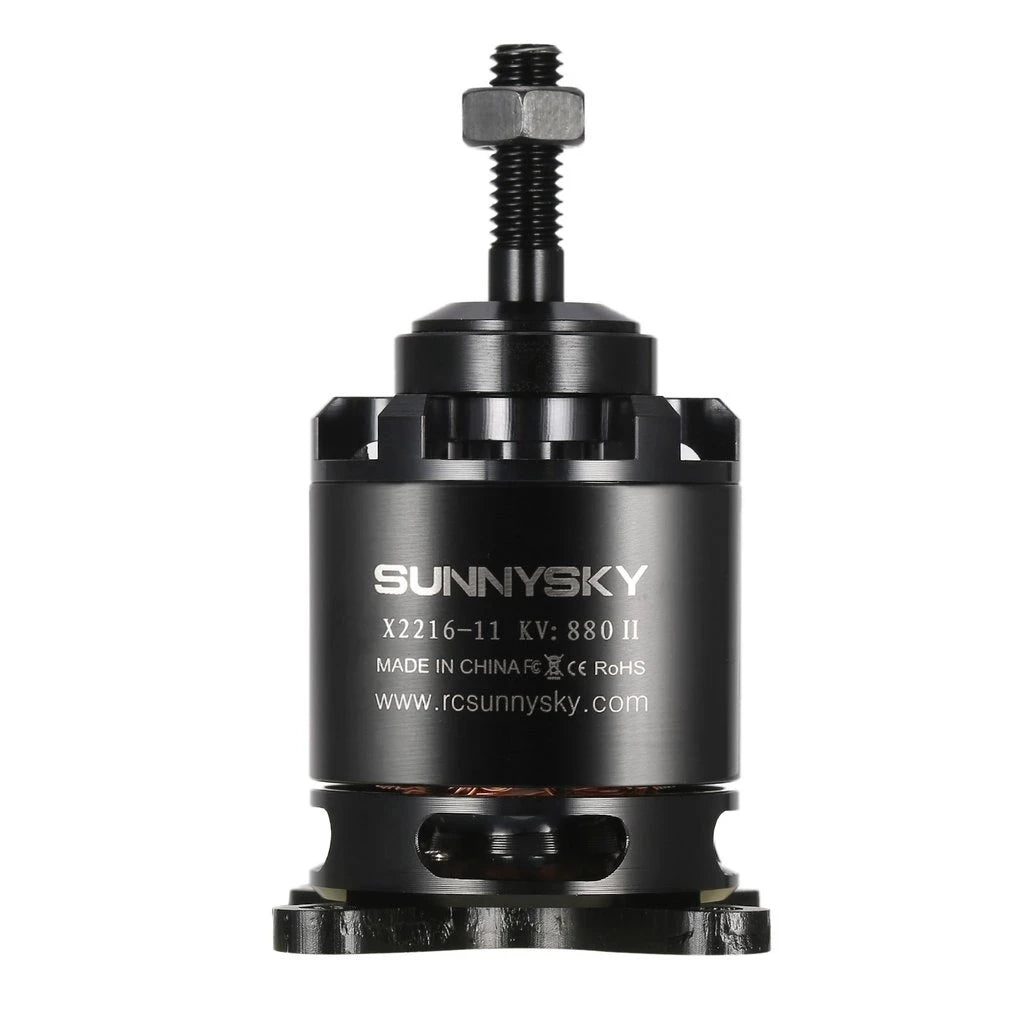

1PC Original SUNNYSKY X2216 KV880/KV1100/KV1250/KV1400/2400KV Brushless Motor (Flat Shaft ) for RC F3A 182 fixed-wing aircraft

Description

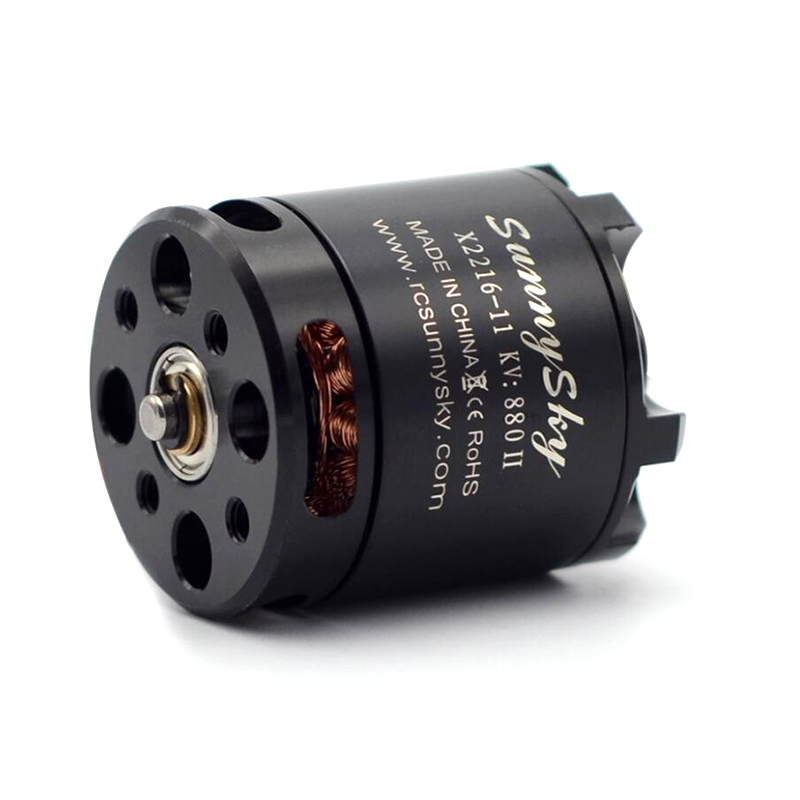

Item:SUNNYSKY X2216 KV880/KV1100/KV1250/KV1400/2400KV Brushless Motor (Flat Shaft )

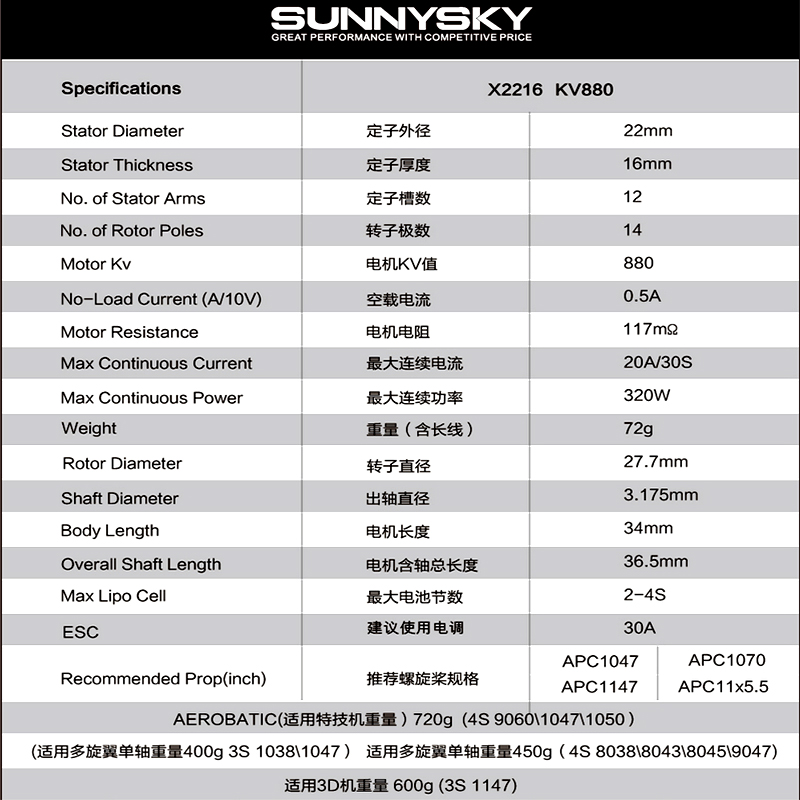

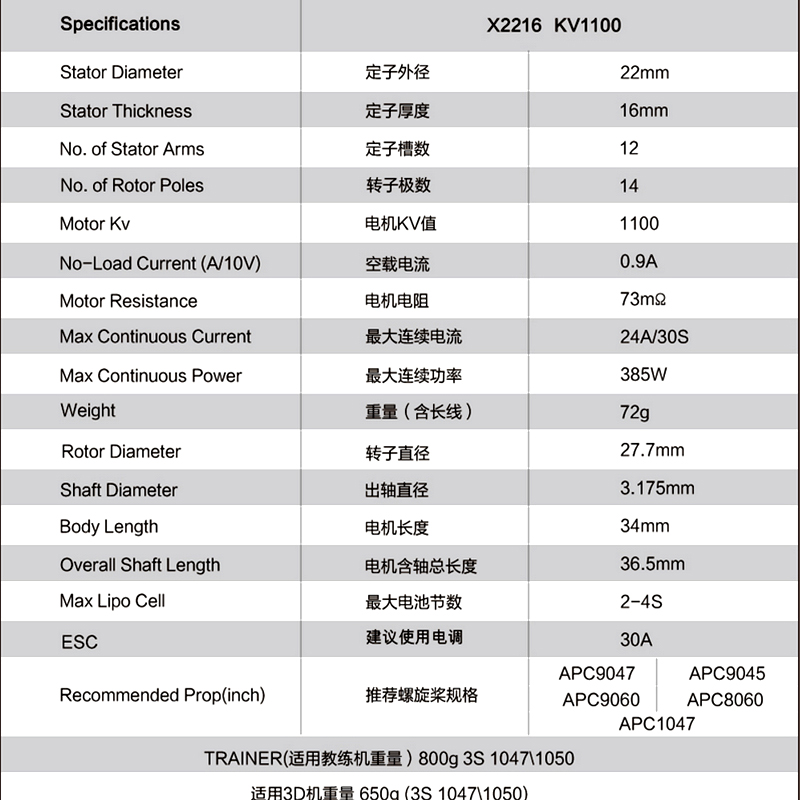

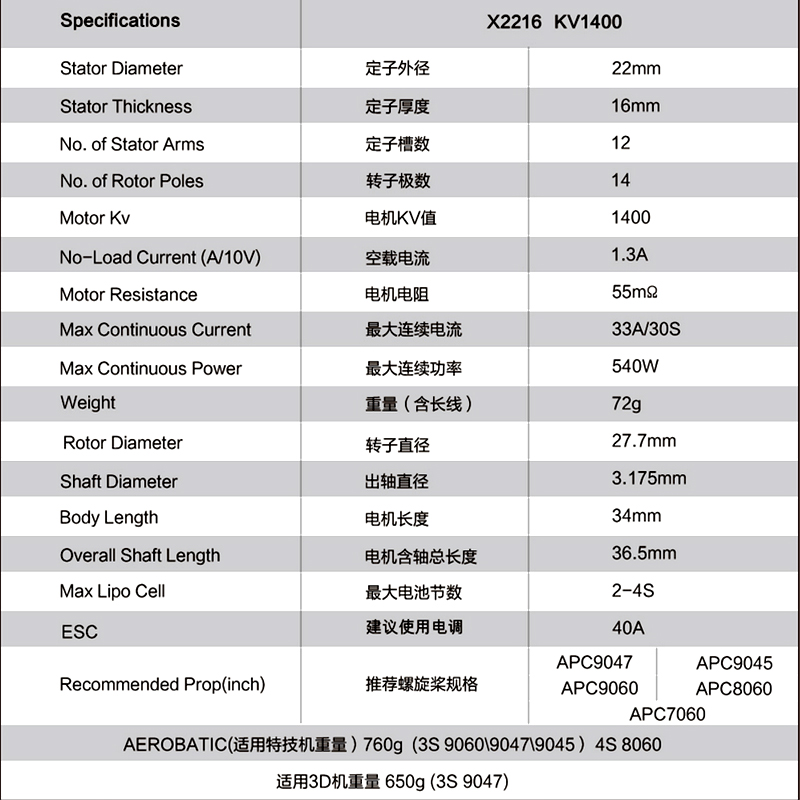

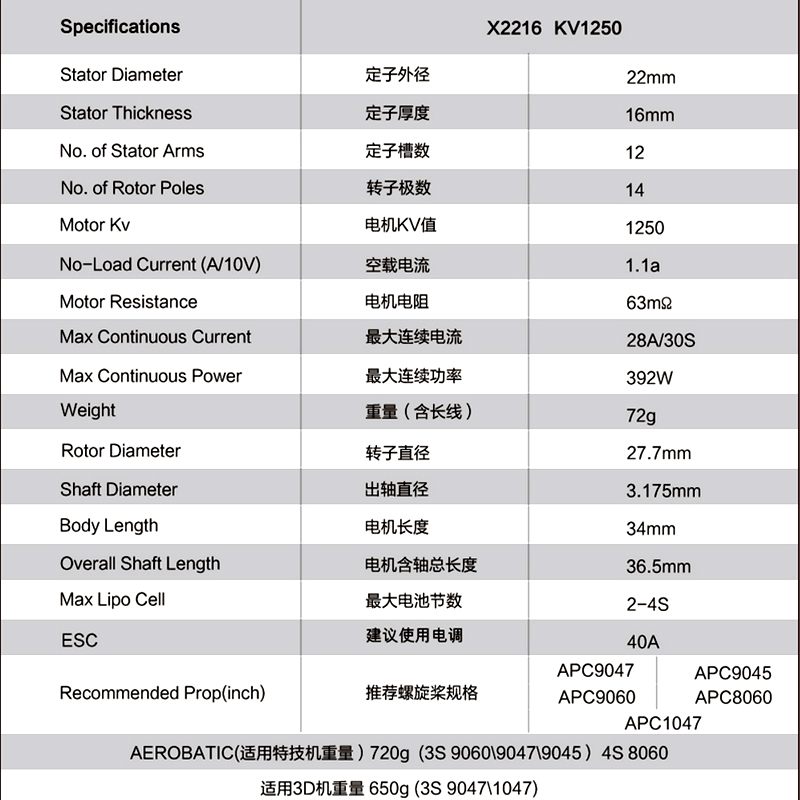

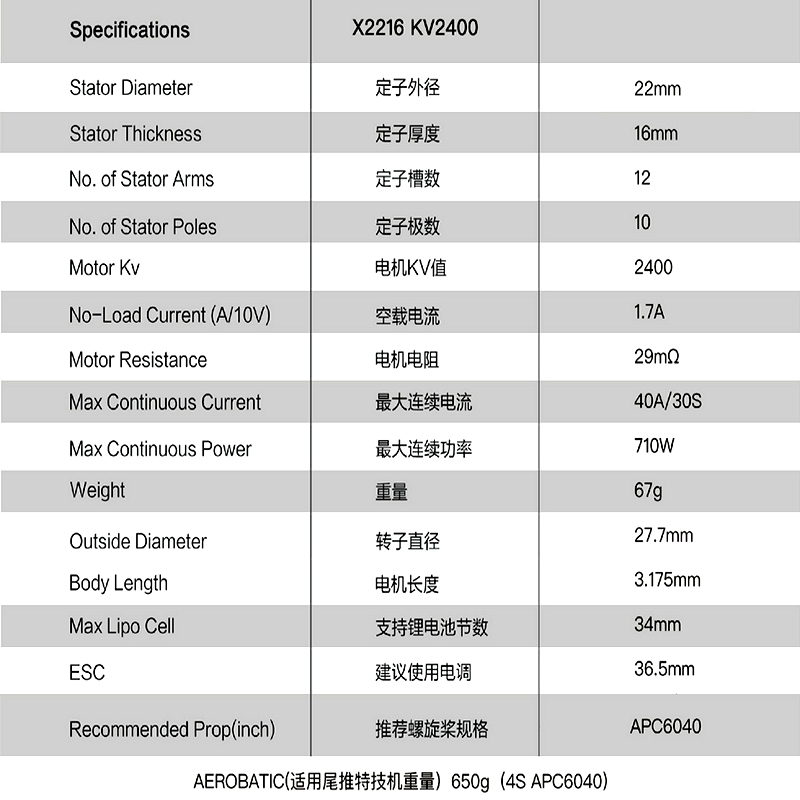

Parameters:
Material: Copper+Metal
Color: Black
KV value: KV880, KV1100, KV1250, KV1400, KV2400
Number of slots: 12N14P
Interphase internal resistance: 117 Milliohm, 73Milliohm, 63Milliohm, 55Milliohm, 29Milliohm

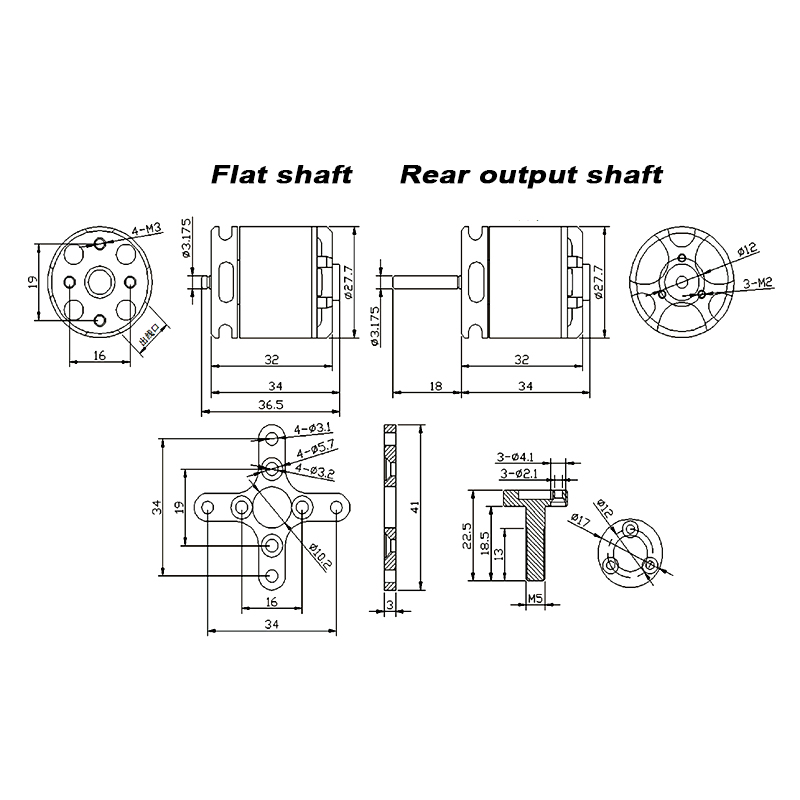

Motor size: Diameter 27.7x 34mm
Axis Diameter: 3.175mm
Specification of Silicone Wire for Motor: 18AWG 100mm
Motor weight (including wire): 72g,72g, 72g,72g, 67g
Working rated voltage (Lipo): 2-4S
No-load current: 0.5A/10V, 0.9A/10V, 1.1A/10V, 1.3A/10V, 1.7A/10V
Maximum continuous power: 320W, 385W, 392W, 540W, 710W
Maximum continuous current: 20A/30S, 24A/30S, 28A/30S, 33A/30S, 40A/30S
Recommended use of electric regulation: 30A, 30A, 40A, 40A
Recommended propeller specifications:
APC1047,APC1070, APC1147, APC11X5.5 For KV980
APC8060, APC9045,APC9047, APC9060, APC1047 For KV1100
APC8060, APC9045,APC9047, APC9060, APC1047 For KV1250
APC7060, APC8060, APC9045,APC9047, APC9060 For KV1400
APC6040 For KV2400
NOTE:
The motor factory has welded 3.5 banana heads, ready to use.

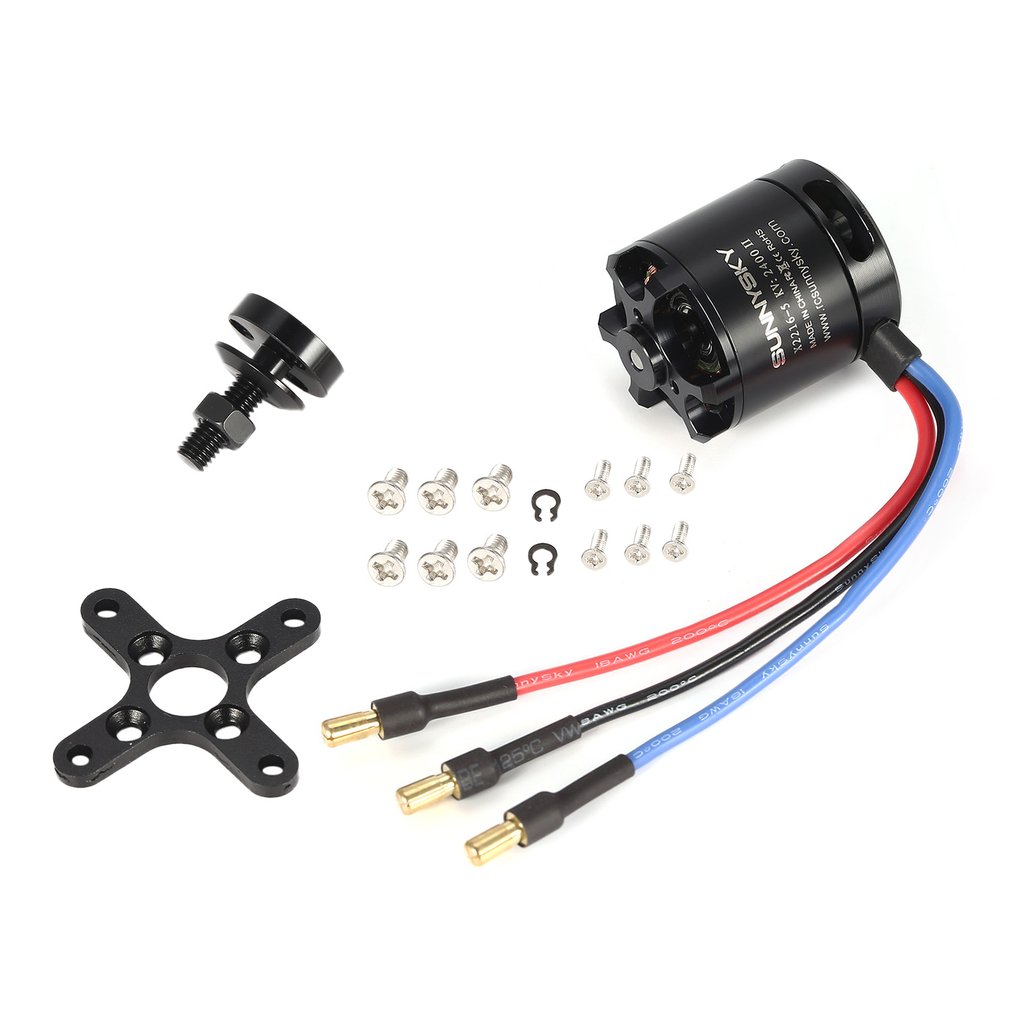

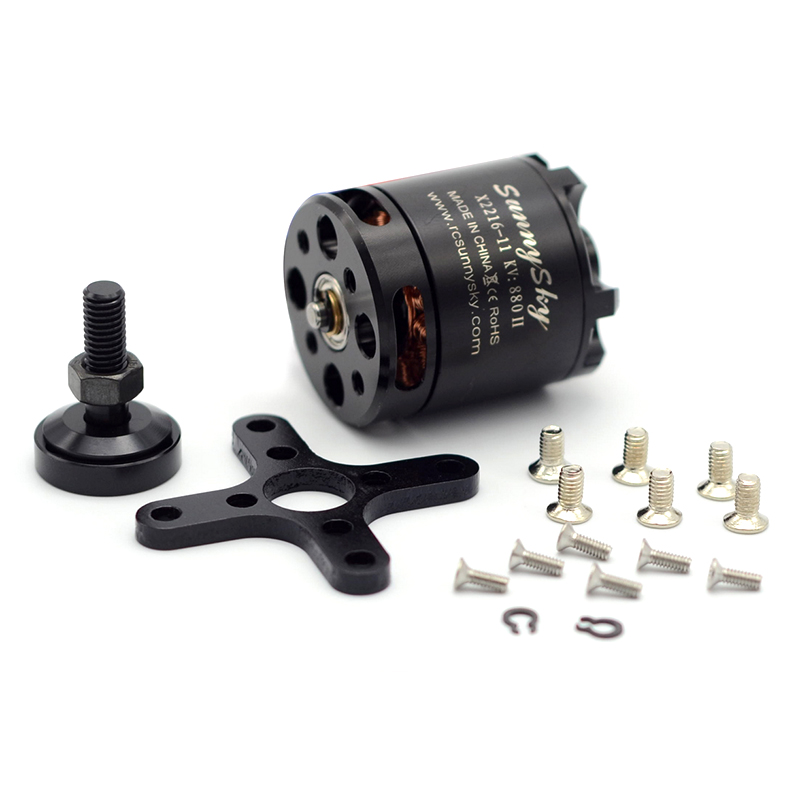

Package Included:

• X2216 KV880 or KV1100 or KV1250 or KV1400 or KV2400 Motor (Flat Shaft )  x1
  Bag of Accessories  x1
