BETAFPV Pavo Femto Brushless Whoop Quadcopter

Description

Please note: For customers who have purchased a mini drone with two or more batteries attached, the batteries will be sent separately from the aircraft, which means you will receive two packages. These two packages may not arrive at the same time. After paying for the order, please be patient and we will track the logistics status for you throughout the process. Thank you for your trust and support!
n
nIf you are a customer from Brazil, the package containing the battery will be subject to additional tariffs, even though the tariffs have already been paid at the time of payment. It is recommended to purchase the drone and battery separately!
nThe Pavo Femto is a 2S high-definition brushless drone tailored for the O4 Air Unit, delivering exceptional 4K/60fps video recording in a compact design. Powered byLAVA 1102 motorswith a thrust-to-weight ratio of 6.75:1 and an optimized frame, it offers enhanced power and stability. Featuring precise PID and RATE tuning, a shock-absorbing system for stable footage, and an advancedF4 20A FCfor HD VTX, it ensures smooth, agile flight performance. With customizable settings and robust components, the Pavo Femto excels in both freestyle flying and aerial videography.
nBullet Points
nBest 2S 4K Pocket Drone: Equipped with the O4 Air Unit for exceptional 4K/60fps video recording and unparalleled 2S 4K flight performance.
nSmall and Lightweight: Weighing just 54.77g, the Pavo Femto offers more power and performance than the Pavo Pico, redefining 2S drone capabilities.
nImpressive Power: Powered by LAVA Series 1102 motors, delivering a thrust-to-weight ratio exceeding 6.75:1 with the optimized whoop duct.
nFine-Tuned Performance: Optimized parameters for smooth aerial photography and freestyle flying, with customizable settings for personal flight styles.
nPavo Femto Frame: Compact and durable frame with improved connections and a reinforced structure for enhanced stability and durability.
nStabilized Footage: Shock-absorbing components eliminate high-frequency vibrations, ensuring smooth, stable footage.
nAdvanced Flight Controller: F4 20A AIO FC with dual BECs, supporting 9V 2A for O4 Air Unit and 5V 3A for external devices.
nSpecifications
nItem: Pavo Femto Brushless Whoop Quadcopter
nWheelbase: 75mm
nMotors: LAVA 1102 Brushless Motor
nFrame: Pavo Femto Brushless Whoop Frame (Black)
nPropellers: Gemfan 1611 3-Blade Propellers (40mm)
nCamera: O4 Camera
nHD VTX Bracket: O4 Air Unit Bracket
nFC: F4 2-3S 20A AIO FC
nReceiver: Onboard Serial ELRS 2.4G
nVTX: O4 Air Unit
nFlight time: 5:15 minutes*
nWeight: 54.77g (O4 Air Unit included)
n
n* The data is measured in position hold mode and is for reference only. Actual flight time may vary based on factors such as flight style, battery performance, and environmental conditions.
nEngineered for O4
nPavo Femto is a 2S high-definition brushless drone engineered specifically for the O4 Air Unit. Powered by the newly developed LAVA Series 1102|14000KV motors, its thrust-to-weight ratio exceeds 6.75:1 with the optimized whoop duct. Weighing just 54.77g, it combines lightweight design and high performance, while the 8g O4 Air Unit enables stunning 4K/60fps video recording. Pavo Femto stands out as the ultimate 2S 4K pocket drone for smooth and precise flights.
nFine Tune Your Flight
nThe Pavo Femto is expertly calibrated for both aerial photography and freestyle flying, with engineers adjusting the PID and RATE parameters to deliver smooth, crystal-clear 4K/60fps video quality. Optimized for seamless performance with the O4 Air Unit, it ensures unmatched visual clarity and stability. Additionally, you can customize the parameters and system settings to match your unique flying style, offering ultimate control and versatility.
nPavo Femto Frame
nThePavo Femto Brushless Whoop Framedelivers a 4% thrust increase in a compact design, offering enhanced power and stability. It features improved connections between the whoop duct and carbon fiber plate with added supports and limits for secure assembly. Optimized for the O4 Air Unit, it includes a reinforced protective structure for the circuit board.

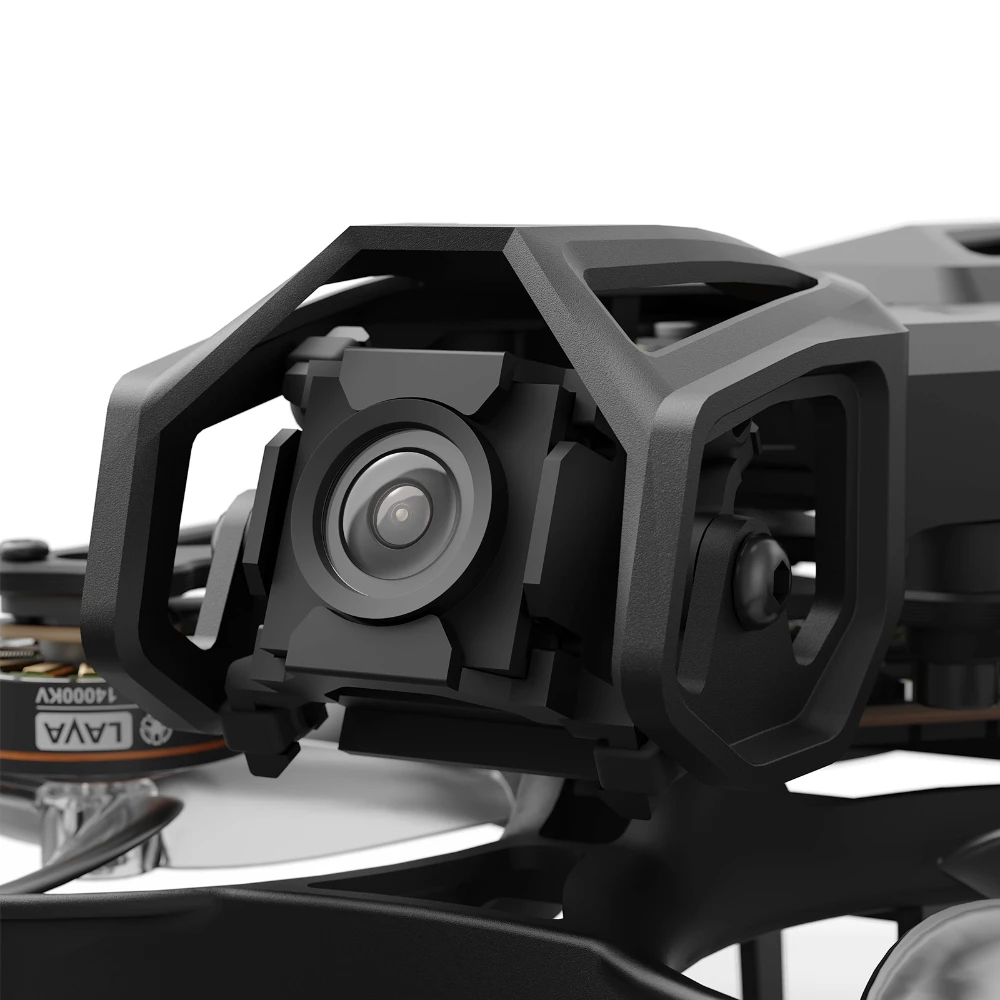

nFly Stable, Capture Full HD
nTo address the O4 Air Unit’s sensitivity to high-frequency vibrations caused by its built-in gyroscope for video stabilization, Pavo Femto features dedicatedshock-absorbing components. The system uses a POM material bracket with four custom shock-absorbing balls for structural strength and durability.
nThis innovative design effectively isolates and absorbs high-frequency vibrations, ensuring smooth, stable footage and eliminating image shake or jello effects during FPV filming. Perfect for creators seeking high-quality aerial videography.
nfor HD VTX
nThe Pavo Femto features anF4 2-3S 20A AIO Flight Controllerspecifically designed for HD VTX. Equipped with a dual BEC solution, it provides stable power outputs of 9V 2A for the O4 Air Unit and 5V 3A for external devices. The 20A ESC ensures agile and dynamic flight performance, while dedicated 6-Pin connectors for the O4 Air Unit and a conveniently positioned USB ports simplify installation and maintenance. This FC brings exceptional reliability and professional-grade functionality for Pavo Femto.
nHigh-Performance Power System
nThe Pavo Femto harnesses the power of LAVA Series 1102 Brushless Motors and Gemfan 1611 3-Blade Propellers, achieving a thrust-to-weight ratio exceeding 6.75:1 with its whoop duct optimization. With advanced tile-shaped magnets, an optimized magnetic circuit, and improved coil filling ratio, the motor delivers approximately 2.1g/W efficiency during steady flights. Even at peak thrust of 130g, it maintains efficiency above 1.5g/W, providing exceptional power while extending flight times.
nO4 Whoop Family
nDiscover the ultimate whoop drones crafted for the O4 Air Unit: the Pavo Femto,Meteor65 Pro O4, and Meteor75 Pro O4. Each offers unique features for high-definition FPV flying. The Pavo Femto delivers unmatched power and agility, perfect for freestyle enthusiasts, while the Meteor65 Pro O4 and Meteor75 Pro O4 excel in soft, precise flying within small spaces. Combining advanced engineering and seamless O4 integration, these drones provide exceptional flight experiences and stunning visuals, tailored for pilots with diverse flying styles.
nRecommended Parts
nRadio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
n
nBattery:LAVA 2S 450mAh Battery
n
nFC:F4 2-3S 20A AIO FC
n
nMotor:LAVA 1102 Brushless Motor
n
nProps:Gemfan 1611 3-Blade Propellers
n
nFrame:Pavo Femto Brushless Whoop Frame
n
nHD VTX Bracket:O4 Air Unit Bracket
n
nAccessory:Shock-absorbing Components for O4 Air Unit
nPackage
nPavo Femto Brushless Whoop Quadcopter (O4 Version)
n
n1 * Pavo Femto Brushless Whoop Quadcopter (O4 Version)
n
n4 * Shock-absorbing Balls for O4 Camera
n
n4 * GF 1611 3-Blade Propellers
n
n1 * Type-C to SH1.0 Adapter
n
n1 * SH1.0-4Pin Adapter Cable
n
nPavo Femto Brushless Whoop Quadcopter (PNP Version)
n
n1 * Pavo Femto Brushless Whoop Quadcopter (PNP Version)
n
n1 * Canopy for O4 Air Unit Bracket
n
n1 * Bottom Plate for O4 Air Unit Bracket
n
n1 * Accessories package for O4 Air Unit Bracket
n
n4 * GF 1611 3-Blade Propellers
n
n1 * Type-C to SH1.0 Adapter
n
n1 * SH1.0-4Pin Adapter Cable
