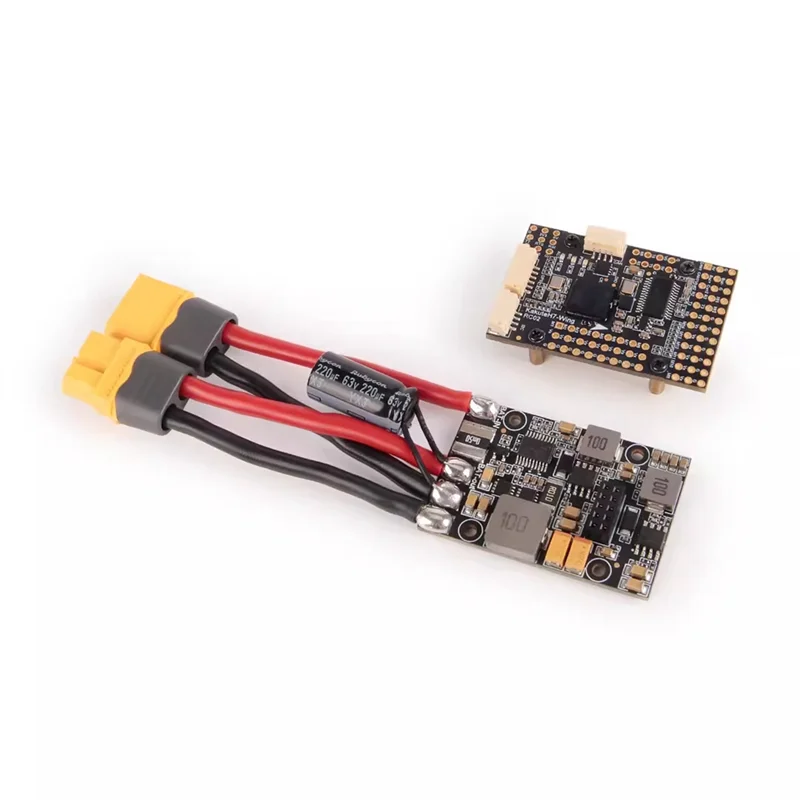

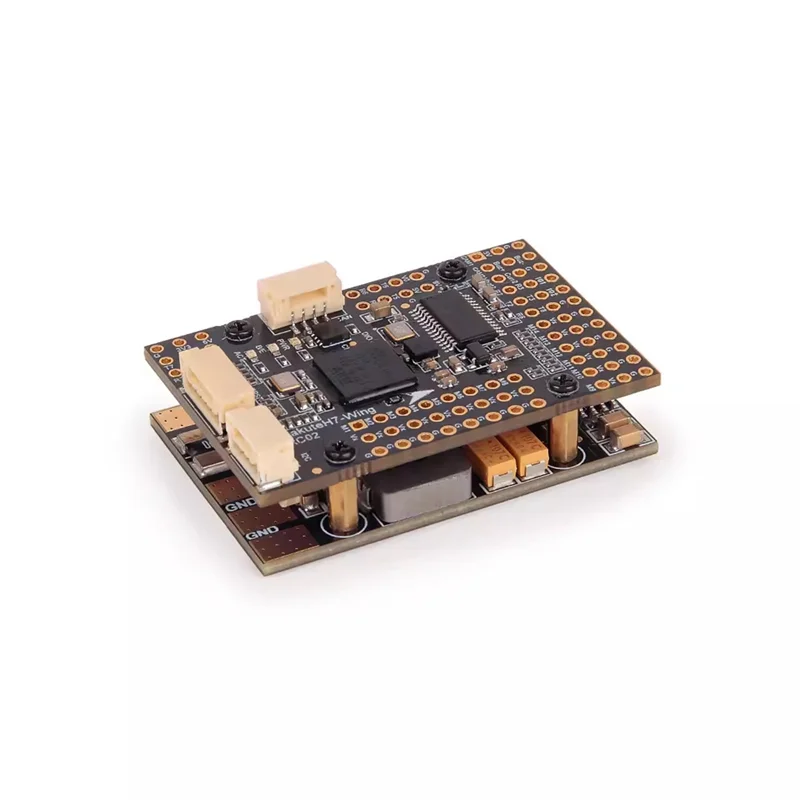

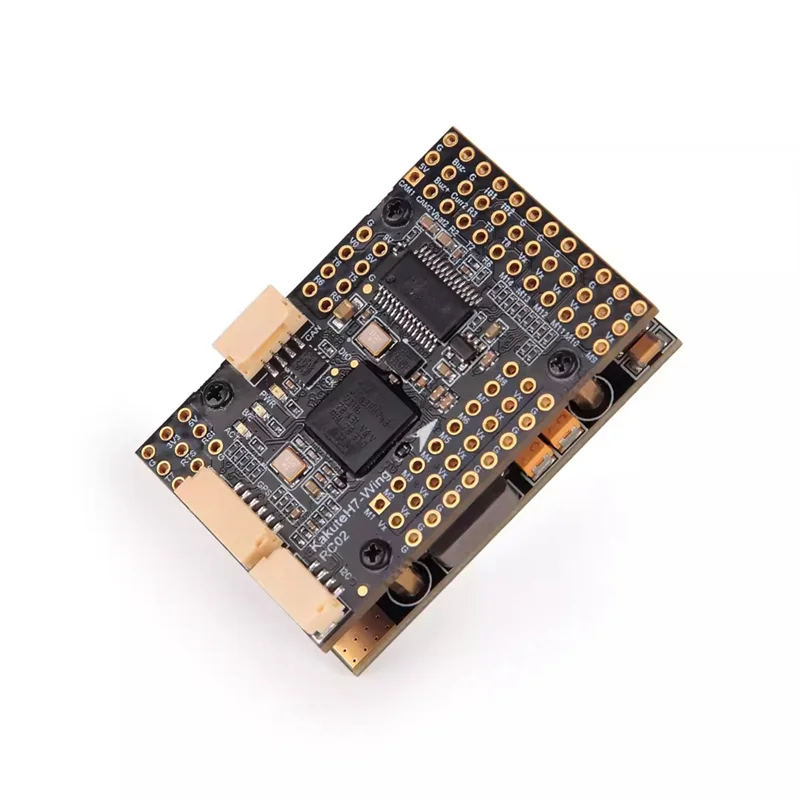

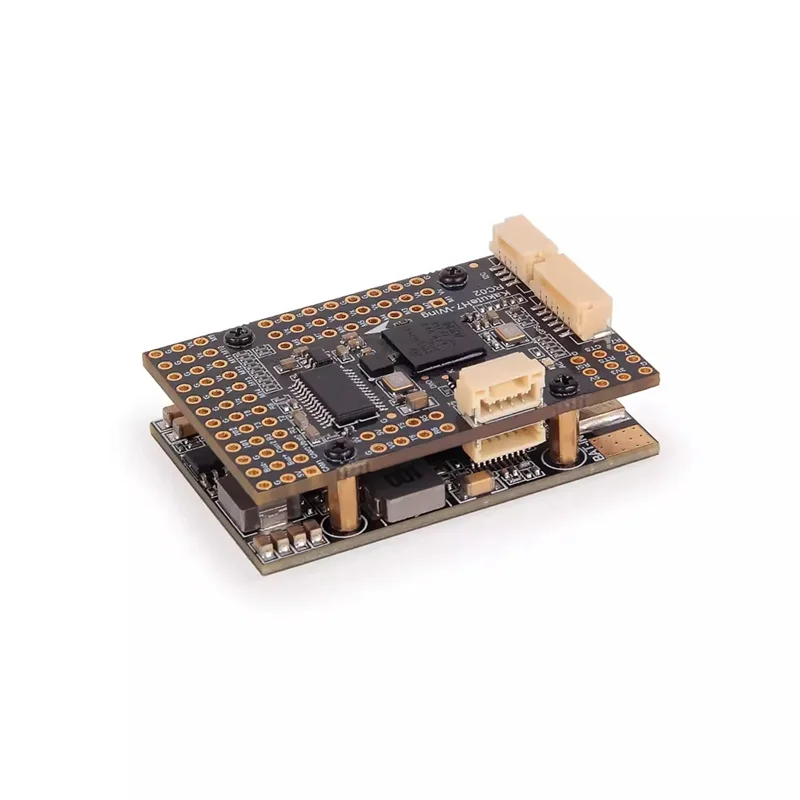

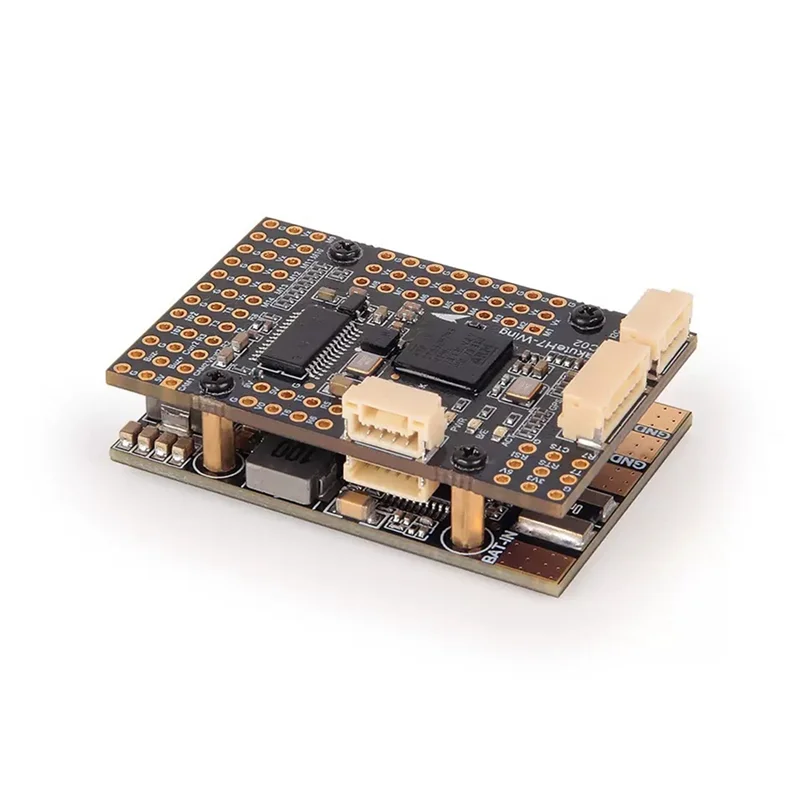

BNVN-H743-Wing Flight Controller Supports INAV/ Ardupilot Firmware CAN Bus 3-8S LIPO For Fixed Wing RC VTOL FPV Drone

Description

body {
n font-size: 75%;
n color: #000;
n font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,”宋体”;
n line-height: 1.3;
n }
n dl {
n margin: 0px;
n width: 480px;
n float: left;
n }
n dt {
n width: 100px;
n height: 15px;
n float: left;
n }
n dd {
n width: 240px;
n height: 15px;
n float: left;
n }
n dl dt {
n margin: 0px;
n line-height: 22px;
n color: #474747;
n font-size: 14px;
n font-family: tahoma;
n }
n #product-desc {
n width: 100%;
n height: 209px;
n }
n #description {
n width: 100%;
n height: 50%;
n }
n #details {
n width: 100%;
n height: 50%;
n }
n .ui-box-title {
n height: 30px;
n font-size: 15px;
n font-family: tahoma;
n font-weight: bold;
n background-color: #ddd;
n text-anchor: inherit;
n padding-top: 8px;
n margin: 0px;
n }
n .ui-box-body {
n margin: 0px;
n }
n #tbspecifics {
n border-right: 1px solid black;
n border-bottom: 1px solid black;
n }
n #tbspecifics tr {
n height: 30px;
n }
n #tbspecifics td {
n width: 100px;
n border-left: 1px solid black;
n border-top: 1px solid black;
n }
n
n
n
n
n

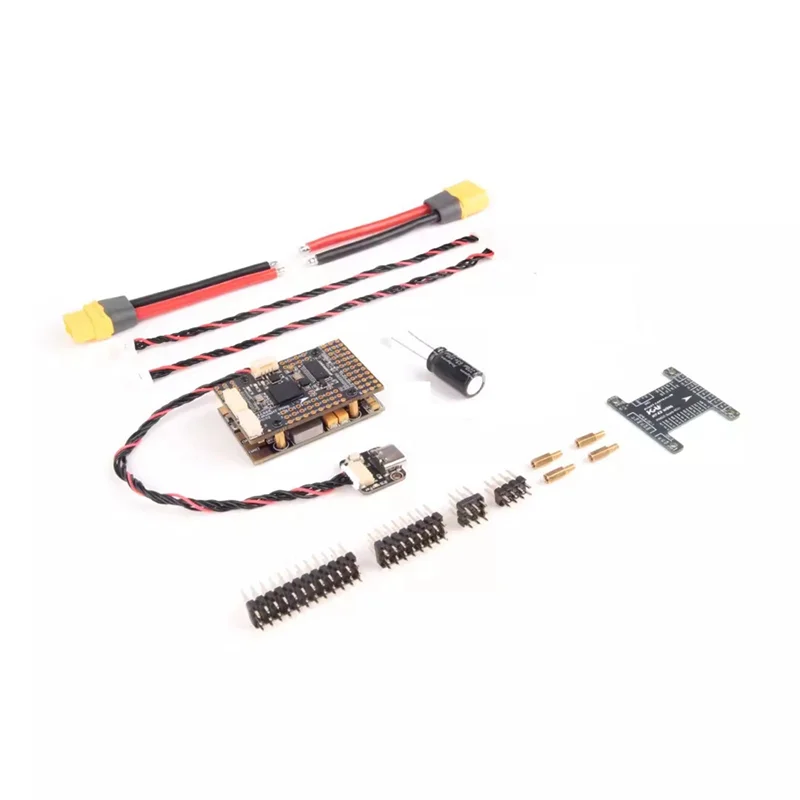

n STM32H743 MCU running at 480 MHzHigh-Precision / low-noise ICM-42688-P IMUCAN Bus SupportDual Camera Inputs switch3 On-board BEC output 5V, 6V/8V and 9V/12V9V/12V ON/OFF Pit SwitchOn-board voltage & current sensorIntegrated BMP280 barometerPlug-and-play GPS, CAN, I2C portsSmall & low-profile design fits into compact framesSupports INAV (6. 1.1 & later), Ardupilot (4. 4 & later)MCU: STM32H743, 480 MHz, 1MB RAM, 2MB FlashIMU: ICM-42688P (SPI3)Baro: BMP280 (I2C4)OSD: AT7456E (SPI2)Blackbox: MicroSD card slot on SDMMC27x Uarts (1,2,3,5,6,7,8) with built-in inversion.14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI)3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors)3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Green)USB/DFU Key Extender with USB Type-CDual Camera Inputs switch5V/9V(12V) for Camera/VTX power switchHigh-precision Current Sense (90A continuous, 220A peak)Battery Voltage Sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot)Static power 160mA@5V(The actual object has words, to avoid risks, the picture has been processed)Specification:BColor: As ShownMaterial: PCBPackage Contents:1 * Flight Controller KtiOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
