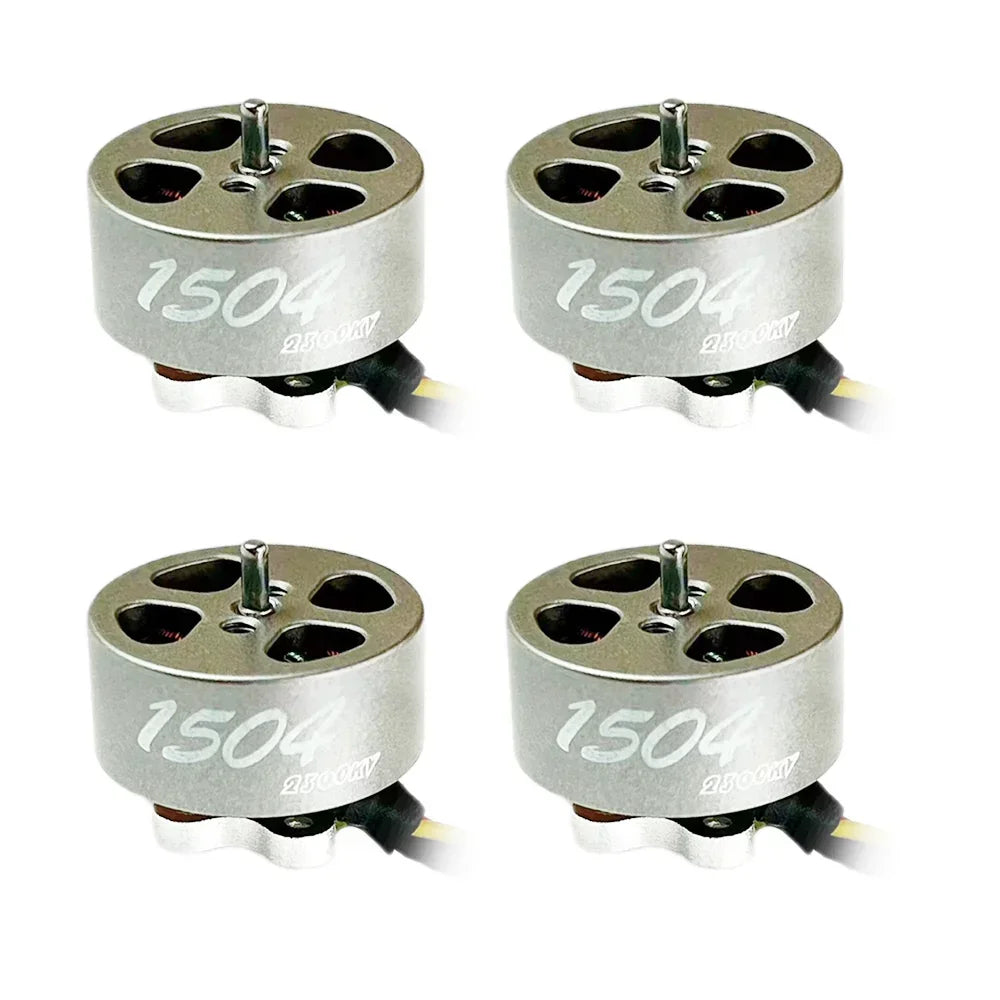

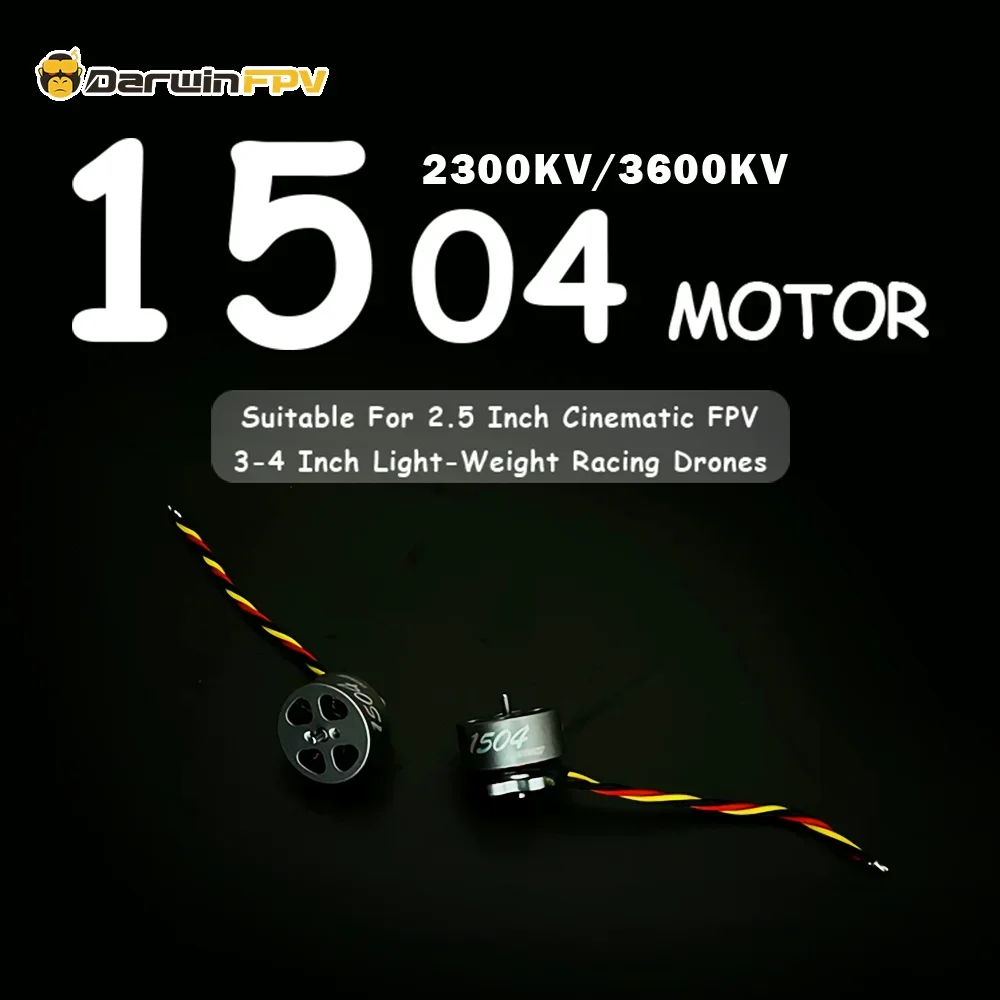

DarwinFPV 1504 3800KV 3600KV 2300KV Blushless Motor RC Drone FPV Racing Multirotor Parts Accessories Hot Sale

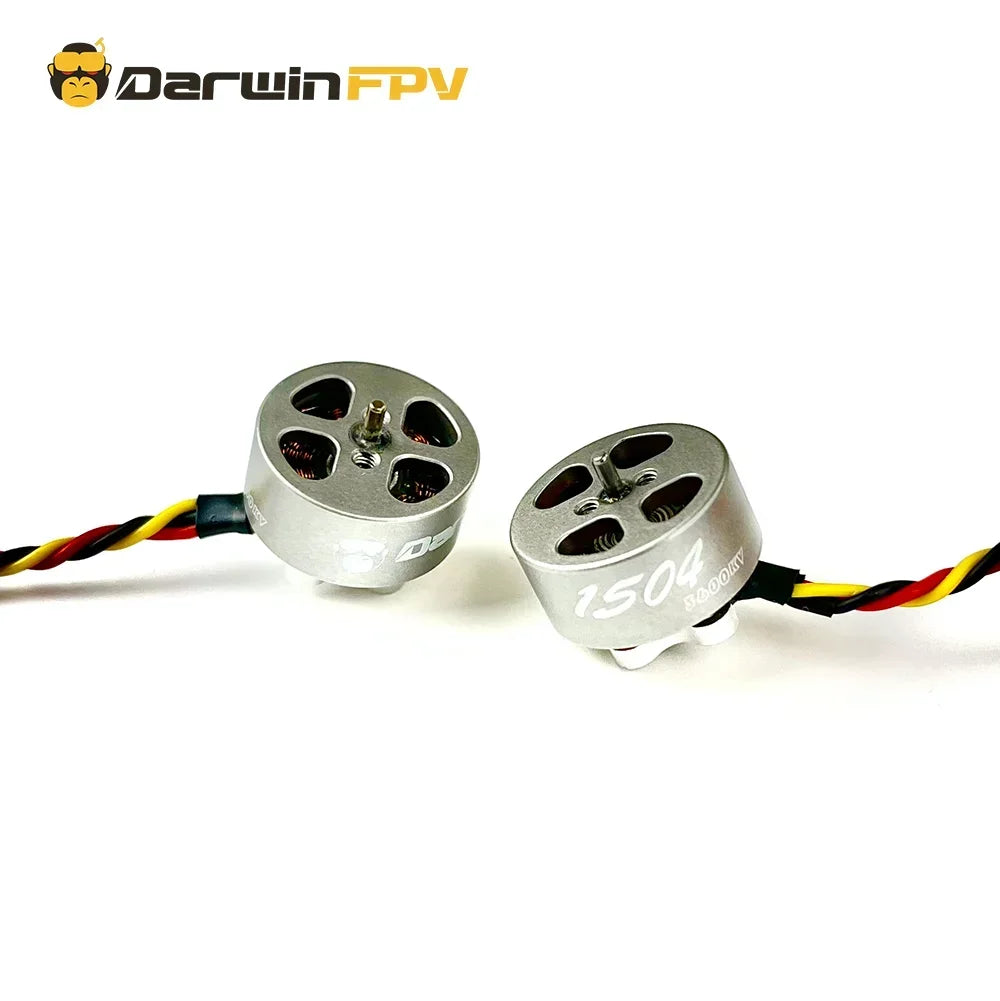

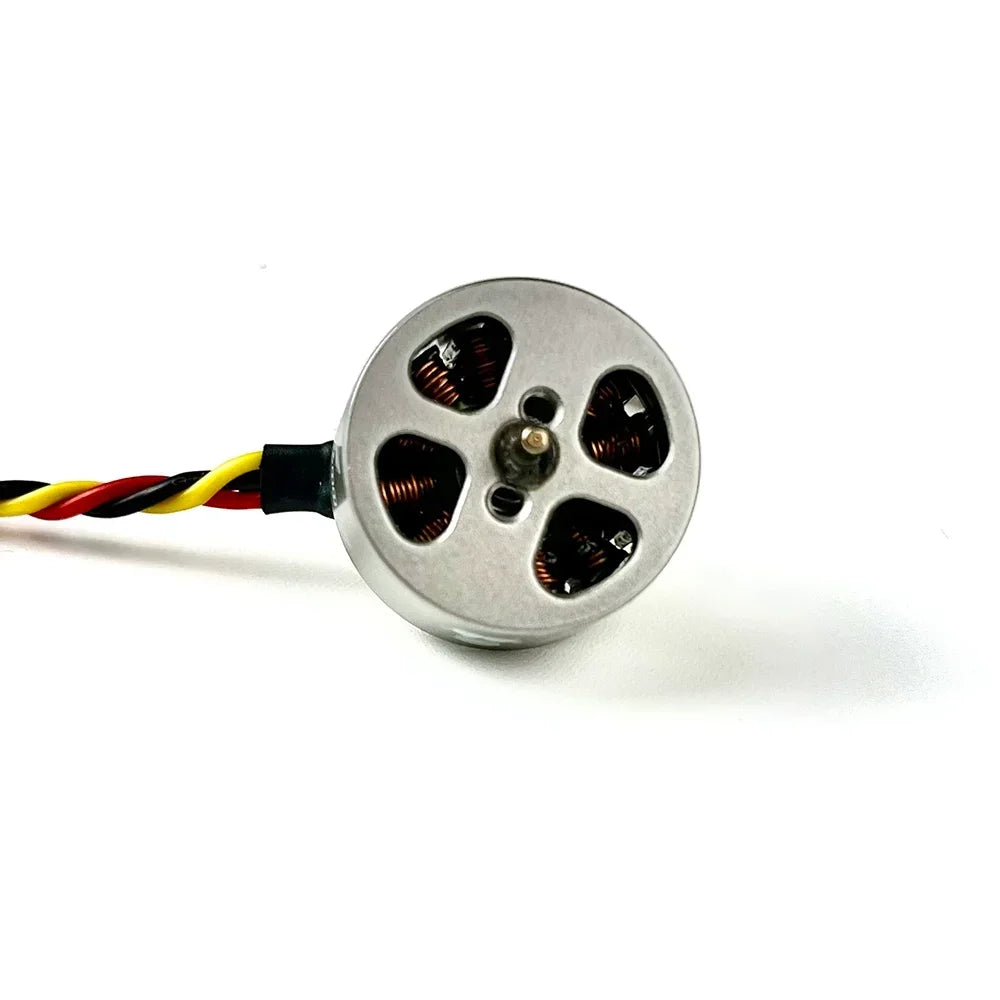

DARWINFPV 1504 Motor is a very cost-effective motor with an overall lightweight design weighing only 10g.
Smooth running, powerful and easier to control. This motor is also a good choice if you are building a 2.5″ hoop or 4″ toothpick quadcopters.

Features:

The most cost-effective brushless motor. Like the 1504 motor of a well-known brand, it has mature production technology, sufficient raw materials and a complete supply chain, which essentially determine the characteristics of low price and high quality.
Lightweight design, weighing only 10g, greatly improves the battery life of the drone.
Compatible with 2.5-inch FPV drone and 3-4-inch toothpick FPV drone, which can be used for racing.
The 1.5mm shaft fits perfectly with most 2.5-4 inch FPV propellers on the market.

Specifications:

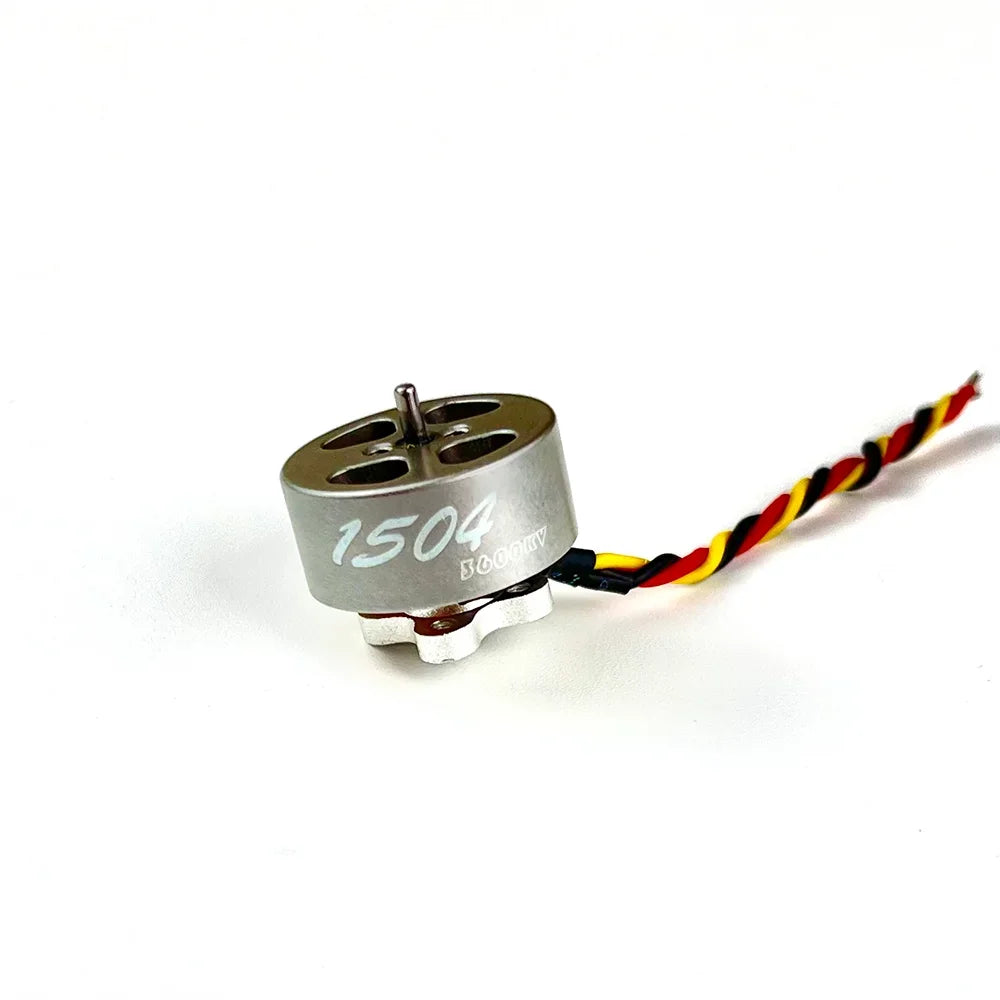

Model: 1504-3600KV

Number of slot poles: 12N14P

Stator size: 15 x 4mm

Out shaft diameter: 1.5mm

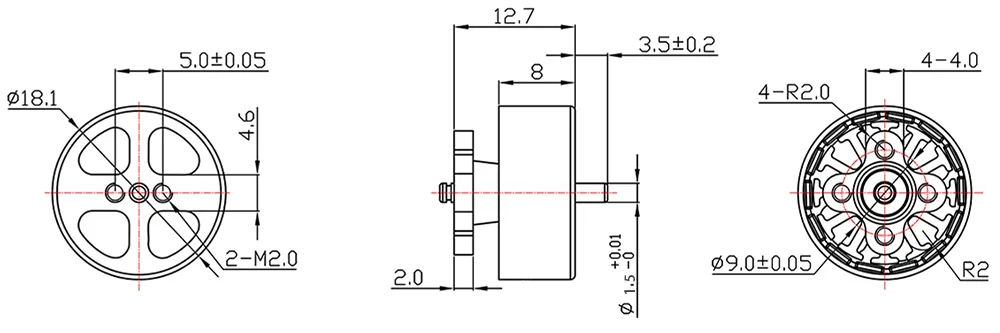

Motor Dimensions: 18.1 x 12.7mm

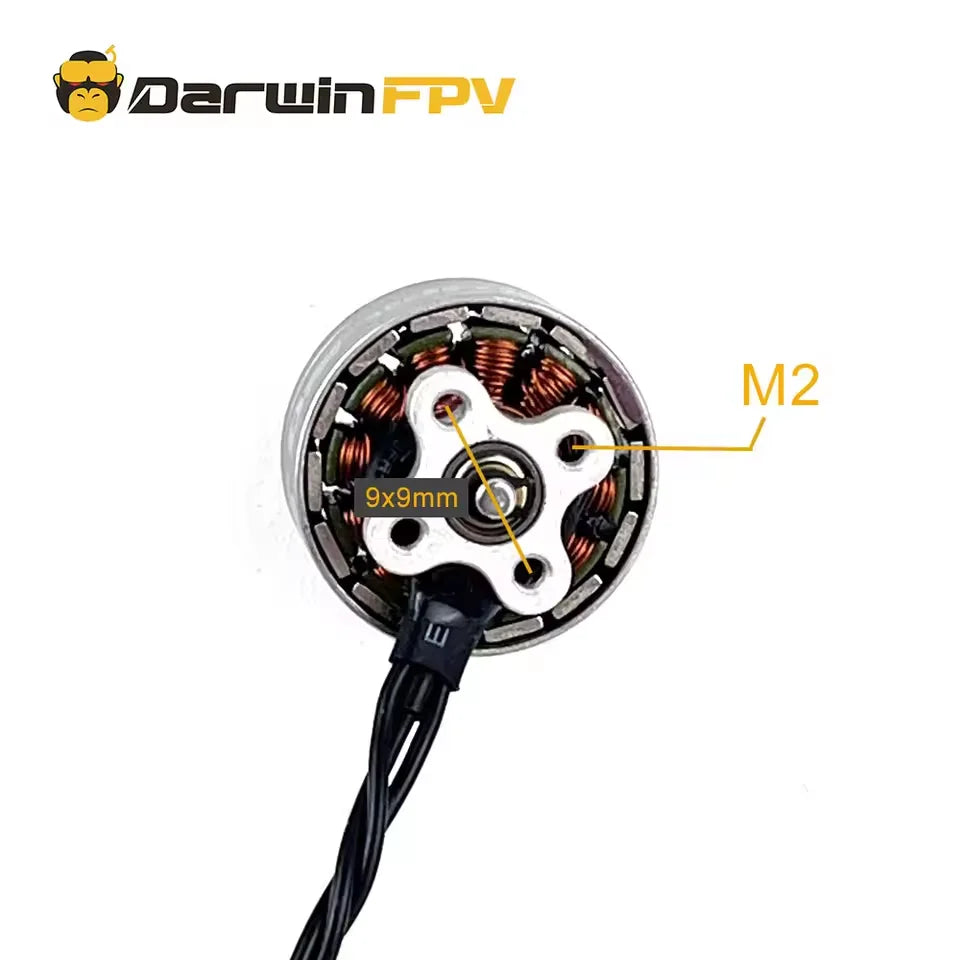

Mounting hole: 9 x 9mm (M2)

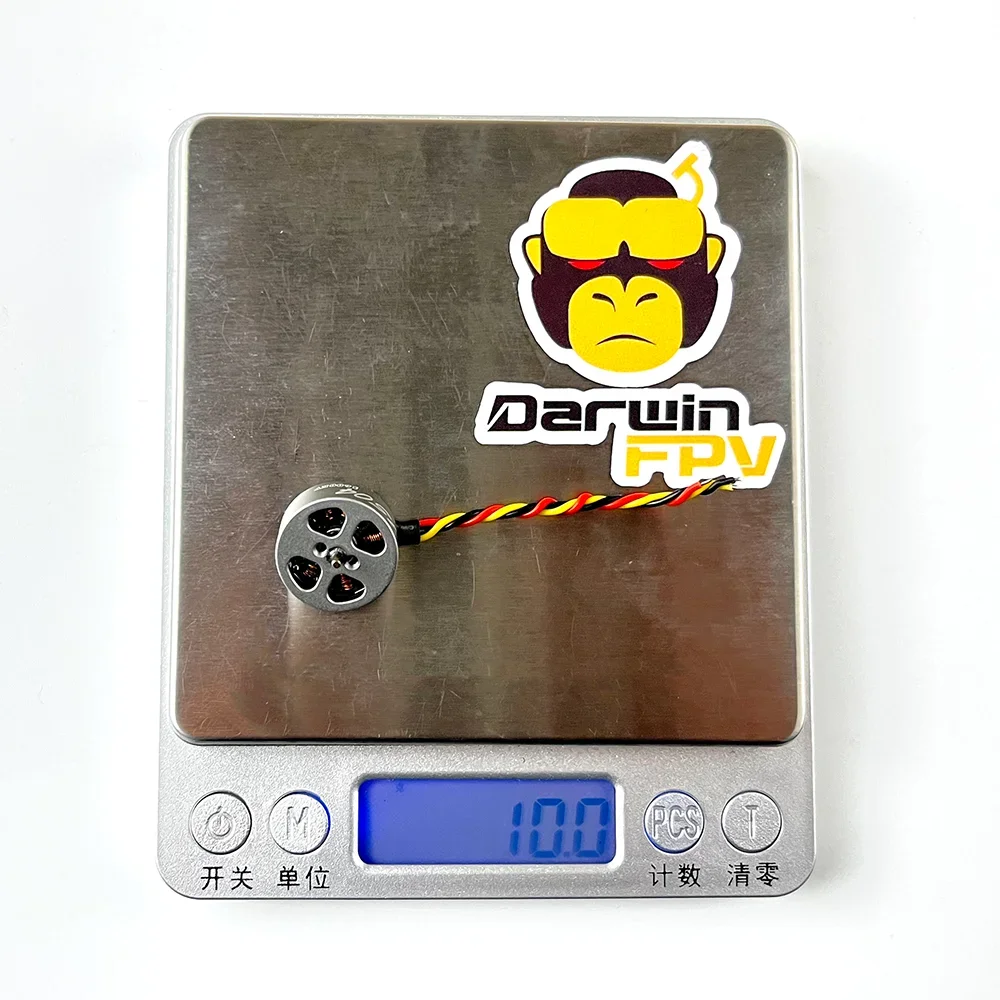

Weight: 10g

Lead wire specifications: 26#AWG

Rated voltage: 4S

Maximum power: 168W

Maximum current: 10.5A

Recommended configuration: 4S-2.5 inch whoop FPV drone

4S-3 inch toothpick quadcopters

Packing list:

• 1 x DARWINFPV 1504 motor

• 4 x M2 x 4mm screws
