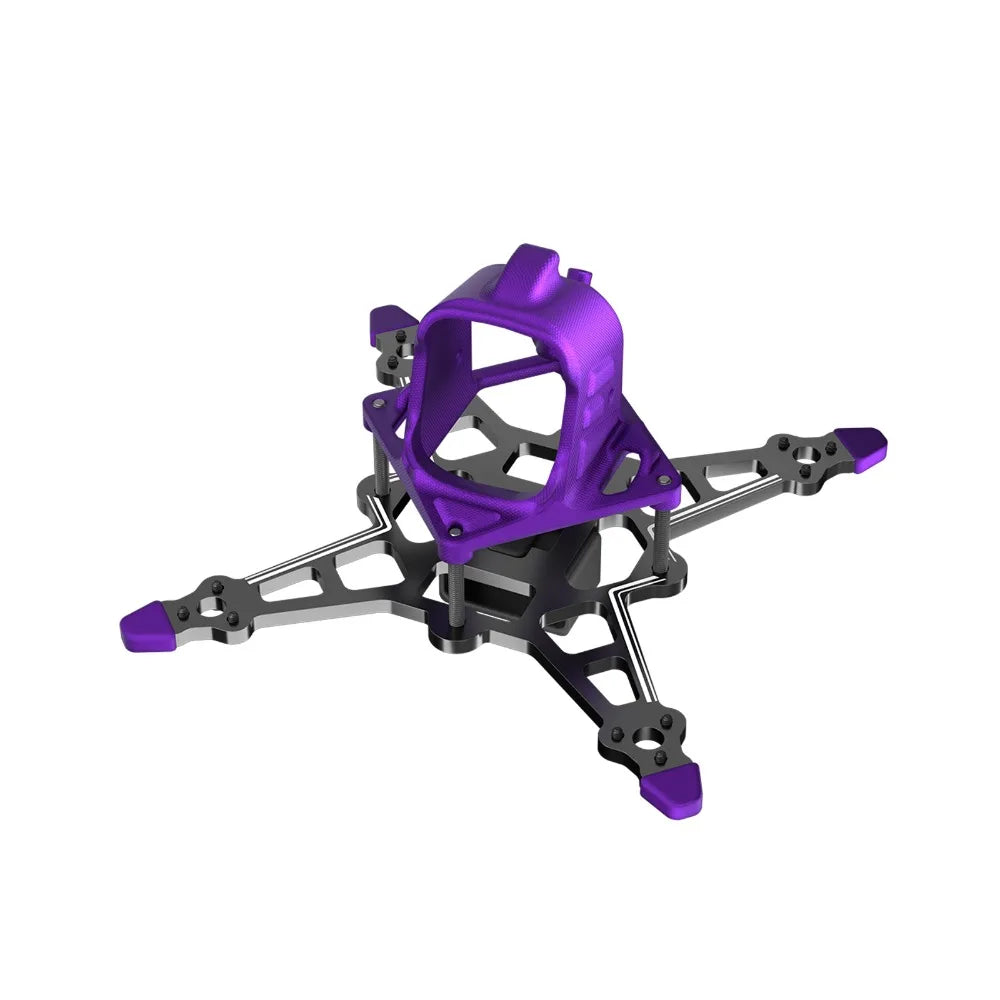

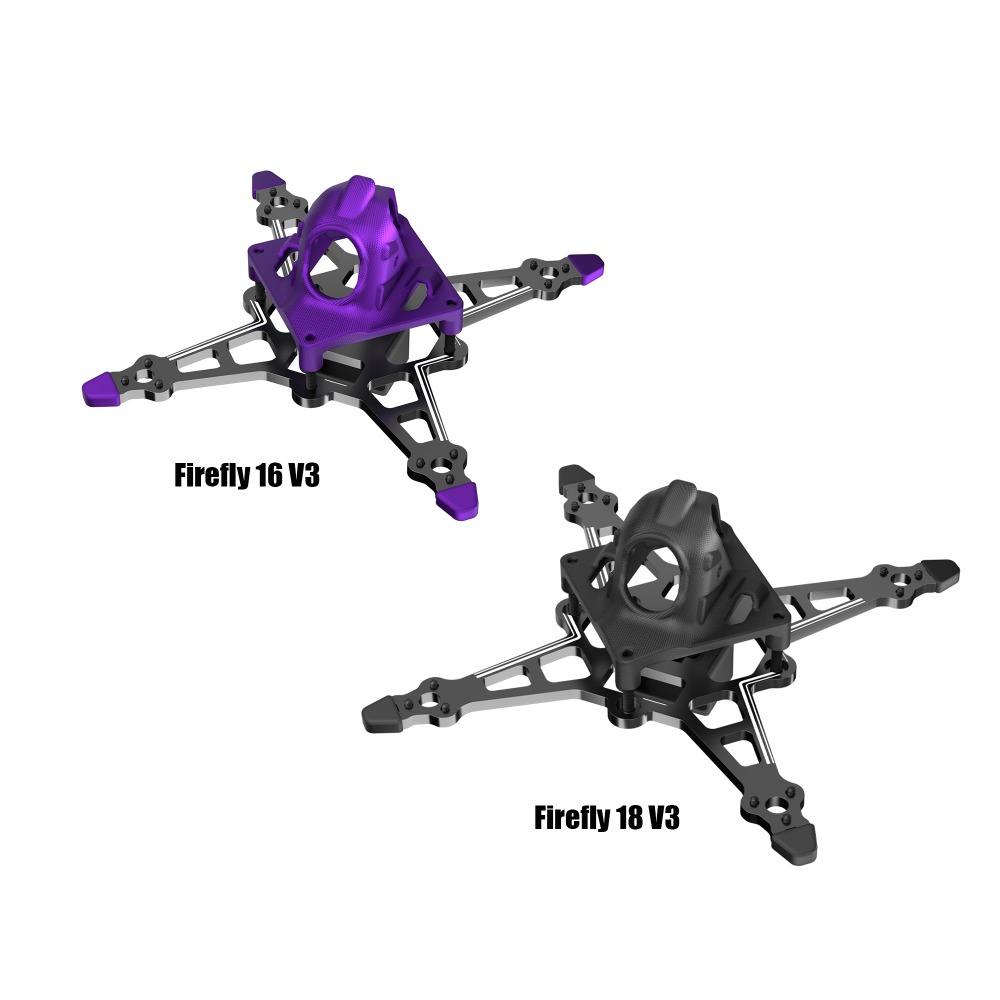

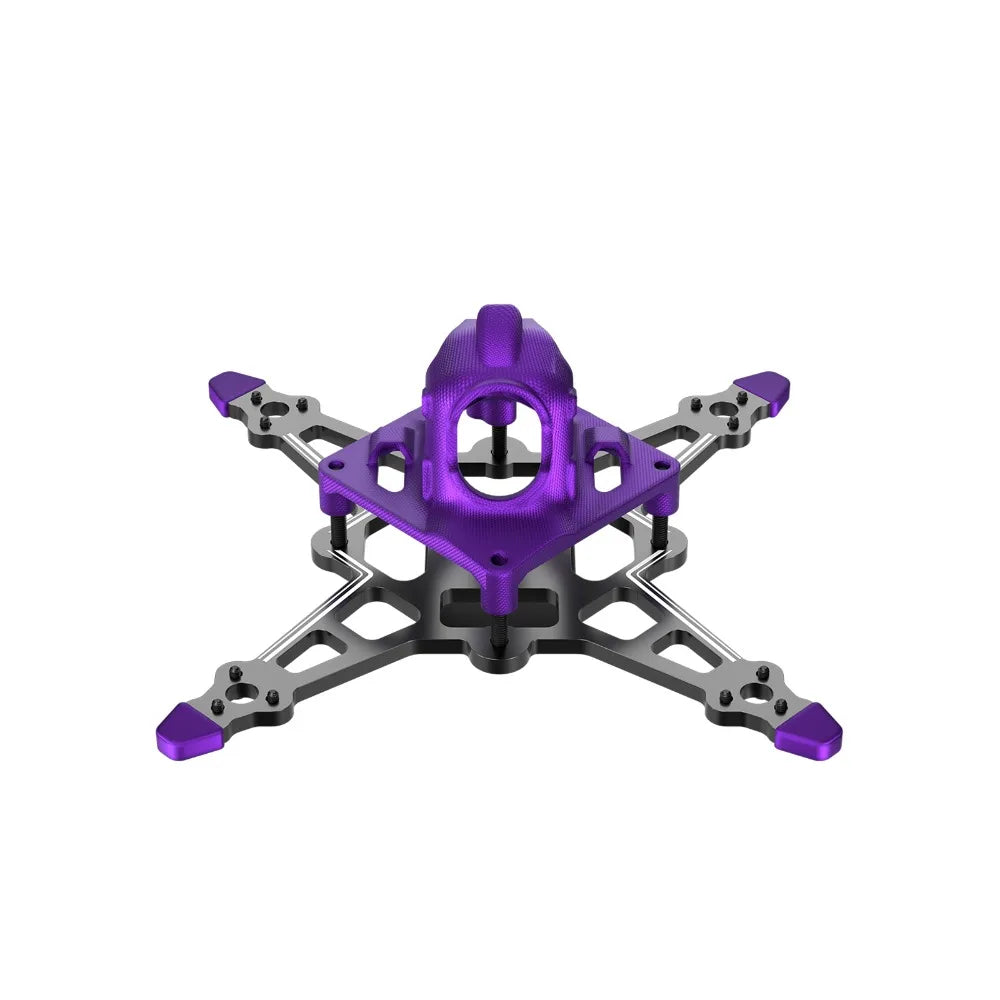

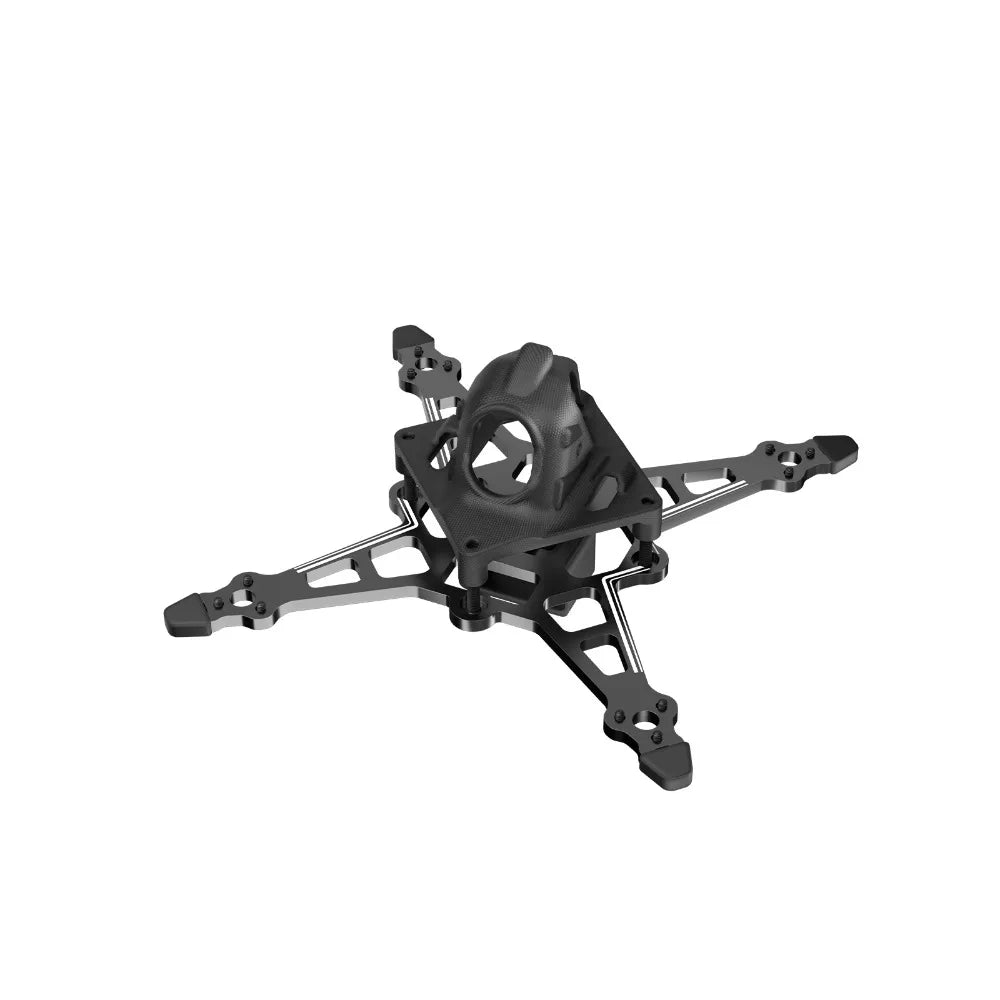

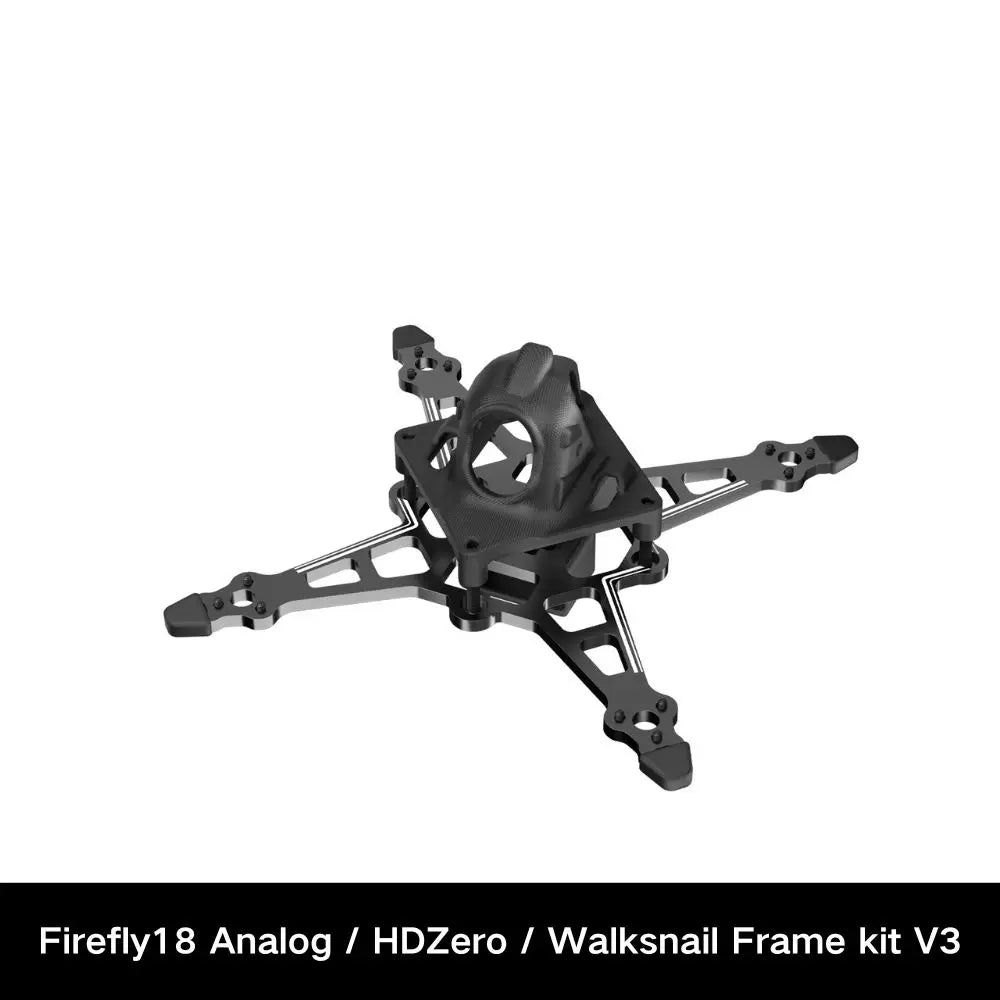

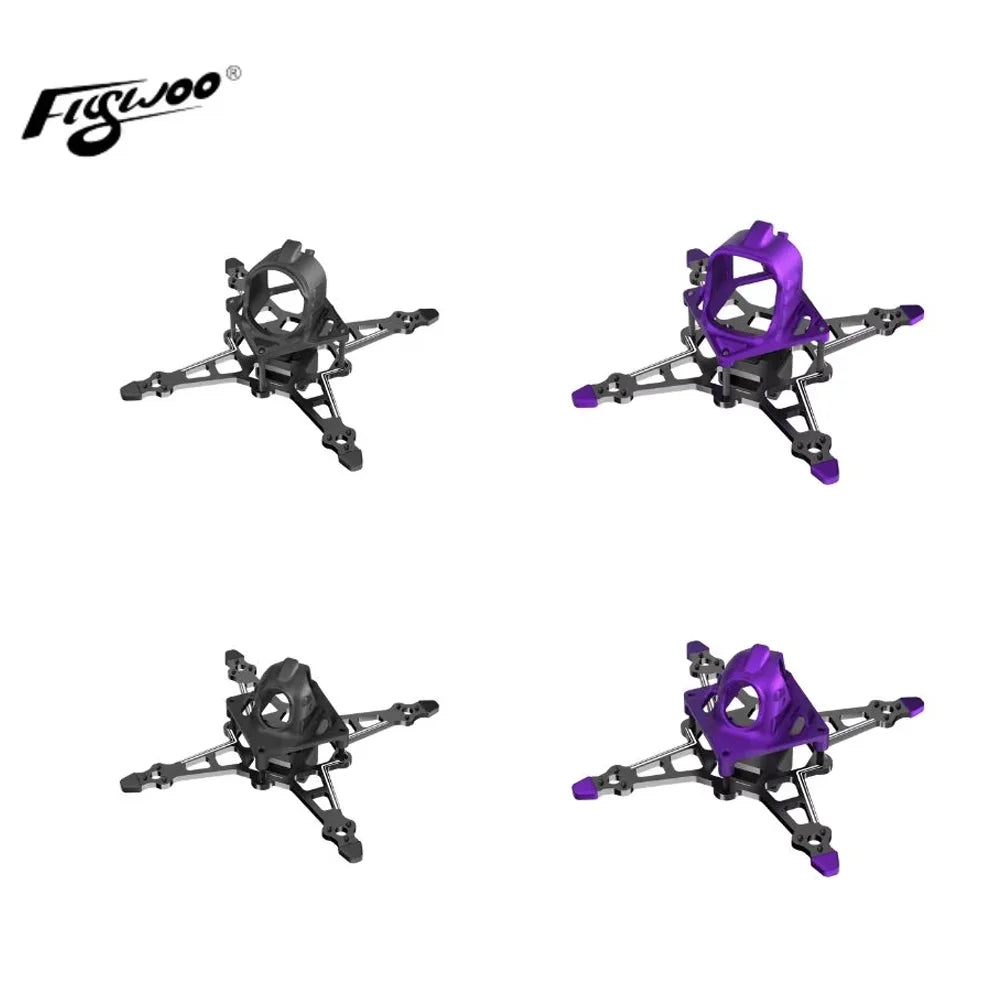

The Firefly 16/18 1S Nano Baby V3 Frame Kit, developed by FLYWOO, is an ultra-lightweight and compact frame solution designed for micro drones. It offers flexible size options (16 or 18 versions), enabling you to build high-performance Nano Baby-class drones with ease.
Specifications:
Brand: FLYWOO
Model: Firefly16 / 18 1S V3
Main Board Thickness: 2mm
Flight Control Hole Position: 25.5×25.5mm
Motor Position: 6.6mm
Propeller Size:
40mm x3 (16)
45mm x2 (18)
Weight:
7.9g (16)
8g (18)
Recommended Configuration 1:
Model: Firefly18 1S Nano Baby V3 Analog Tiny Drone
Frame: Firefly18 1S Nano Baby V3 O4 Frame kit
Electronic: GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
Transmission: GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
Camera: Flywoo 1S Nano Camera V3
Propeller:
HQ 45MMX2 (Firefly18)
HQ 40MM X3 (Firefly 16)
Motor:
ROBO 1002 19800KV (Firefly18)
ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30
Recommended Configuration 2:

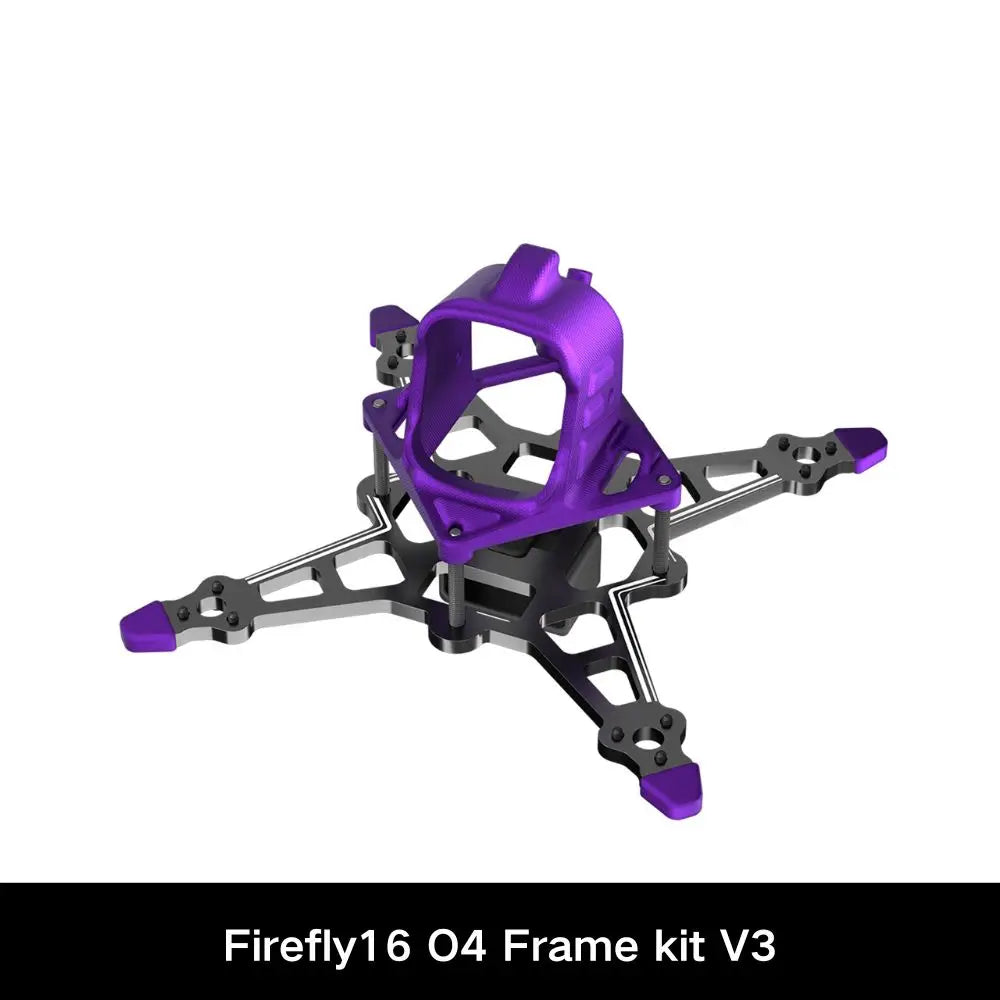

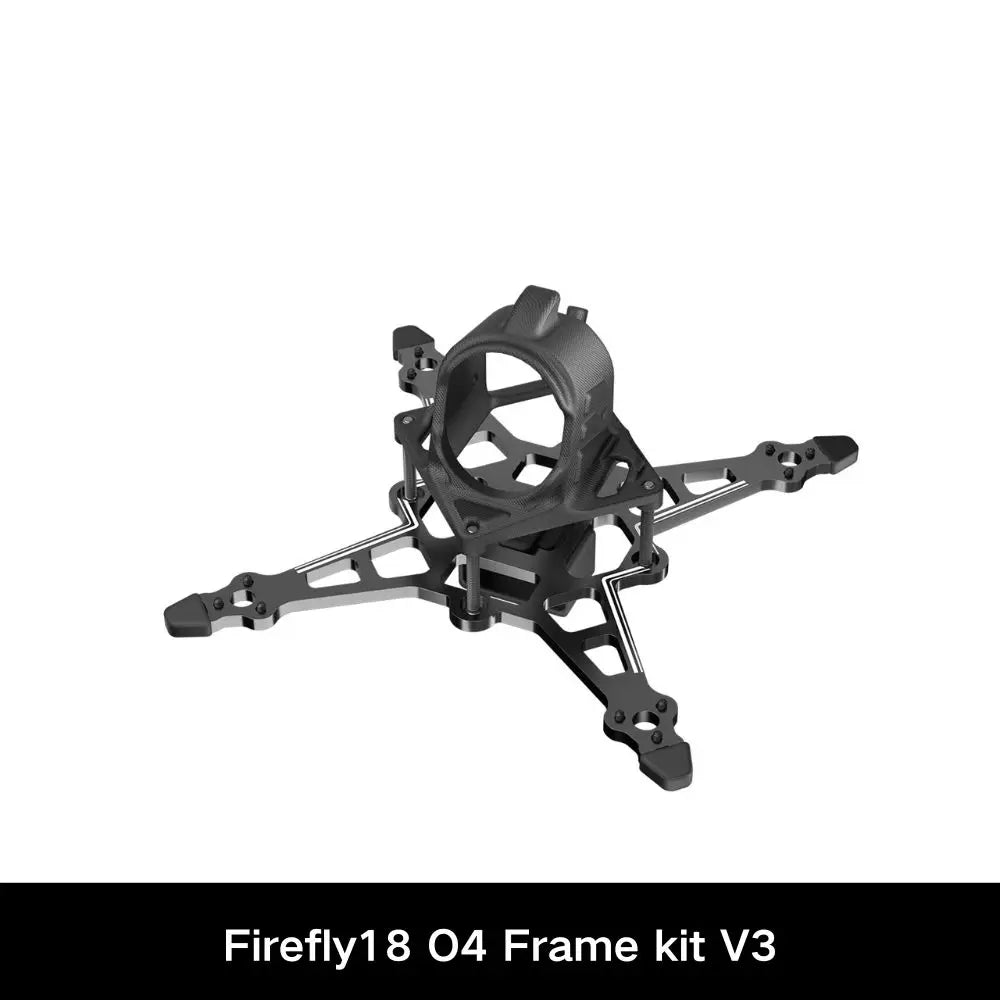

Model: Firefly16 / 18 1S Nano Baby V3 O4 Tiny Drone
Frame: Firefly16 / 18 1S Nano Baby V3 O4 Frame kit
Electronic: GOKU F405 HD 1S 1S 5A AIO W/TXCO ELRS (BNF-DJI without ELRS RX)
Transmission: DJI O4 Air unit
Camera: DJI O4 Camera
Propeller:
HQ 45MMX2 (Firefly18)
HQ 40MM X3 (Firefly 16)
Motor:
ROBO 1002 19800KV (Firefly18)
ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30
Recommended Configuration 3:
Model: Firefly 16 / 18 1S Nano Baby V3 HDZero Tiny Drone
Frame: Firefly16 / 18 1S Nano Baby V3 HDZero Frame kit
Electronic: GOKU F405 HD 1S 1S 5A ELRS AIO
Transmission: HDZero Whoop Lite VTX
Camera: HDZero Nano V3 Camera
Propeller:
HQ 45MMX2 (Firefly18)
HQ 40MM X3 (Firefly 16)
Motor:
ROBO 1002 19800KV (Firefly18)
ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30
Recommended Configuration 4:
Model: Firefly 16 / 18 1S Nano Baby V3 Walksnail Tiny Drone
Frame: Firefly16 / 18 1S Nano Baby V3 Walksnail Frame kit
Electronic: GOKU F405 HD 1S 1S 5A ELRS AIO
Transmission: Walksnail Avatar HD Mini 1S VTX
Camera: Walksnail Avatar HD Nano Camera
Propeller:
HQ 45MMX2 (Firefly18)
HQ 40MM X3 (Firefly 16)
Motor:
ROBO 1002 19800KV (Firefly18)
ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30
