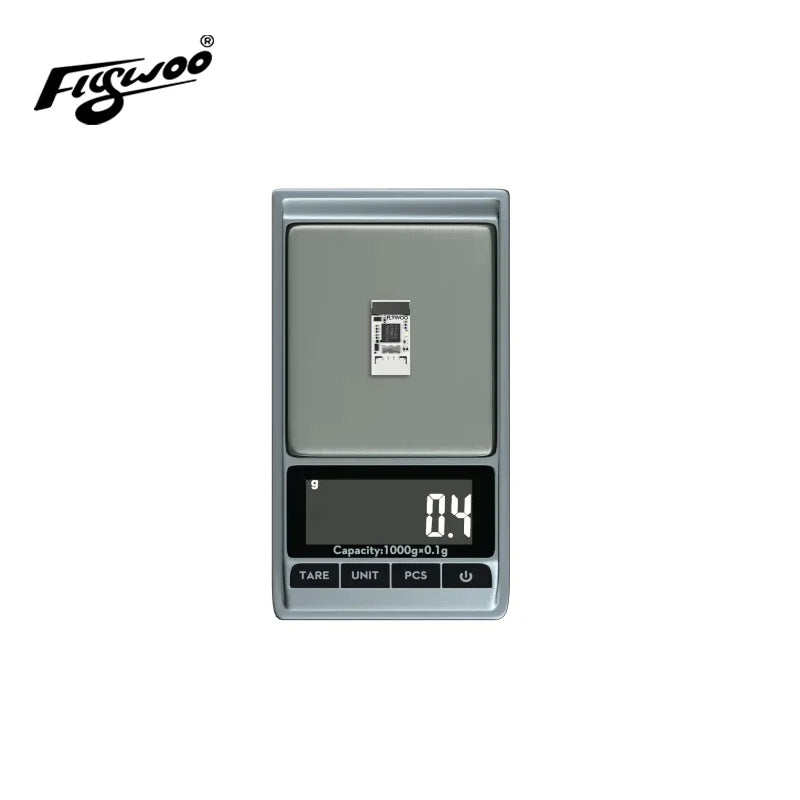

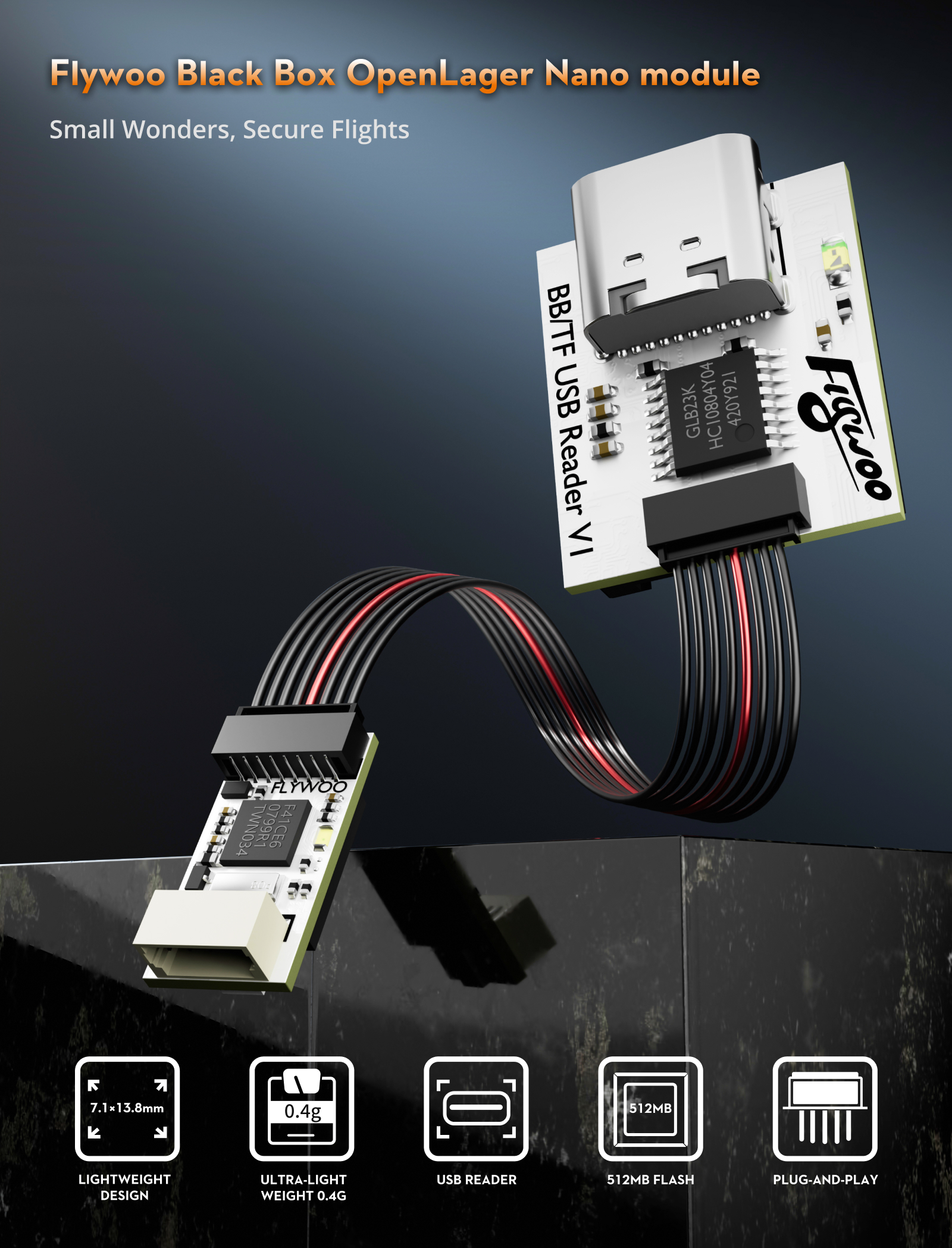

The world’s smallest flight data recorder, engineered for micro drones. Integrates 512MB SLC NAND Flash storage and a USB-C 3.0 reader. Ultra-compact design (83% smaller than traditional modules) at just 0.4g, ideal for FPV drones and space-constrained UAVs.
Key Features:

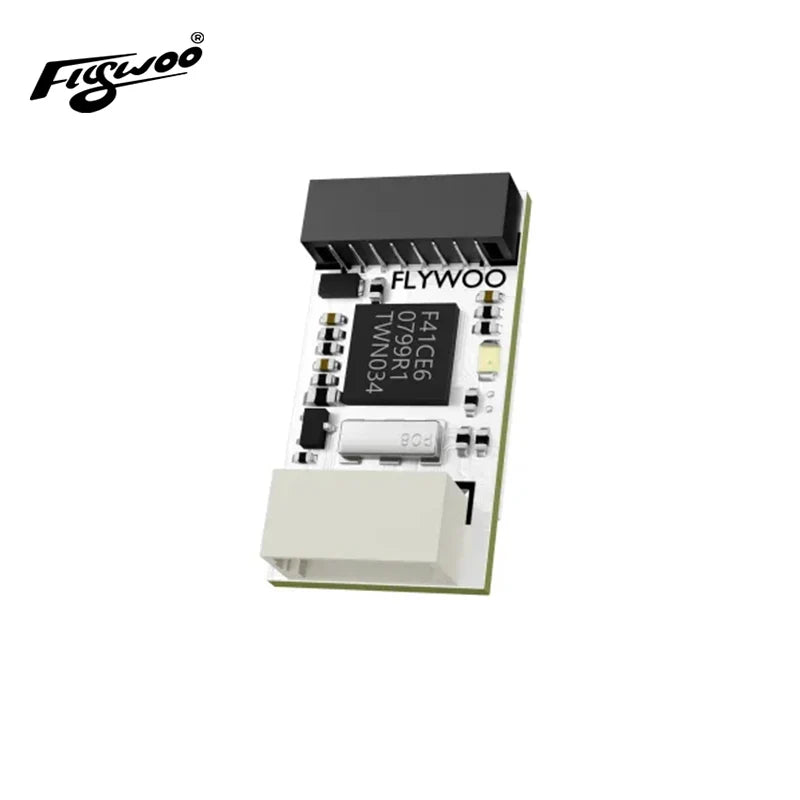

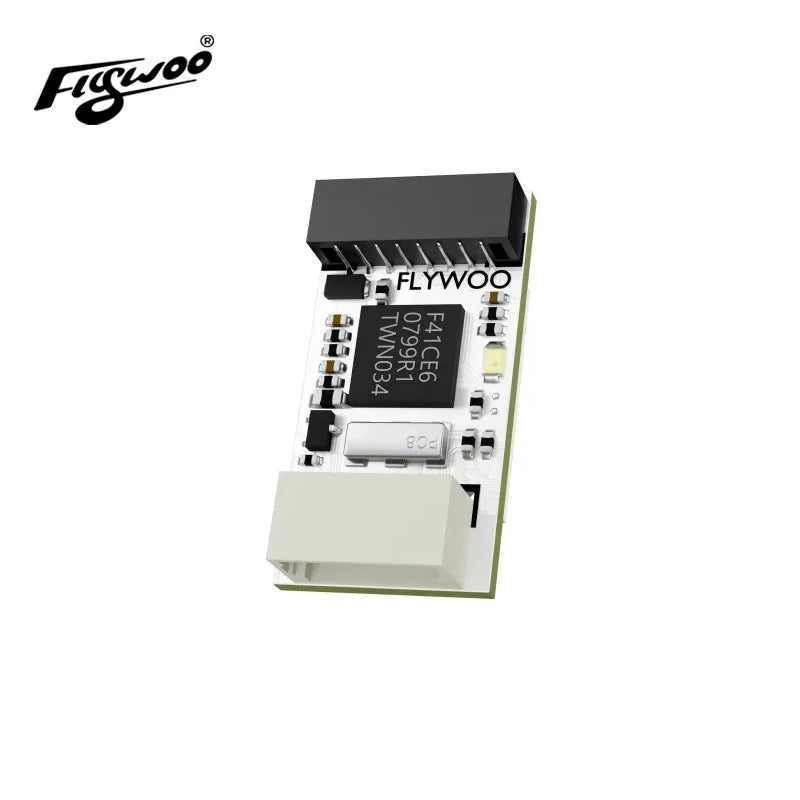

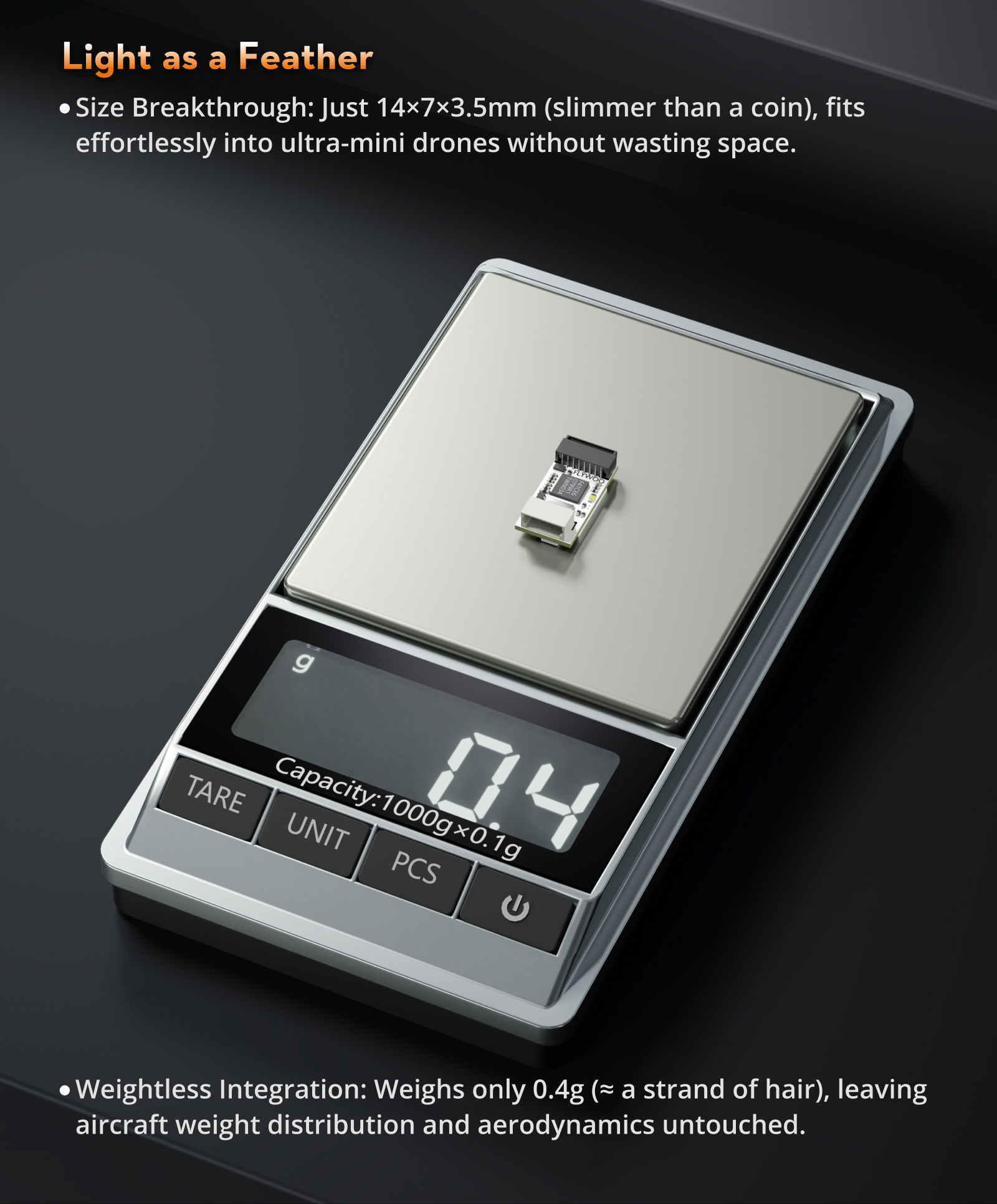

▶ Ultra-Compact Design – 14×7×3.5mm footprint, defying space constraints

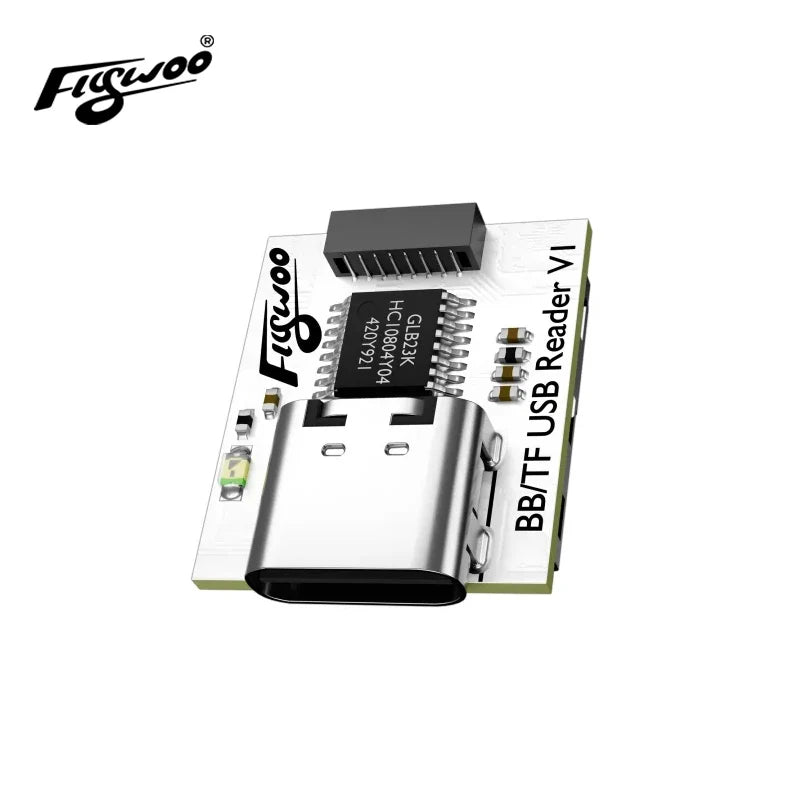

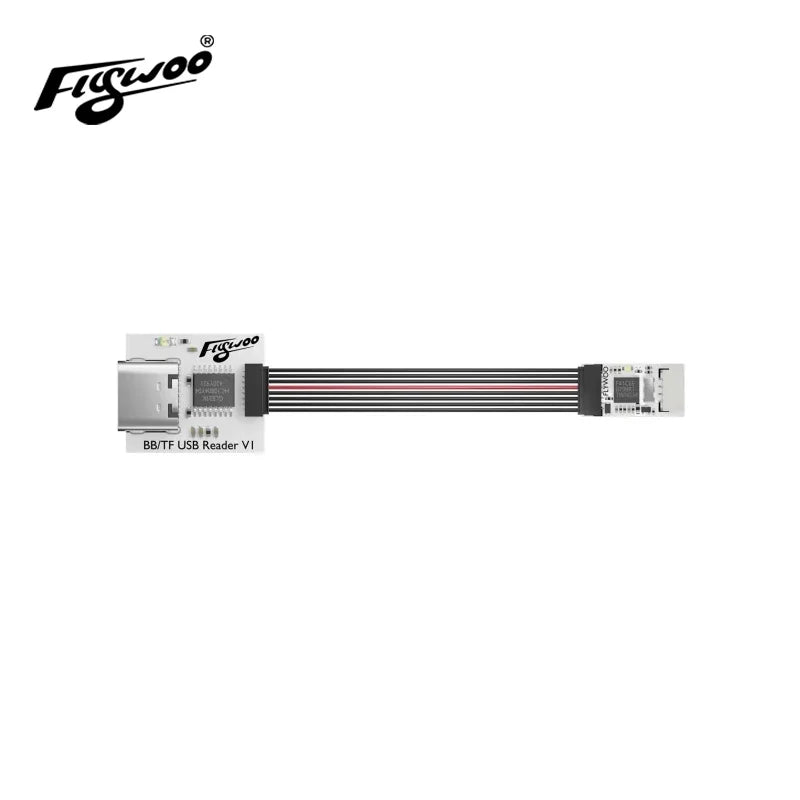

▶ Dual-Mode Reader – Built-in USB 3.0 interface for high-speed data transfer, hot-swappable, and emergency USB drive functionality
configuration
-
Storage: 512MB SLC NAND Flash
-
Interface: USB-C 3.0 (backward compatible with USB 2.0)
-
Voltage: 4.5V
-
Dimensions: 14×7×3.5mm (module) / 18.2×15.4×6.2mm (reader)
-
Operating Temp: -10°C to +40°C
In the box
FAQ
Q1: How do I install the module on my drone?

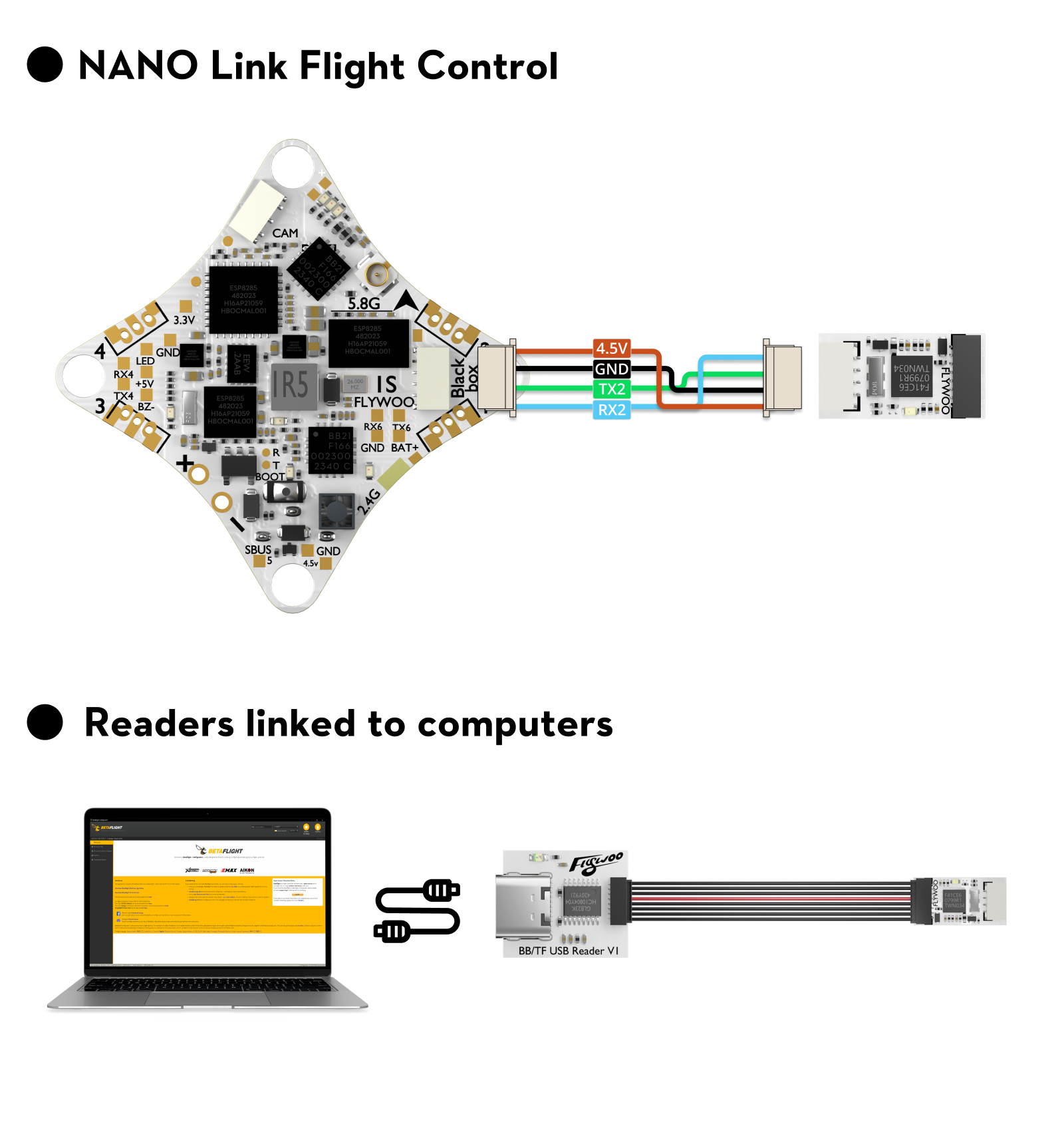

A: It can be directly soldered to your flight controller or connected via the standardized 0.8mm-pitch header. No specialized tools are needed—compatible with most DIY drone builds.
Q2: What if the module crashes with my drone? Will data be recoverable?
A: Just like an onboard black box, it retains data even after sudden power loss. Simply plug the reader into a USB-C port to access logs.
Q3: How long can it record flight data?

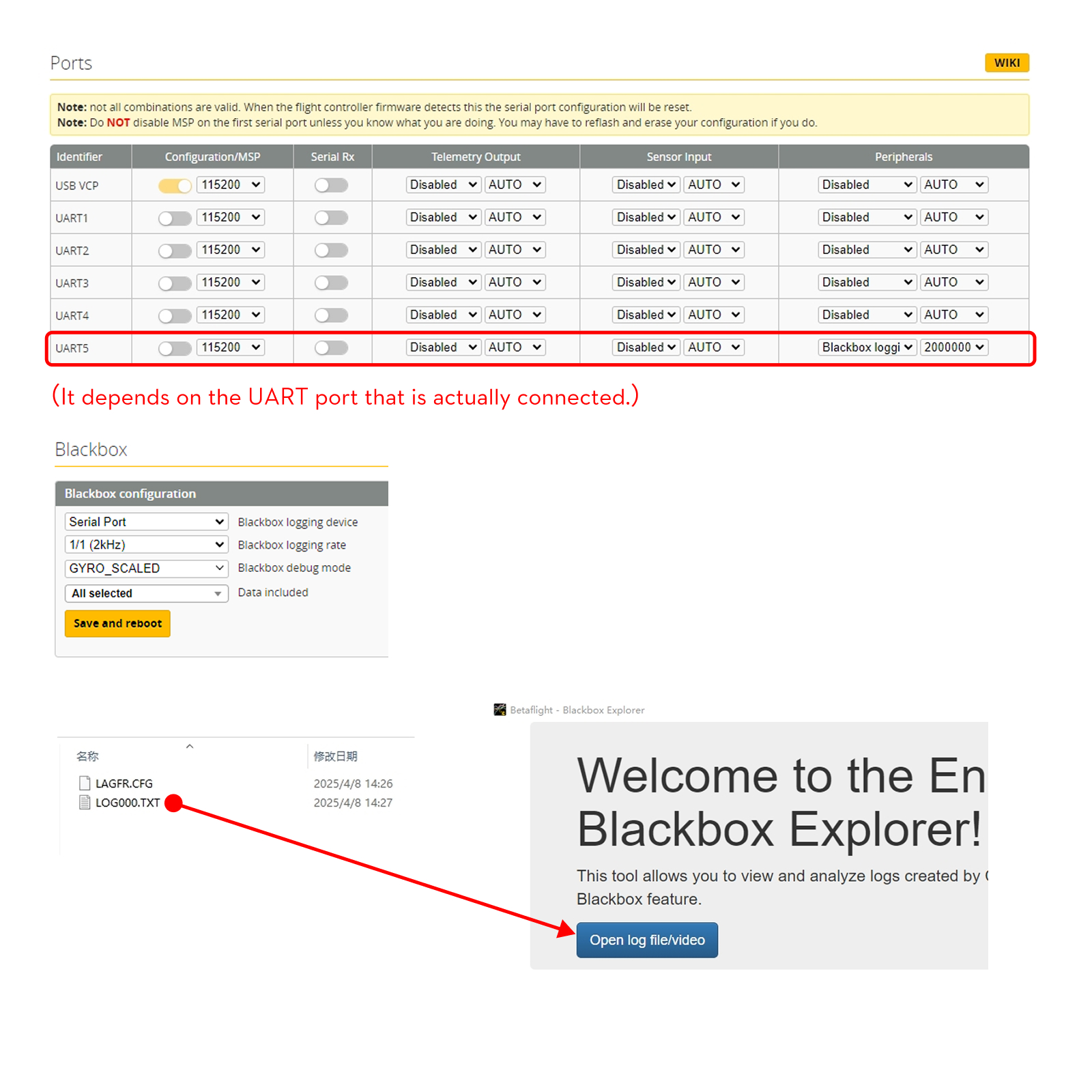

A: 512MB storage (usable capacity: 480MB) supports ~2 hours of high-frequency logging (at 2kHz). For longer sessions, reduce the logging rate via Betaflight/INAV settings.
Q4: Is it compatible with analog and digital FPV systems?
A: Yes. It operates independently of video transmission protocols, working seamlessly with both analog setups and digital systems like DJI HD or Walksnail.
Q5: Can it survive extreme temperatures during winter flights?
A: Designed for -10°C to +40°C operation. Avoid exceeding these limits to prevent damage.
Q6: Does it support custom log formats or third-party analysis tools?
A: Logs are saved in standard Betaflight Blackbox format (.BBL), compatible with popular tools like Blackbox Explorer and RaceRender.
Q7: Is the module waterproof or dustproof?
