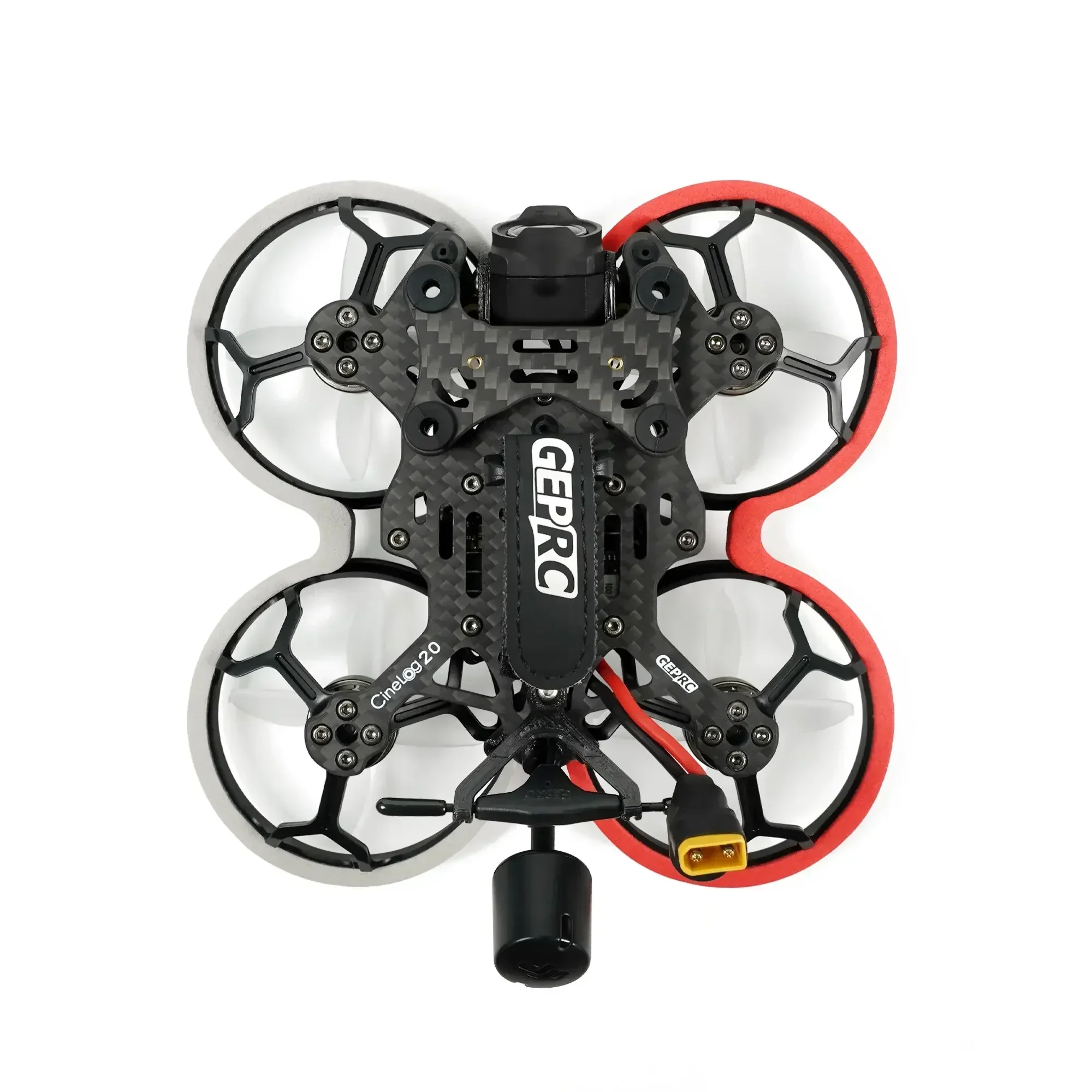

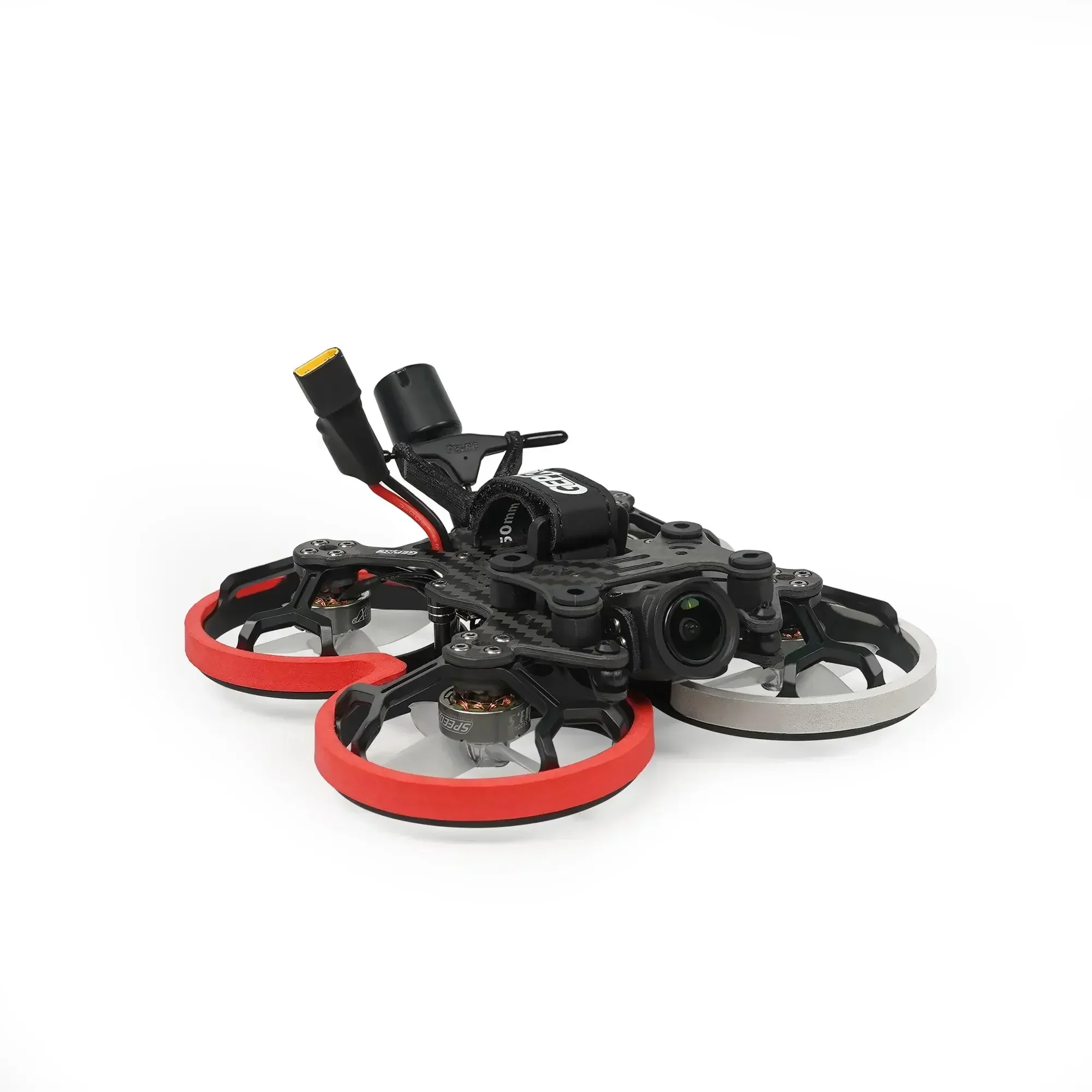

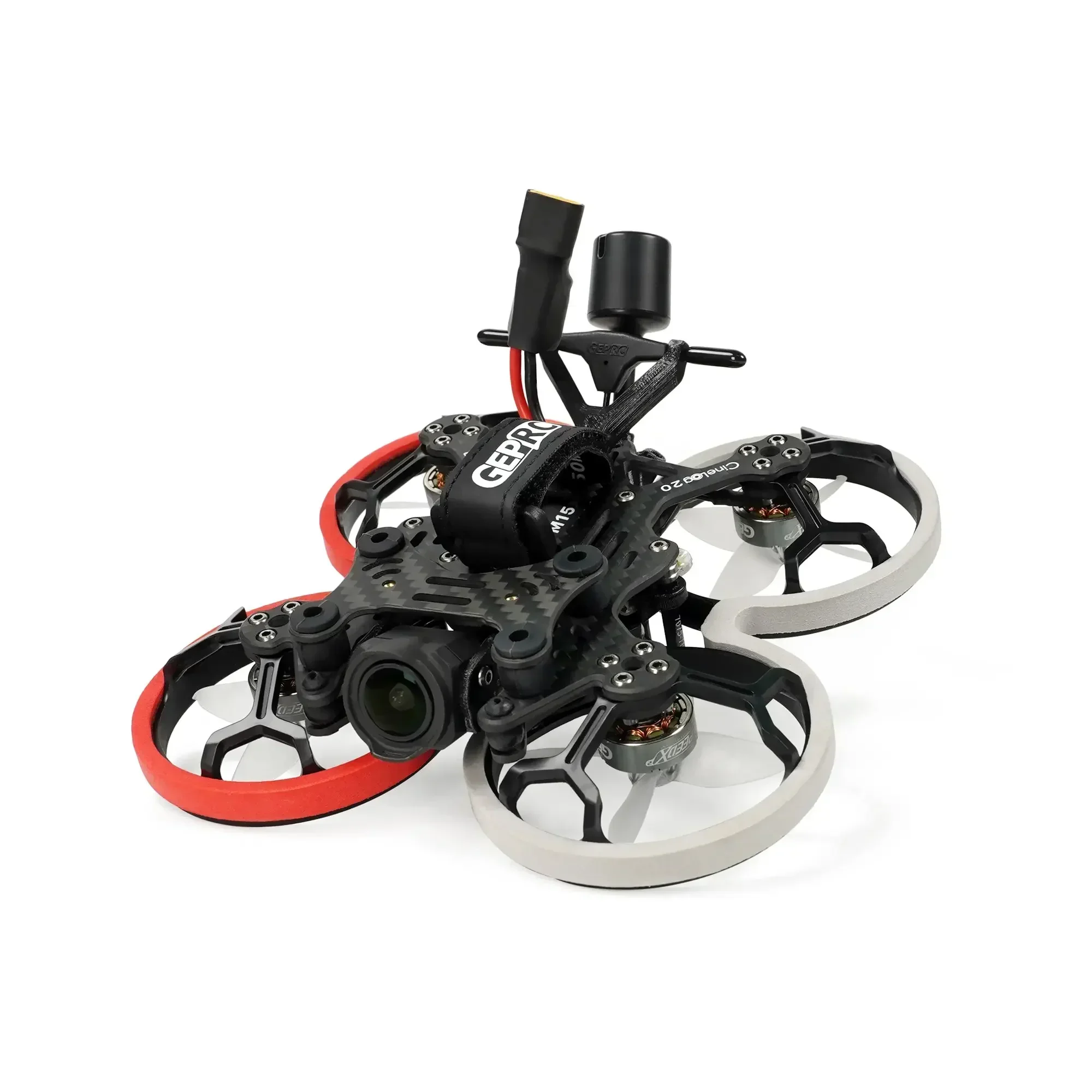

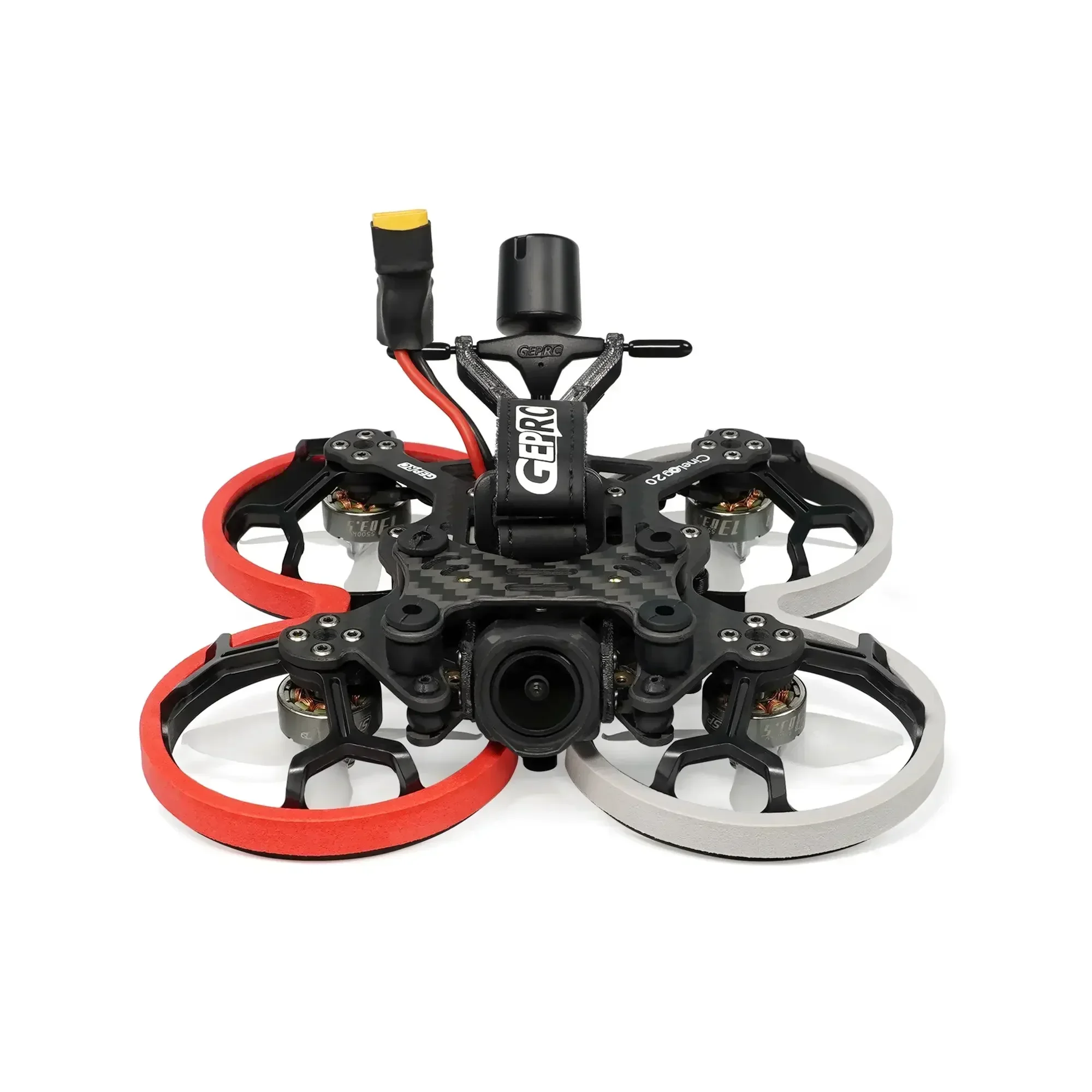

GEPRC Cinelog20 HD O3 – 2inch Cinewhoop Quad TAKER G4 35A AIO O3 AIR Unit GR1303.5 5500KV 4S

Description

Summary

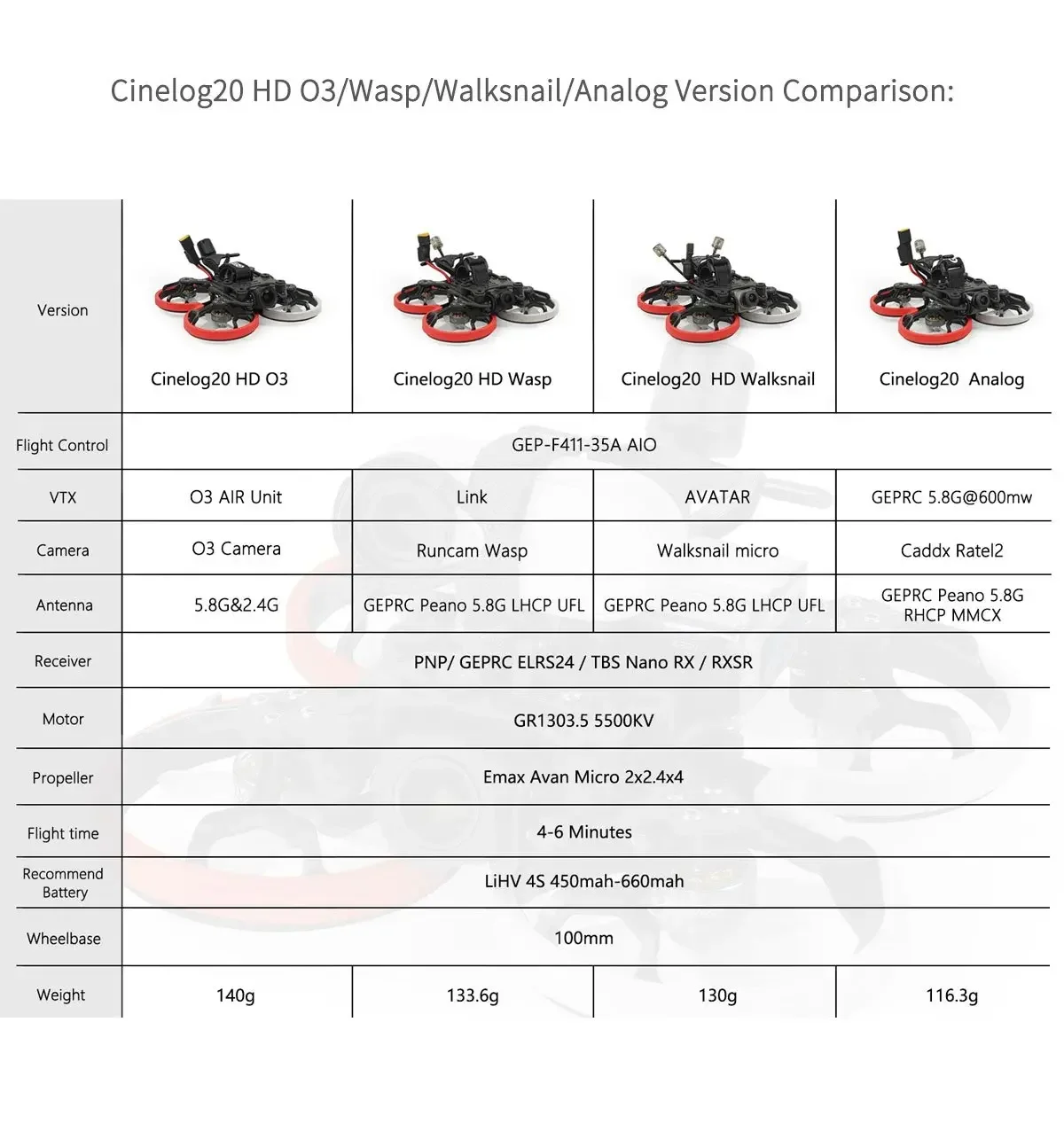

nFor the shooting needs of complex indoor environments, GEPRC has recently released the 2 inch Cinewhoop CineLog20. Available in Link Wasp, O3 AIR Unit, and Analog three mainstream video transmission system on the market.
nThe CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 Air Unit shooting, which can achieve excellent anti-shake effect. The O3 AIR Unit version can shoot 4K 120fps video without mounting any camera. It is lighter in weight and has a longer battery life.

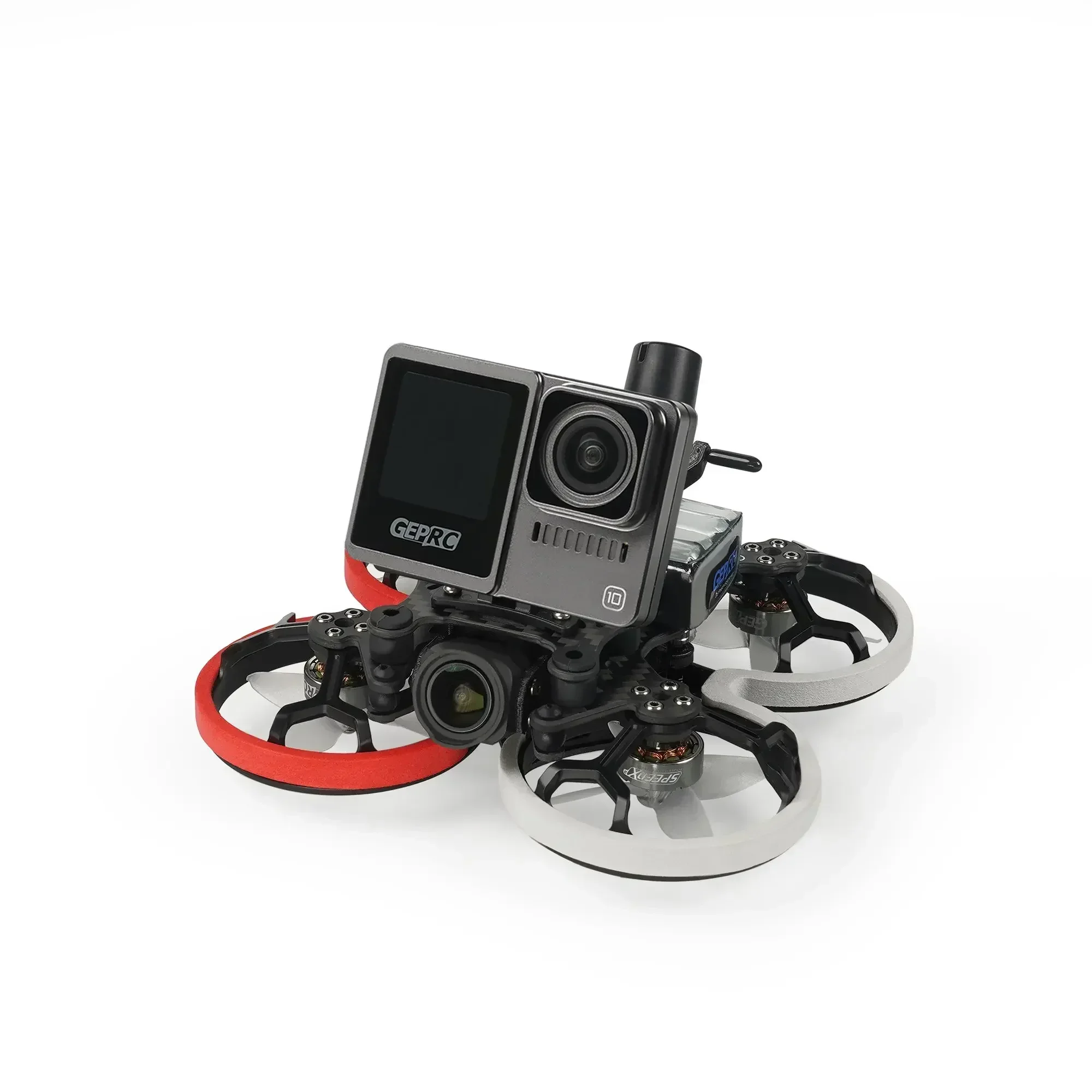

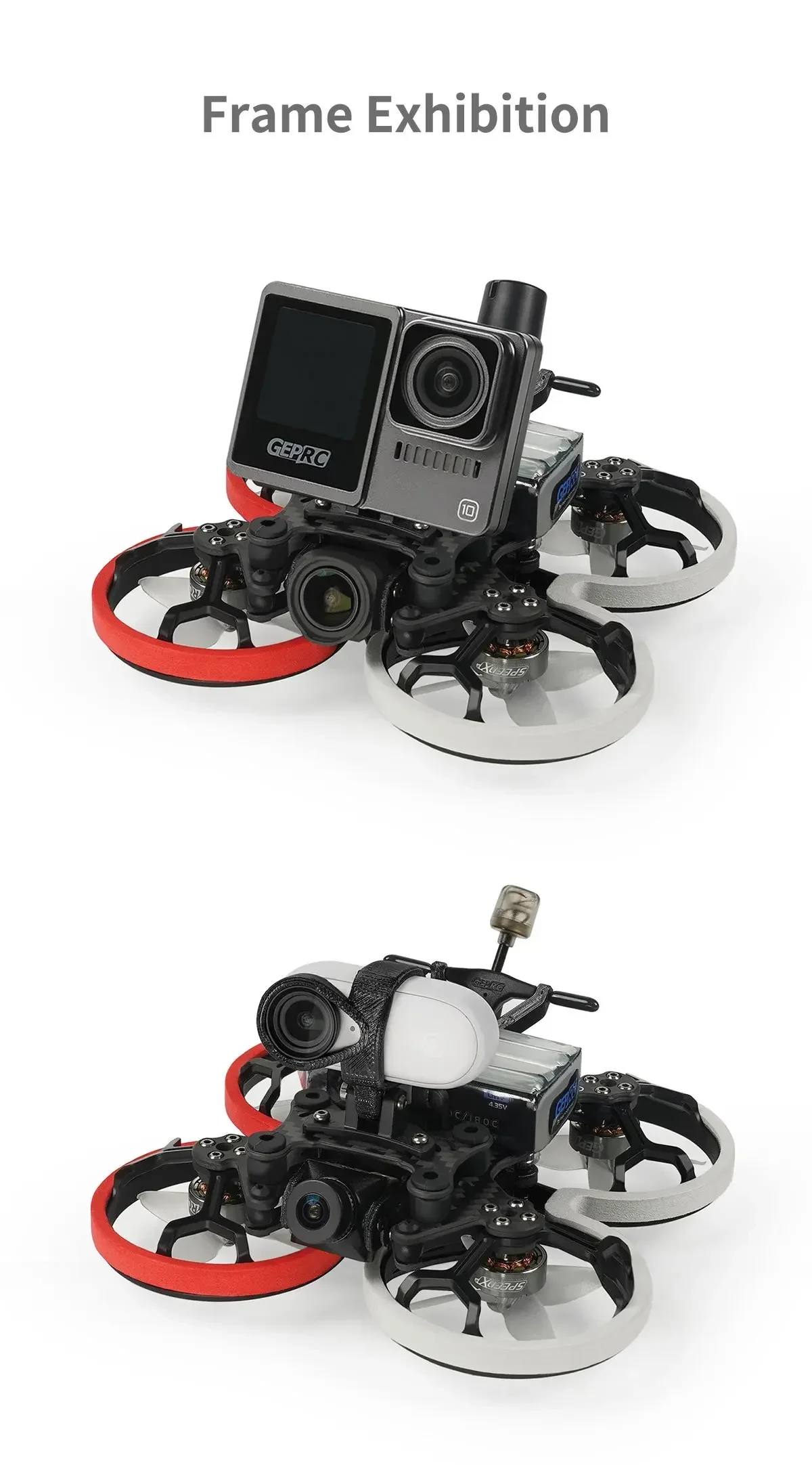

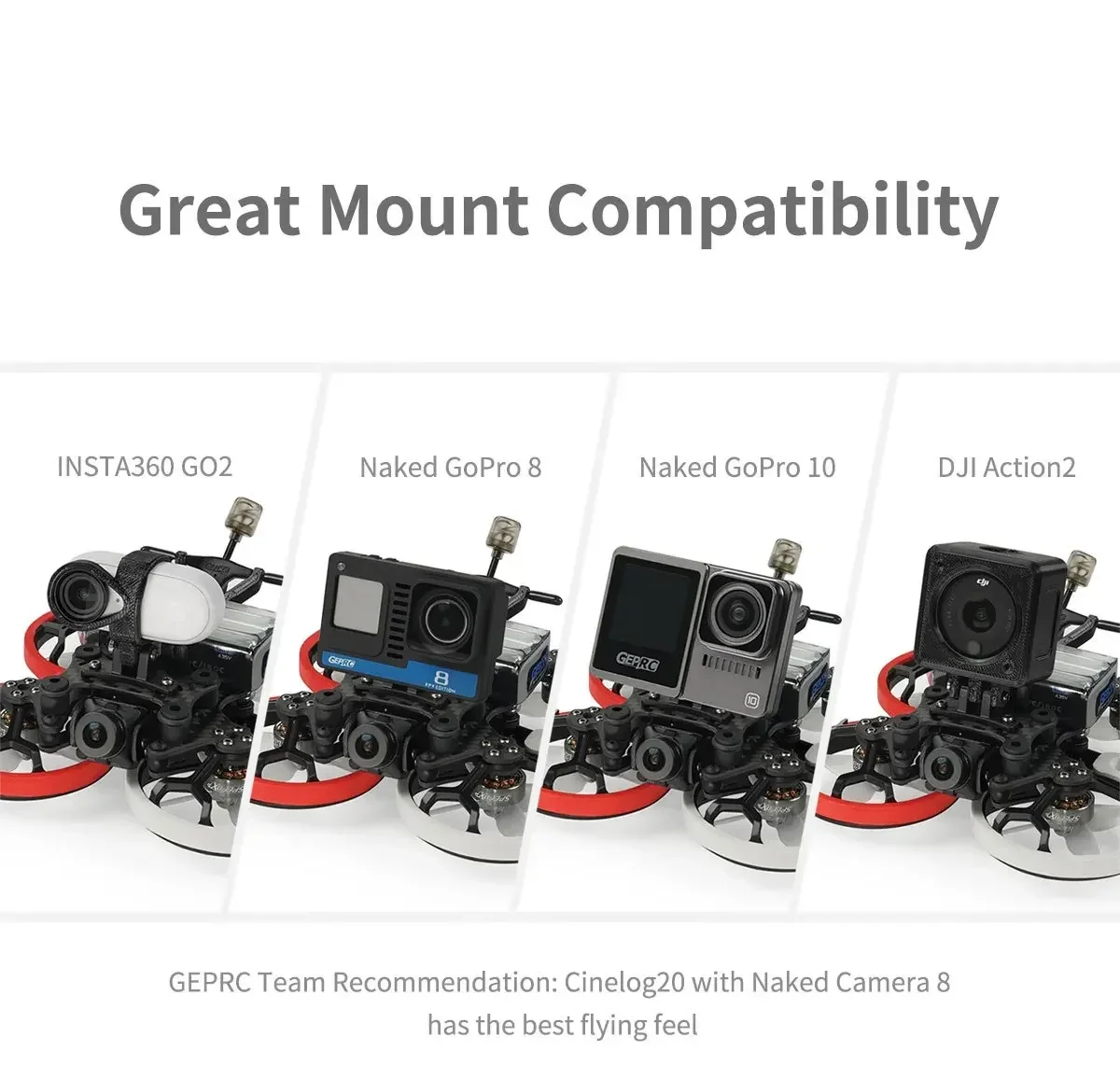

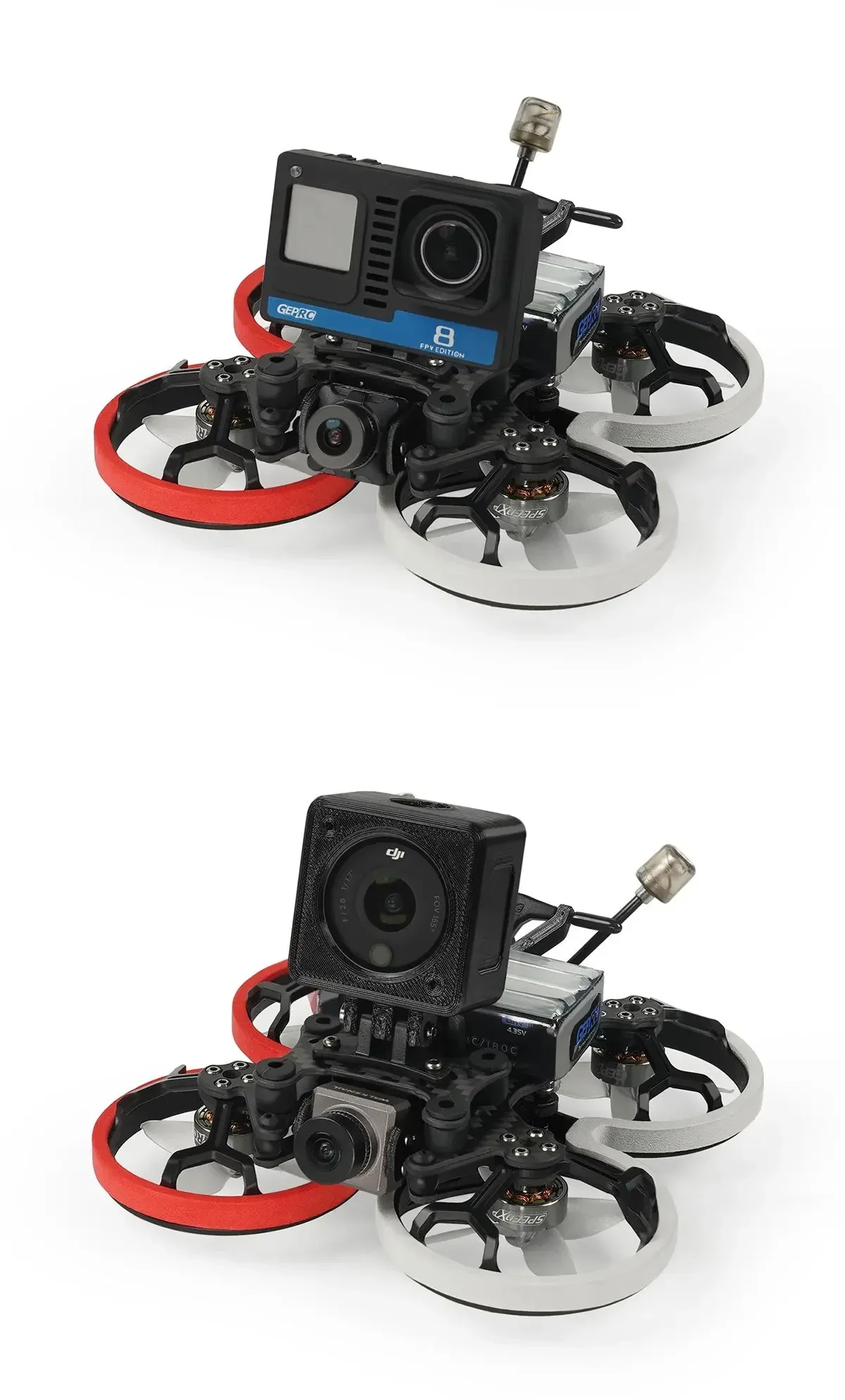

nIt adopts GEPRC SPEEDX2 1303.5 5500KV motor and Taker G4 35A AIO. Equipped with Emax 4-blade propellers, reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked camera GP 8/9/10/11 cameras, Action2, insta360 Go2, Peanut and other light and small action cameras.
nChangelog
nApr 19, 2024: CineLog20 FC system changed from GEP-F411-35A AIO to TAKER G4 35A AIO.

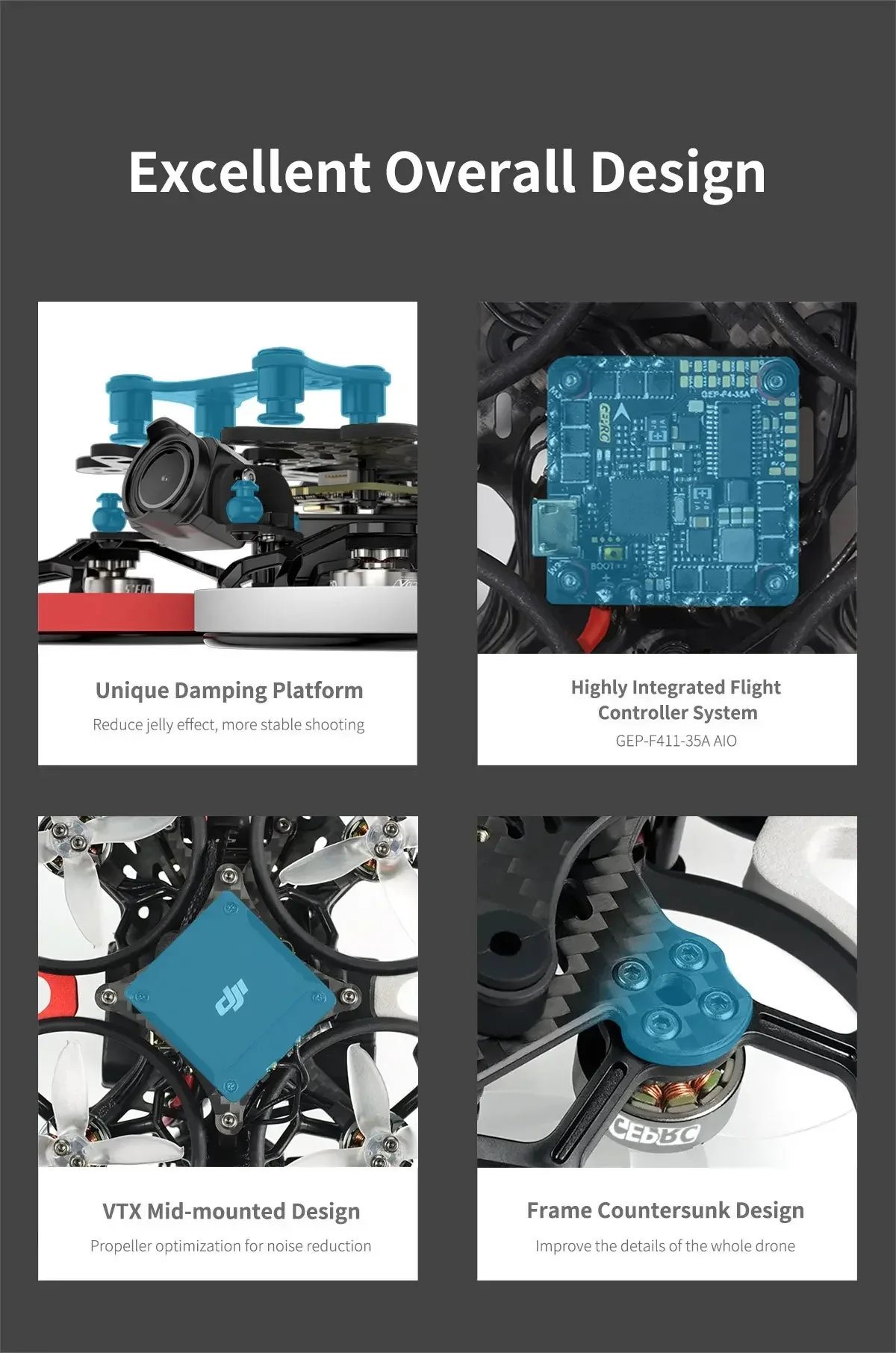

nFeature

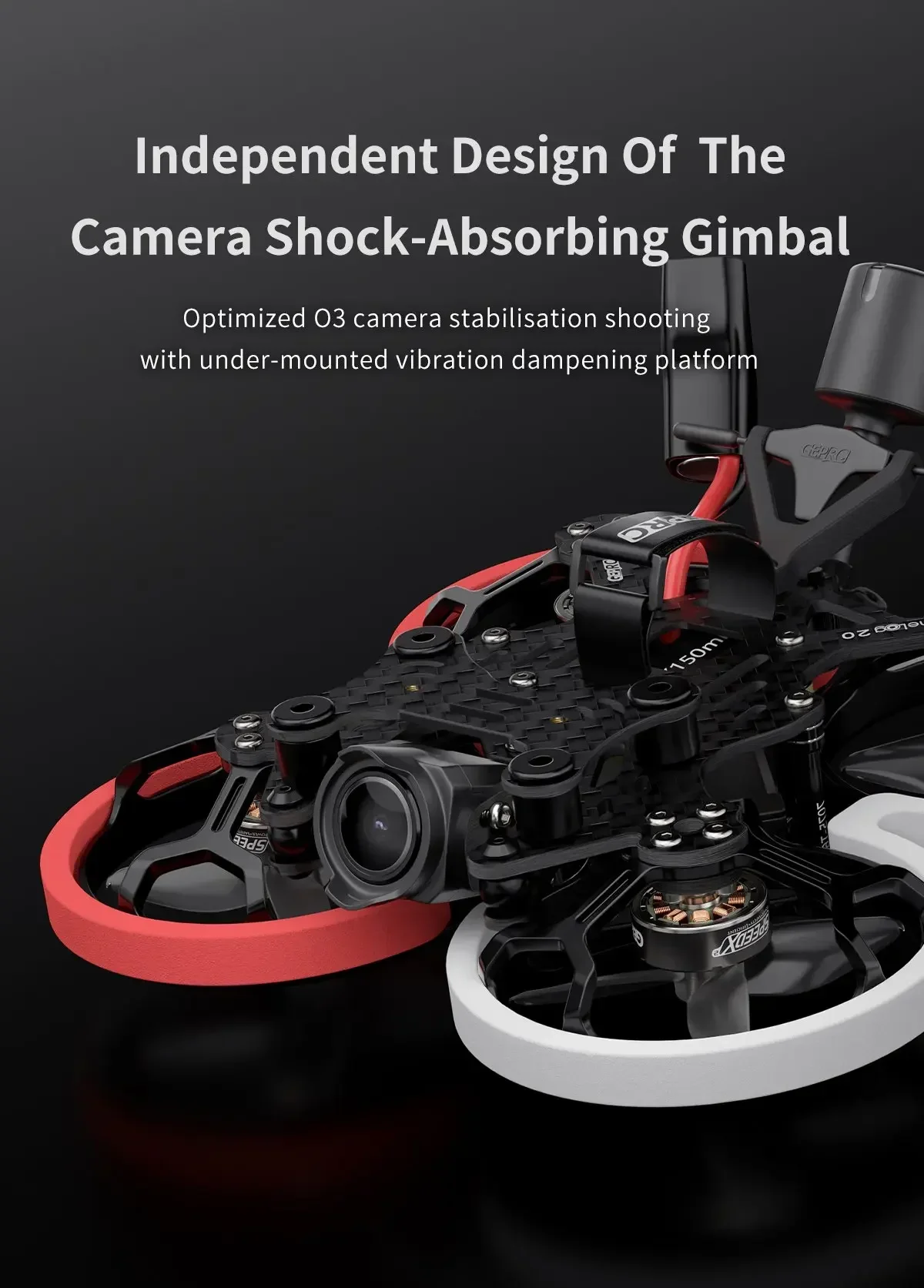

nDesigned to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.

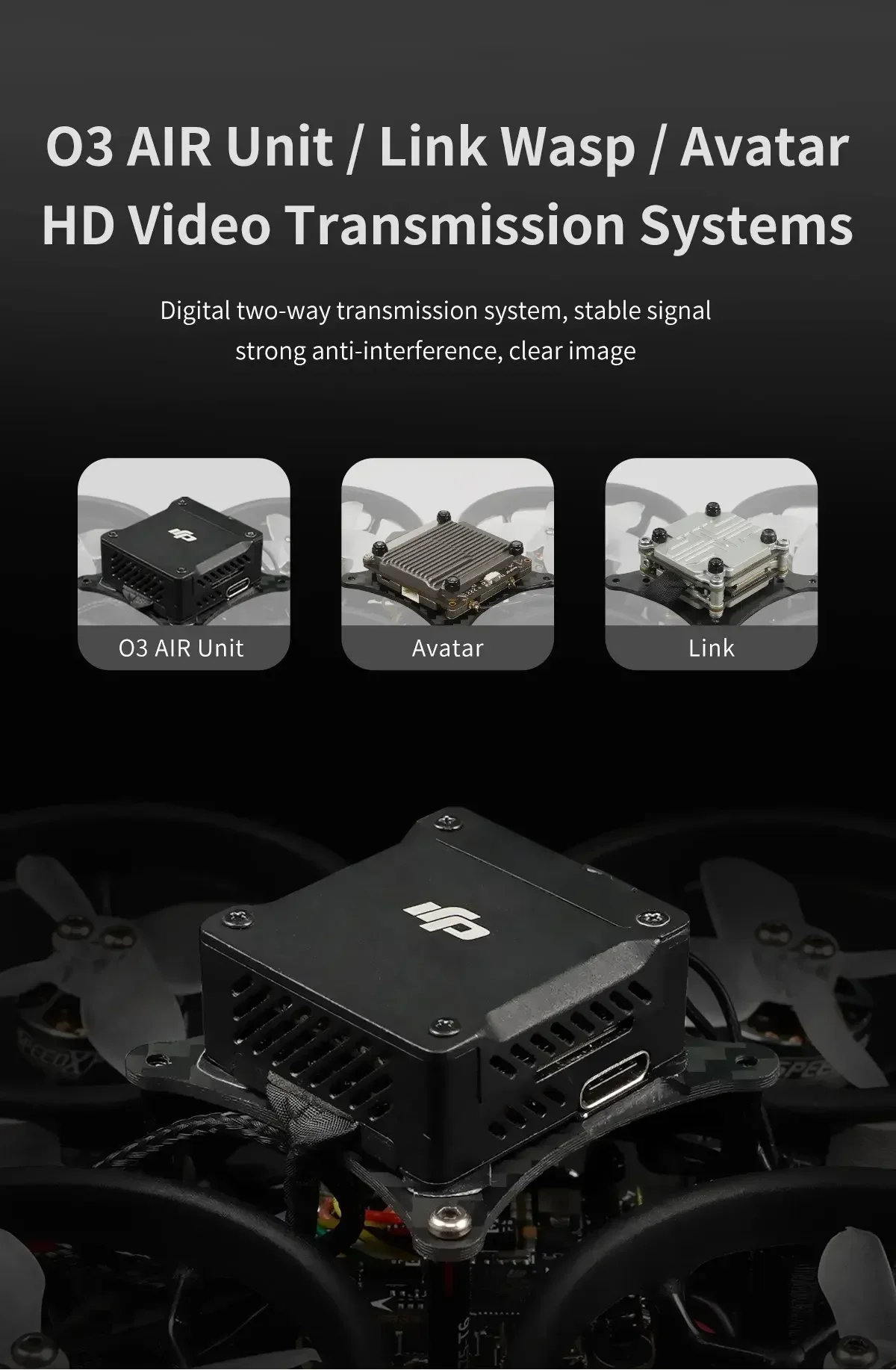

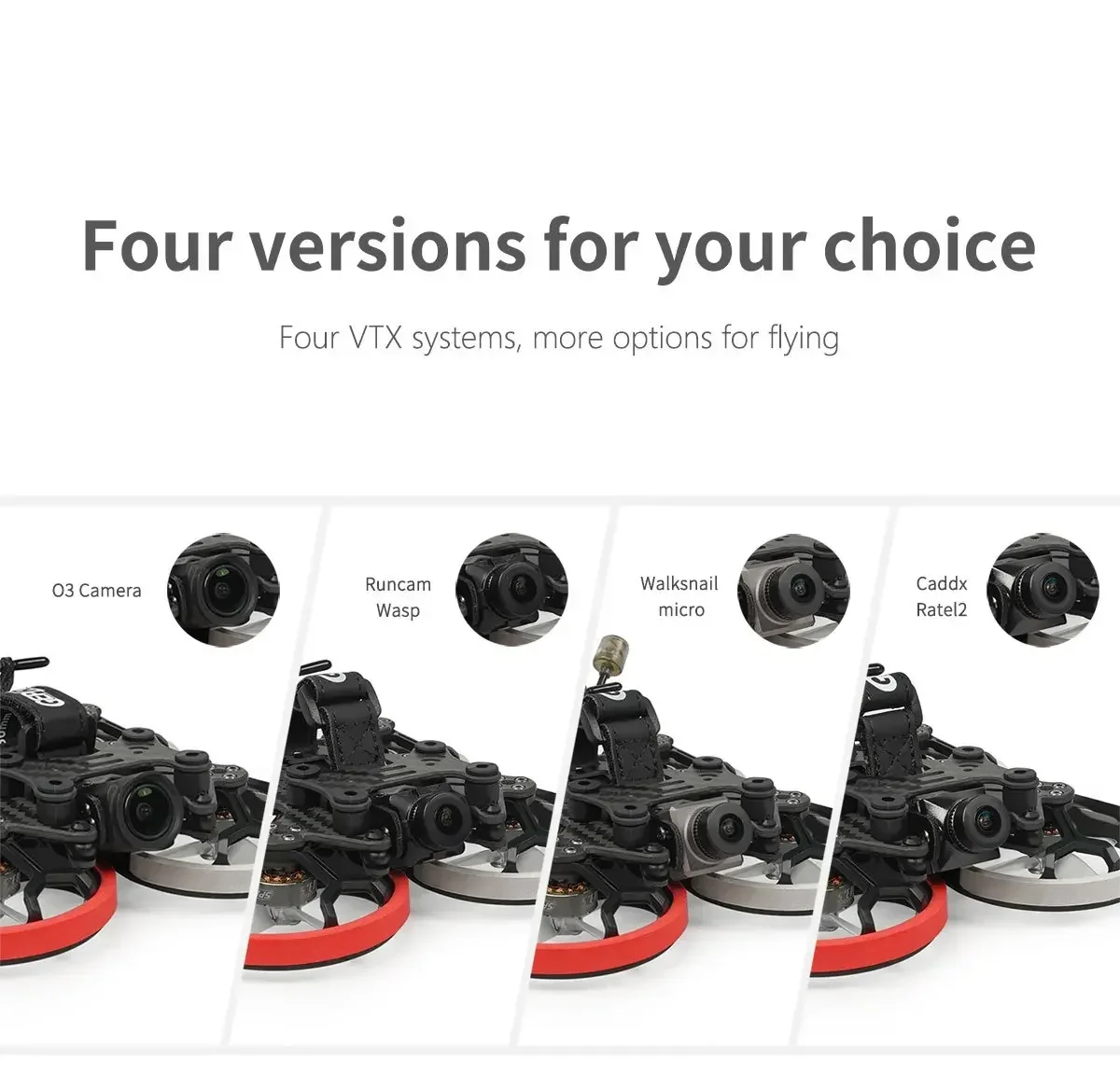

nProvide mainstream Link Wasp, O3 Air Unit, and Walksnail HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.

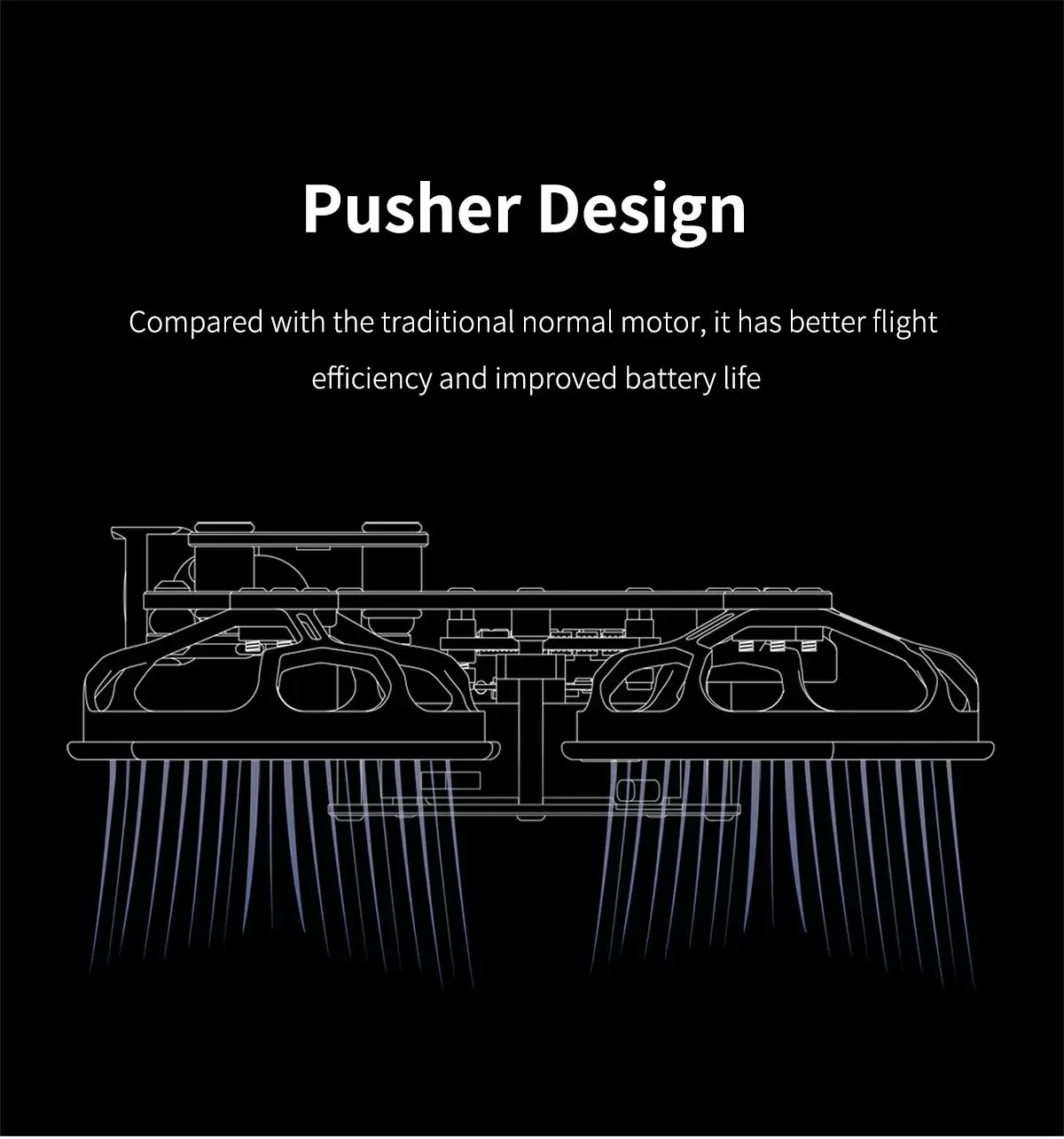

n2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.

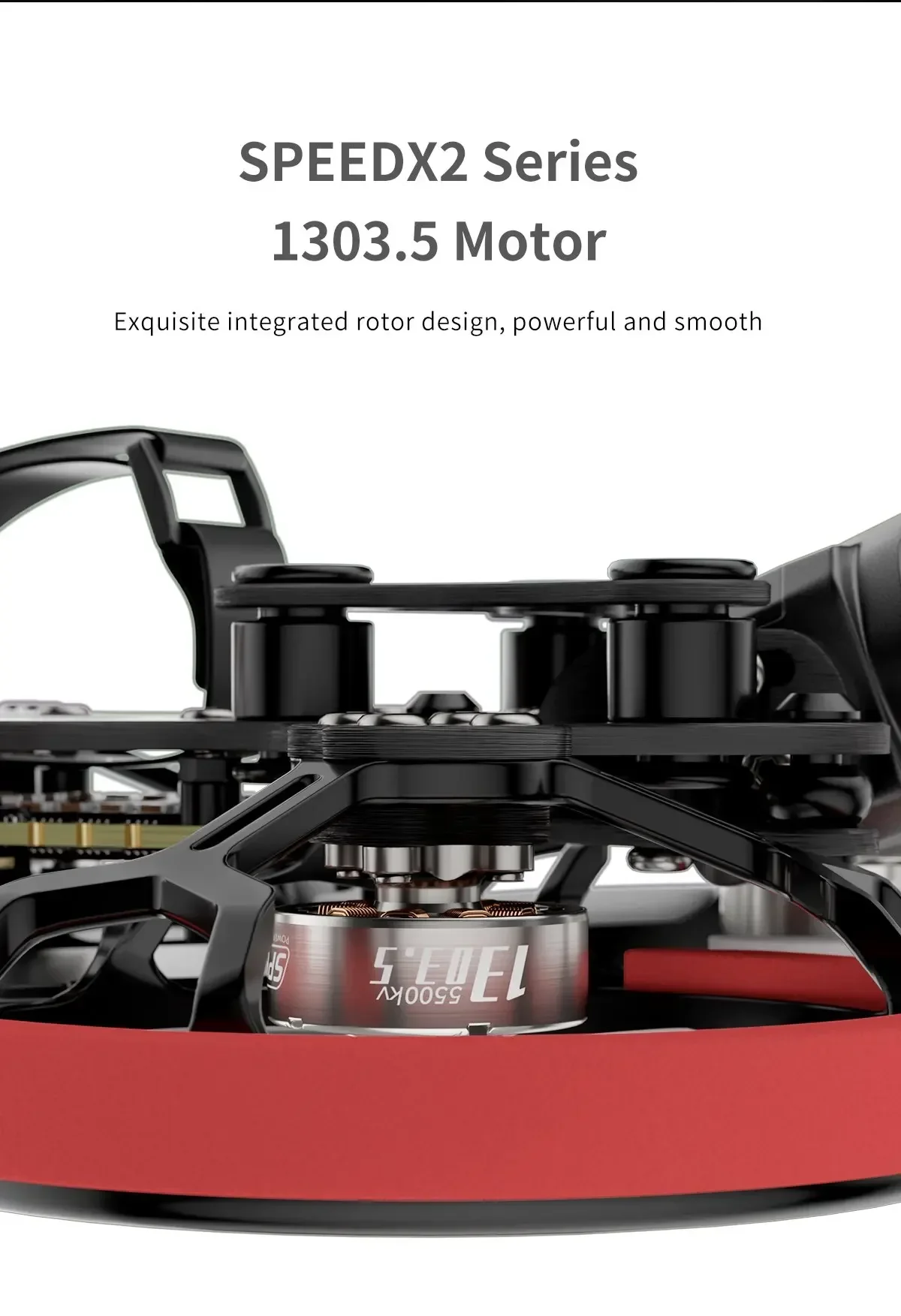

nSPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
nContinuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GP camera mounted.
nThe GEPRC Team’s splendid tuning and the overall flight feel are delicate and flexible.
nSpecifications
nModel: CineLog20 HD O3
nFrame: GEP-CL20
nWheelbase: 100mm
nGimbal plate: 2.0mm
nTop plate: 2.5mm
nBottom plate: 1.5mm
nFC system:Taker G4 35A AIO
nMCU: STM32F411CEU6
nGyro: ICM 42688-P
nOSD: Betaflight OSD w/AT7456E chip
nESC: 8Bit 35A
nVTX: O3 AIR Unit
nCamera: O3 Camera
nAntenna: 5.8G&2.4G
nMotor: GR1303.5 5500KV
nPropeller: EMAX Avan Micro 2×2.4×4

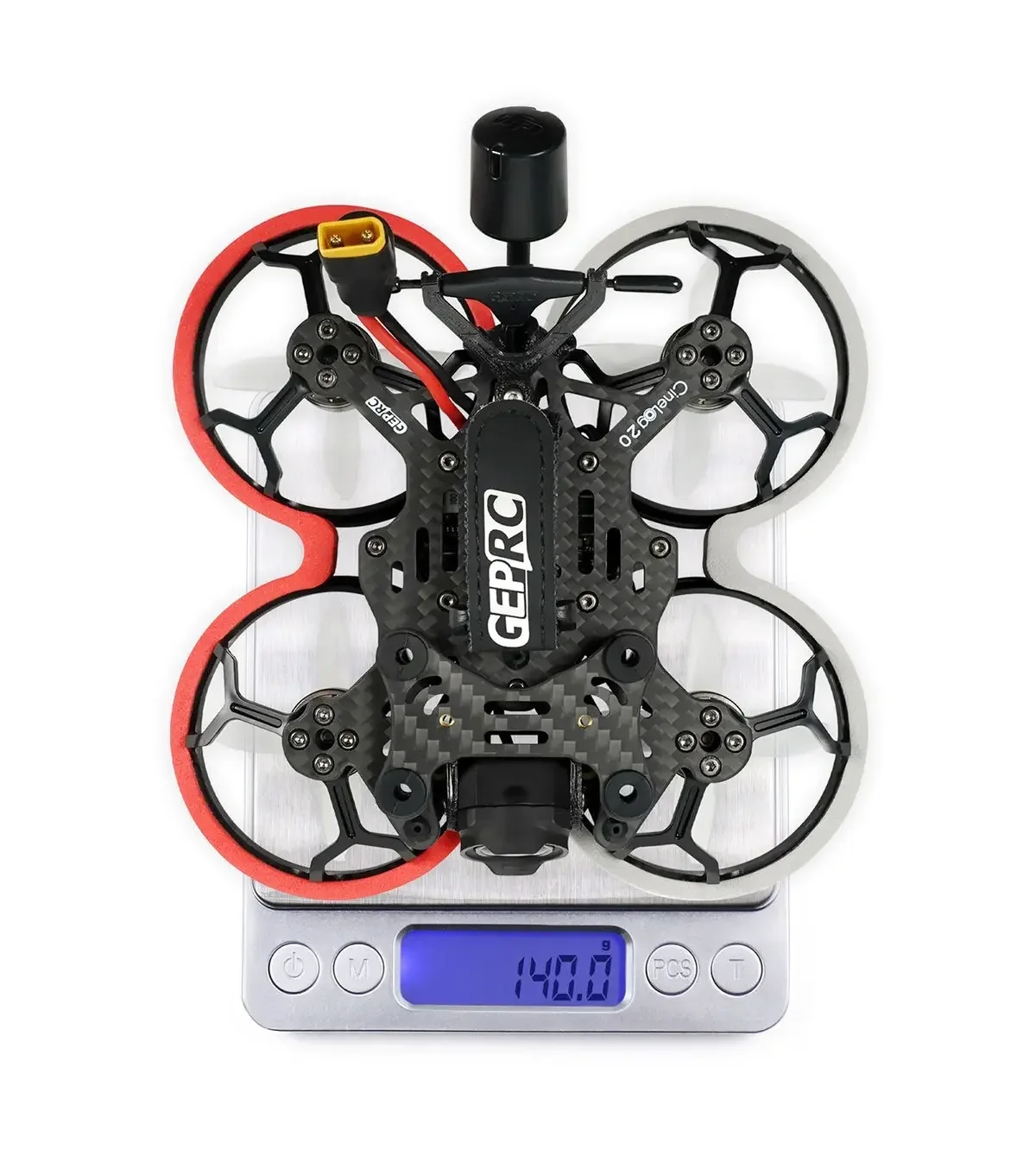

nCineLog20 HD O3 TBSNanoRX weight: 140g
nReceiver: PNP(built-in DJI receiver), ELRS2.4G, TBS Nano RX / RXSR
nRecommended battery: LiHv 4S 450mah-660mah
nFlight time:4-6min

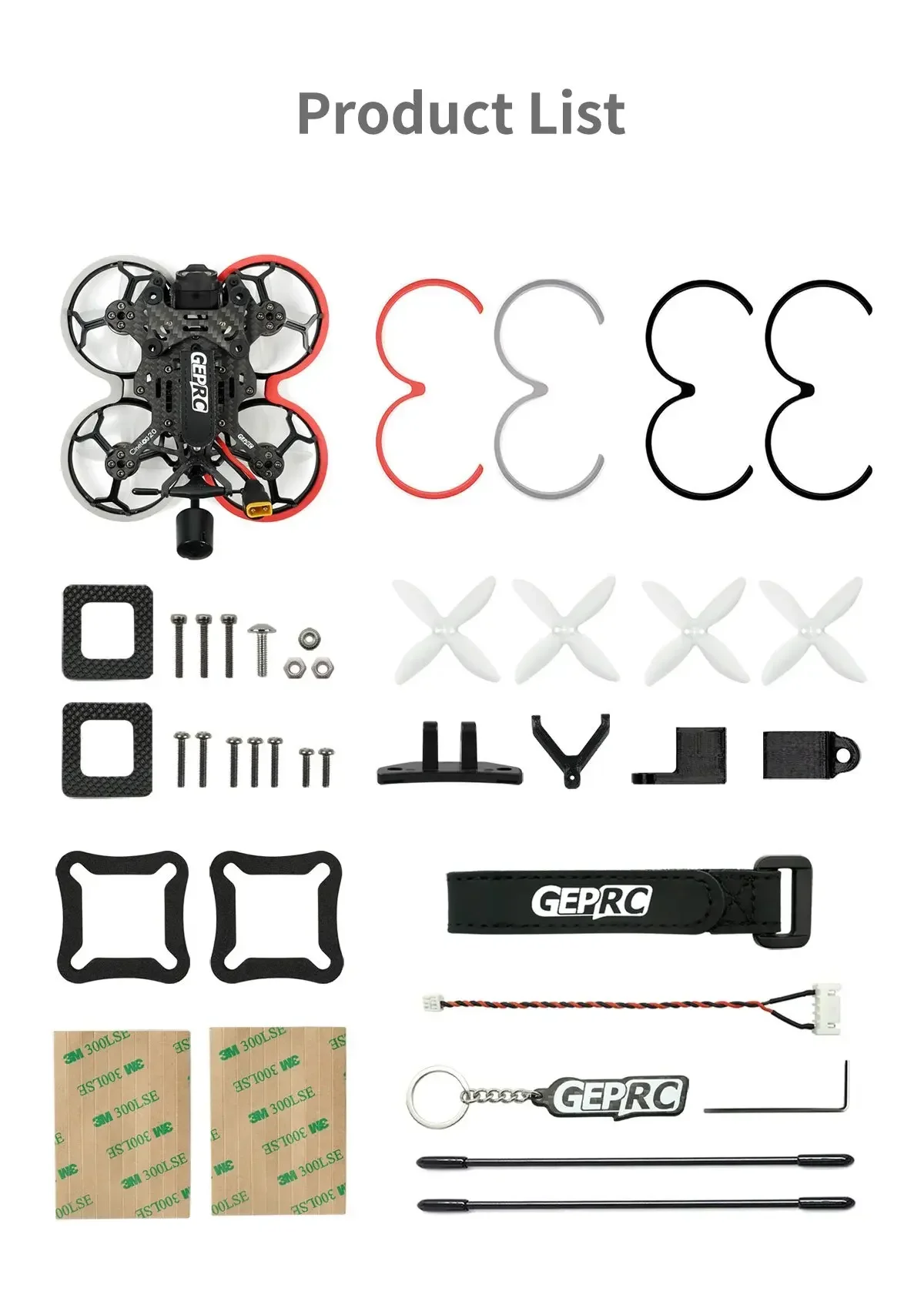

nIncludes
n1 x CineLog20 HD O3
n2 x 2 inch propellers (pairs)
n1 x Naked GP Camera Base
n2 x M15*150mm battery strap
n2 x Battery Silicone Pads
n2 x EVA landing Pads
n1 x Set of screws
n1 x L-shaped screwdriver (1.5mm)
n1 x Antenna fixed tube
n1 x 4S Naked GP Camera power cable (with balanced terminal head)
n2 x EVA damping rings of guards
n1 x TBS Antenna mount (Vertical Type)
n1 x TBS Antenna mount (Horizontal Type)
n1 x TBS Antenna printed parts
nScrew package includes:
n3 x M2*12mm cup head screws
n2 x M2*5mm round head screws
n1 x M2*8mm round head screw with pad
n3 x M2*7mm round head screws
n2 x M2*8mm round head screws
n2 x M2 iron nuts
n1 x self-clinching nut
