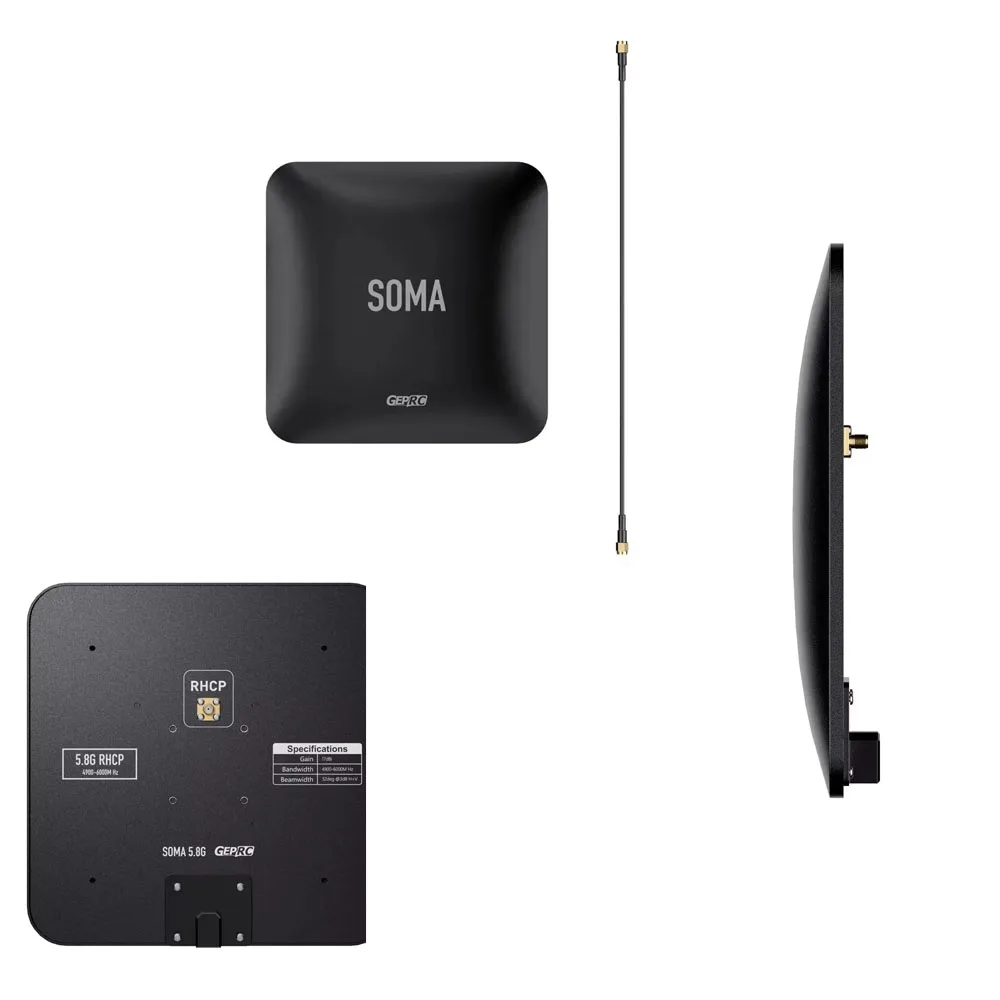

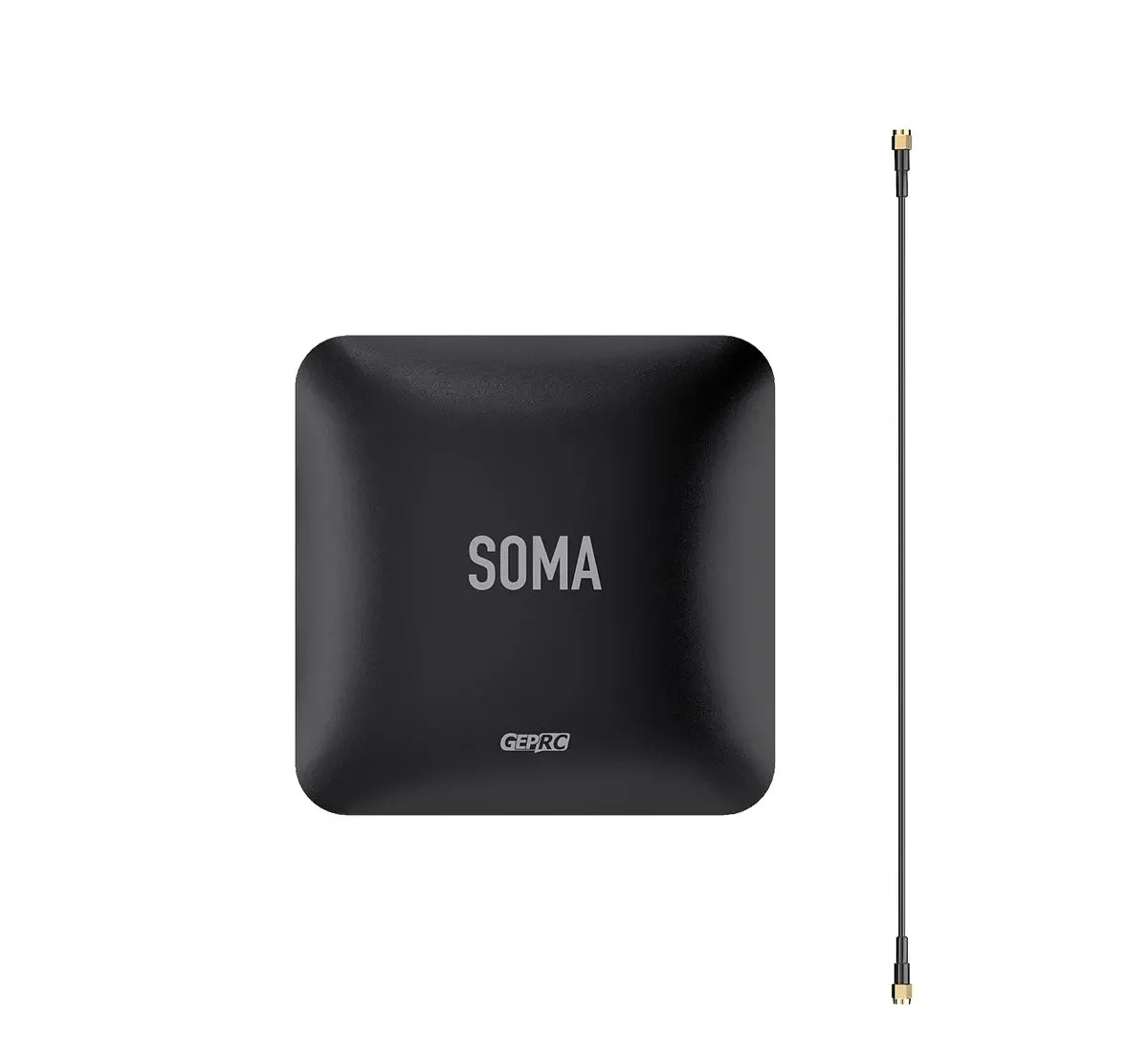

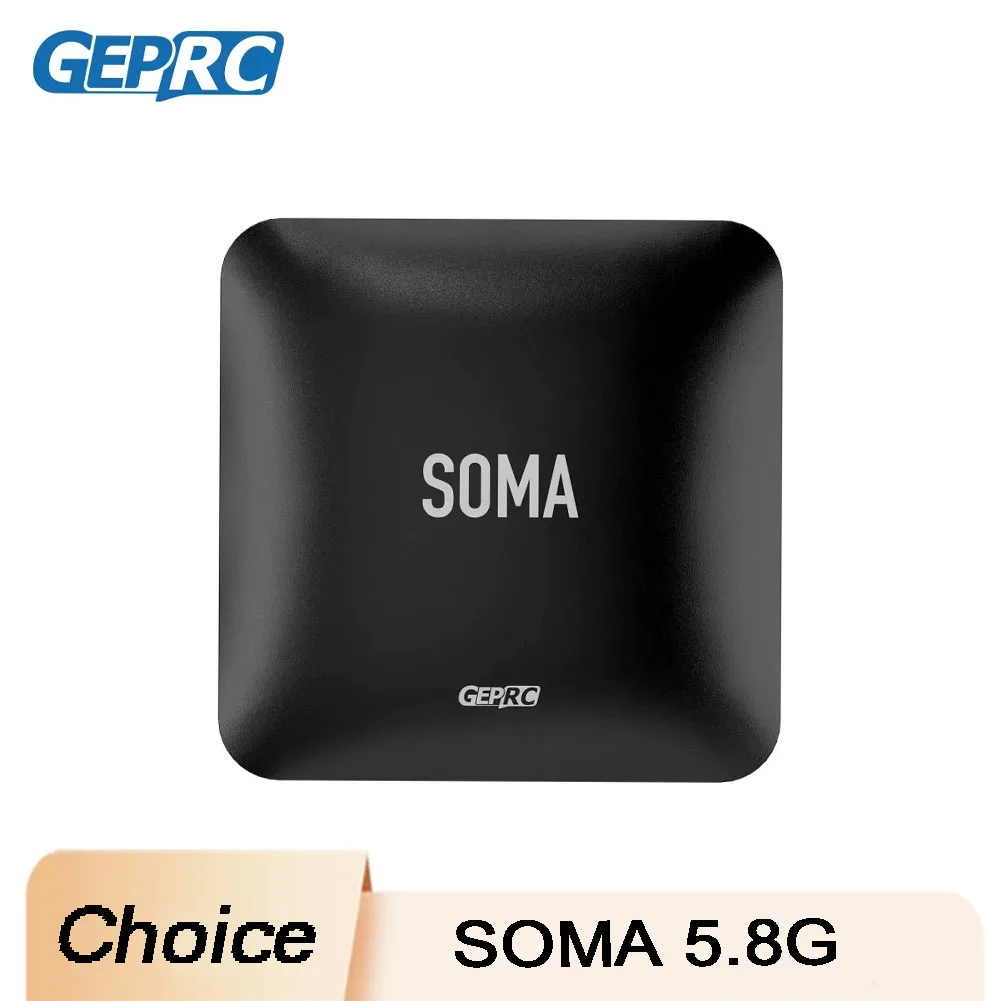

GEPRC SOMA 5.8G Directional Patch Antenna (RHCP) – 17dBi High Gain, 4.9-6GHz Band | SMA Connector for Long-Range FPV Drones

Description

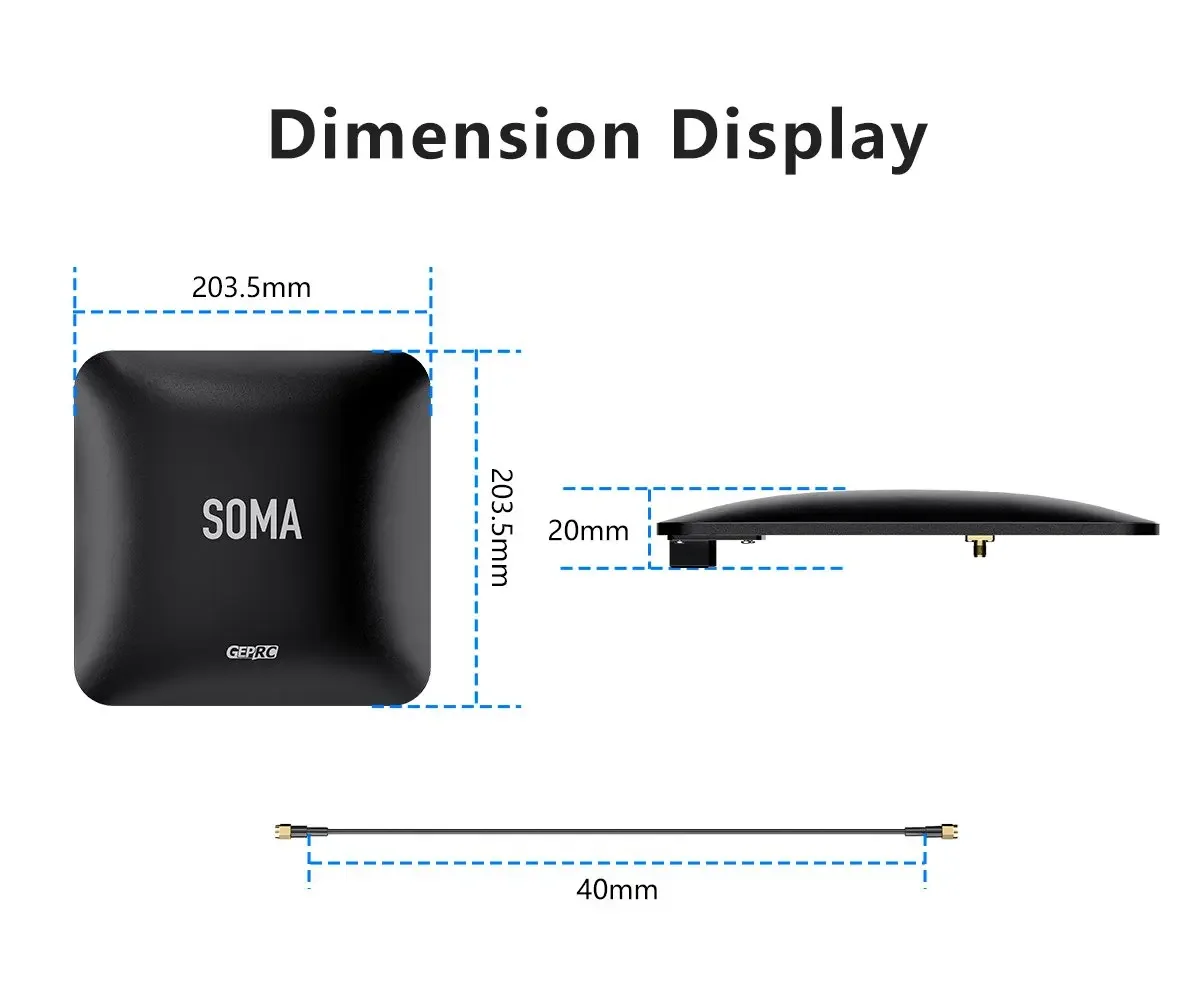

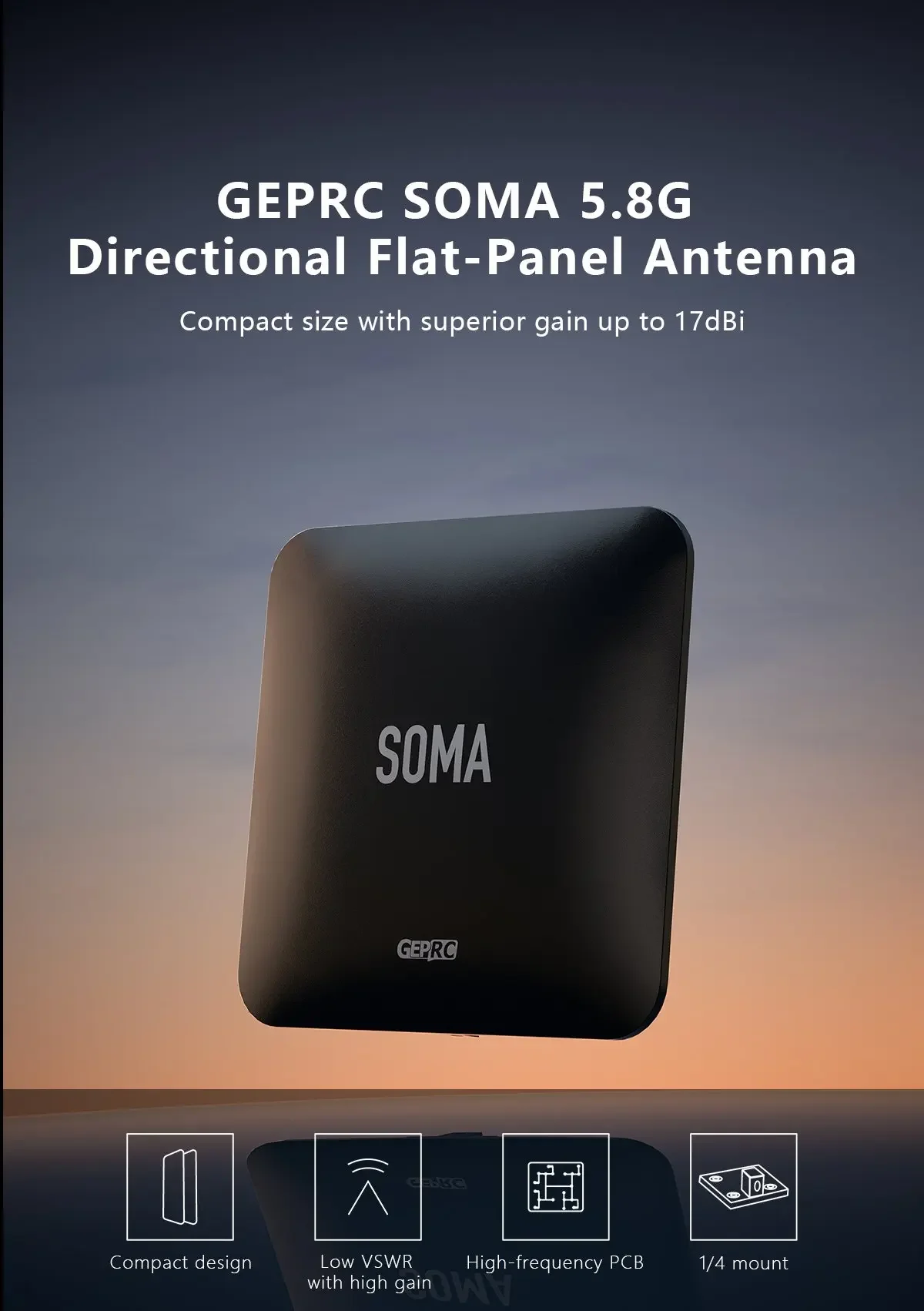

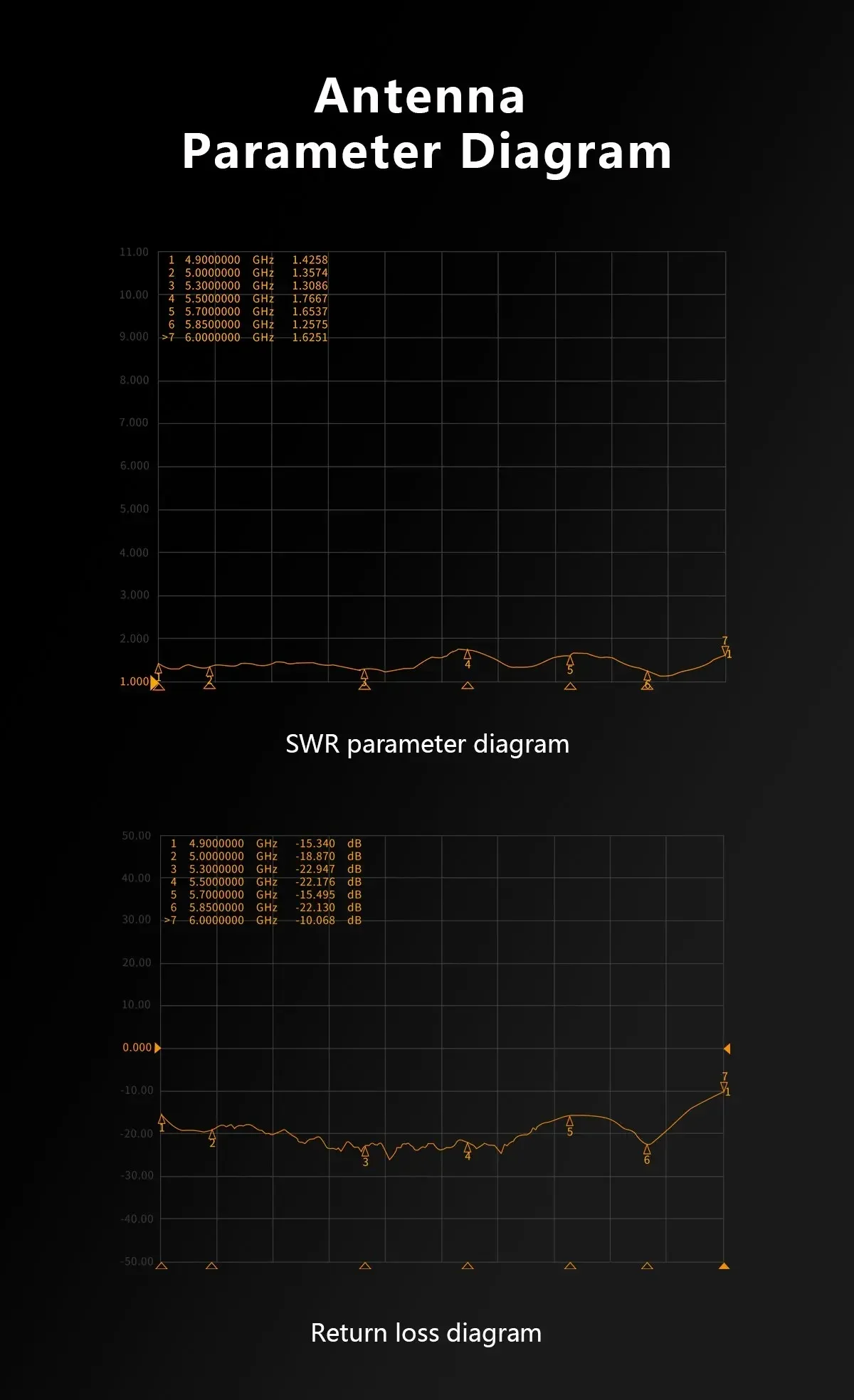

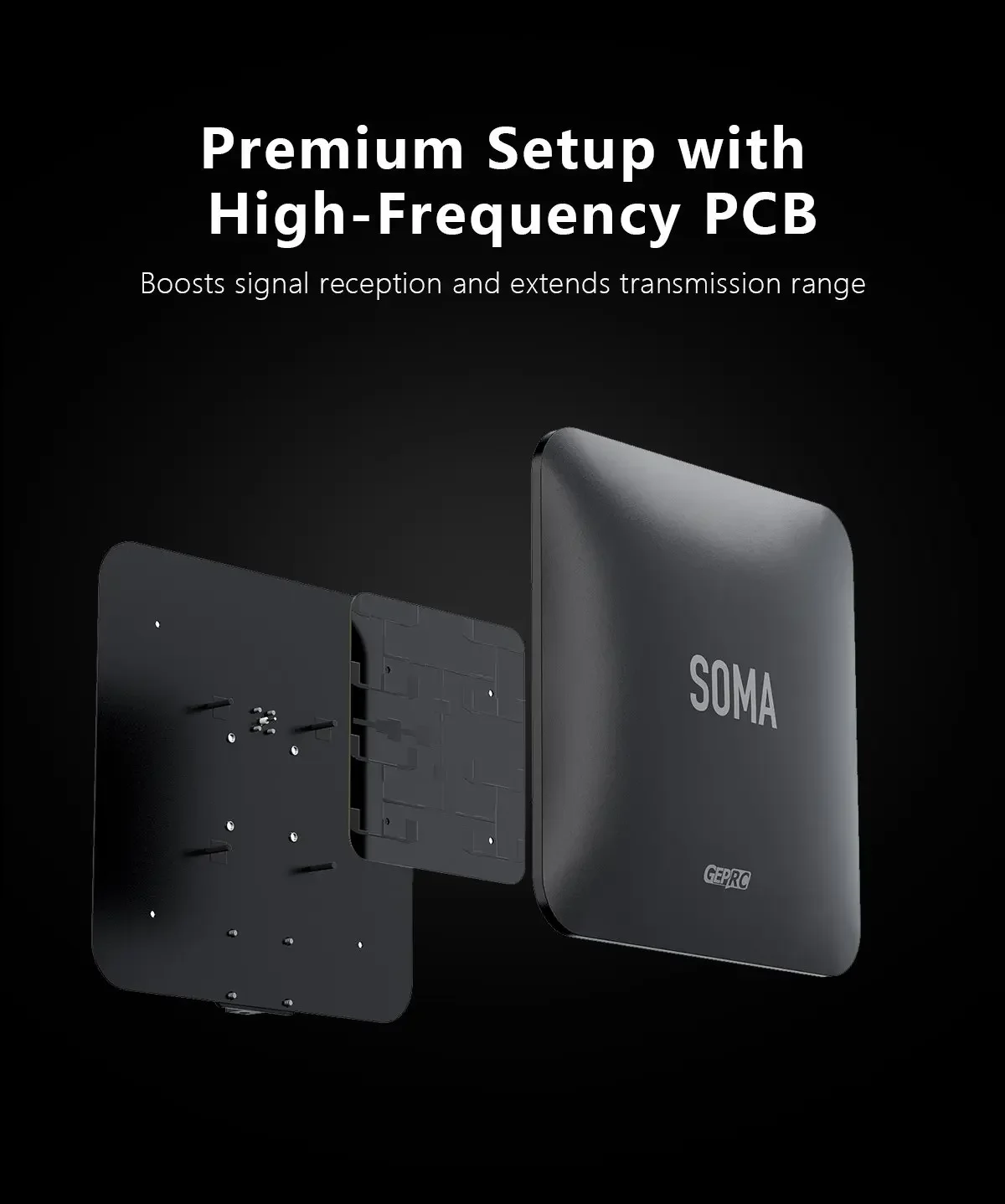

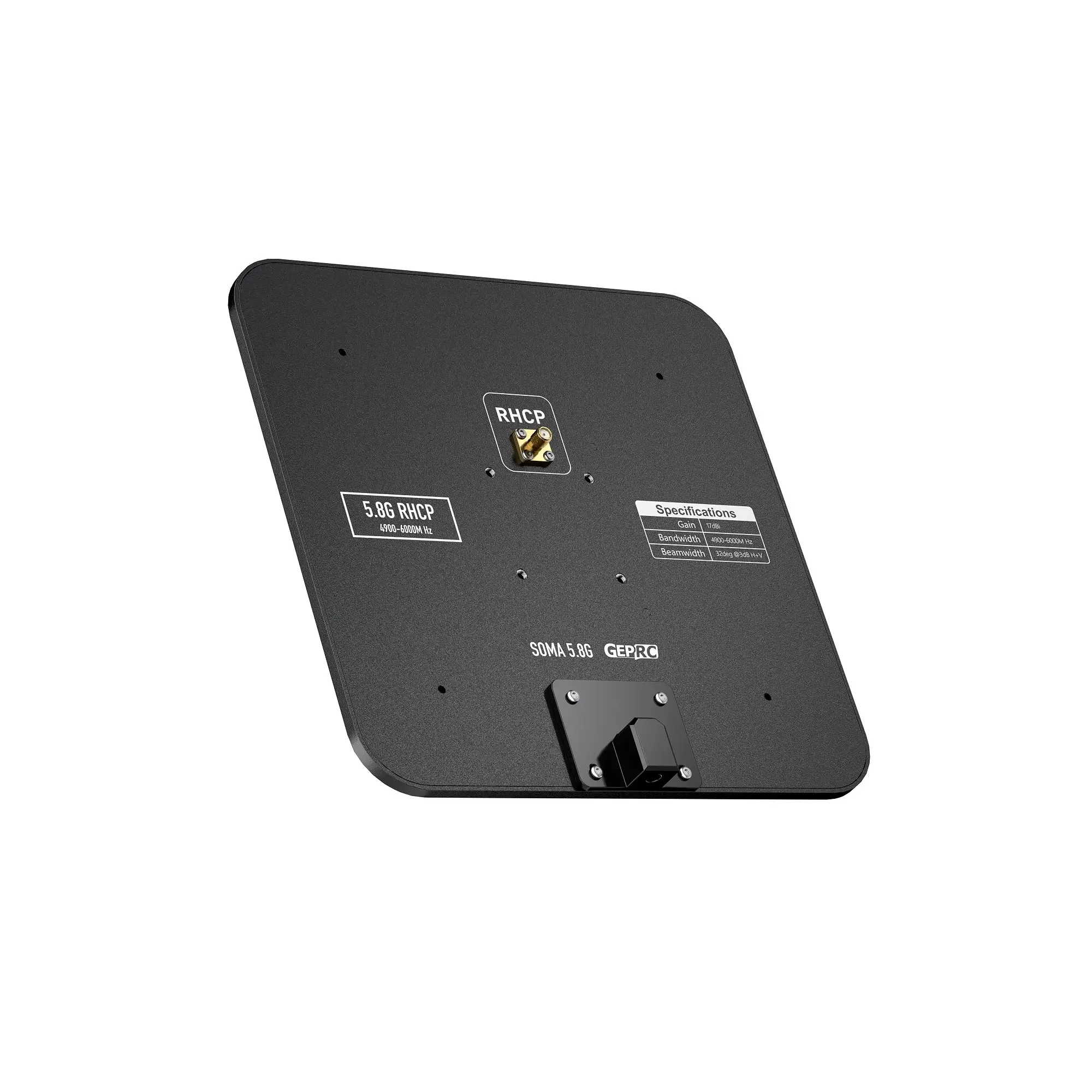

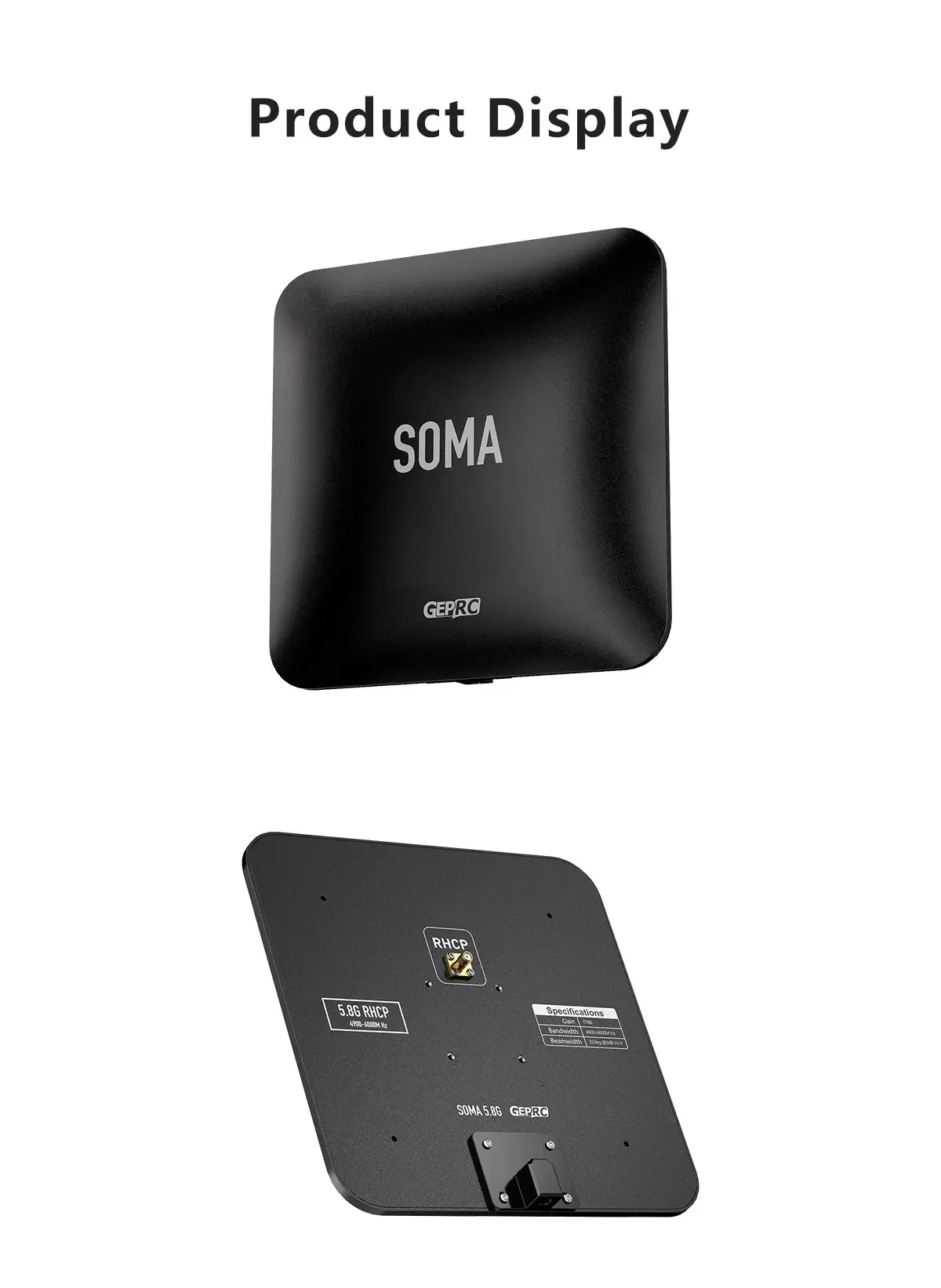

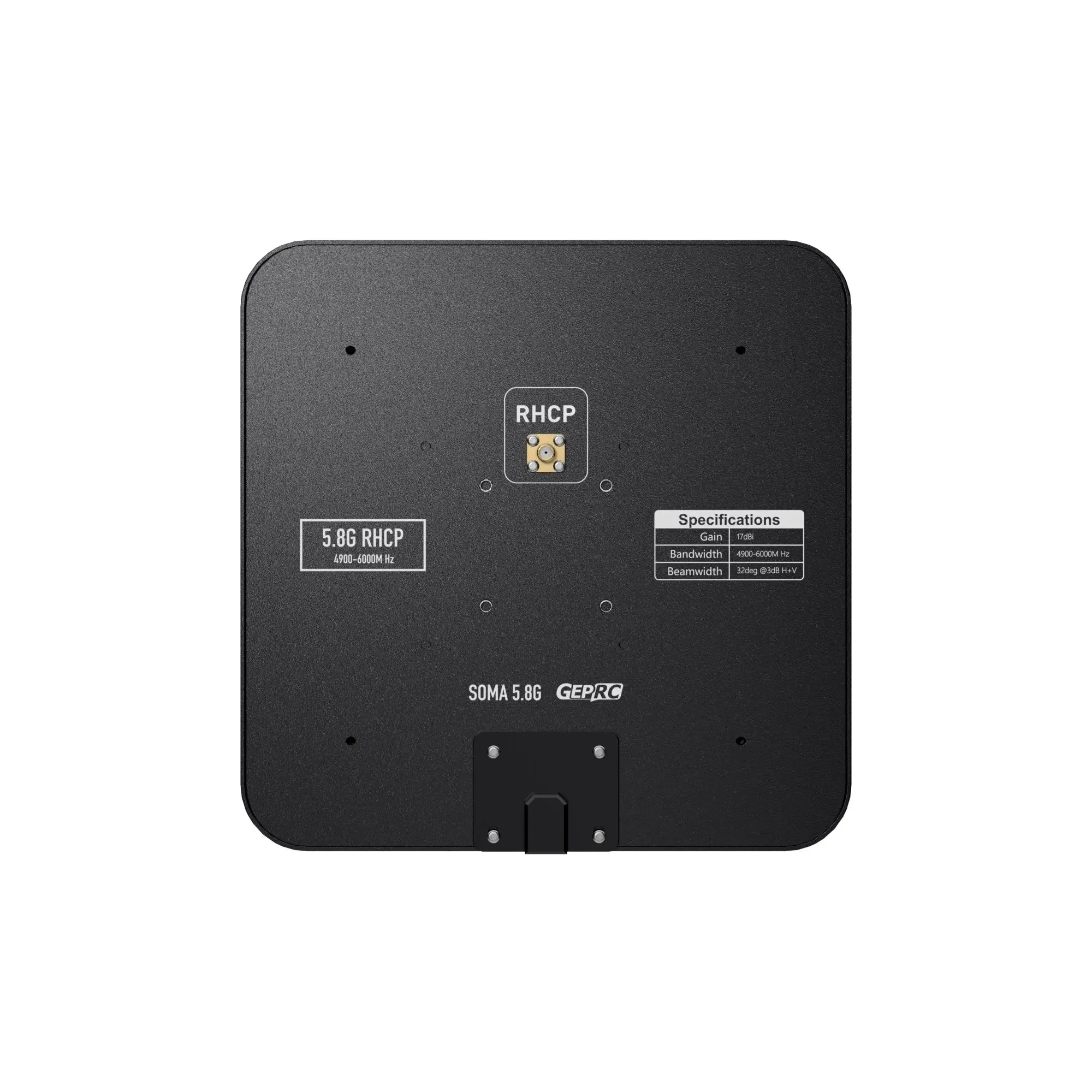

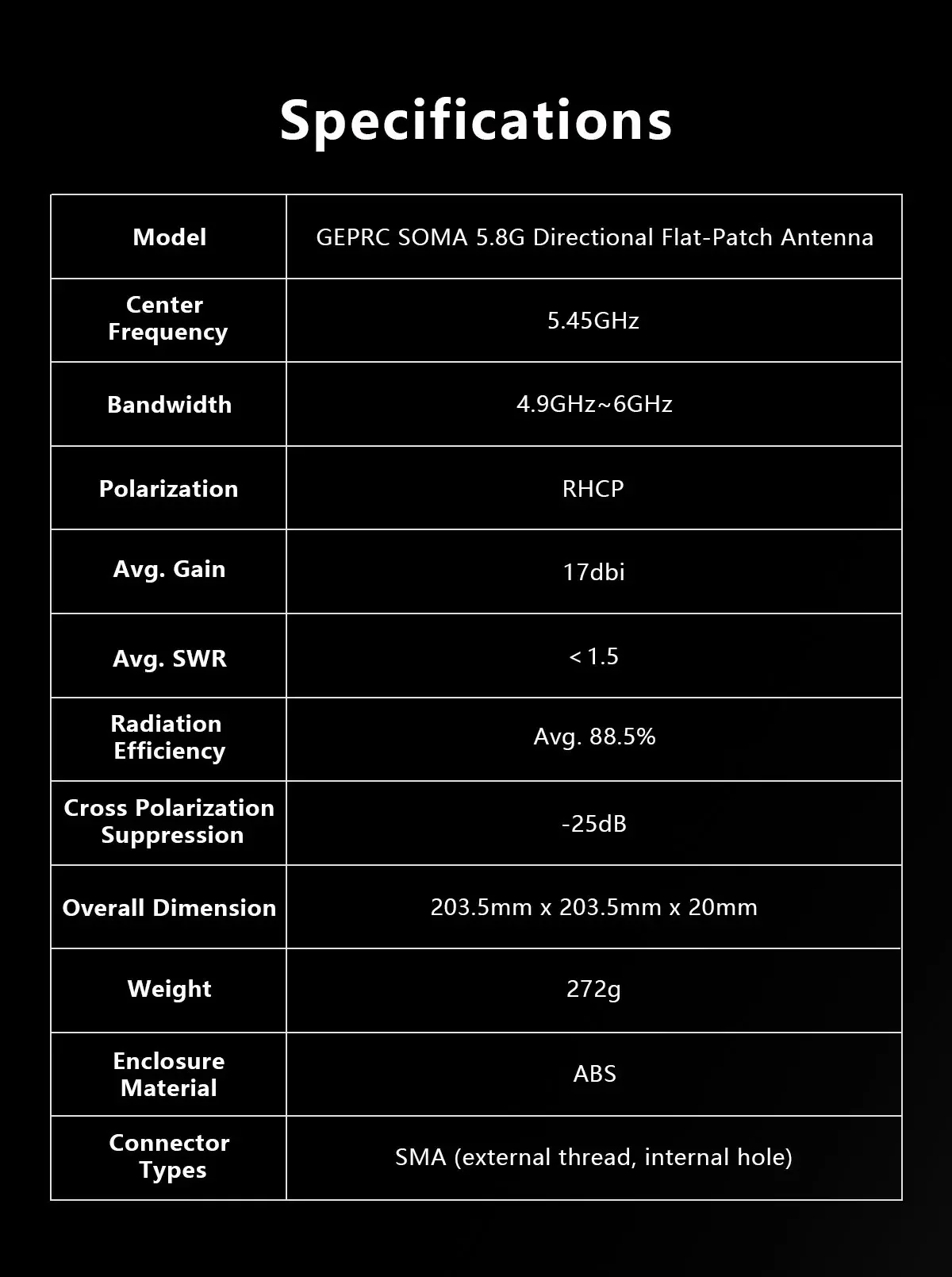

SummarynThe GEPRC SOMA 5.8G Directional Flat-Panel Antenna features a high-frequency PCB RF solution, offering a high gain of up to 17dBi and a low average VSWR of 1.5, ensuring excellent signal reception.nIt’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integritynFeaturesnSmooth, ultra-thin design.nLow VSWR, high gain directional antenna, up to 17dBi.n1/4 aluminum alloy base, compatible with various brackets.nHigh-quality SMA connector for lower impedance and better transmission efficiency.nEach antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standardsnSpecificationsnModel: GEPRC SOMA 5.8G Directional Patch AntennanCenter Frequency: 5.45GHznBandwidth: 4.9GHz~6GHznPolarization: RHCPnGain: 17dBinAxial Ratio: ≤3nSWR：≤1.5nRadiation Efficiency: 88.5%nCross polarization suppression: -25dBnOverall Dimension: 203.5mm x 203.5mm x 20mmnAntenna Weight: 272gnEnclosure Material: ABSnConnector Type: SMA (external thread, internal hole）nIncludesn1 x SOMA 5.8G Directional Patch Antenna
