GEPRC SPEEDX2 1303.5 3800KV/5500KV Motor Suitable for 2″ Cinewhoop FPV Drones Cinelog20 for RC FPV Quadcopter Freestyle Drone

Description

Summary

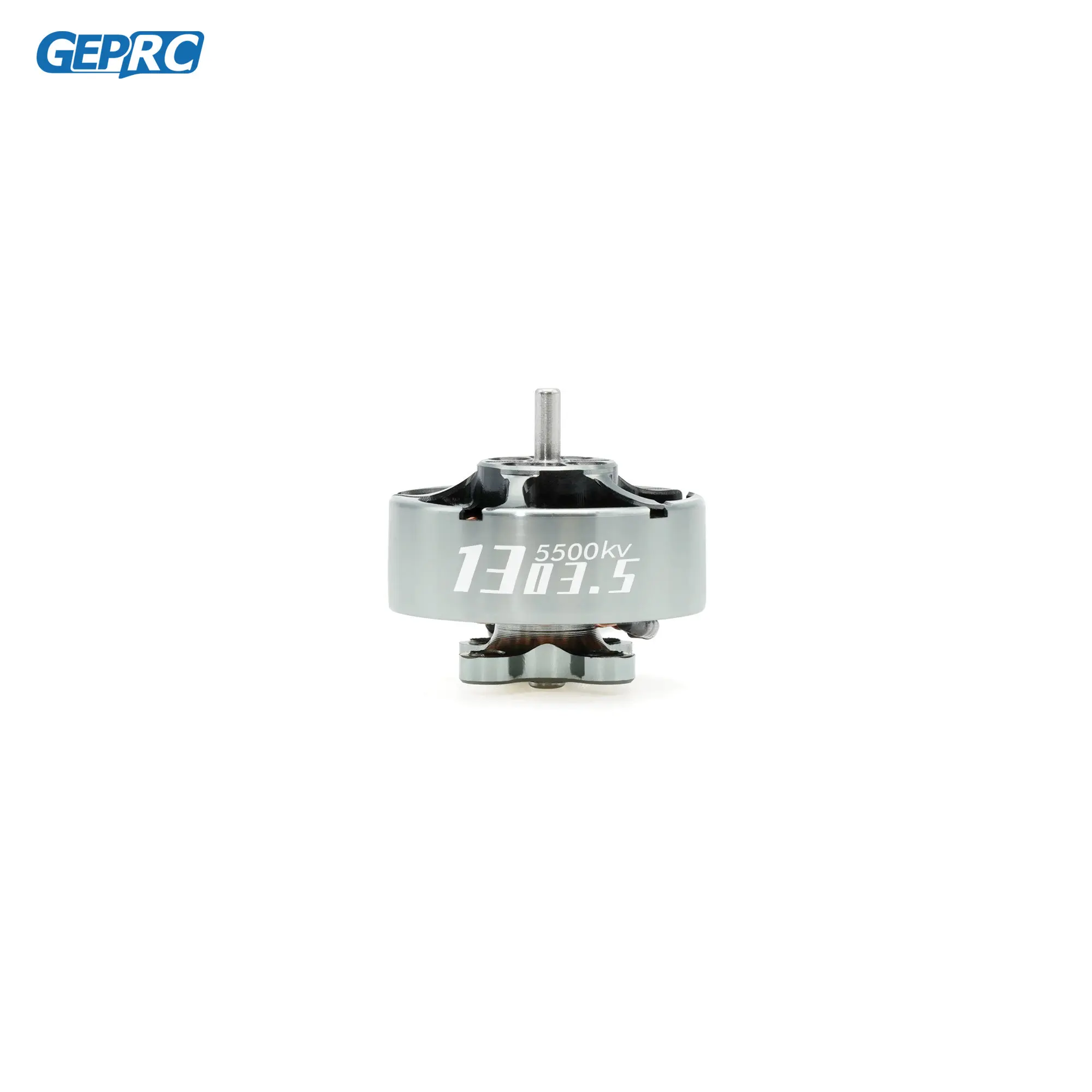

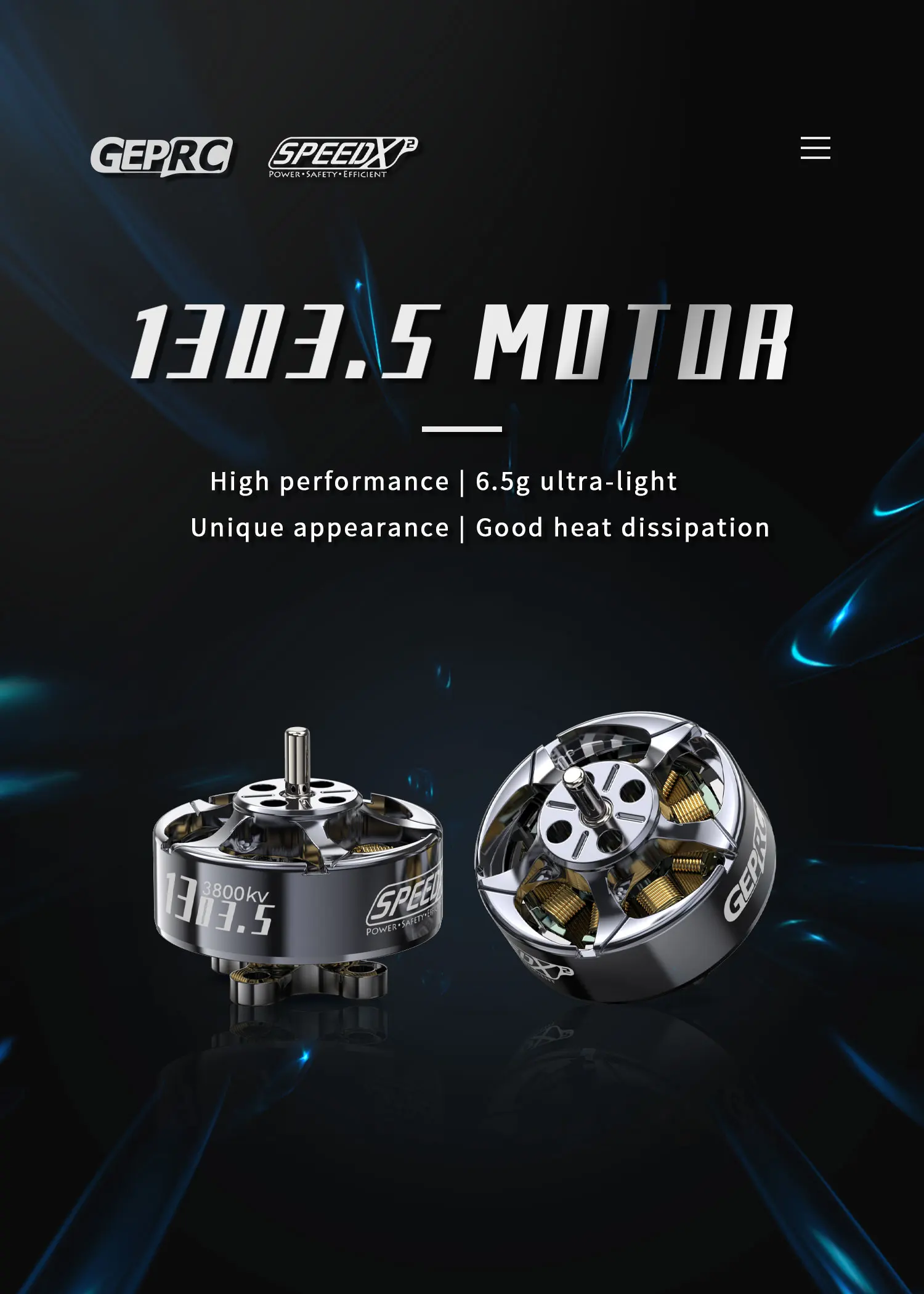

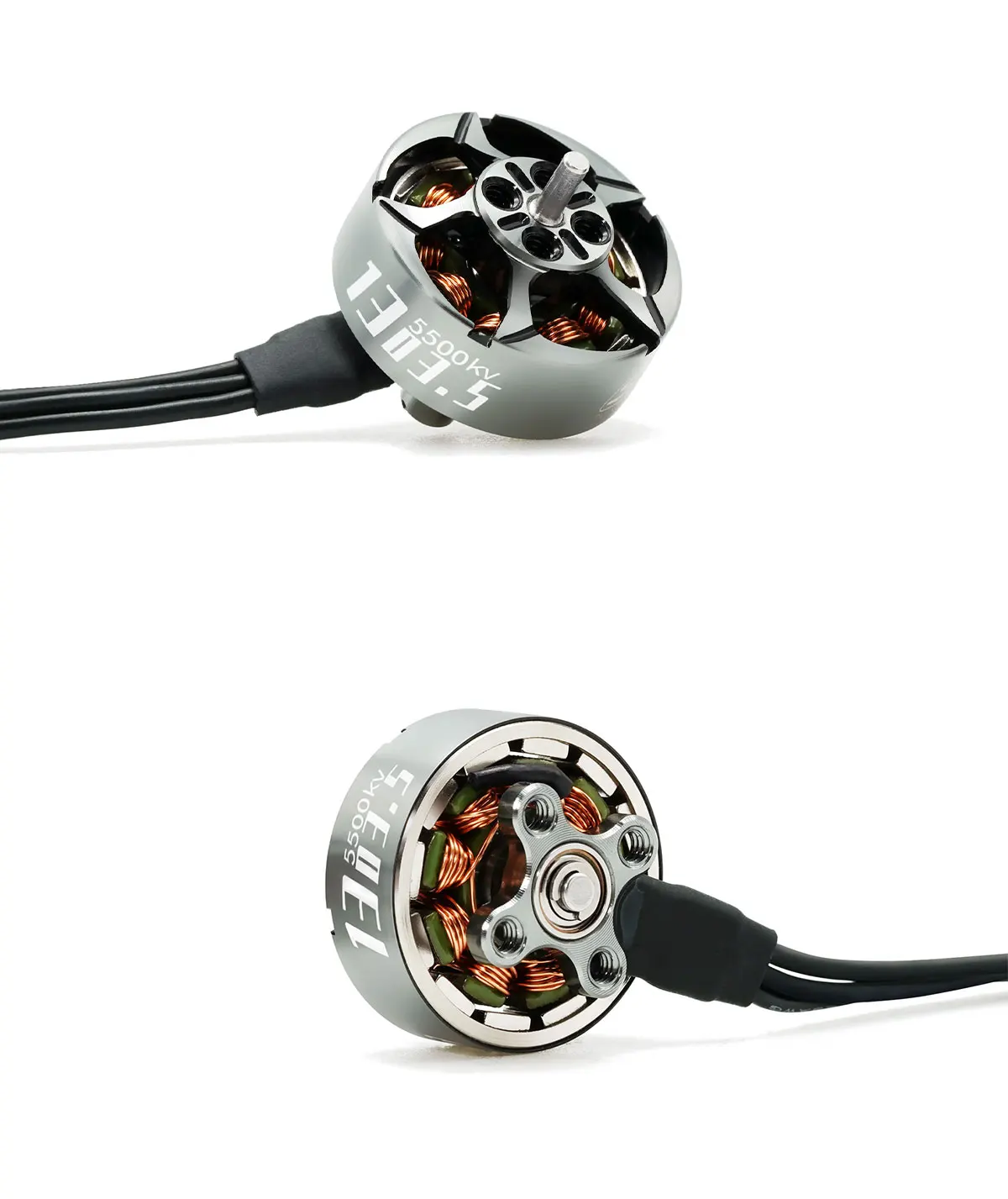

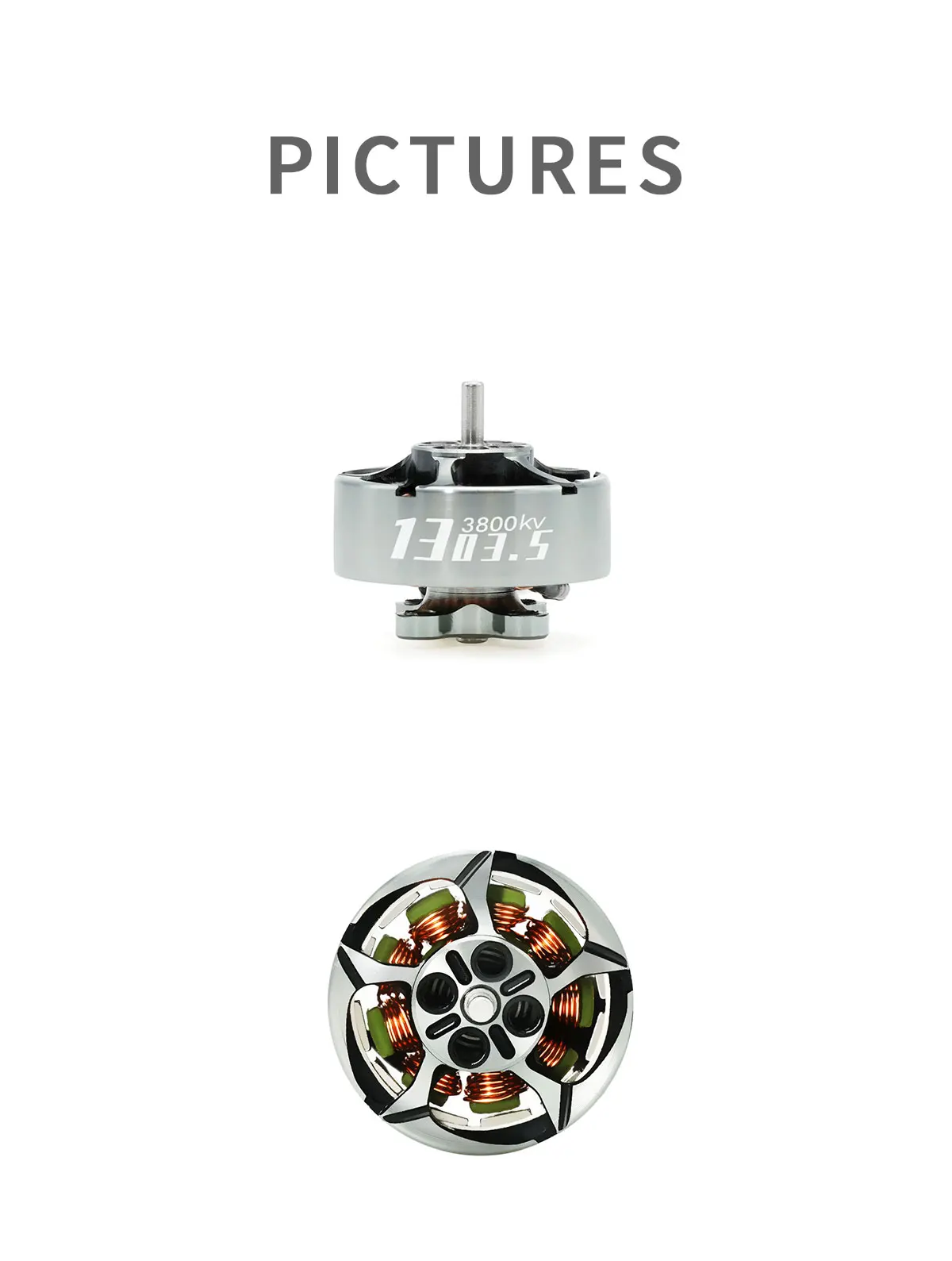

nThe SPEEDX2 1303.5 motor is an innovative brushless motor with a lightweight design, unique appearance and good heat dissipation.
n

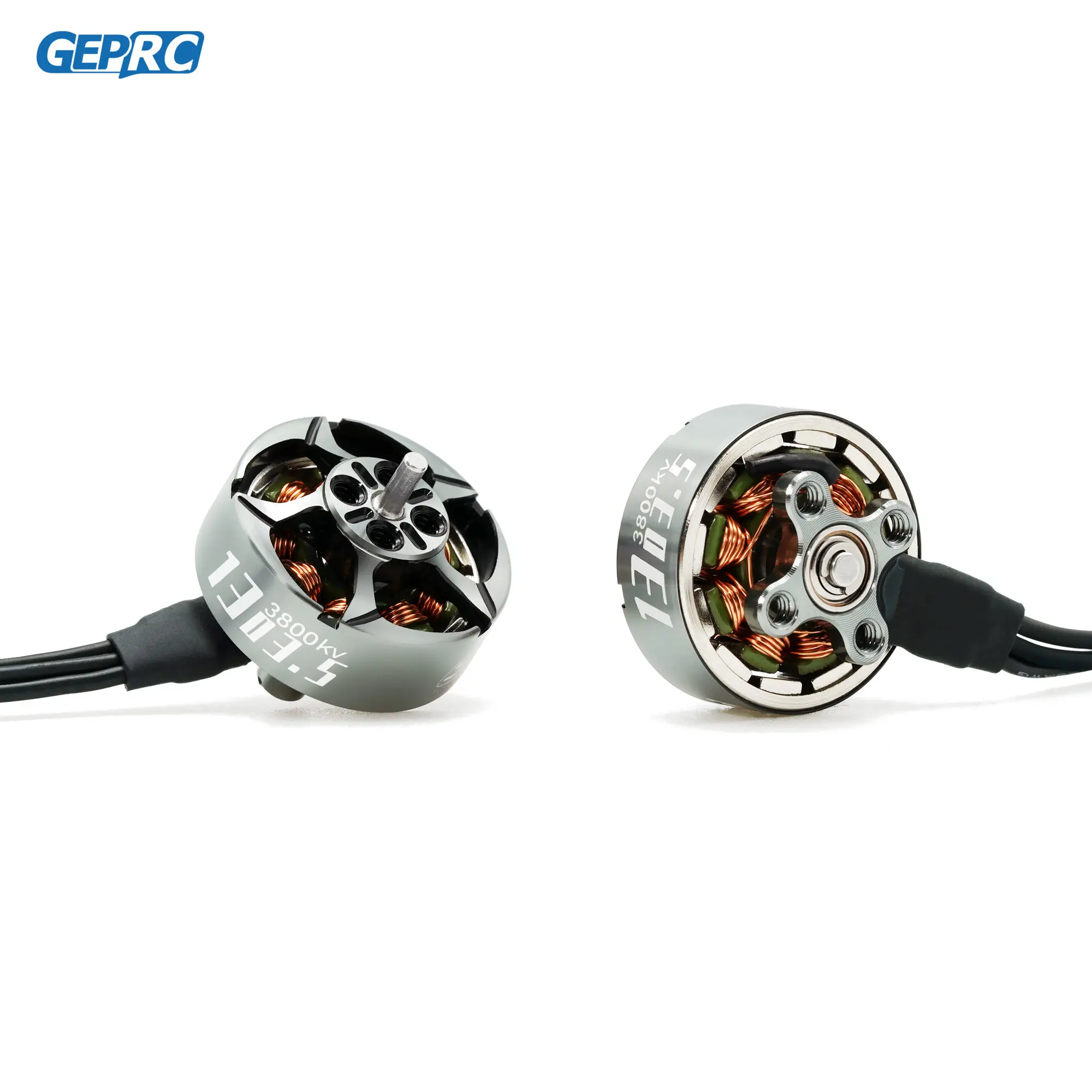

nWith a lightweight structure, only 6.5g (90mm cable length).The outer rotor uses a blade design, which is exquisite and magnificent. The raised propeller platform has greater compatibility with the inverted mounted propeller models, and avoids the contact between the large-pitch propeller and the top of the rotor to cause the propeller to be unbalanced. A large area is hollowed out to reduce weight, so as to obtain good heat dissipation and efficiency, and effectively control the working temperature of the motor.
n
nSPEEDX2 1303.5 motor is made of high quality 7075-T aircraft aluminum material, which brings better strength to the rotor. Good magnetic circuit design, with stable linearity and efficient explosive power, brings pilots a super smooth flying experience. Perfect for pilots to build their own 2″ cinewhoop FPV drones.
n
nGEPRC is committed to providing pilots with brushless motors that are lighter in weight, faster in response, higher in efficiency and stronger in power.

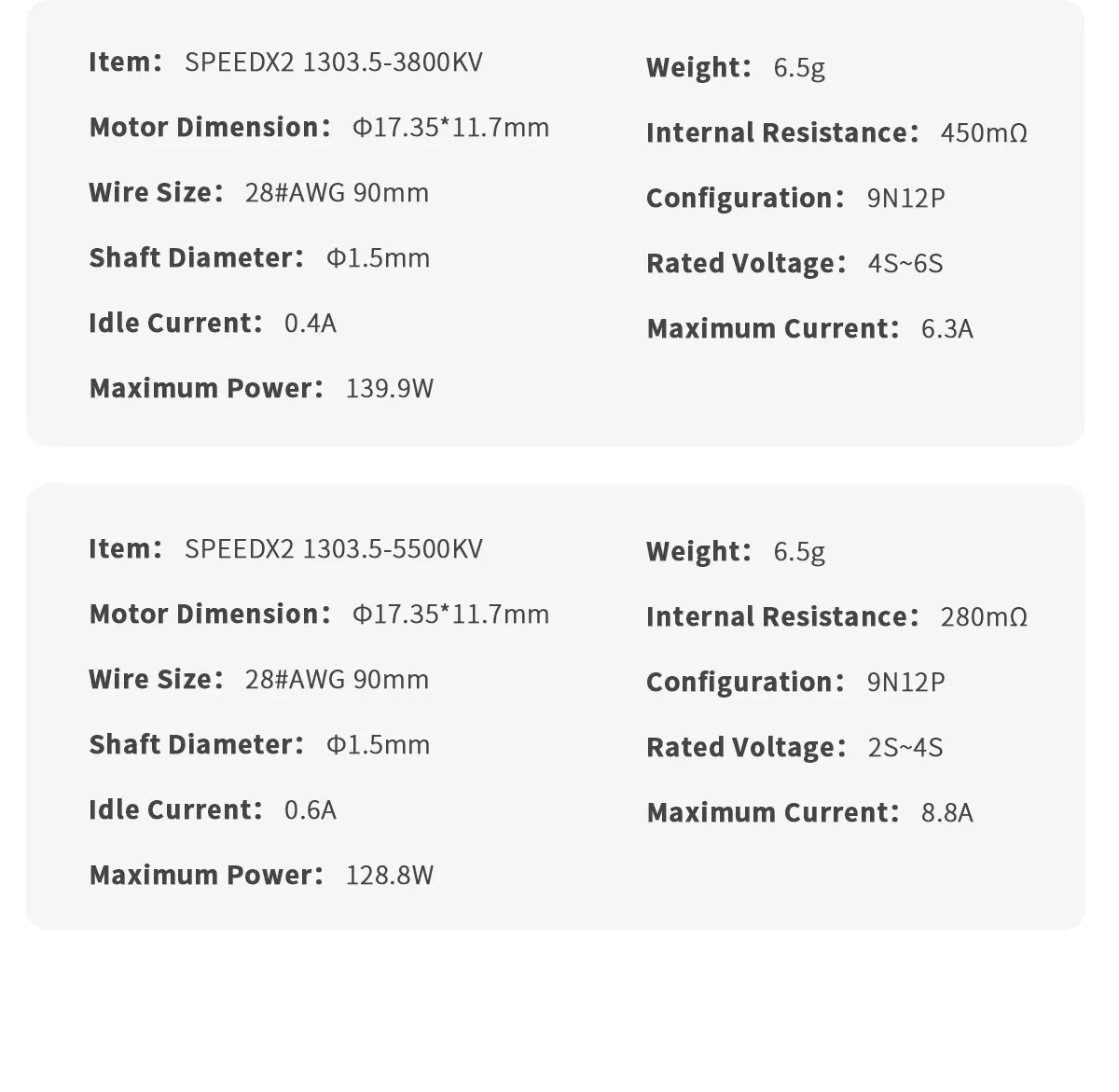

nSpecification

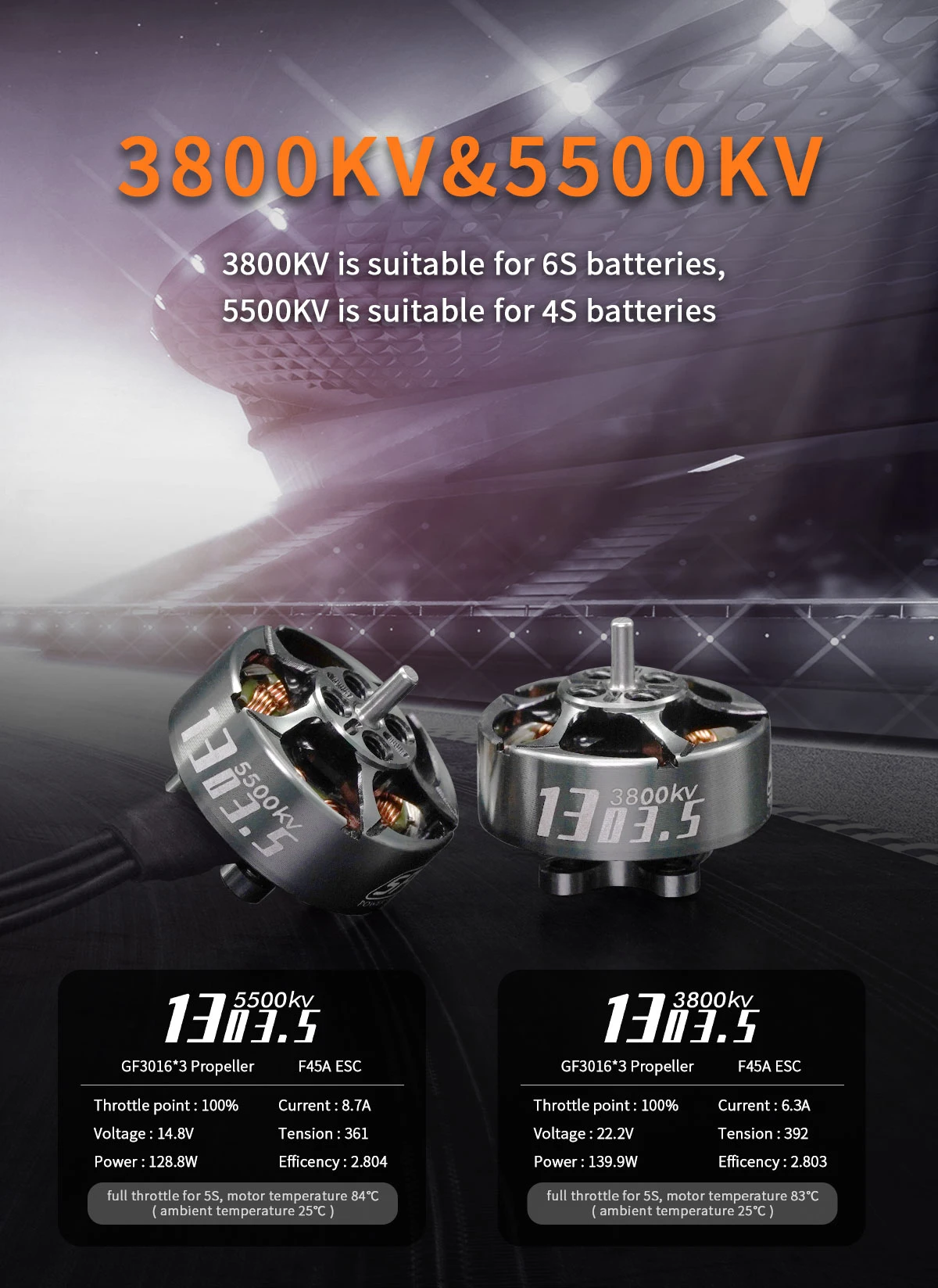

nModel: SPEEDX2 1303.5-5500KV
n
nConfiguration：9N12P
nMagnet: N52H ARC
nStator diameter: 13mm
nStator height: 3.5mm
nShaft diameter: Φ2mm(in)1.5mm(out)

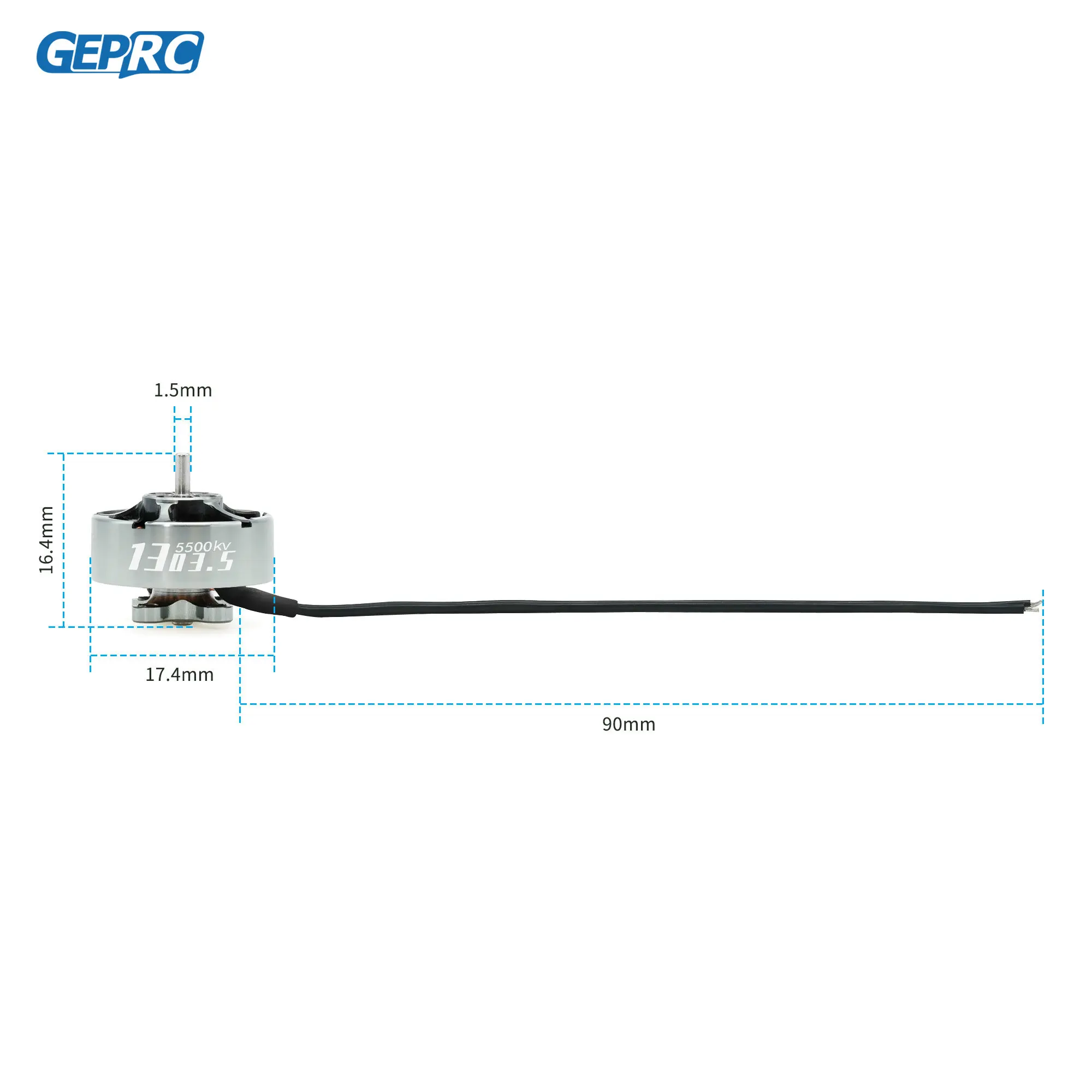

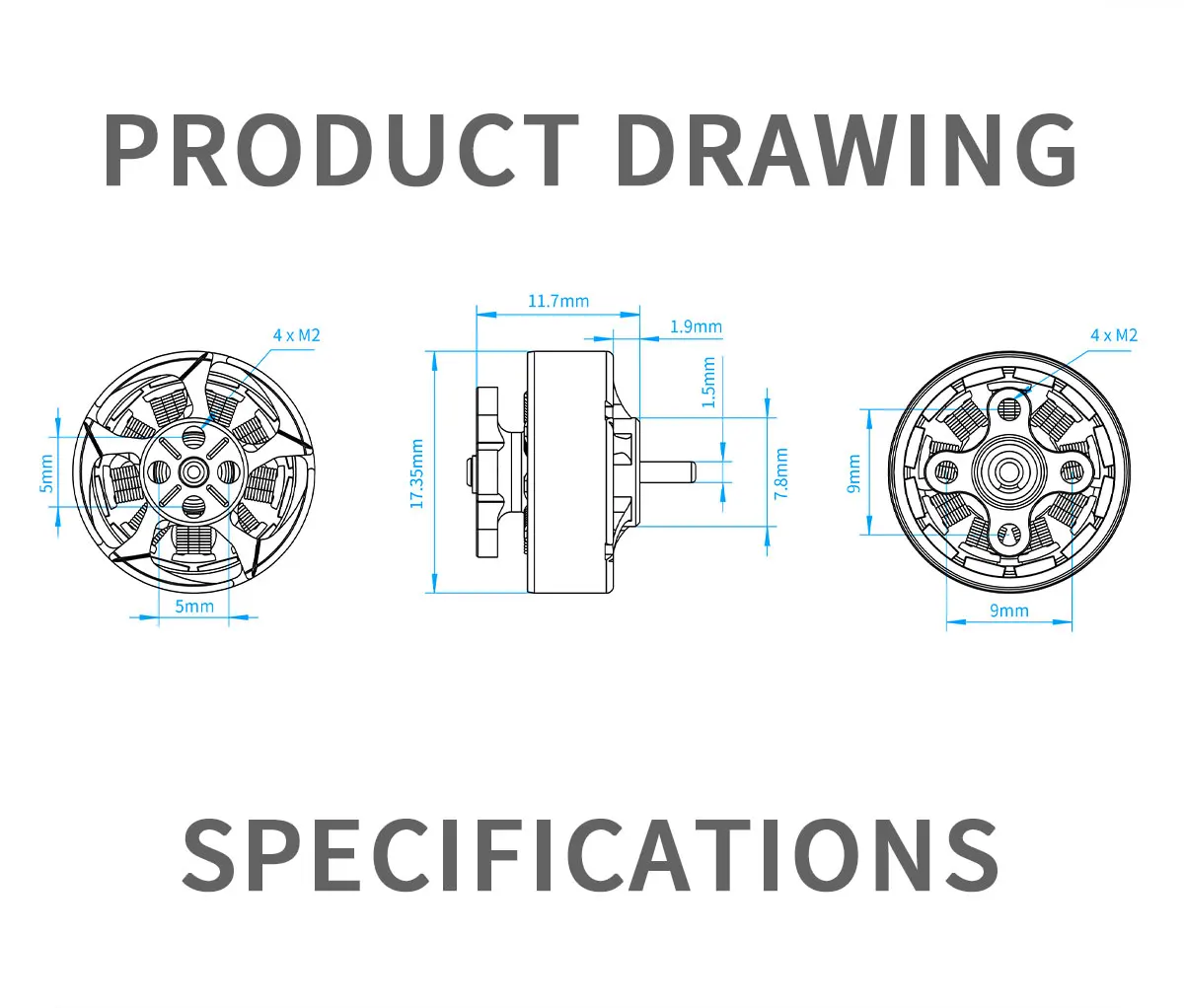

nDimension: Φ17.35mm*11.7mm
nLead wires: 28#AWG 90mm
nRated voltage (LiPo): 2-4S

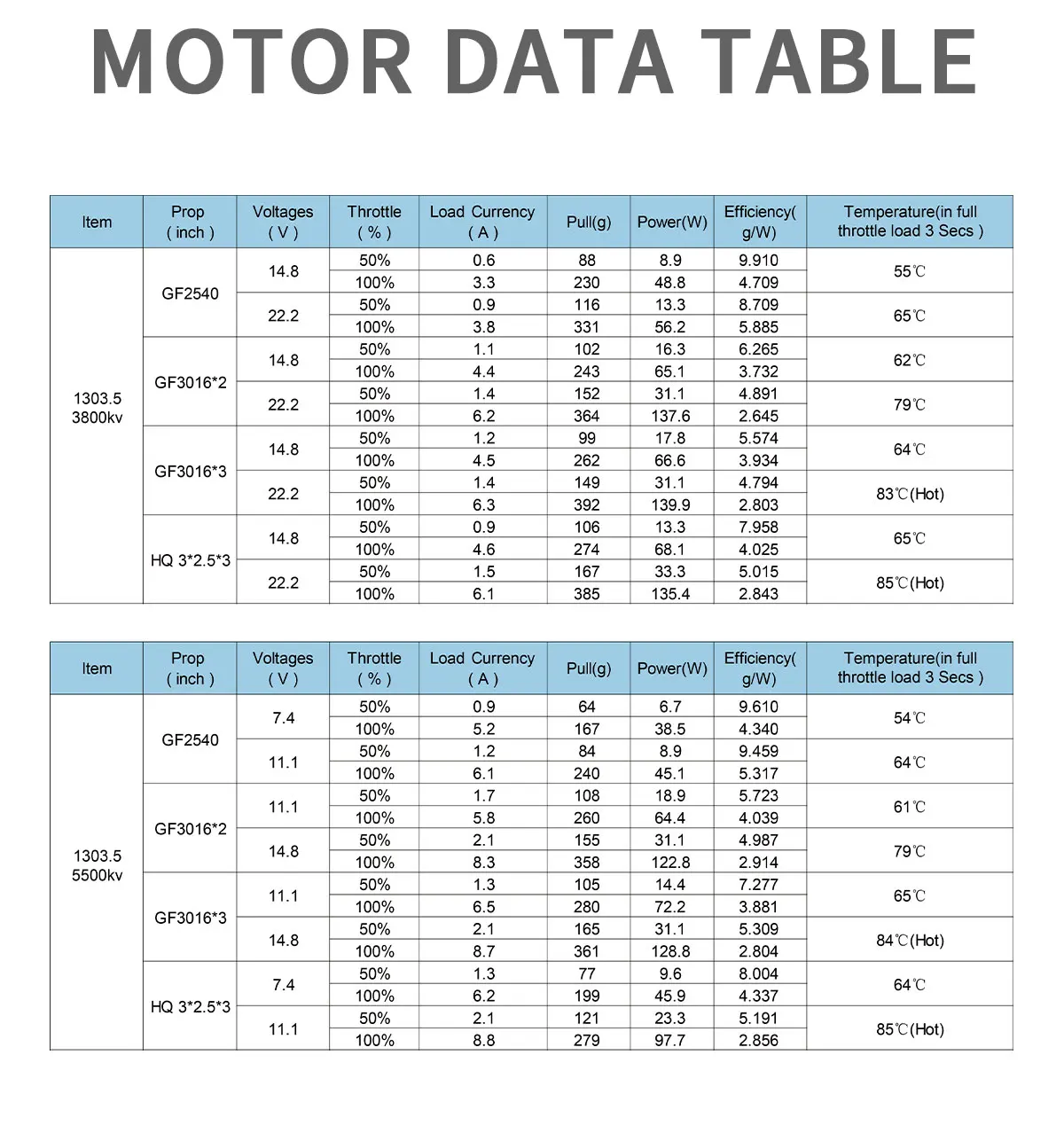

nMaximum power: 128.8W
nMaximum current: 8.7A
nRecommended ESC: 35A
nMounting hole: 9mmx9mm(M2)
nColor: titanium color

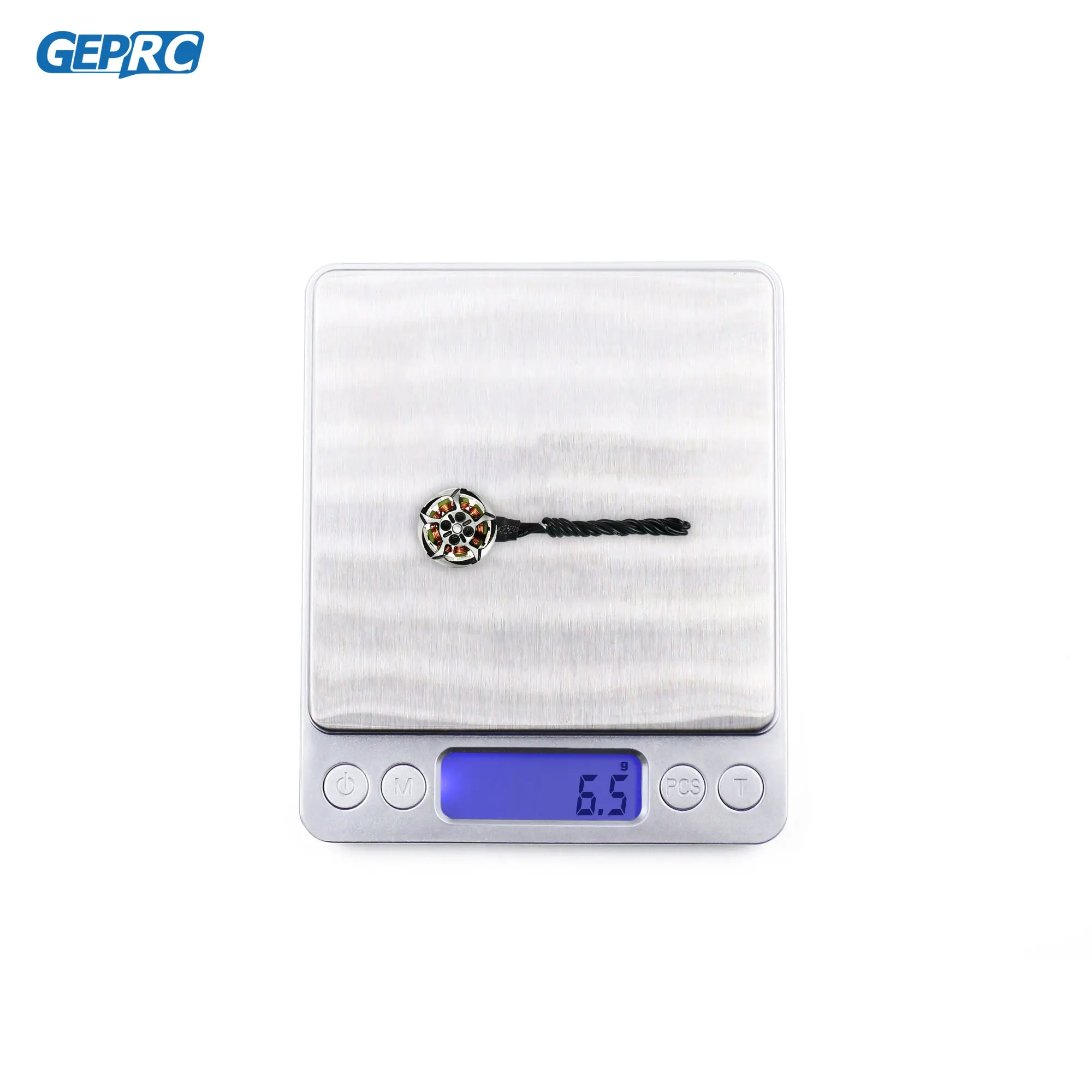

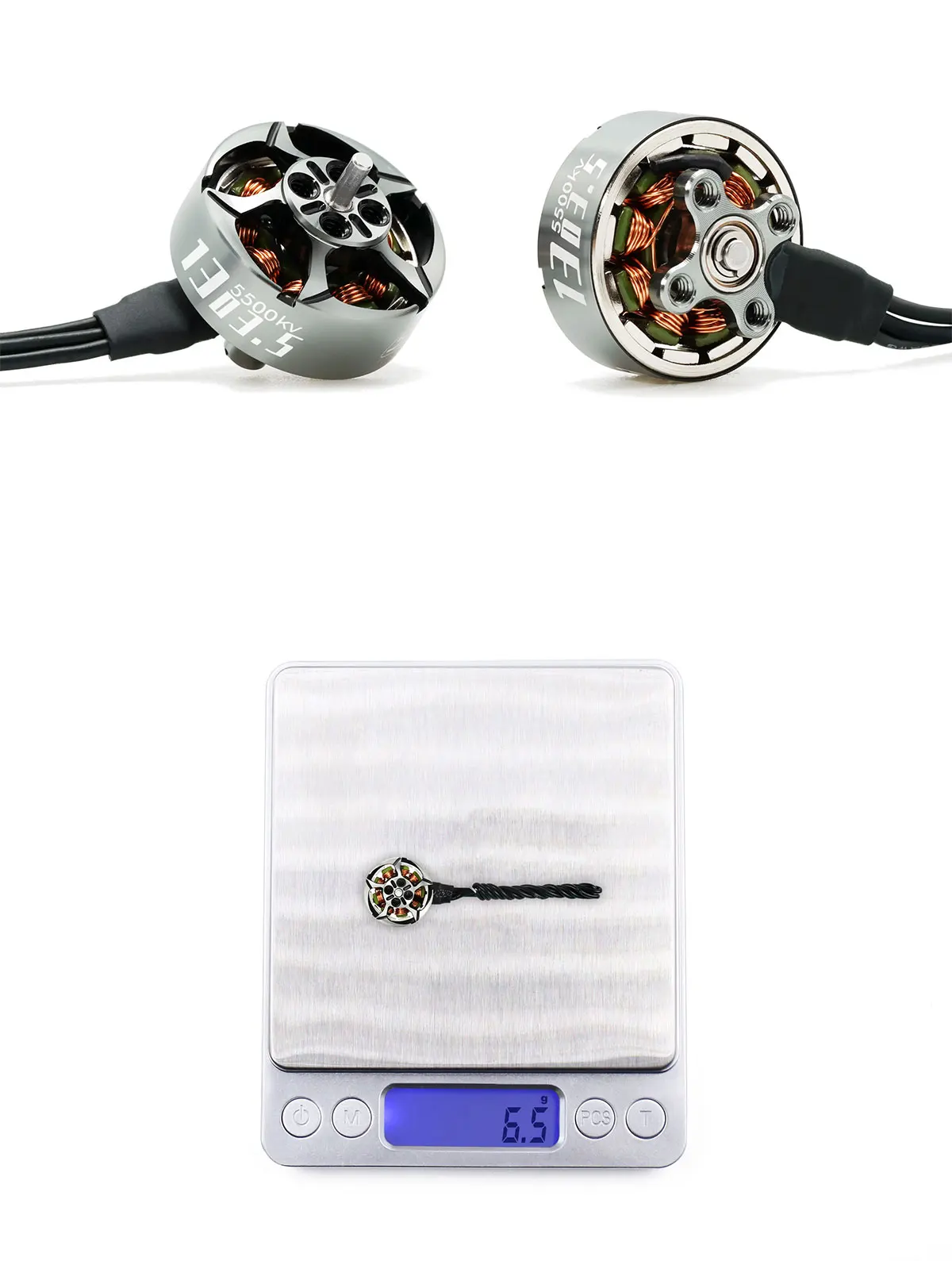

nWeight: 6.5g (90MM wire length)

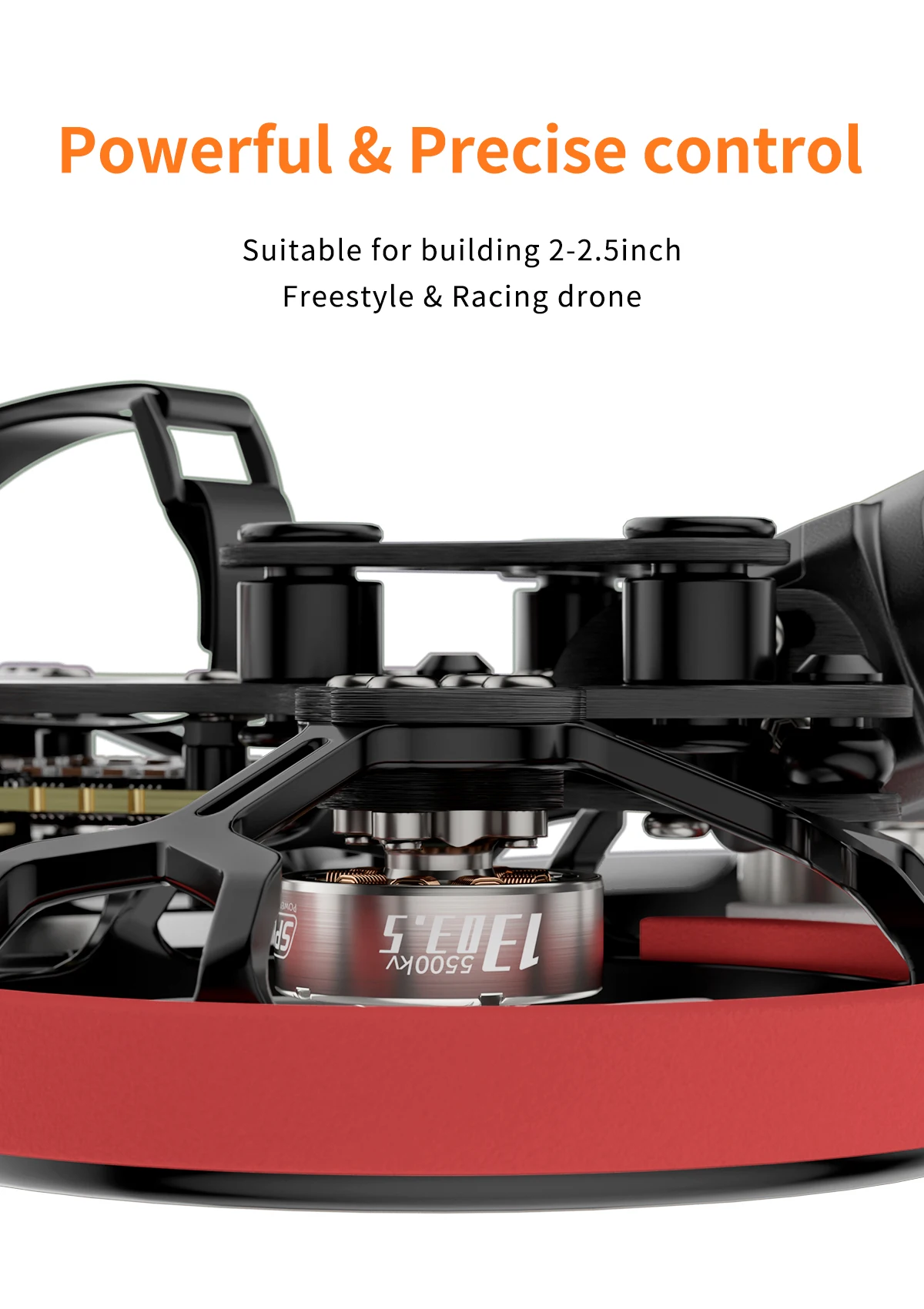

nSuitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones

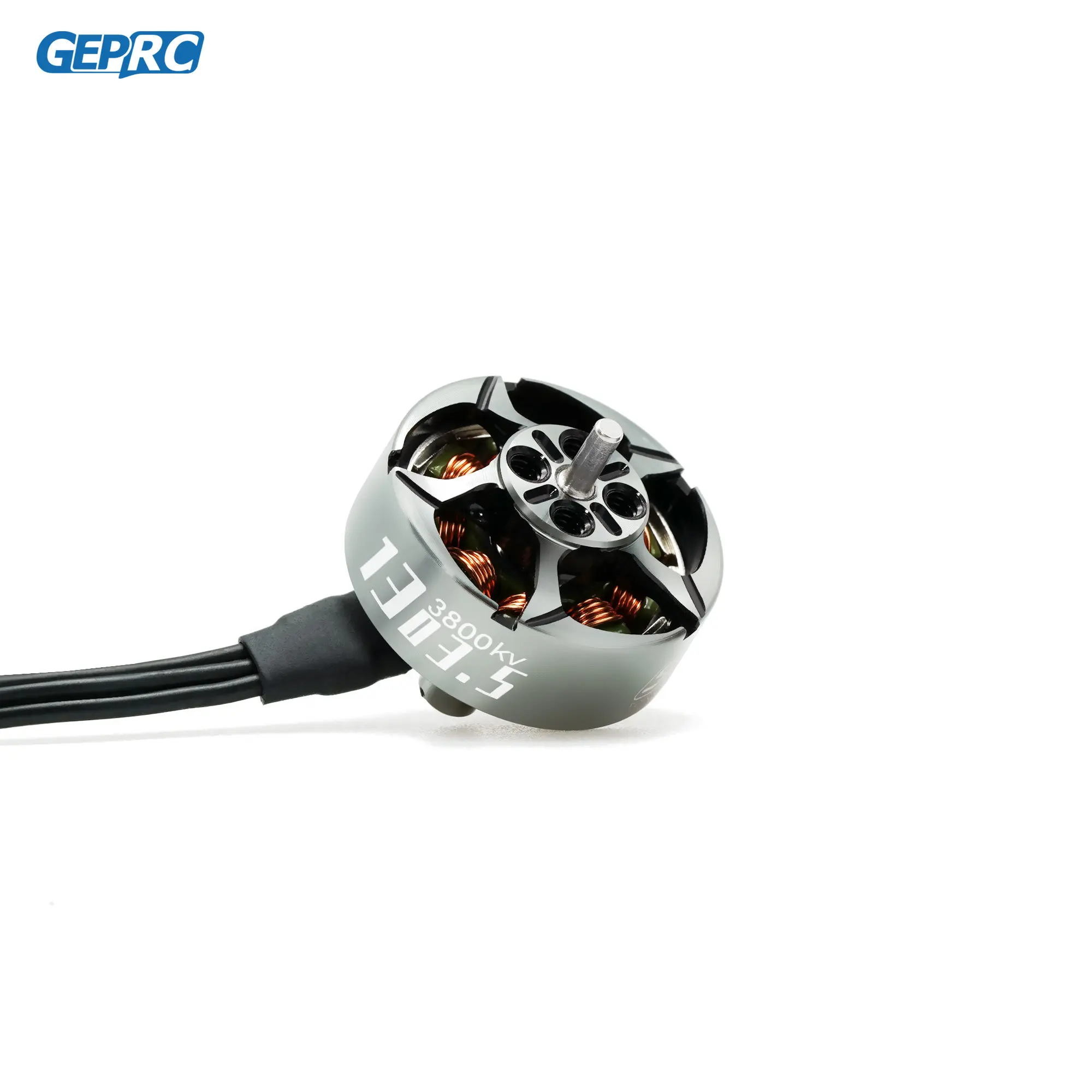

nModel: SPEEDX2 1303.5-3800KV
nConfiguration: 9N12P
nMagnet: N52H ARC
nStator diameter: 13mm
nStator height: 3.5mm
nShaft diameter: Φ2mm(in)1.5mm(out)
nDimension: Φ17.35mm*11.7mm
nLead wires: 28#AWG 90mm
nRated voltage (LiPo): 4-6S
nMaximum power: 139.9W
nMaximunm current: 6.3A
nRecommended ESC: 35A
nMounting hole: 9mmx9mm(M2)
nColor: titanium color
nWeight: 6.5g (90MM wire length)
nSuitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones
n
nFeature

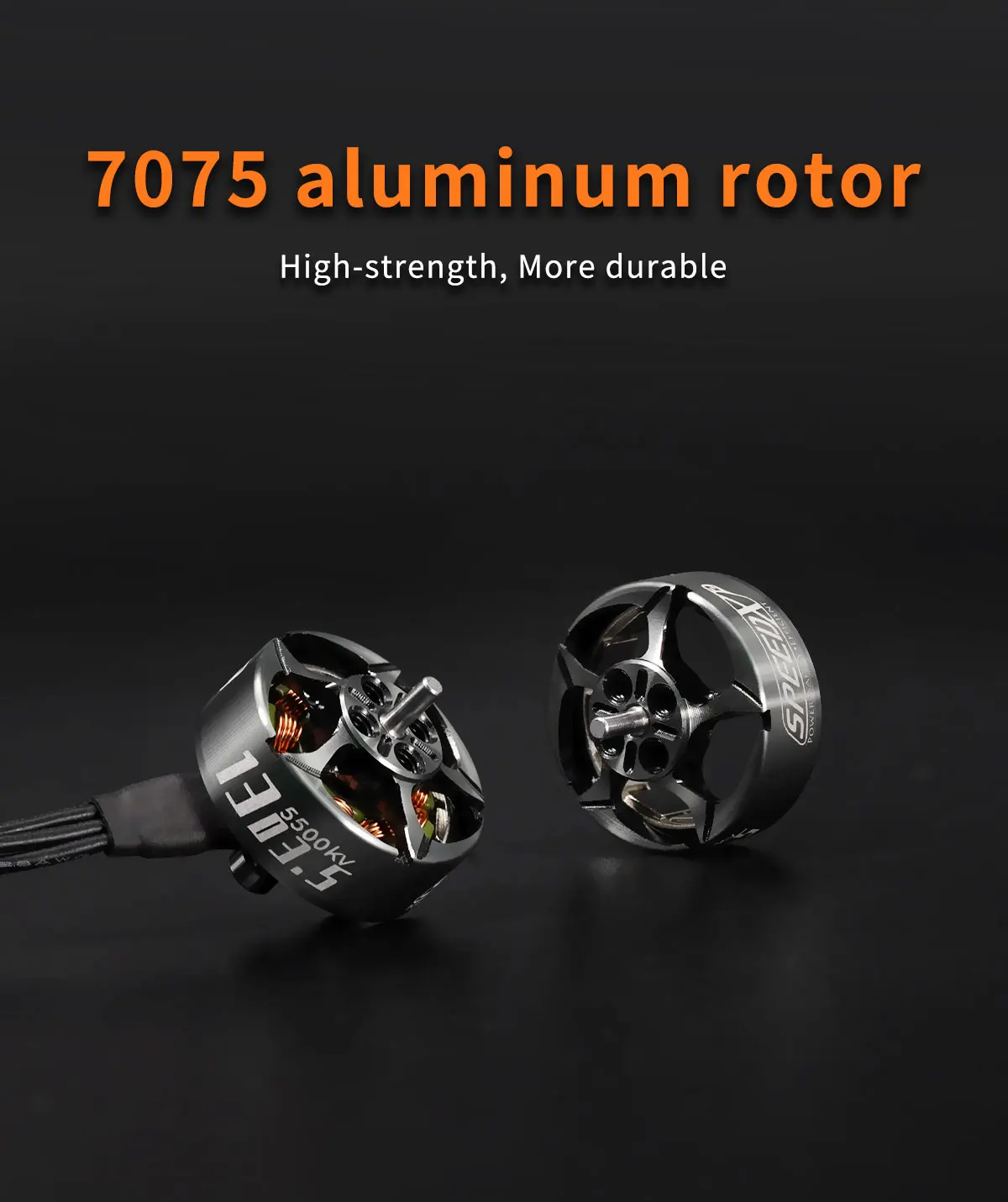

n1. 7075 aircraft aluminum one-piece high-strength housing makes the motor more durable and crash-resistant.
n

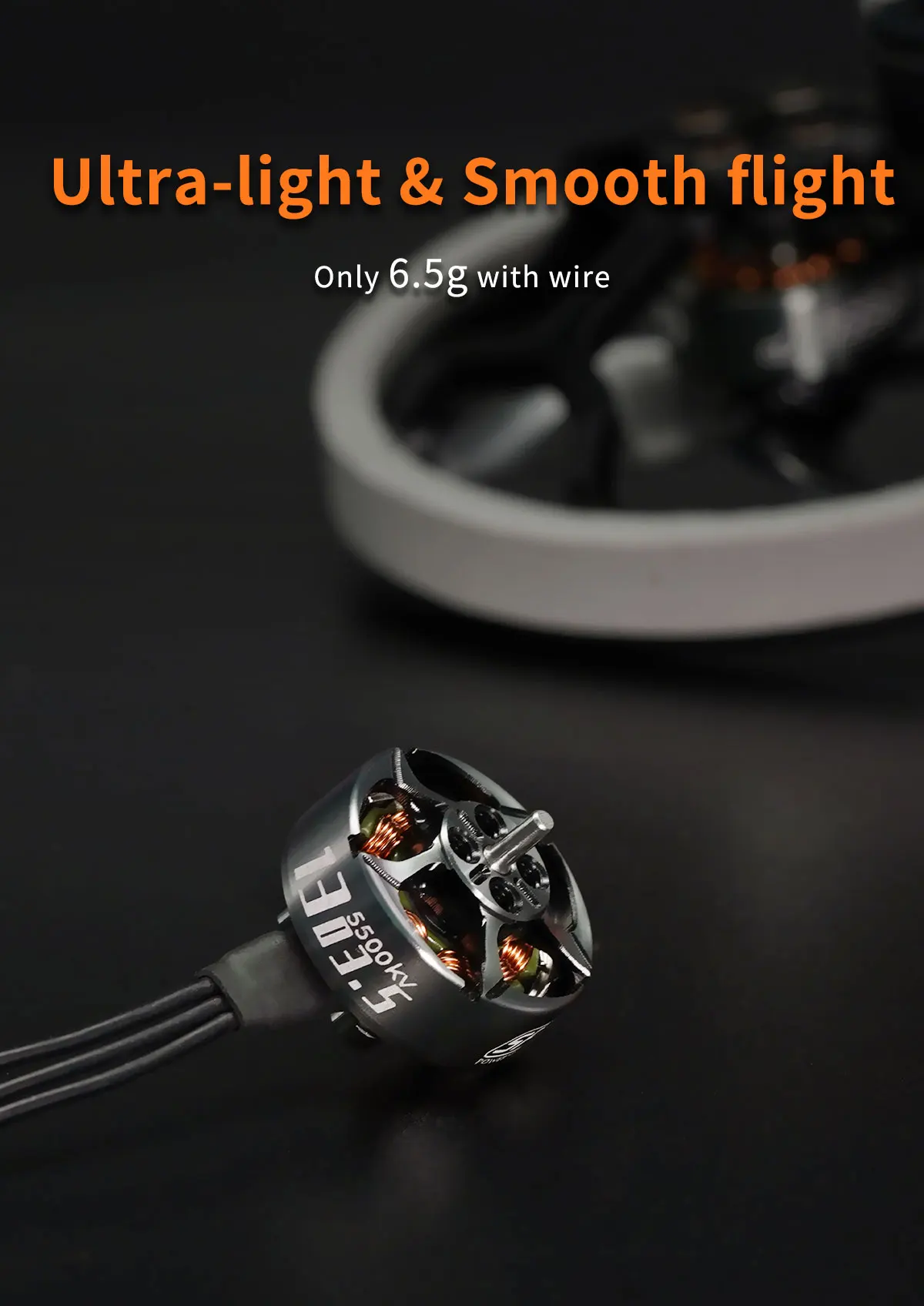

n2. The small size and lightweight design makes the flight feel lighter. The weight with the cable is only 6.5g (90MM cable length), suitable for building a 2-inch drone with propeller guard.
n

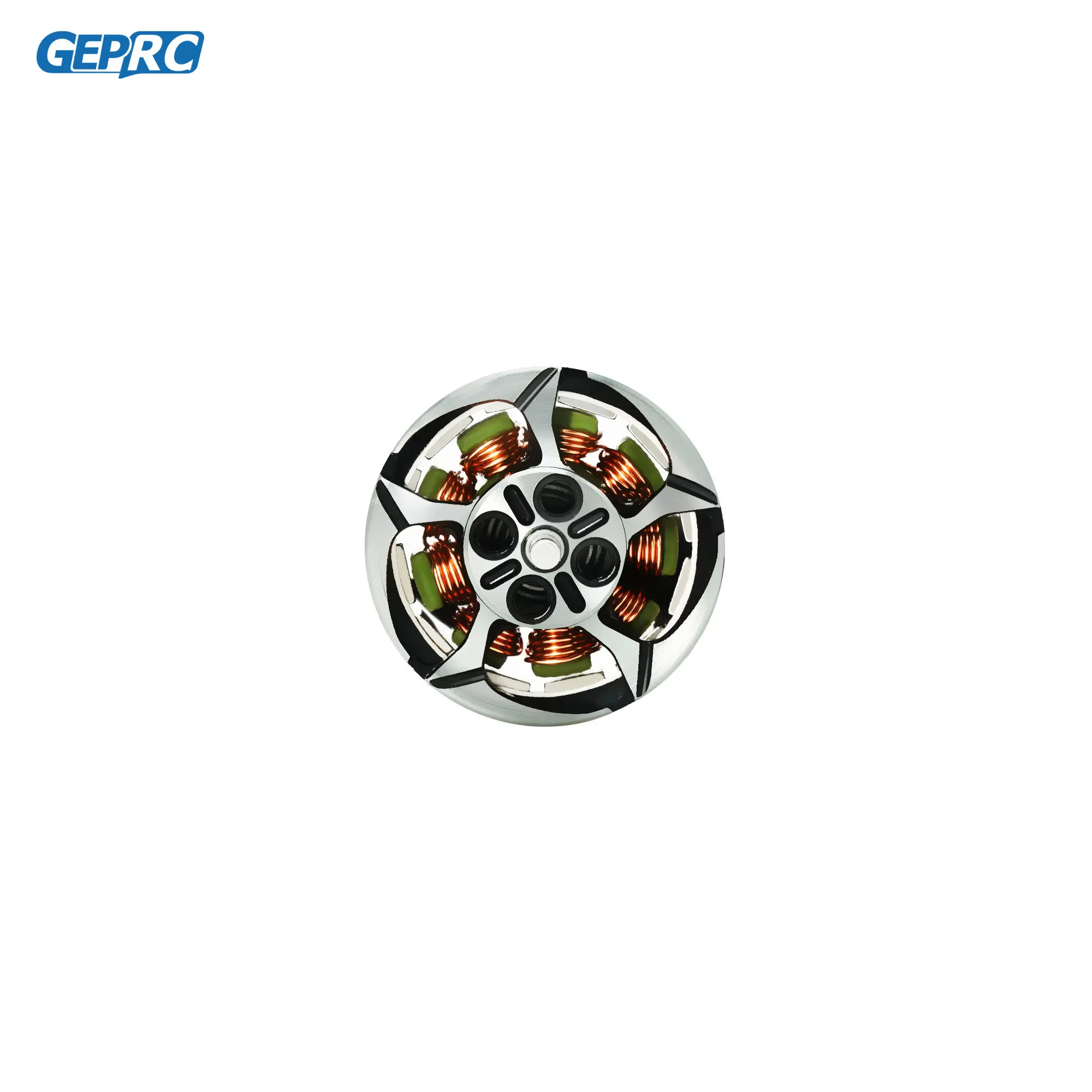

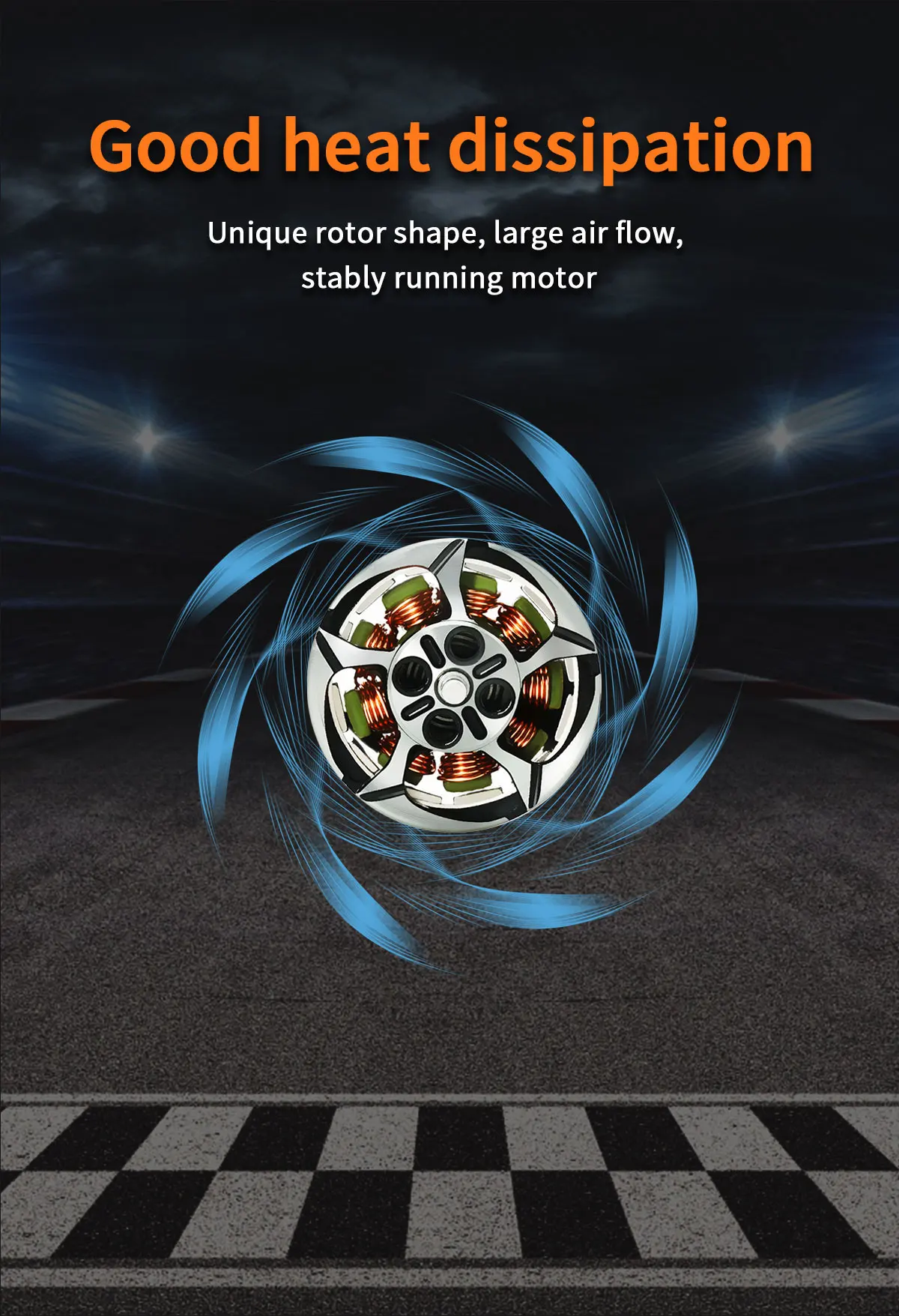

n3. Rotor’s large hollow design has a large air intake, and strong temperature control so that the motor runs more stable.
n

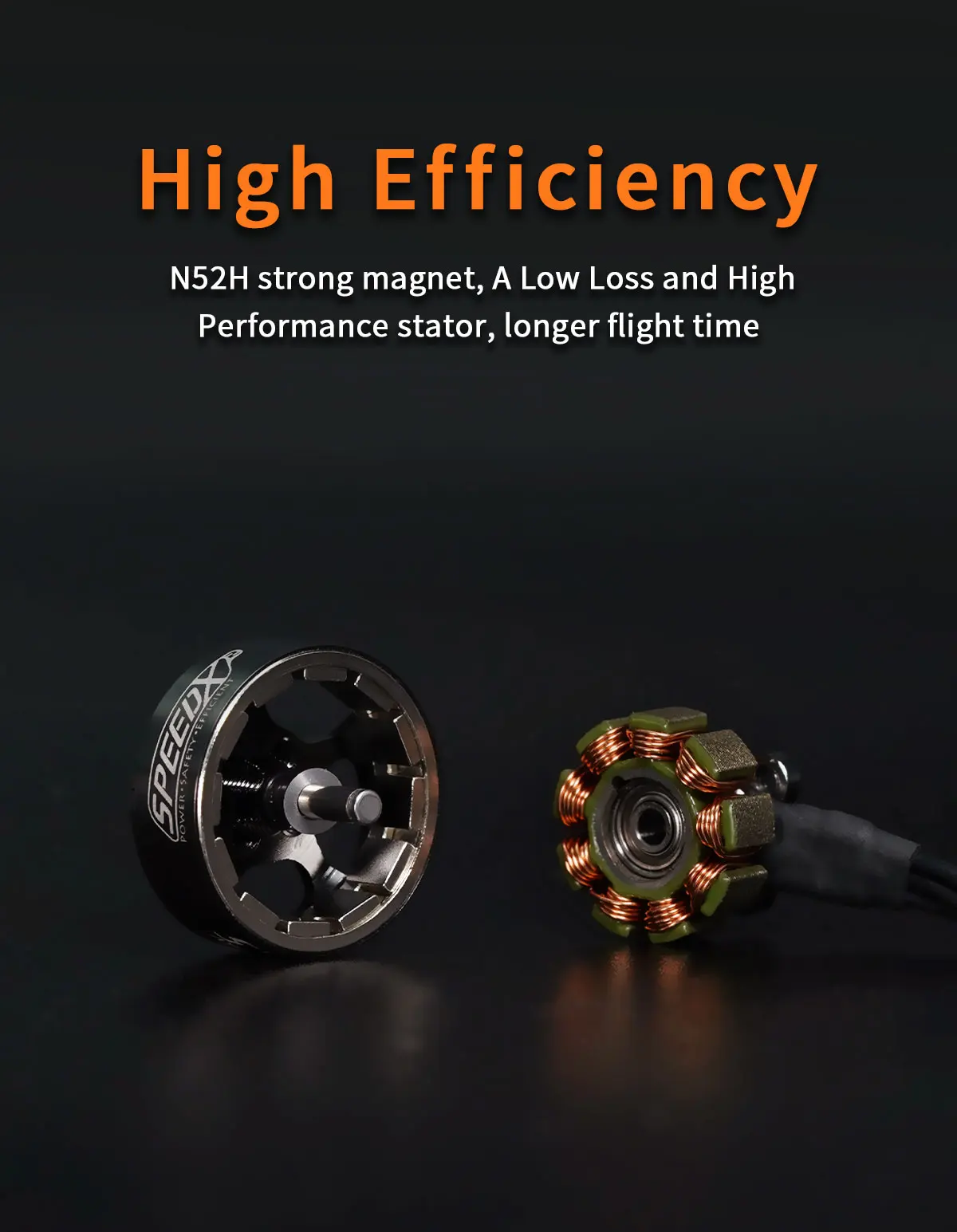

n4. N52H strong magnet, with low internal loss stator, the efficiency is significantly improved, making the endurance more durable.
n
n5. The 1.5mm shaft is generally suitable for conventional 2-2.5 inch propellers on the market.

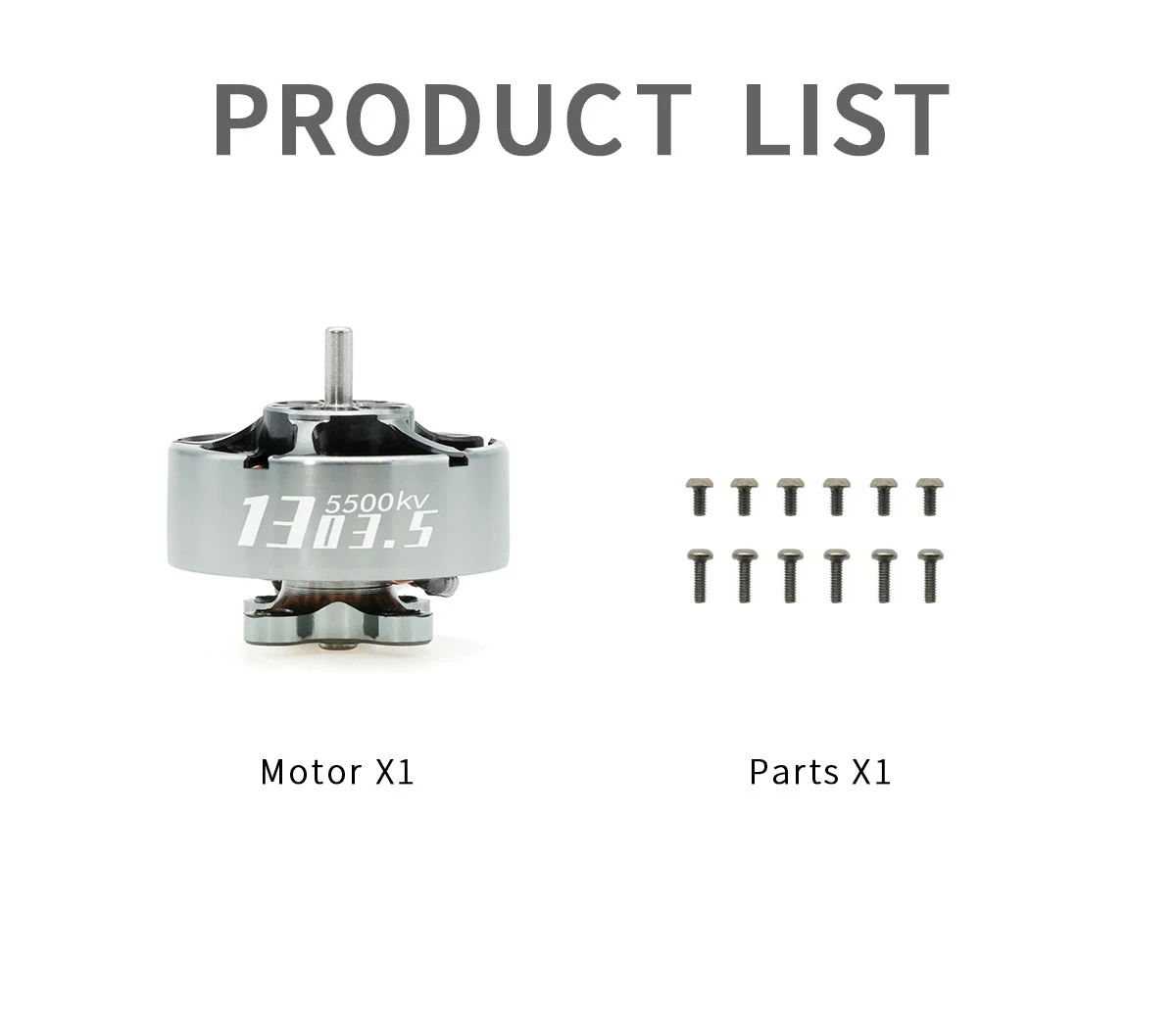

nIncludes
n1 x SPEEDX2 1303.5 motor
n6 x M2*6mm screws
n6 x M2*8mm screws
