GEPRC SPEEDX2 2105.5 3450KV 2650KV 3-4S Motor 1.5mm Shaft

Description

Summary

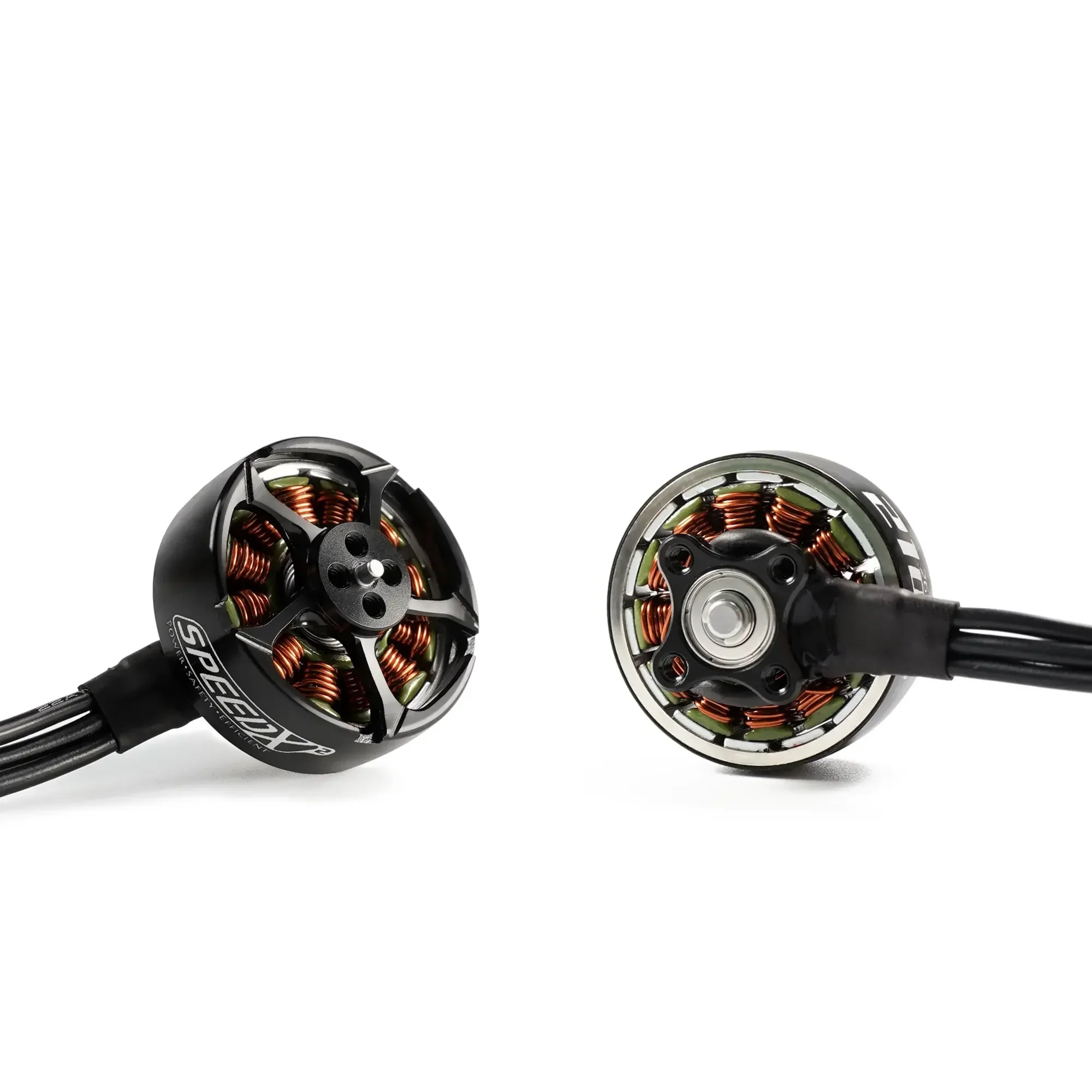

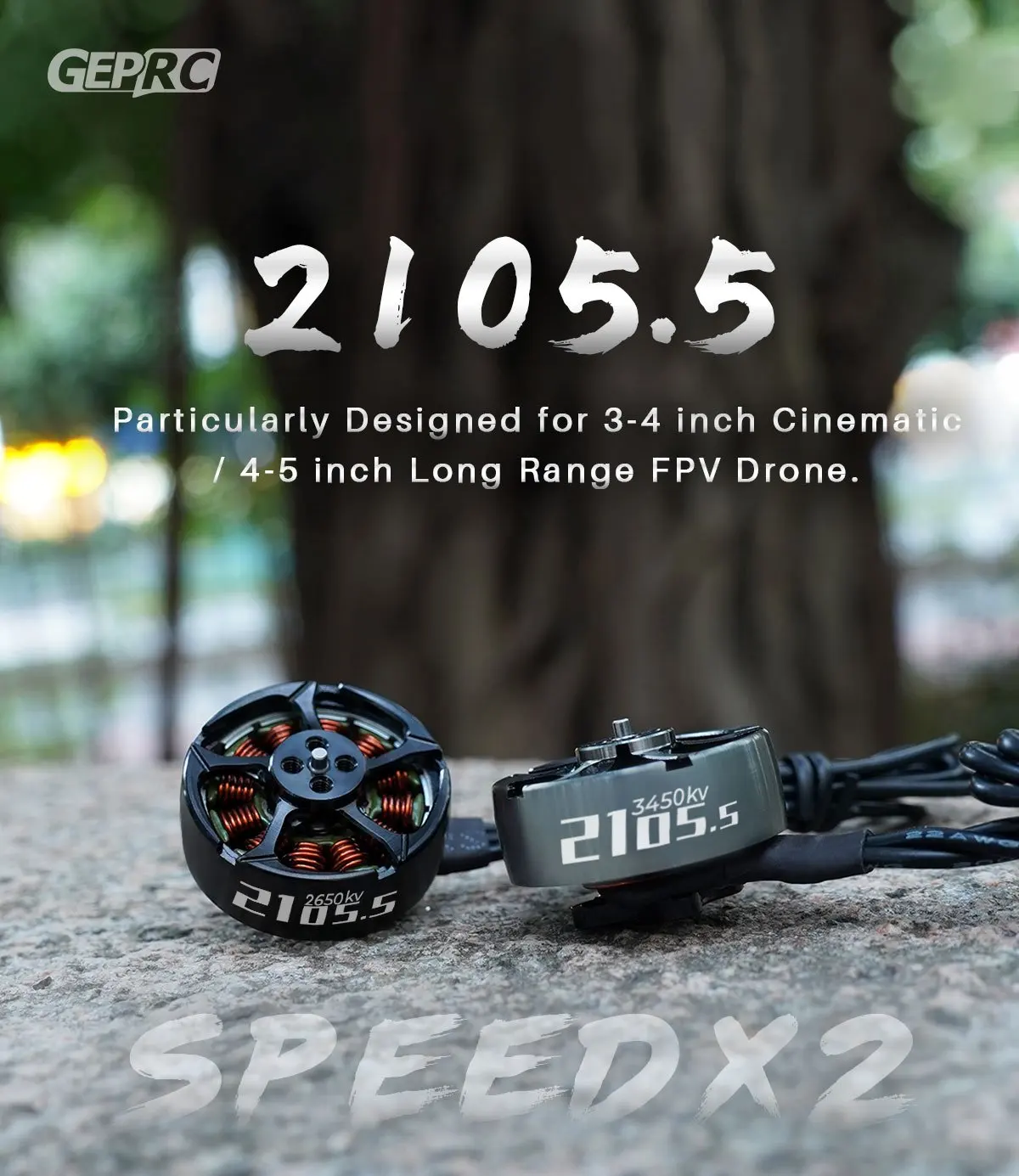

nThe GEPRC new generation brushless motor SPEEDX2 2105.5 is an exceedingly innovative brushless motor with an avant-garde style and unique design.
nThe lightweight design greatly reduces the weight, only 21.0g. The flat motor shape with the exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation, the advantage is maintaining a lower temperature for the running motor.
nUsing customized high-quality materials and professional magnetic circuit design,the SPEEDX2 2105.5 motor with good handling and stably aggressive power. Bringing pilots a super smooth flying experience.
nIn term of high strength structure design, SPEEDX2 2105.5 also has good durability and crash resistance.It’s a ideal motor for every pilot building their own 3-4 inch FPV quads or 4-5 inch long range FPV quads.
nWe’ve been pursuing a lighter weight, more responsive, more efficient and more powerful brushless motor.
nFeature

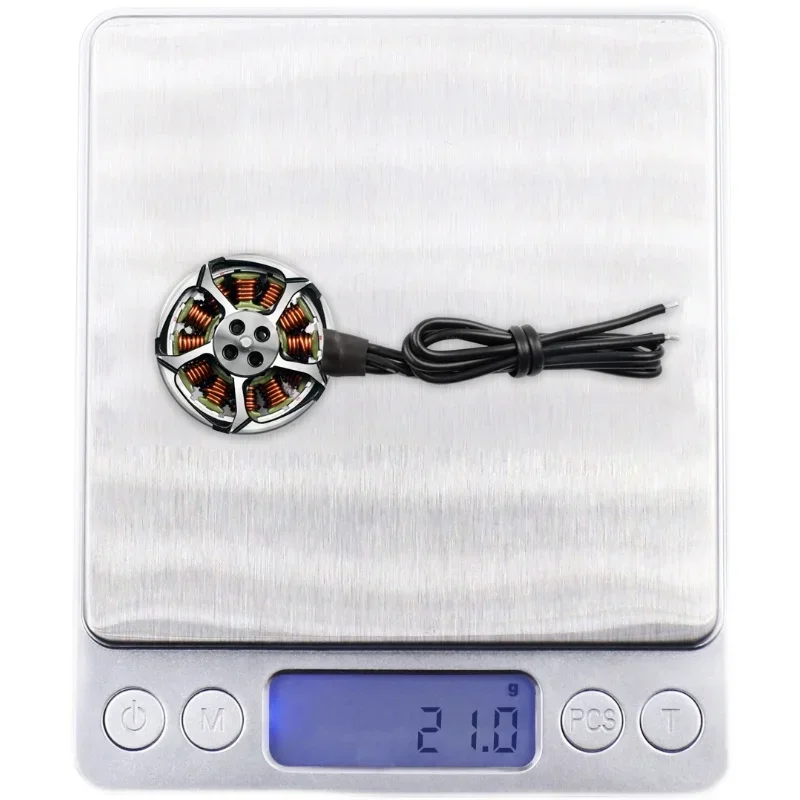

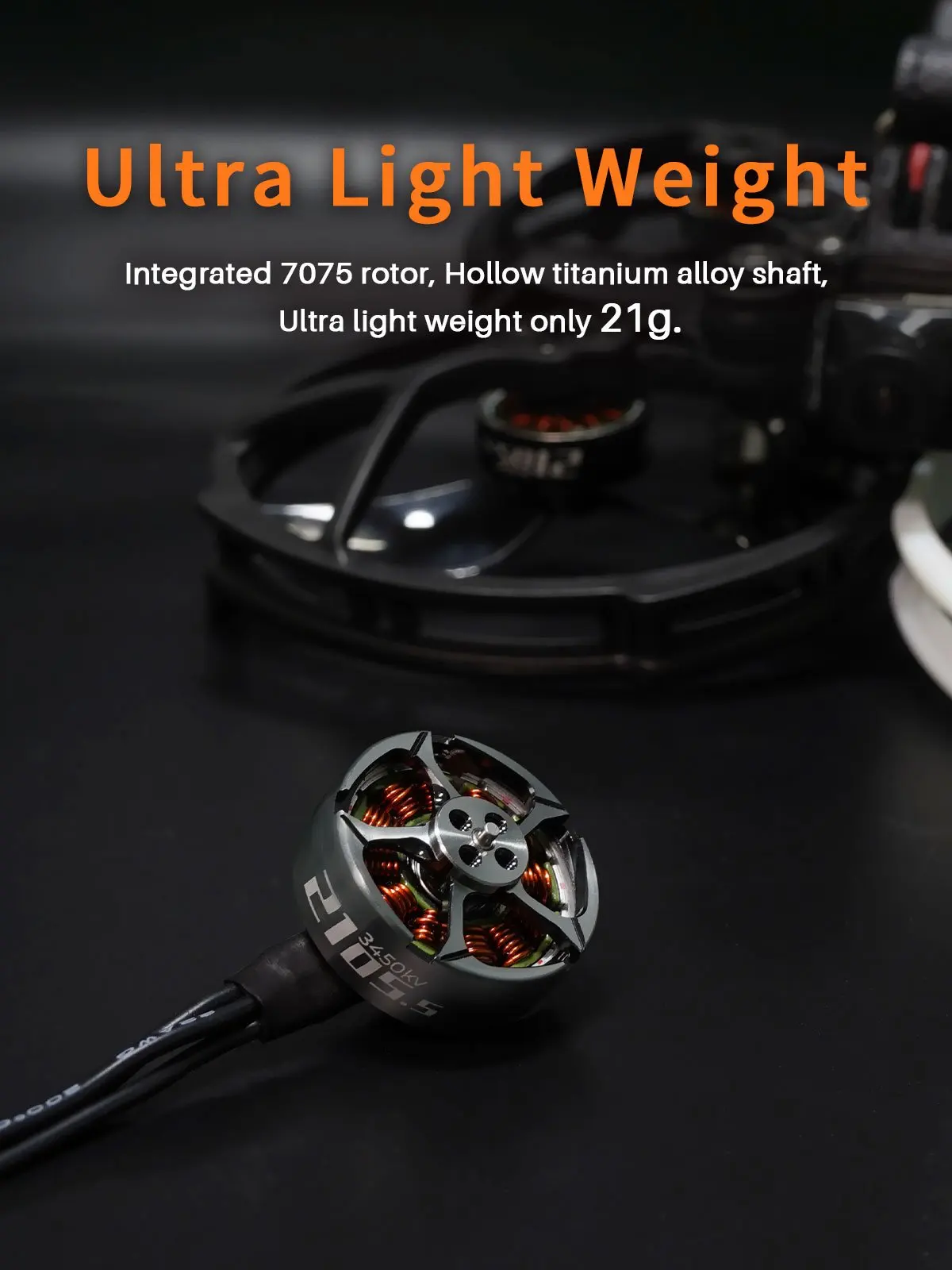

n1. Lightweight design, only 21.0g.

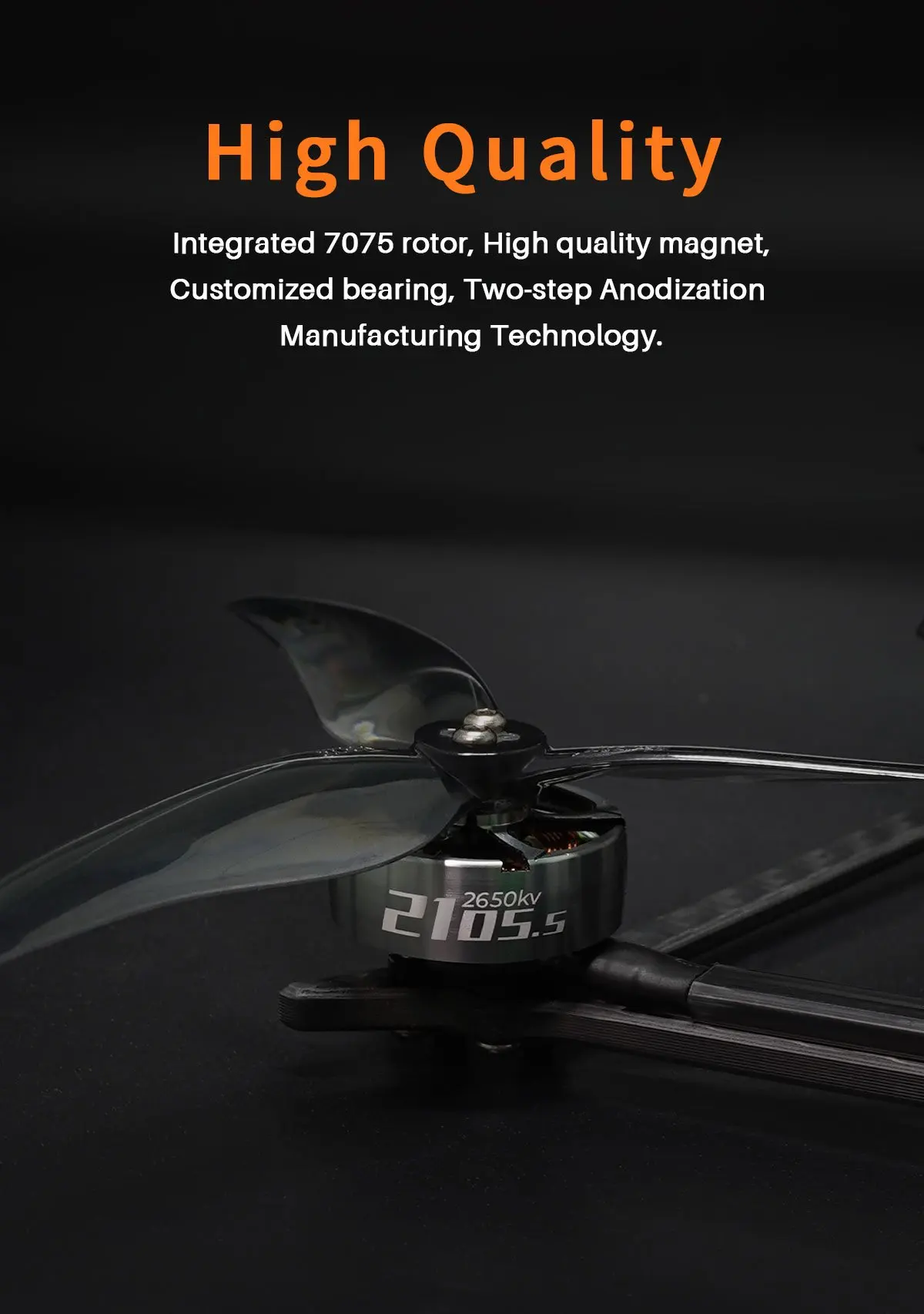

n2. High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor power output.
n3. The flat design motor is very prominent in Freestyle & Racing. Large motor torque, strong explosive force, and extremely fast response speed.

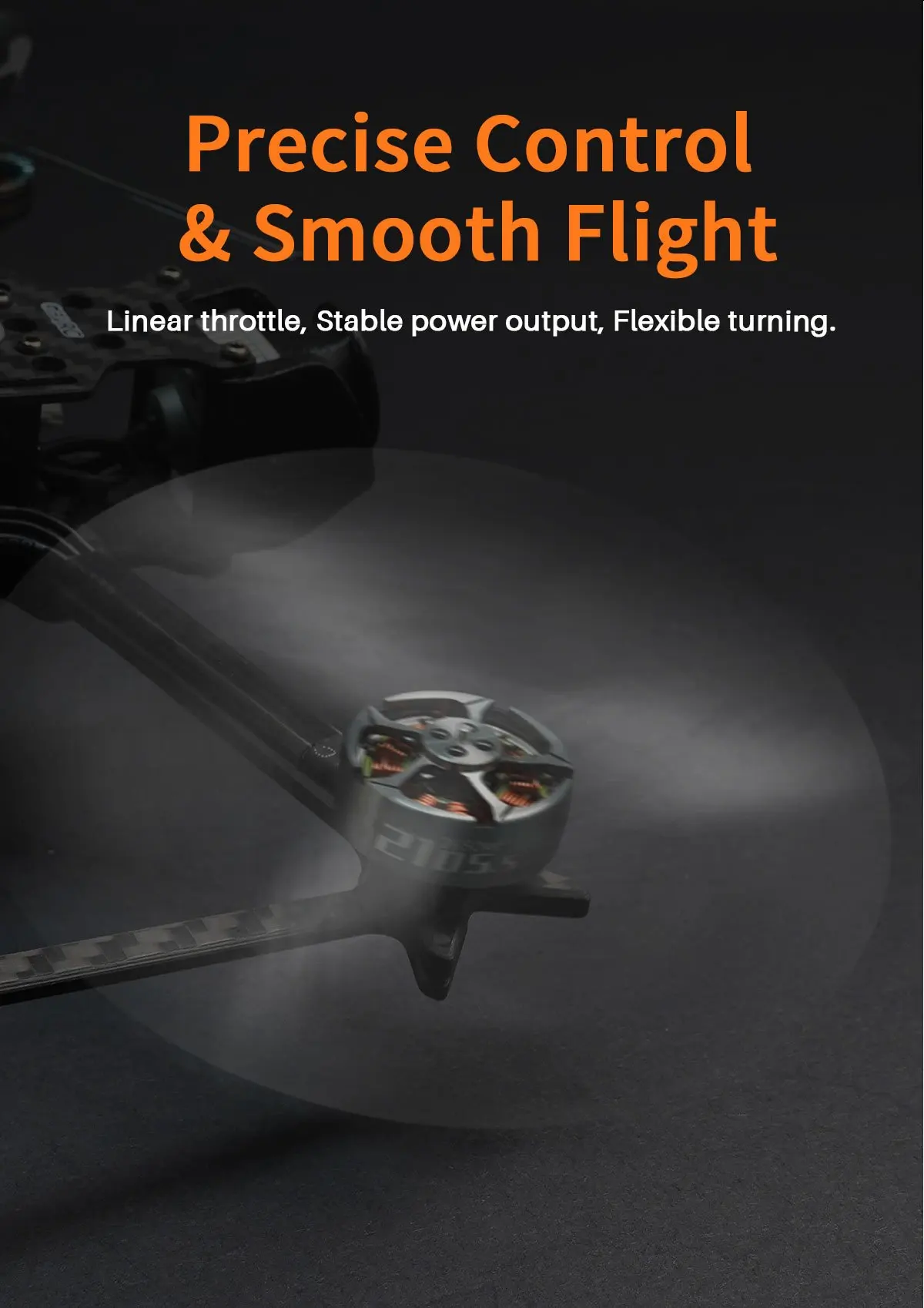

n4. Good handling and stable power output bring a super smooth flying experience.

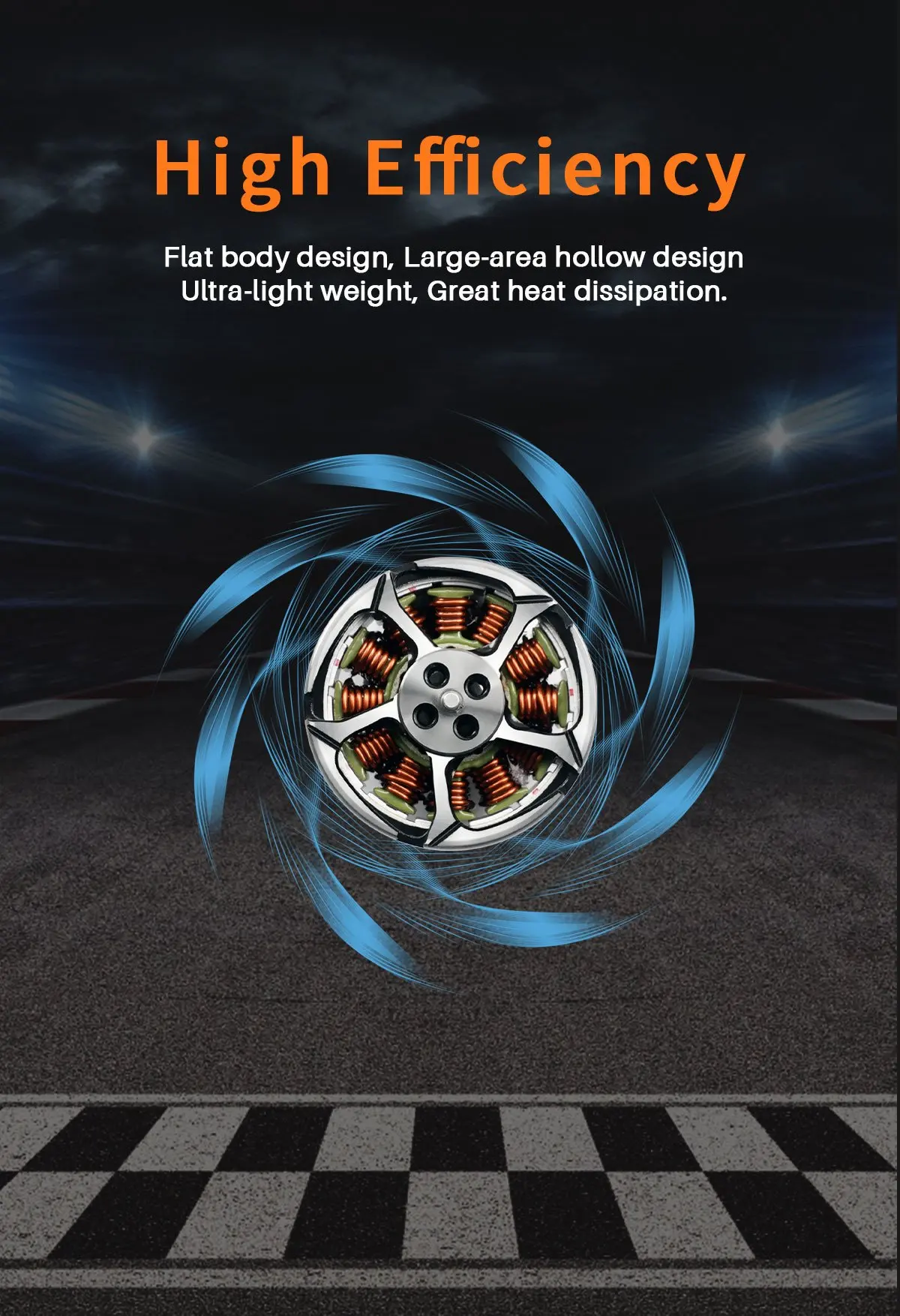

n5.The Exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation.
n6. High-strength motor structure, good durability and crash resistance.
n7.The 1.5mm shaft is quite suitable for most of the conventional 3-5 inch FPV quad propellers on the market.

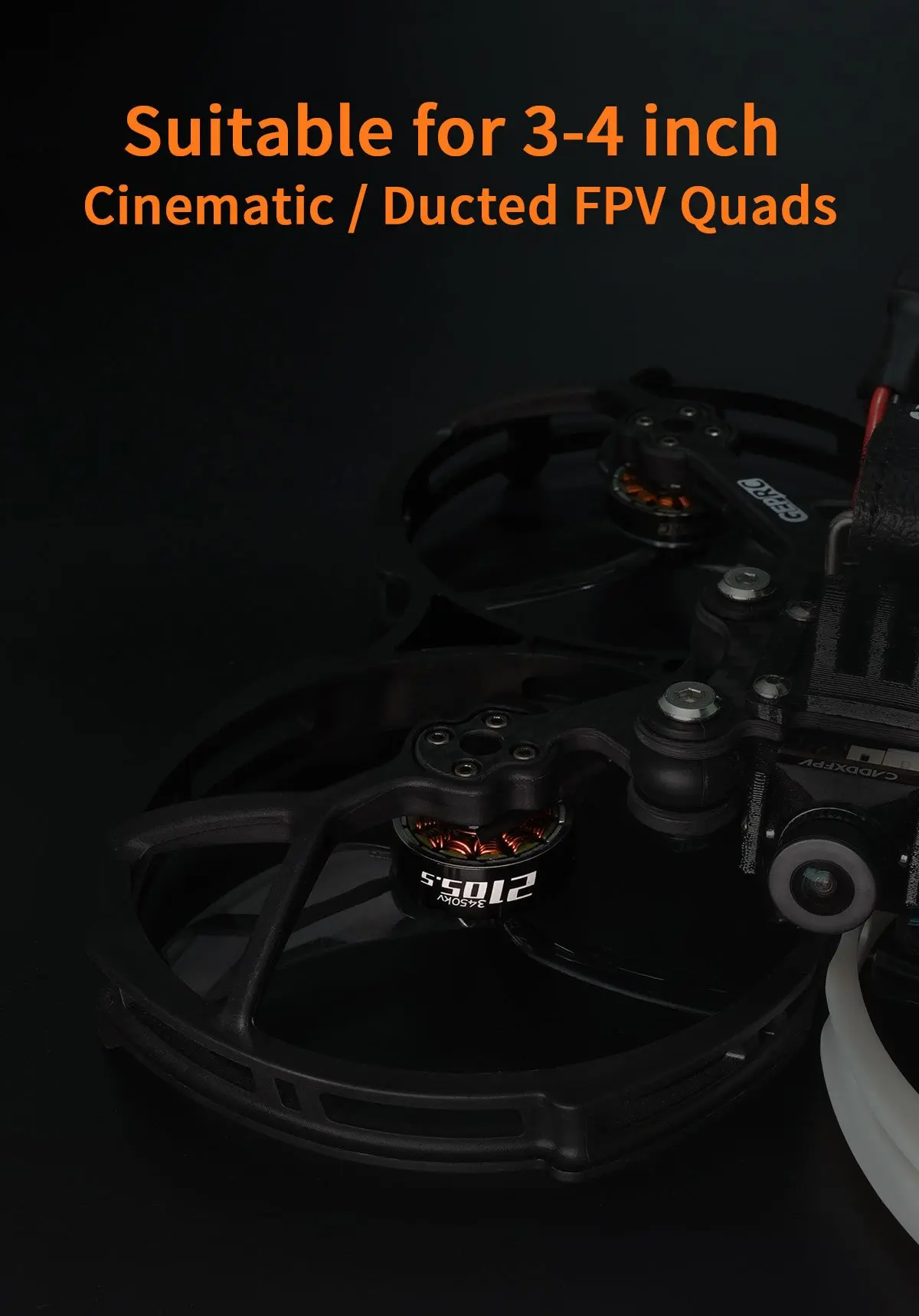

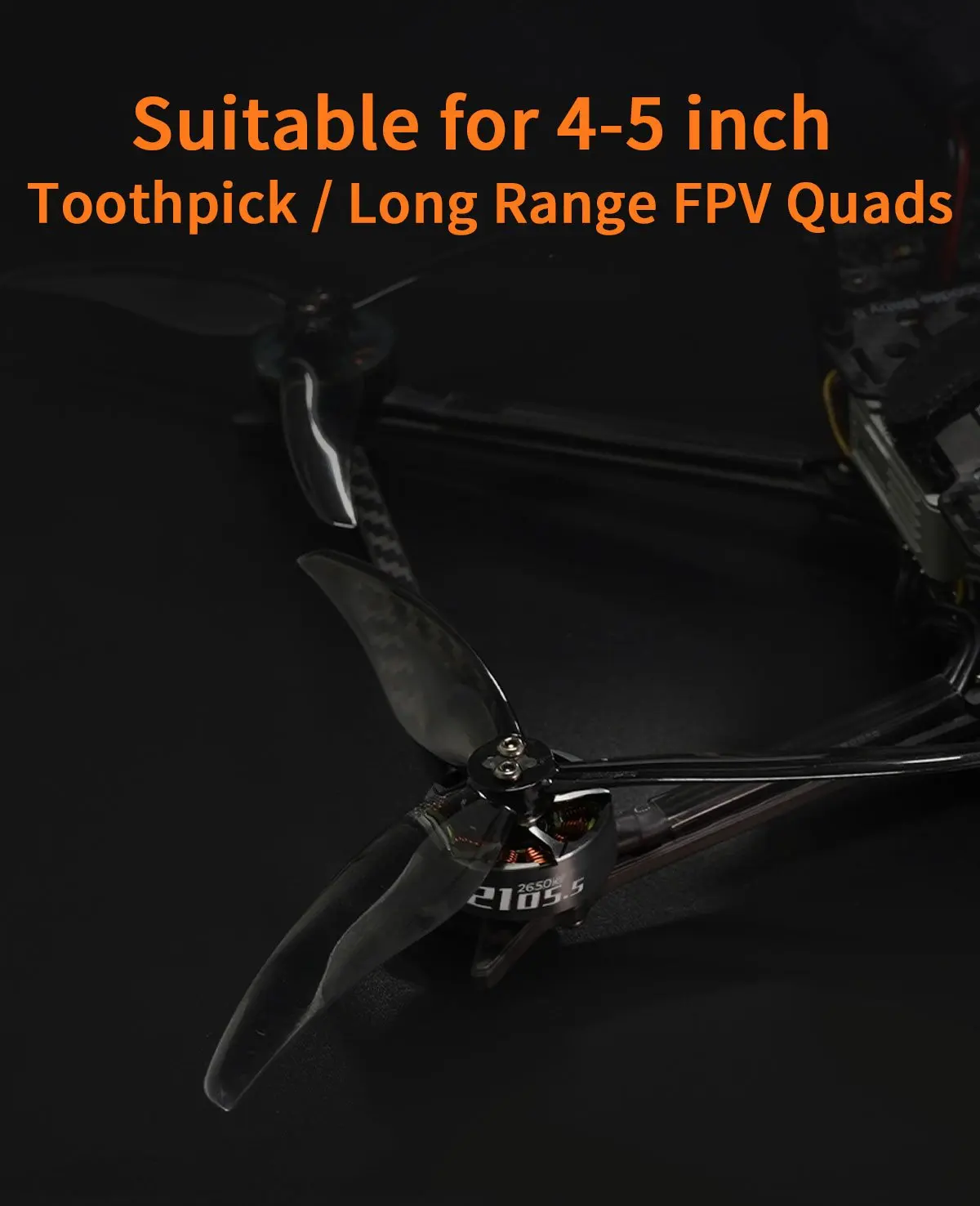

n8.Suitable for 3-4 inch FPV quads and 4-5 inch long range FPV quads.
nSpecification

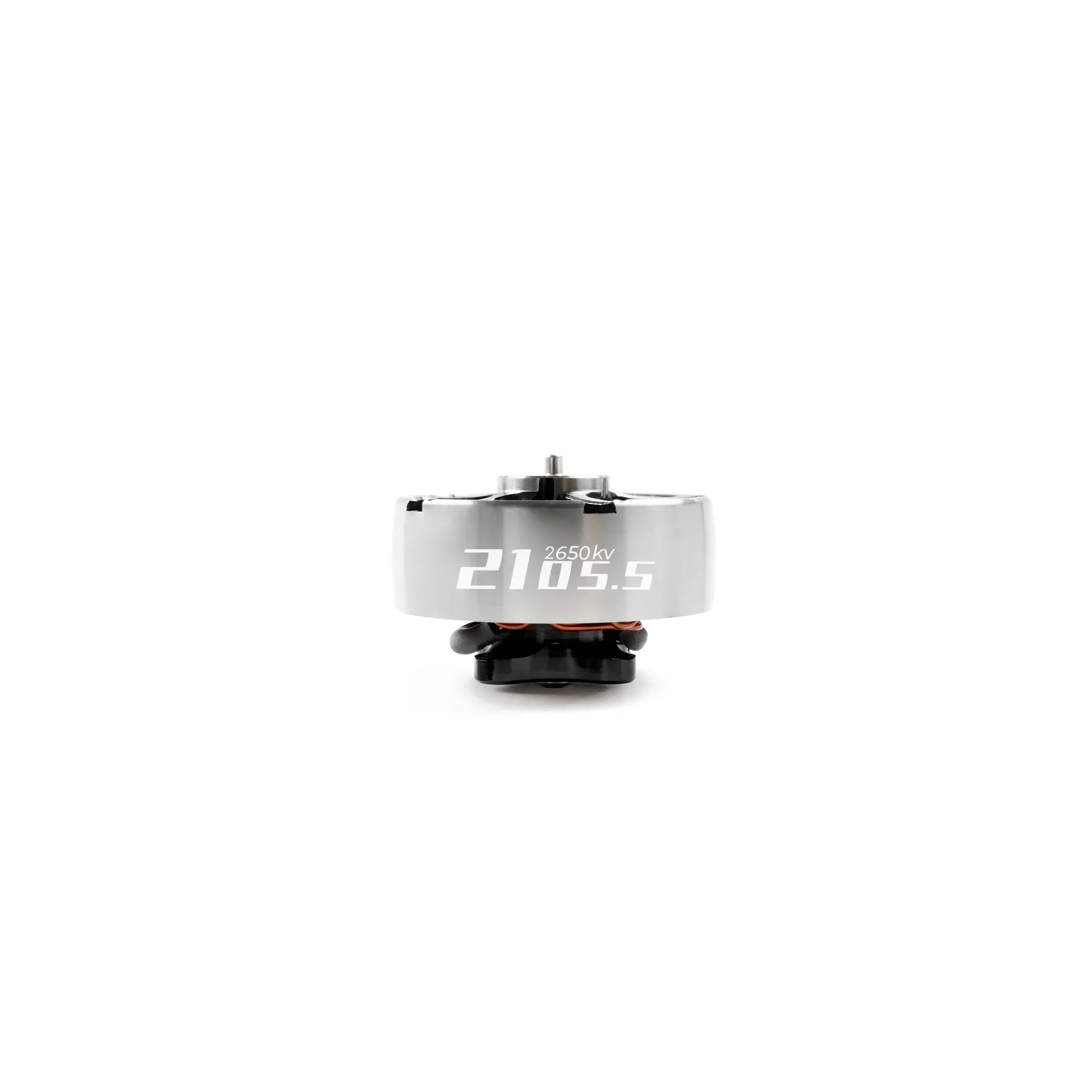

nItem: SPEEDX2 2105.5-2650KV
nKV: 2650KV
nConfiguration: 12N14P
nMagnet: N52H ARC
nStator Diameter: 21mm
nStator Height: 5.5mm
nShaft Diameter: Φ3.0mm(in)Φ1.5(out)

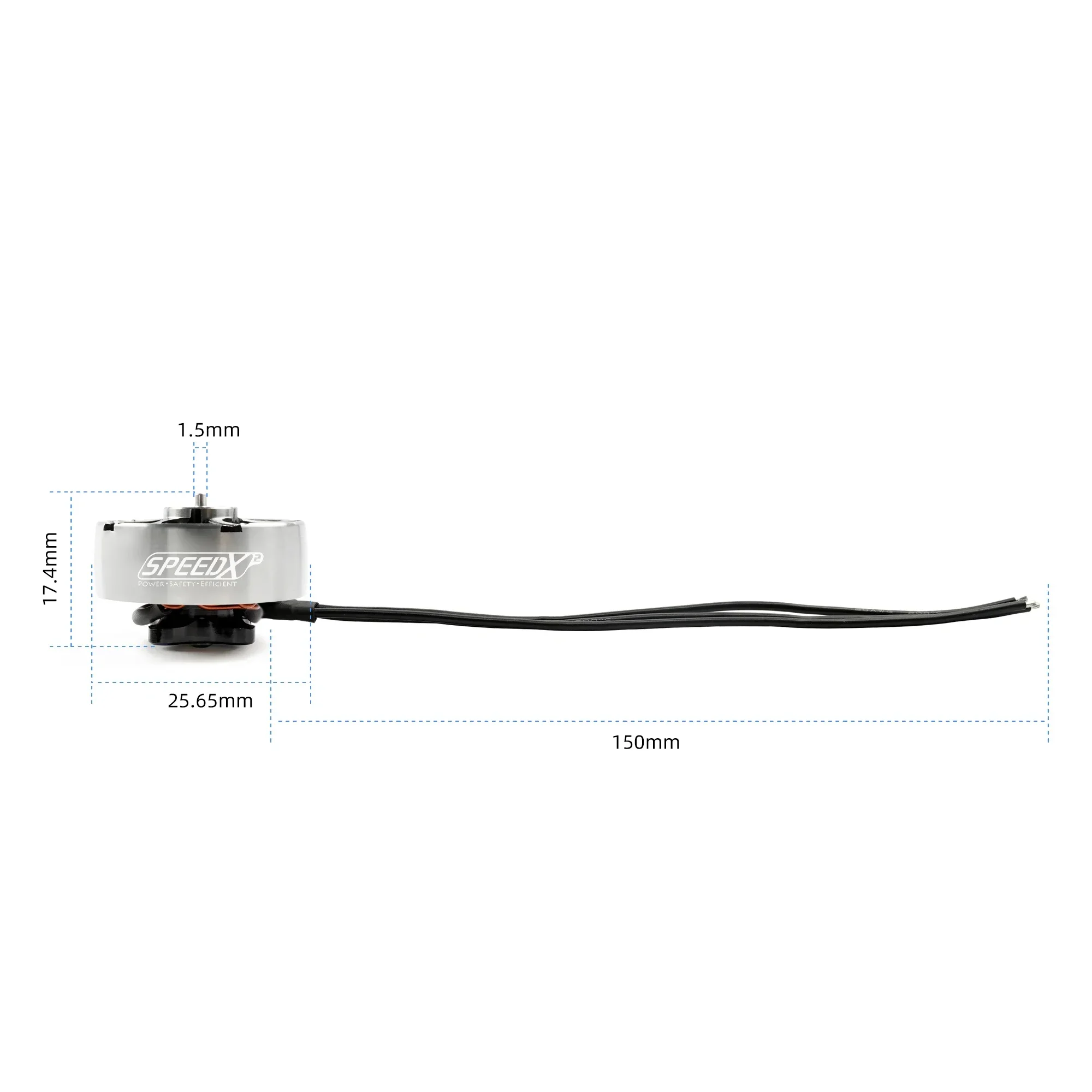

nSize: Φ25.65mm*15.7mm
nLead Wires: 22#AWG 150mm
nNo. of Cells (LiPo) : 3-4S
nMax Continuous Power(W) (5S): 559
nMax Current (5S) : 34.9A
nMounting Holes:12mm x 12mm(M2 Screw)
nColor: Titanium, black
nWeight: 21.0 g
nSuitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV

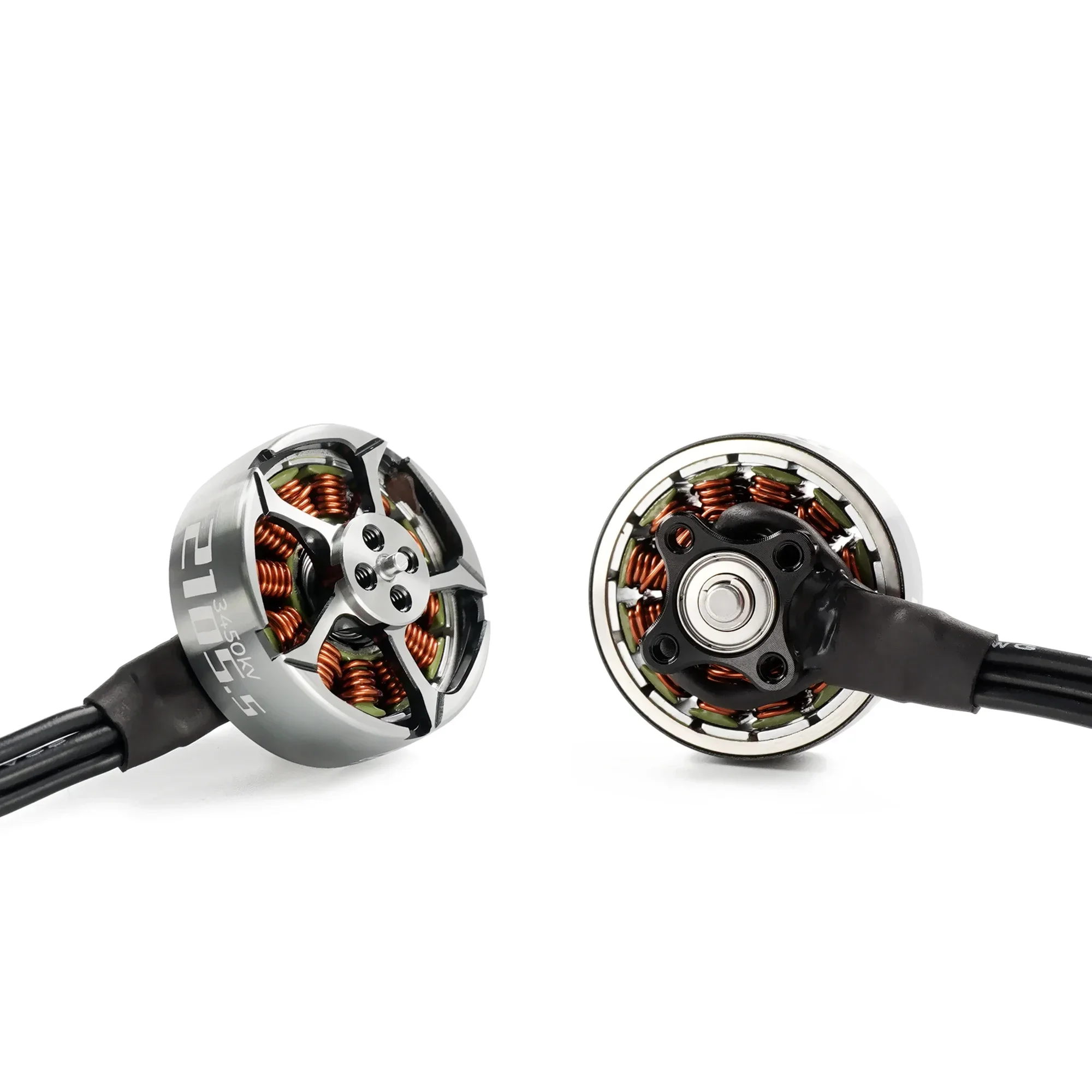

nItem: SPEEDX2 2105.5-3450KV
nKV: 3450KV
nConfiguration: 12N14P
nMagnet: N52H ARC
nStator Diameter: 21mm
nStator Height: 5.5mm
nShaft Diameter: Φ3.0mm(in)Φ1.5(out)
nSize: Φ25.65mm*15.7mm
nLead Wires: 22#AWG 150mm
nNo. of Cells (LiPo) : 3-4S
nMax Continuous Power(W) : 558
nMax Current (A) : 34.9A
nMounting Holes:12mm x 12mm(M2 Screw)
nColor: Titanium, black
nWeight: 21.0 g
nSuitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
nInclude
n1 x SPEEDX2 2105.5 Motor
n5 x M2*6mm Screw
n5 x M2*7mm Screw
