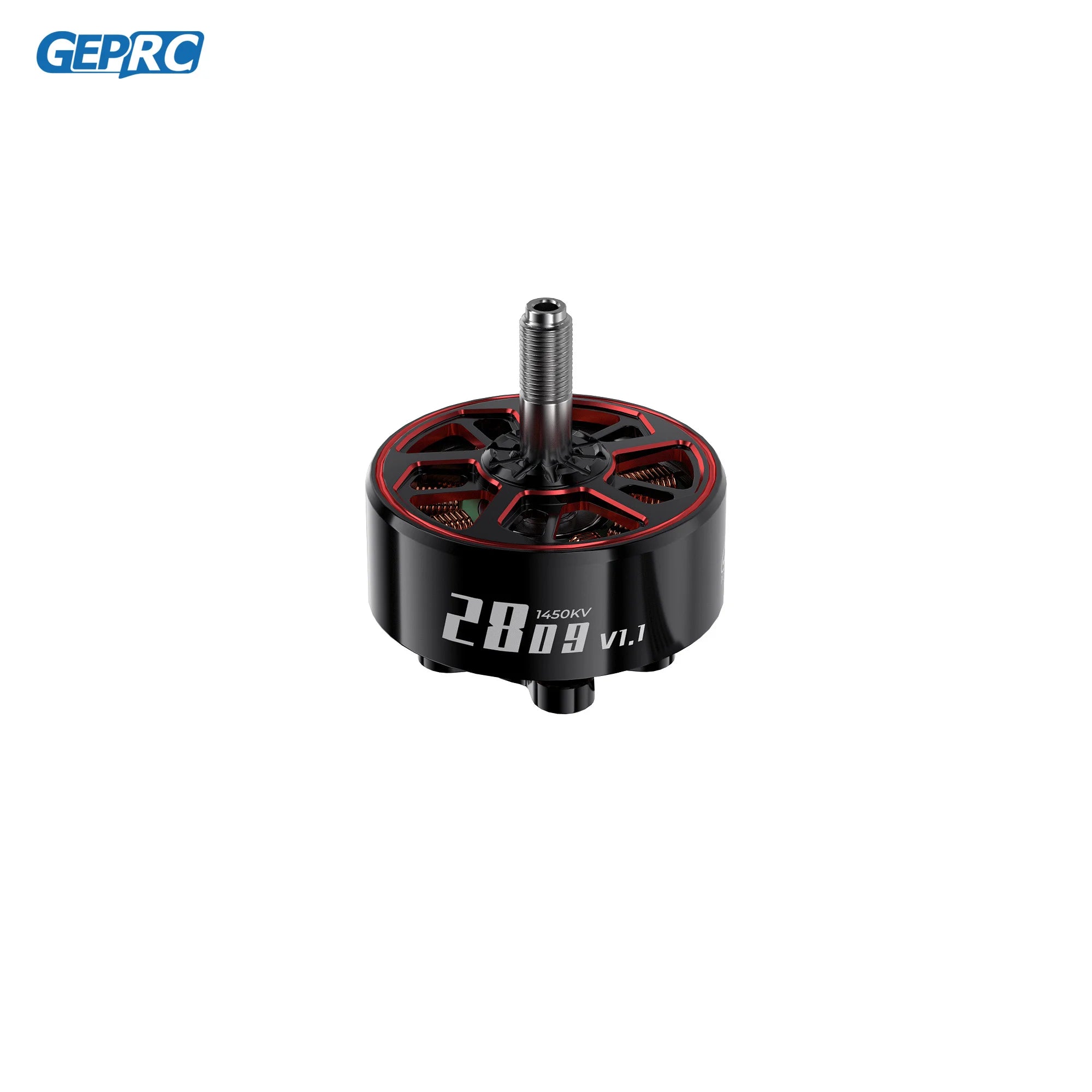

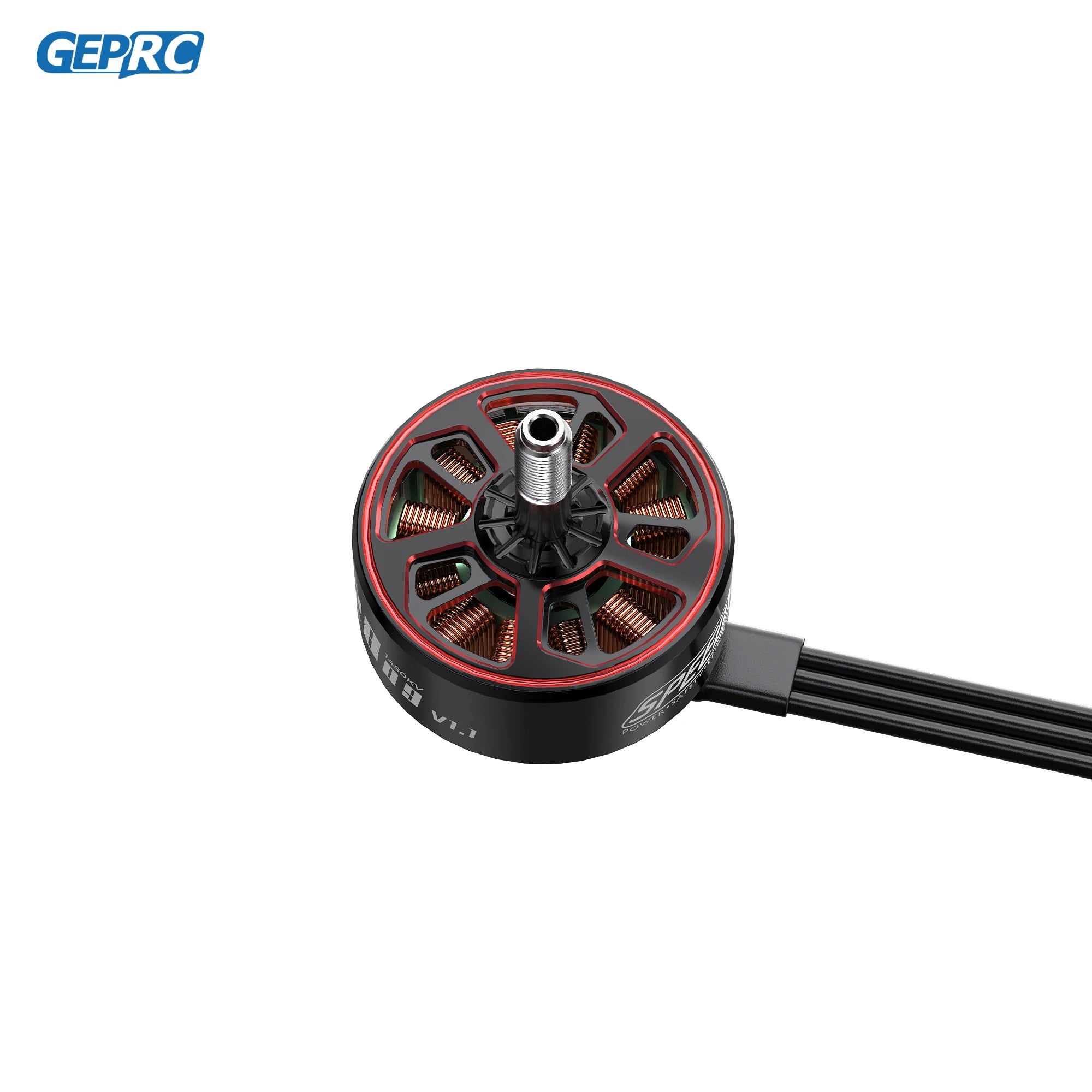

GEPRC SPEEDX2 2809 V1.1 Motor Brushless Black with 7/8 Inch MOZ7 RC FPV Racing Drone Multicopter Accessories

Summary

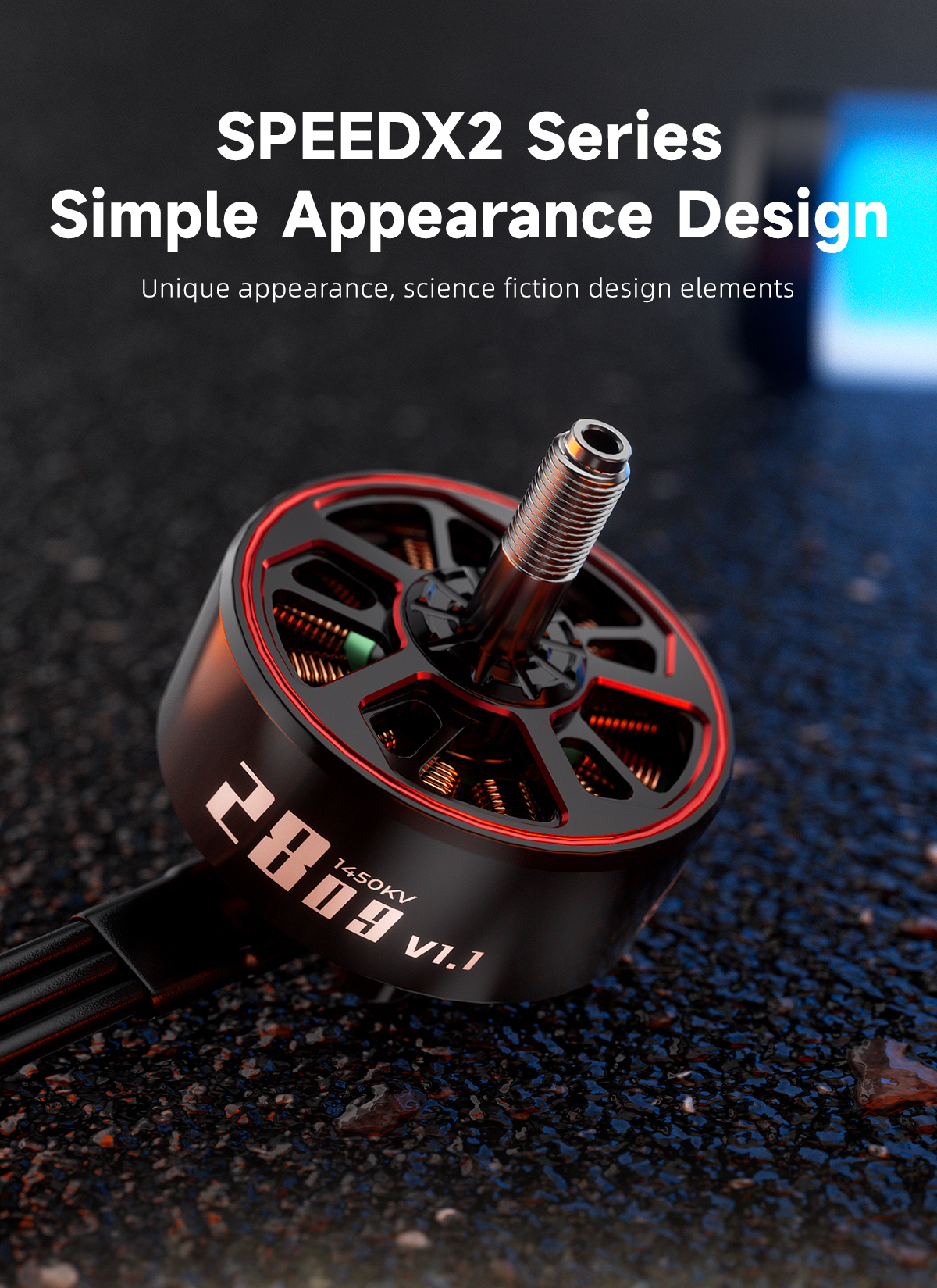

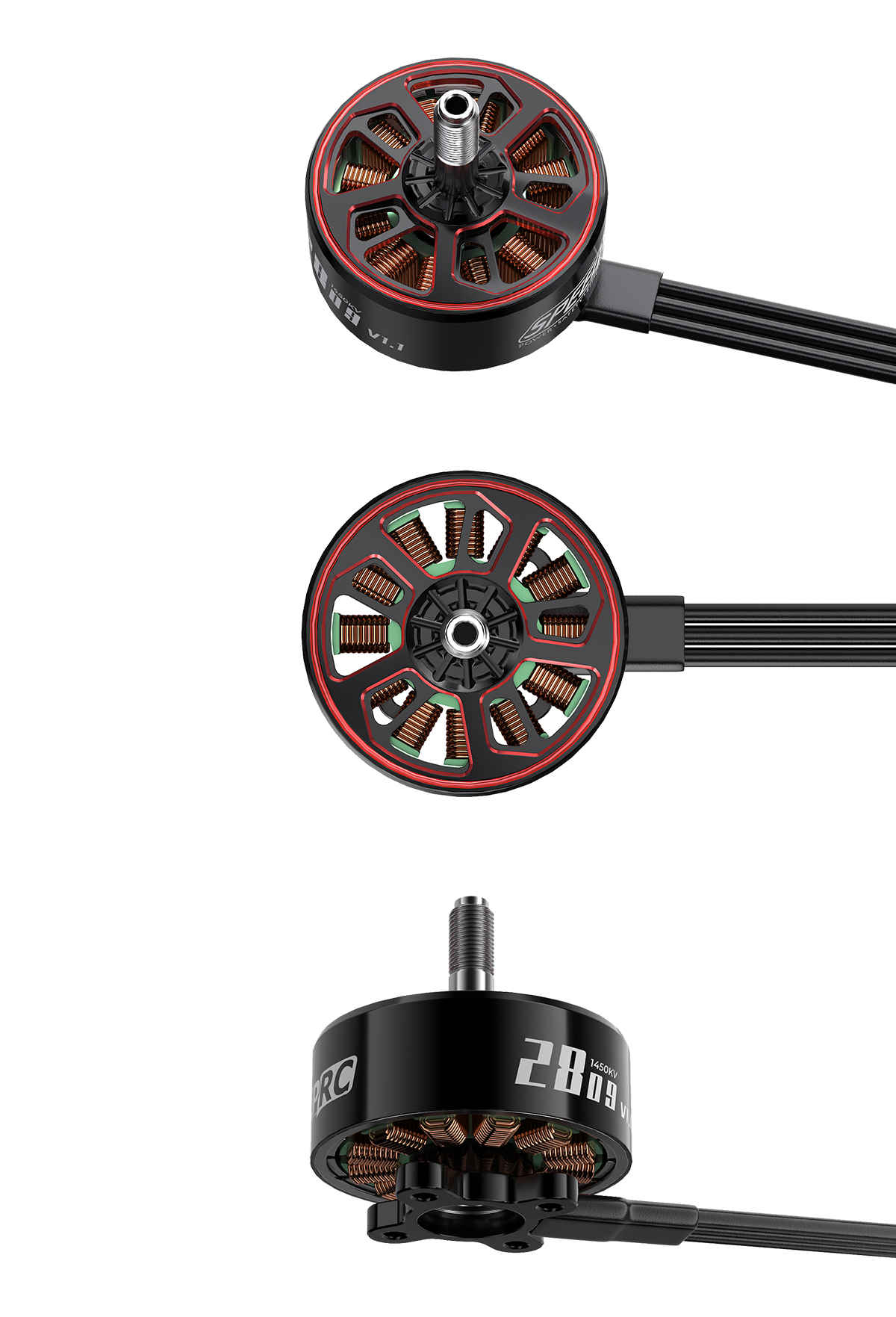

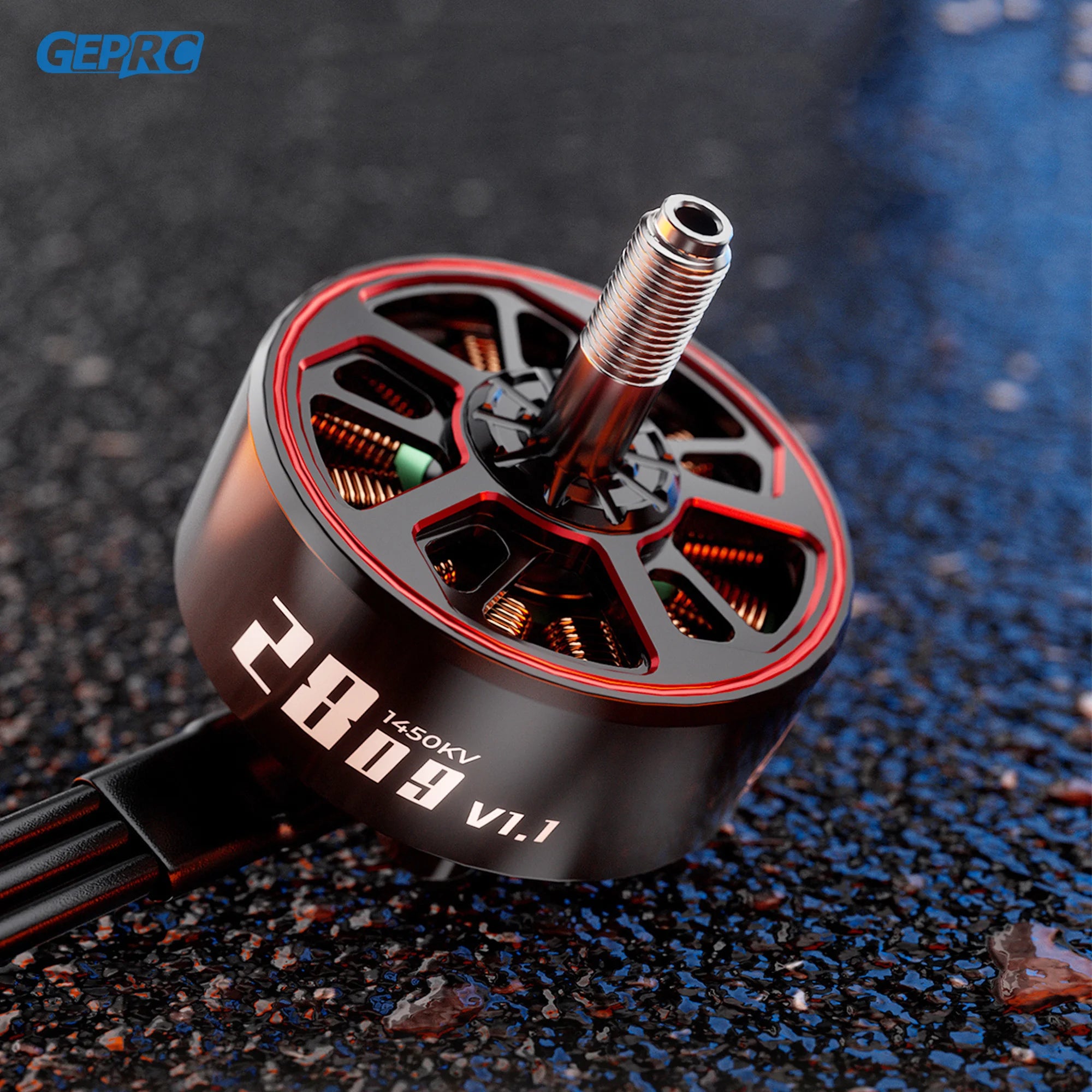

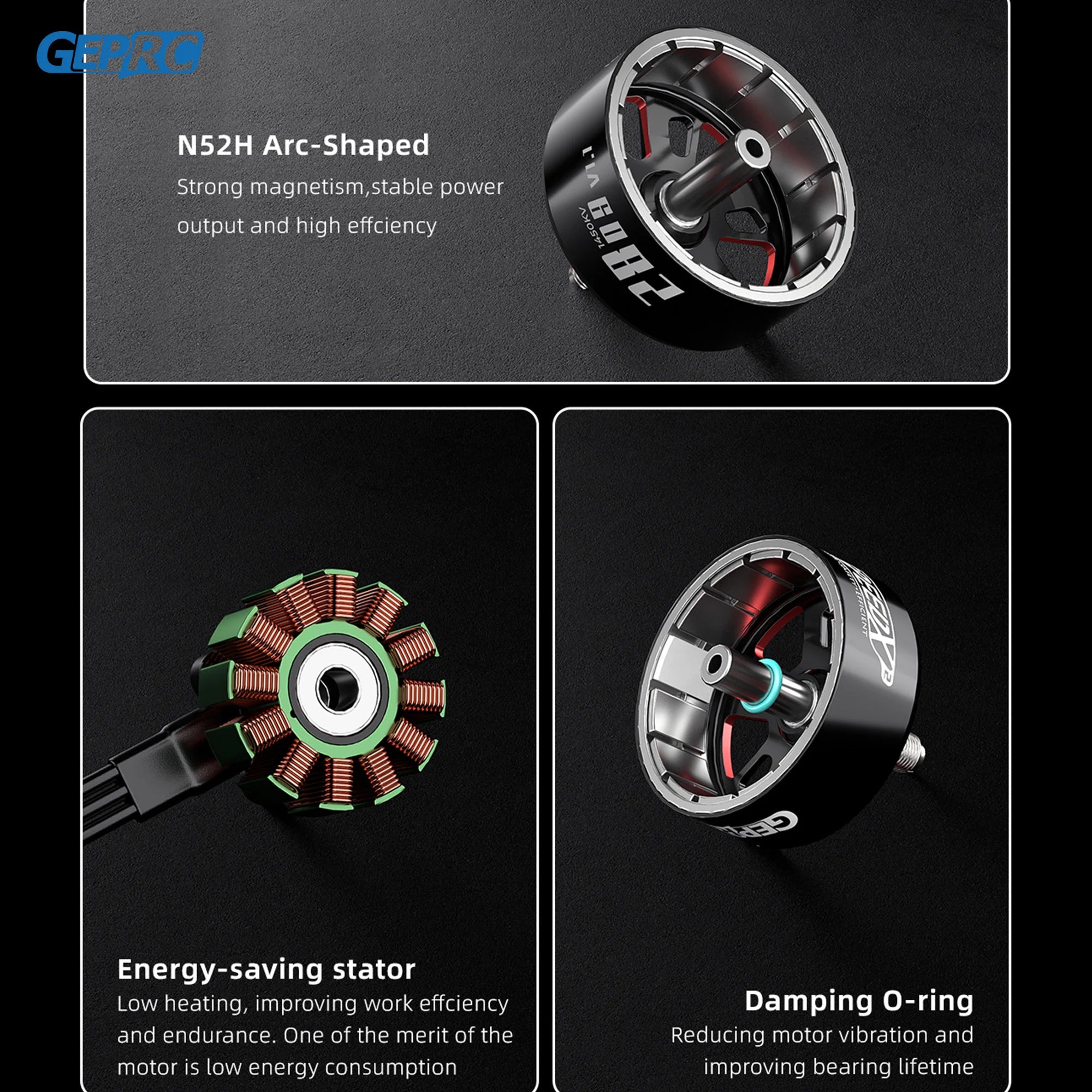

The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasaki silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm.

Feature

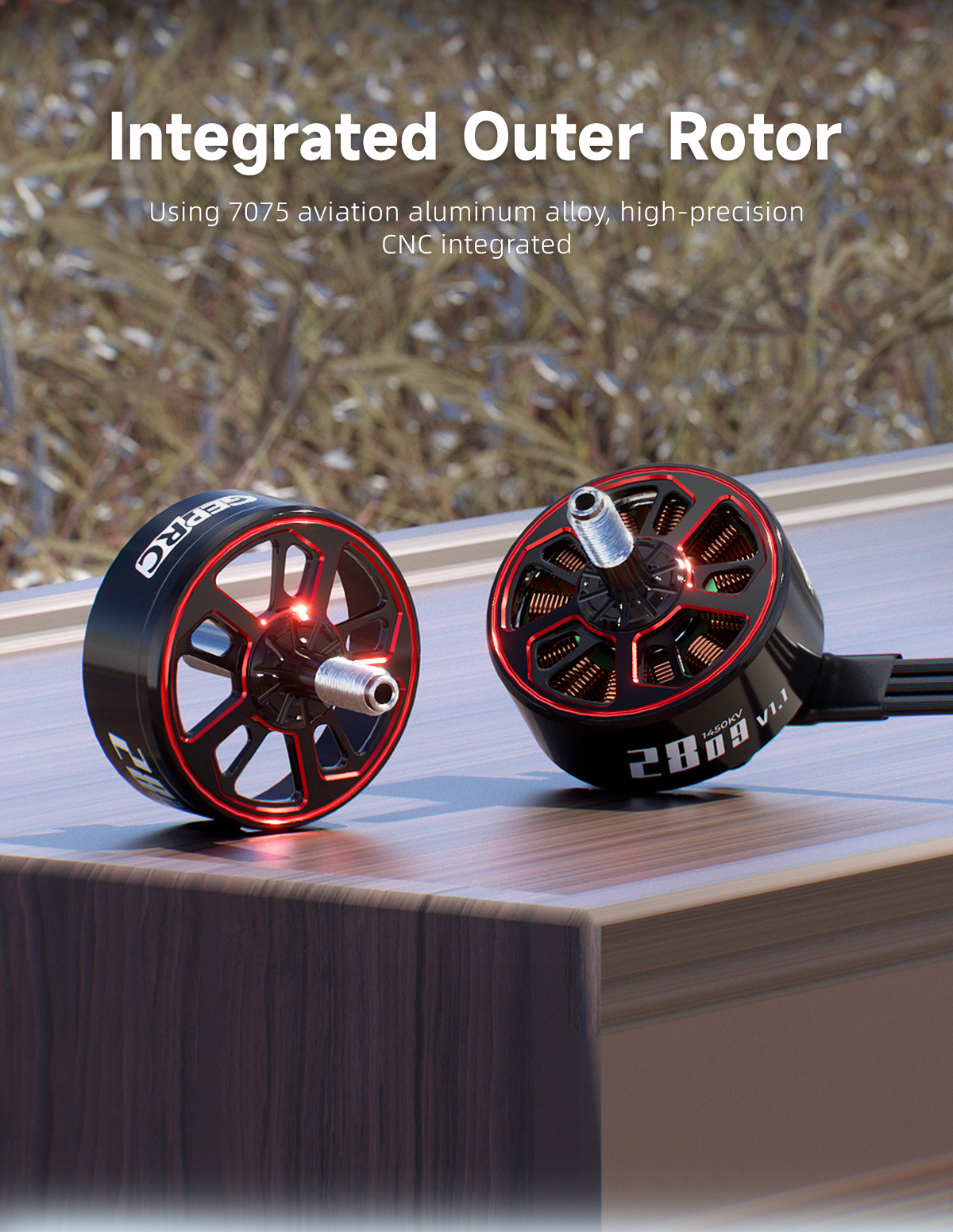

1. CNC-machined from 7075 aerospace aluminum.

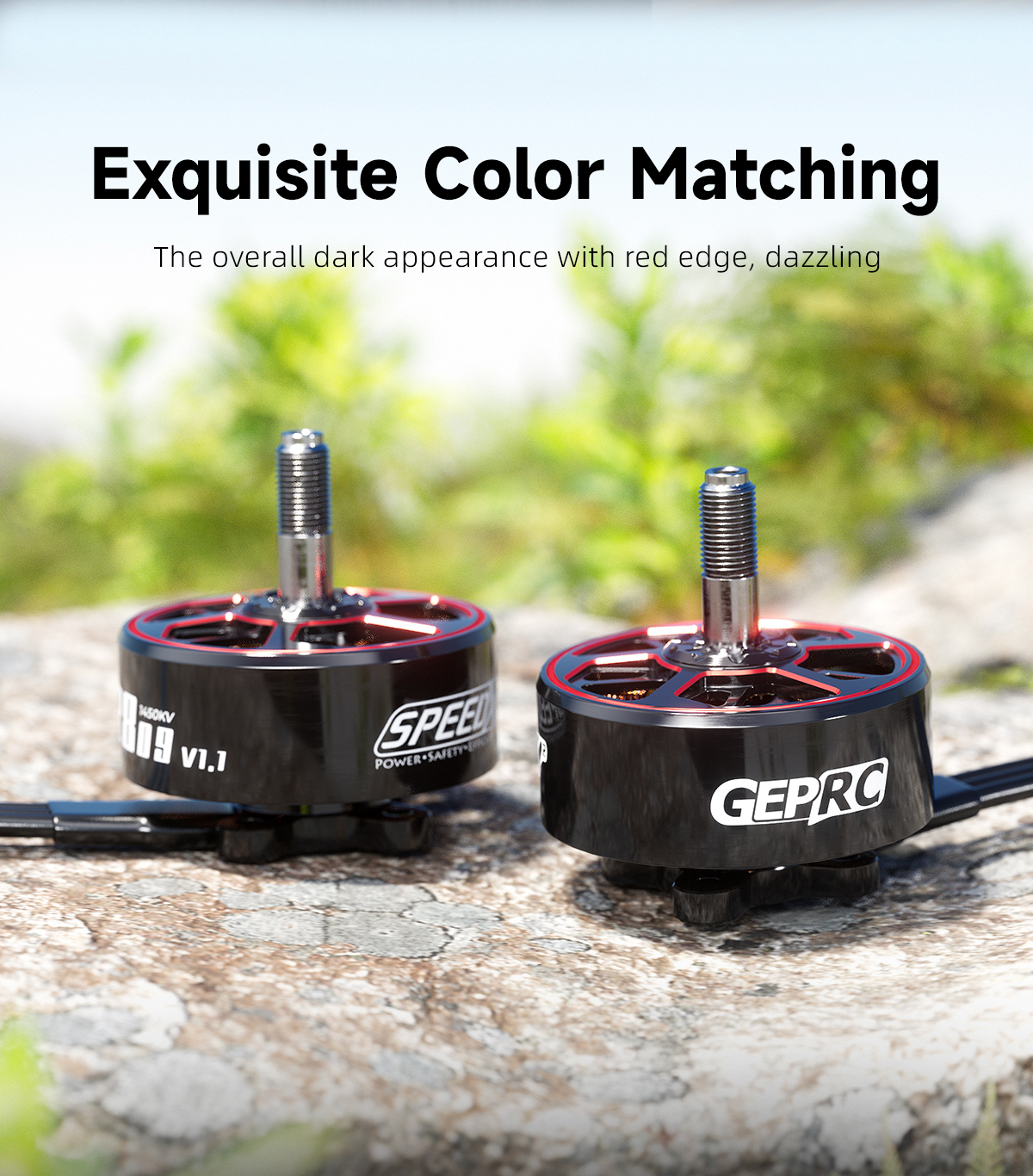

2. Clean black finish with red trim.

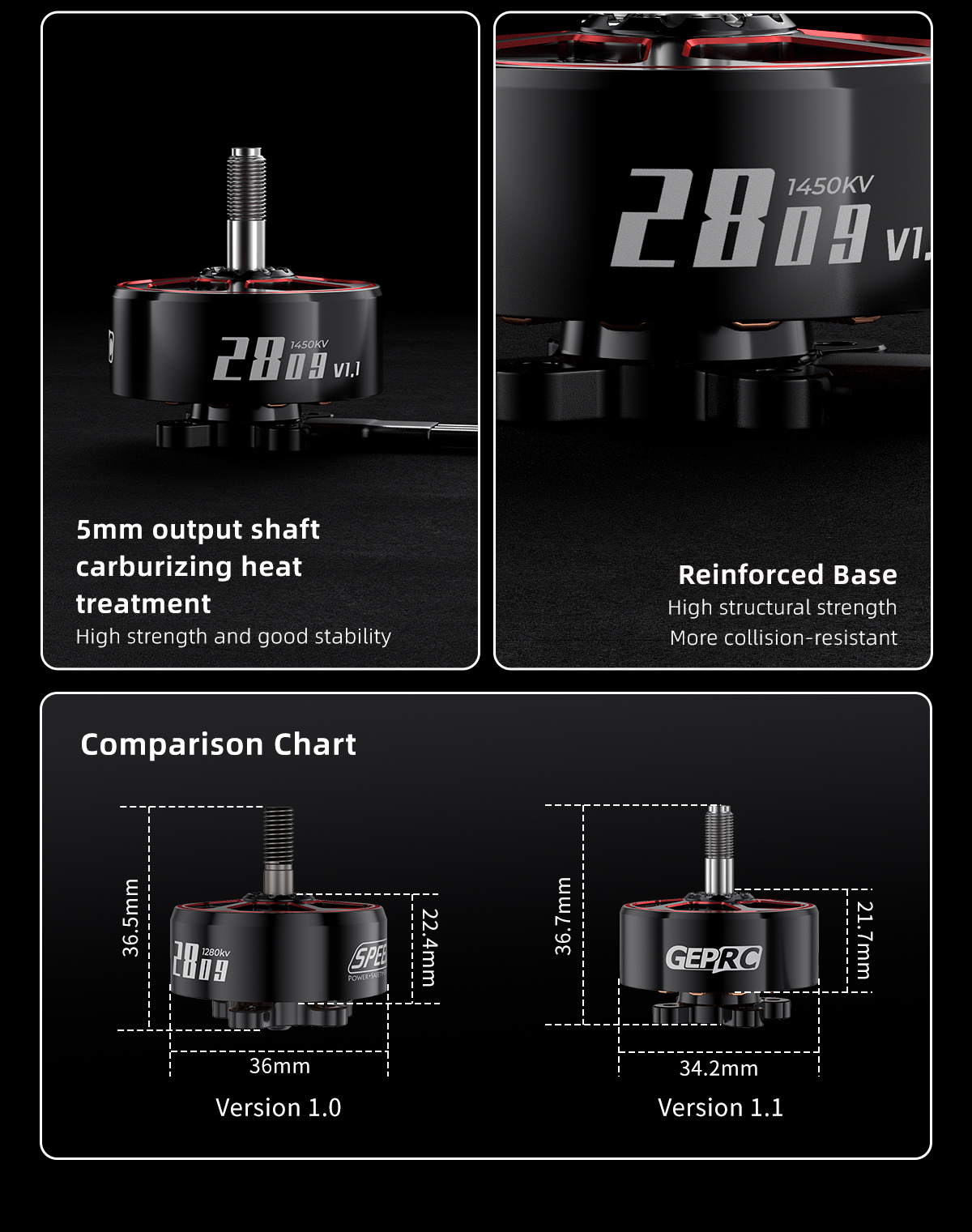

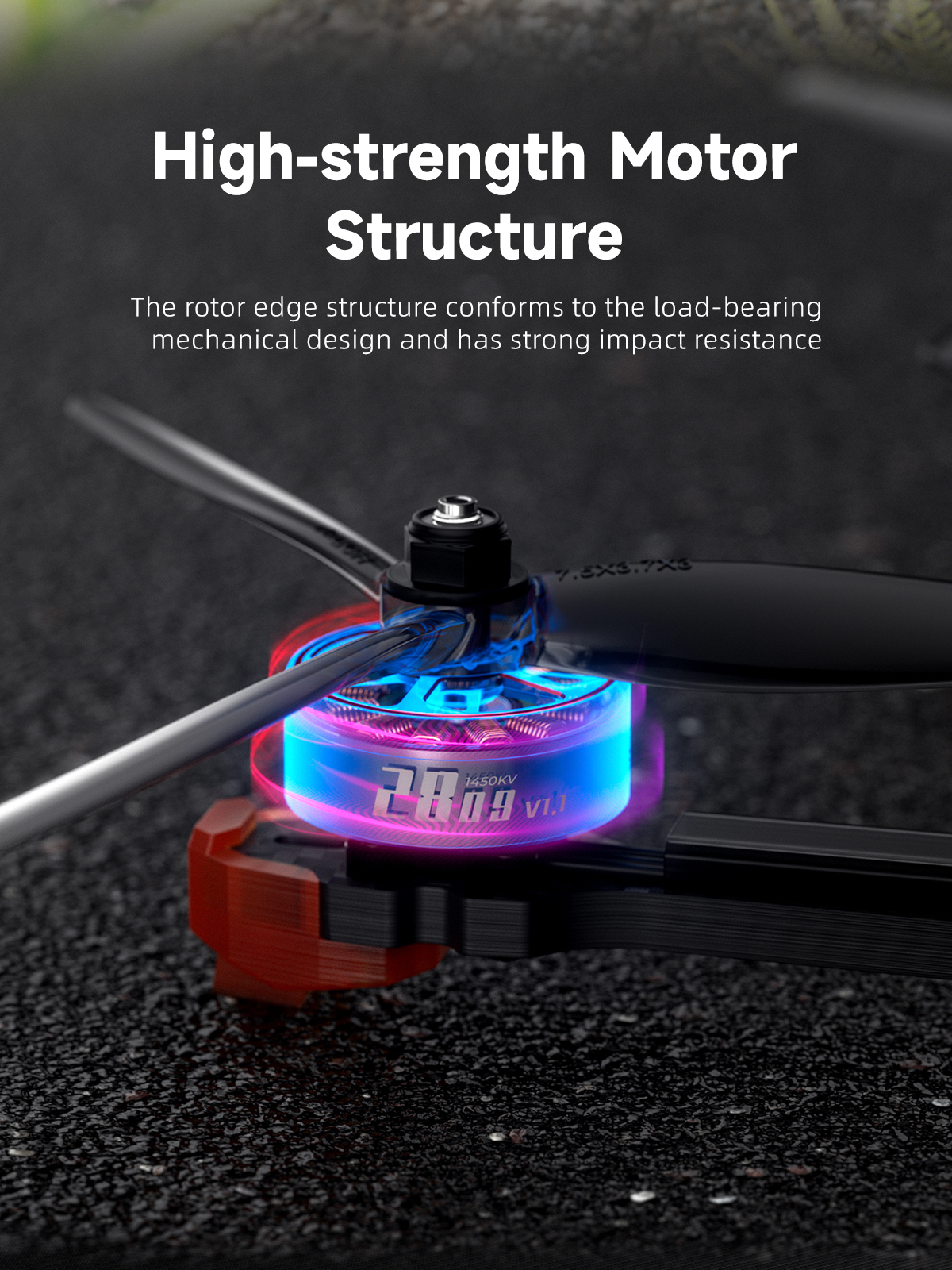

3. Reinforced rotor edges for better impact resistance.

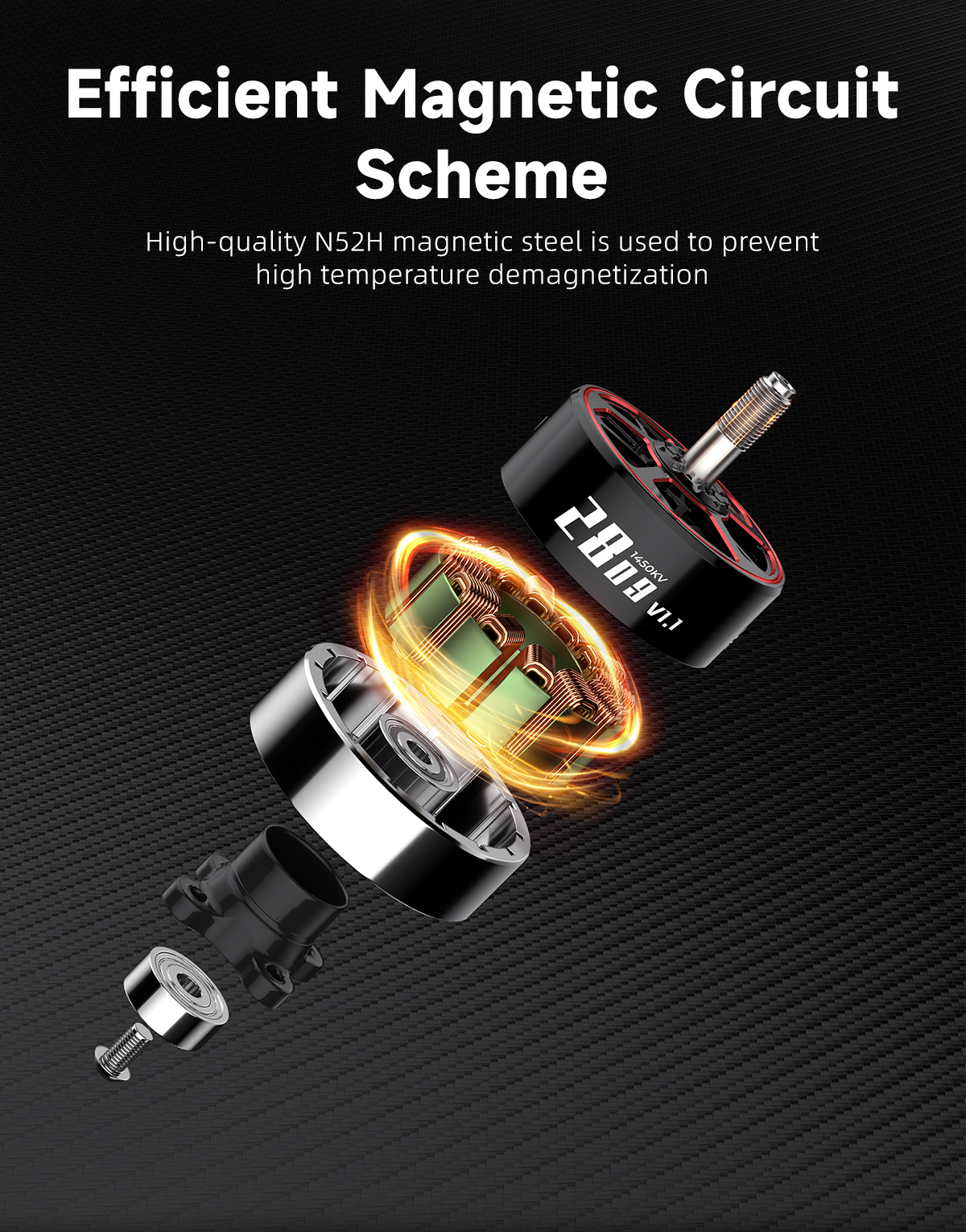

4. N52H magnets reduce the risk of heat-related demagnetization.

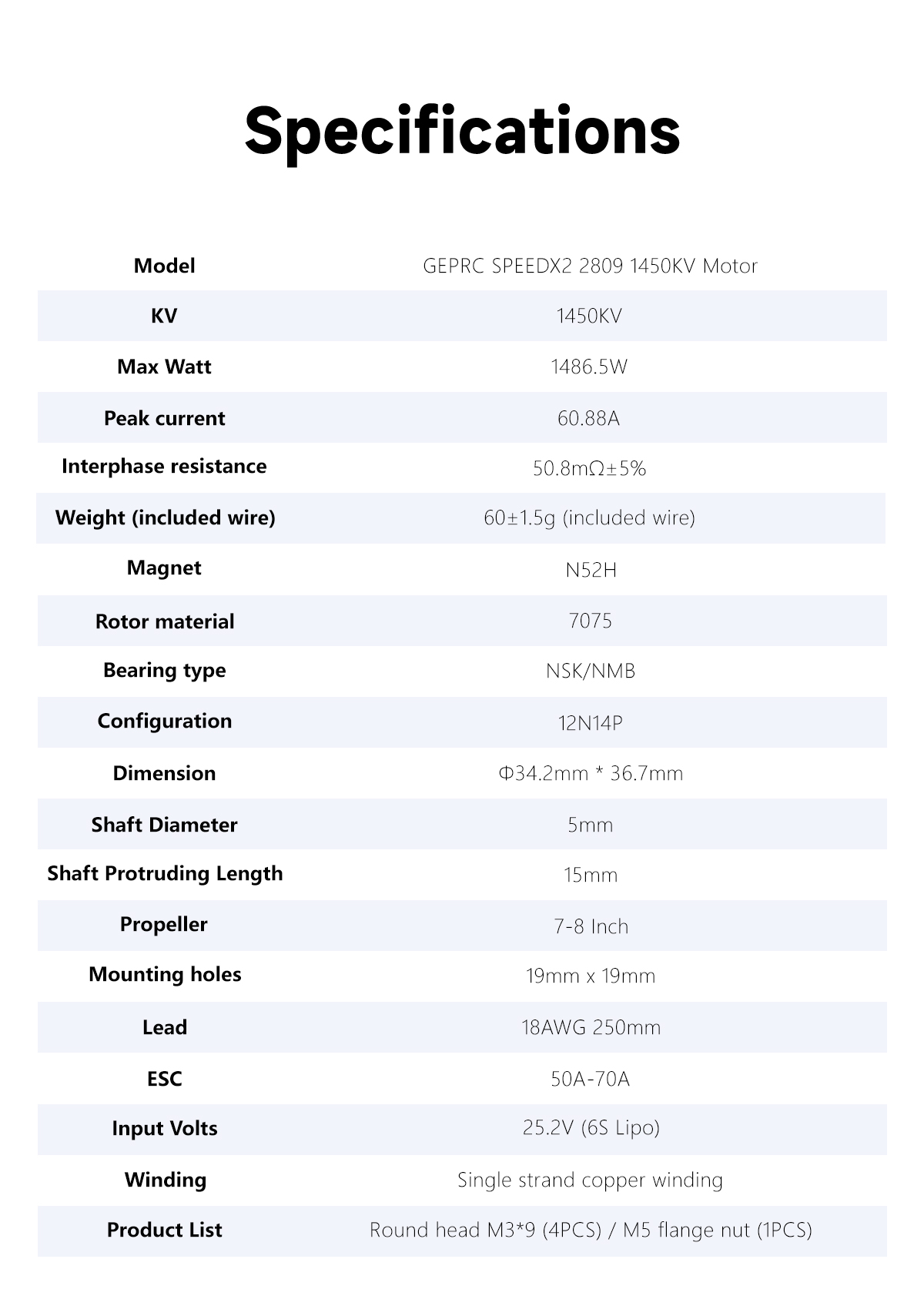

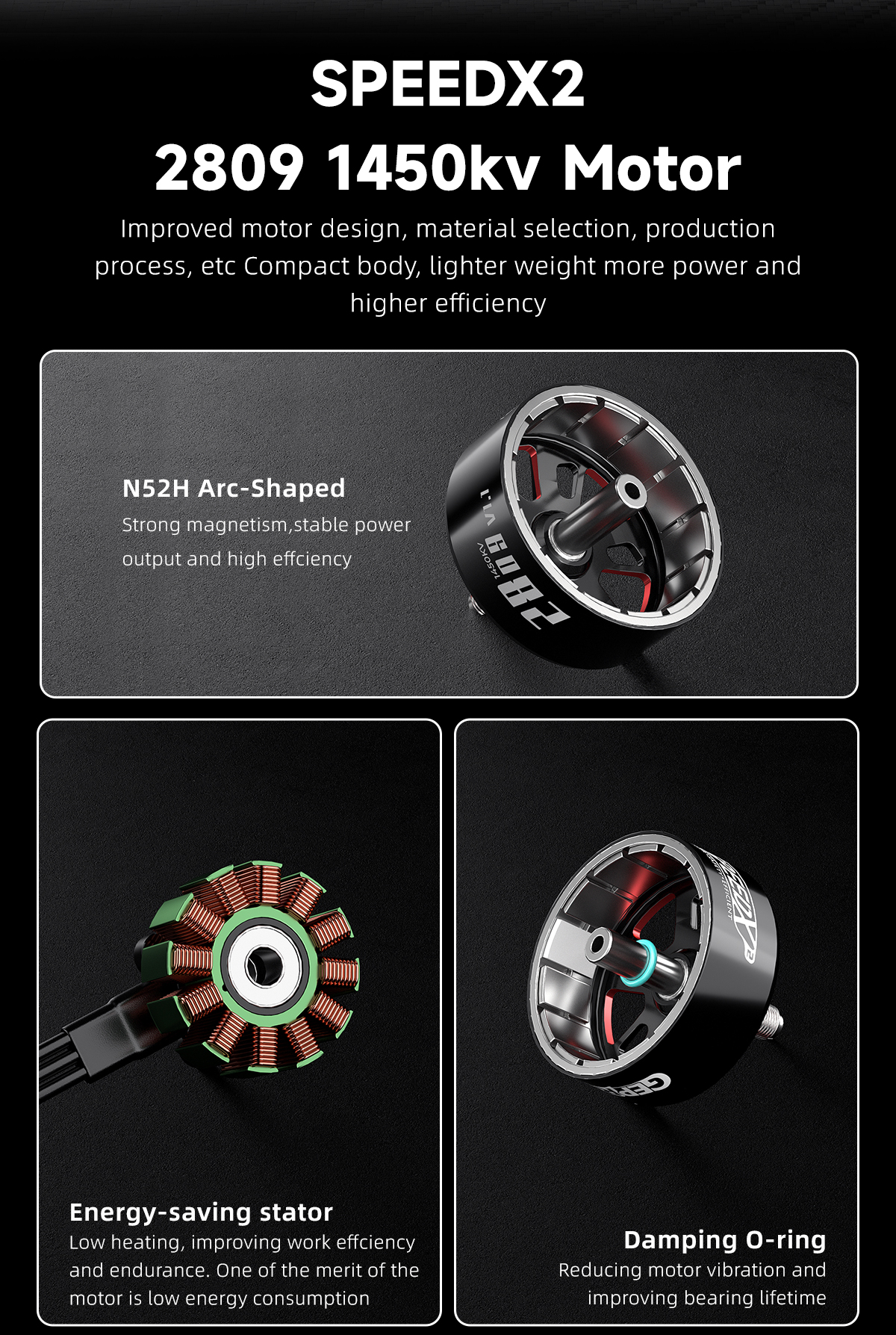

Specifications—1450KV

• Model: GEPRC SPEEDX2 2809 1450KV Motor

• KV: 1450KV

• Magnets: N52H

• Rotor Material: 7075-T6 aerospace-grade aluminum

• Stator Diameter: 28mm

• Stator Height: 9mm

• Shaft Diameter: Φ5mm

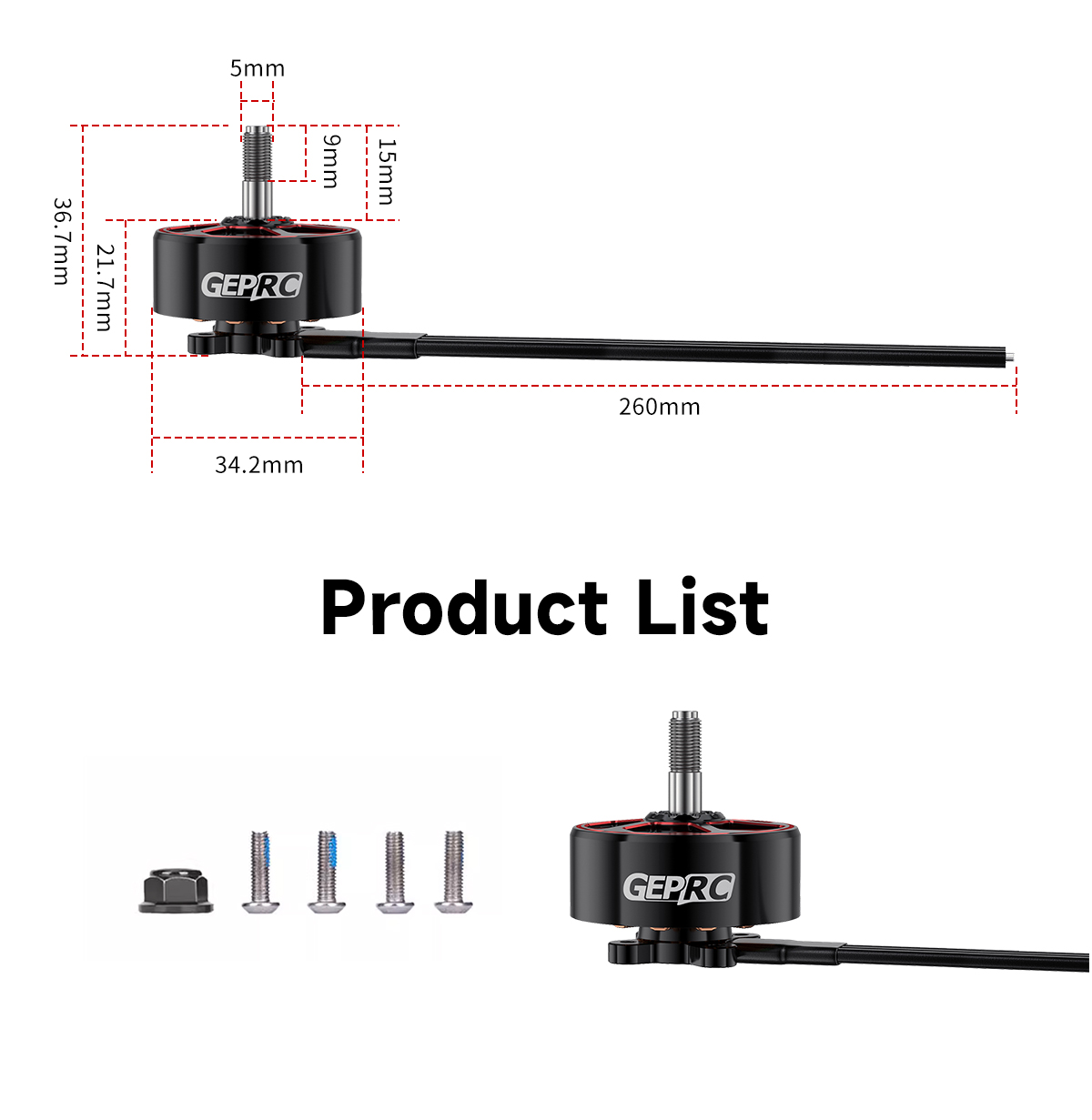

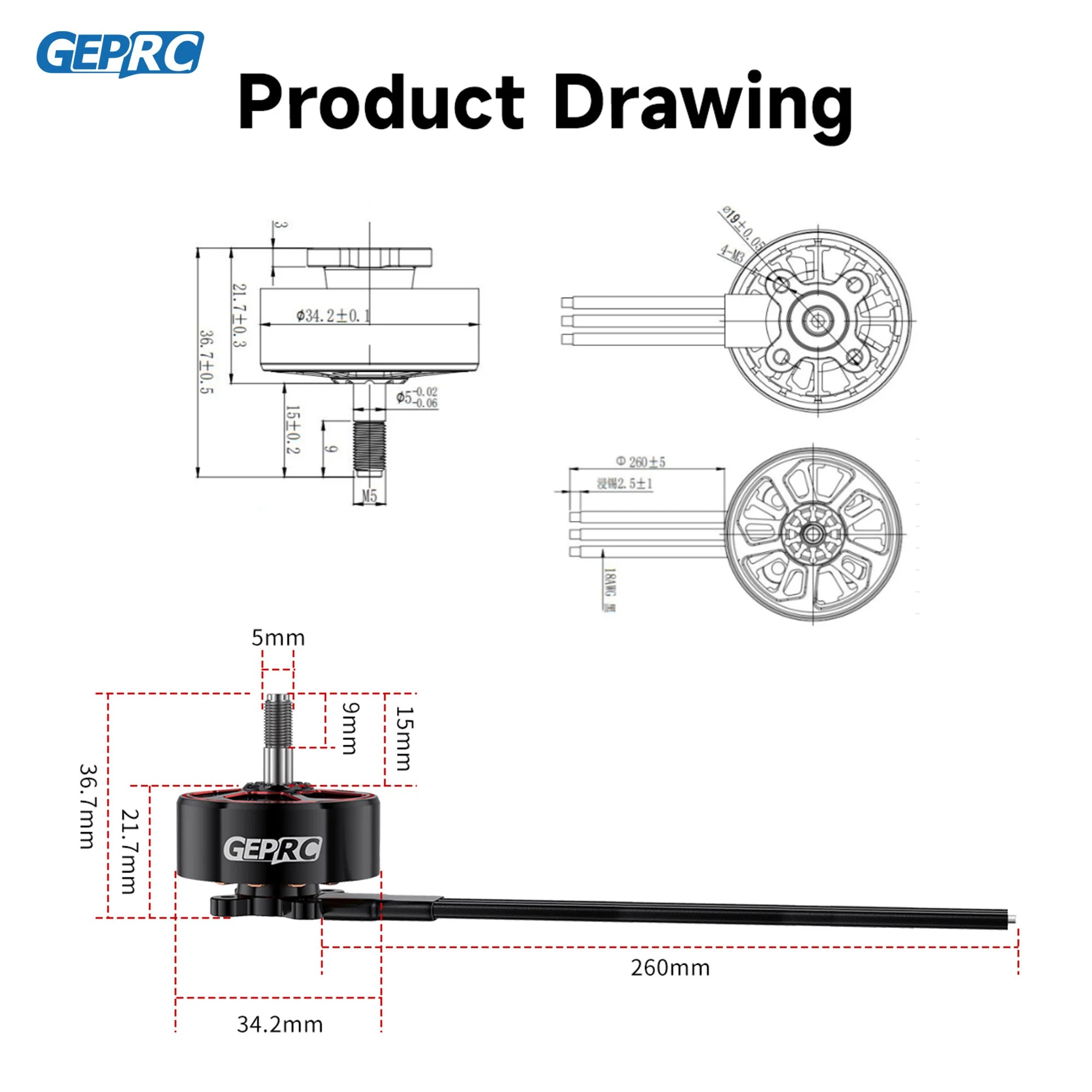

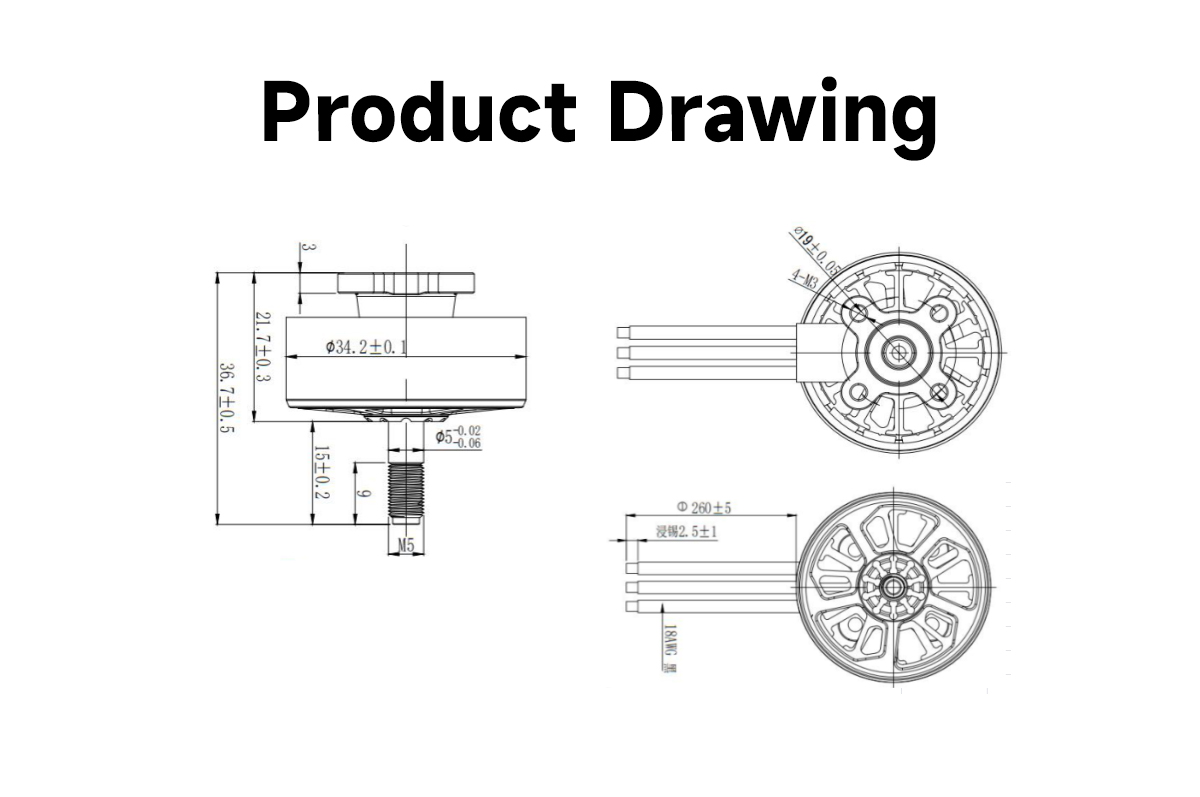

• Dimensions: Φ34.2mm × 36.7mm

• Wire: 18AWG, 250mm

• Input Voltage: 25.2V 6S (Lipo)

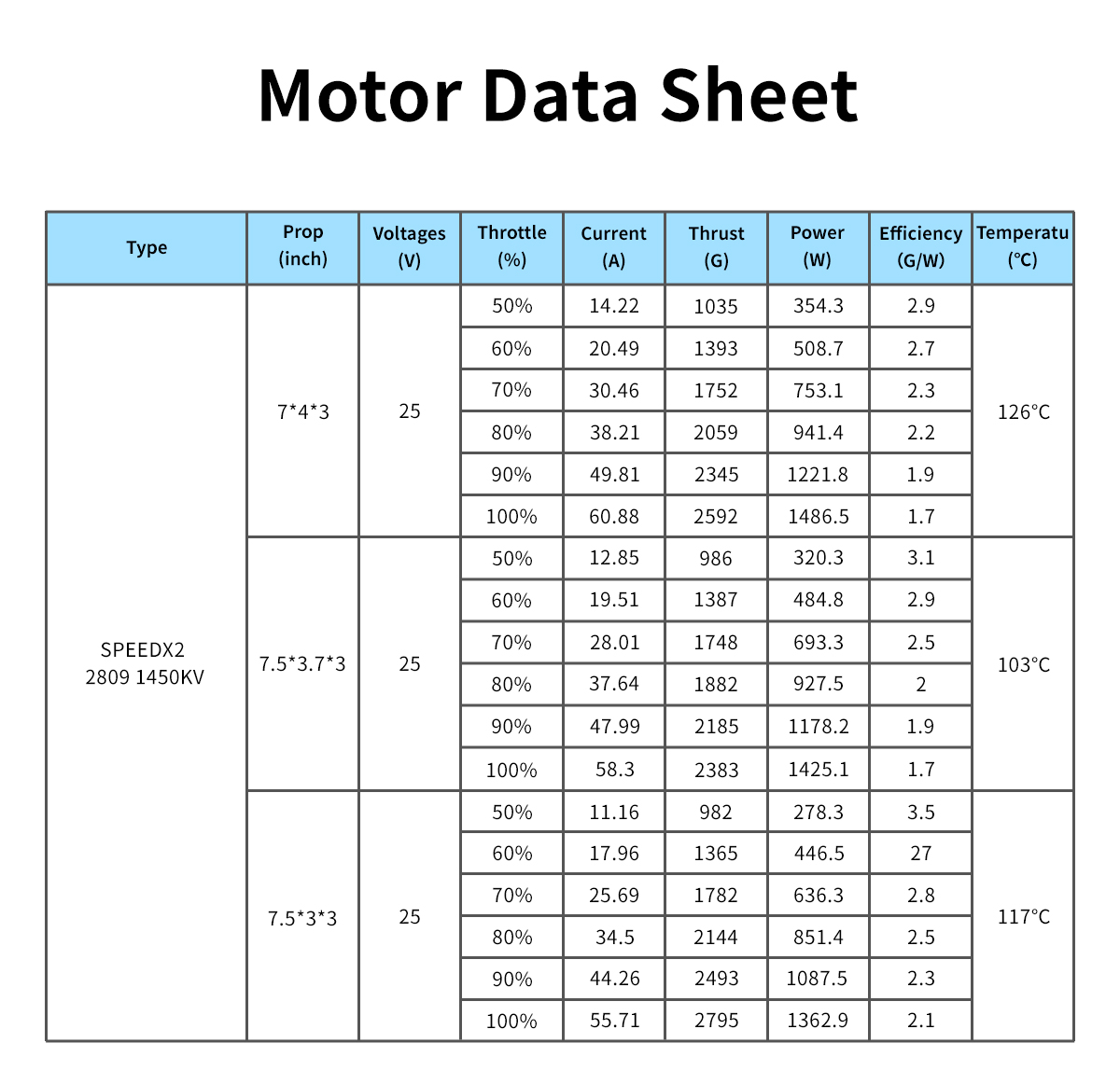

• Max Power (W): ≤1455.2W

• Max Current (A):60.88A

• Mounting Pattern: 19×19mm (M3)

• Color: reddish black

• Weight: 60.1g (with wire)

• Compatible Models: 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds

Specifications—-1280KV

• Model: GEPRC SPEEDX2 2809 1280KV Motor

• KV: 1280KV

• Magnets: N52H

• Rotor Material: 7075-T6 aerospace-grade aluminum

• Stator Diameter: 28mm

• Stator Height: 9mm

• Shaft Diameter: Φ5mm

• Dimensions: Φ34.2mm * 36.7mm

• Wire: 18AWG, 250mm

• Input Voltage: 25.2V 6S (Lipo)

• Max Power (W): ≤1486.5W

• Max Current (A): 59.06A

• Mounting Pattern: 19×19mm (M3)

• Color: Reddish black

• Weight: 60.1g (with wire)

• Compatible Models: 7–8 inch long-range FPV drones / 7–8 inch X8 builds

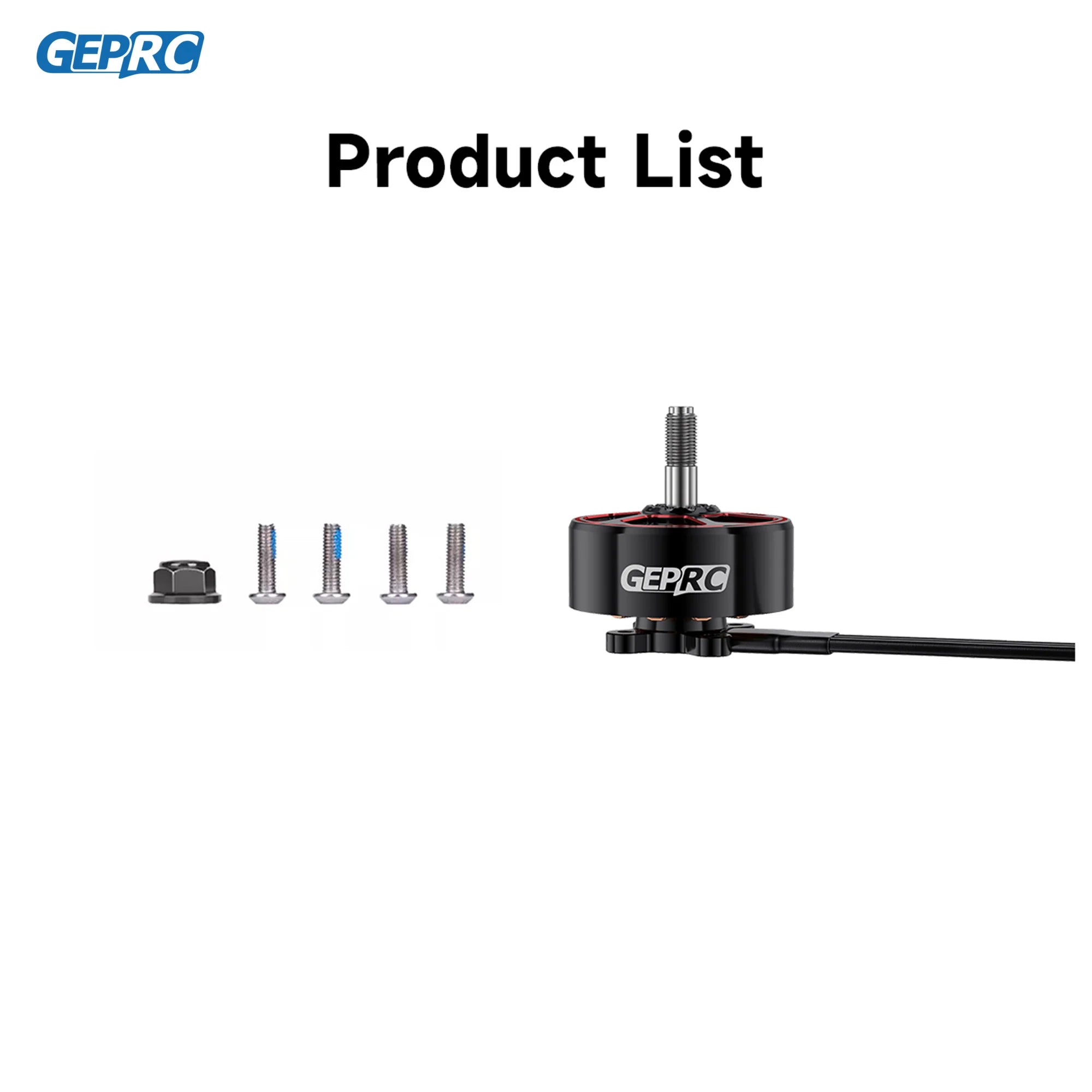

Product List

1 x GEPRC SPEEDX2 2809 motor
4 x M3*9 half-round head screws
1 x M5 anti-slip mut
