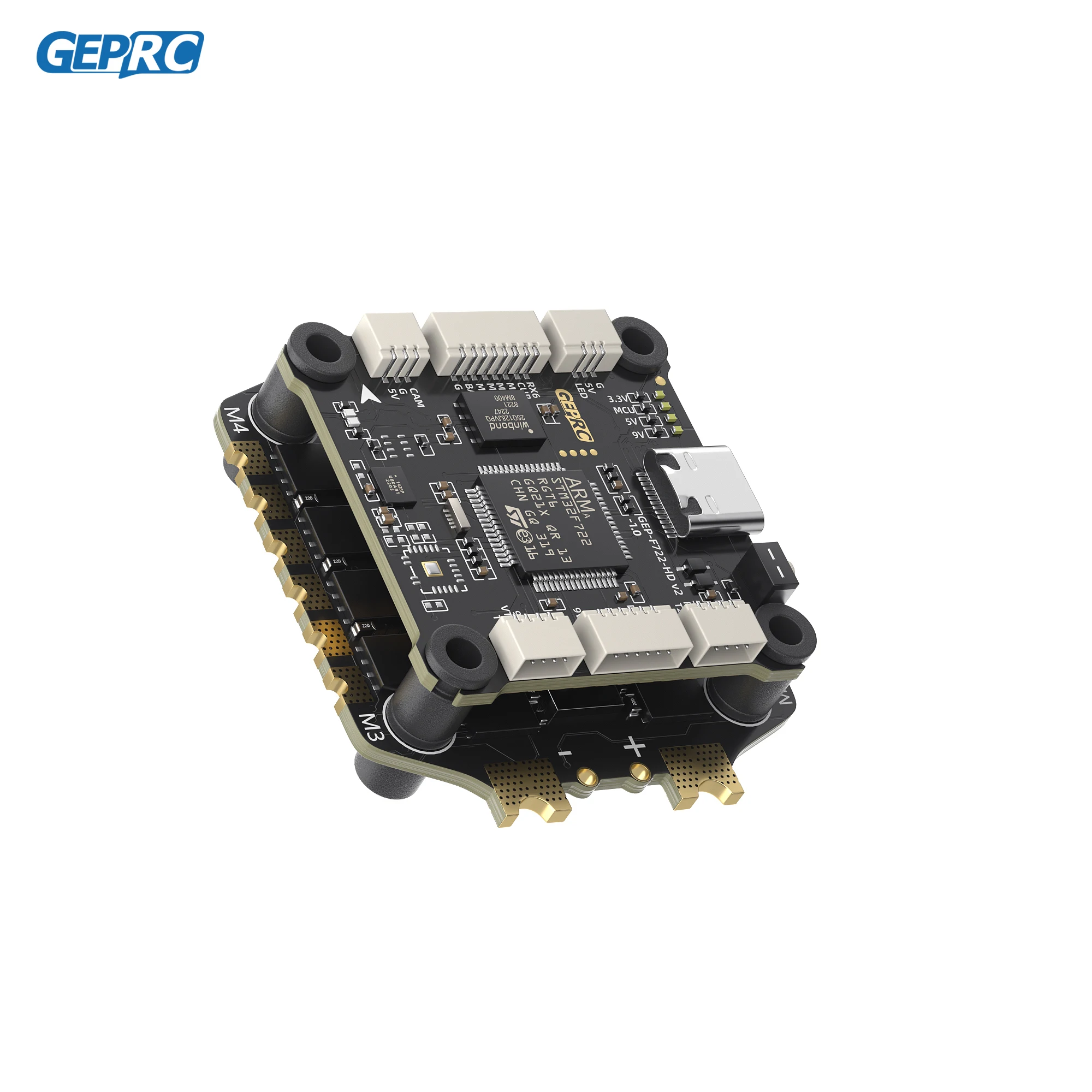

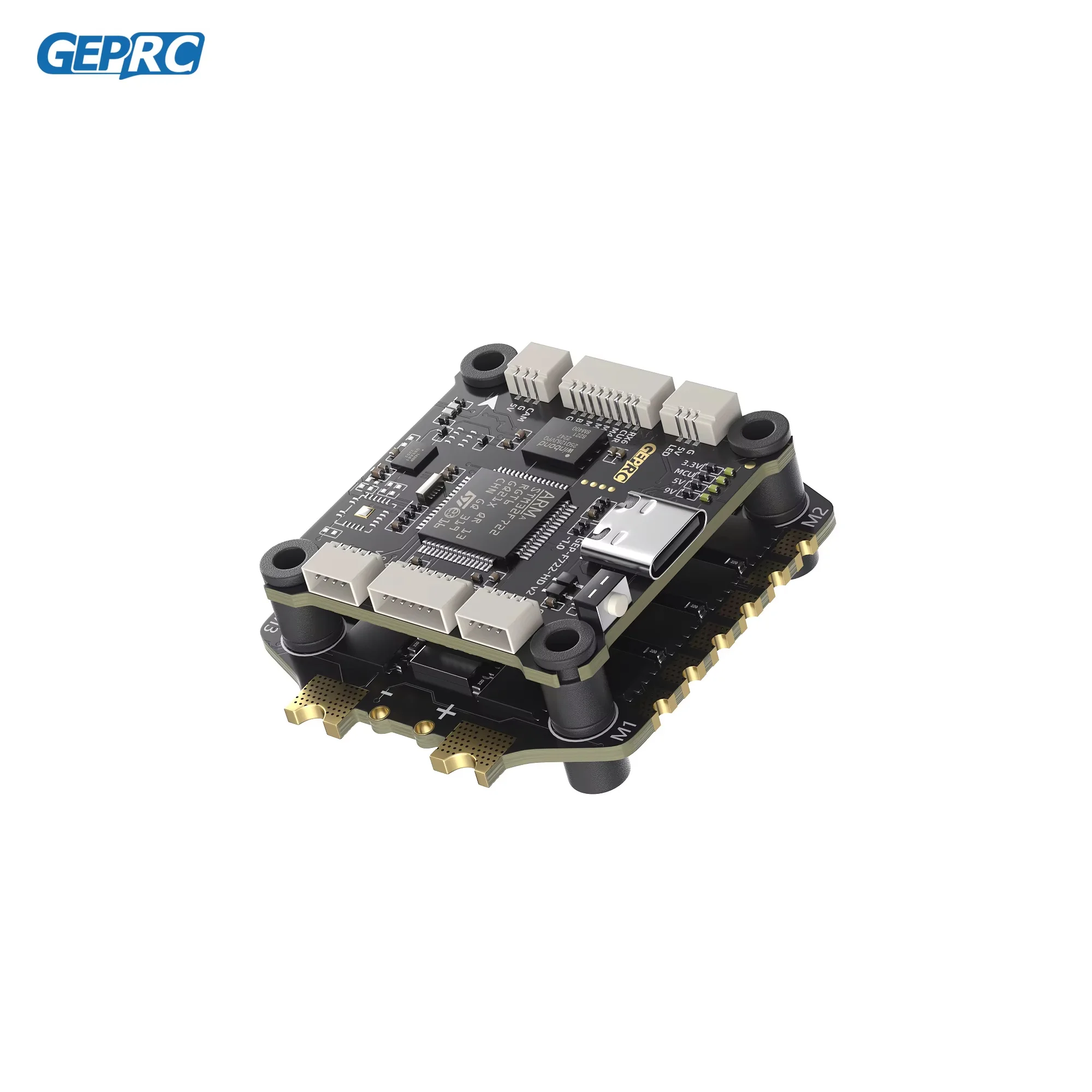

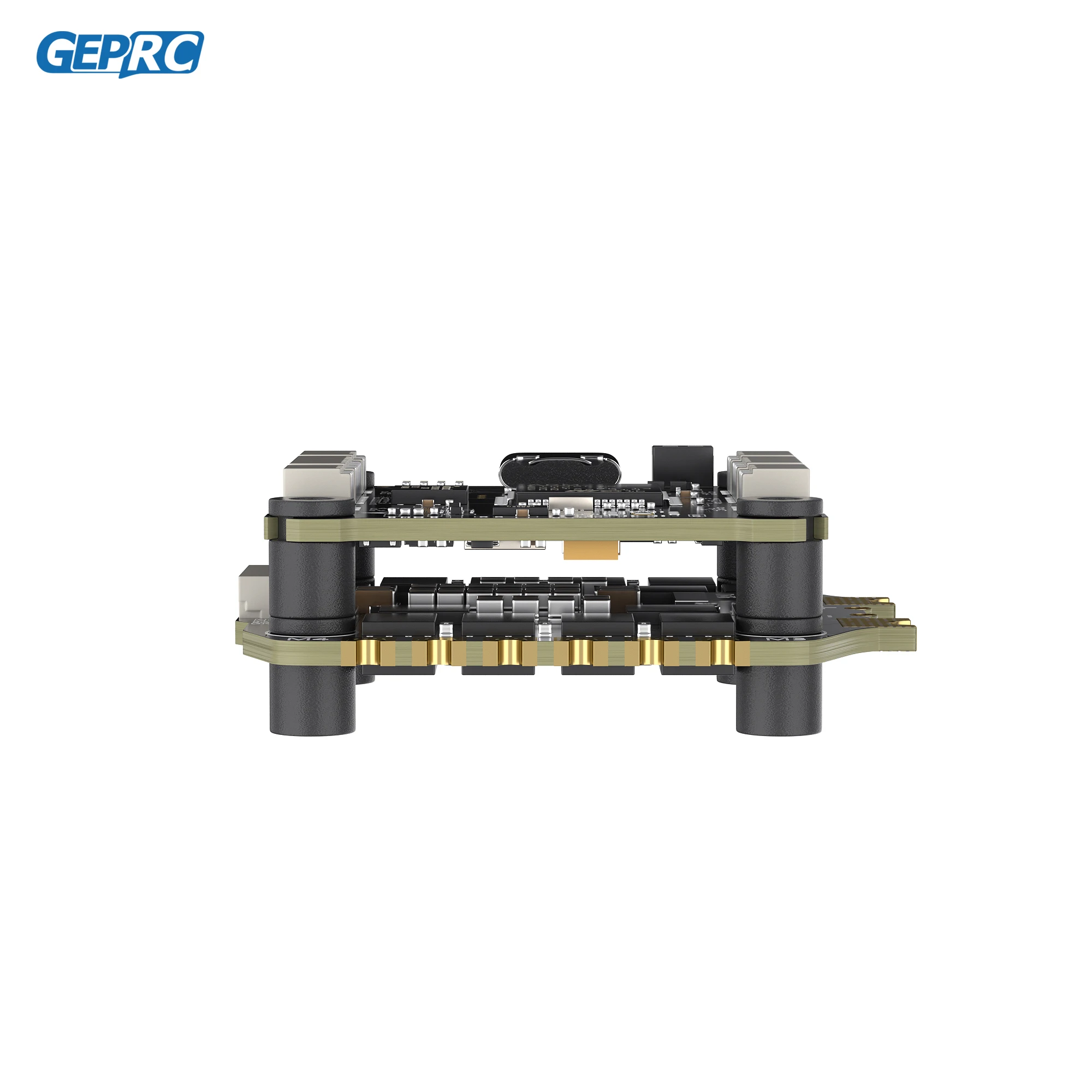

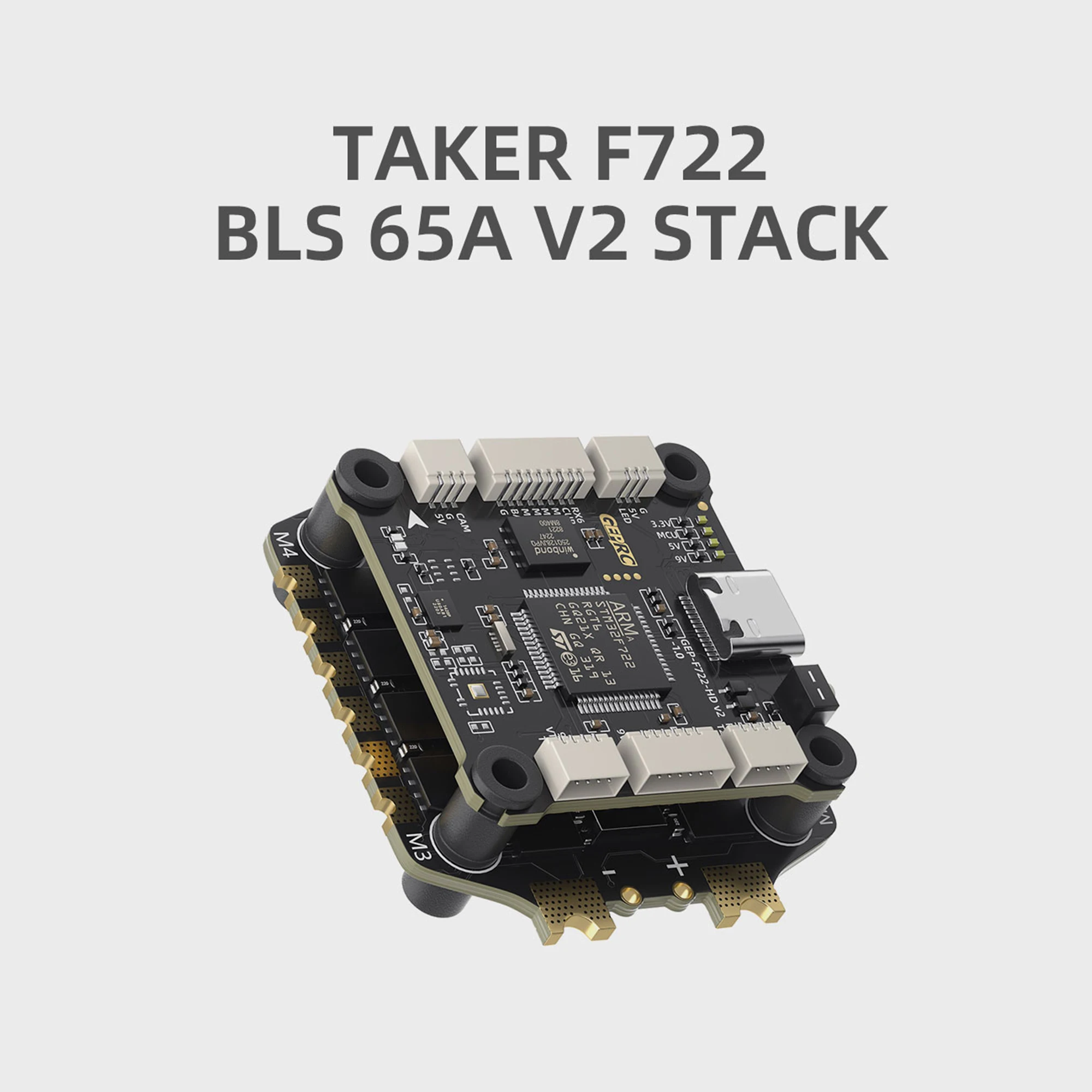

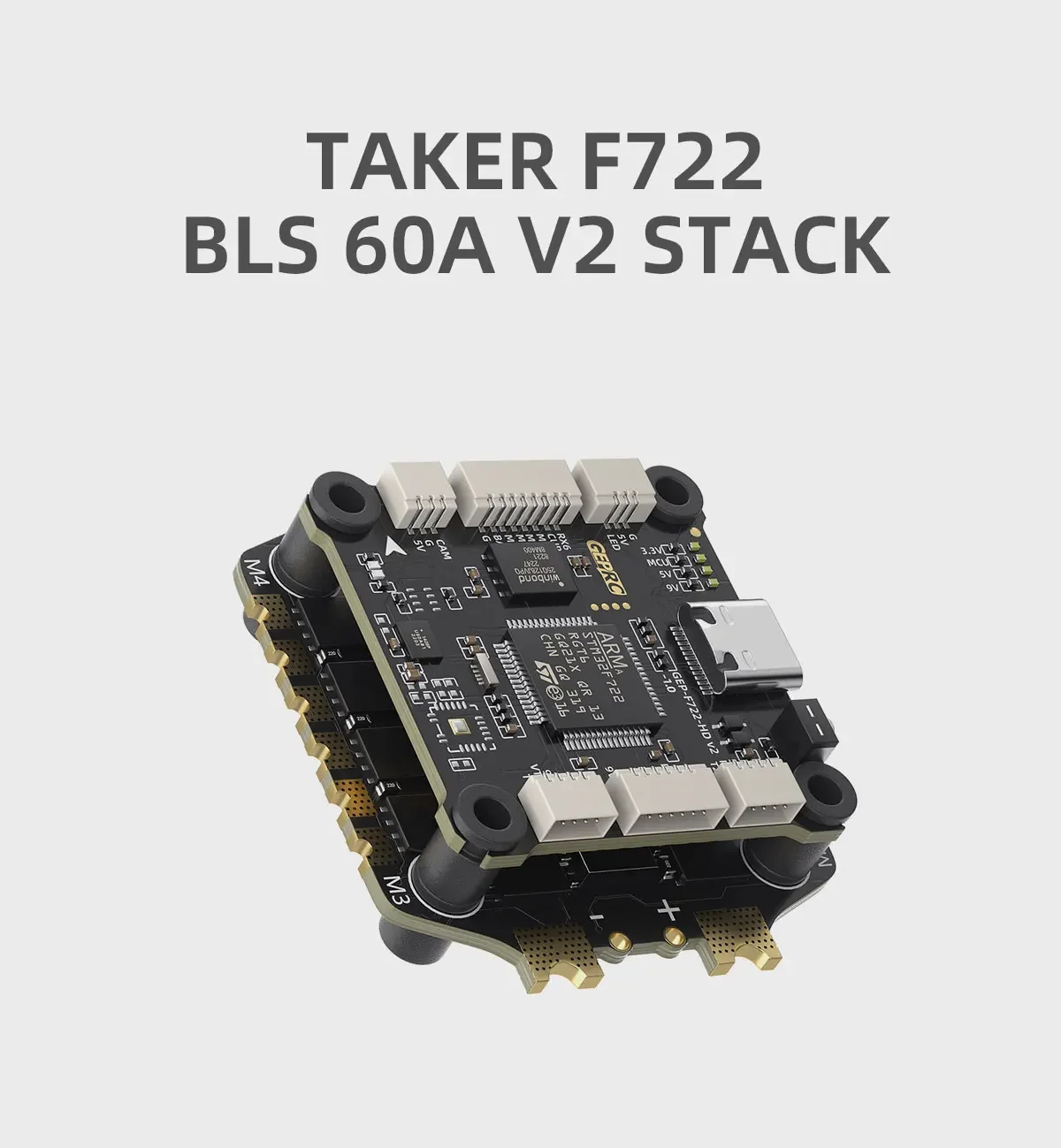

GEPRC TAKER F722 BLS 60A 65A 80A V2 STACK 4IN1 ESC Flight Controller Data Analyze Record Flight Data Plug Play Racing FPV Drone

Description

Note: Contents vary by selected package and product specifications.

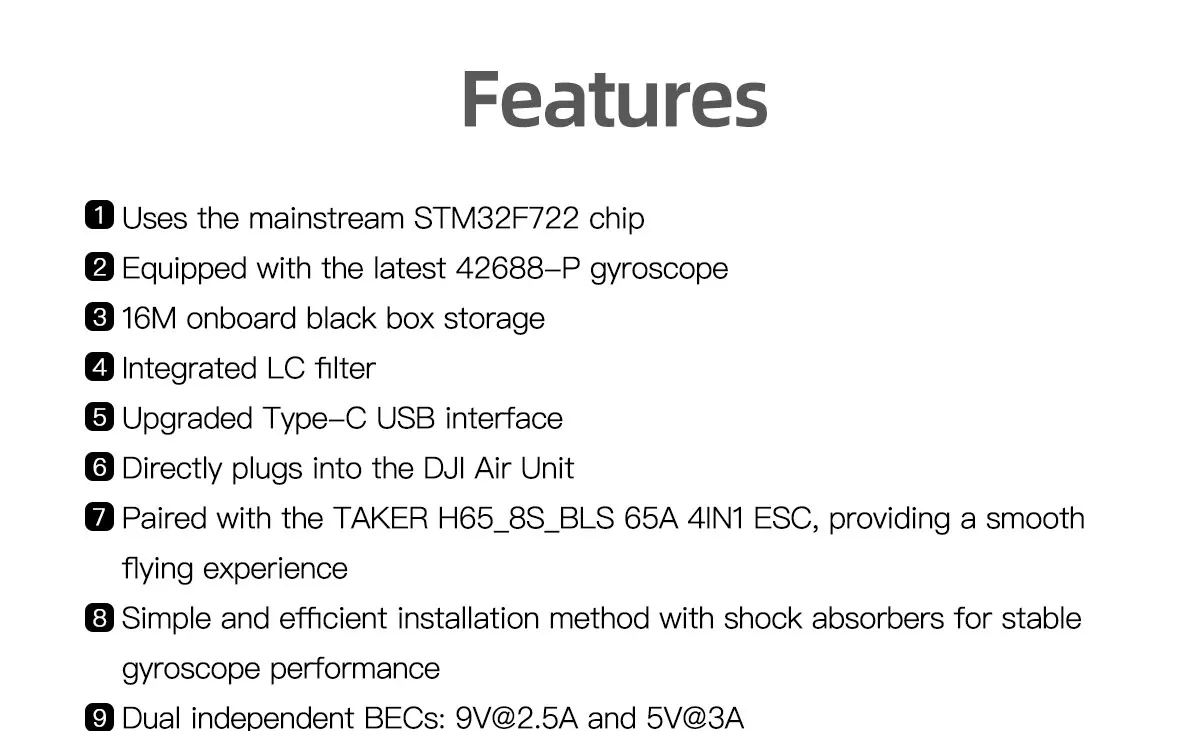

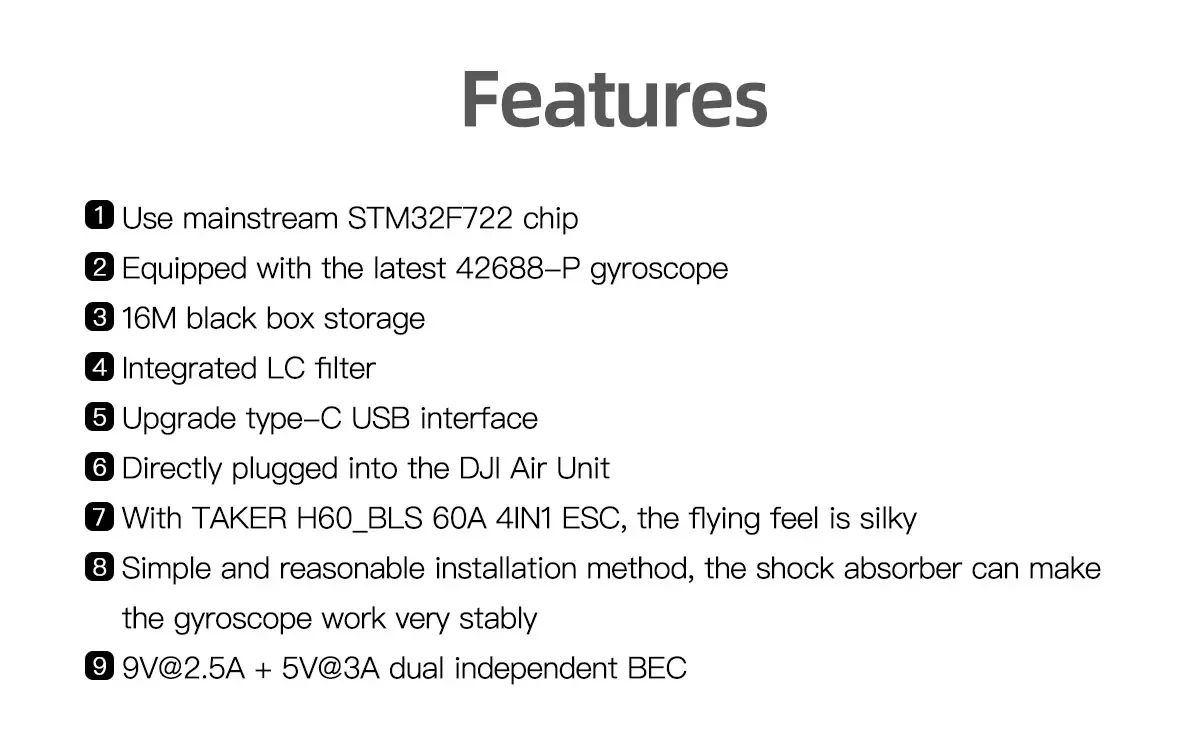

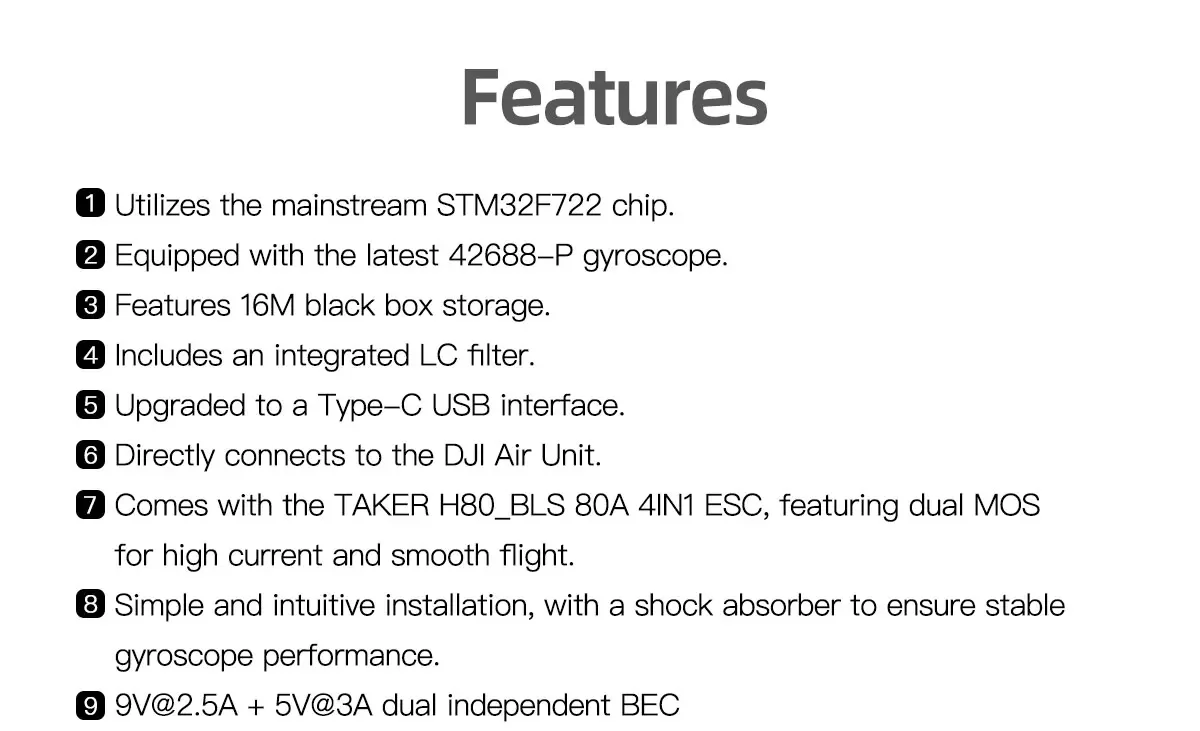

nFeature
n1. Uses the mainstream STM32F722 chip
n2. Equipped with the latest 42688-P gyroscope
n3.16M onboard black box storage
n4. Integrated LC filter
n5. Upgraded Type-C USB interface
n6. Directly plugs into the D JI Air Unit
n7. Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience
n8. Simple and efficient installation method with shock absorbers for stable gyroscope performance
n9. Dual independent BECs: 9V@2.5A and 5V@3A

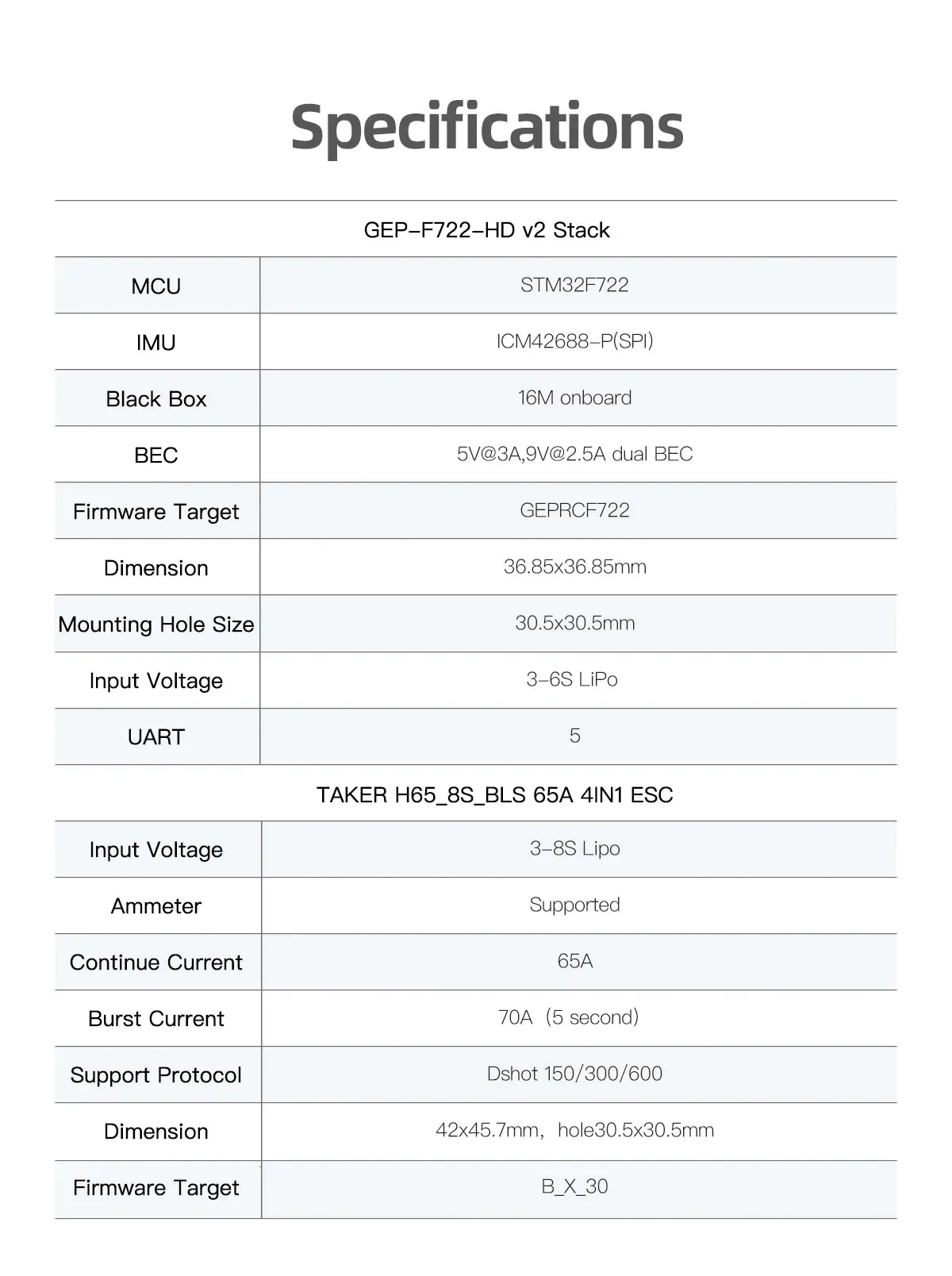

nSpecifications
nGEP-F722-HD v2 Flight Controller
nMCU: STM32F722
nIMU: ICM42688-P(SPI)
nAir Unit Connection: Direct plug-in to D JI Air Unit
nBlack Box:16M onboard
nUSB Interface: Type-C
nBarometer: supported
nOSD: BetaFlight OSD w/ AT7456E chip
nBEC: 5V@3A,9V@2.5A dual BEC
nFirmware Target: GEPRCF722
nDimension: 36.85×36.85mm, mounting hole size 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
nInput Voltage: 3-6S LiPo
nUART: 5
nPower Filter: Integrated LC filter
nWeight: 8.1g

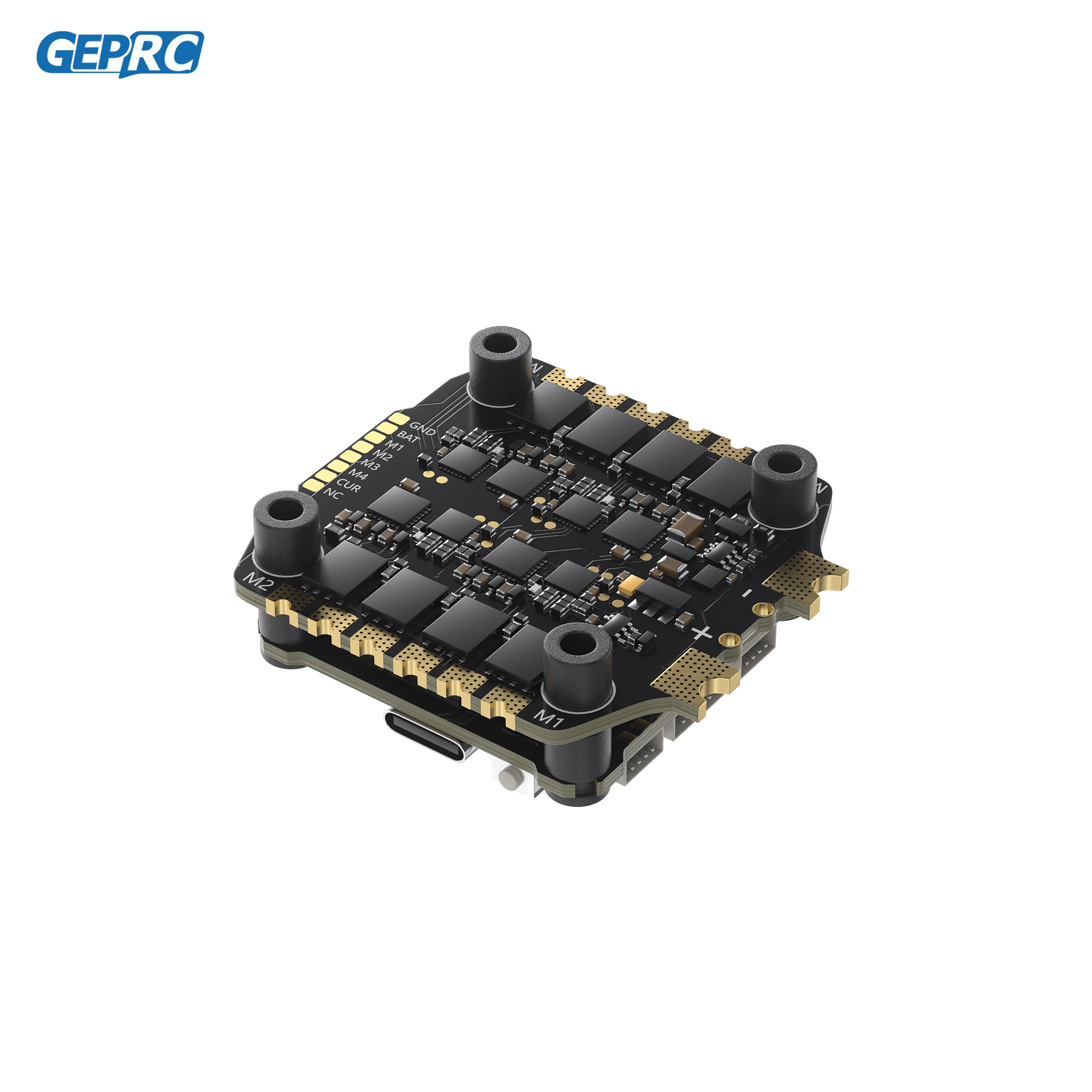

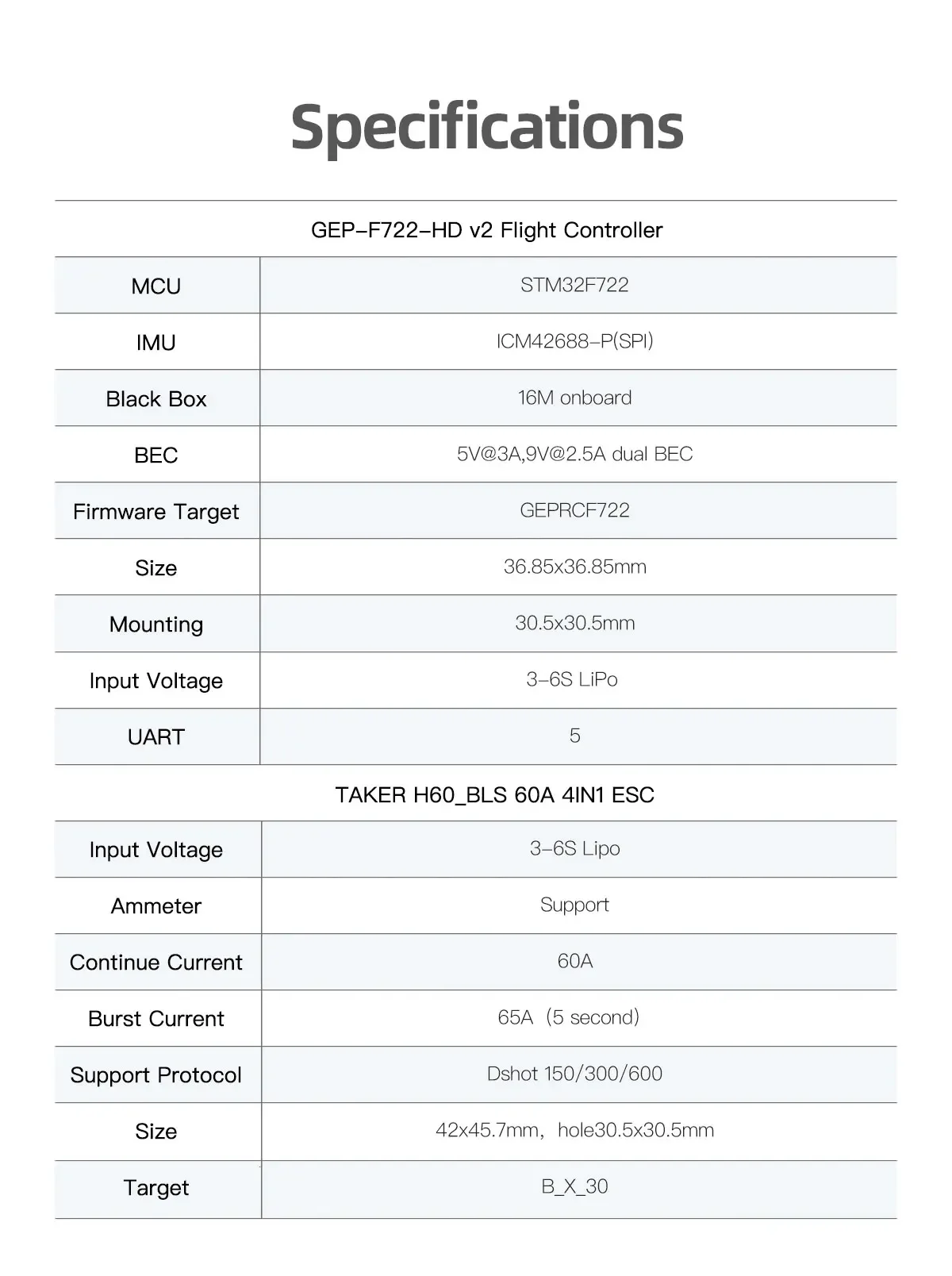

nTAKER H60_BLS 60A 4IN1 ESC
nTAKER H60_BLS 60A 4IN1 ESCInput Voltage: 3-6S LipoGalvanometer: SupportContinuous Current: 60ABurst Current: 65A(5 second)Support Protocol: Dshot 150/300/600Size: 42×45.7mm,hole30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.Weight:14.9gTarget: B_X_30
nTAKER H65_8S_BLS 65A 4IN1 ESC
nInput Voltage: 3-8S Lipo
nAmmeter: Supported
nContinuous Current：65A
nBurst Current：70A（5 seconds）
nSupport Protocol: Dshot 150/300/600
nDimension：42×45.7mm,mounting hole size30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
nWeight: 14.9g
nFirmware Target: B_X_30

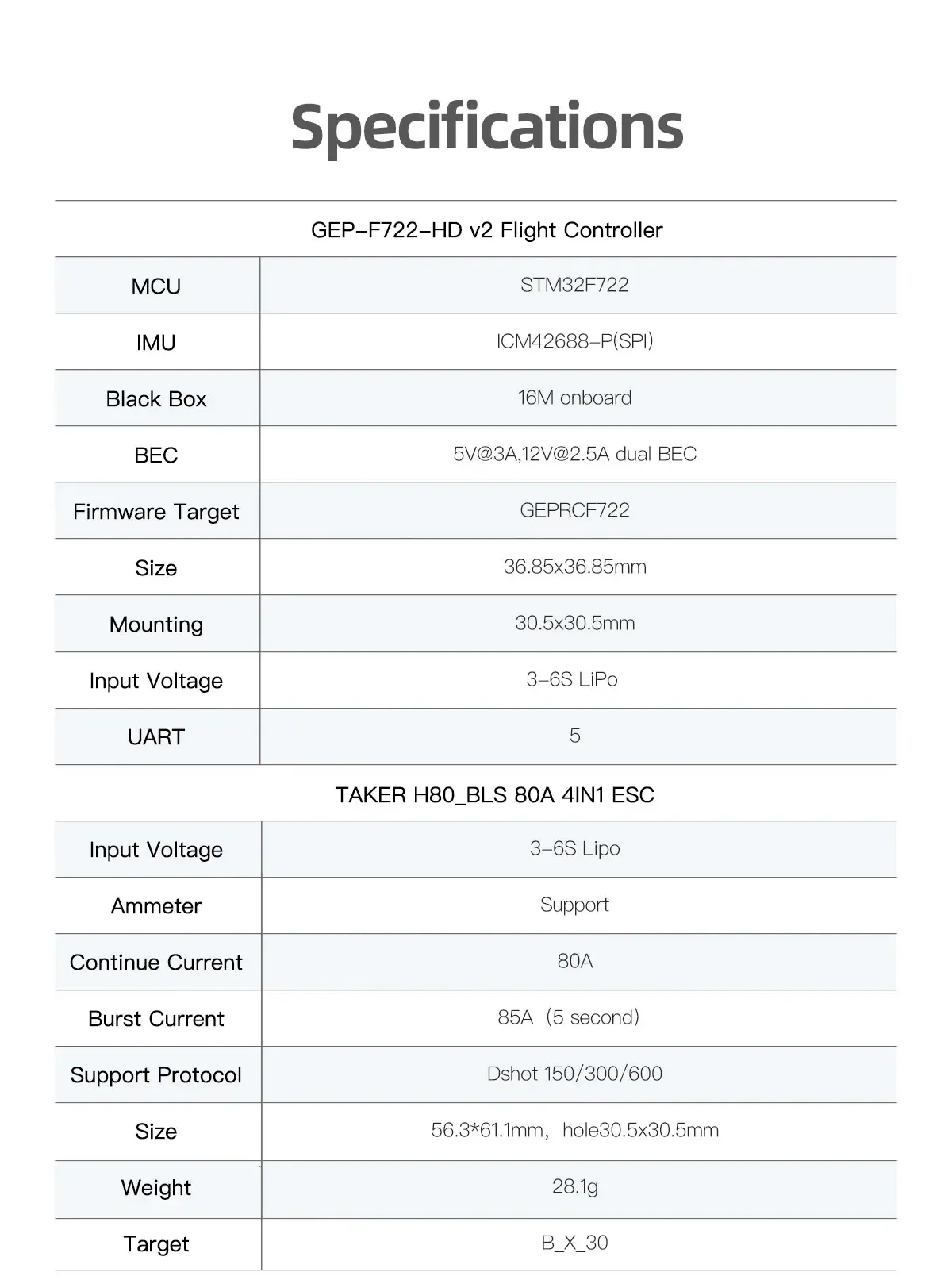

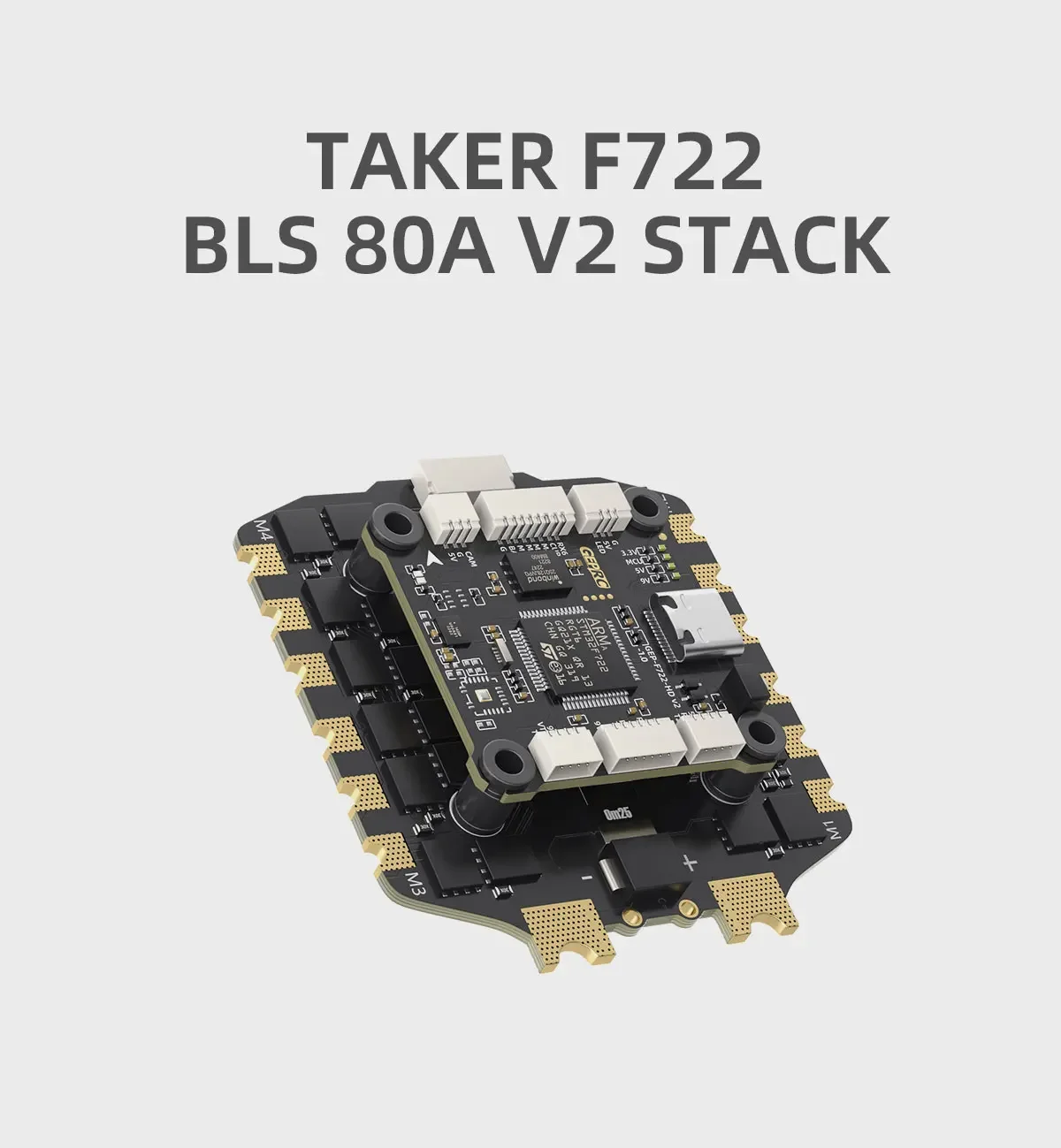

nTAKER H80_BLS 80A 4IN1 ESC
nInput Voltage: 3-6S Lipo
nAmmeter: Support
nContinue Current:80A
nBurst Current:85A(5 second)
nSupport Protocol: Dshot 150/300/600
nSize:56.3*61.1mm,hole30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
nWeight: 28.1g
nTarget: B_X_30

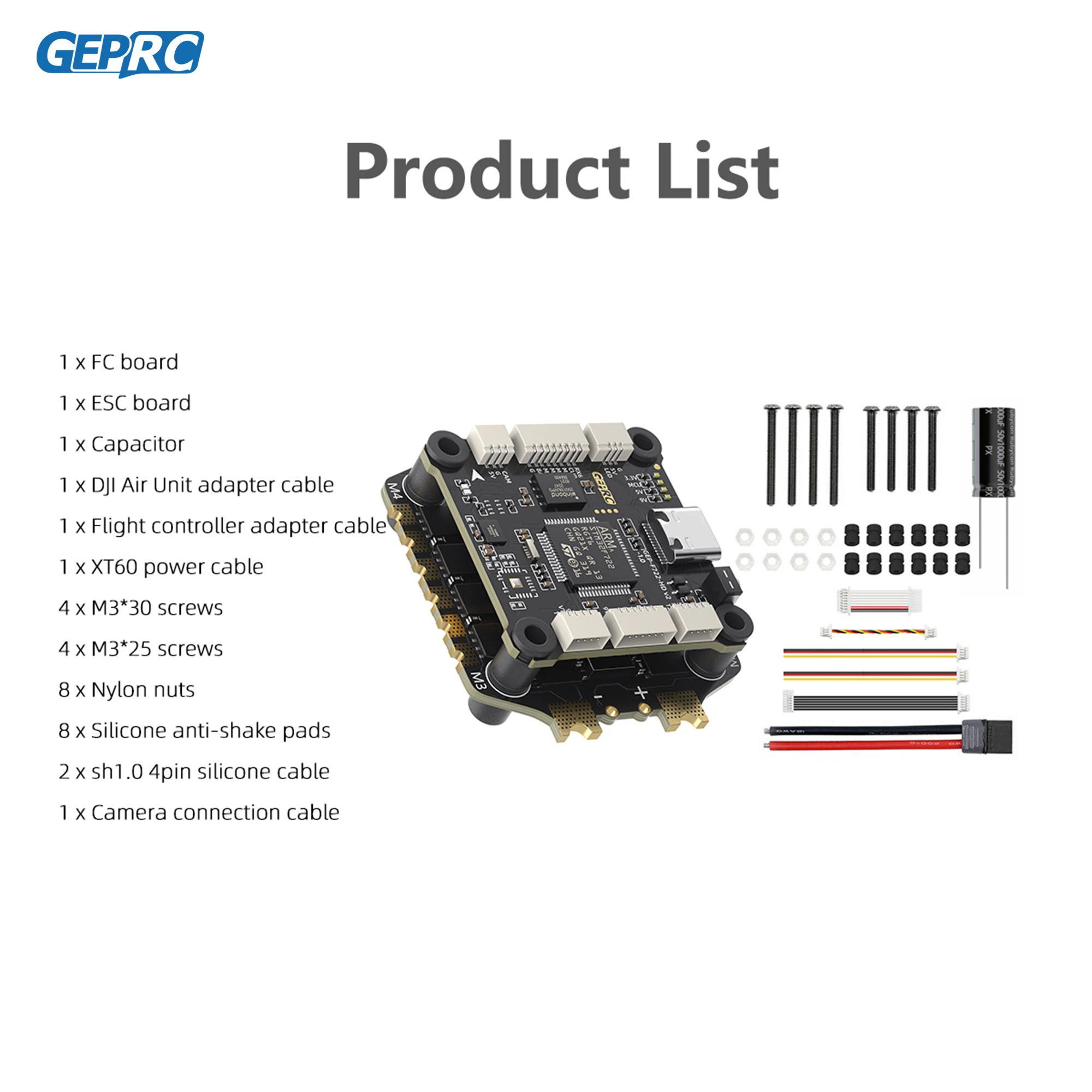

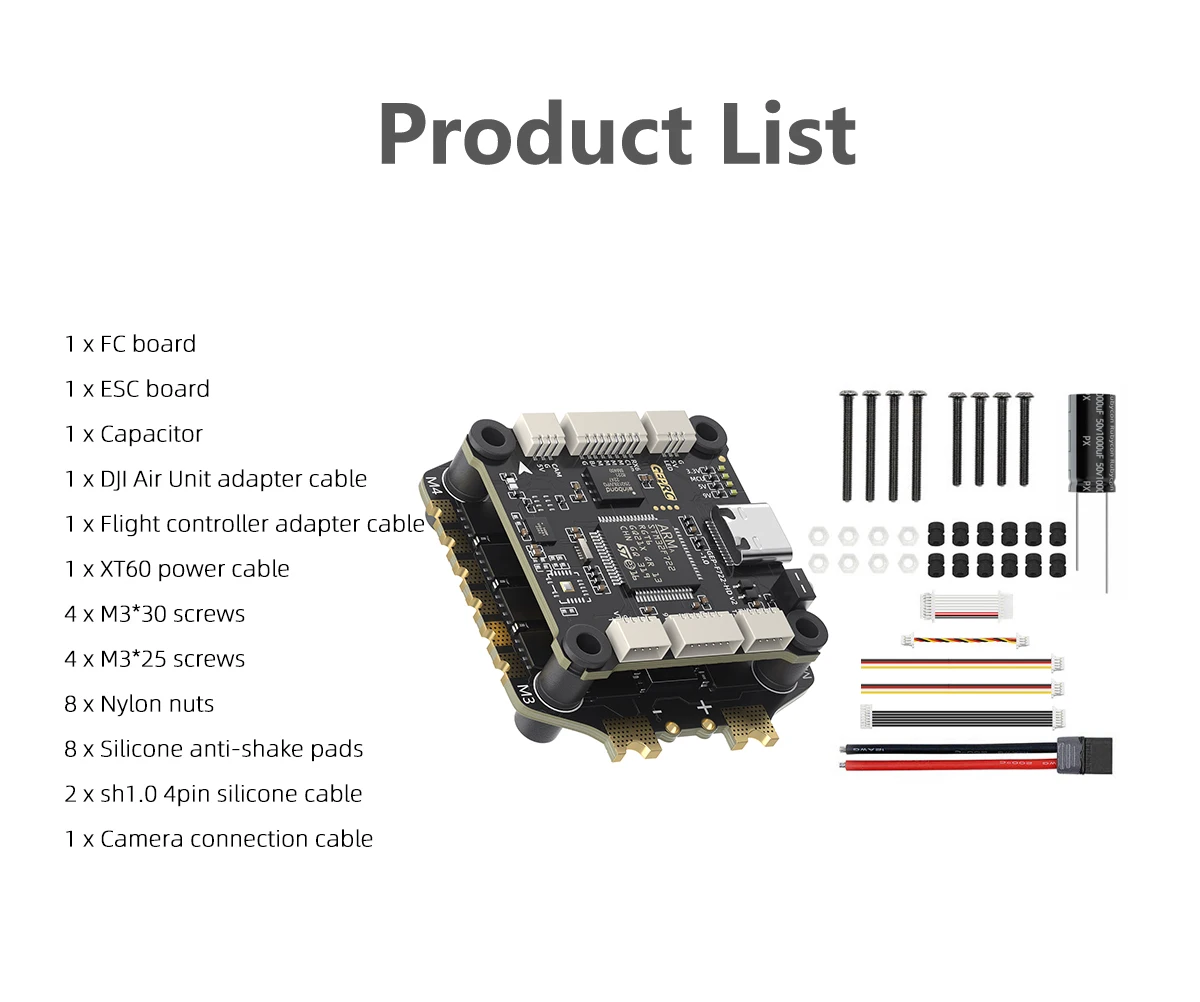

nIncludes
n1 x FC board
n1 x ESC board
n1 x Capacitor
n1 x D JI Air Unit adapter cable
n1 x Flight controller adapter cable
n1 x XT60 power cable
n4 x M3*30 screws
n4 x M3*25 screws
n8 x Nylon nuts
n8 x Silicone anti-shake pads
n2 x sh1.0 4pin silicone cable
n1 x Camera connection cable
