Description

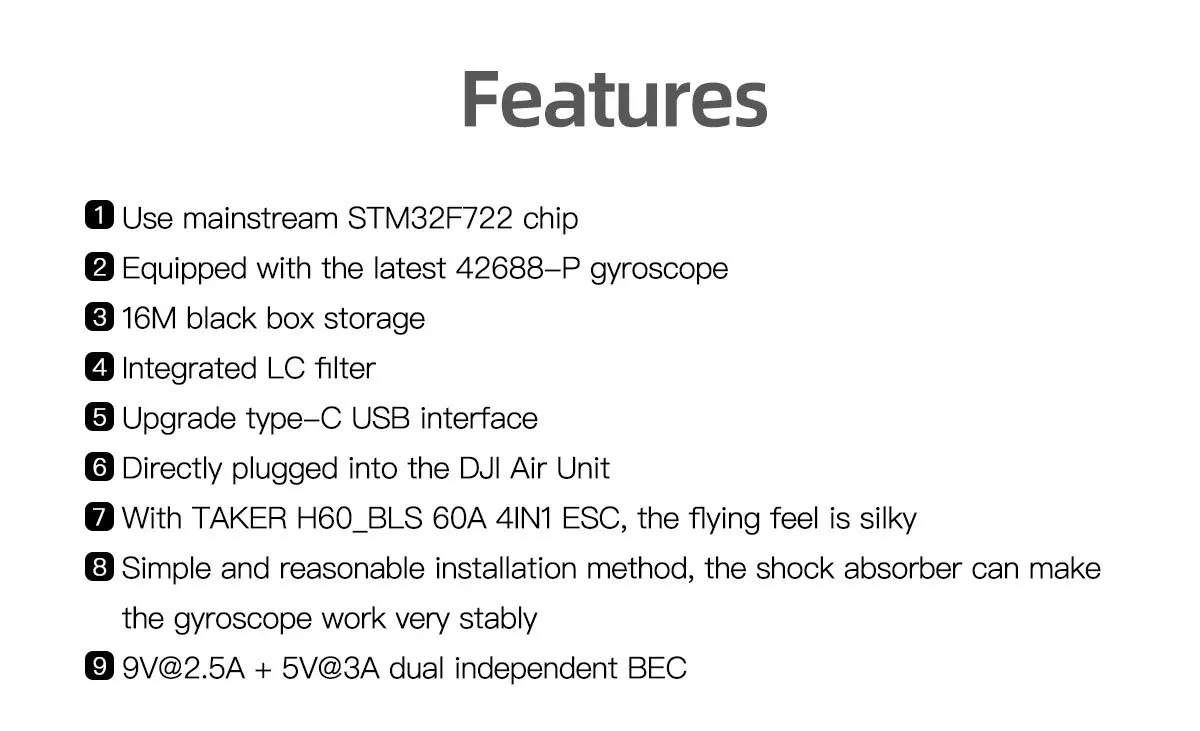

Features
Use mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the D JI Air Unit
With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky

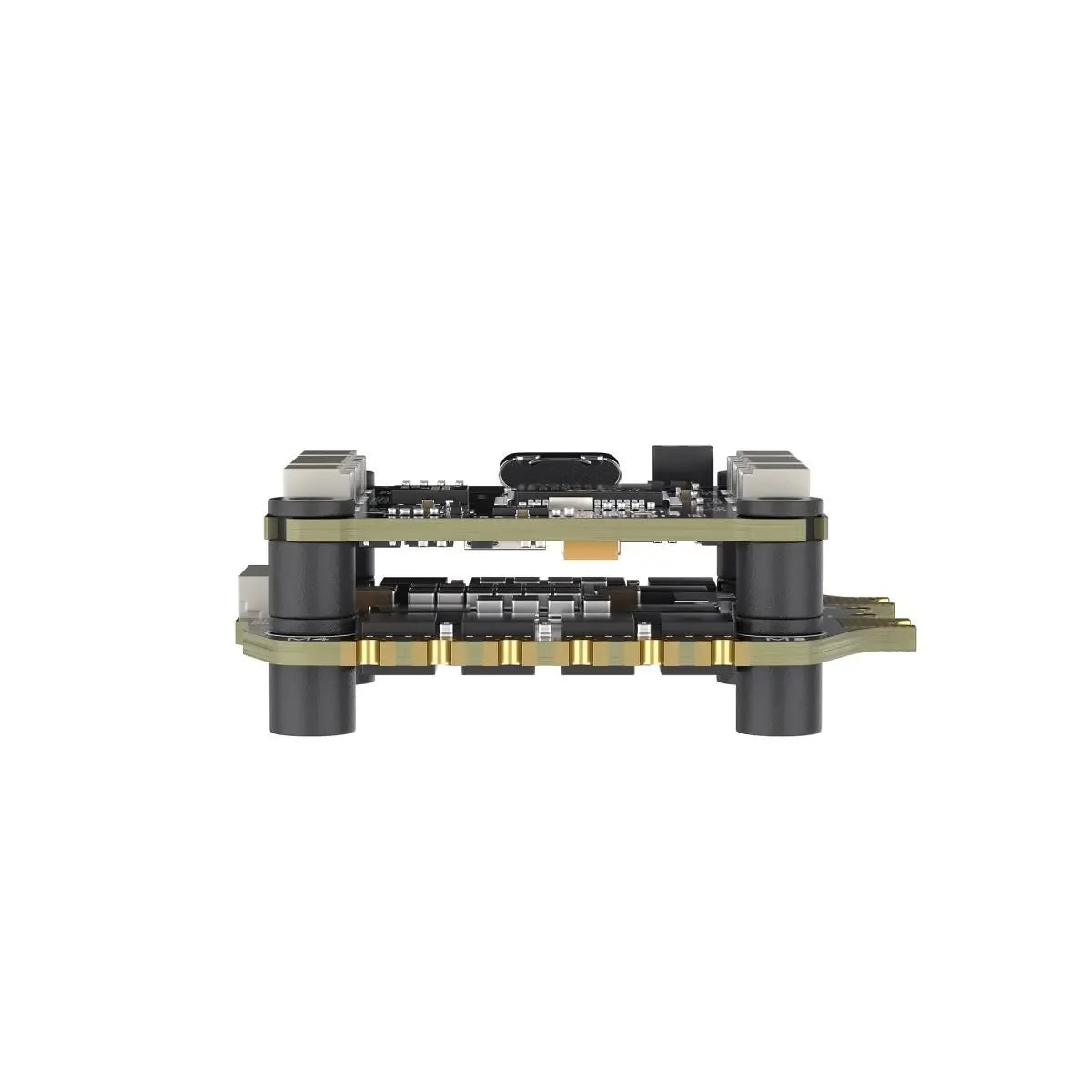

Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9V@2.5A + 5V@3A dual independent BEC

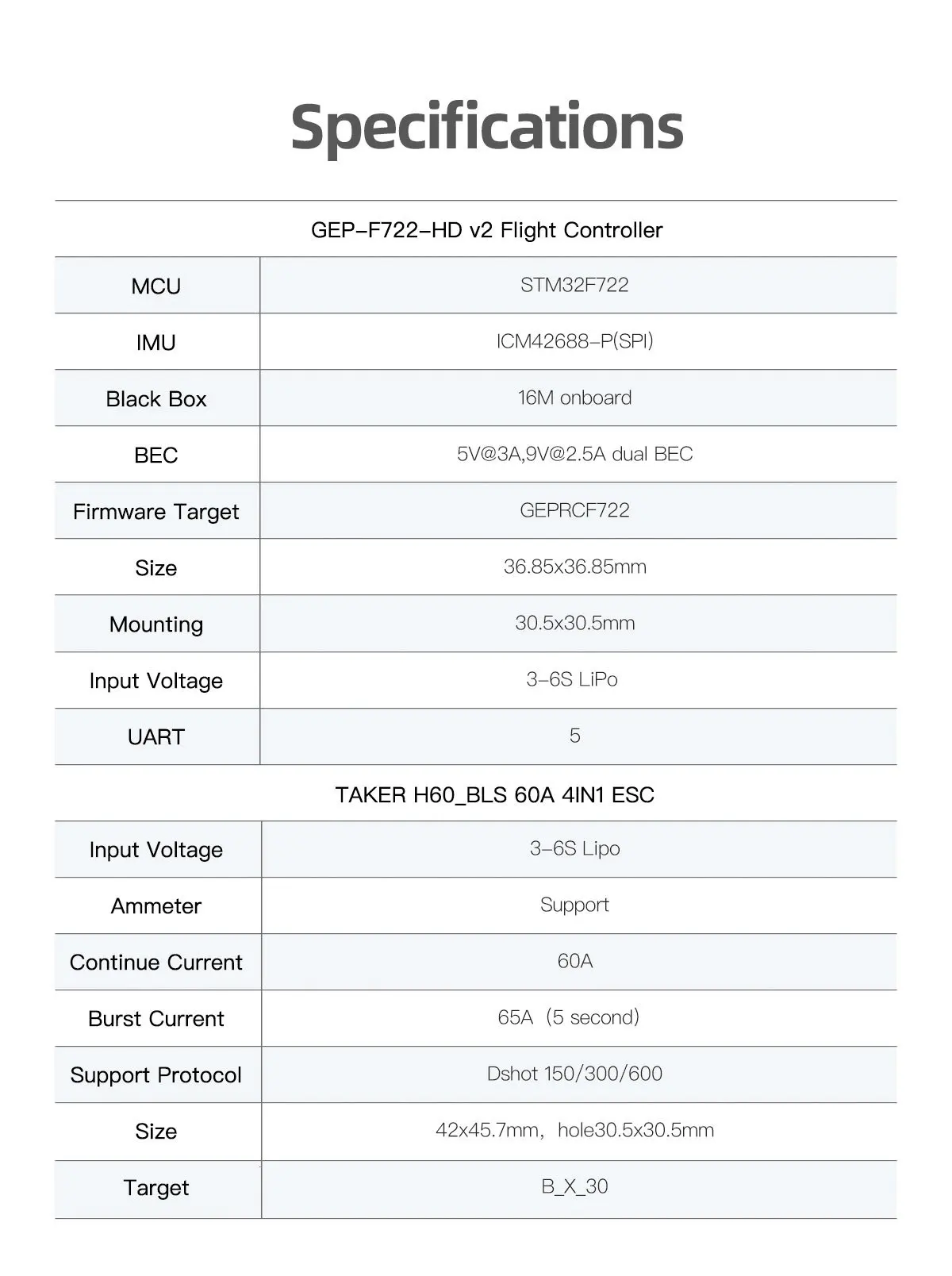

Specifications

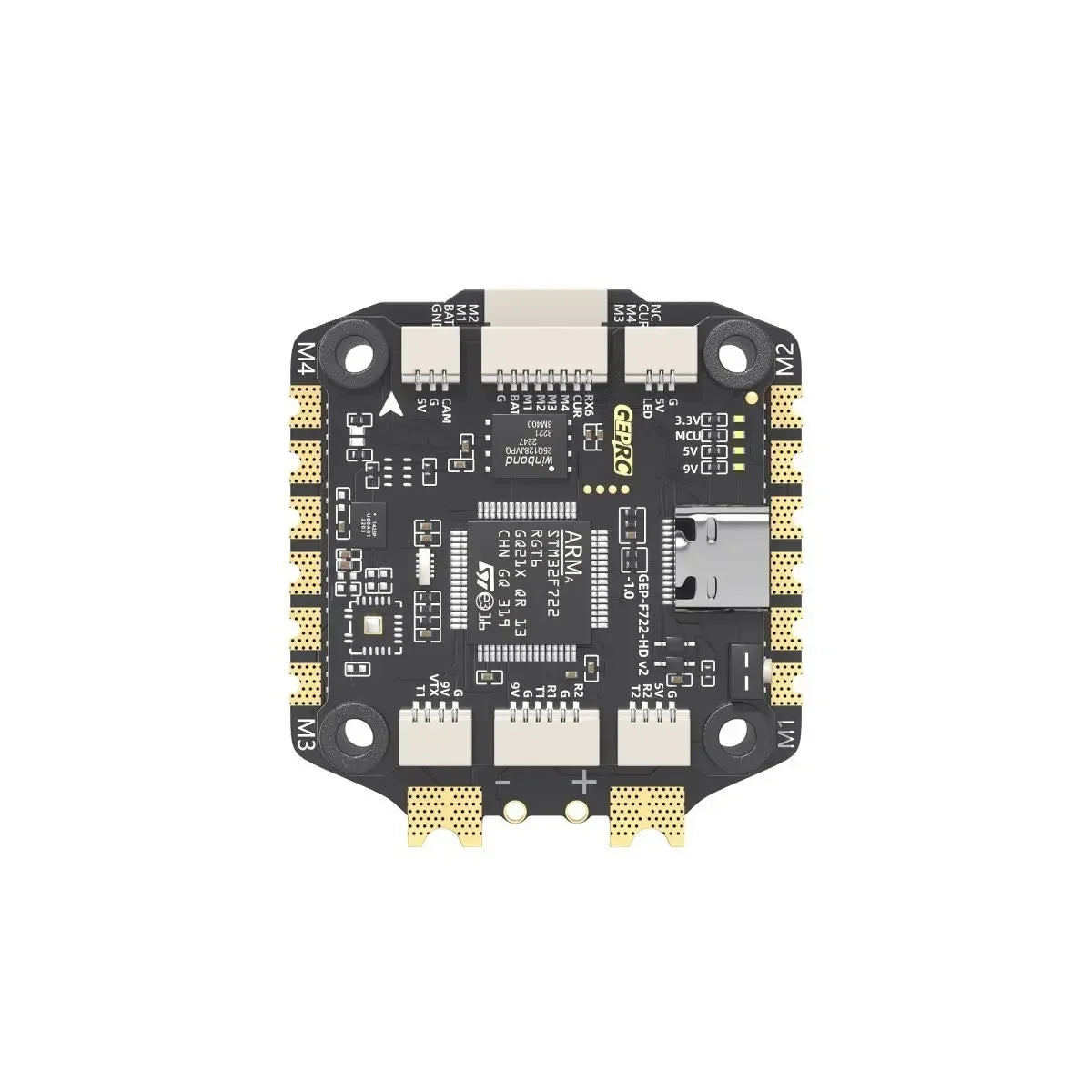

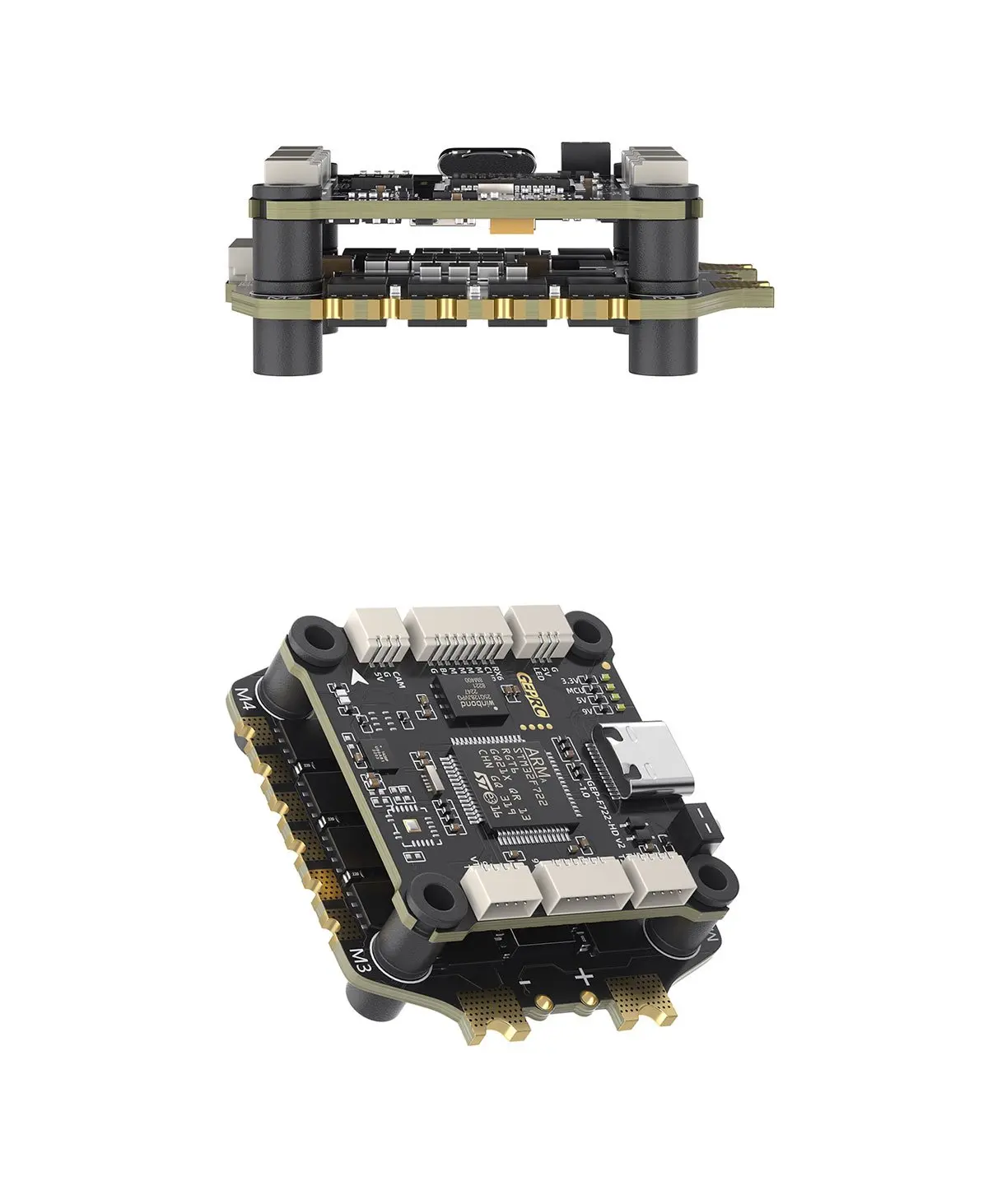

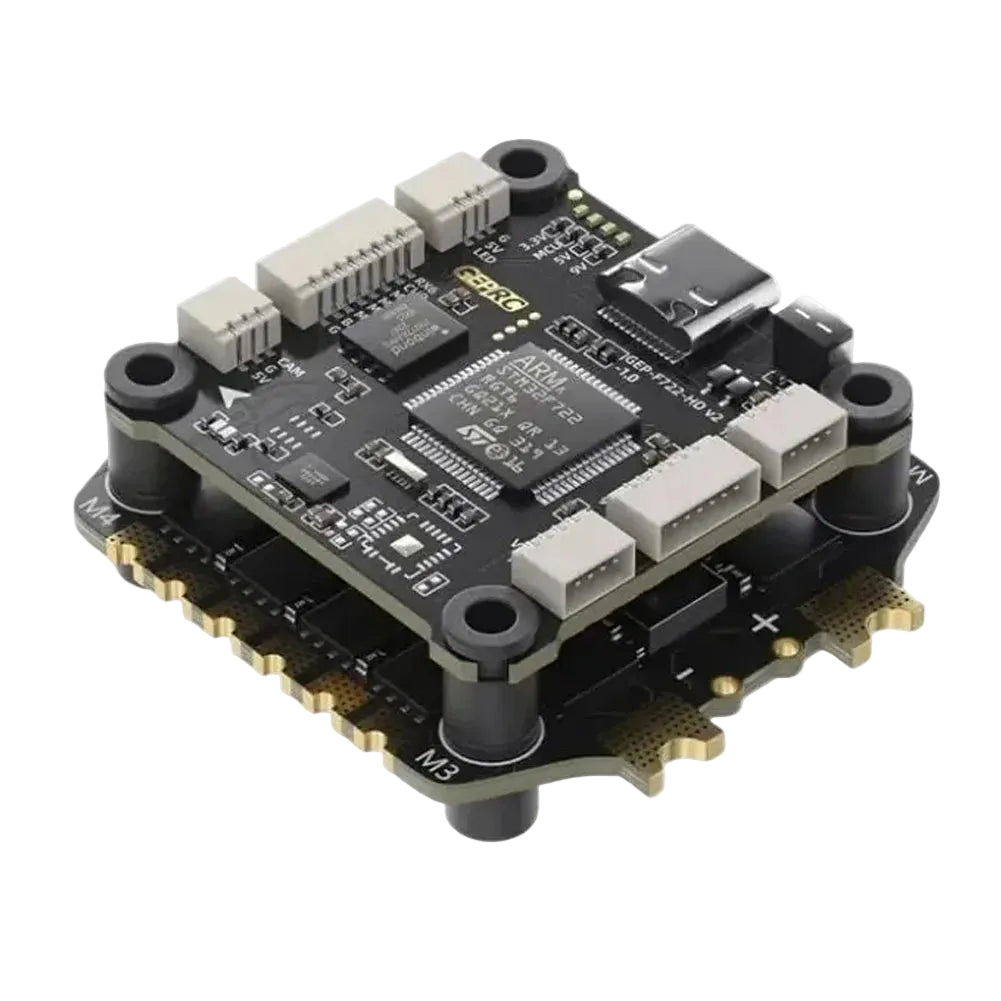

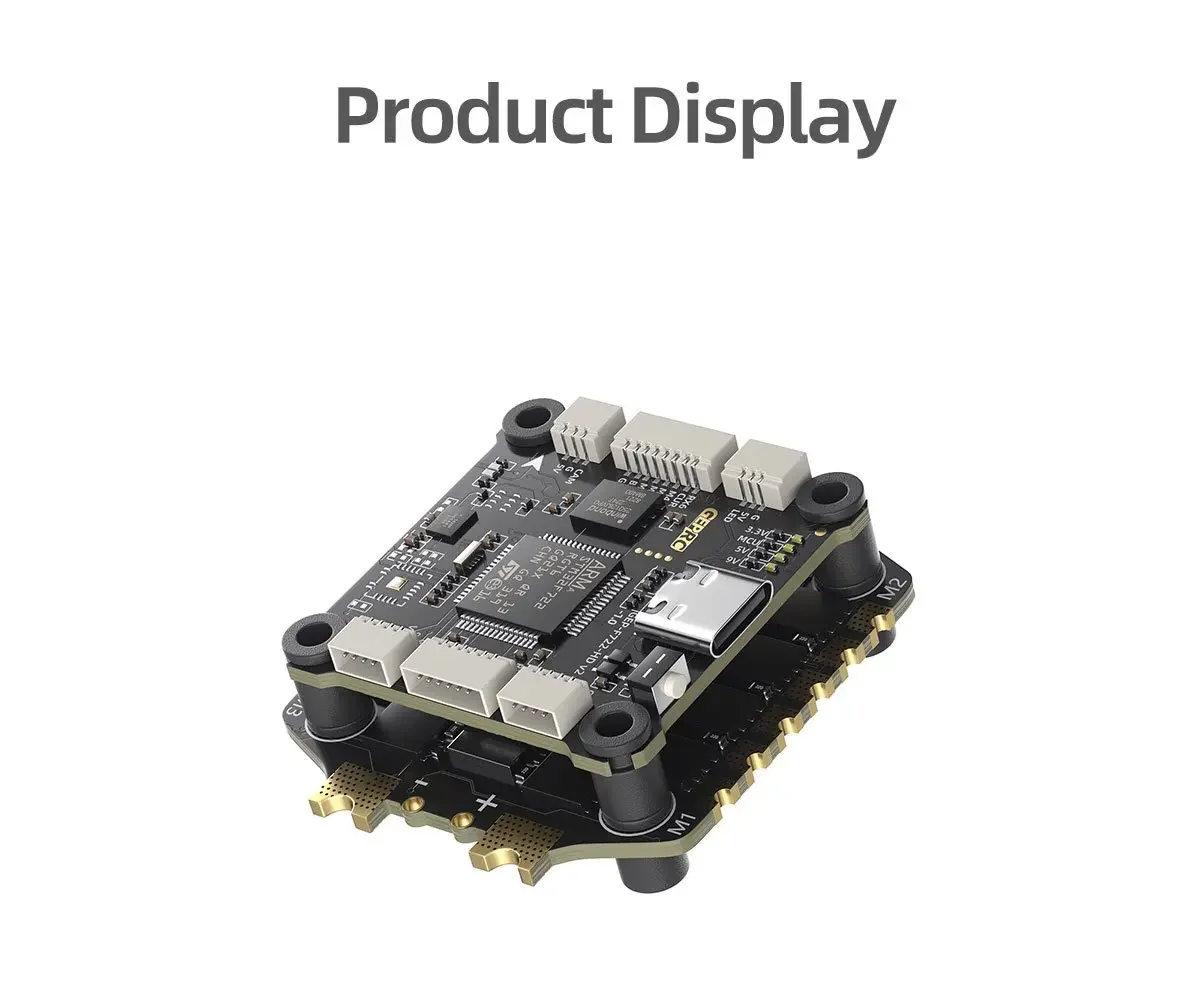

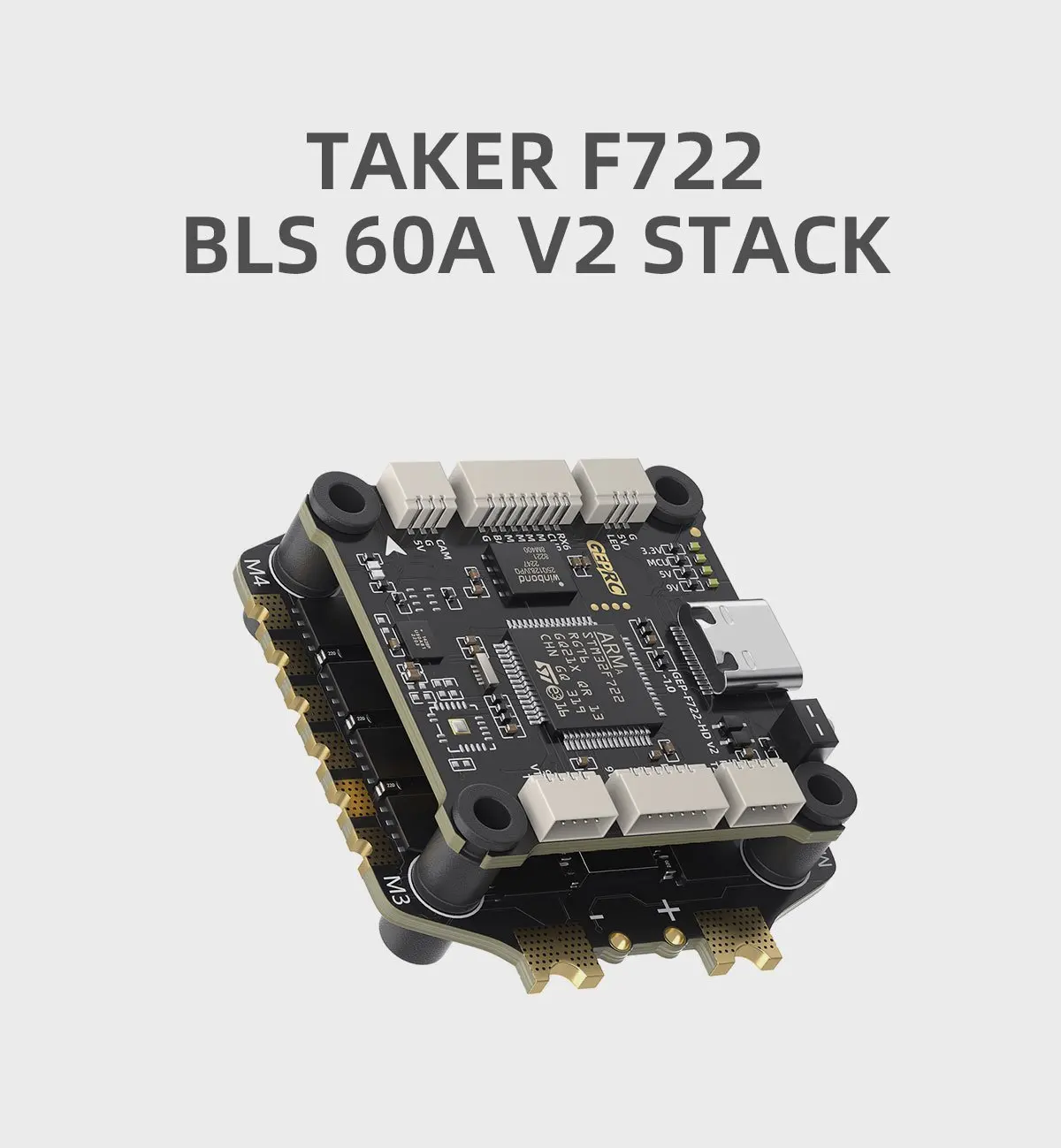

GEP-F722-HD v2 Flight Controller
MCU: STM32F722
IMU: ICM42688-P(SPI)
Air Unit Connection:Direct plugging into D JI Air Unit
Black Box: 16M onboard
USB Connector: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722
Size: 36.85×36.85mm, hole 30.5×30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage: 3-6S LiPo
UART:5
Power Filter: Integrated LC filter
Weight: 8.1g

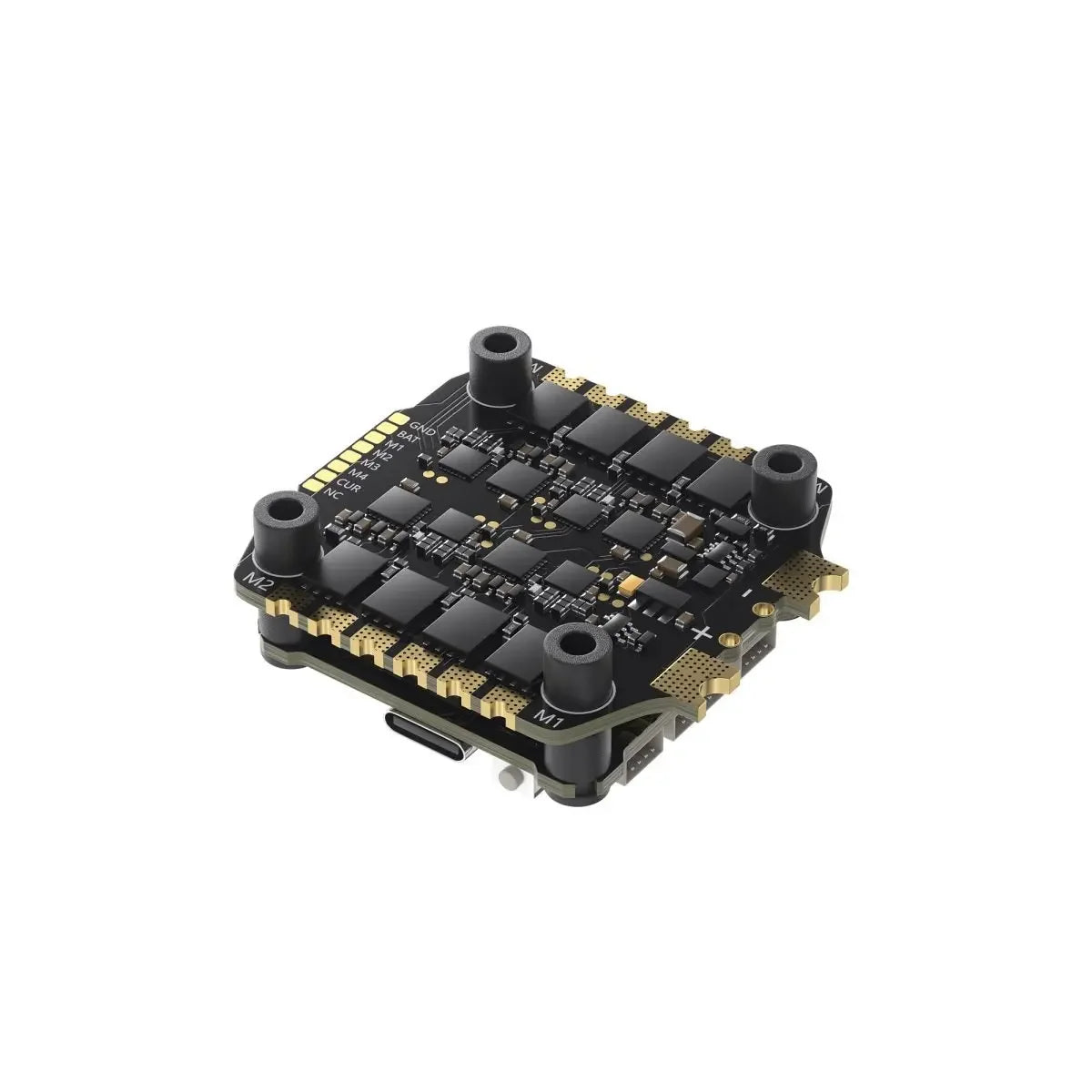

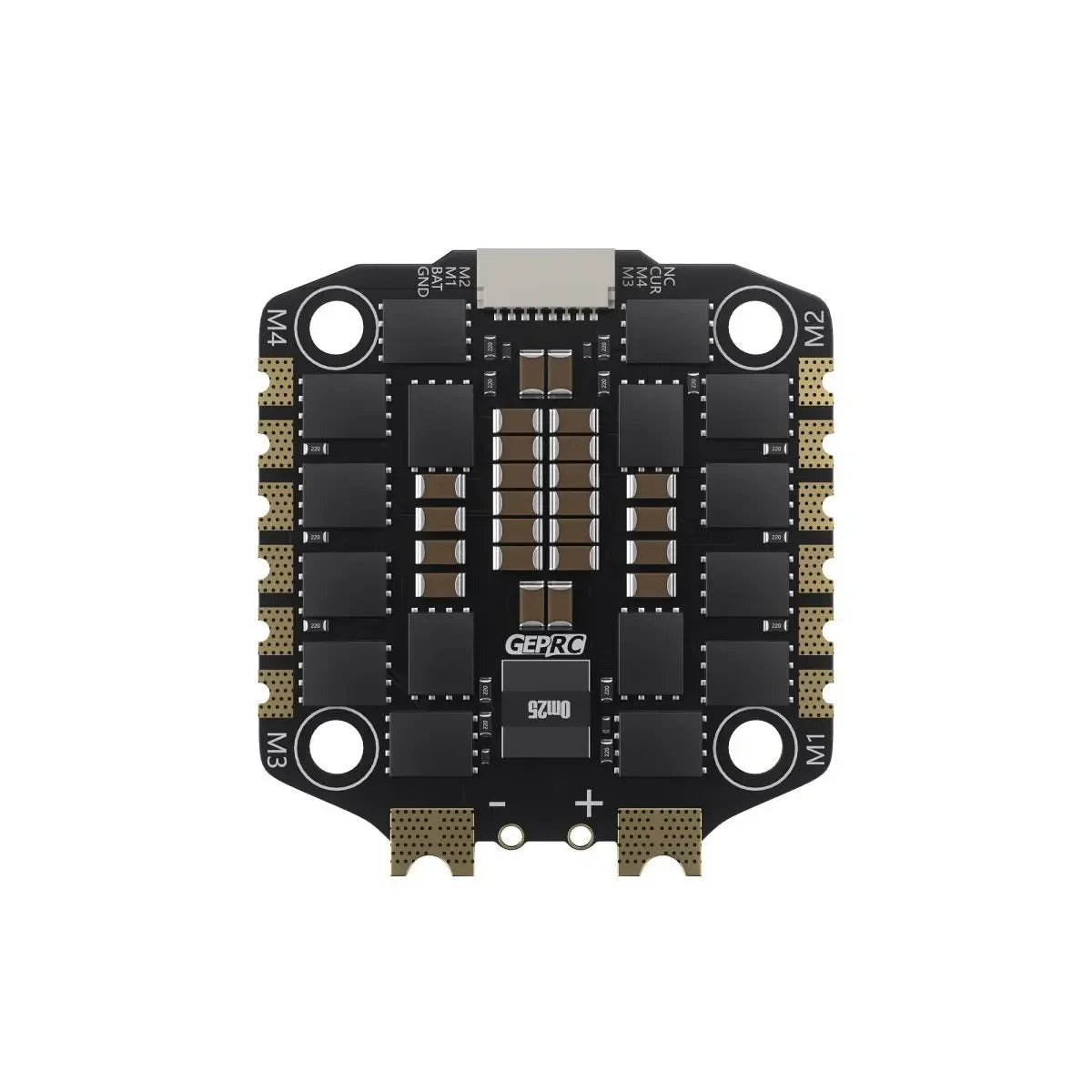

TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Galvanometer: Support
Continuous Current: 60A
Burst Current: 65A(5 second)
Support Protocol: Dshot 150/300/600
Size: 42×45.7mm,hole30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight:14.9g
Target: B_X_30

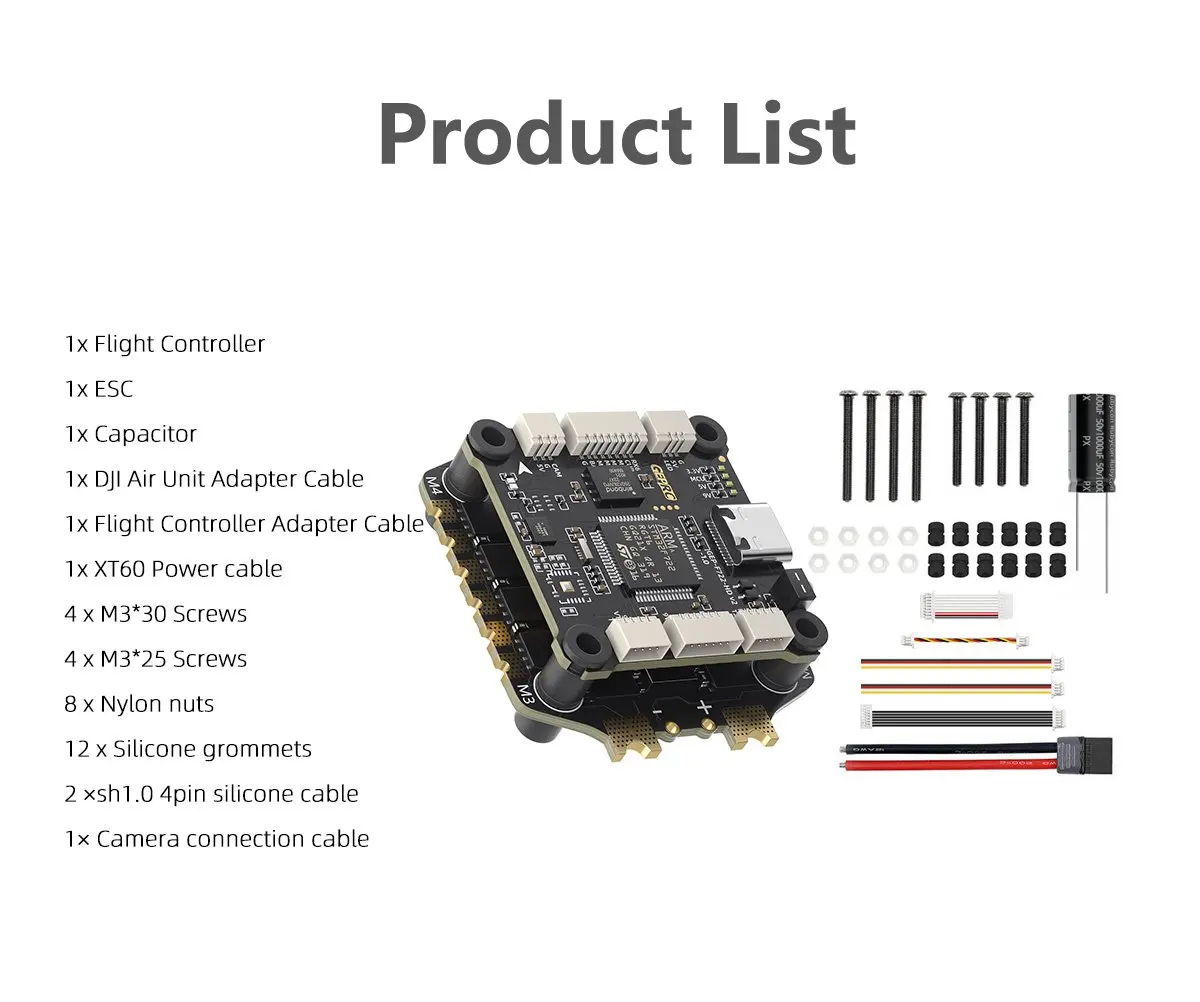

Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x D JI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
