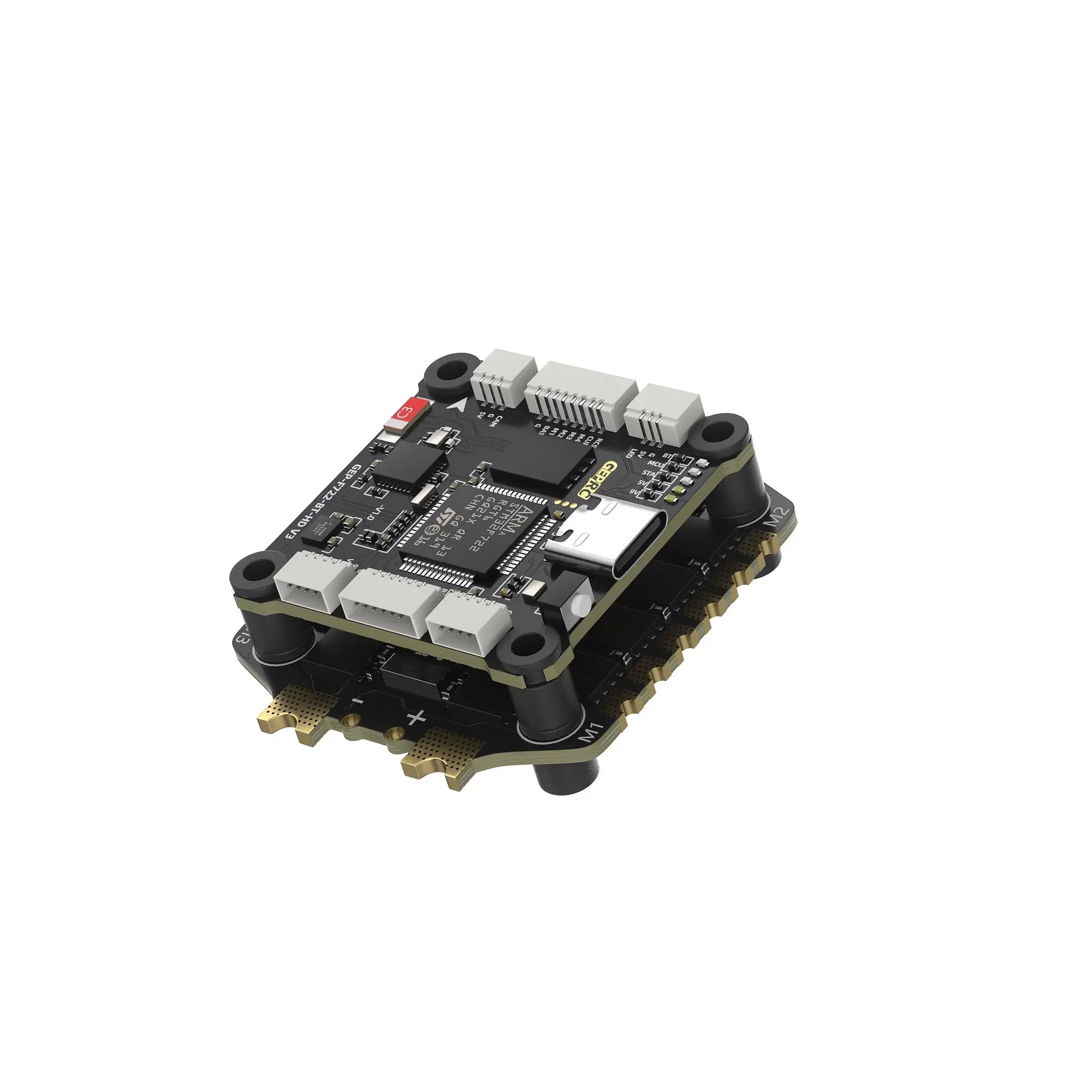

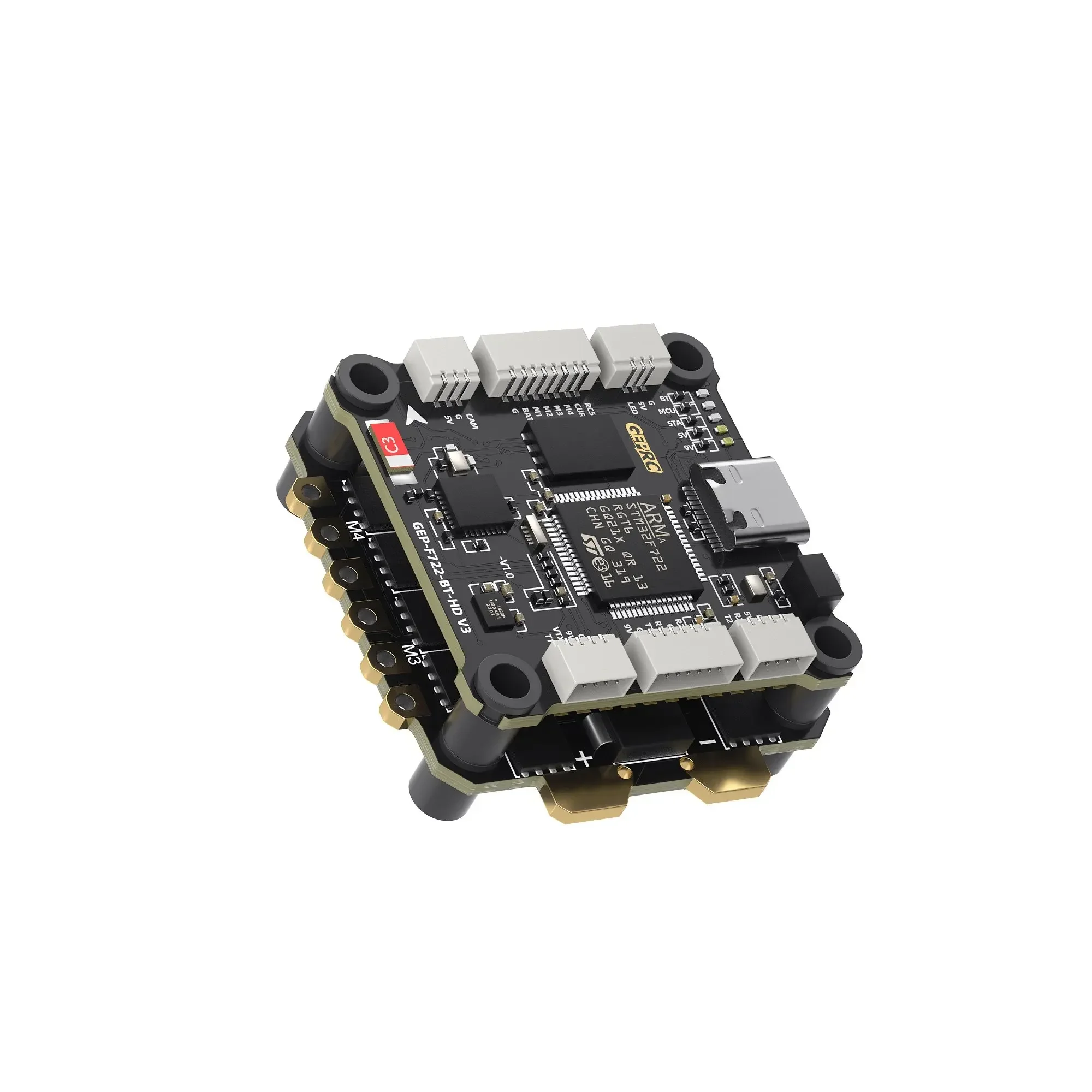

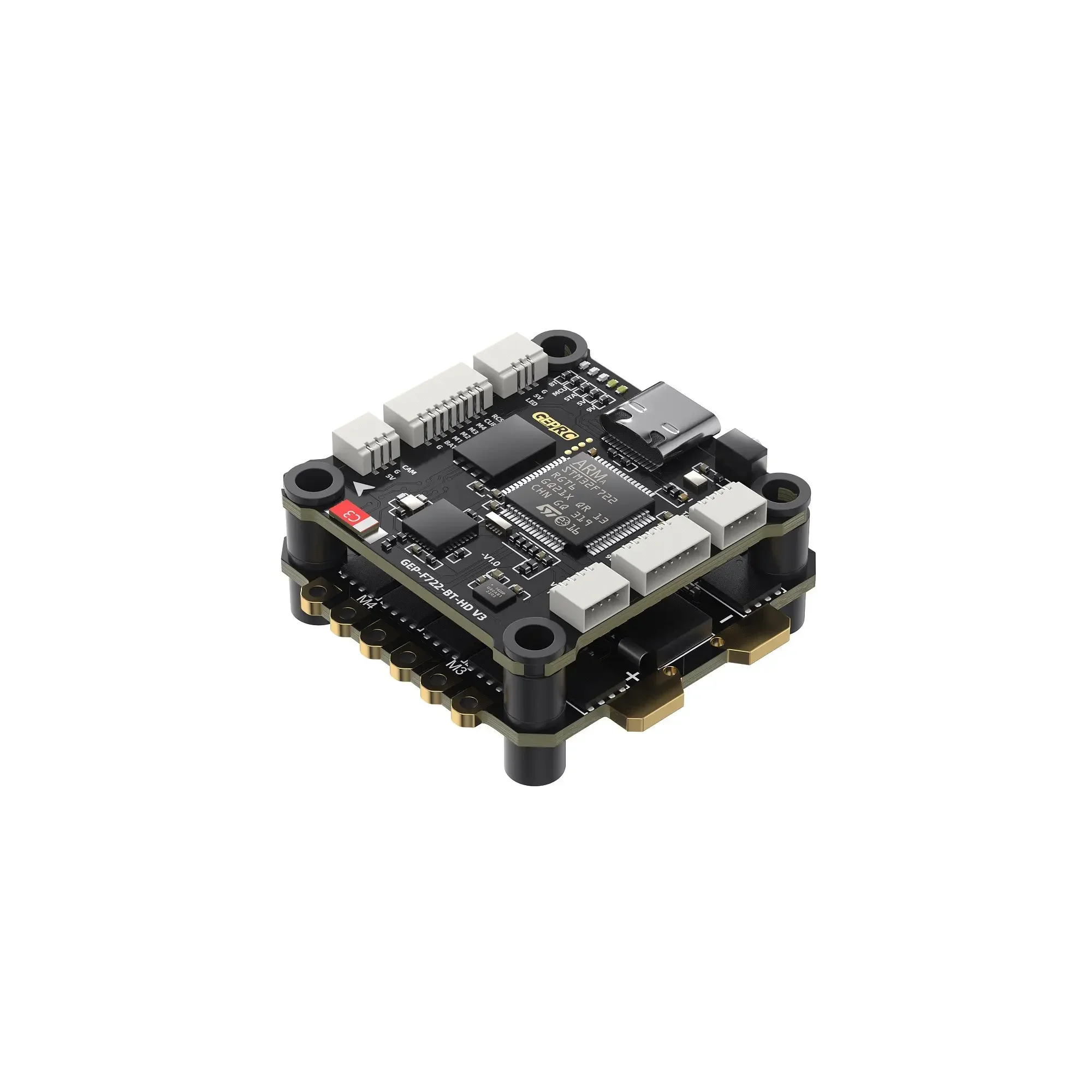

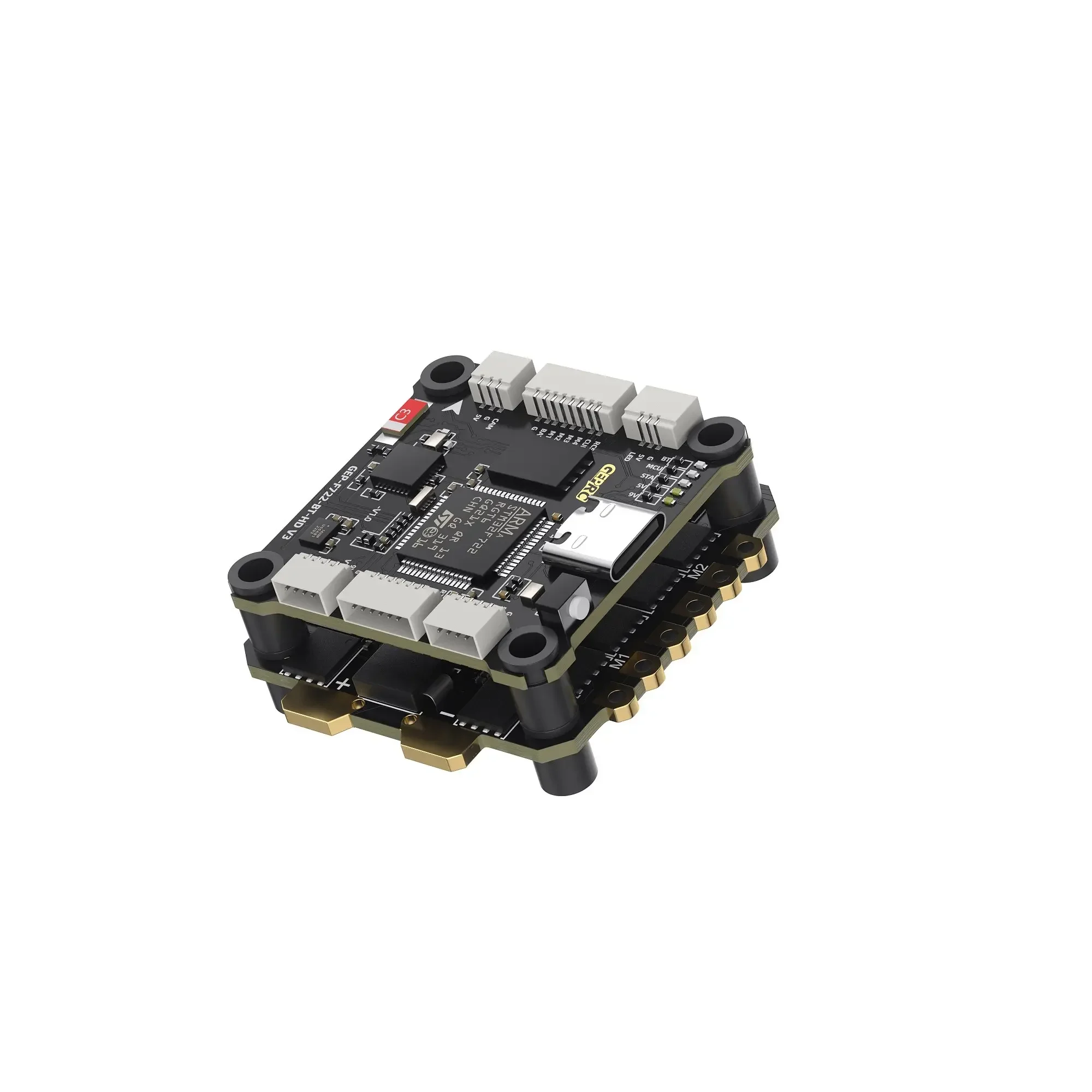

GEPRC TAKER F722 BT STACK – 8Bit 60A / 8Bit 65A / 32Bit 50A Flight Controller

Description

Feature
n1. Use mainstream STM32F722 chip
n2. Equipped with the latest 42688-P gyroscope
n3. 512M black box storage
n4. Support Bluetooth parameter tuning
n5. Integrated LC filter
n6. Upgrade type-C USB interface
n7.With TAKER 4IN1 ESC, silky flight
n8. Directly plugs into the DJI Air Unit
n9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
n10. Integrated Barometer
n11.9V@2.5A+ 5V@3A dual independent BEC
n
nSpecifications
nGEP-F722-BT-HD V3 Flight Controller
nMCU: STM32F722
nIMU:ICM42688-P(SPI)
nAir Unit Connection: Directly plugs into the DJI Air Unit
nBlack Box: 512M onboard
nBluetooth: Supported
nBarometer: Supported
nUSB Interface: Type-C
nOSD: BetaFlight OSD w/ AT7456E chip
nBEC: 5V@3A,
n9V@2.5A
ndual BEC
nFirmware Target: GEPRCF722_BT_HD_V3
nSize: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
nInput Voltage: 3-6S LiPo
nUART: 5 groups (UART4 fixed for Bluetooth)
nPower Filter: Integrated LC filter
nWeight: 8.2g
nTAKER H60_BLS 60A 4IN1 ESC
nInput Voltage: 3-6S Lipo
nAmmeter: Support
nContinue Current:60A
nBurst Current: 65A (5 second)
nSupport Protocol: Dshot 150/300/600
nSize: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
nWeight: 14.9g
nTarget: B_X_30
n

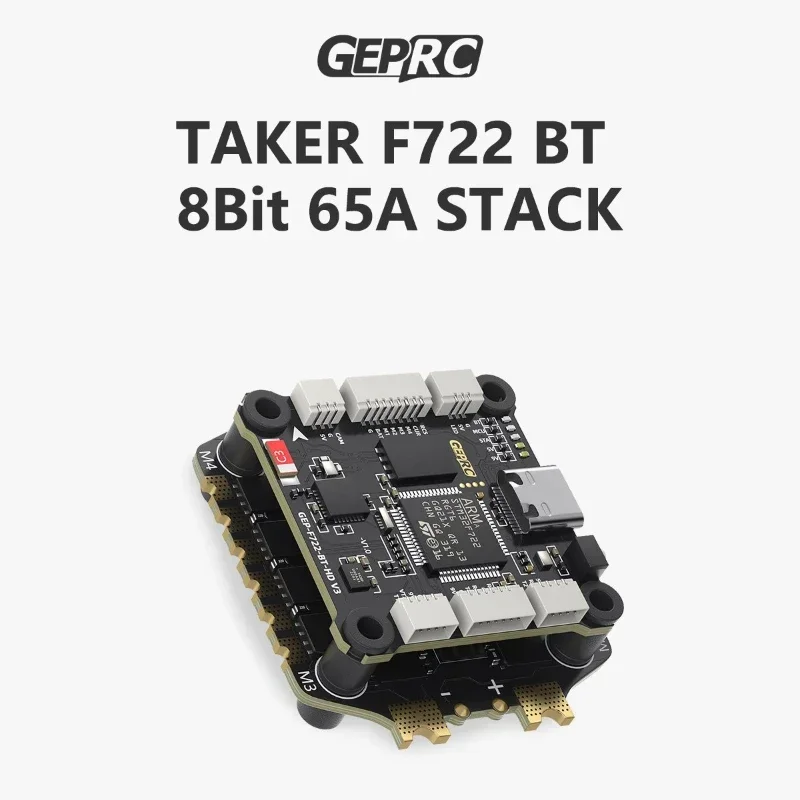

nTAKER H65_8S_BLS 65A 4IN1 ESC
nInput Voltage: 3-8S Lipo
nAmmeter: Support
nContinue Current:65A
nBurst Current: 70A (5 second)
nSupport Protocol: Dshot 150/300/600
nSize: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
nWeight: 14.9g
nTarget: B_X_30
n

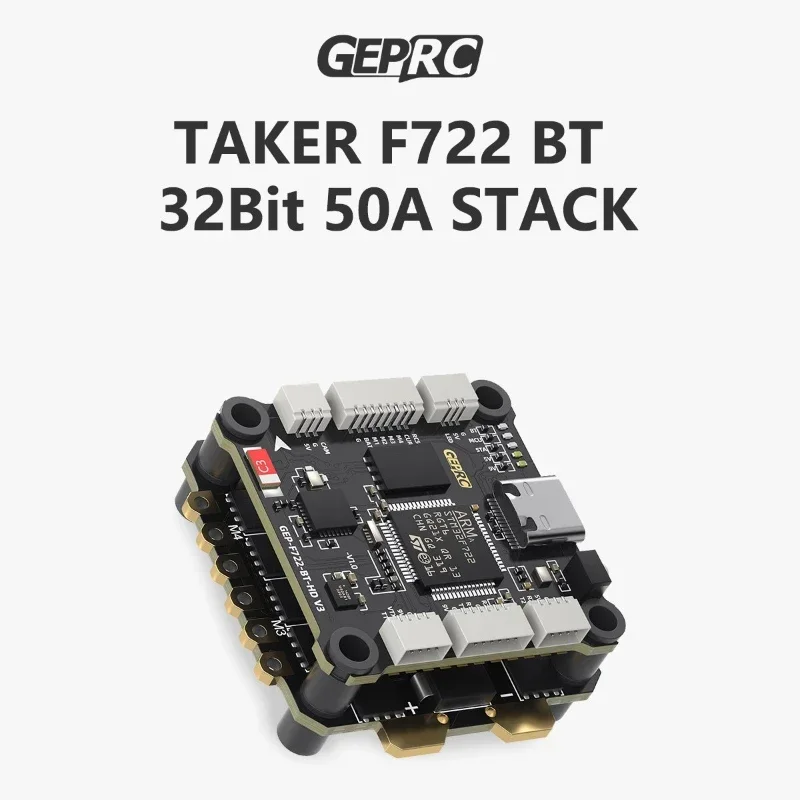

nGEP-BL32 50A 96K 4IN1 ESC
nModel: GEP-BL32 50A 96K 4IN1 ESC
nInput Voltage: 3-6S Lipo
nContinue Current:50A
nBurst Current: 55A (5 second)
nGalvanometer:Support
nTelemetry: Support
nSupport Protocol: Dshot 150/300/600
nSize:42.5×42.1mm,hole30.5×30.5mm
nWeight:14g
nTarget: ST_G0_05 – 31.92
nNote: Pre-installed with BL32 test firmware, extensively tested for safety and reliability
n(AM32 also supported; customer flashing required.)
n
nIncludes
n1 x FC board
n1 x ESC board
