GEPRC TAKER H743 BT 8Bit 80A Stack with 5V 3A+12V 2.5A Dual Independent BEC for FPV Drone Assembly Accessories for Air Unit

Description

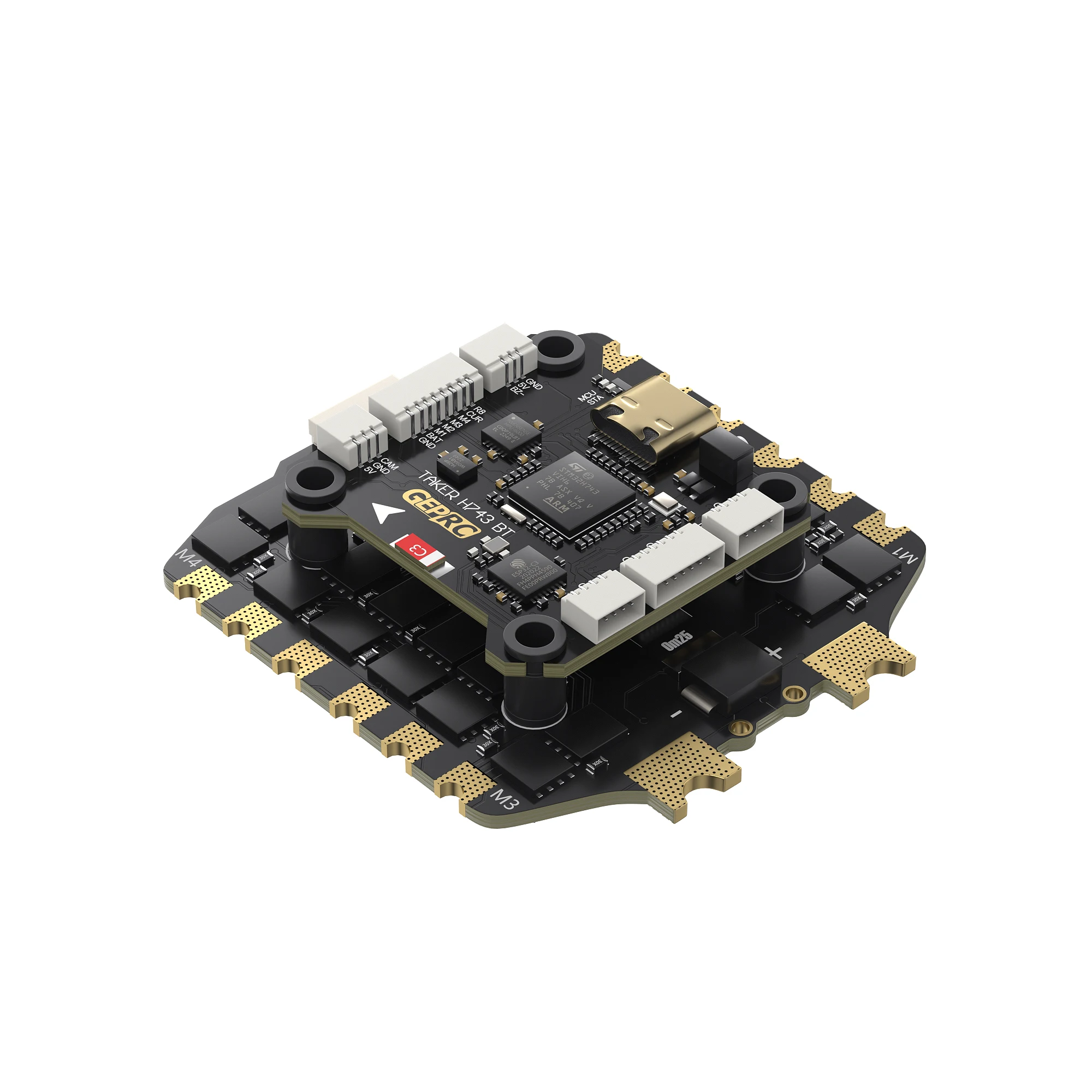

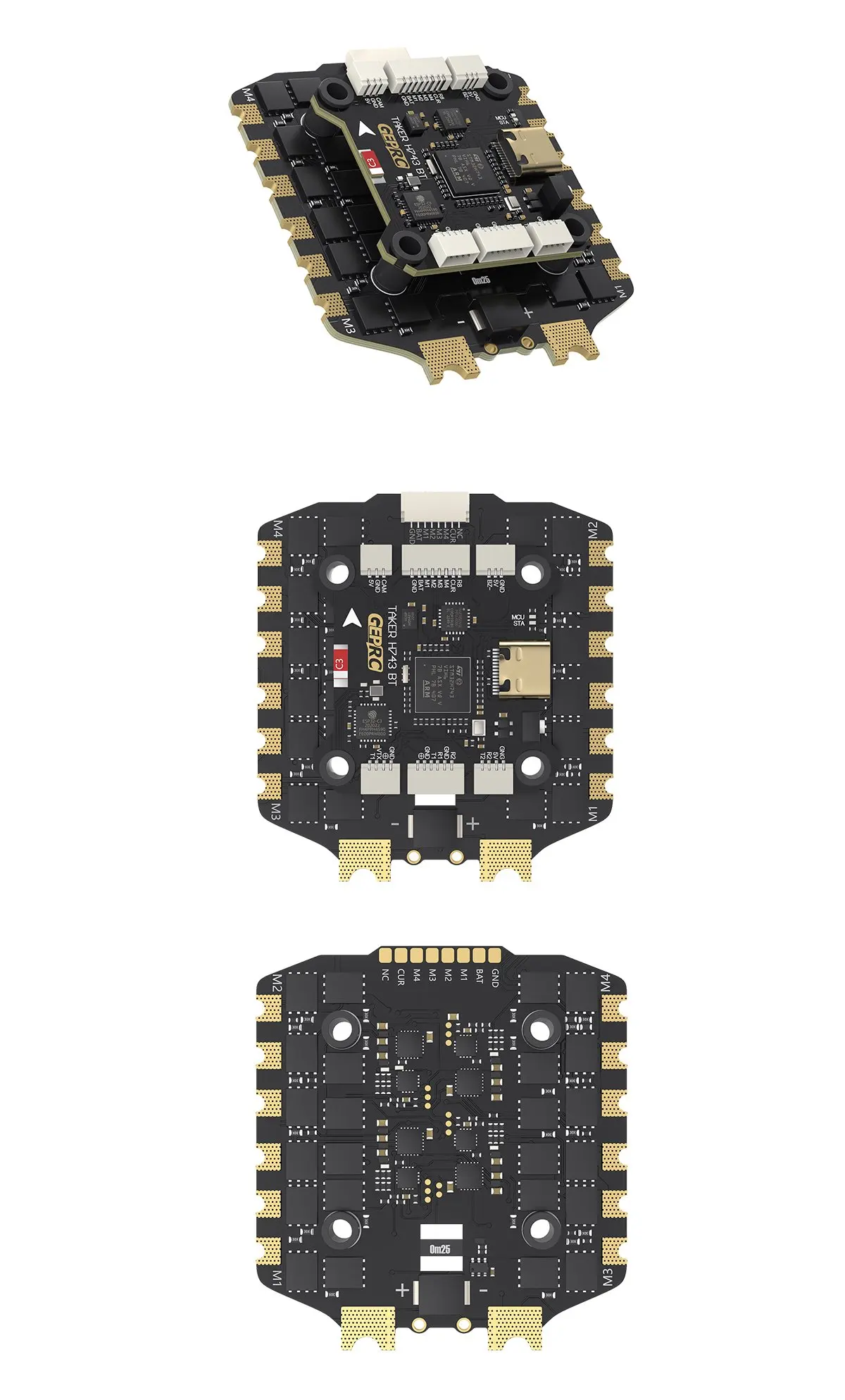

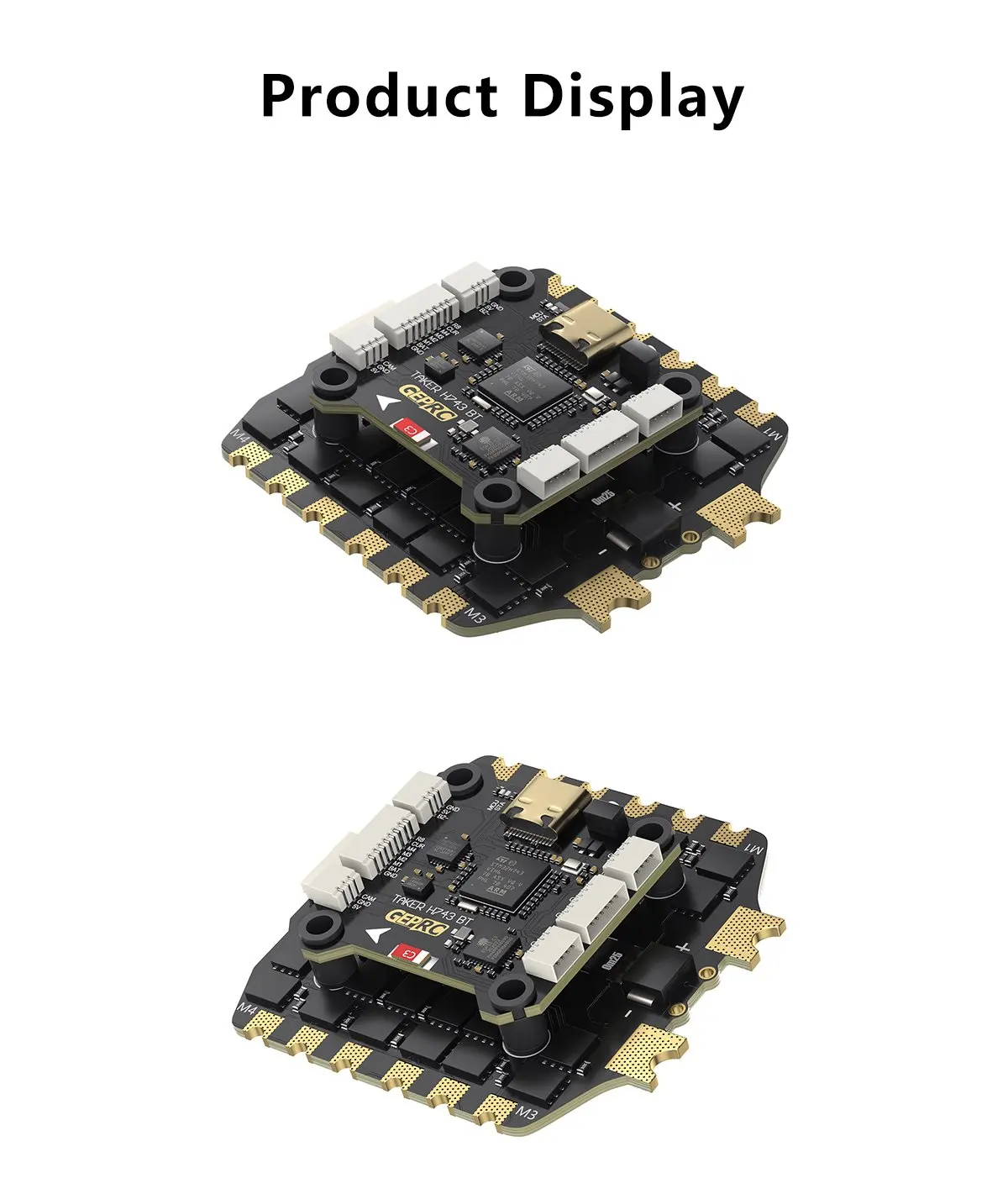

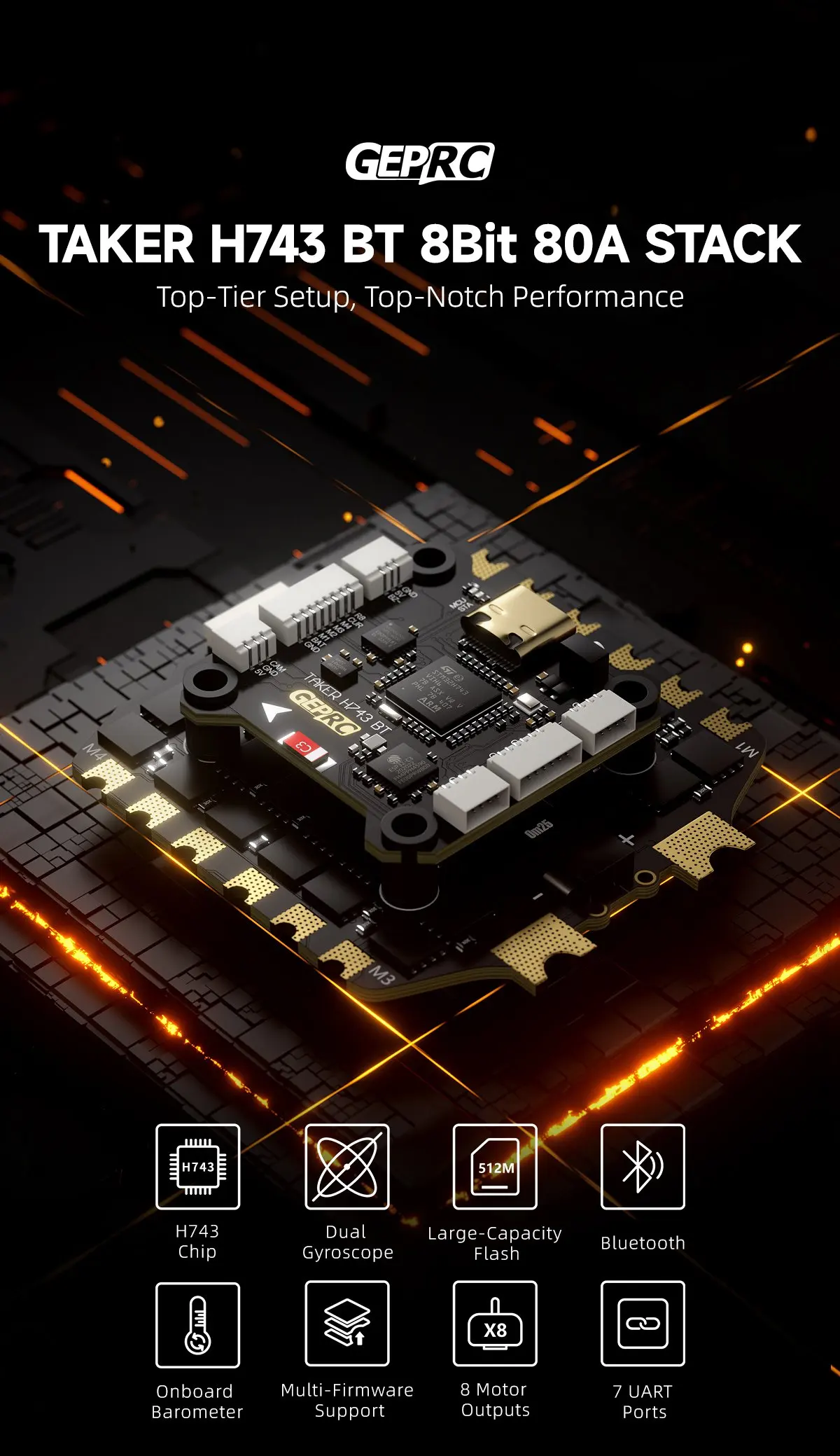

GEPRC TAKER H743 BT 8Bit 80A STACK Summary
nTAKER H743 BT 8Bit 80A STACK is the latest Stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

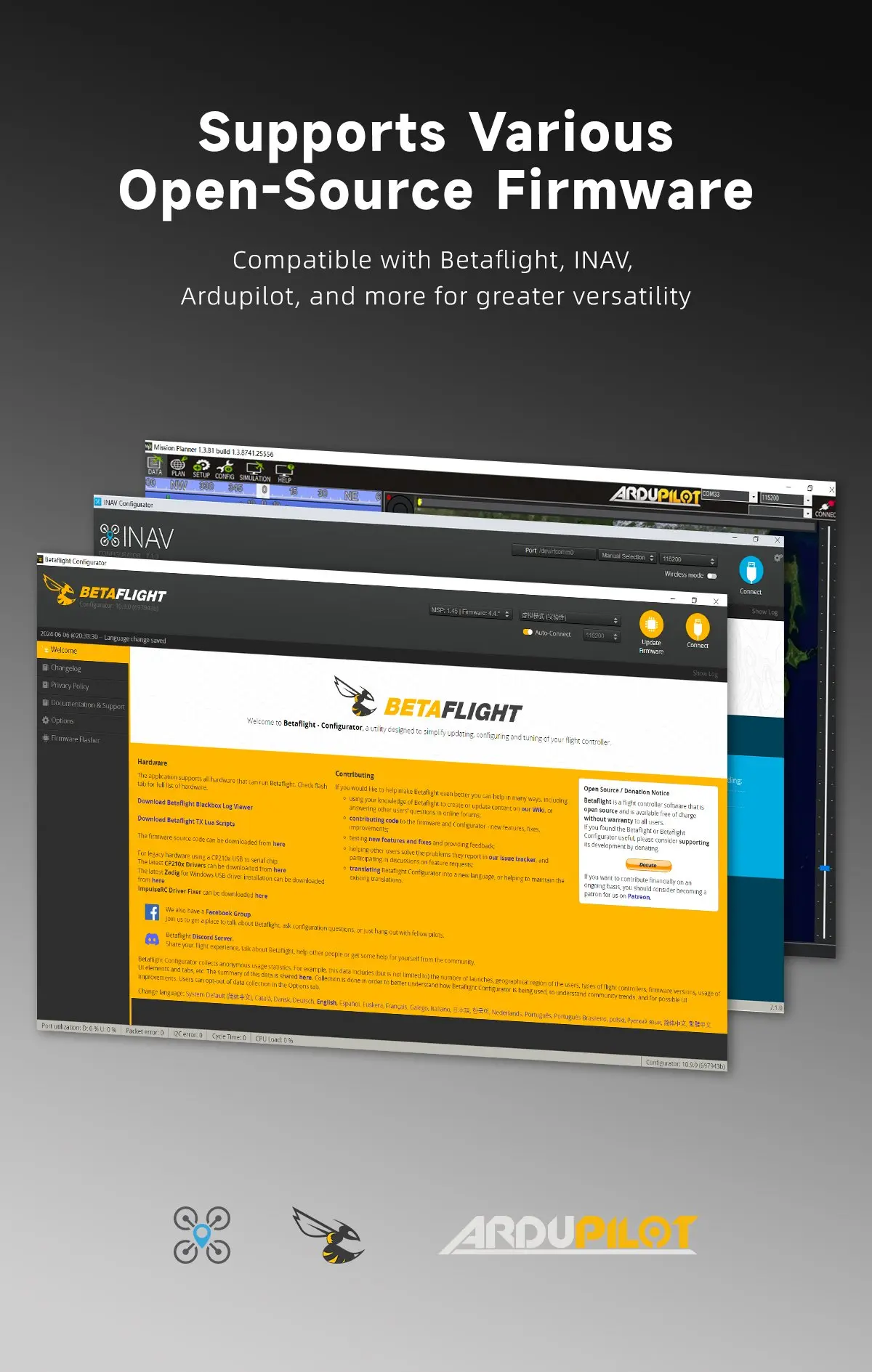

nCompatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H80_BLS 80A 4IN1 ESC, it delivers an exceptionally smooth flight experience.
nFeature

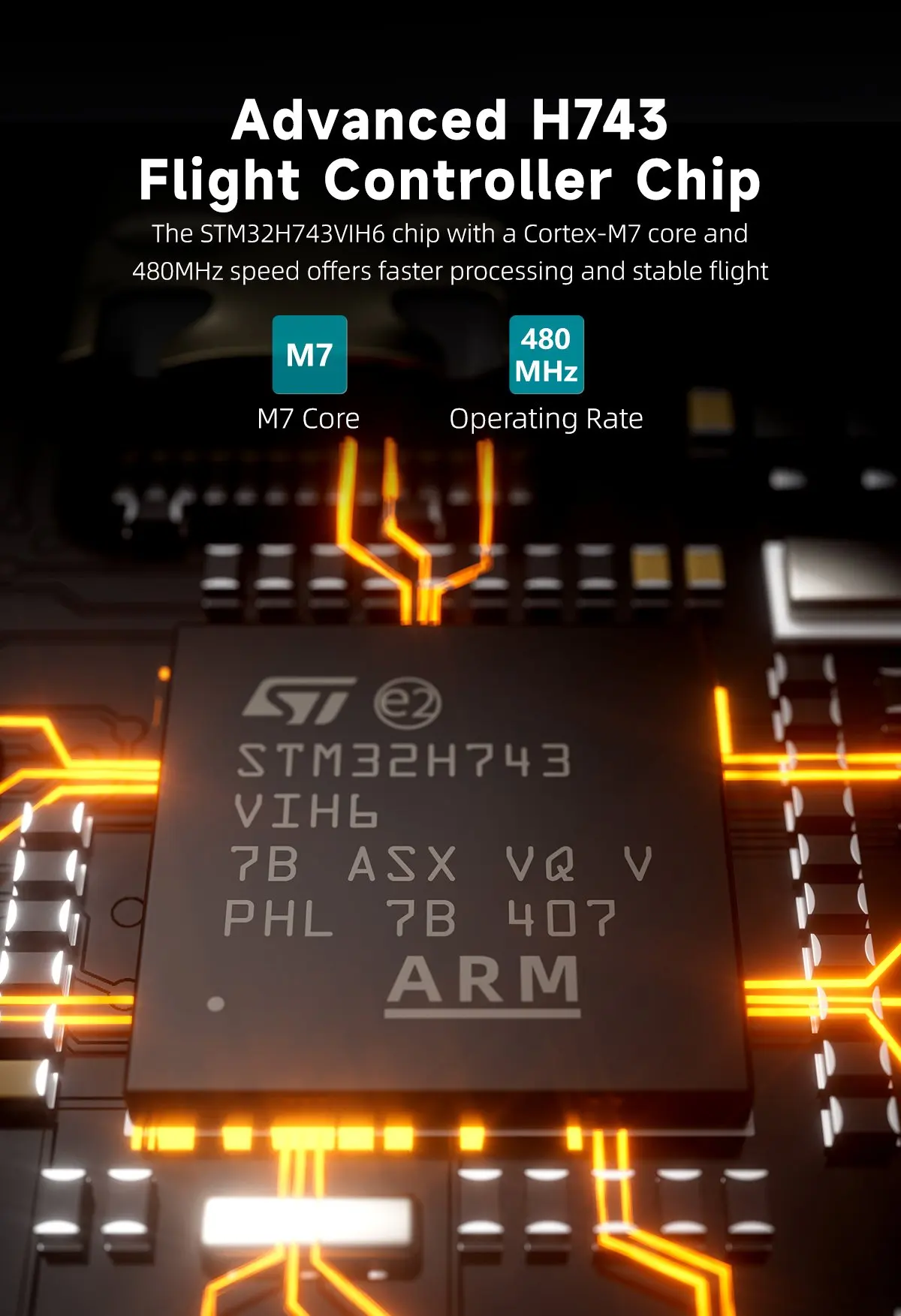

n1. Adopts the high-performance STM32H743 as the main controller

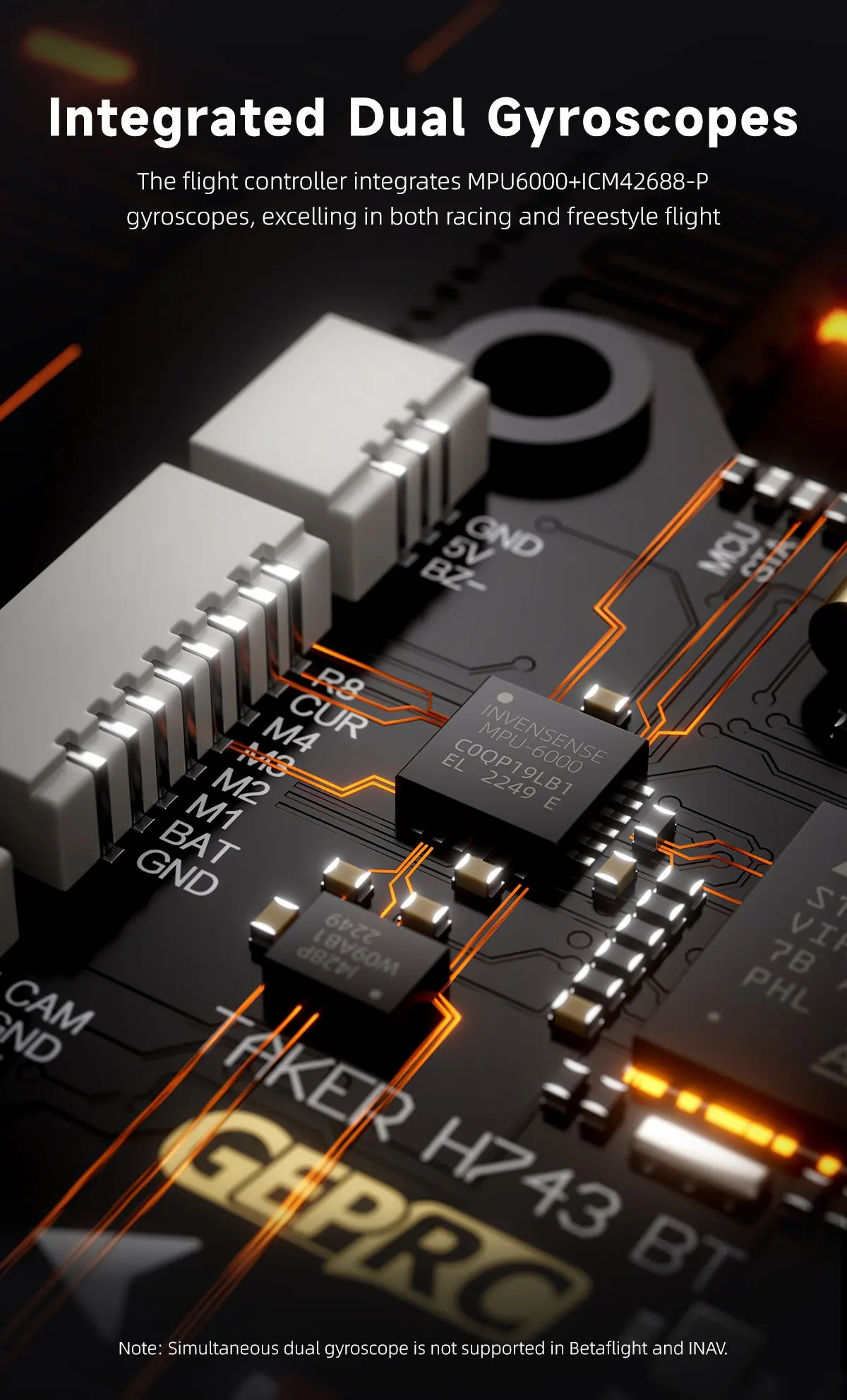

n2. Equipped with MPU6000 and 42688-P dual gyroscopes

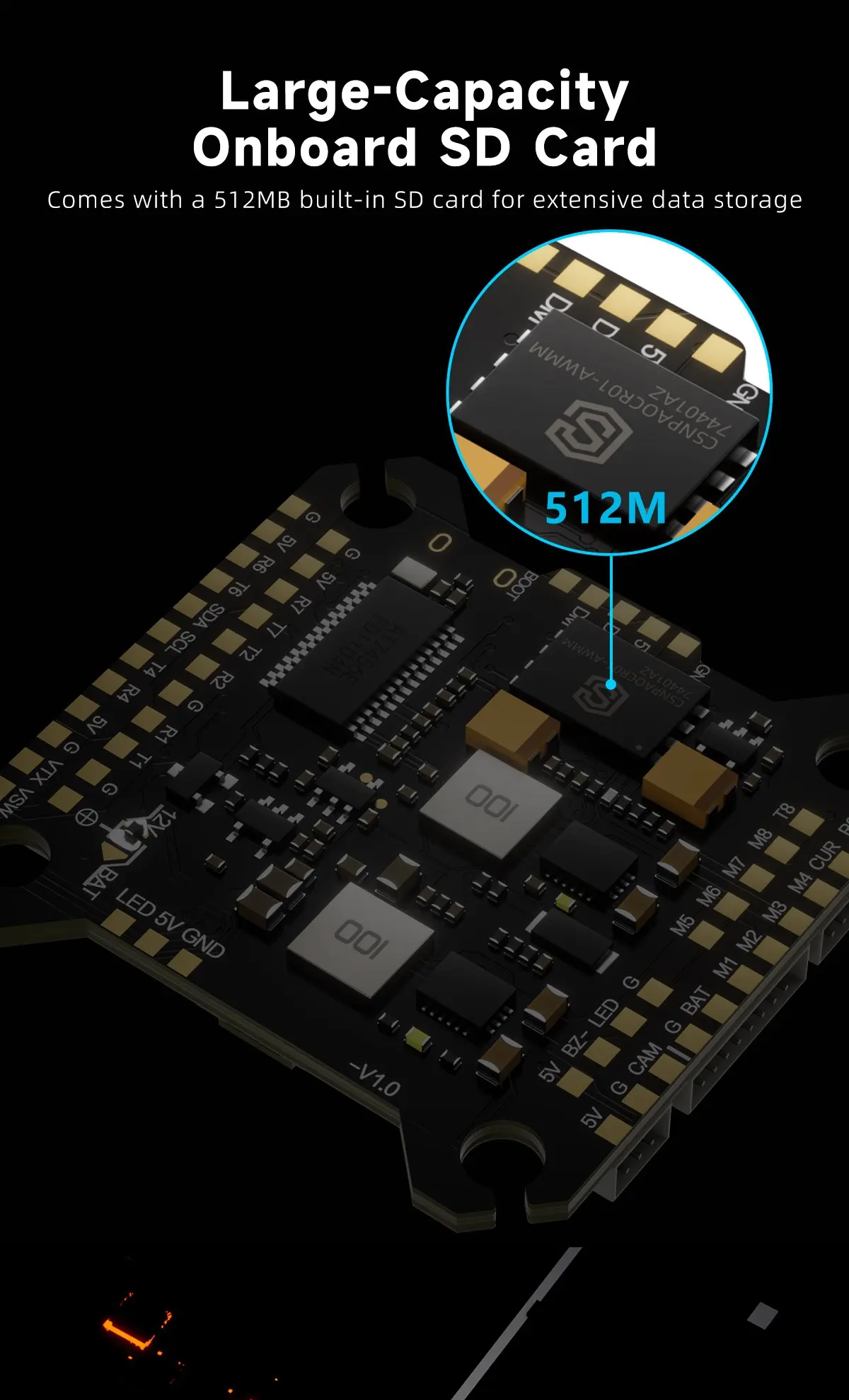

n3. 512MB high-capacity black box storage

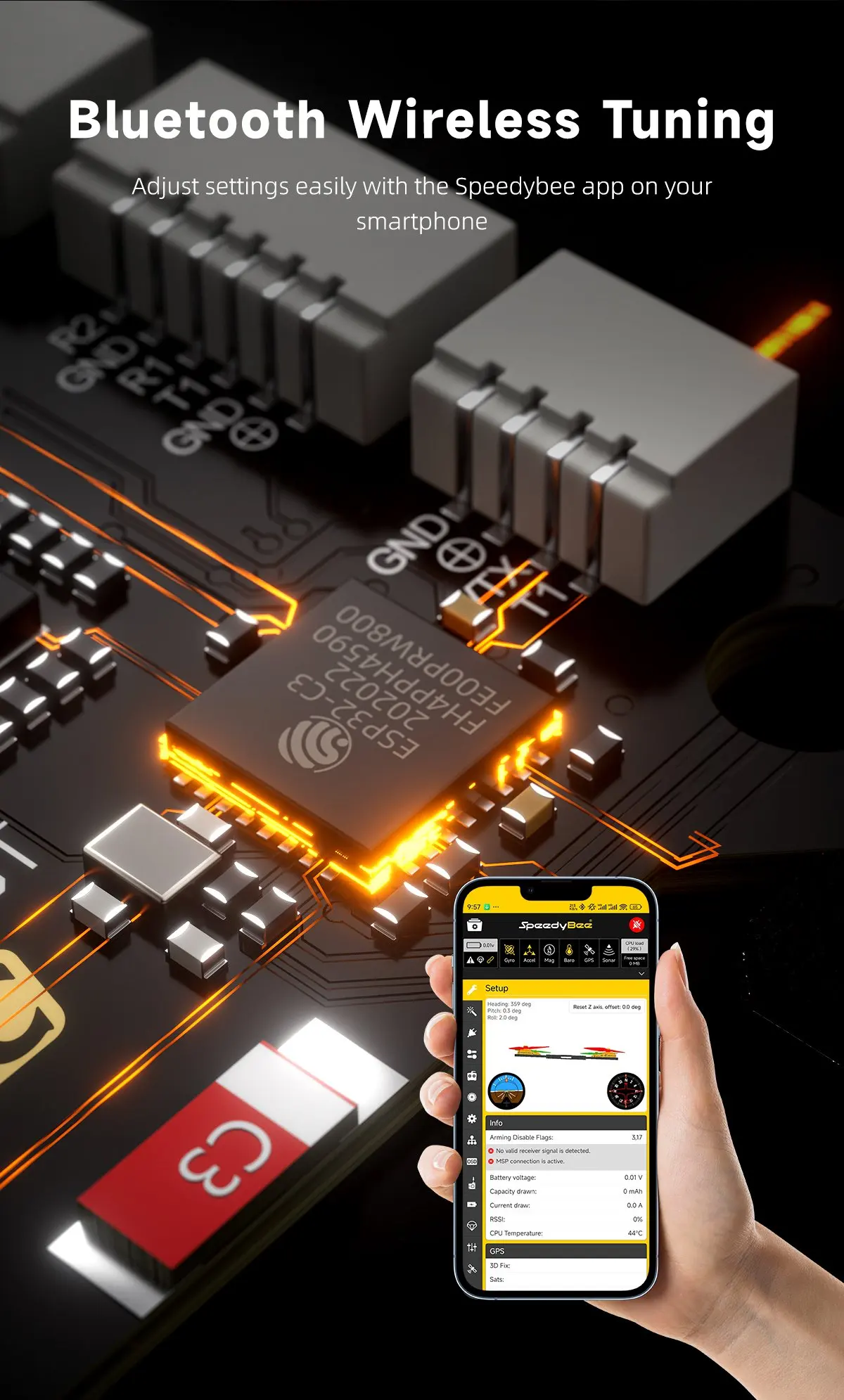

n4. Bluetooth parameter tuning

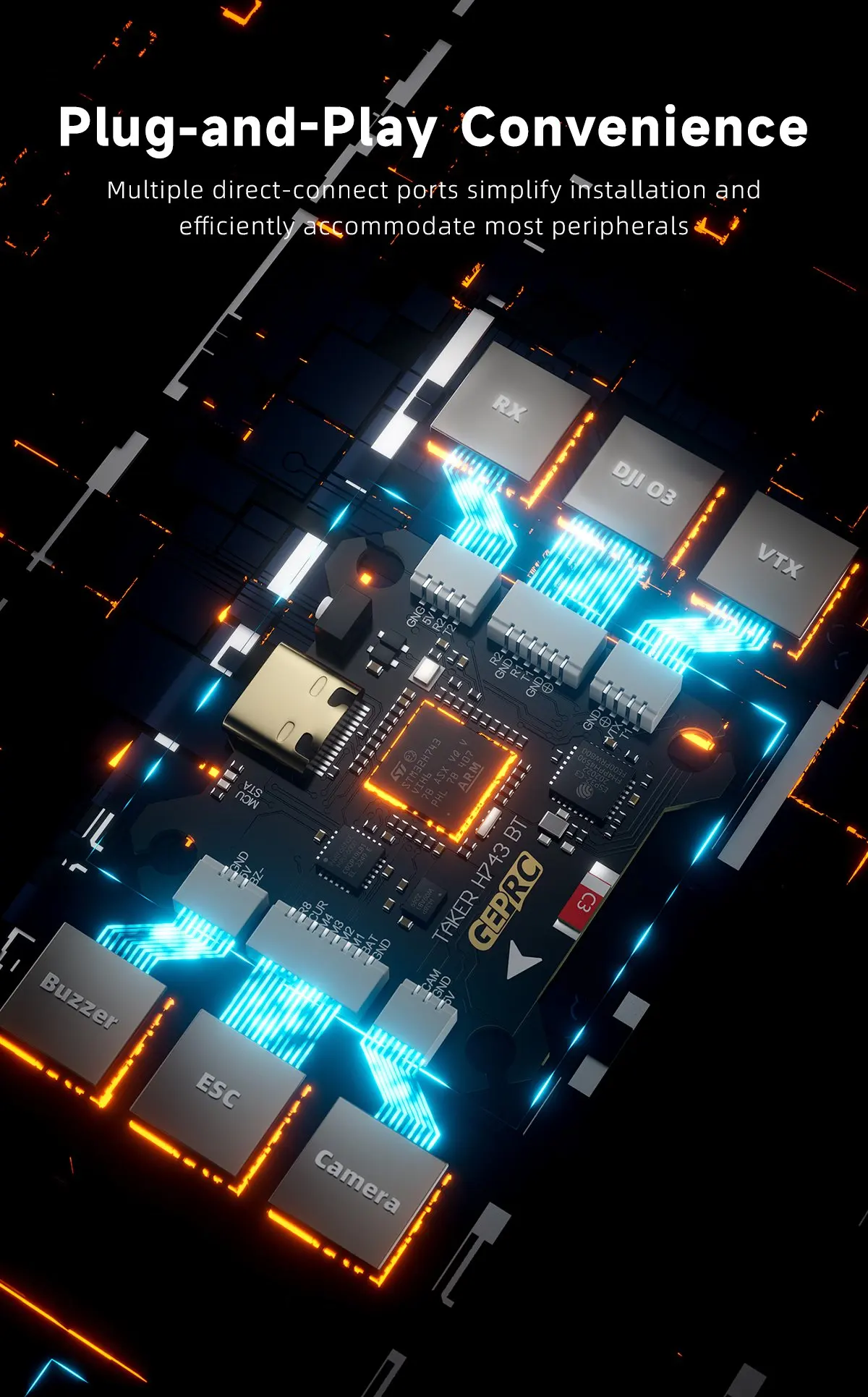

n5.Plug-and-play, no soldering required

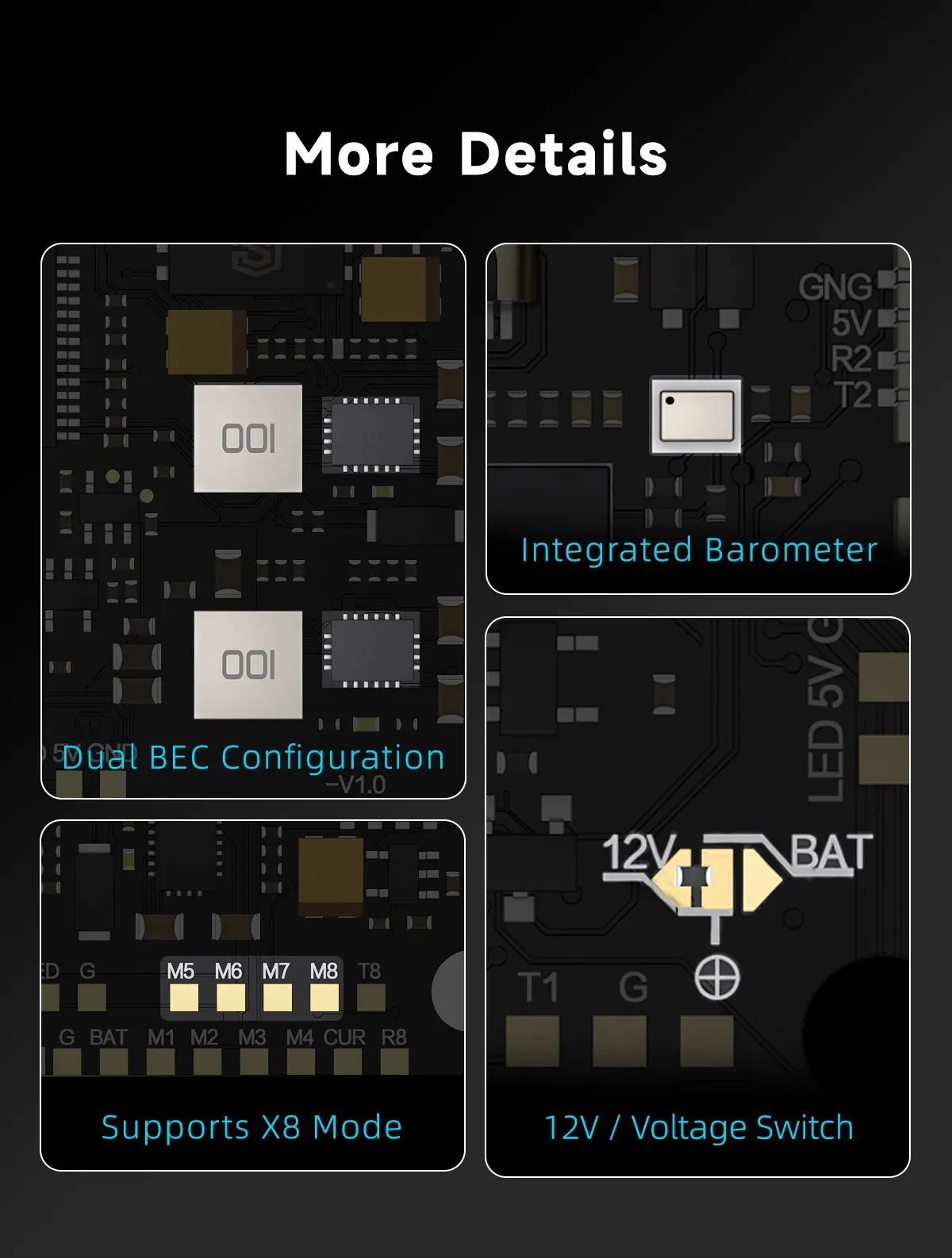

n6. Integrated barometer
n7.Features 7 UART ports
n8. Independent BEC with 12V@2.5A and 5V@3A outputs
n9. Supports multiple firmware options

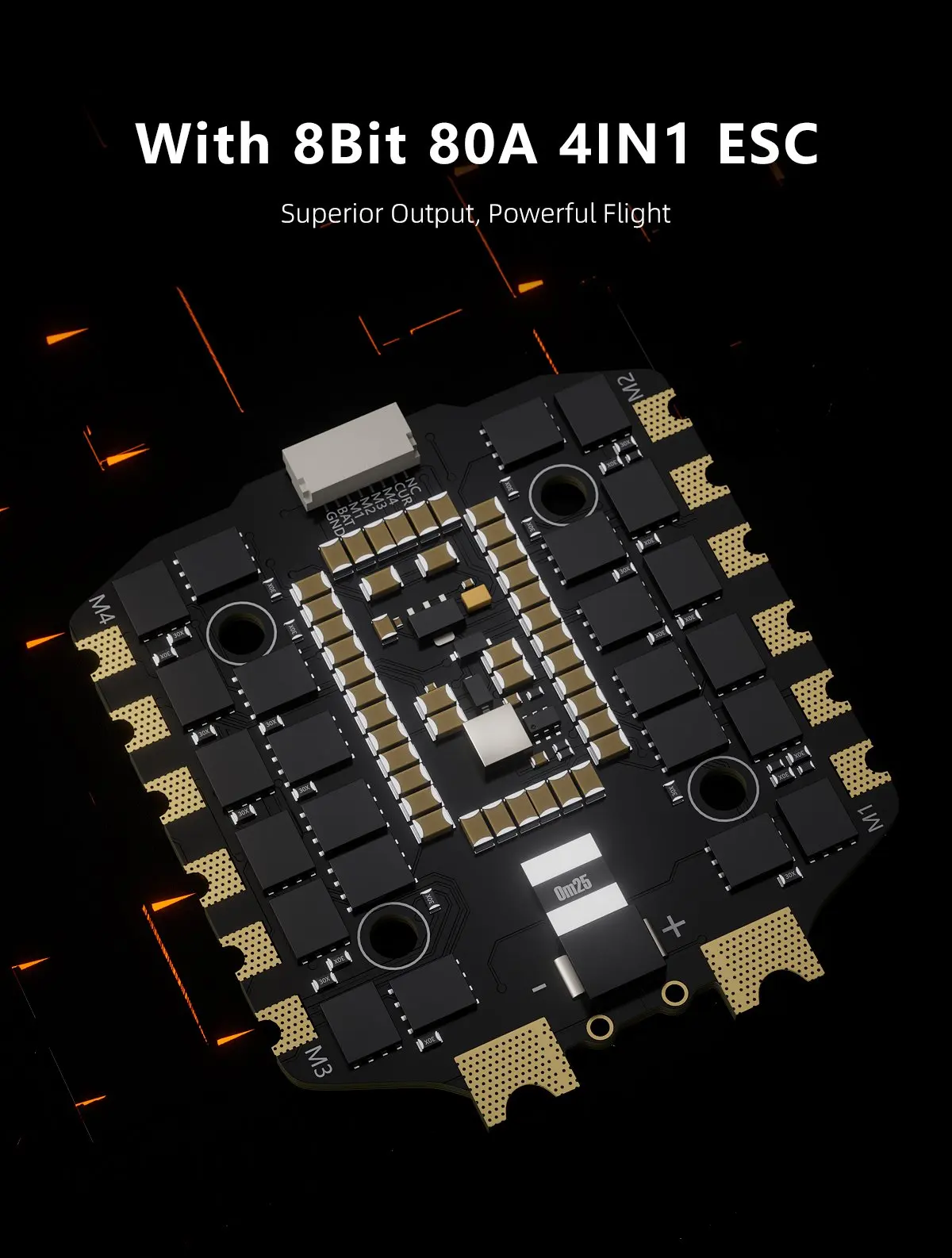

n10. Equipped with the TAKER H80_BLS 80A 4IN1 ESC for a smooth flight experience

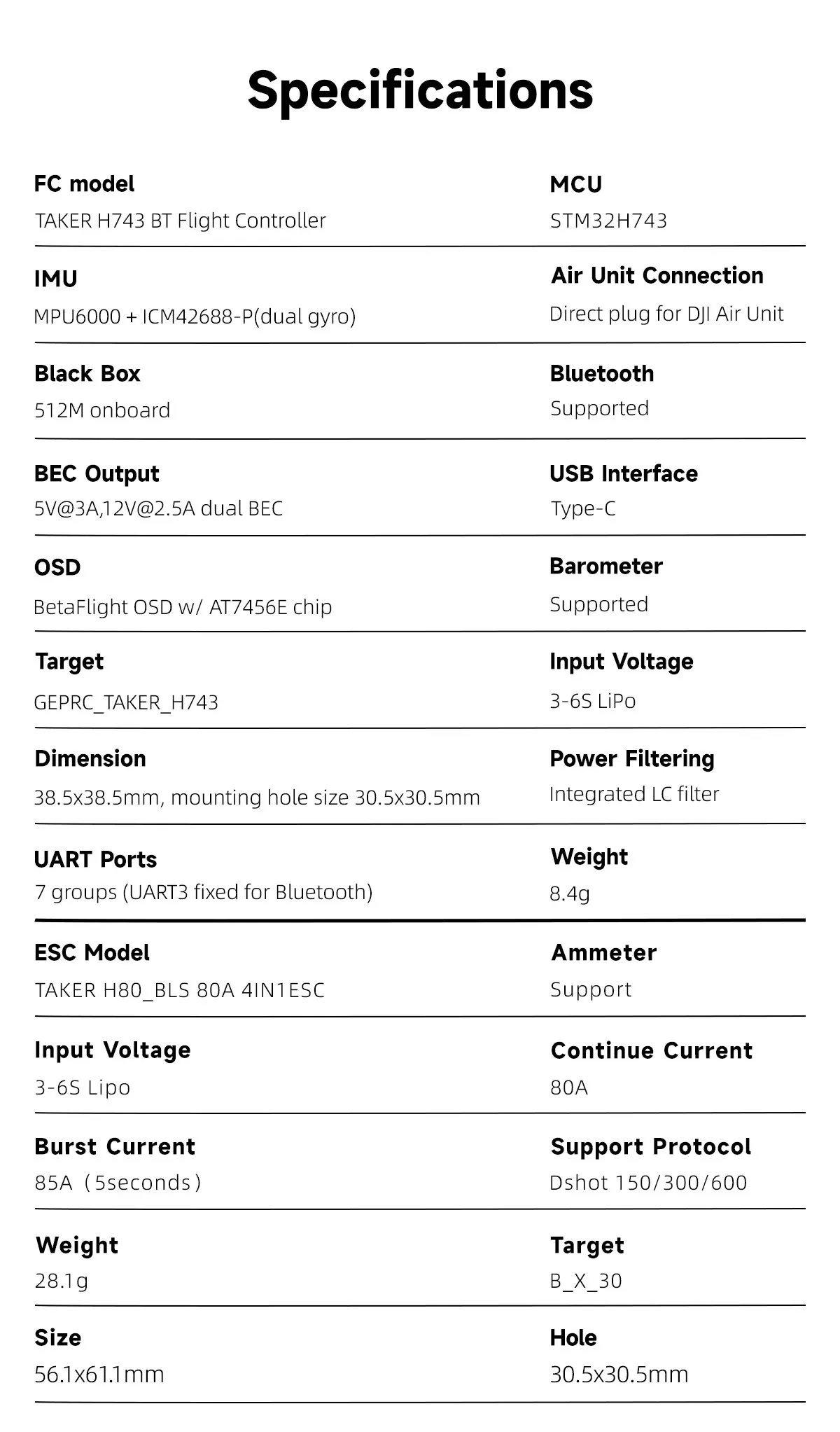

nSpecifications

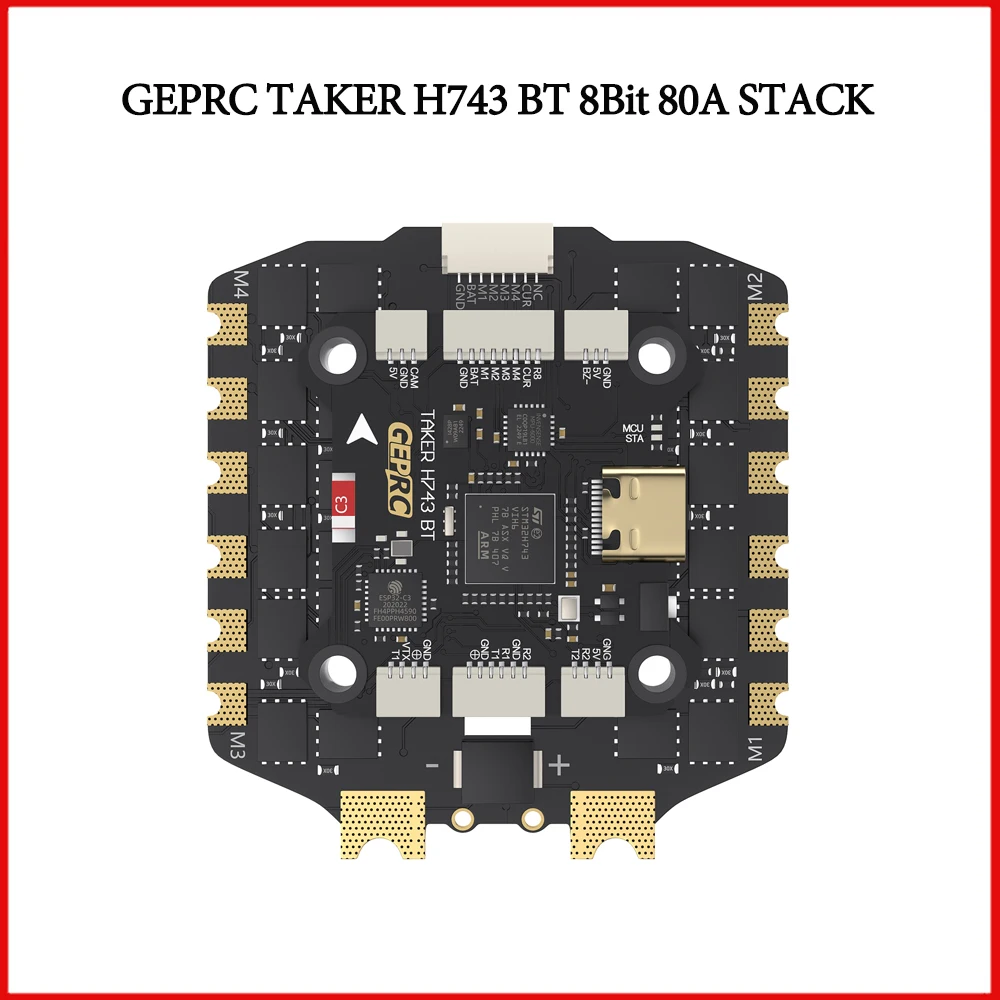

nTAKER H743 BT 8Bit 80A STACK
nFC model: TAKER H743 BT Flight Controller
nMCU: STM32H743
nIMU: MPU6000 + ICM42688-P(dual gyro)
nAir Unit Connection: direct plug for D-J-I Air Unit
nBlack Box: 512M onboard
nBluetooth: Supported
nBarometer: Supported
nUSB Interface: Type-C
nOSD: BetaFlight OSD w/ AT7456E chip
nBEC Output: 5V@3A,12V@2.5A
ndual BEC
nTarget: GEPRC_TAKER_H743
nDimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
nInput Voltage: 3-6S LiPo
nUART Ports: 7 groups (UART3 fixed for Bluetooth)
nPower Filtering: Integrated LC filter
nWeight: 8.4g
nESC Model: TAKER H80_BLS 80A 4IN1 ESC
nInput Voltage: 3-6S Lipo
nAmmeter: Support
nContinue Current：80A
nBurst Current：85A（5 seconds）
nSupport Protocol: Dshot 150/300/600
nSize：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
nWeight: 28.1g
nTarget: B_X_30

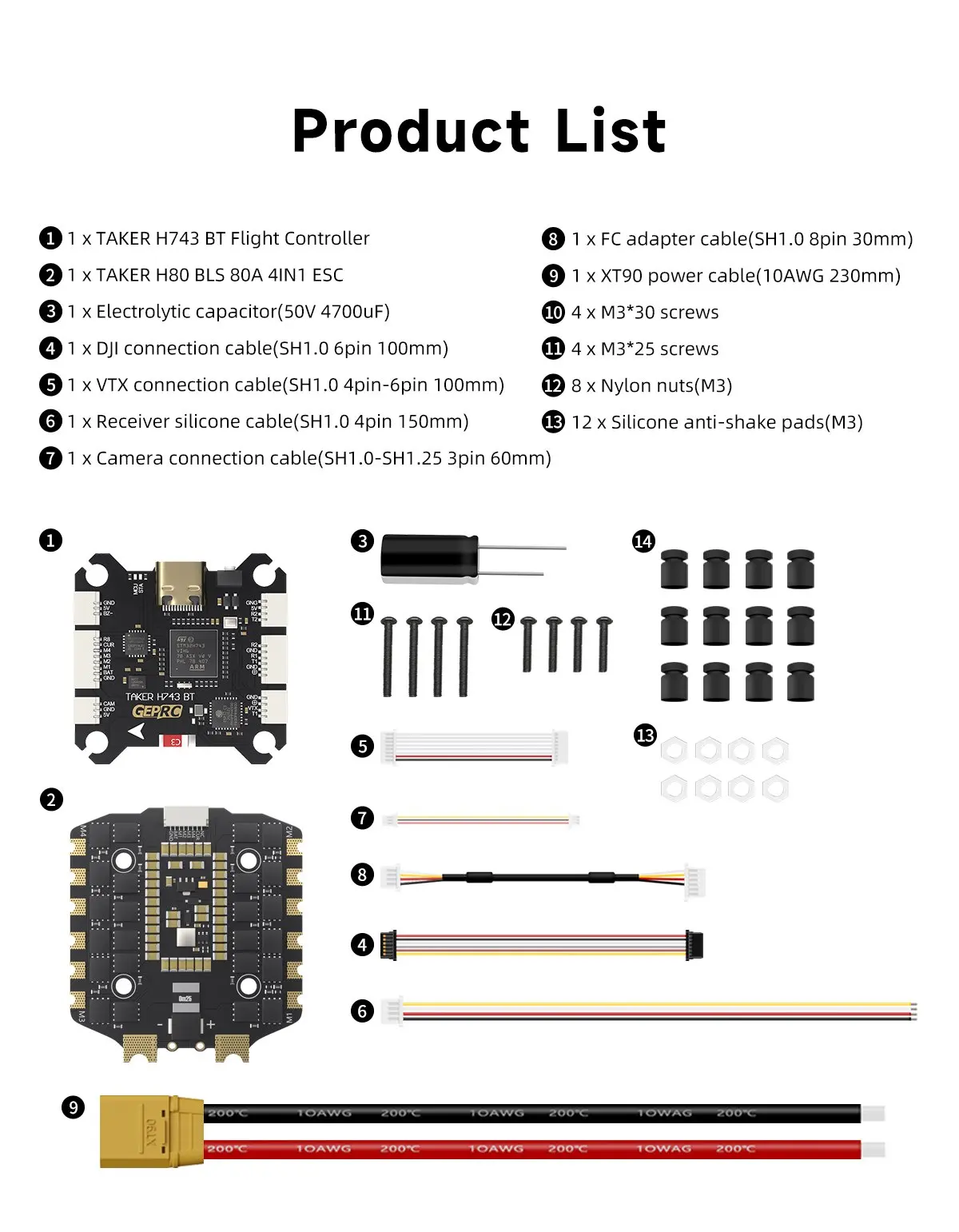

nIncludes
n1 x TAKER H743 BT Flight Controller
n1 x TAKER H80_BLS 80A 4IN1 ESC
n1 x Electrolytic capacitor(50V 4700uF)
n1 x D-J-I connection cable(SH1.0 6pin 100mm)
n1 x FC adapter cable(SH1.0 8pin 30mm)
n1 x Receiver silicone cable(SH1.0 4pin 150mm)
n1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)
n1 x VTX connection cable(SH1.0 4pin-6pin 100mm)
n1 x XT90 power cable(10AWG 230mm)
n4 x M3*30 screws
n4 x M3*25 screws
n8 x Nylon nuts(M3)
n12 x Silicone anti-shake pads(M3)

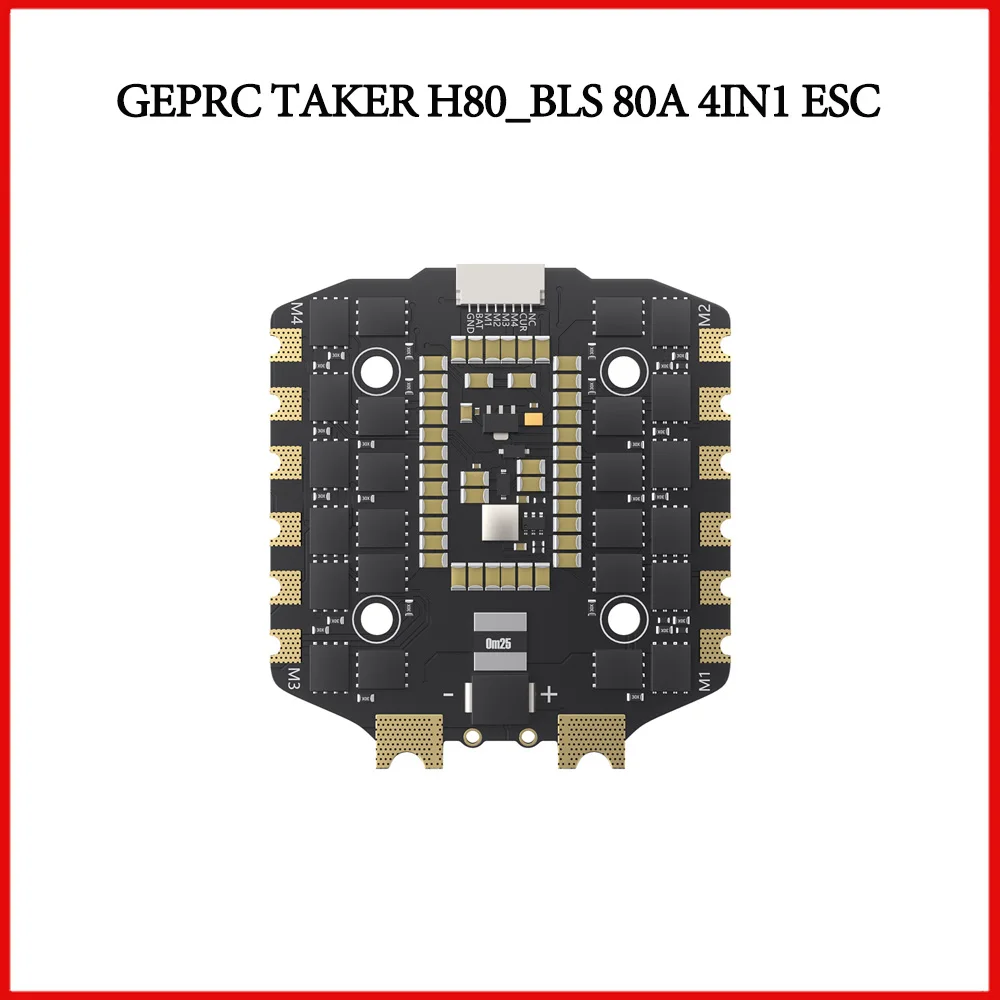

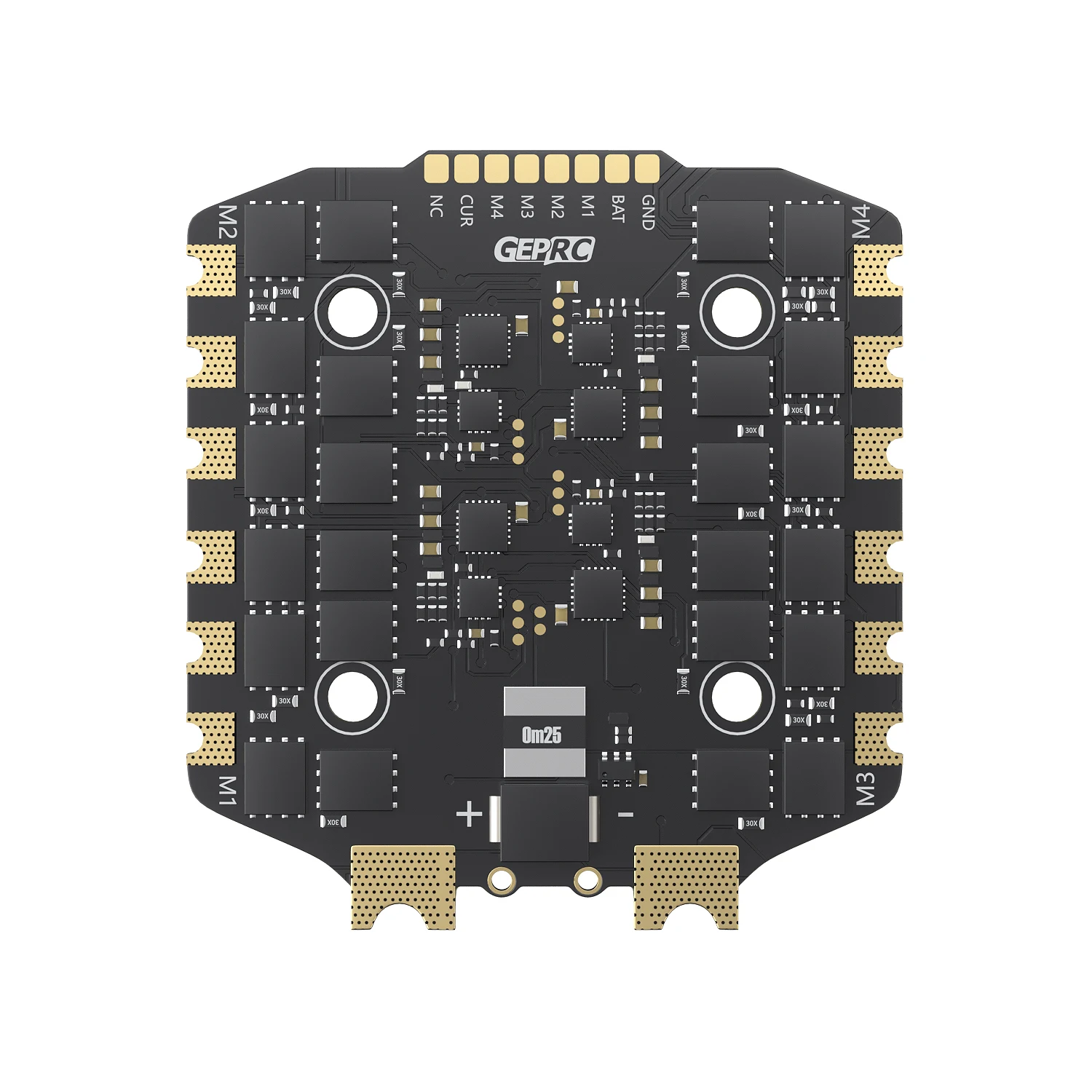

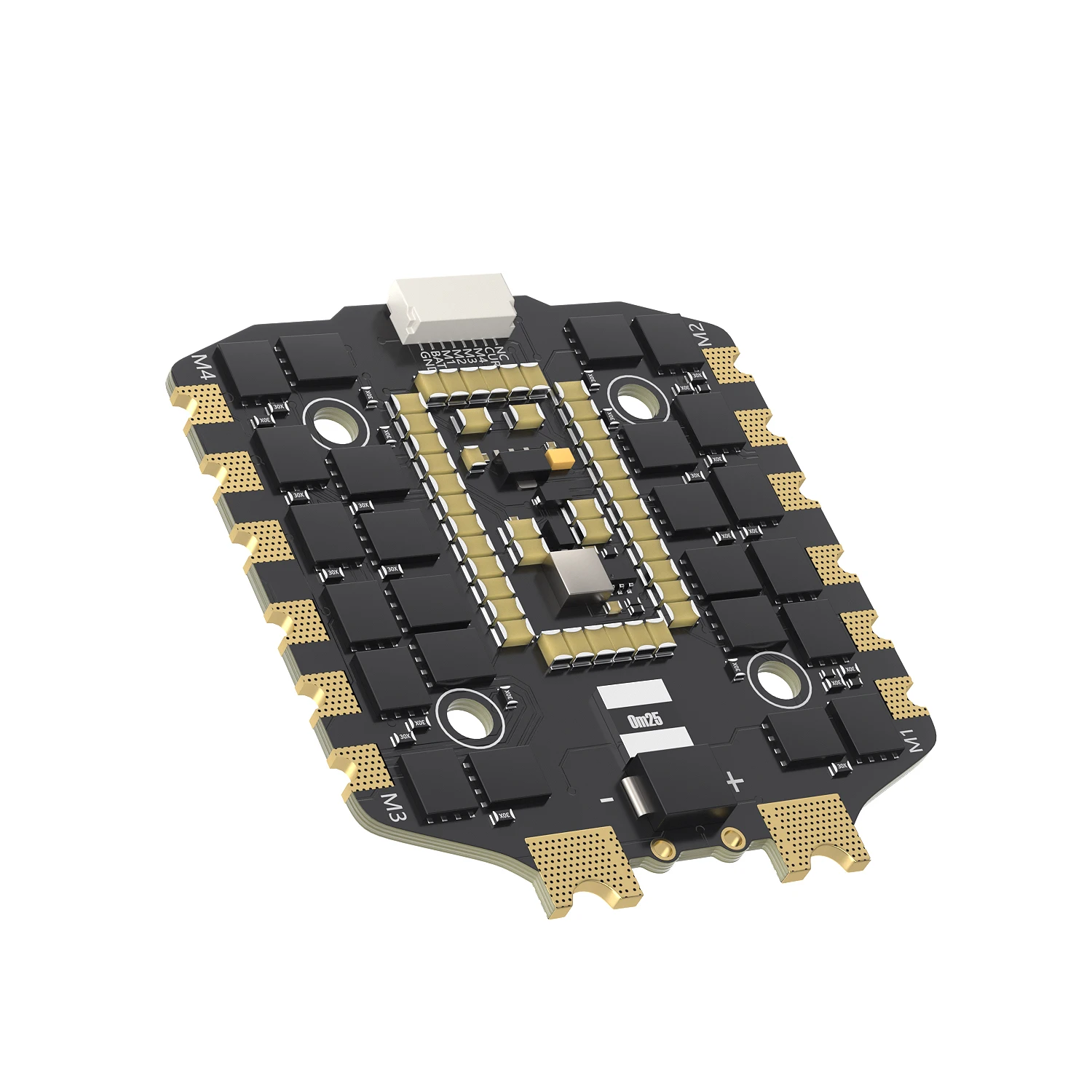

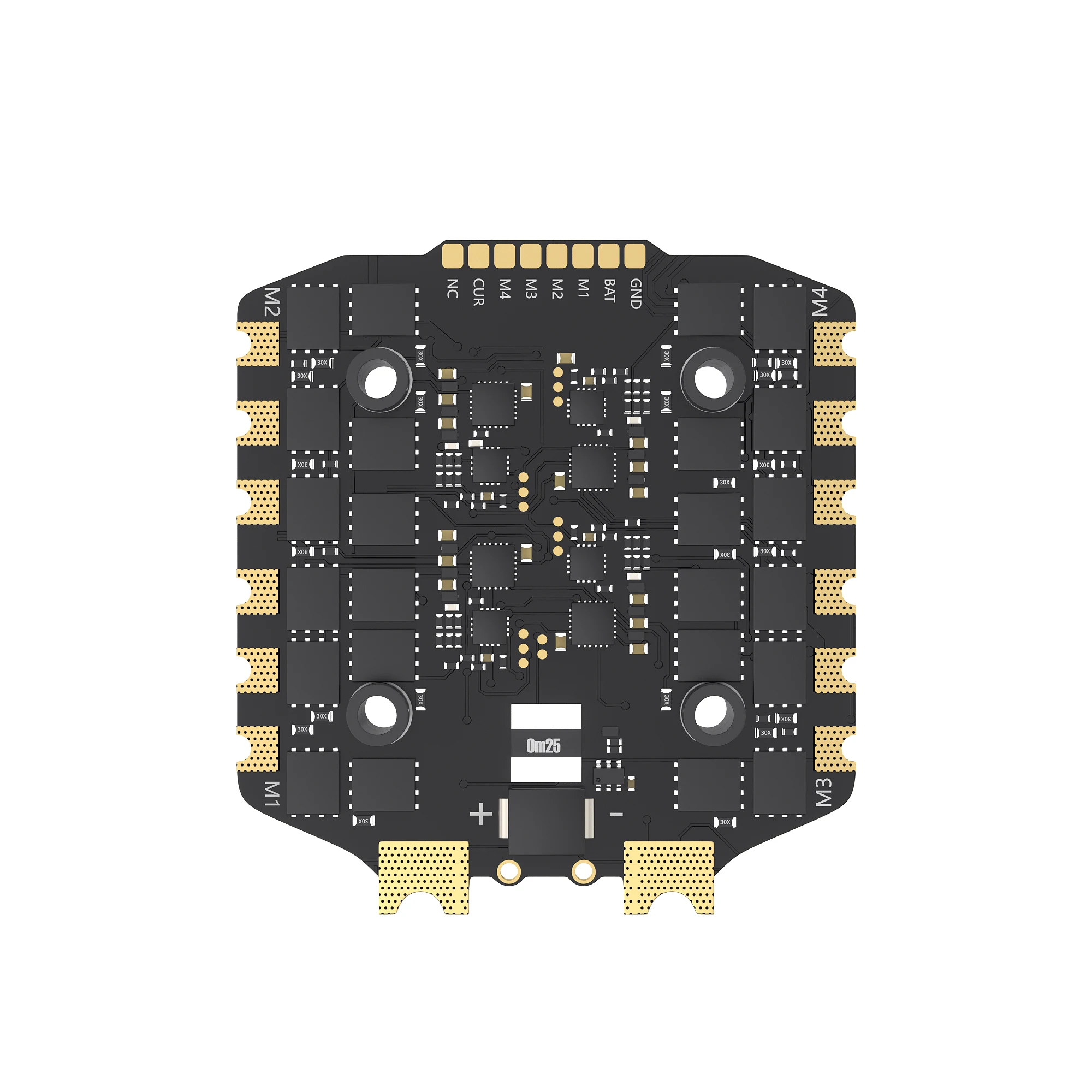

n2.GEPRC TAKER H80_BLS 80A 4IN1 ESC Specifications
nInput Voltage: 3-6S Lipo
nAmmeter: Support
nContinue Current: 80A
nBurst Current: 85A（5 seconds）
nSupport Protocol: Dshot 150/300/600
nSize: 56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
nWeight: 28.1g
nTarget: B_X_30
nIncludes
n1 x TAKER H80_BLS 80A 4IN1 ESC
n
n1 x Electrolytic capacitor(50V 4700uF)
n
n1 x FC adapter cable(SH1.0 8pin 30mm)
n
n1 x XT90 power cable(10AWG 230mm)
n
n4 x Silicone anti-shake pads(M3)
