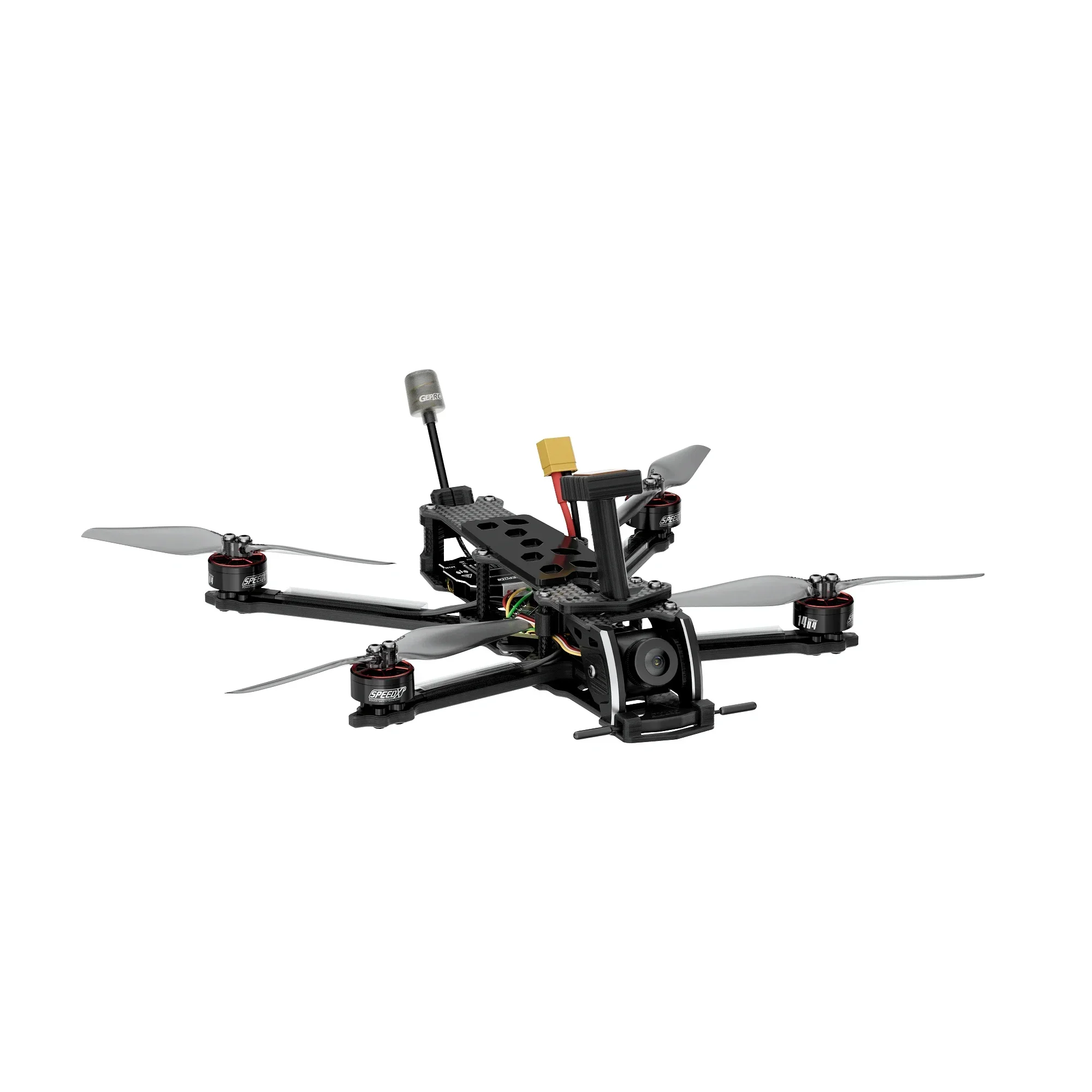

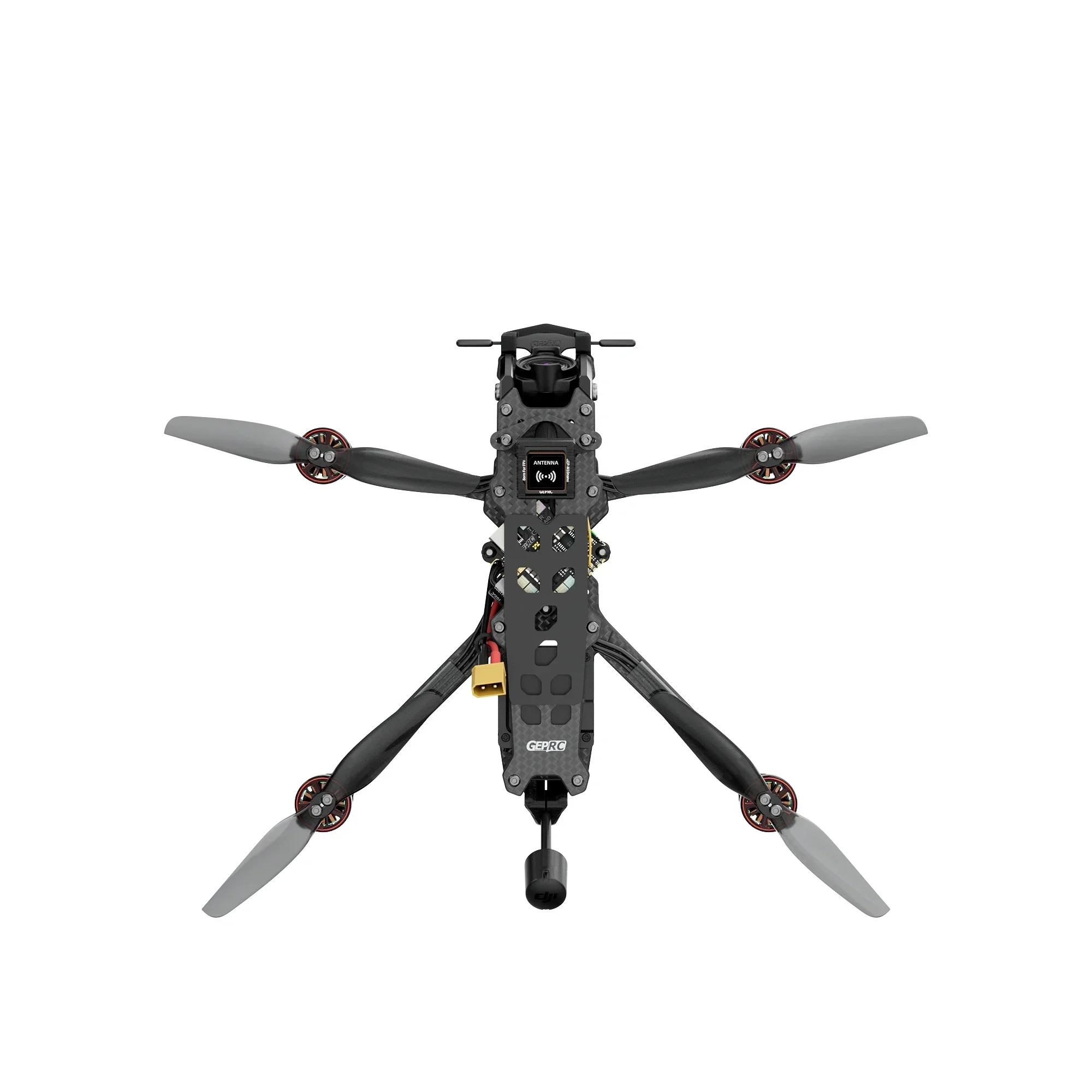

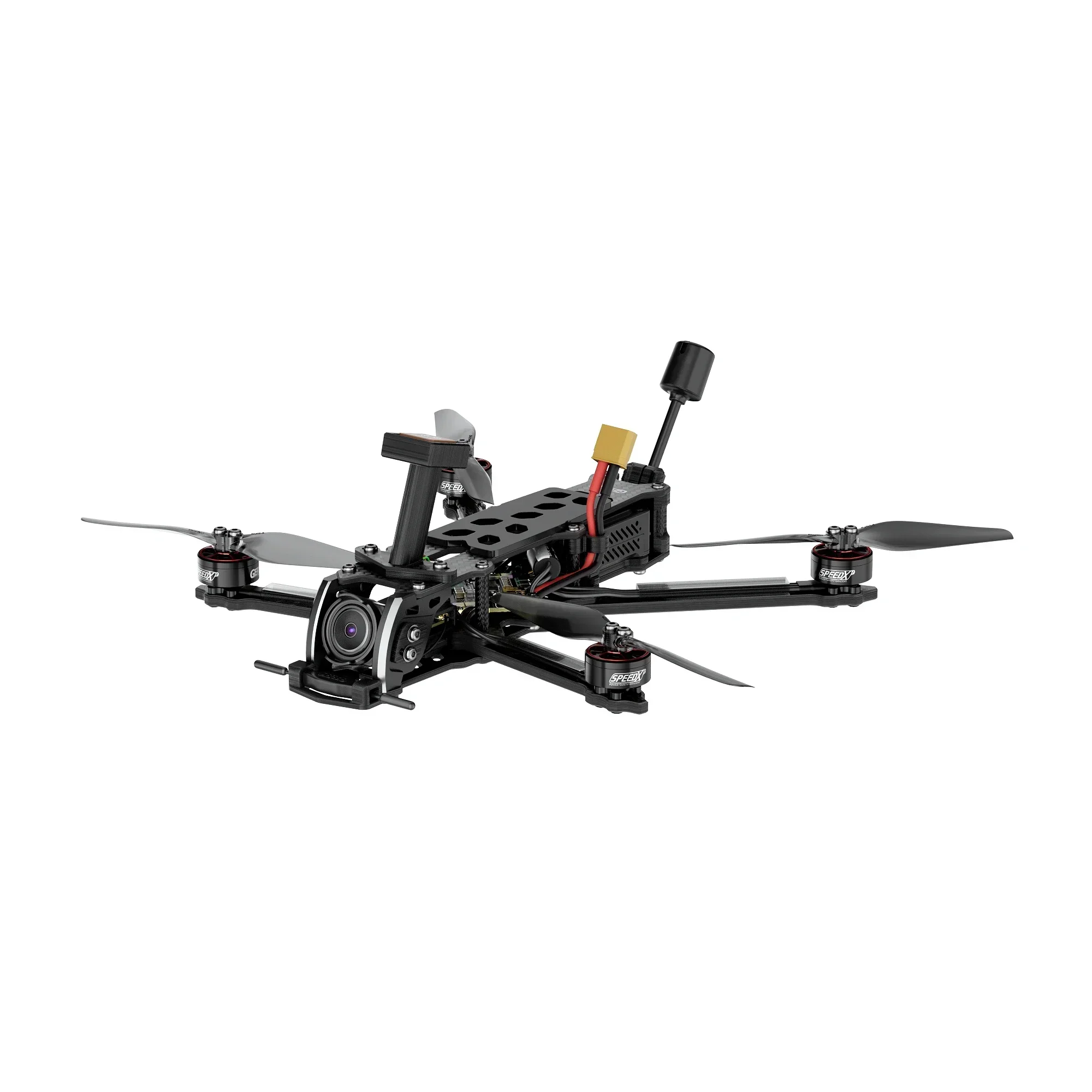

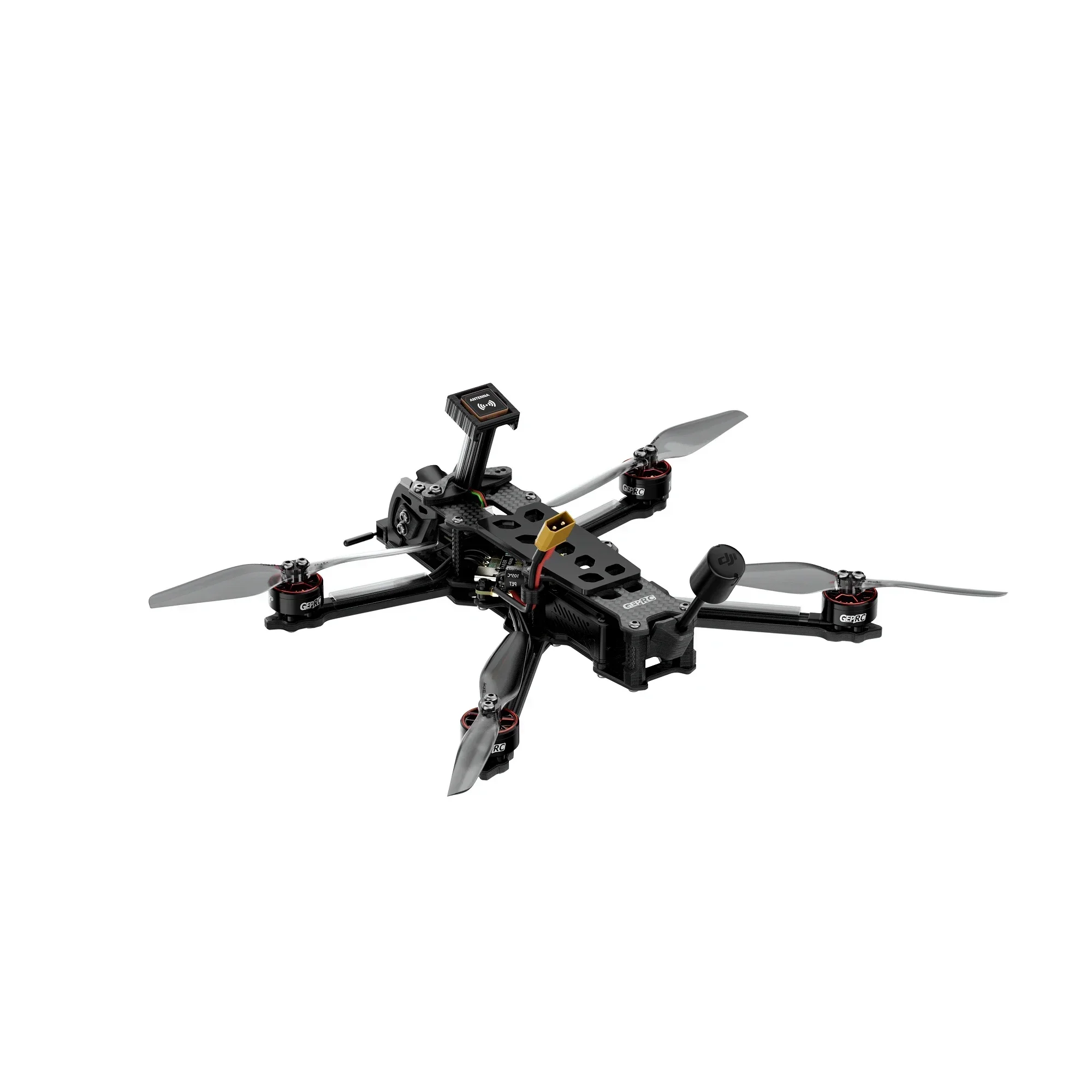

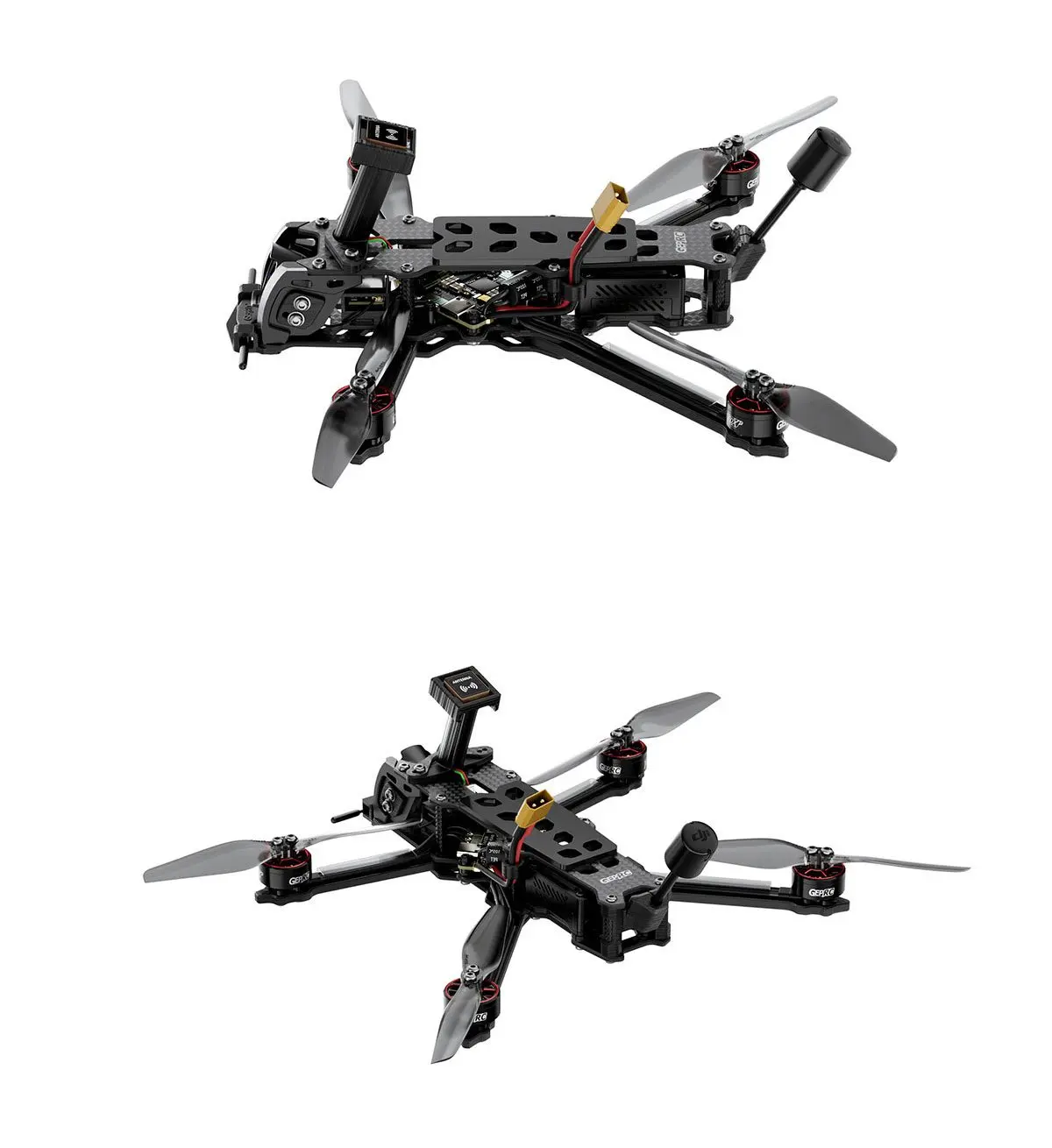

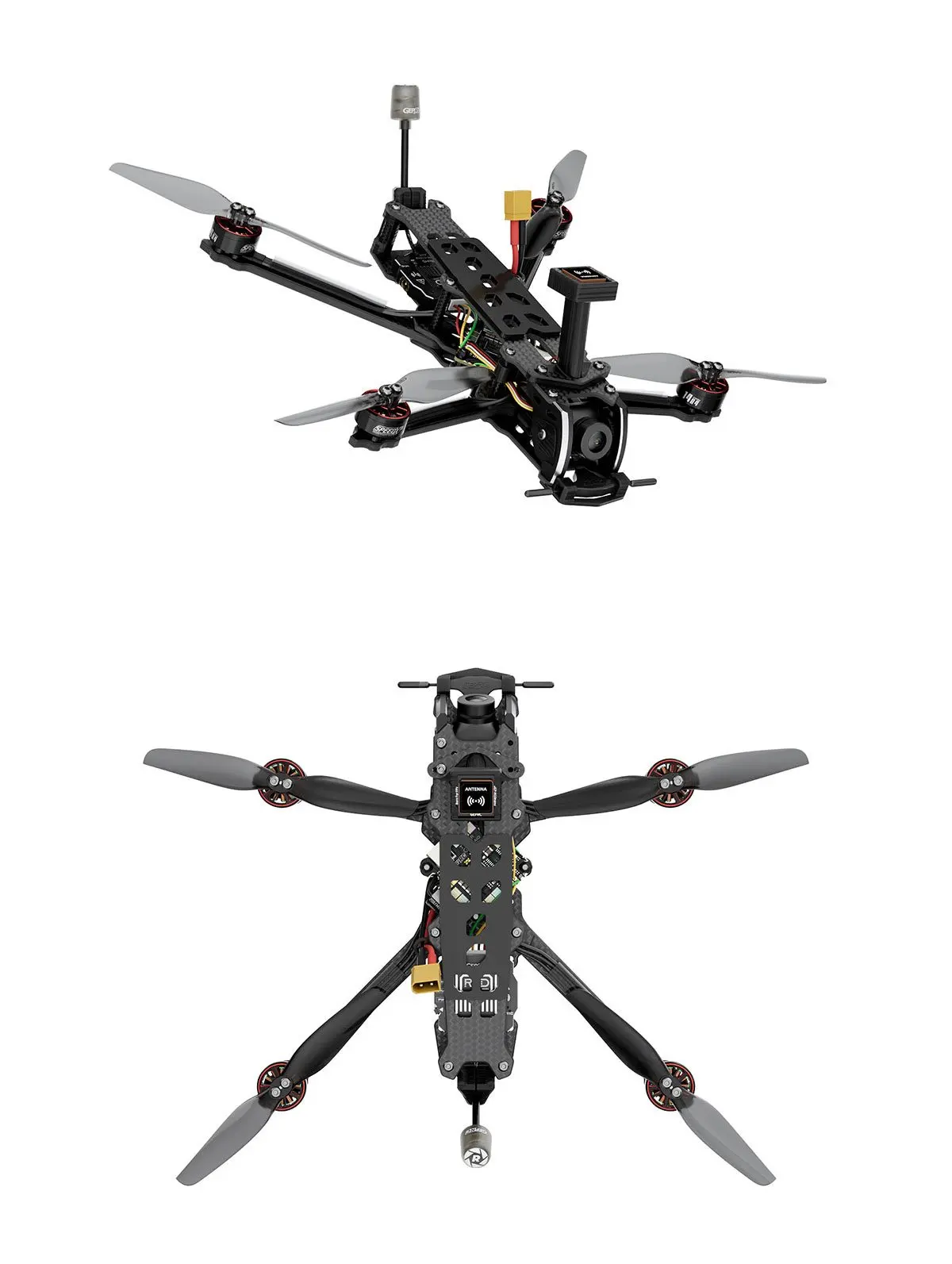

GEPRC Tern-LR40 4inch Mini Long Range Quad – Analog

Description

Summary

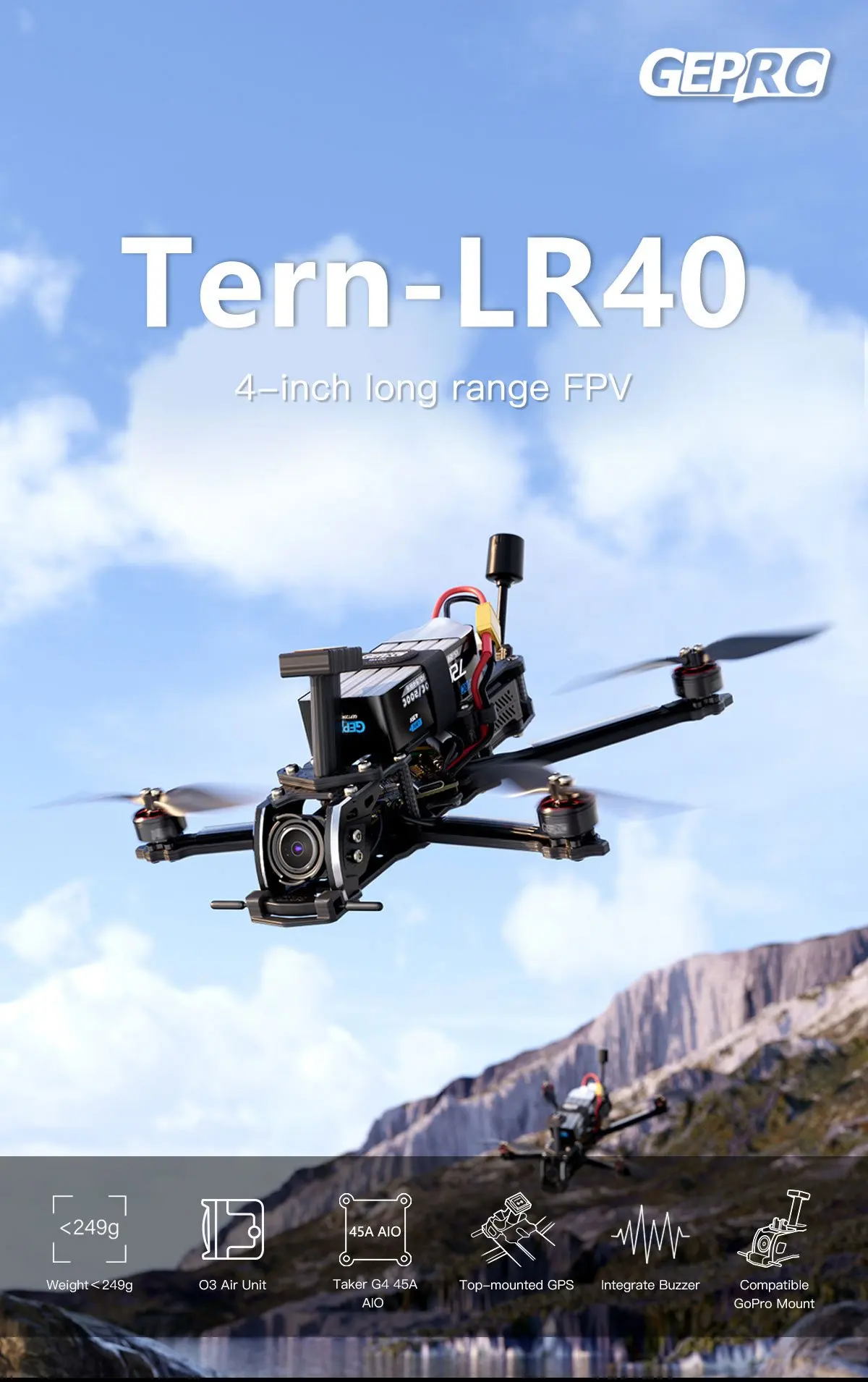

nIn the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.

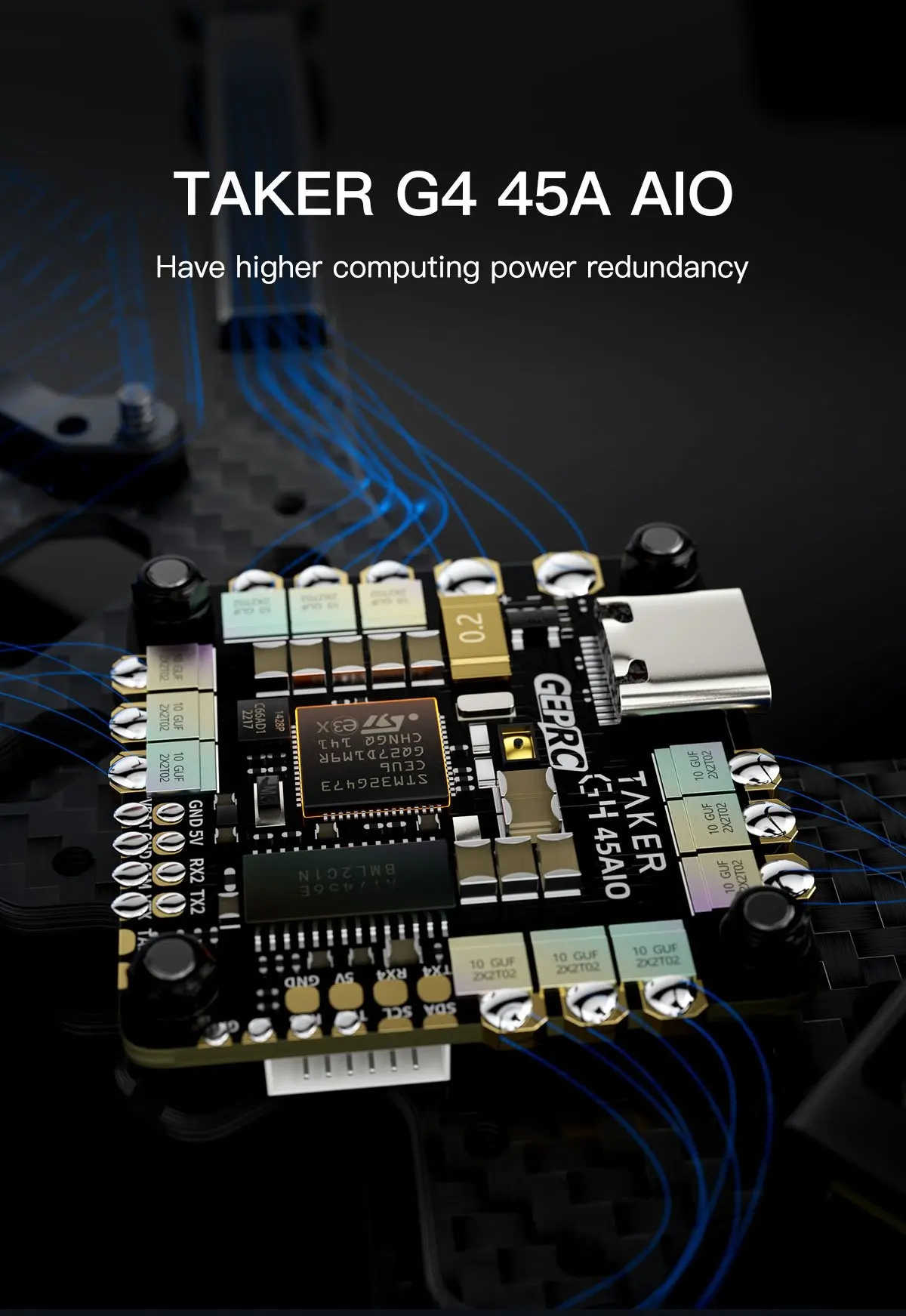

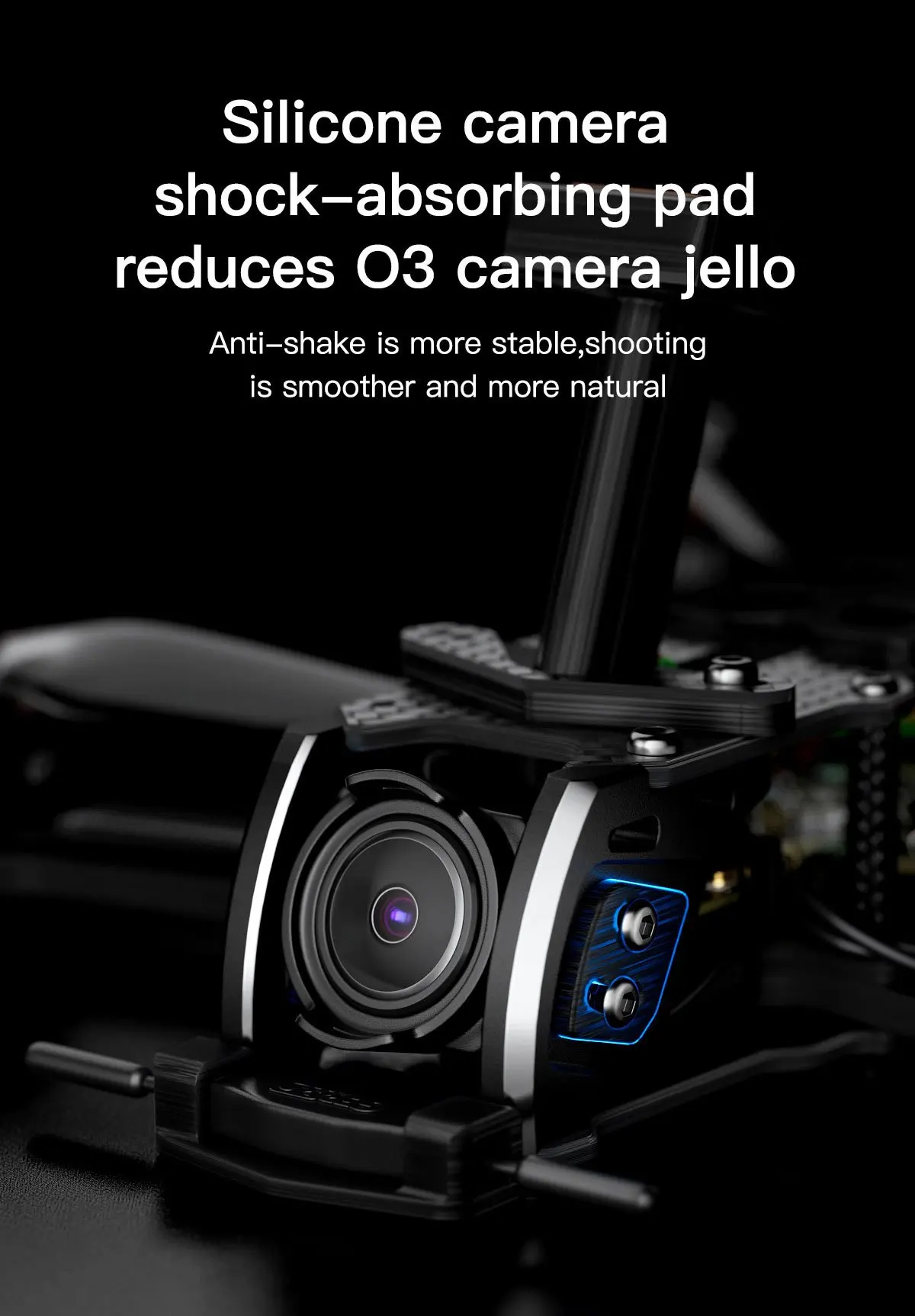

nEquipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jelly from O3 camera.
nThe Tern-LR40 is like a bird with spread wings, flying freely through the blue sky without being restrained. Choosing it is not only a high-quality flight, but also an artistic journey.
nFeature

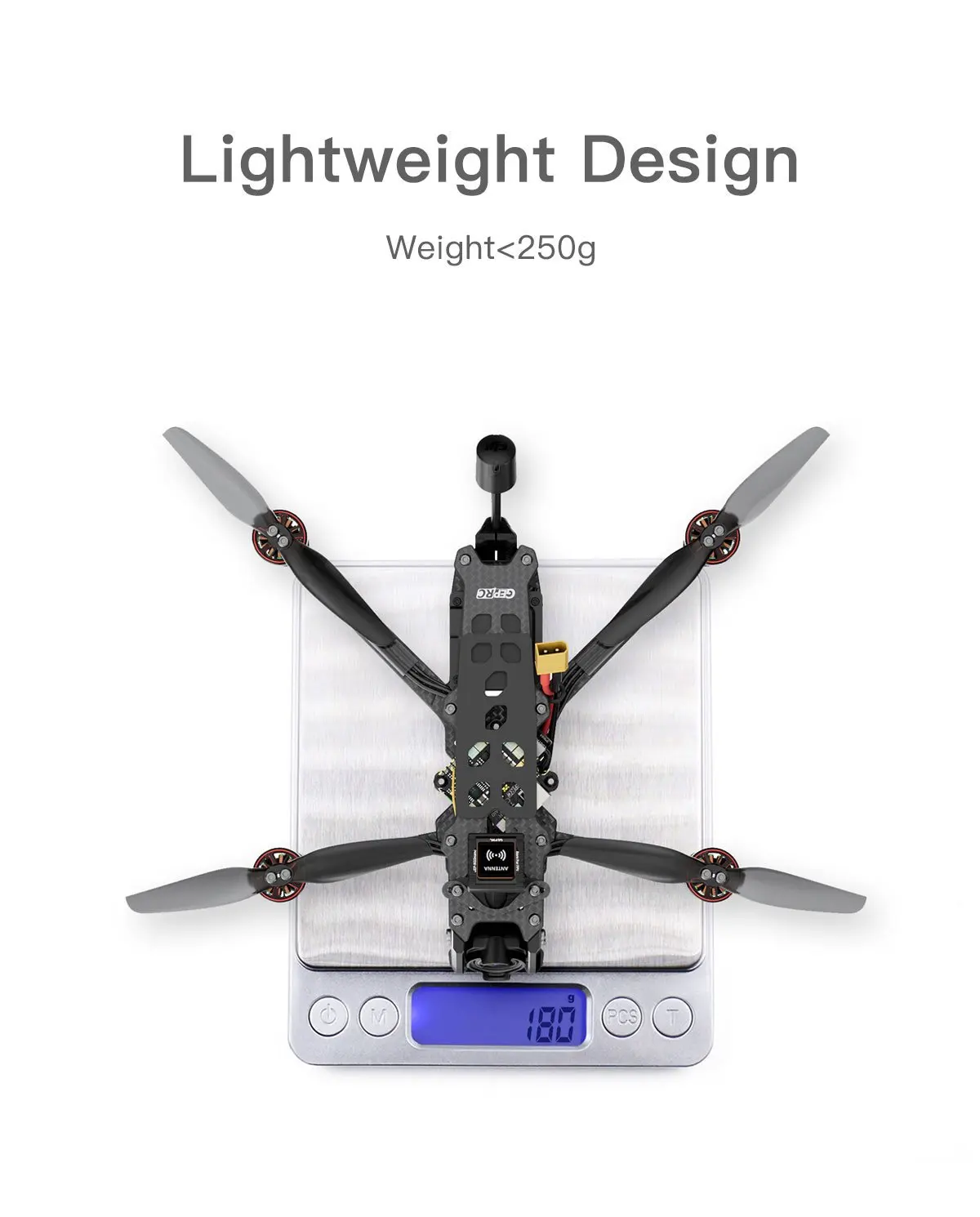

nNew lightweight design, weight under 249g.

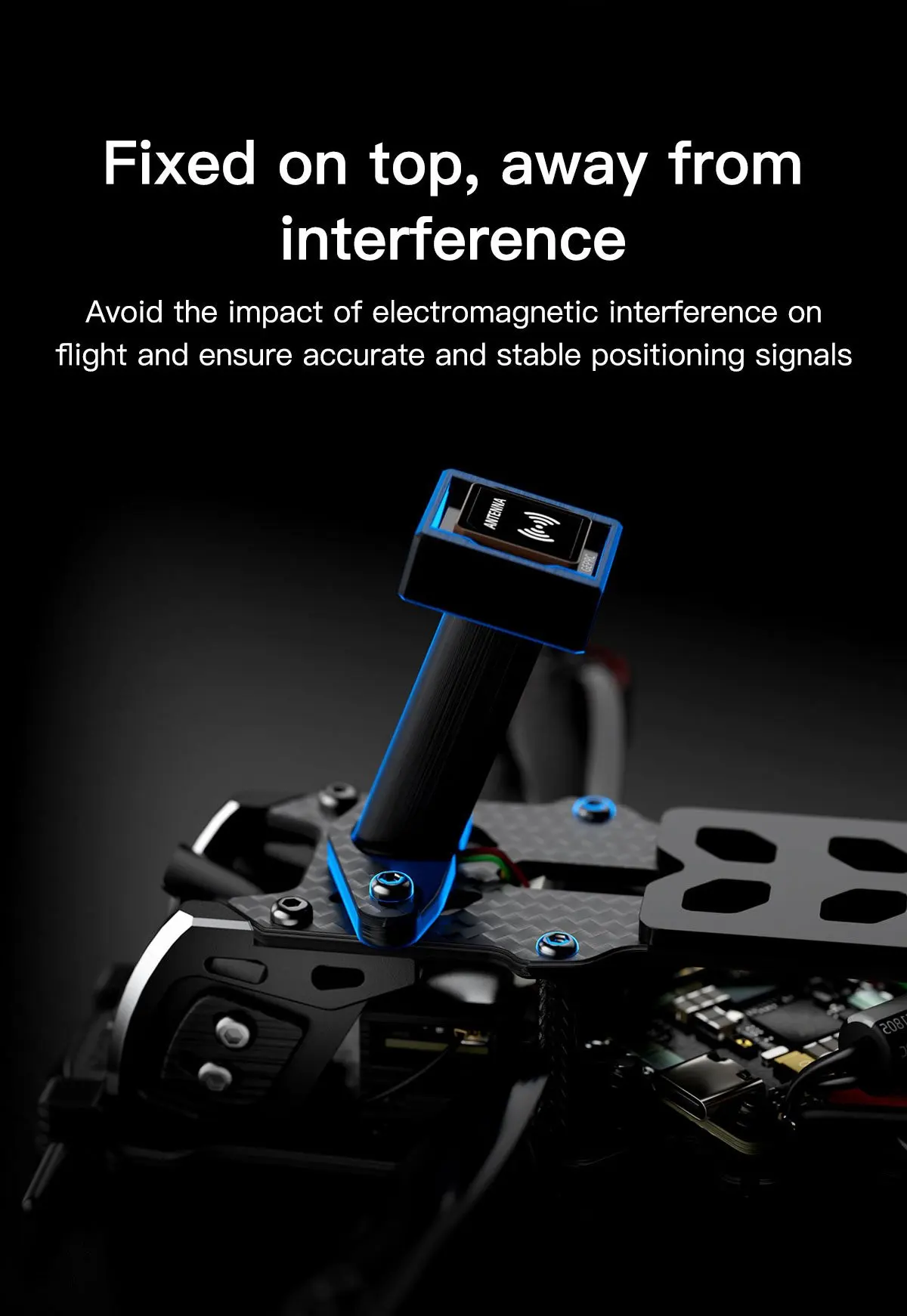

nExpand interference GPS fixation method and stay away from interference sources
nDC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
nInstall BB ring to set the battery low voltage alarm

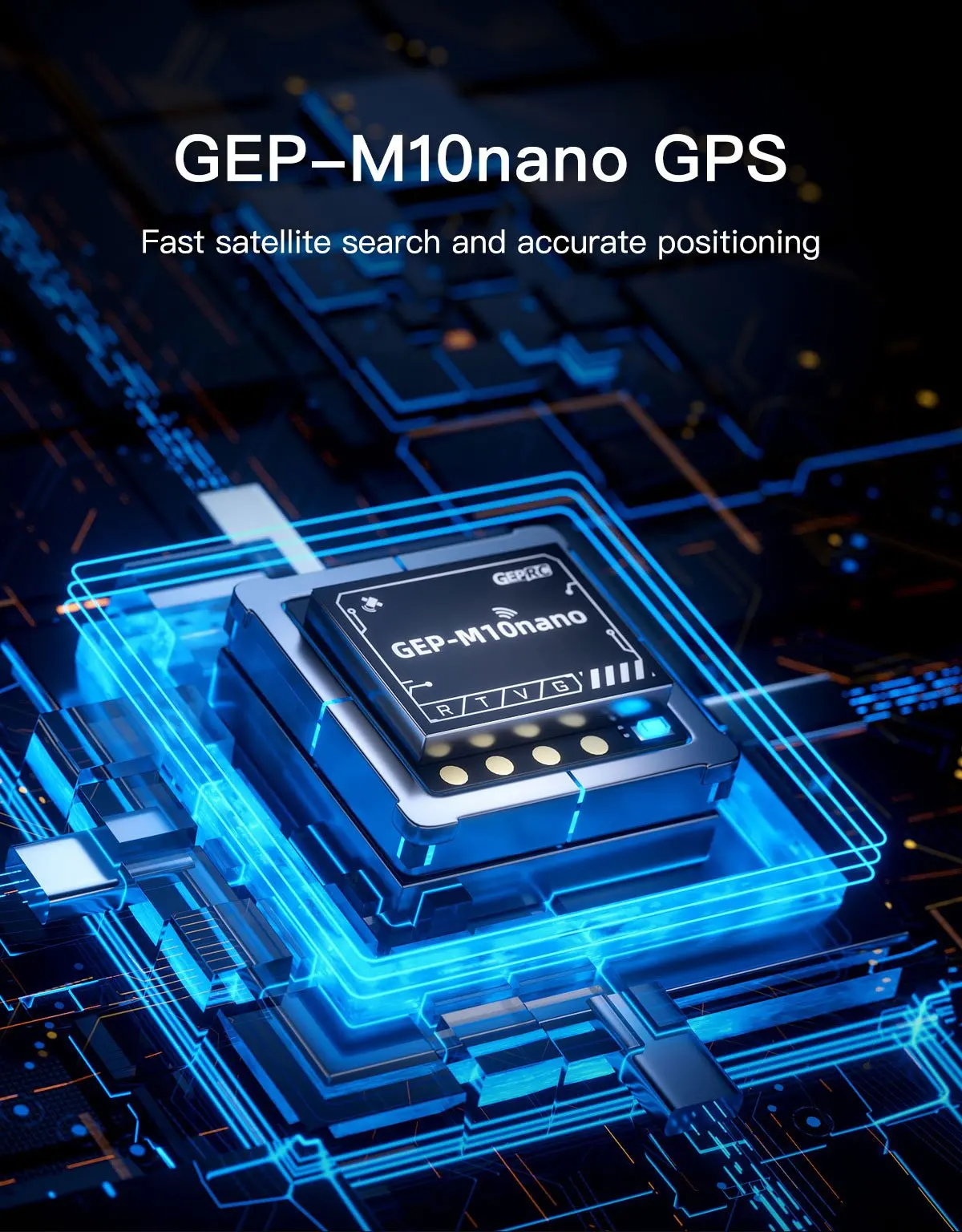

nUsing GEP-M10nano GPS, the satellite search speed is faster and the rescue mode is more stable.

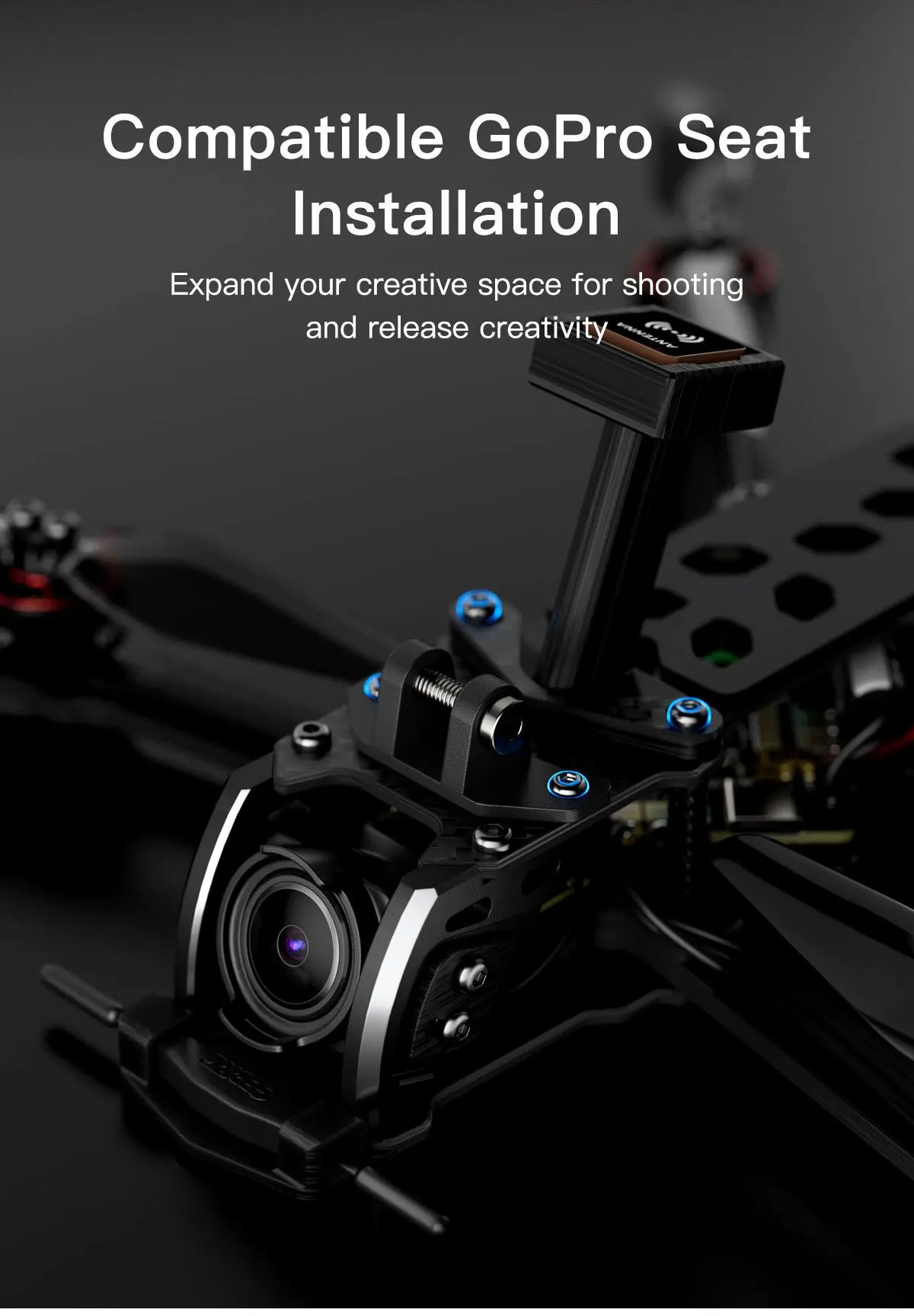

nCompatible gopro mount installation, expandable shooting creation.
n
nTern-LR40 Analog
nSpecifications
nModel: Tern-LR40

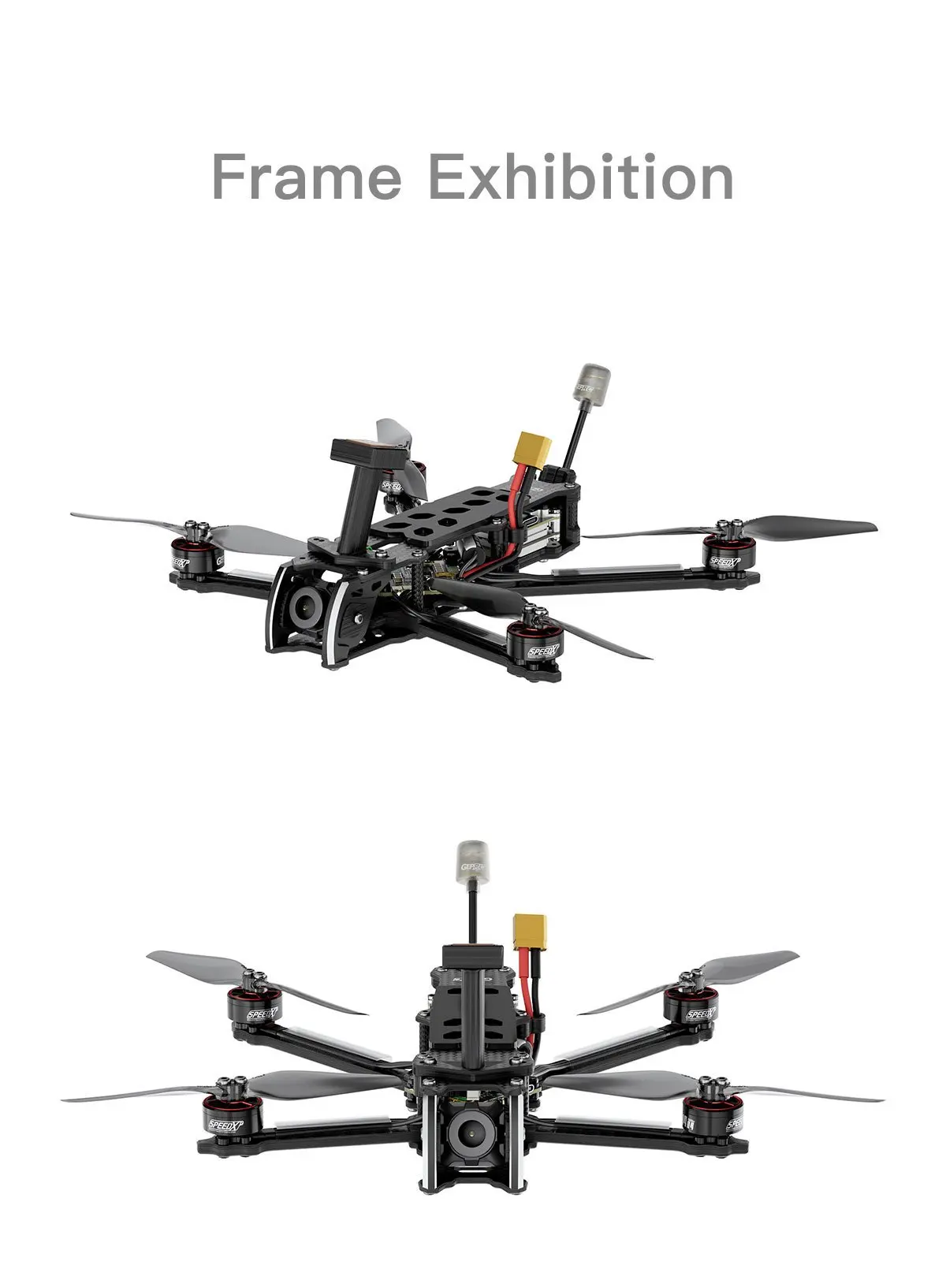

nFrame: Tern-LR40 frame
nTop plate: 1.5mm
nMiddle plate: 2.0mm
nBottom plate: 1.5mm
nArm thickness: 3.5mm
nFC: Taker G4 45A AIO
nMCU: STM32G473CEU6
nGyro: ICM 42688-P
nOSD: Betaflight OSD w/AT7456E
nESC: 32Bit 45A
nVTX: RAD mini 1W
nCamera: Caddx Ratel2
nAntenna: GEPRC Peano 5.8G RHCP UFL
nMotors: GEP-SPEEDX2 1404 3000KV
nPropellers: HQProp T4X2.5Grey (2CW+2CCW)
nTern -LR40 Analog ELRS24 version weight: 159g±5g
nReceiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
nRecommended battery: LiPo 4S 660mah-850mah
nFlight time: 10-25min

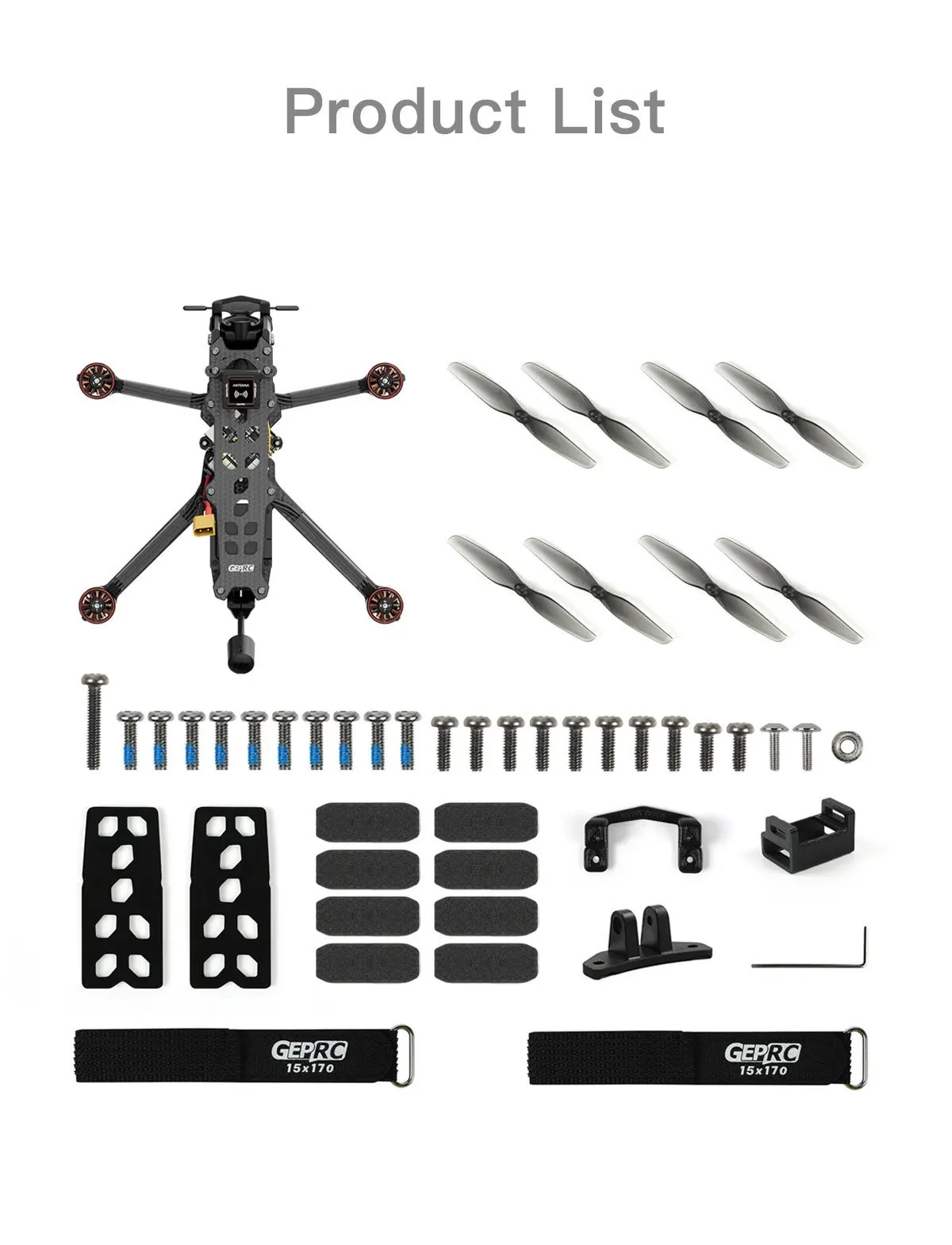

nIncluding:
n1 x Tern-LR40
n2 x HQProp T4X2.5Grey (2CW+2CCW)
n2 x battery anti-slip mat
n1 x screw pack
n4 x Battery strap M15*170mm
n1 x L-shaped screwdriver 1.5mm
n1 x GoPro camera mount holder
n1 x T-type Antenna mount
n1 x RC Printed
nTern-LR40 HD Wasp

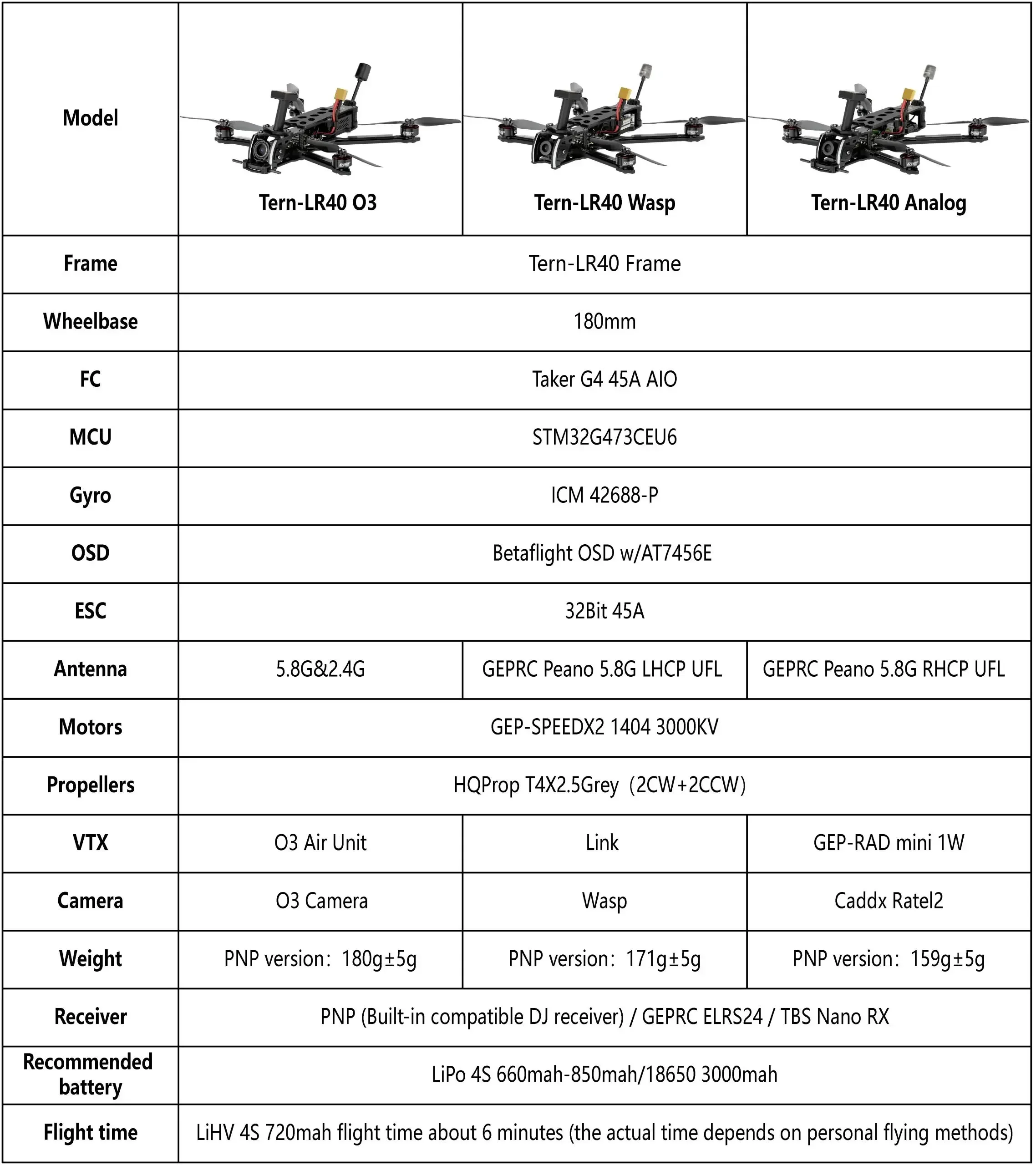

nSpecifications
nModel: Tern-LR40
nFrame: Tern-LR40 Frame
nWheelbase size: 180mm
nTop plate: 1.5mm
nMiddle plate: 2.0mm
nBottom plate: 1.5mm
nArm thickness: 3.5mm
nFC: Taker G4 45A AIO
nMCU: STM32G473CEU6
nGyro: ICM 42688-P
nOSD: Betaflight OSD w/AT7456E
nESC: 32Bit 45A
nVTX: Link
nCamera: Wasp
nAntenna: GEPRC Peano 5.8G LHCP UFL
nMotors: GEP-SPEEDX2 1404 3000KV
nPropellers: HQProp T4X2.5Grey (2CW+2CCW)
nTern-LR40 Wasp PNP version weight: 171g±5g
nReceiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
nRecommended battery: LiPo 4S 660mah-850mah
nFlight time: 10-25min
nIncludes
n1 x Tern-LR40
n2x HQProp T4X2.5Grey (2CW+2CCW)
n2 x battery anti-slip mat
n1 x screw pack
n4 x Battery strap M15*170mm
n1 x L-shaped screwdriver 1.5mm
n1 x GoPro camera mount holder
n1 x T-type Antenna mount
n1 x RC Printed
