HDZero Freestyle V2 VTX

Description

About this product

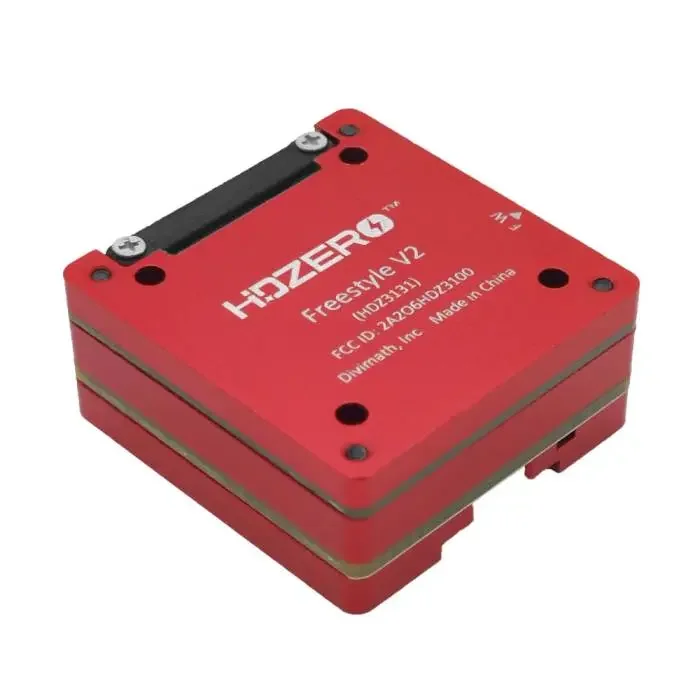

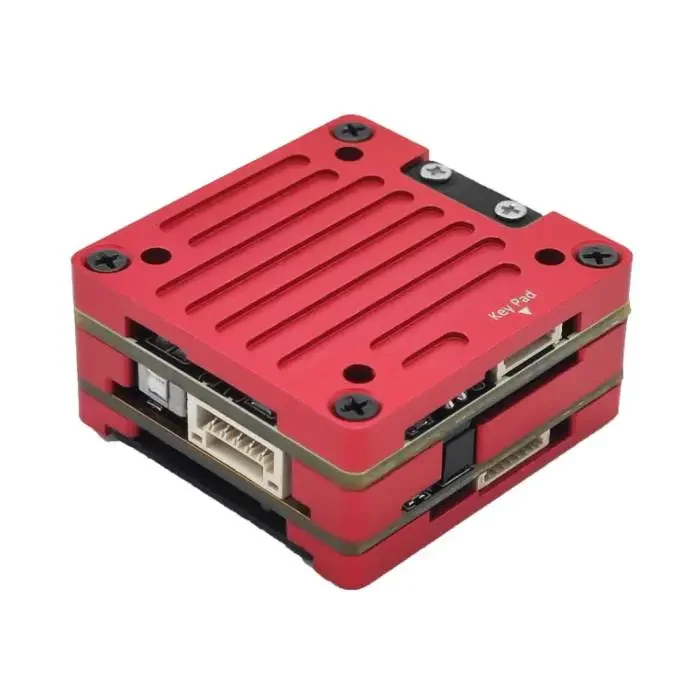

nThe HDZero Freestyle V2 VTX is a 2nd generation 5.8GHz digital video transmitter that can fit most of the 3.5-inch and 5-inch drones. The CNC case protects all the sockets well, providing durability, RF shielding, and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The included retention bar and screws secure the antenna and MIPI cable. The VTX supports 720p60,1080p30, 540p60 and 540p90 video modes, and has a maximum 1W RF output at the R1 channel if unlocked or authorized with a license or approval.
nFeatures
n* CNC case for socket protection, durability, RF shielding, and improved signal integrity
n
n* Capable of up to 1W RF output on R1 channel with proper licensing or approval
n

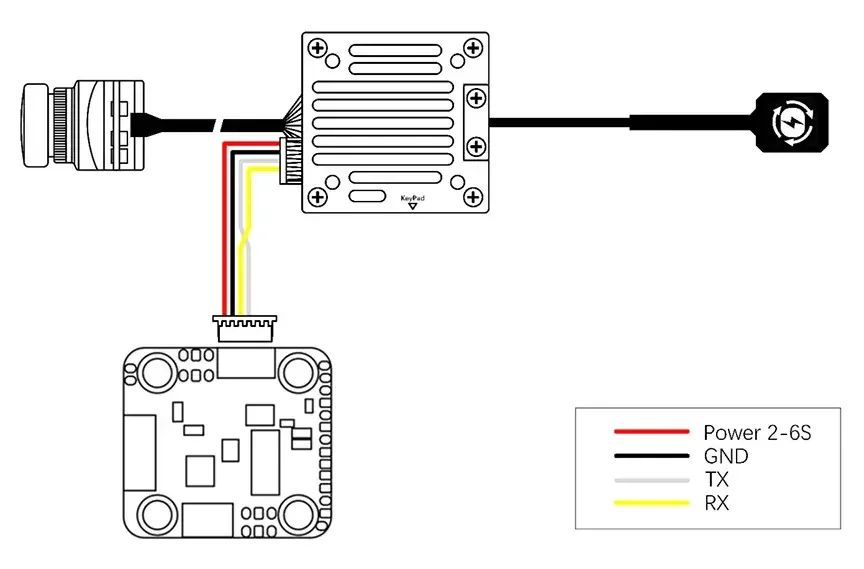

n* Included wire harness for solderless power and MSP UART port connection
n
n* Supports multiple video modes: 720p60, 1080p30, 540p60, and 540p90
n
n* Secured antenna and MIPI cable with retention bar and screws
n
n* 2nd generation 5.8GHz digital video transmitter
nCompatible with 3.5-inch and 5-inch drones
nSpecifications
nOperating Temperature: 32˚F-104˚F (0˚C-40˚C)
nOperating Frequency: 5.725-5.850GHz
nMounting Pattern: 20x20mm M2 holes
nTransmitter Power: 25mW, 200mW
nModel: HDZero Freestyle V2 VTX
nAntenna Interface: Secured U.FL
nPower Consumption: 6-15W
nManufacturer: Divimath, Inc
nDimensions: 29x30x14mm
nMSP Canvas Mode: Yes
nVideo In: Secured MIPI
nInput Power: 7-25V
nSmartAudio: Yes
nWeight: 22.3 g
nIncludes
n1x HDZero Freestyle V2 Video Transmitter
n1x M1.4 x 2mm Plastic Bar for Mipi Cable with screws
n1x M1.4 x 8mm Plastic Bar for U.FL with screws
n1x 29 x 30 x 1mm Double Sided Tape
n1x Power Cable
n1x SA Cable
