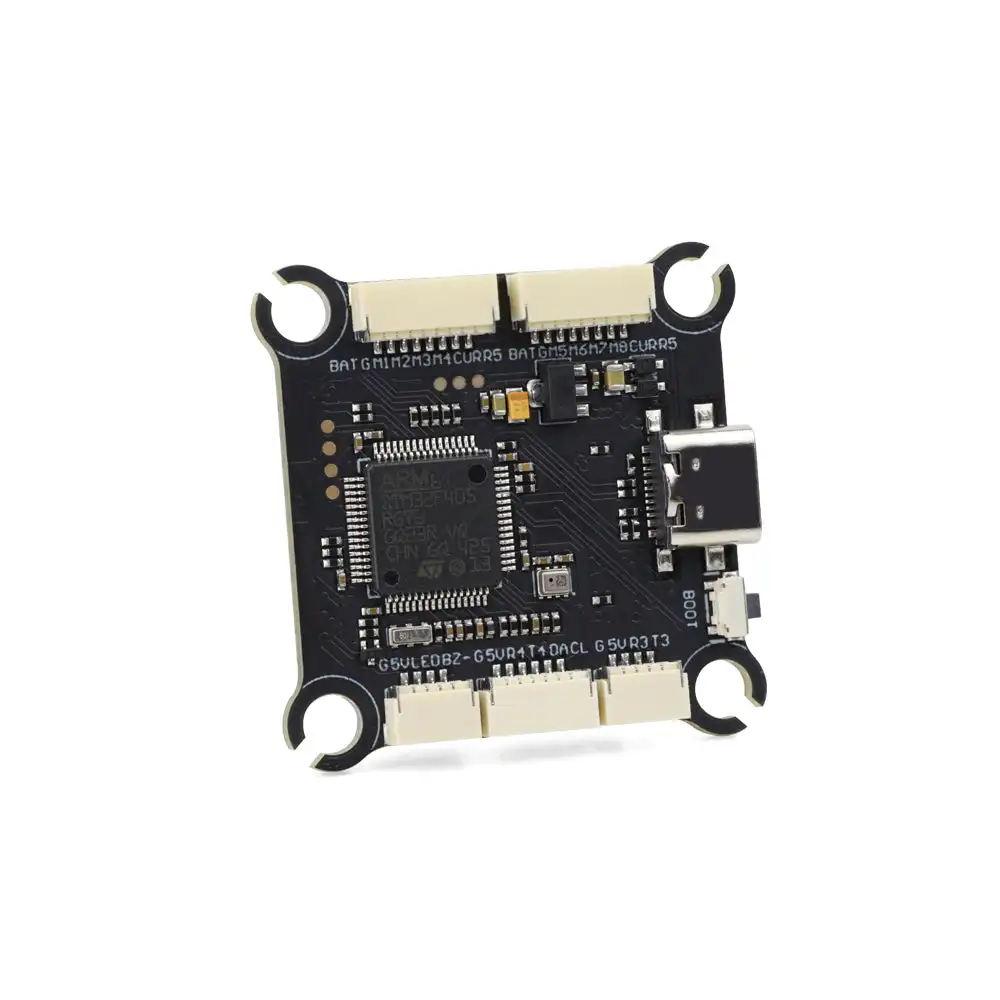

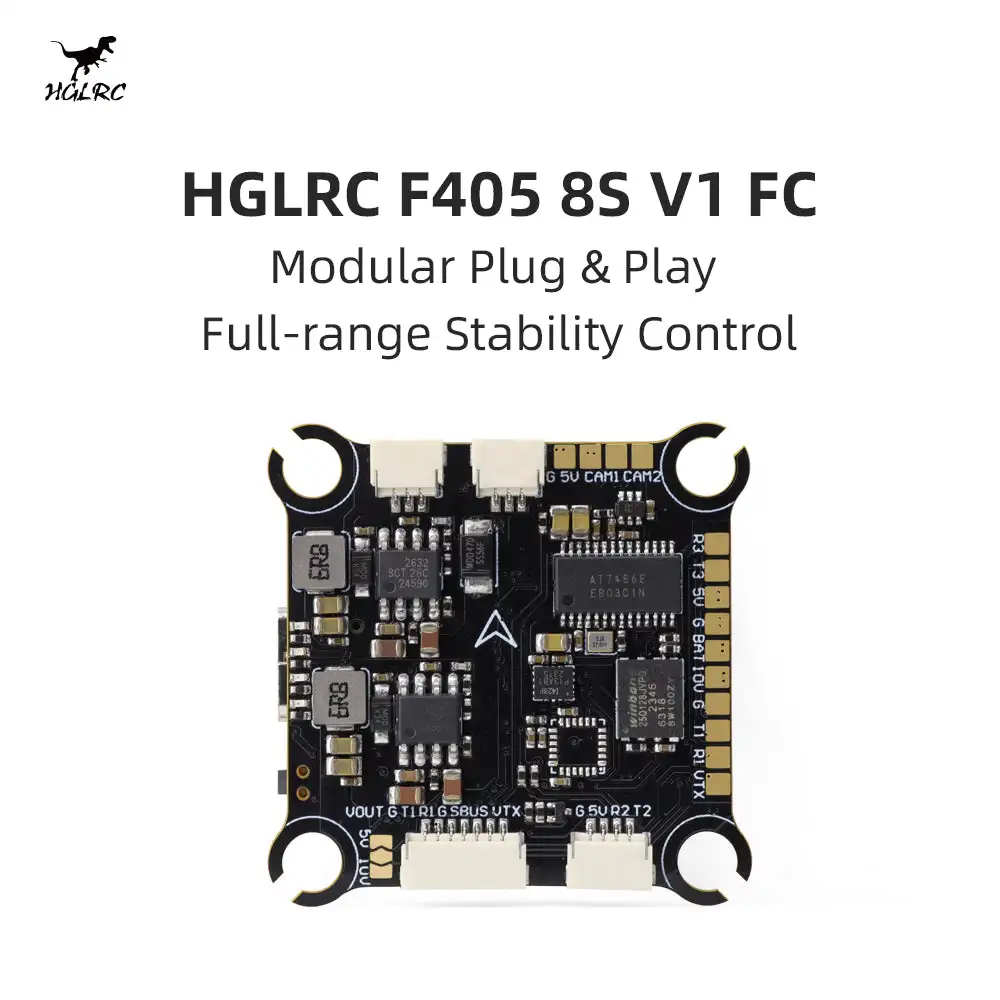

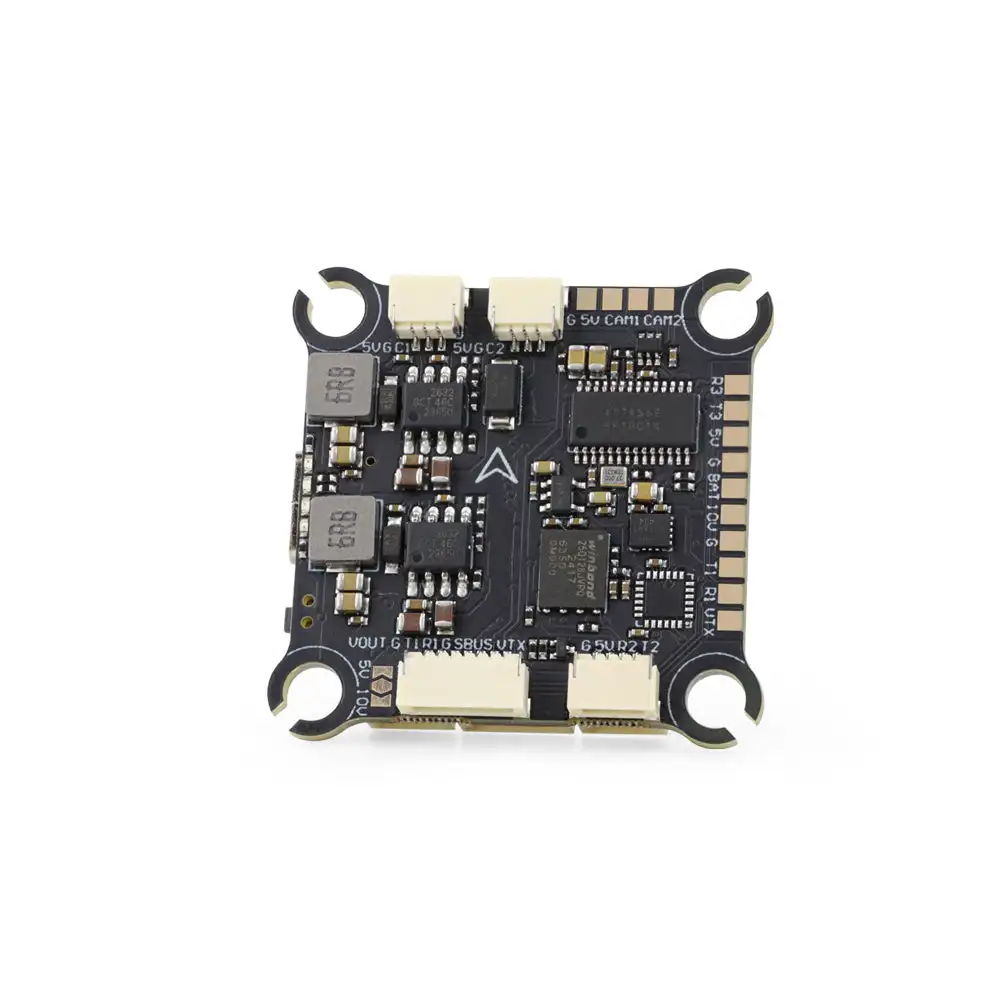

HGLRC F405 8S V1 Flight Controller for FPV Racing / Freestyle Drones

Description

Features
n1. The flight controller gyroscope uses the high-performance ICM42688P for enhanced stability, with MPU6000 gyroscope pads reserved.
n2. Fully modular, direct-connect design for plug-and-play operation without solder pads, enabling modularity.
n3. A large 16MB black box ensures sufficient flight data recording.
n4. Supports 8s of high-voltage, rapid output for extremely fast response, ensuring stable control throughout the flight, allowing for aggressive flight.
nHGLRC F405 8S V1 Flight Controller
nVoltage: 7.4V-33.6V (2-8s)

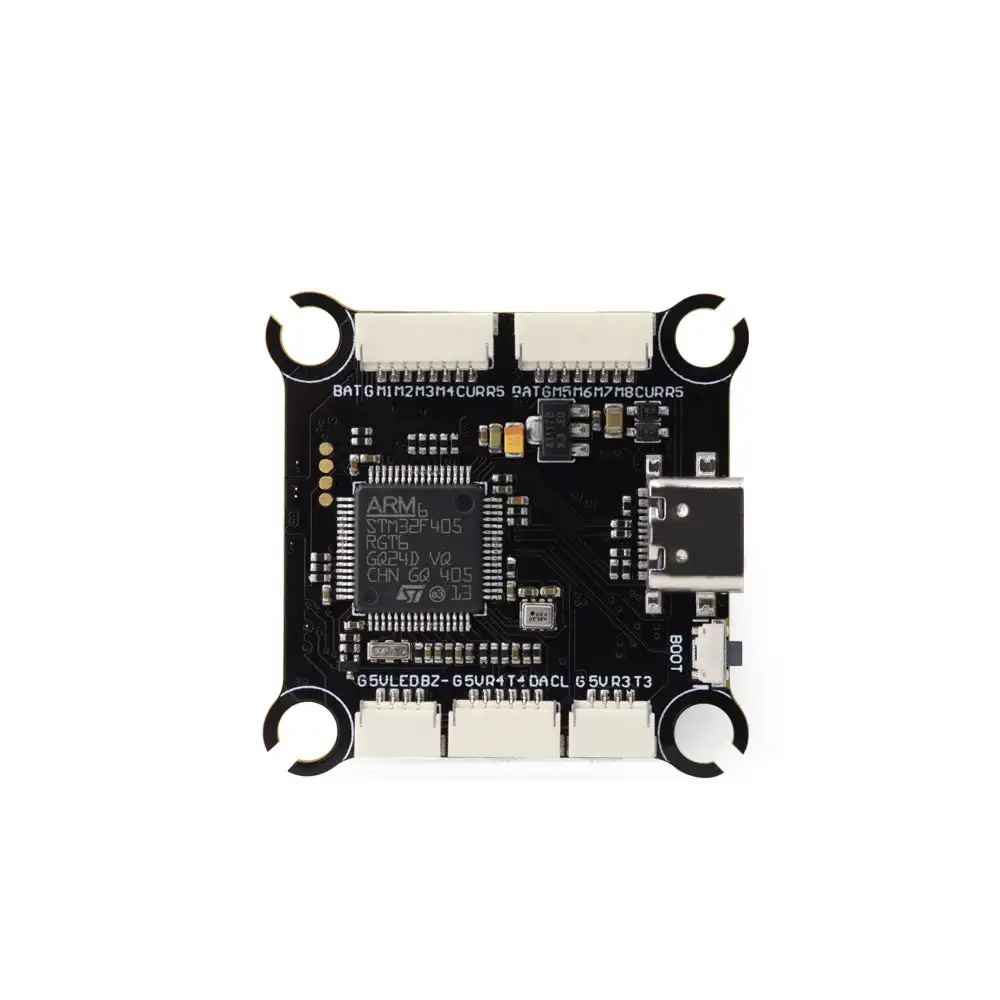

nMCU: STM32F405
nGYRO: ICM42688P
nOSD: AT7456E
nBarometer: SPL06-001
nBlack Box: 16MB
nUART: 5
nFlight Controller Firmware: HGLRCF405V2

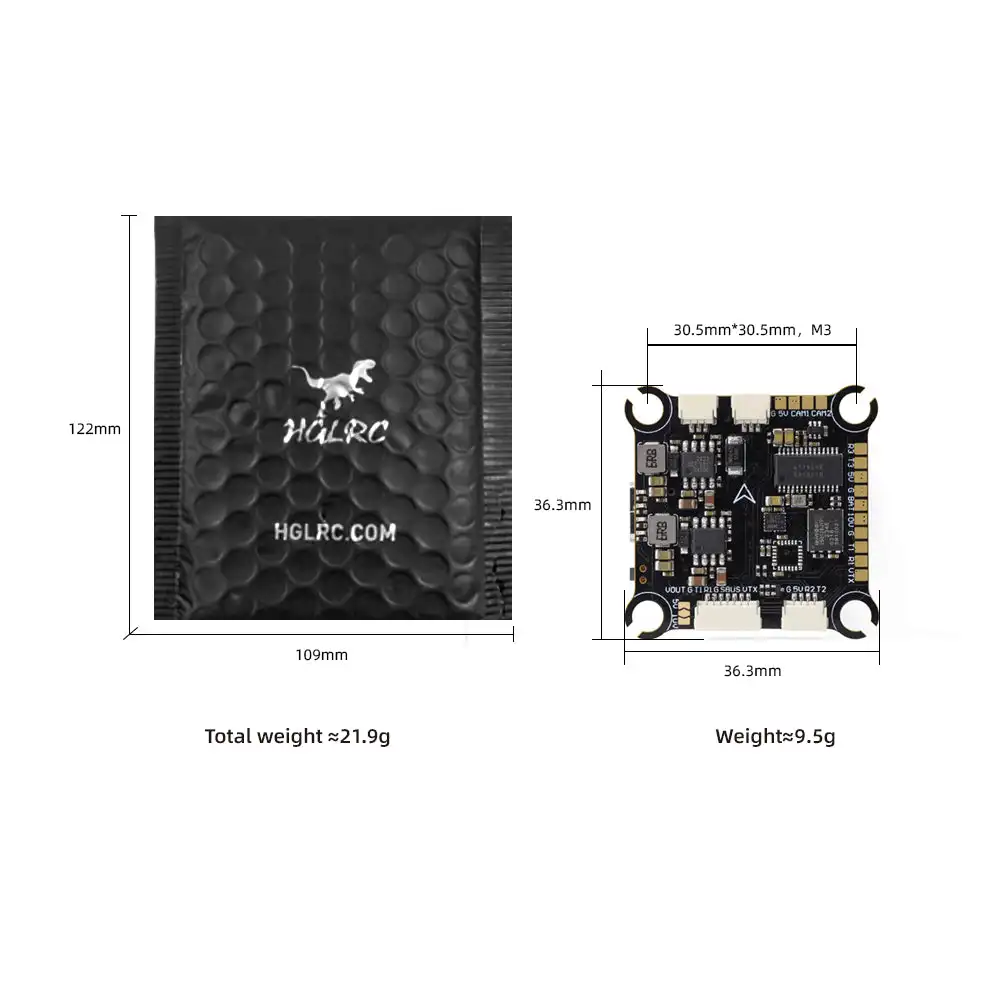

nDimensions: 36.3*36.3mm
nMounting Holes: 30.5*30.5mm, M3
nWeight: 9.5g

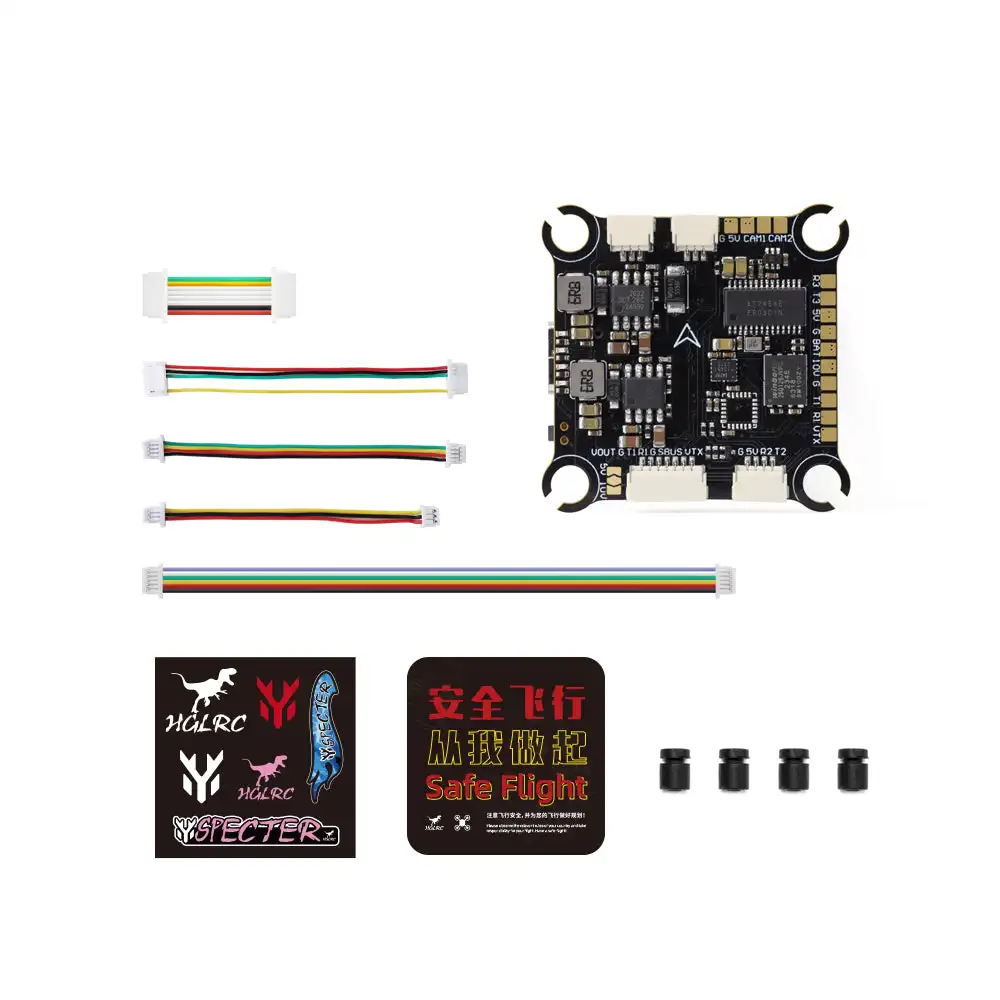

nShipping Items:
n1x HGLRC F405 8S V1
n1x 30AWG 25mm Dual-End SH1.0-8P Flex Cable
n1x 30AWG, 70mm Dual-End SH1.0-4P Flex Cable
n1x 30AWG, 60mm Single-End SH1.0-3P/Single-End SH1.25-3P
n1x 30AWG 70mm, single-ended GH1.25-6P/single-ended SH1.0-7P
n1x 30AWG, total length 140mm, double-ended SH1.0-6P
n4x 3*8 shock-absorbing columns
n1x HGLRC sticker
n1x QR code card
nScan this QR code for the Manual
