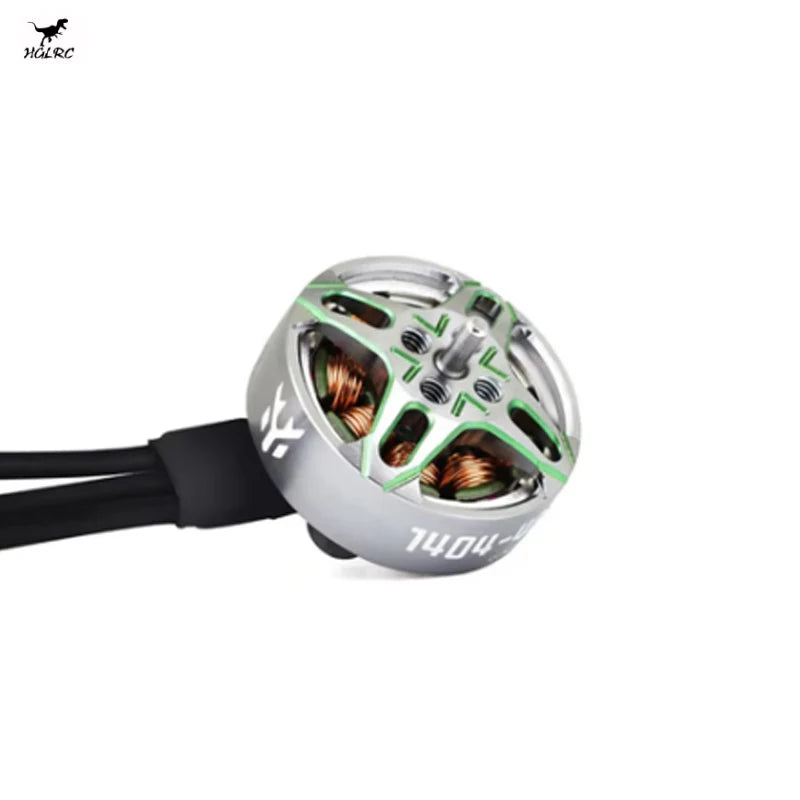

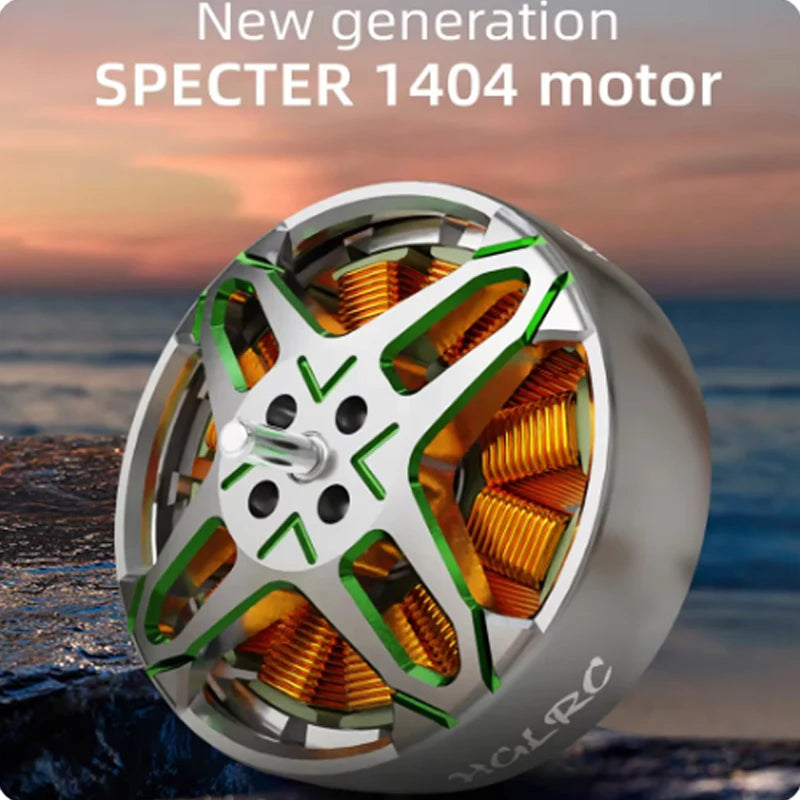

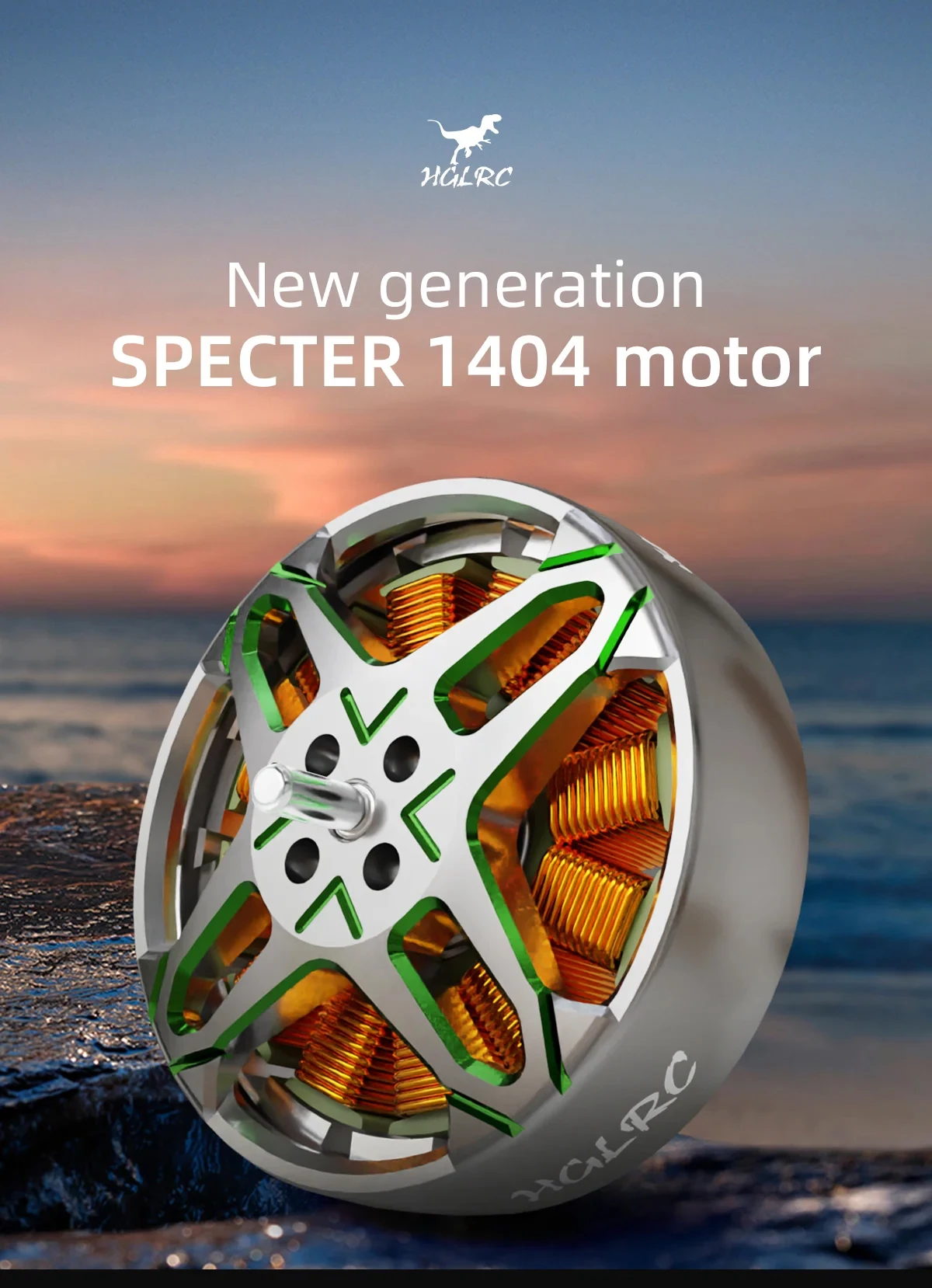

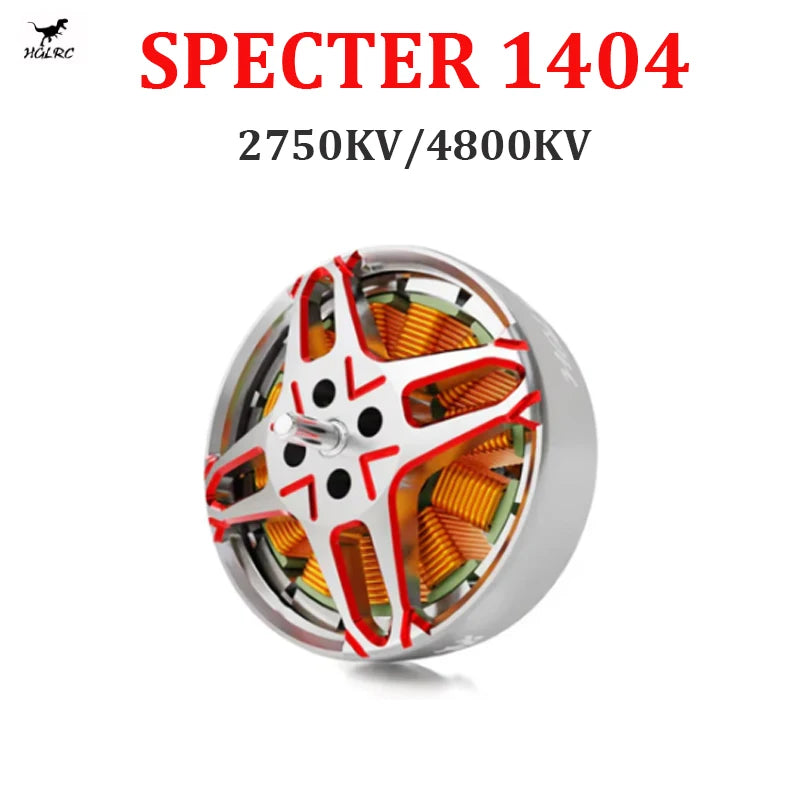

HGLRC SPECTER 1404 2750KV/4800KV 4-6S Brushless Motor for FPV Freestyle 2inch Cinewhoop 4inch Toothpick Drones

Features:

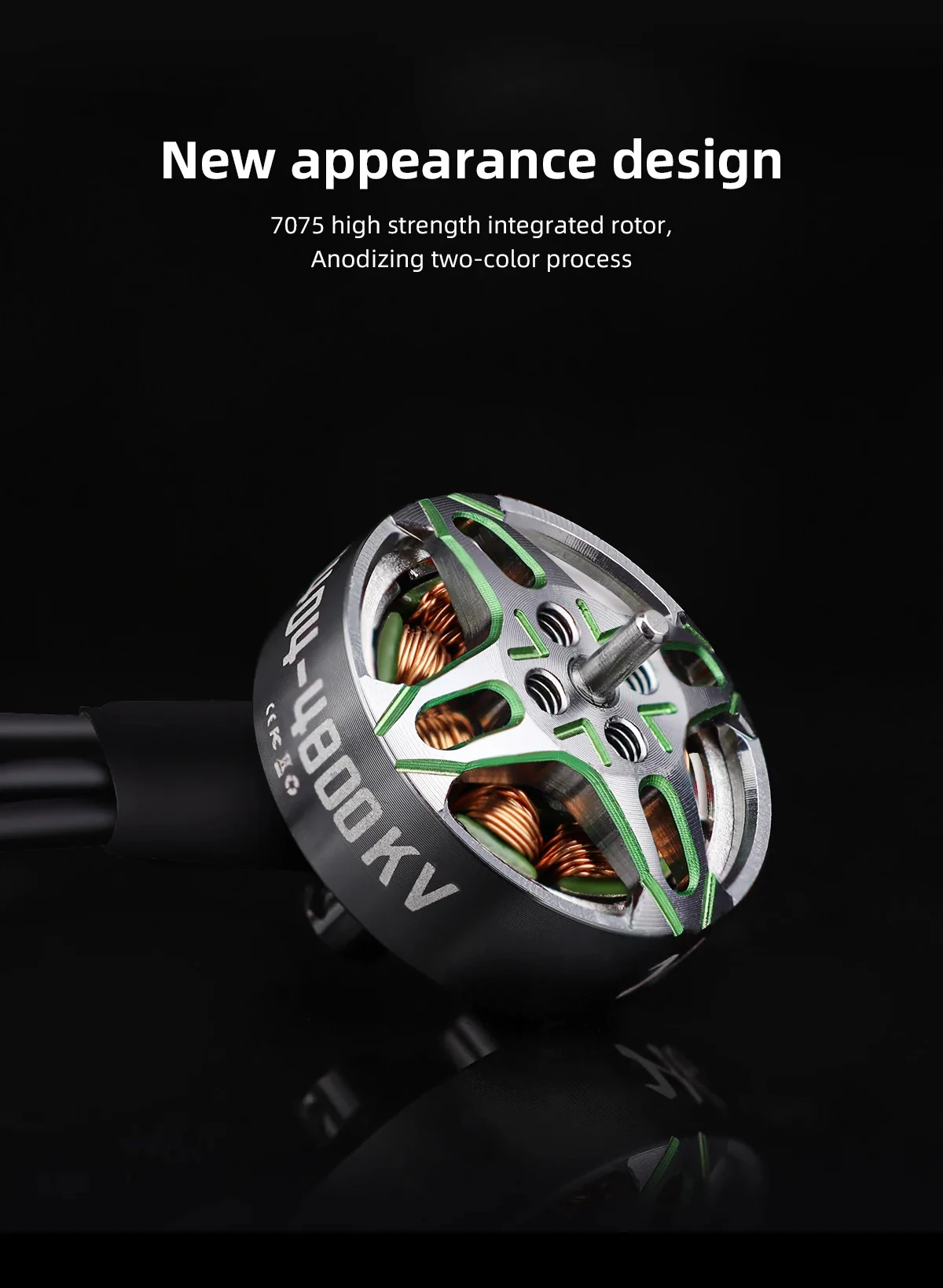

1. Brand new rotor appearance design, anodized two-color process

2. 7075 aviation aluminum material, high-strength one-piece rotor

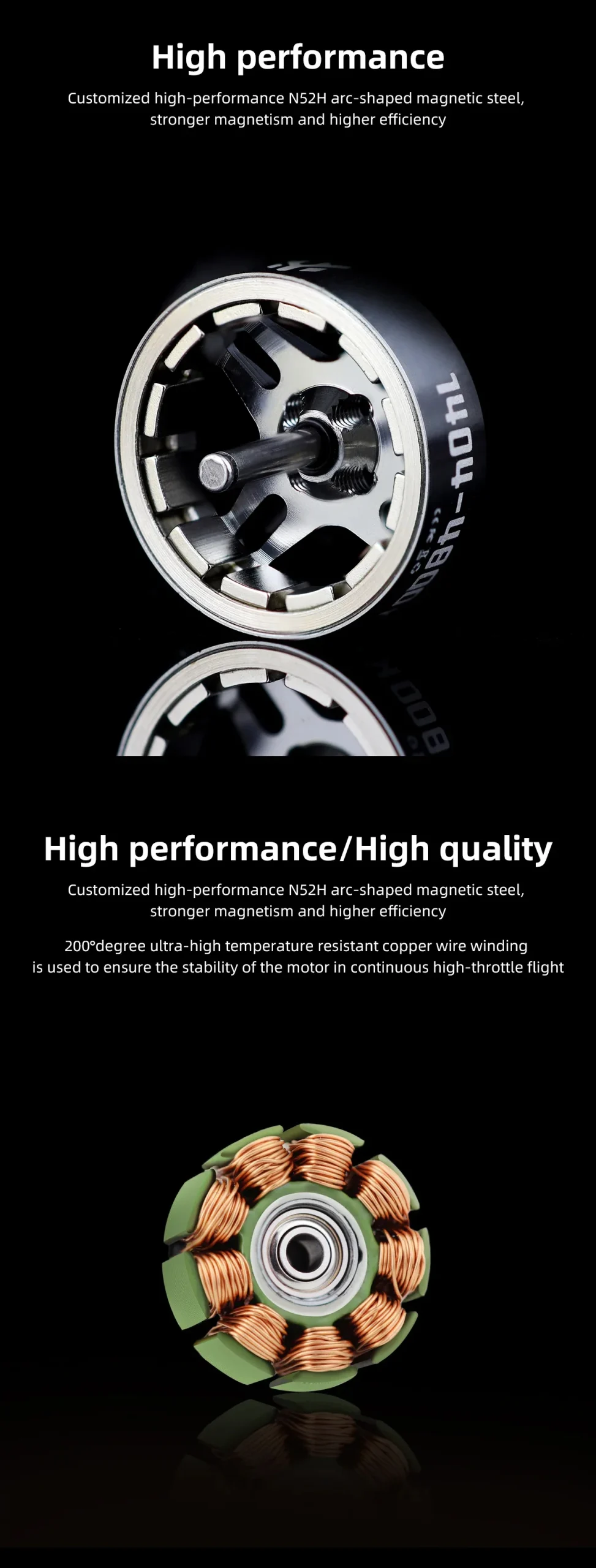

3. Customized N52H curved magnetic steel, strong magnetism, high torque

4. With a super-high temperature resistant 200° copper wire winding, the motor runs more stably

5. Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency

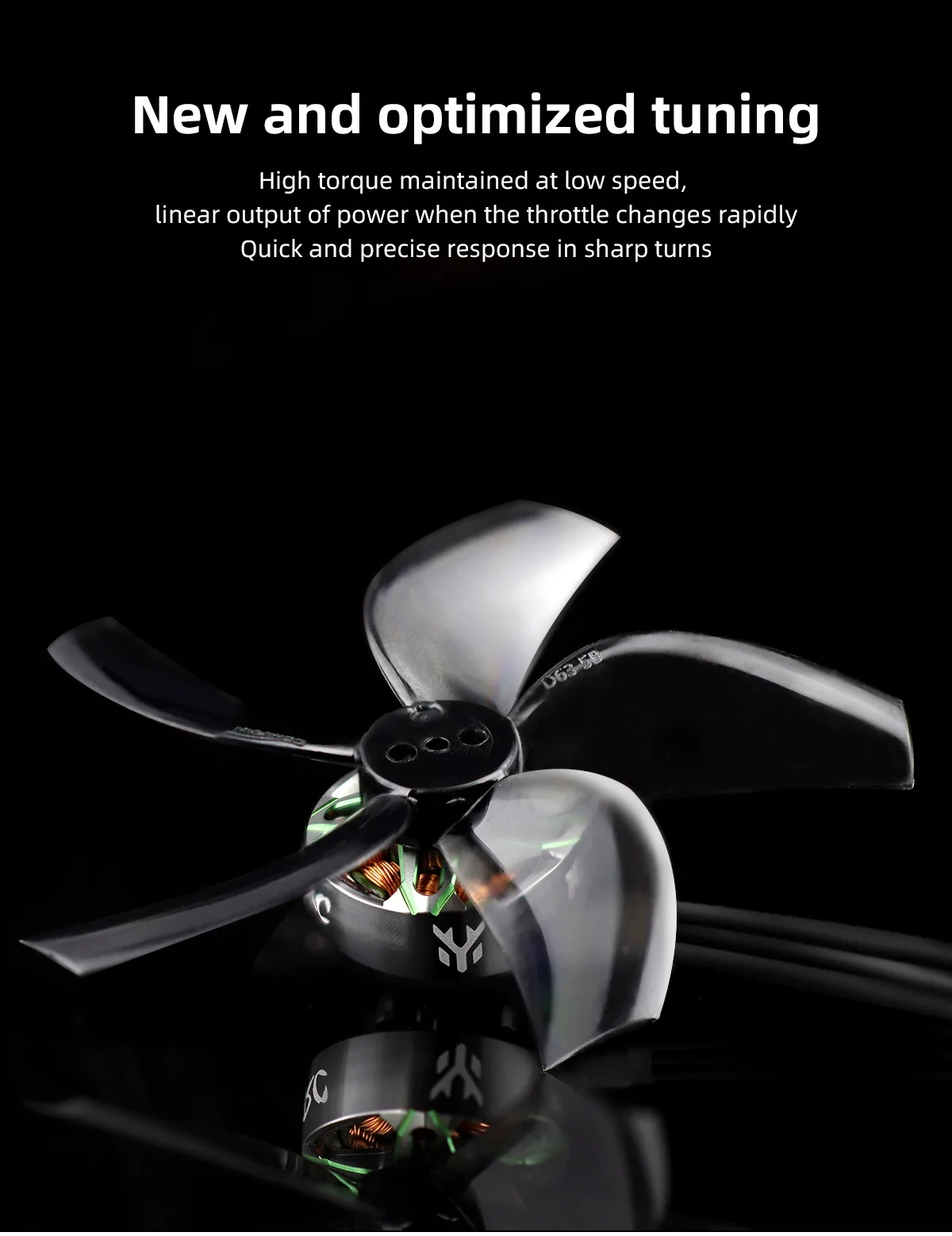

6. New and optimized tuning, maintain high torque at low speed, linear power output when the throttle changes rapidly, and precise and fast response when turning

7. Alloy Steel Outlet Shaft, high strength and reduce the weight of the fuselage

8. Suitable for 2-inch Tiny drone or 4-inch toothpick drone

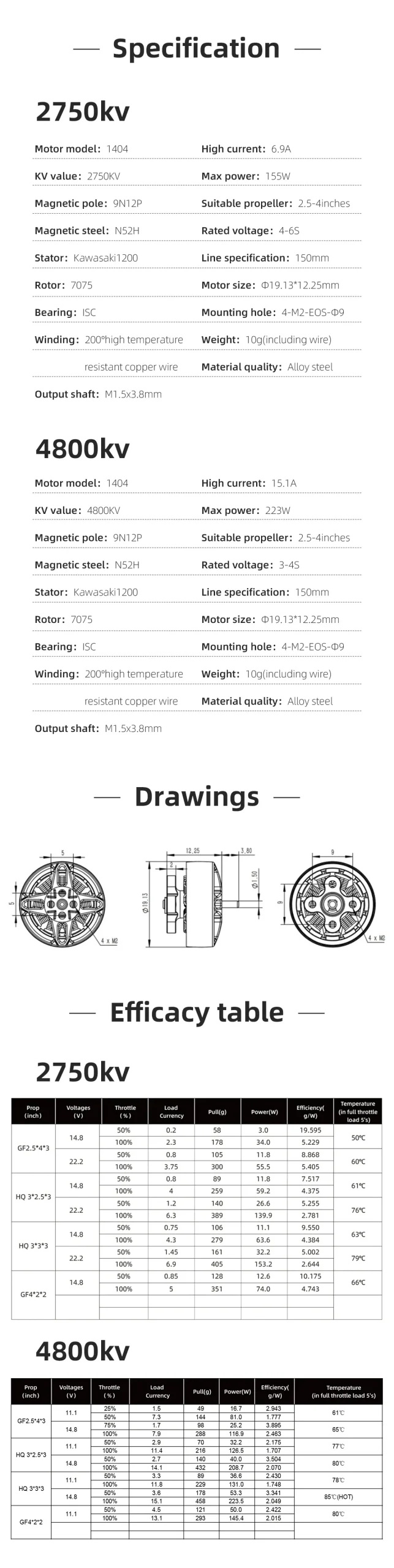

Specification:

Motor: KV2750

Slot pole: 9N12P

Maximum continuous current: 6.9A

Maximum power: 155W

Input voltage: 4-6s

ESC:> 15A

Recommended propeller: 2-4 inches

Motor size: Φ19.13mx 12.25mm

Mounting hole: 4*M2-∅9

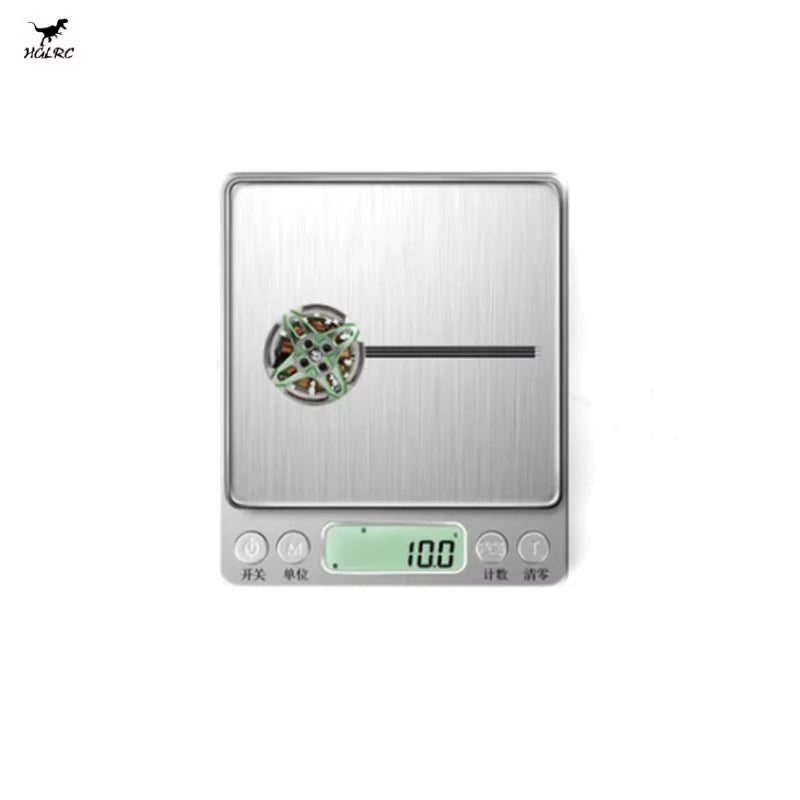

Weight: 10g (including wire)

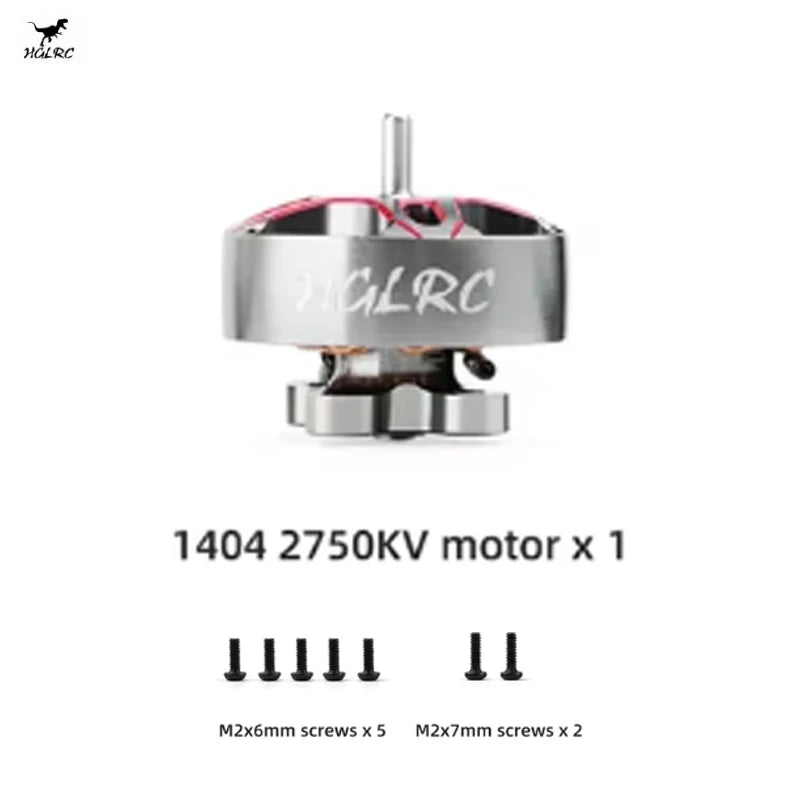

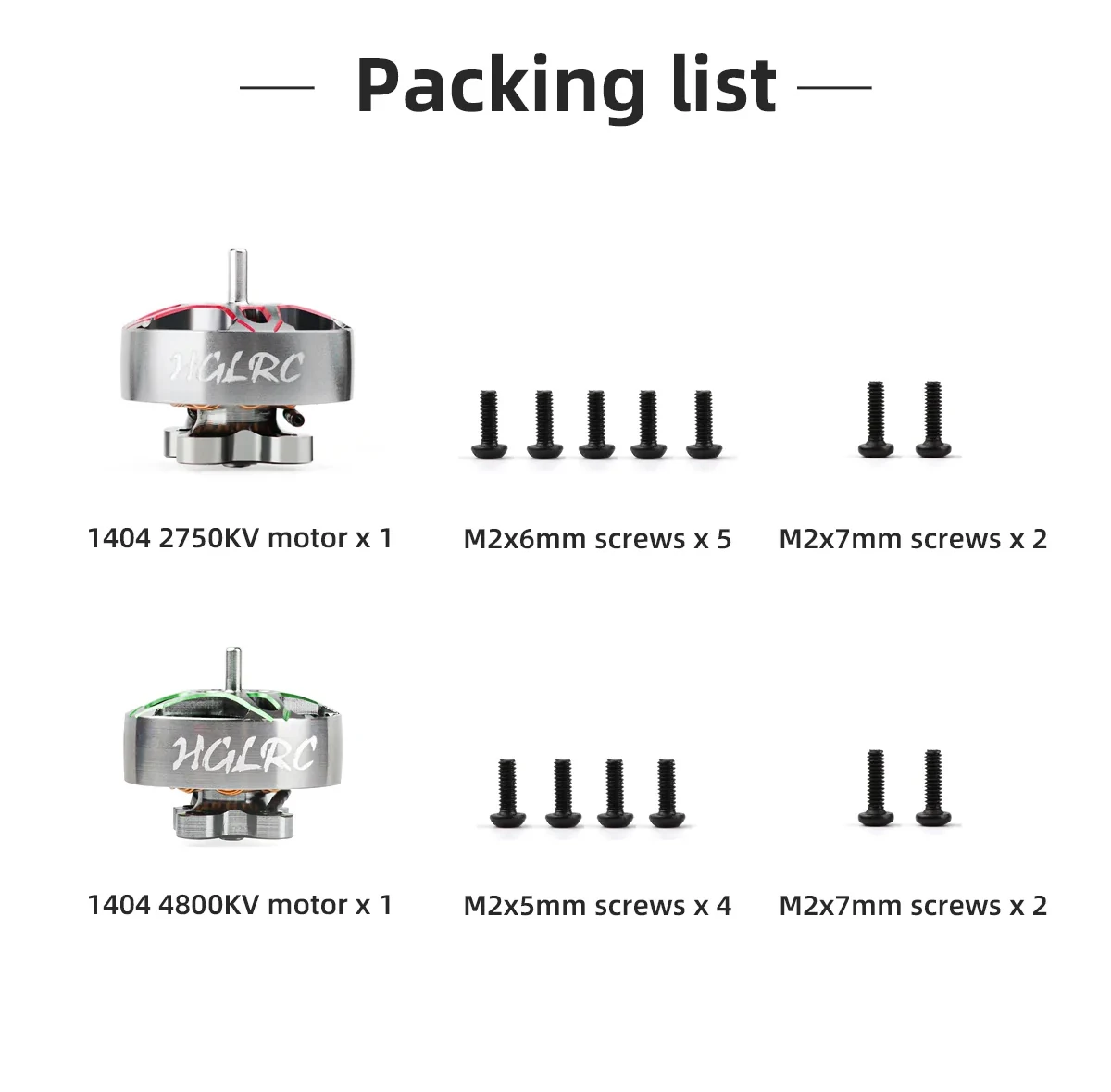

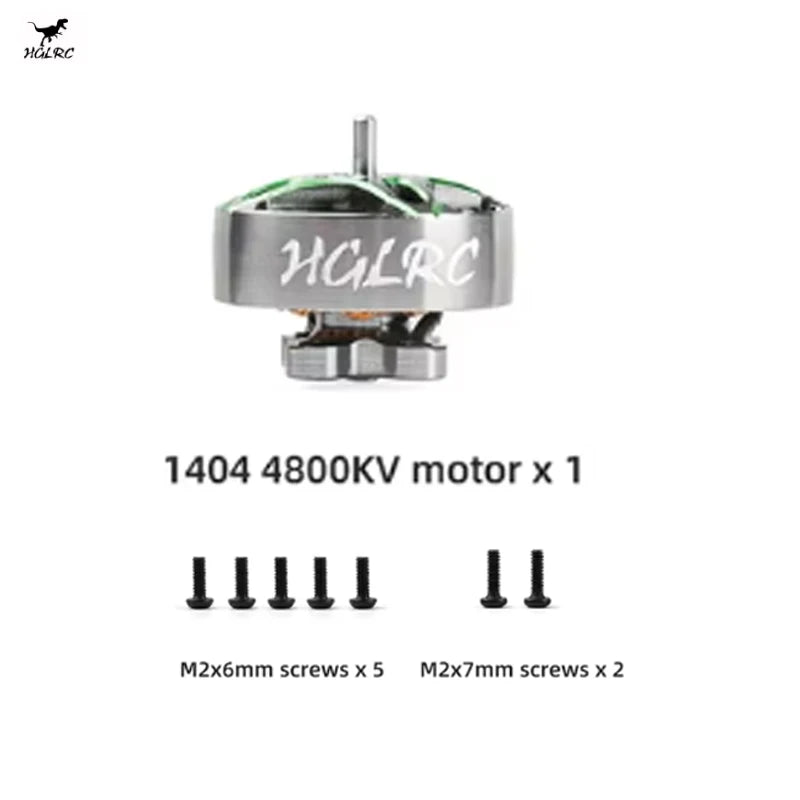

Packing List:

1404 motor x 1

M2x6mm screws x 5

M2x7mm screws x 2
