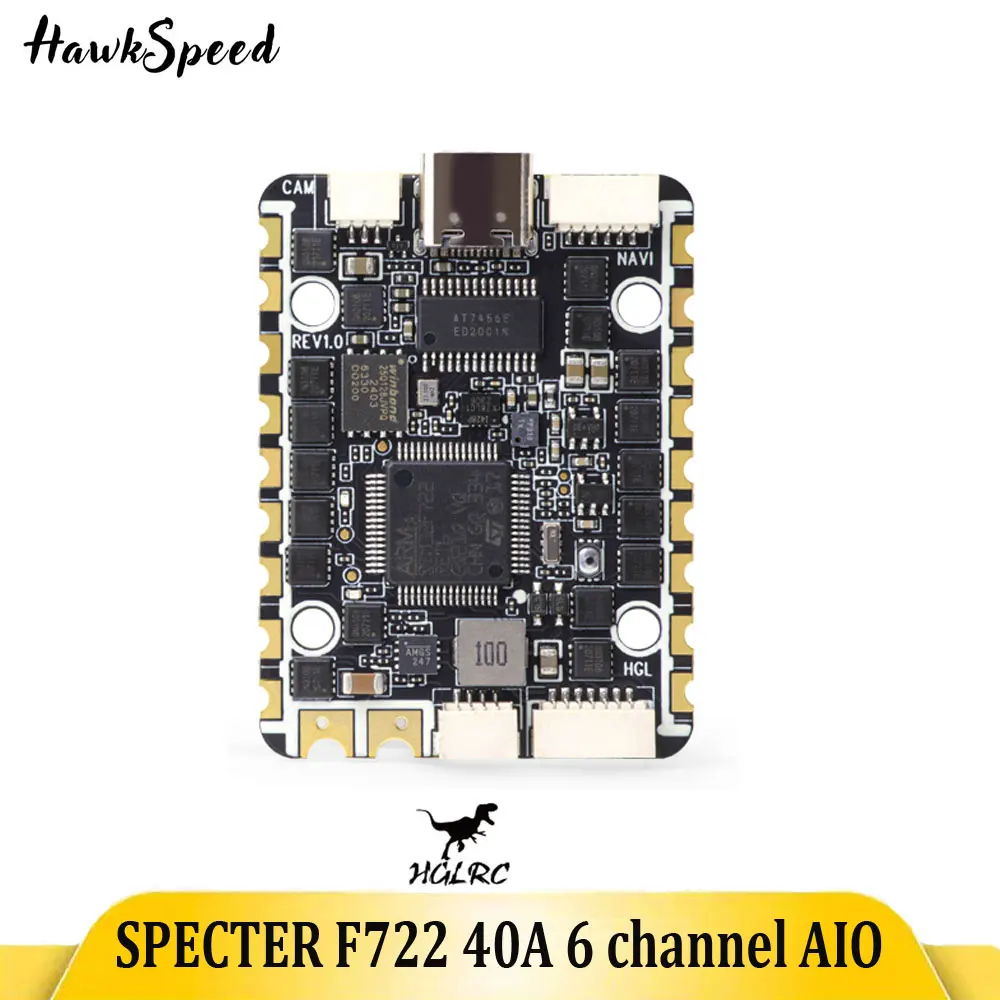

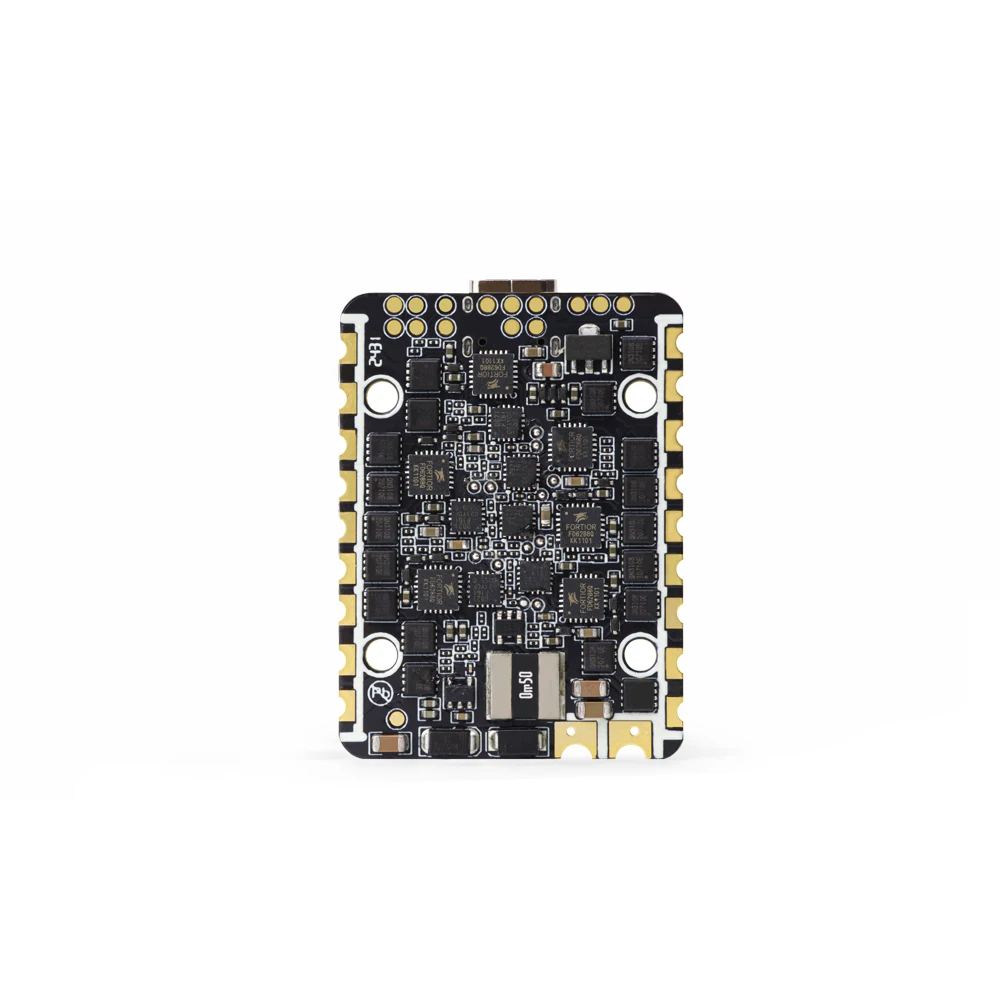

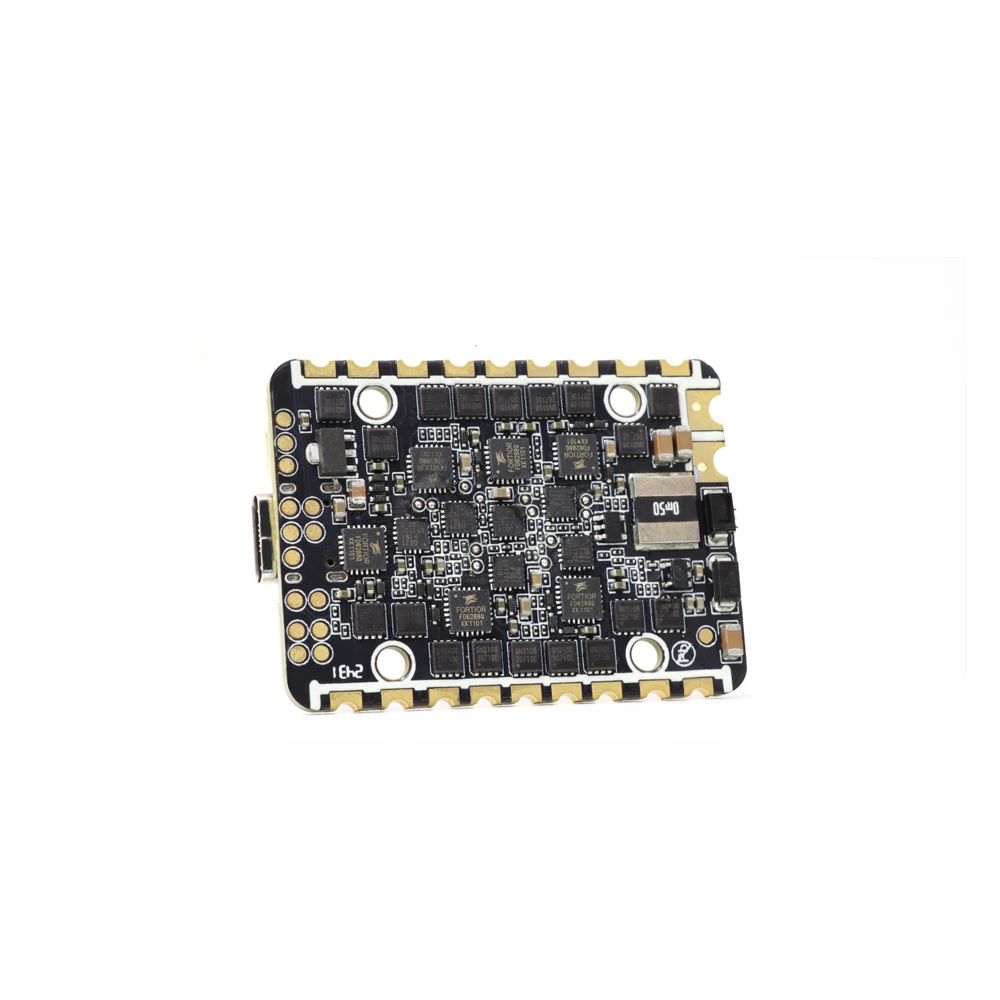

HGLRC SPECTER F722 40A 6 Channel AIO Flight Controller 2-6S for Rekon Y6 Six-axis and Other Mixed Control Types FPV Drone

Description

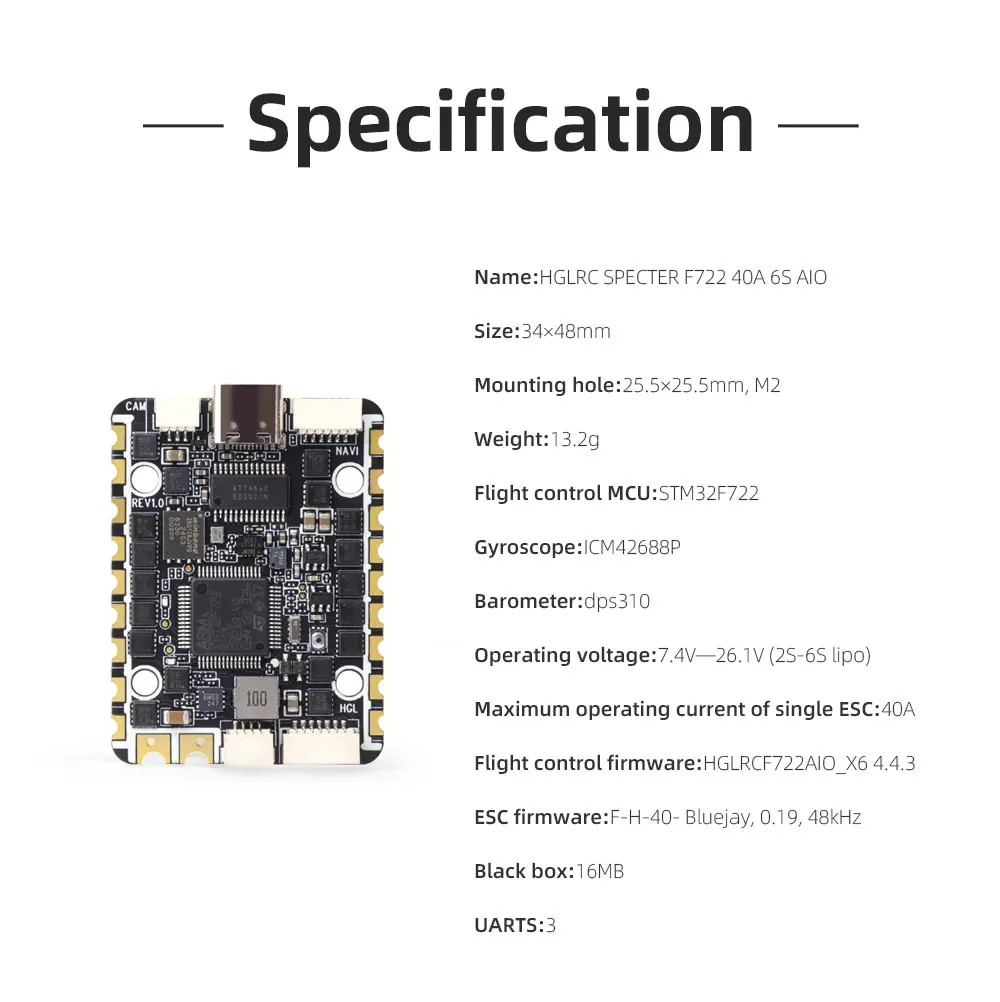

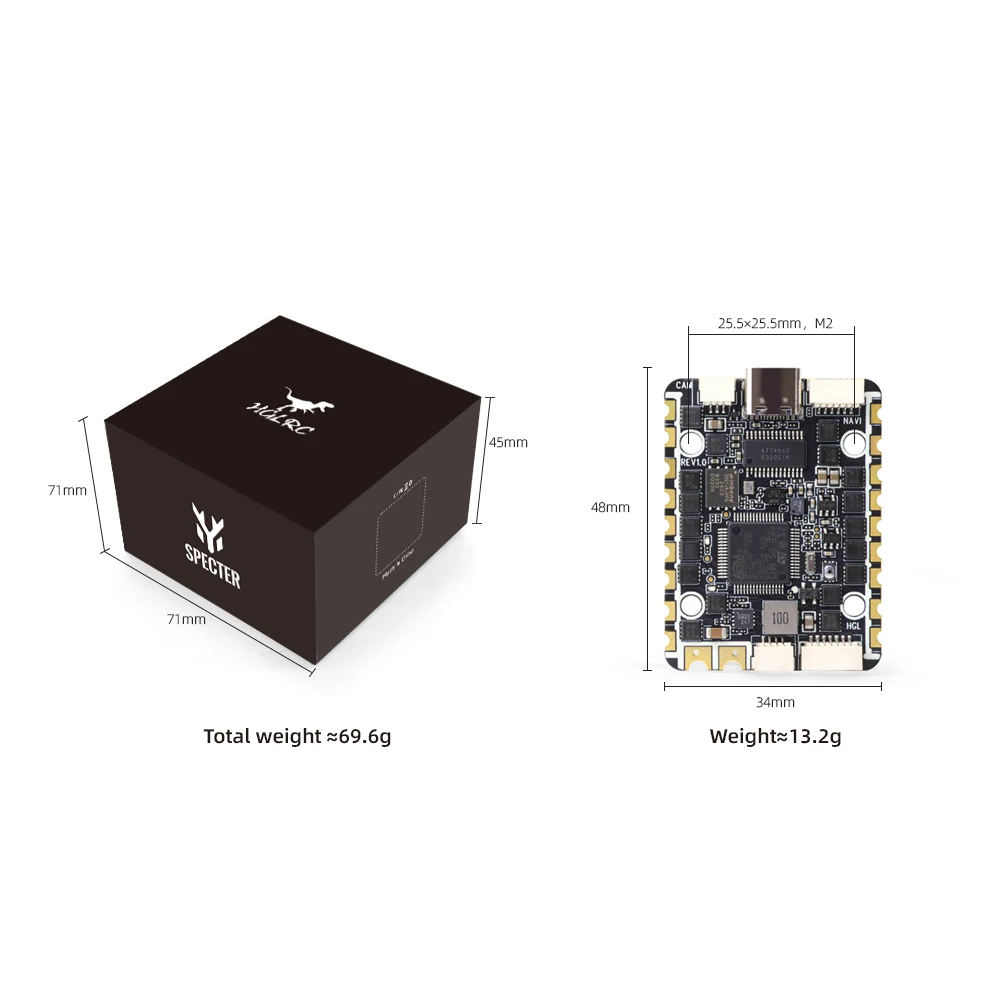

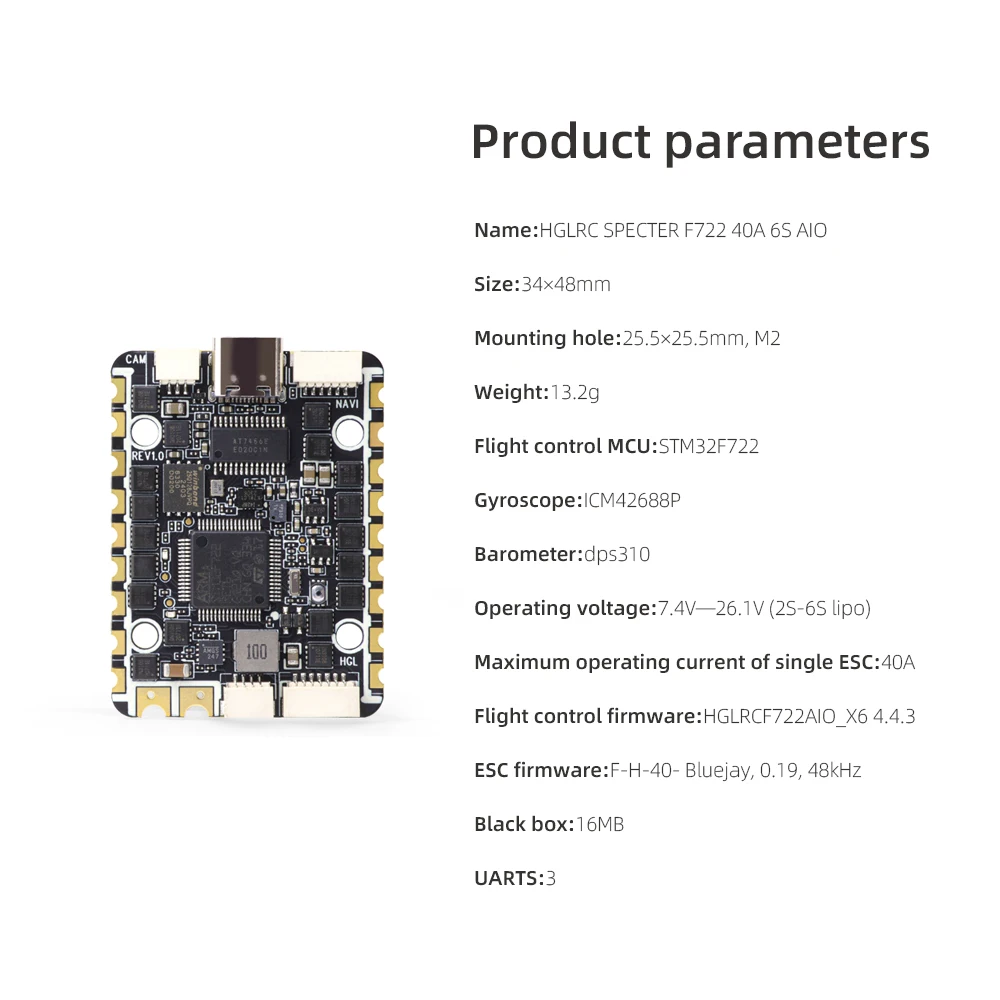

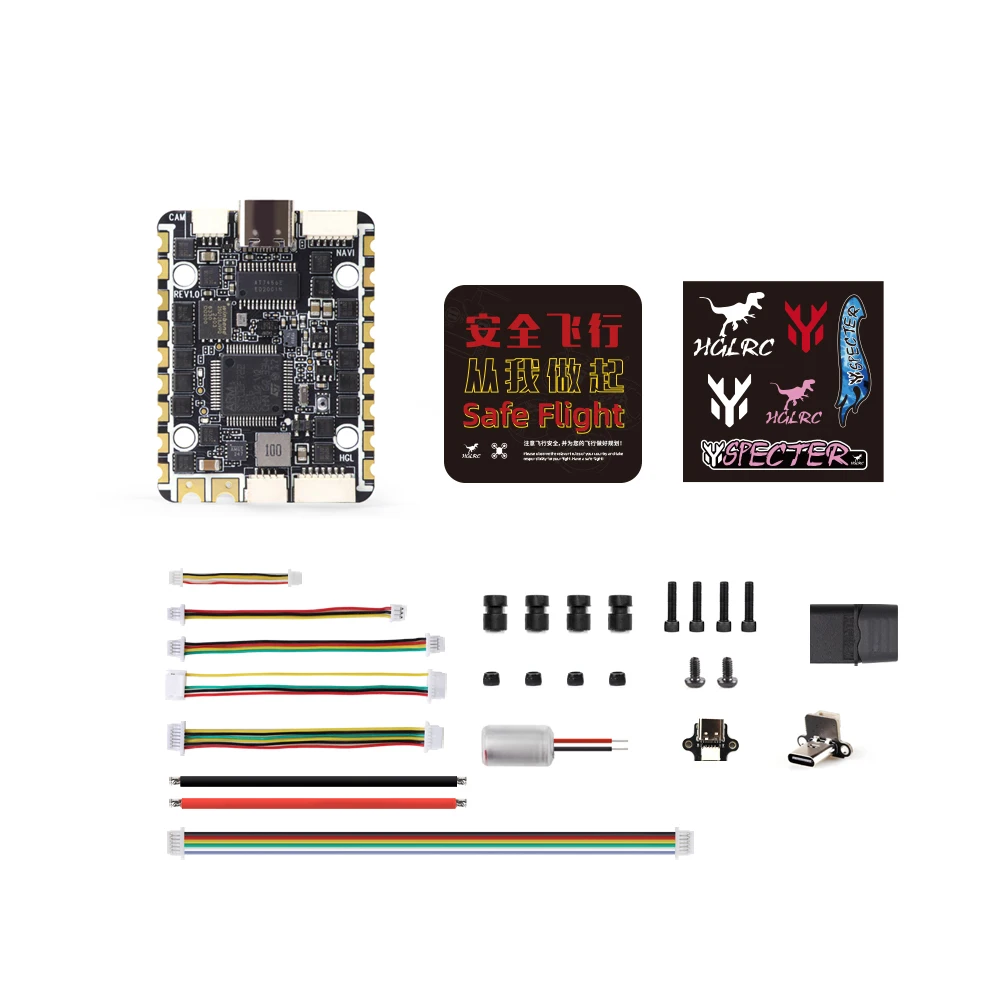

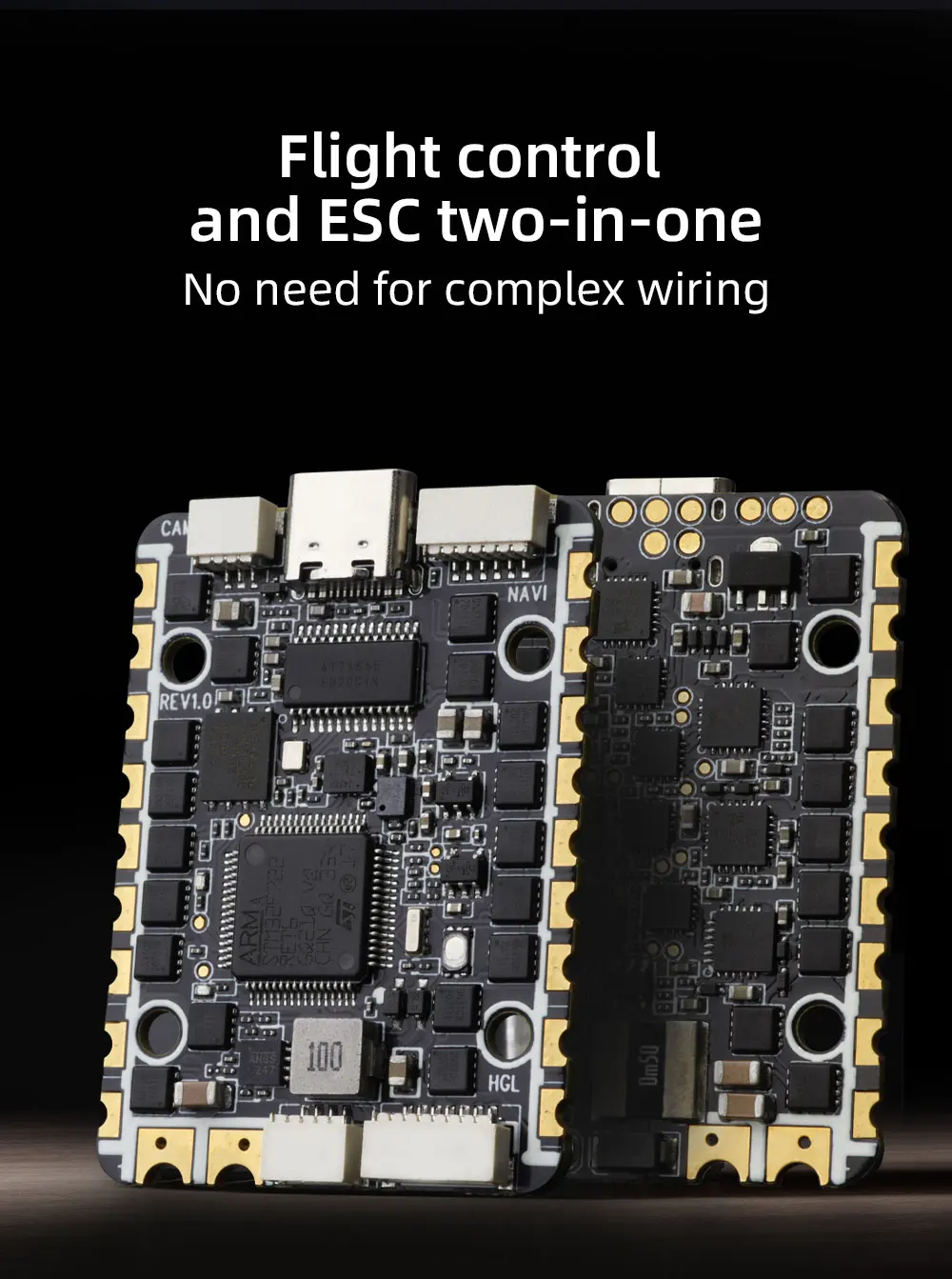

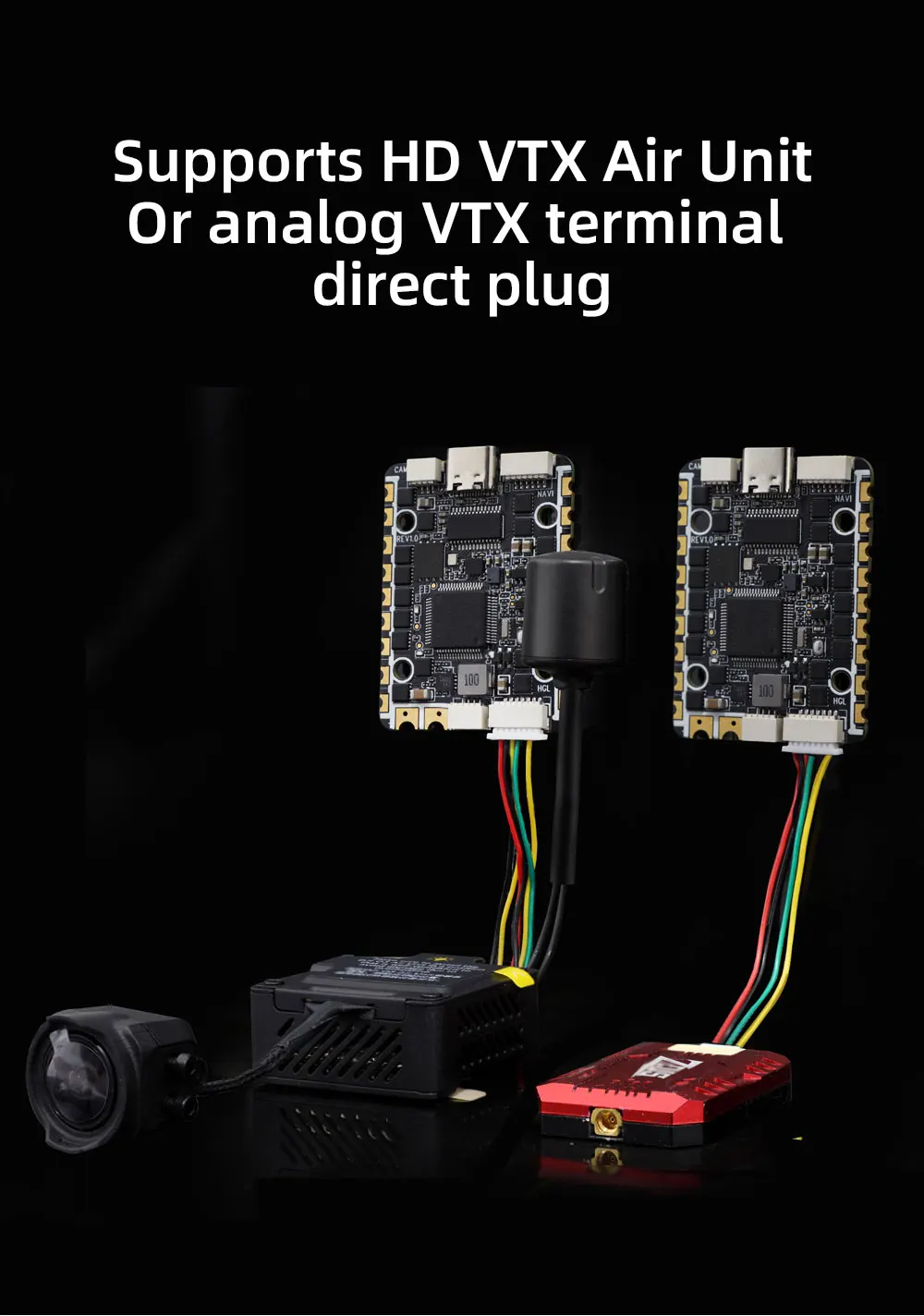

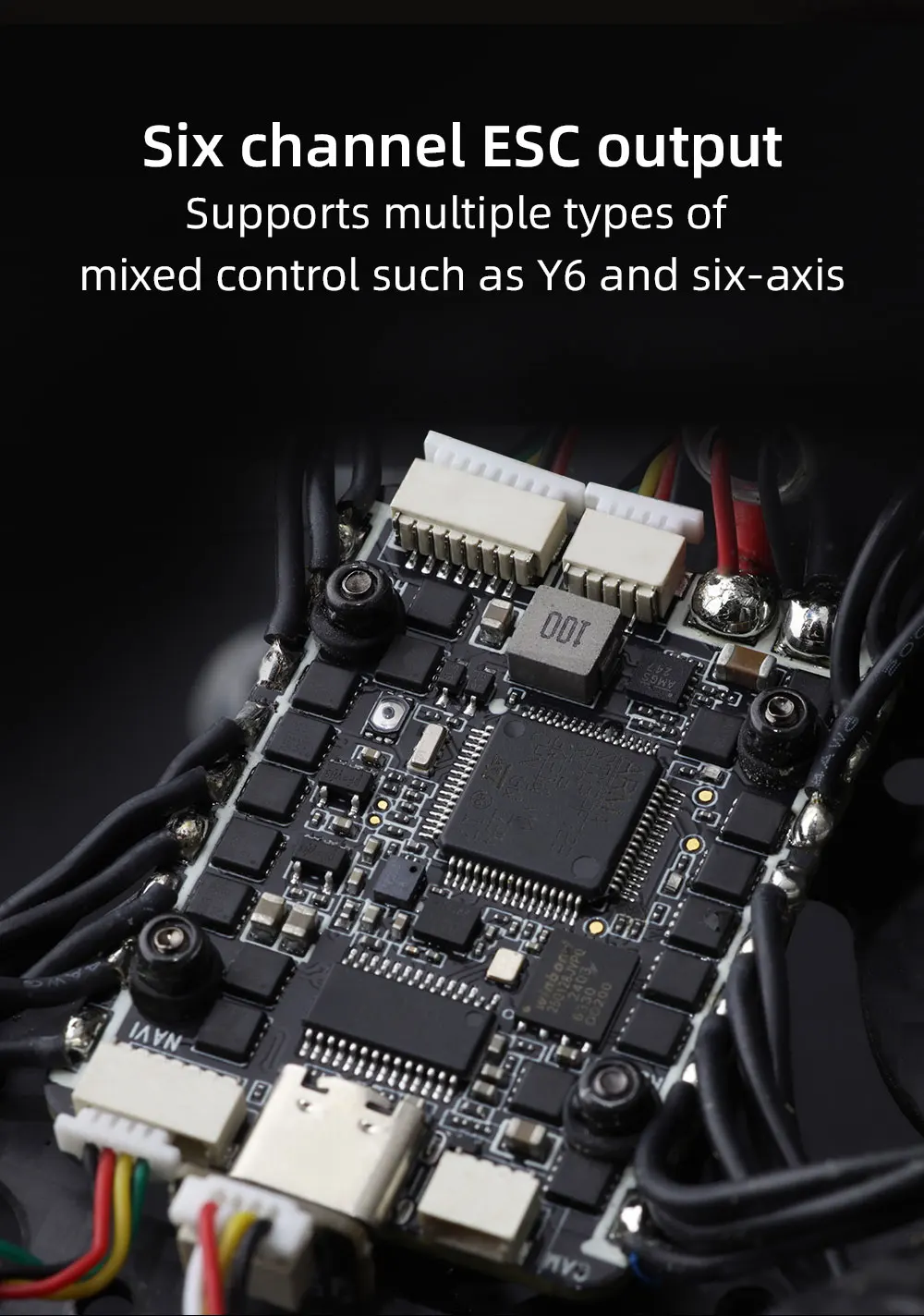

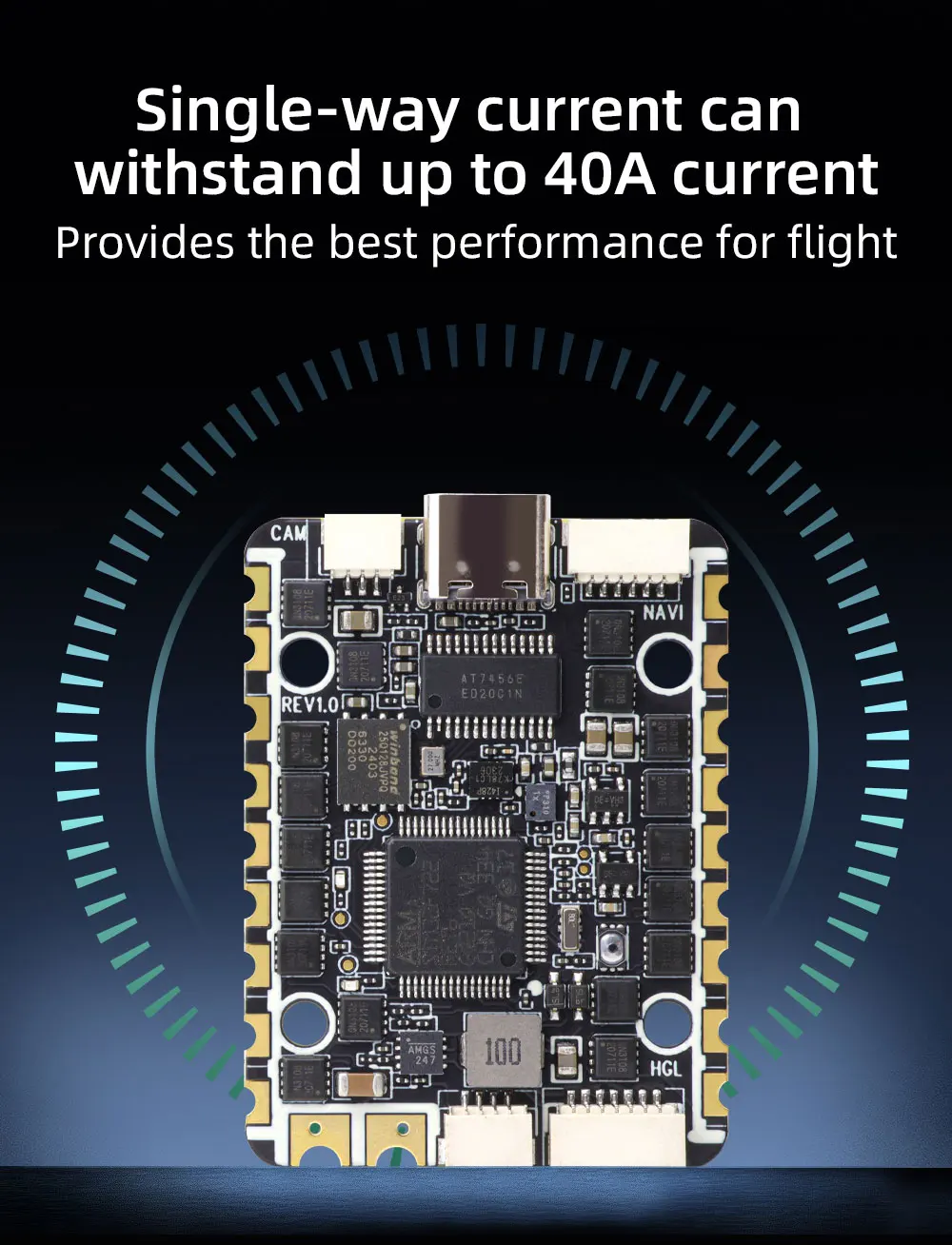

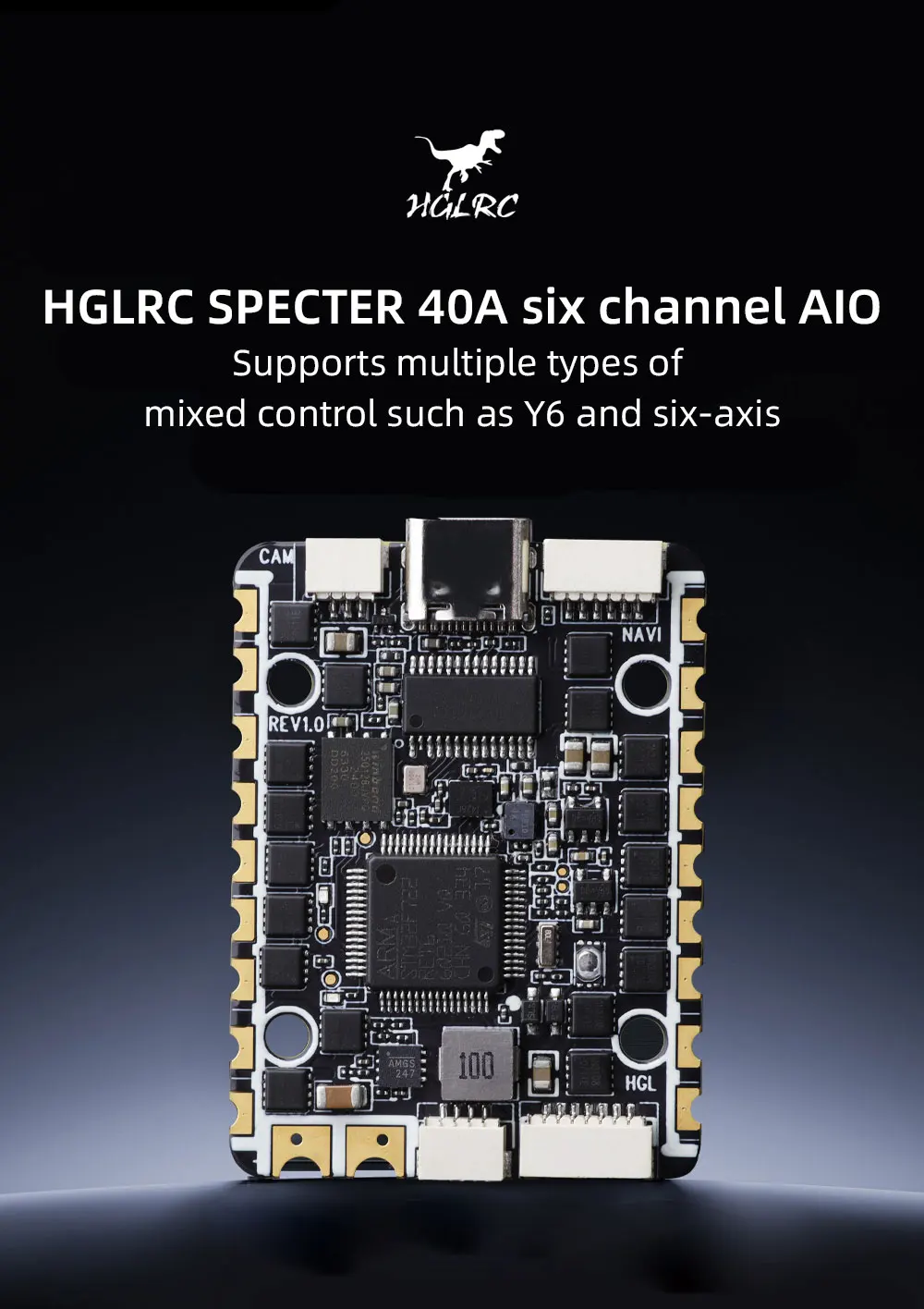

HGLRC SPECTER F722 40A 6 channel AIO: High-performance AIO designed for Y6nProduct features:nSmall size, flight control and ESC two-in-one, no complicated wiring required;n6 channel ESC output, supports Y6, six-axis and other mixed control types;nSingle-channel current can withstand up to 40A current, providing the best performance for flightnSupport HD VTX Air Unit or analog VTX terminal direct plugnTechnical parameters:nName: HGLRC SPECTER F722 40A 6 channel AIOnSize: 34×48mmnMounting hole: 20×20mm, M2nWeight: 14gnFlight control MCU: STM32F722nGyroscope: ICM42688PnBarometer: dps310nWorking voltage: 8.4V—26V (2S-6S lipo)nMaximum working current of single ESC: 40AnFlight control firmware: HGLRCF722AIO_X6 4.4.3nESC firmware: F-H-40- Bluejay, 0.19, 48kHznBlack box: 16MBnUARTS: 3nShipping list:n1×SPECTER F722 40A 4S-6S 6 channel AIO V2 flight controllern1×30AWG 70MM single-head SH1.0-7P/single-head SH1.0-6P DJI cablen1×30AWG cable length 70MM, single-head GH1.25-6P/single-head SH1.0-7P analog image transmission cablen1×30AWG cable length 140mm double-head SH1.0-6P GPS cablen1×30AWG cable length 70mm double-head SH1.0-4P receiver cablen1×30AWG cable length 60mm single-head SH1.0-3P/single-head SH1.25-3P camera cablen1×16AWG cable length 7mm red and black power cablen4×M2*6.6 Shock-absorbing balln4× cup head hexagon socket M2*10 black nickel-plated screwsn4× anti-loosening self-locking M2 nutsn1× type C male and female adapter module
