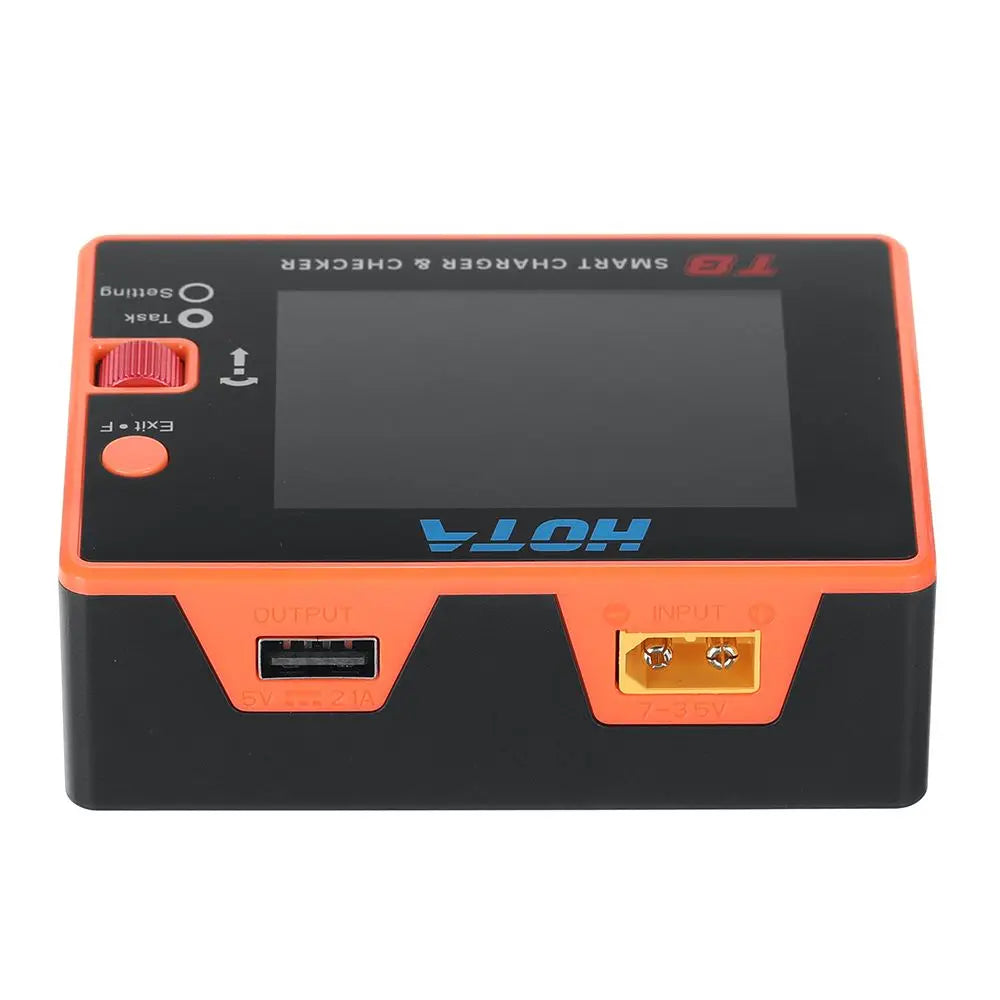

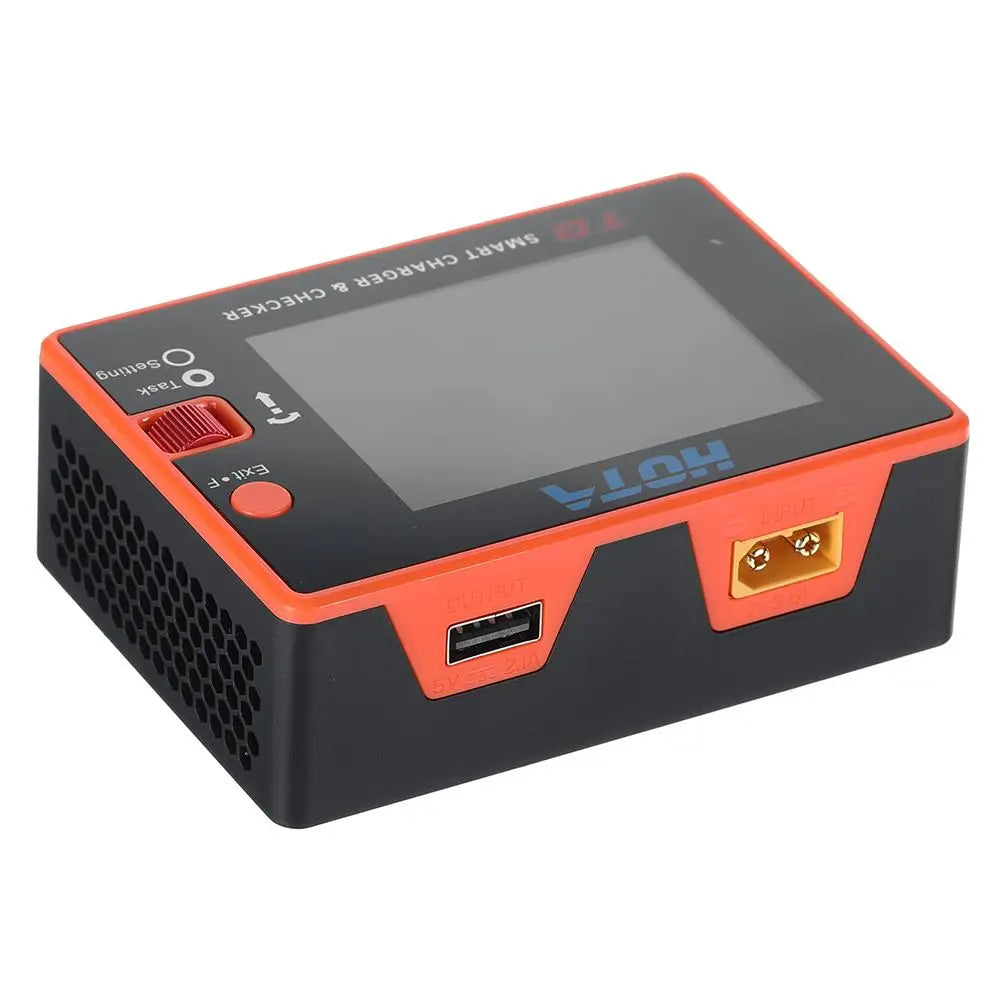

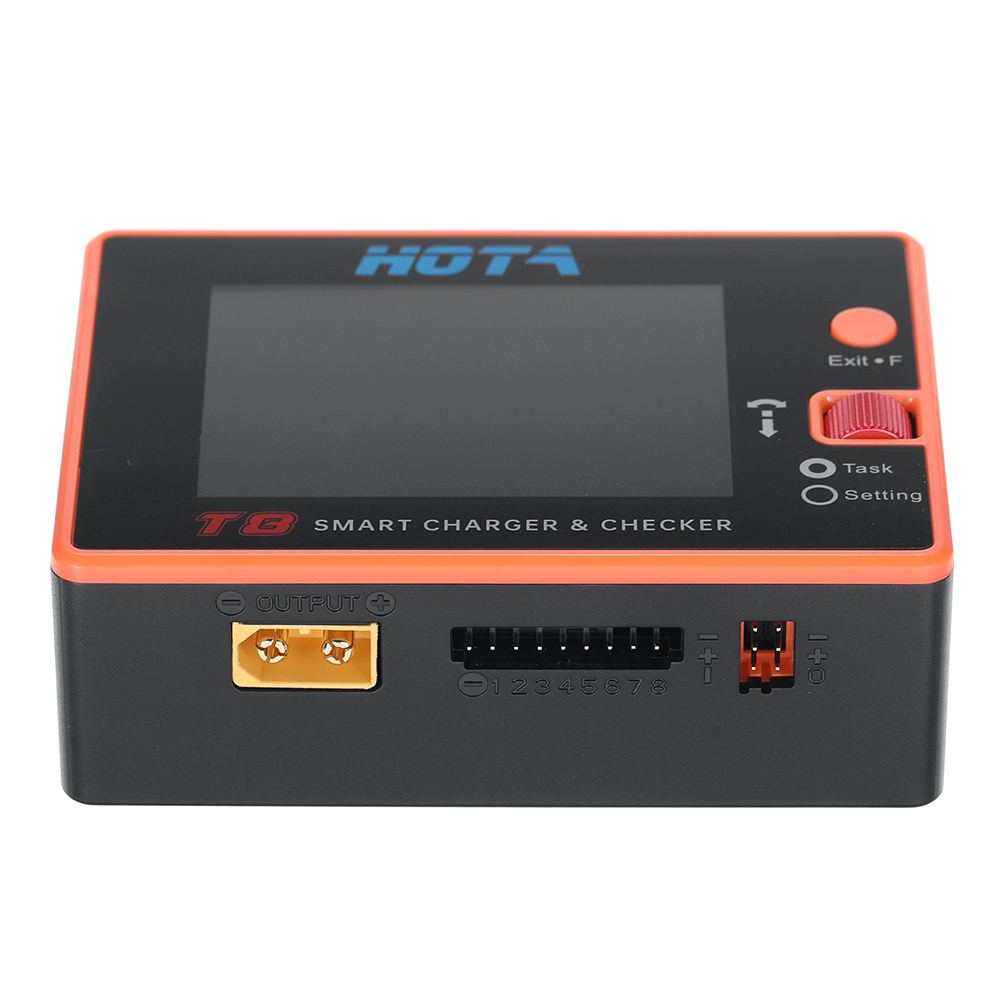

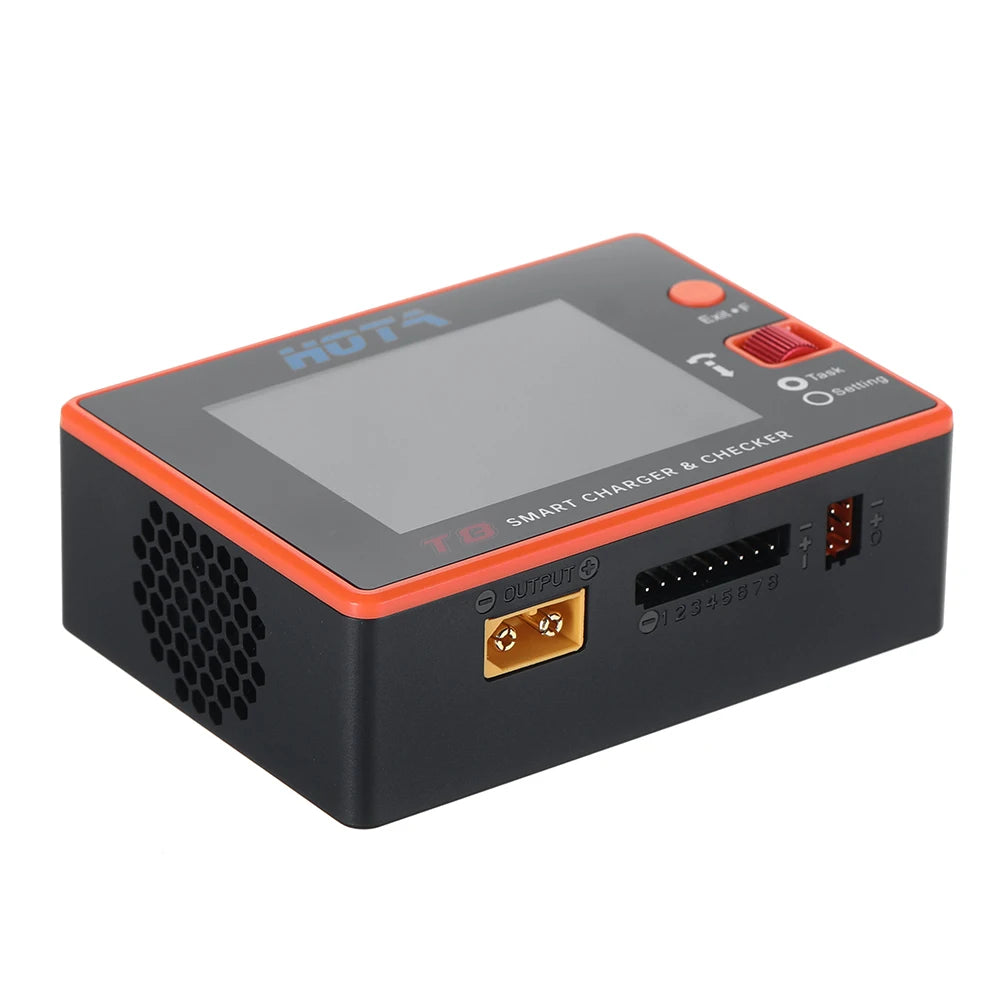

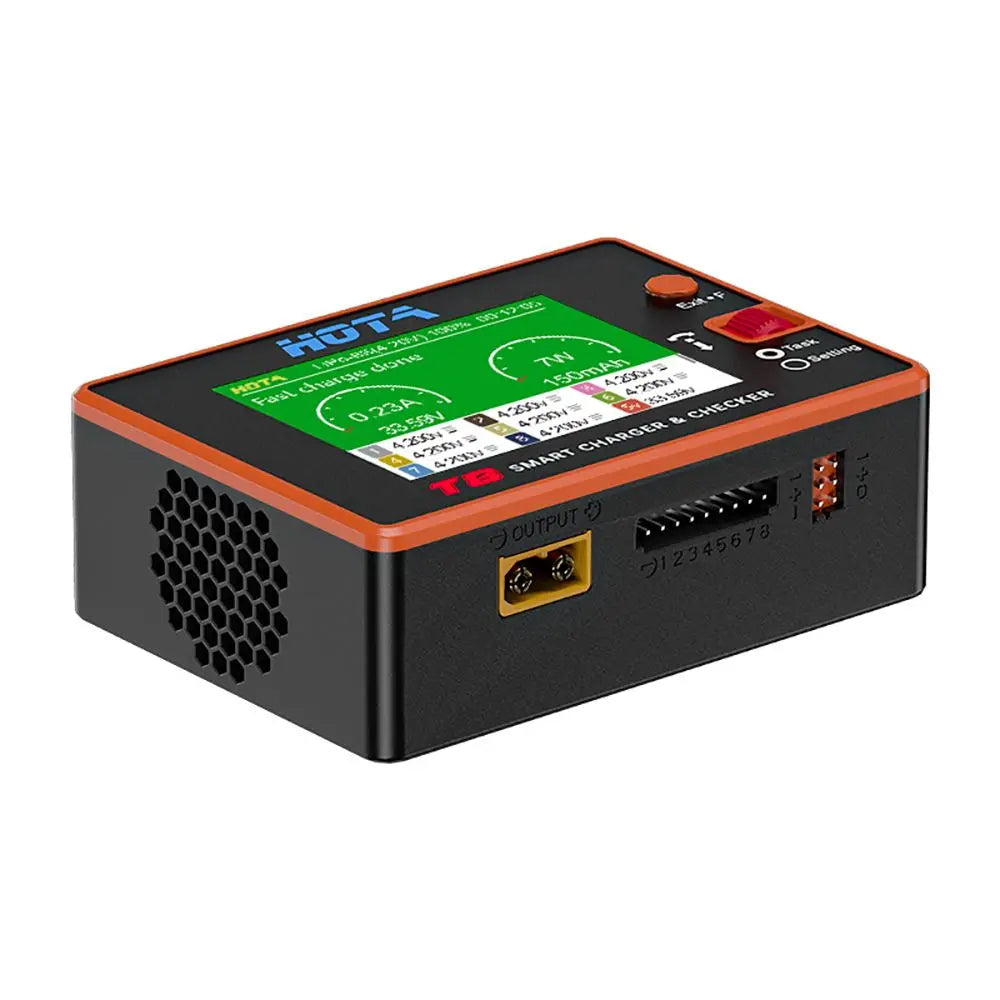

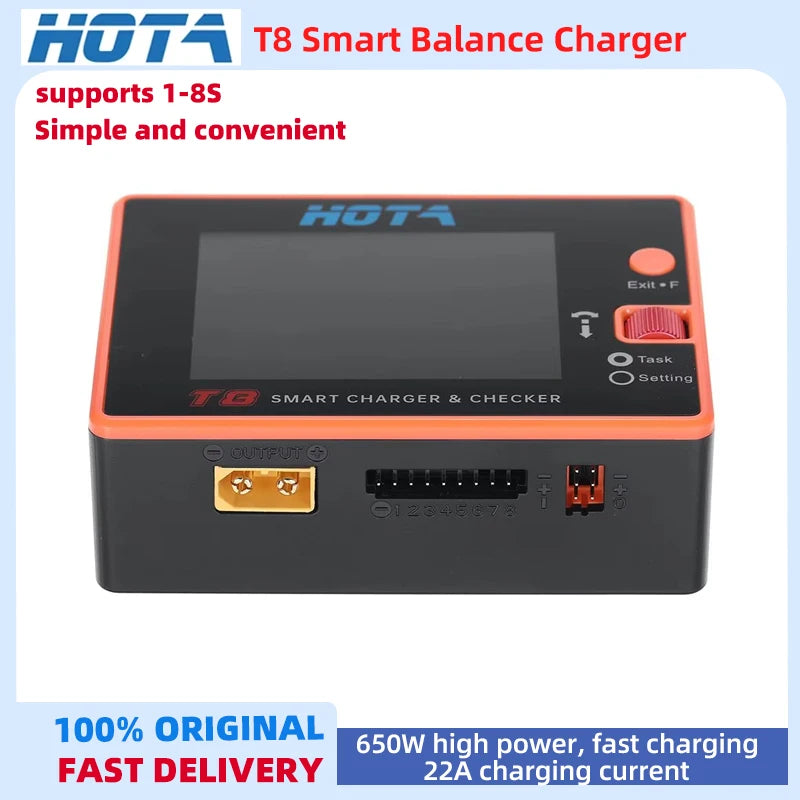

HOTA T8 650W 22A XT60 1-8S Intelligent Charger Checker for a wide range of devices NiZn/Nicd/NiMH Battery RC Drone Spares

Description

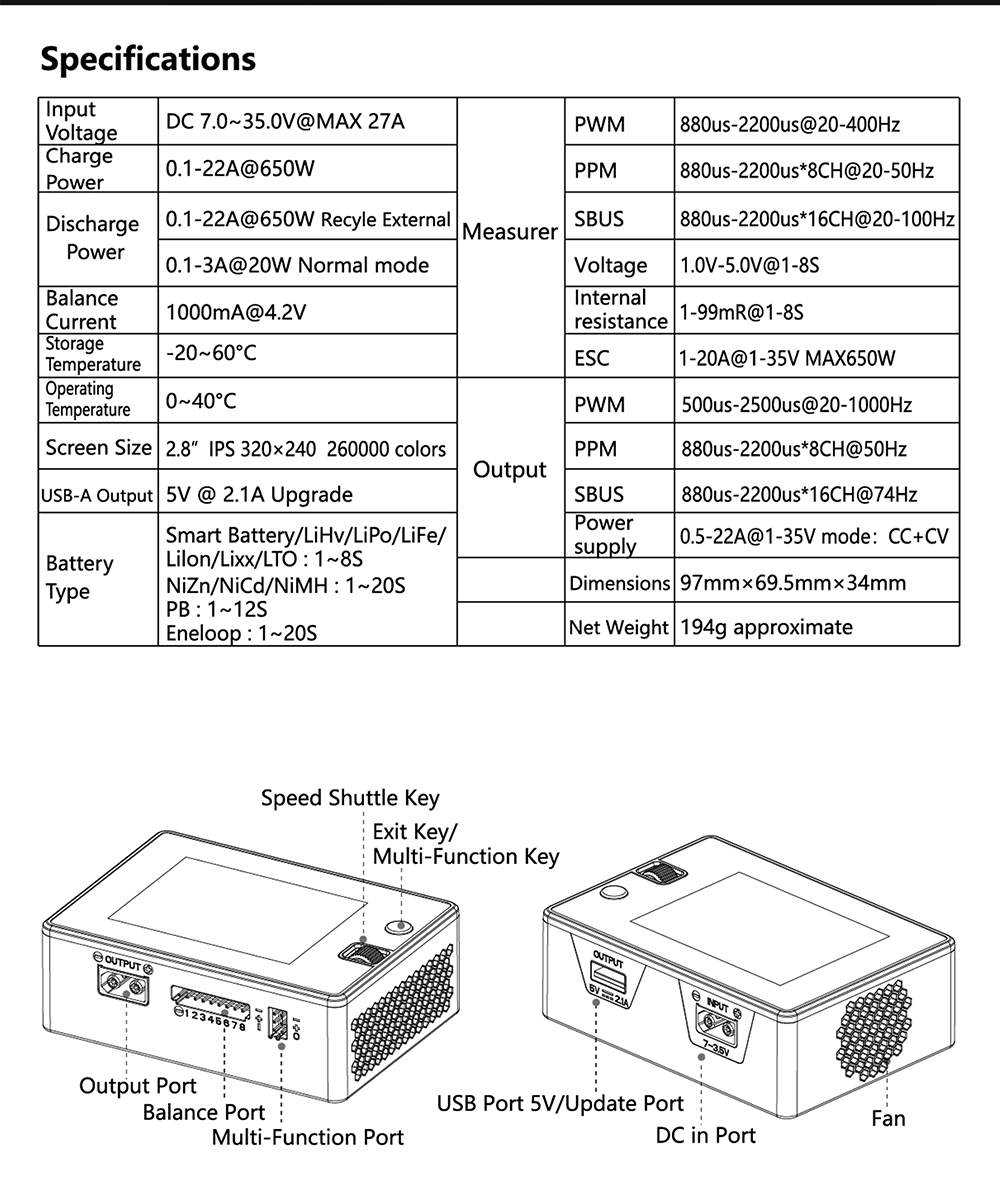

Specification:

Input Voltage: DC 7.0~35.0V@MAX 27A
Power Charge:0.1-22A@650W
Discharge Power:0.1-22A@650W Recycle External / 0.1-3A@20W Normal mode
Balance Current:1000mA@4.2V
Storage Temperature:-20~60°℃
Operating Temperature:0~40°℃

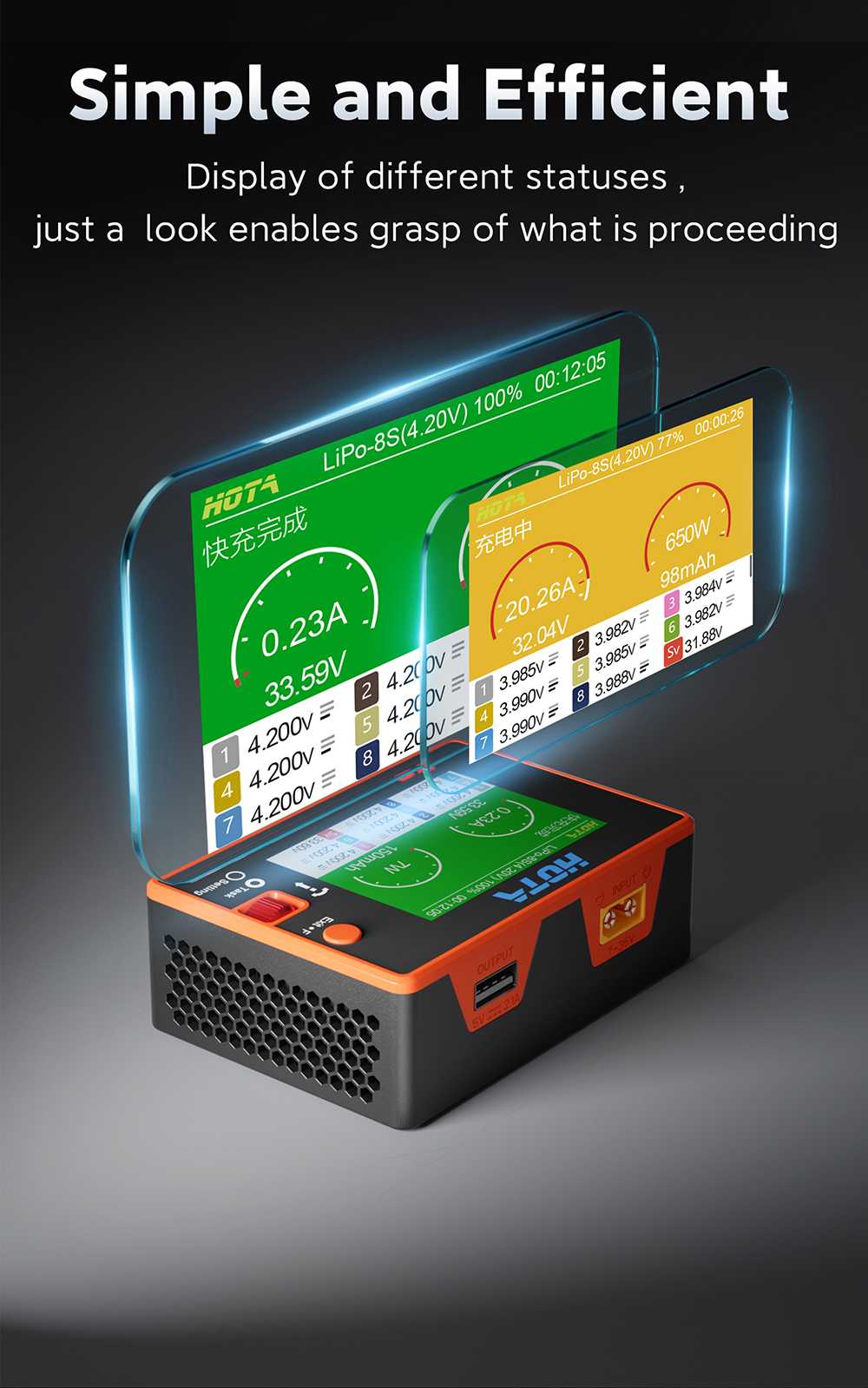

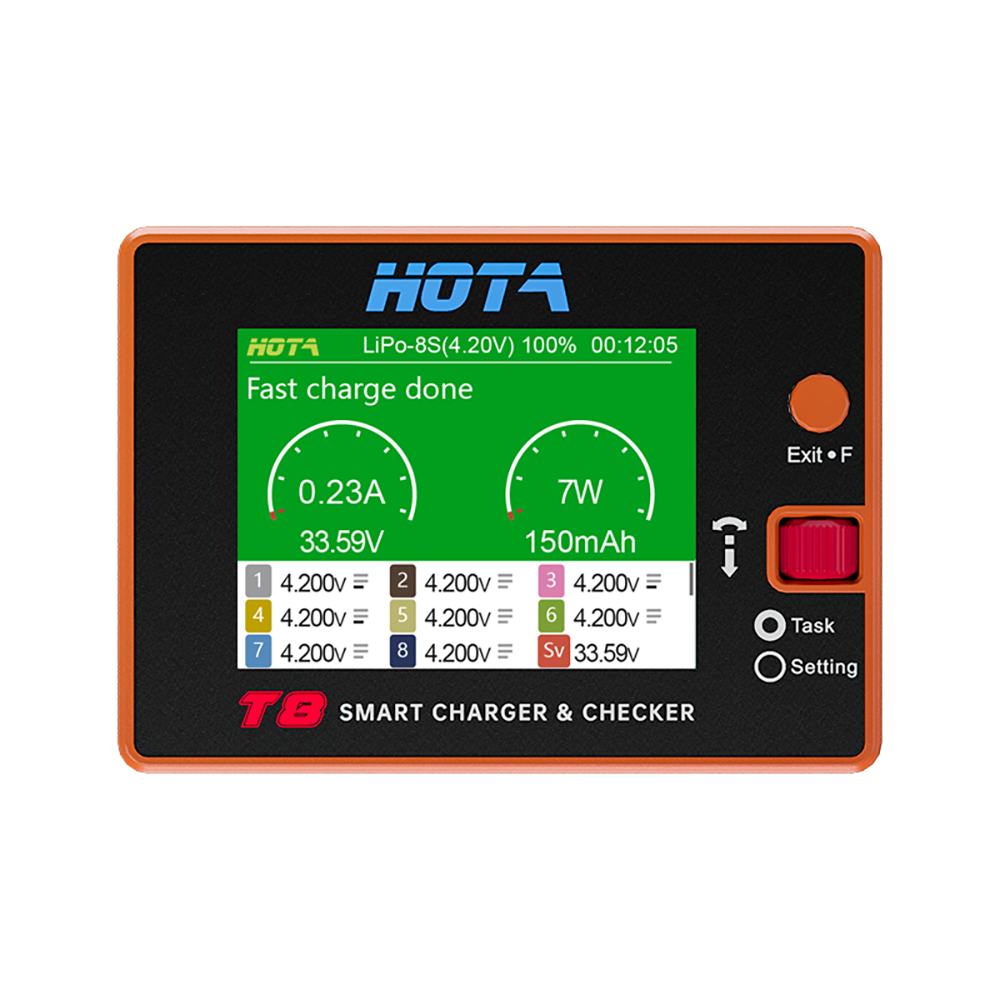

Screen Size:2.8″ IPS 320×240 260000 colors
USB-A Output:5V @ 2.1A Upgrade

Battery Type:

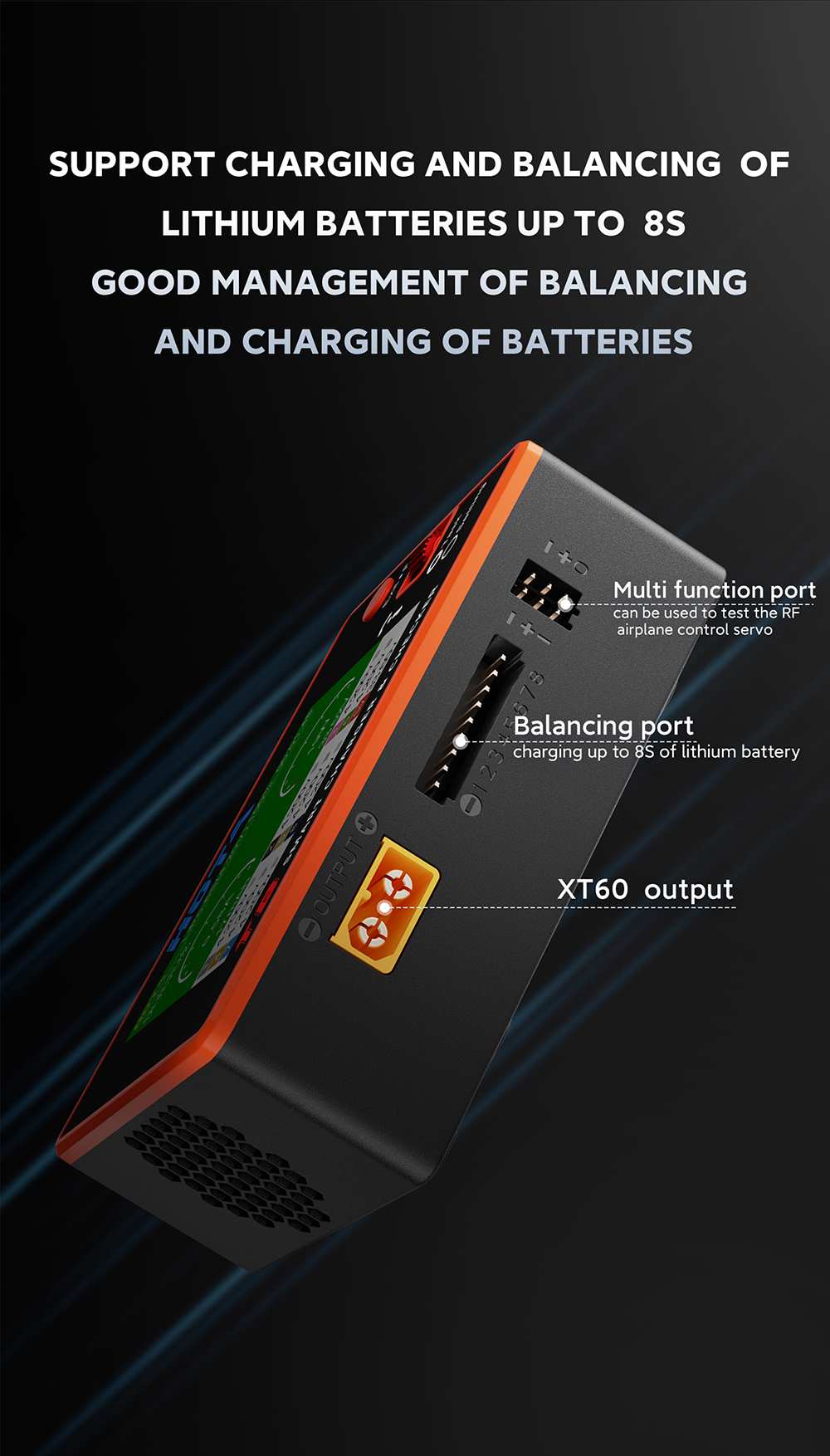

Smart Battery/LiHv/LiPo/LiFe/Lilon/Lixx/LTO: 1~8S
NiZn/NiCd/NiMH:1~20S
PB: 1~12S
Eneloop: 1~20S

Measurer
PWM:880us-2200us@20-400Hz
PPM:880us-2200us*8CH@20-50Hz
SBUS:880us-2200us*16CH@20-100Hz
Voltage:1.0V-5.0V@1-8S
Internal resistance:1-99mR@1-8S
ESC:1-20A@1-35V MAX650W

Output
PWM:500us-2500us@20-1000Hz
PPM:880us-2200us*8CH@50Hz
SBUS:880us-2200us*16CH@74Hz
Power supply:0.5-22A@1-35V mode: CC+CV
Dimensions:97mm×69.5mm×34mm
Net Weight:194g approximate

Features:

1. Smart charging: The HOTA T8 charger and checker is equipped with intelligent features to ensure safe and efficient charging of your batteries.

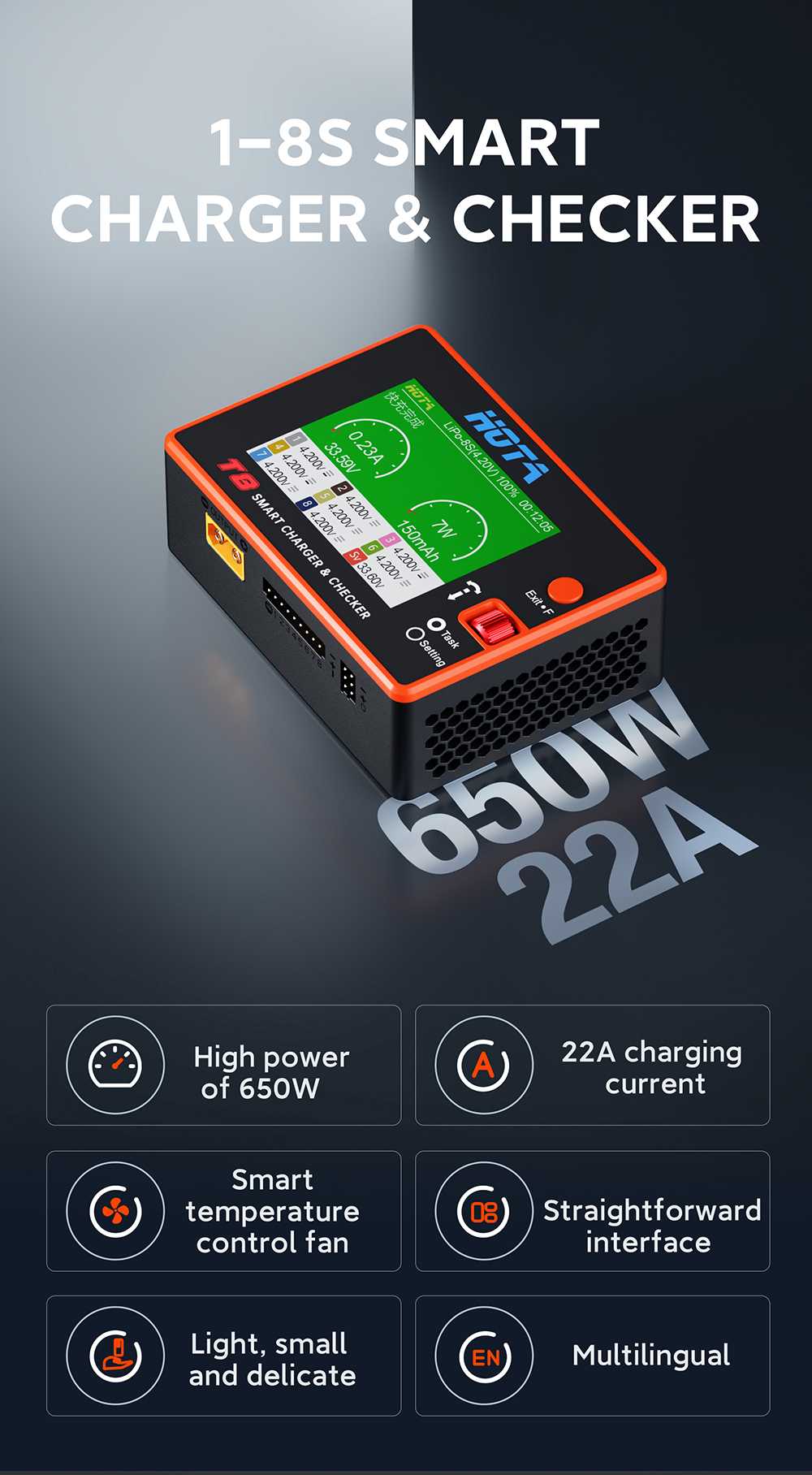

2. High power: With a maximum power output of 650W and a current of 22A, this charger can quickly charge your batteries.

3. Versatile compatibility: The XT60 connector allows you to charge batteries with 1-8S cell configurations, making it suitable for a wide range of devices.

4. Easy to use: The user-friendly interface and intuitive controls make it easy for both beginners and experienced users.

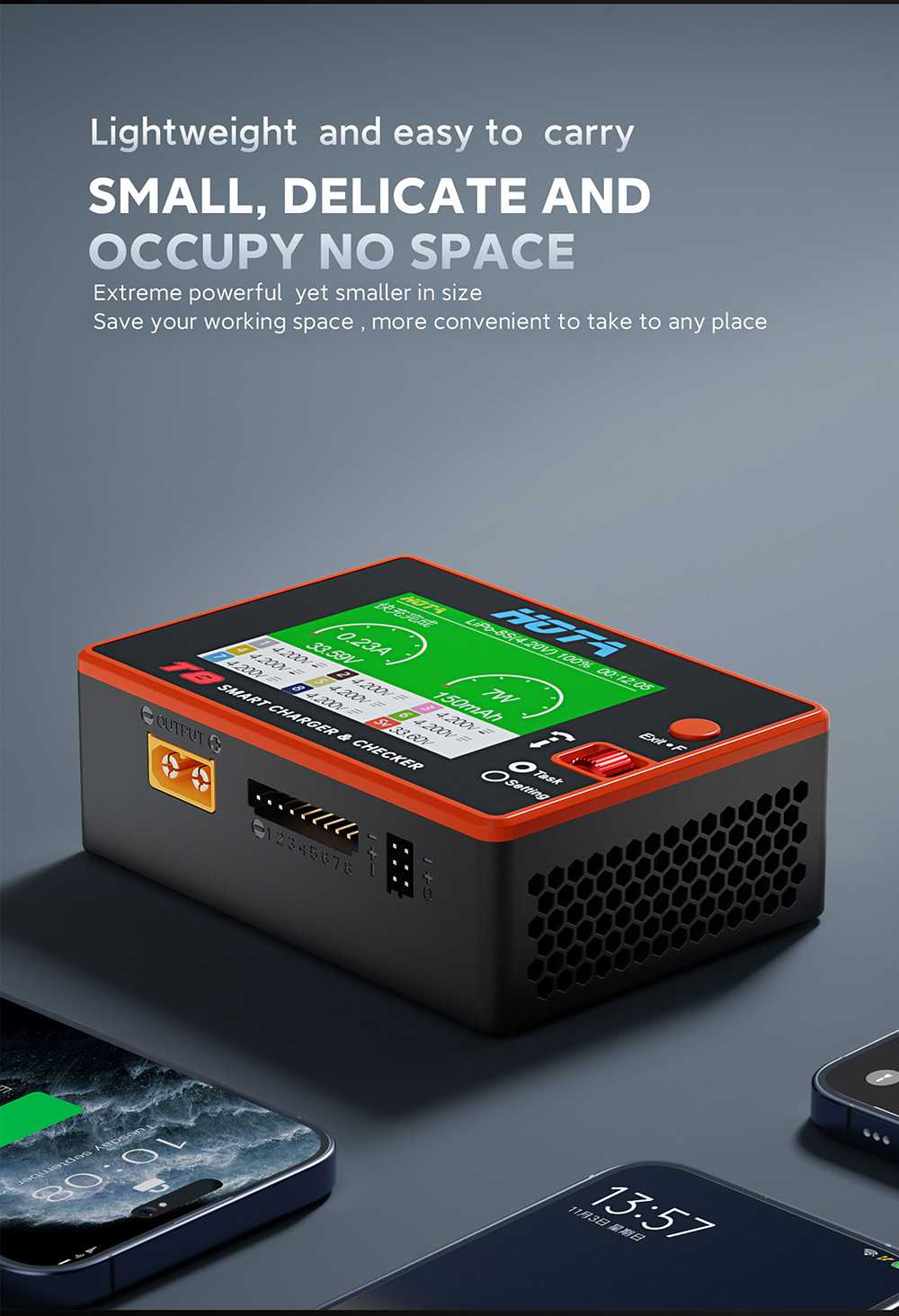

5. Compact design: The T8 charger and checker is compact and portable, allowing you to take it with you wherever you go.

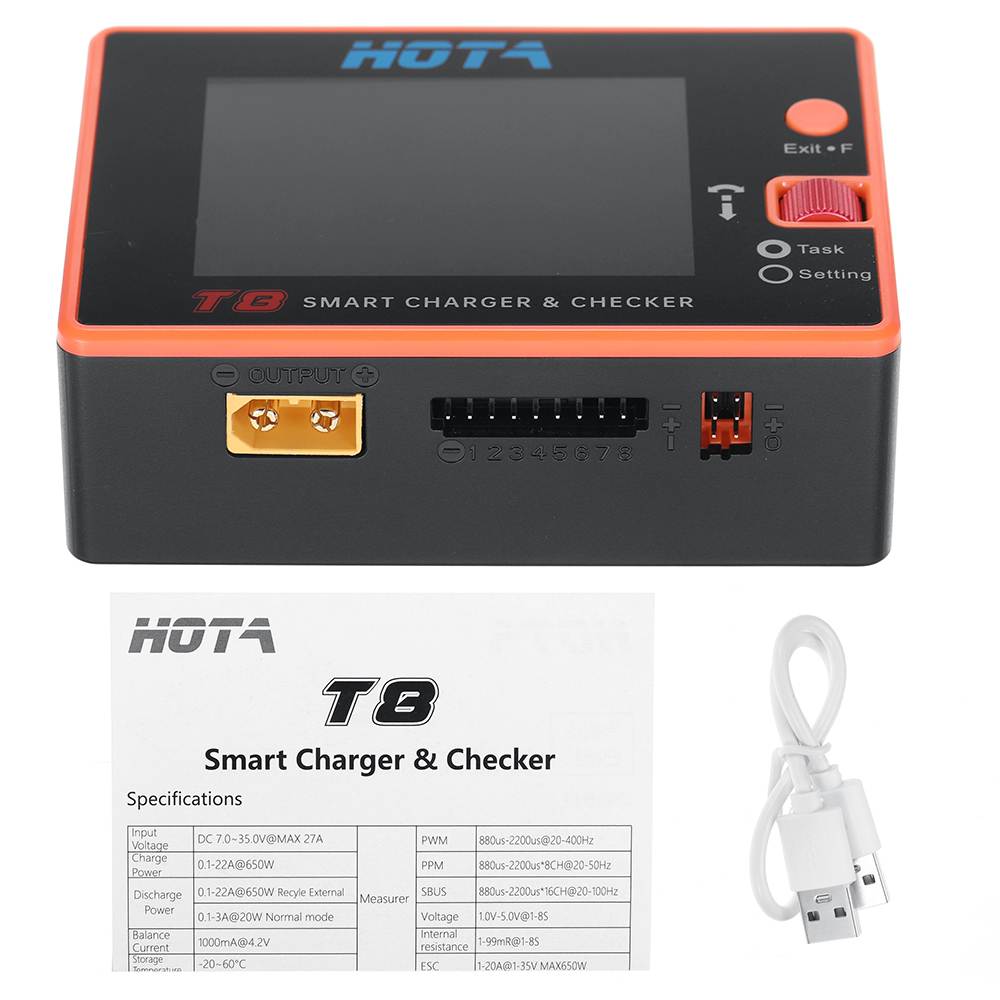

Package included:

1 x HOTA T8 650W 22A XT60 1-8S Intelligent Charger Checker

1 x User Manual
