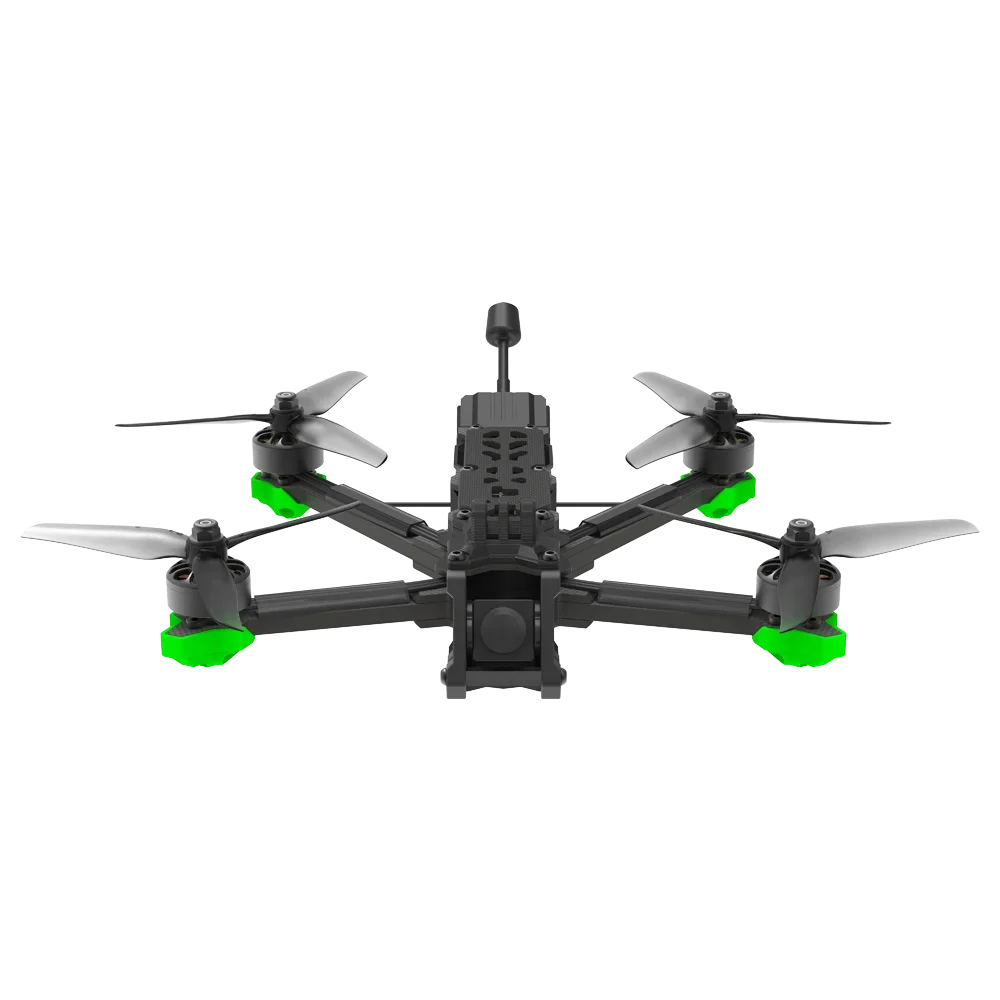

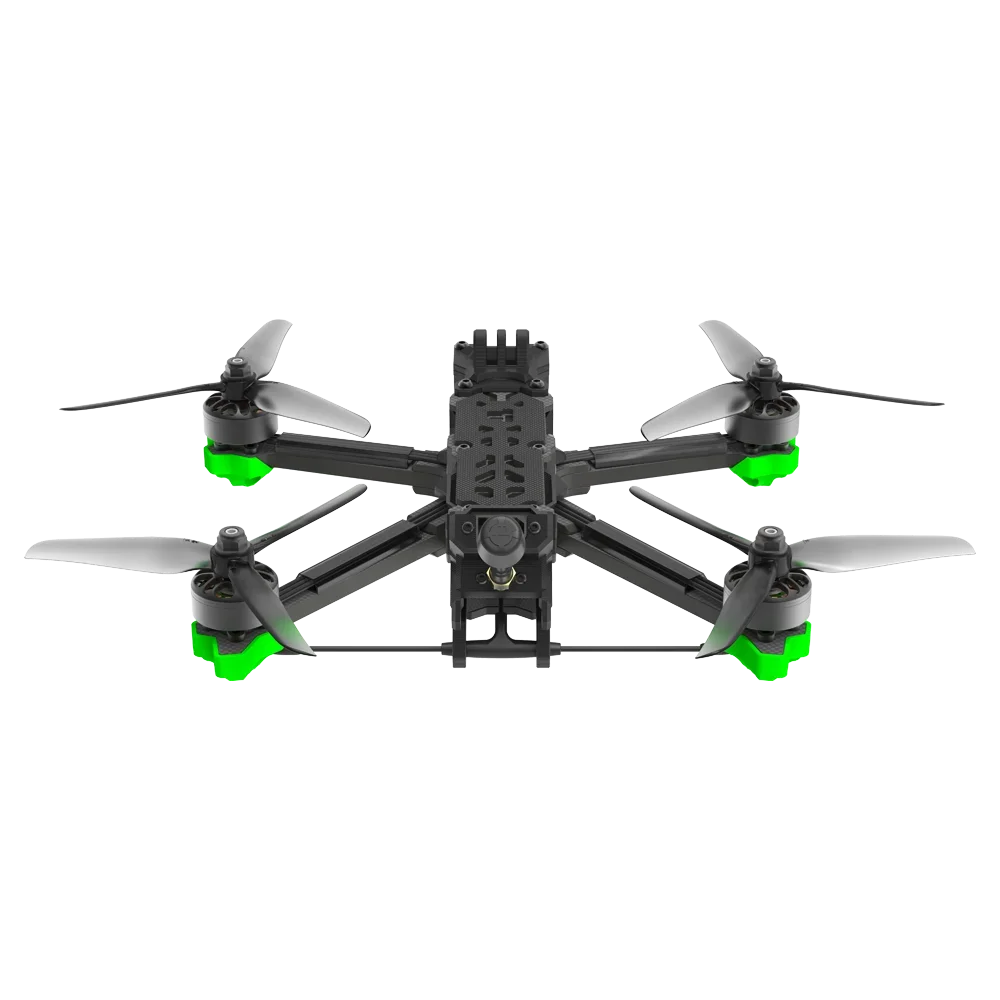

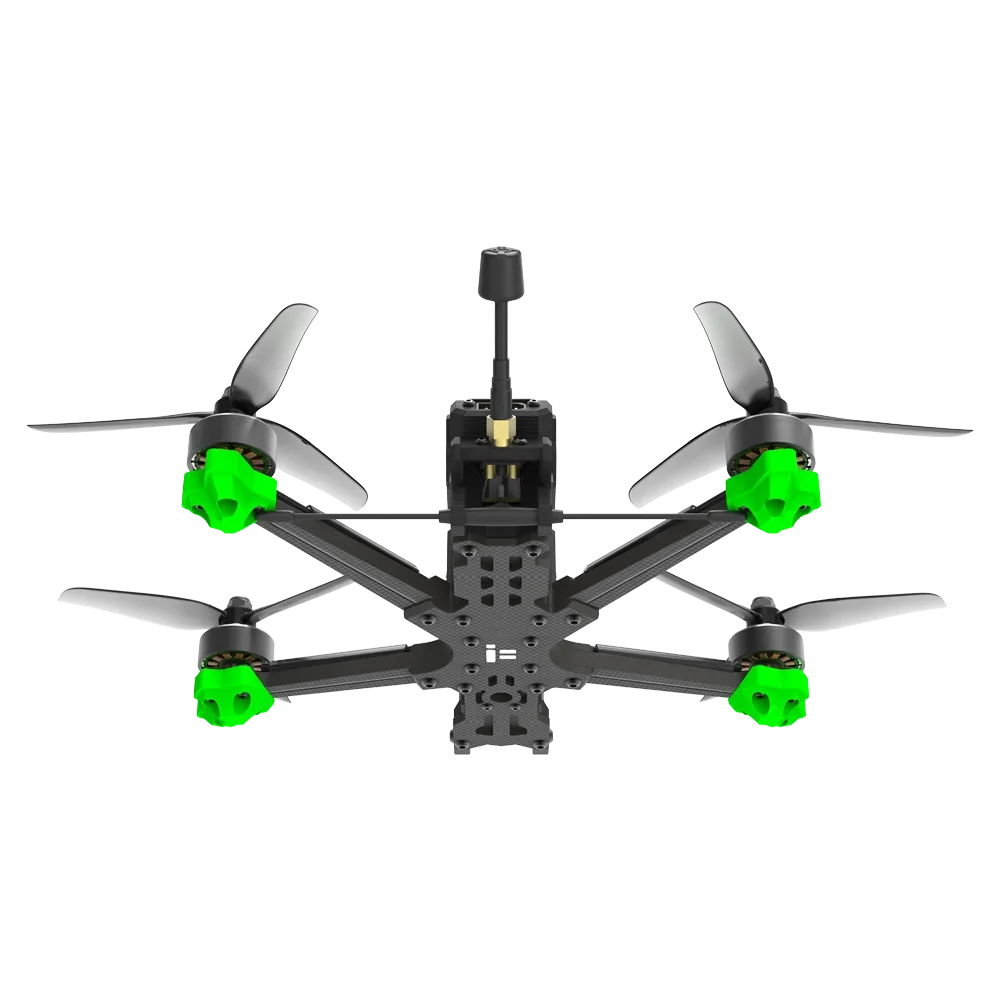

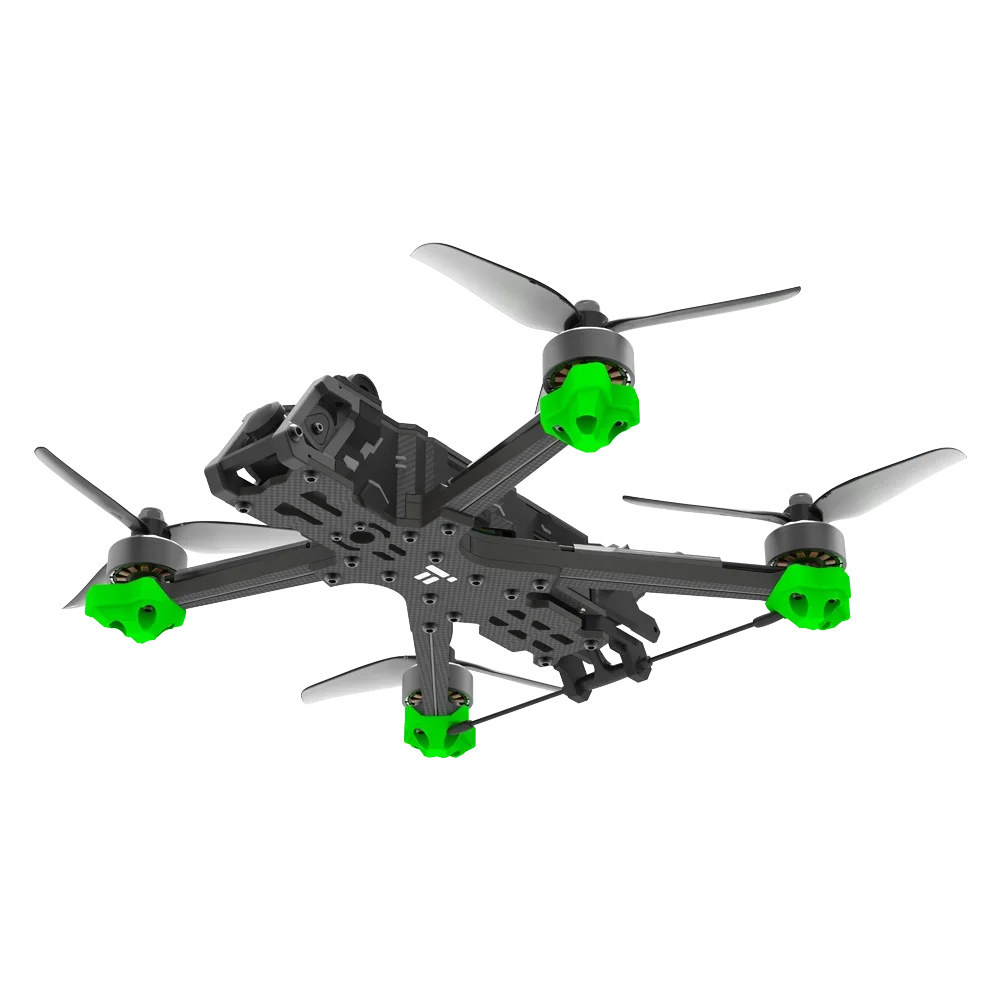

nExperience the next generation of pre-built FPV drones with iFlight’s latest offering, setting a new standard in Bind-And-Fly simplicity and performance. This drone integrates DJI’s latest O4 Pro Air Unit, featuring an advanced 1.1/1.3-inch image sensor for capturing intricate details even in low-light conditions. Enjoy seamless real-time video transmission at up to 1080p/100fps, ensuring an immersive flying experience. The upgraded frame and electronics not only enhance durability but also provide enthusiasts with top-tier performance right out of the box. Welcome to the future of FPV flight with iFlight – where setup is simple, yet the thrill and capability are unmatched.
nHighlights
nSmooth and Powerful XING2 Motors
nThe latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
nLatest Nazgul Frame for Maximum Protection
nThe old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
nO4 Video Transmission, Enhanced Perception
nDJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)
n4K Stabilized Video with 155° Ultra-Wide Angle
nTogether with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
nSecured Battery Plug with Anti-Spark Filter
nPlugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
nSpecificaiton
nProduct Name: Evoque F5 V2 O4 HD BNF
nFC: BLITZ Mini F722 Flight Controller
nESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
nVideo Transmission: DJI O4 Air Unit Pro
nFrame wheelbase: 223±2mm
nMotor: XING2 2207 1750KVmotors
nProp: Nazgul F5 propellers
nWeight: 436±5g
nTakeoff Weight: Approx. 695±10g (With 1480mAh Battery)
nDimensions (L×W×H): 190*136*36±2mm
nMax Speed: 190 km/h
nMaximum Takeoff Altitude: 3200 m
nMax Hover Time: Approx. 7.5 min (No load With 6S 1480mAh)
nMax Flight Distance: 5 km
nOperating Temperature Range: -10° to 40° C (14° to 104° F)
nAntennas: Dual Antennas
nGNSS： GPS+SBAS+Galileo+QZSS+Glonass (Optional)
nVideo Transmission
nProduct Name: DJI O4 Air Unit Pro
nImage Sensor: 1/1.3-inch
nLens: FOV: 155°
nISO: 100-25600
nVideo Resolution: 1080p/100fps H.265
nVideo Format: MP4, Max Video Bitrate: 130Mbps
nColor Mode: Normal Mode/D-Log M
nStabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
nLive View Quality: 1080P@100fps
nOperating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
nTransmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
nMax Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
nCommunication Bandwidth: Max 60 MHz
nAntenna: Dual antennas
nBuilt-in Storage: 4GB
nSupported SD cards: microSD (up to 512GB)
nOperating Temperature: -10° to 40° C
nWeight: Air Unit (camera module included): Approx. 32 g
nDimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)
nPacking List
n1 x Evoque F5 6S O4 HD BNF
n2 x Antennas
n1 x Battery pad
n2 x propeller(Pairs)
n2 x Battery strap
