IFlight Nazgul Evoque F6 V2 Frame Kit F6X-Squashed X 255mm / F6D-DeadCat 262 mm 6inch 6mm Arm for RC Racing Drone

Description

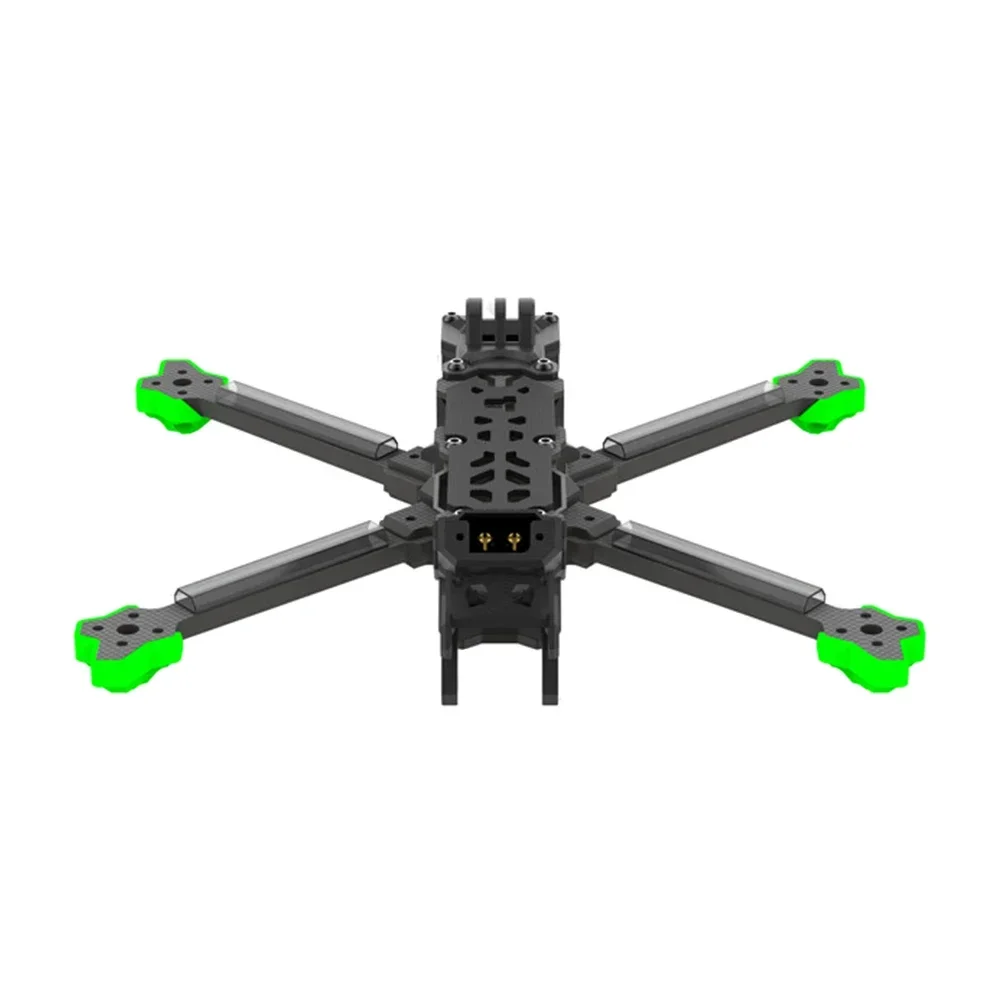

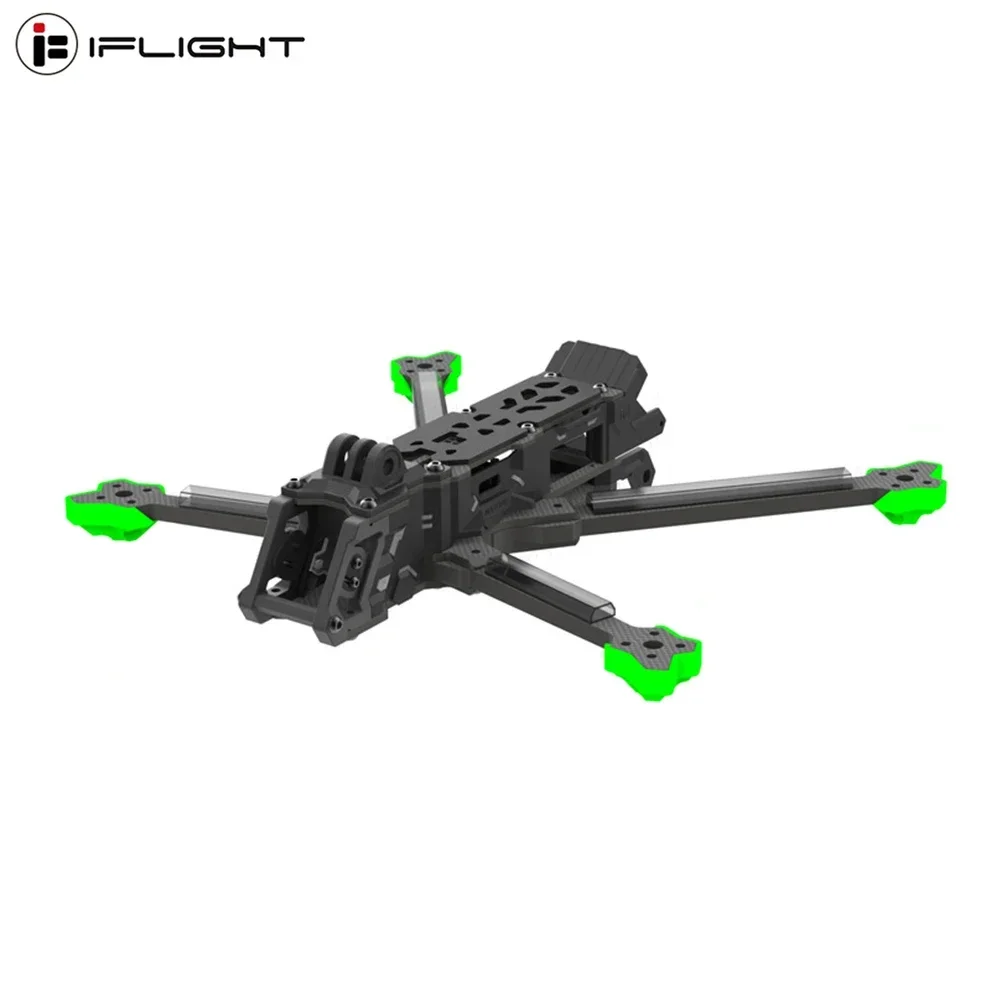

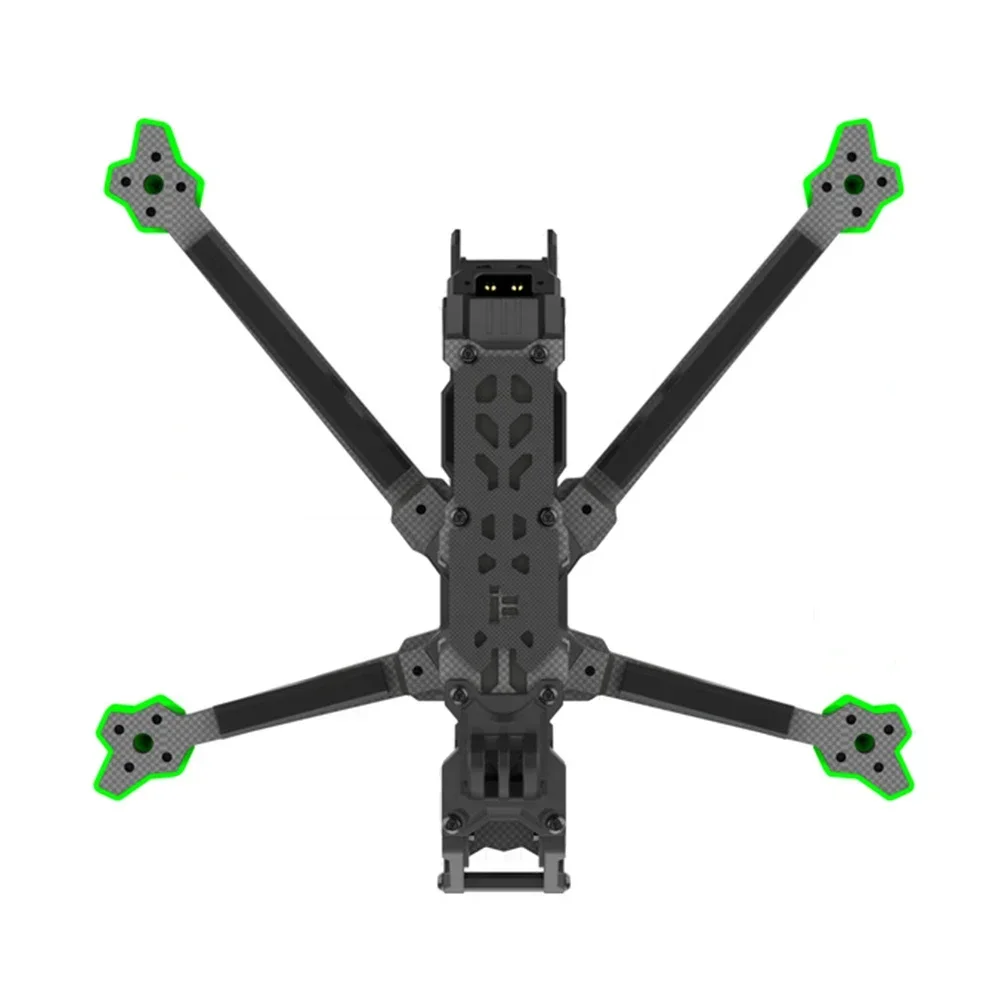

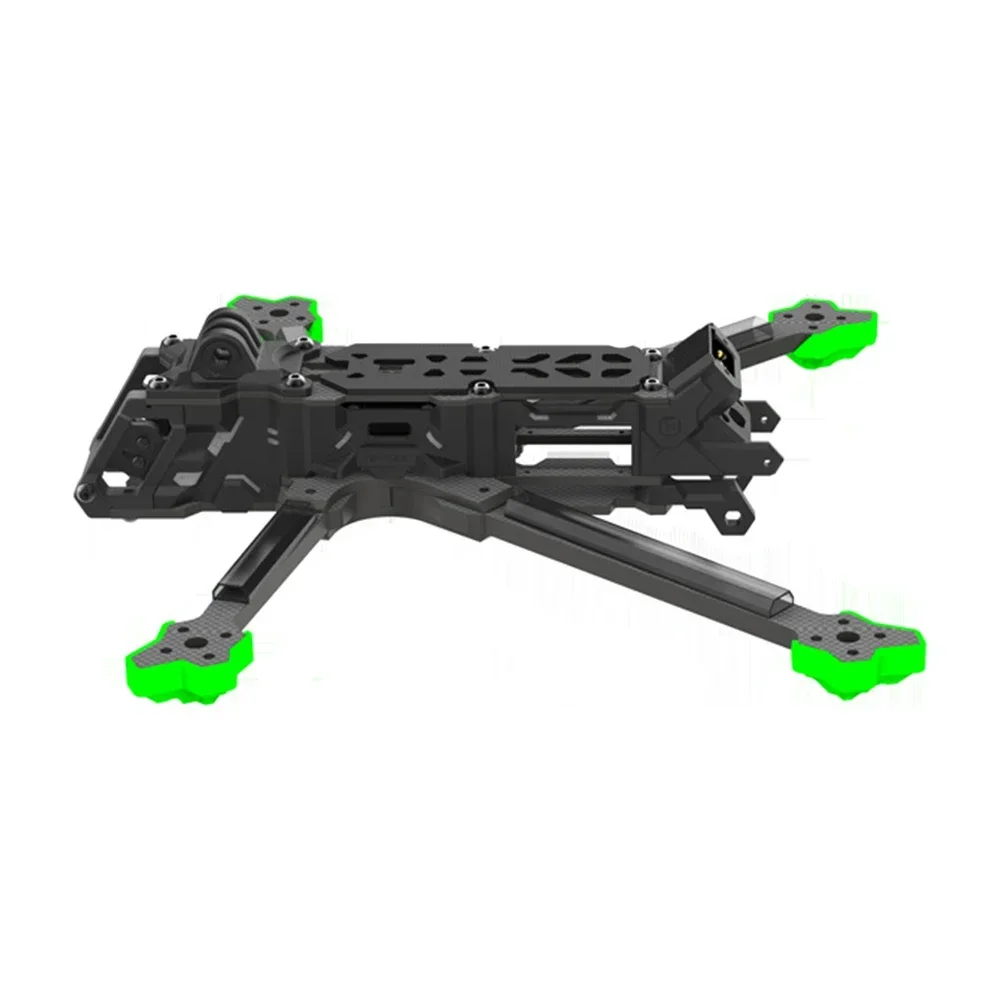

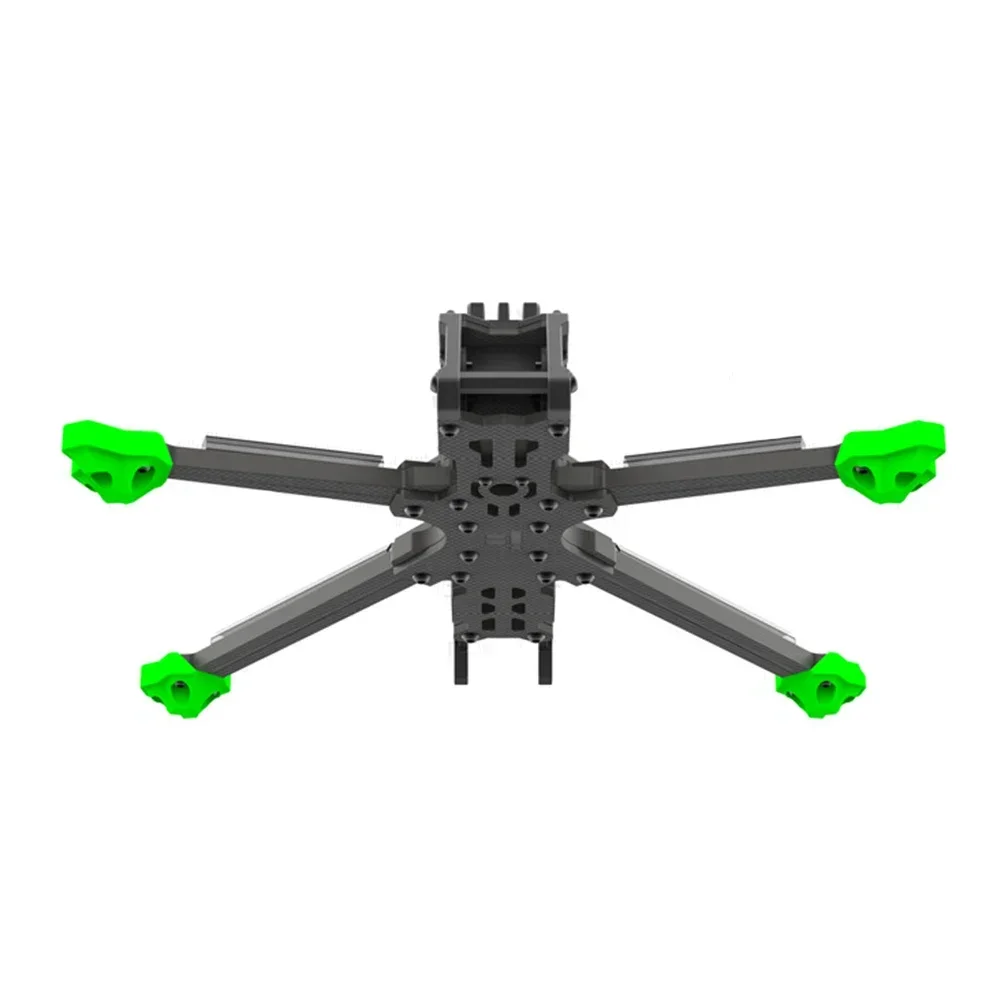

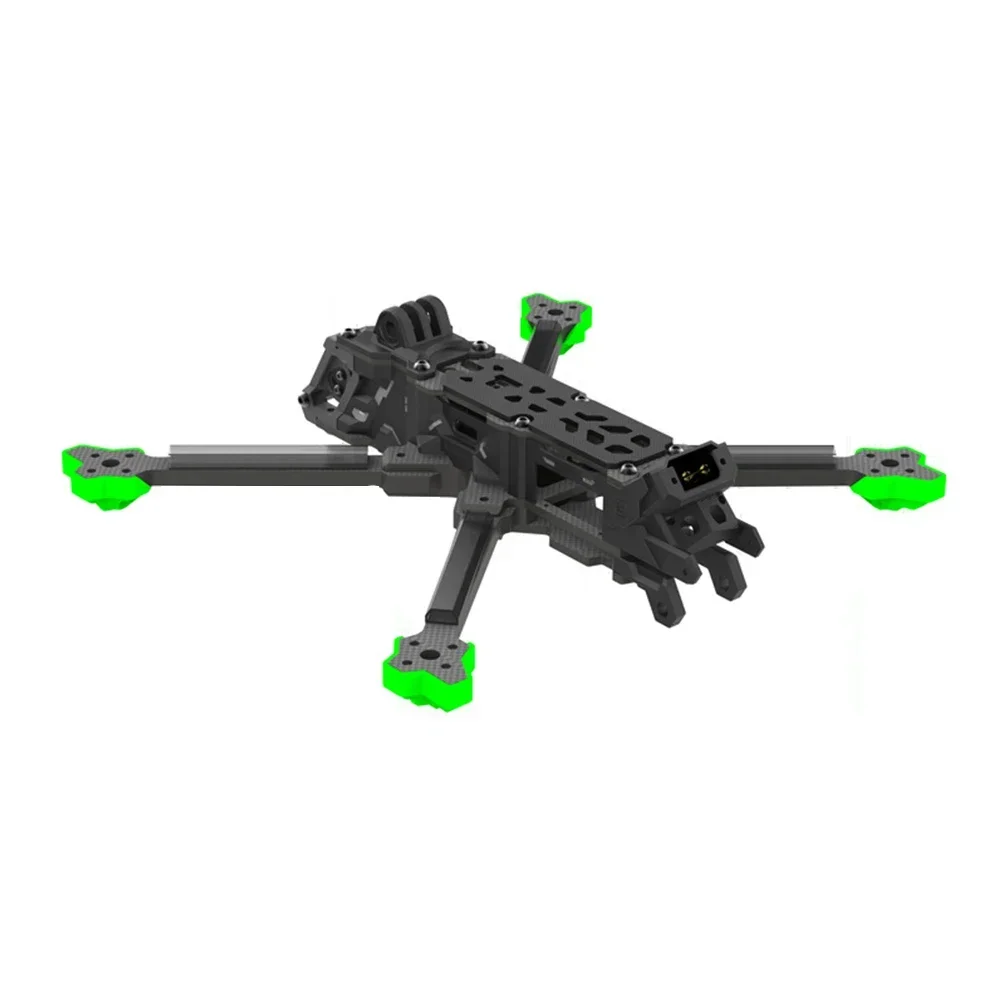

IFlight Nazgul Evoque F6 V2 Frame Kit F6X-Squashed X 255mm / F6D-DeadCat 262 mm 6inch 6mm Arm for RC Racing Drone
Descriptions
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
Highlights
V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission nnSpecially Designed Heatsink for DJI O3 Air UnitnnNew Camera Mount for a wider camera FOV with TPU damping insertsnnNew Side Panels to perfectly fit the O3 Air Unit in the backnnNew Dual 5.8G VTX Antenna TPU mount nnLatest Nazgul Frame Upgrades for Maximum ProtectionnnOptional Parts to select (not included in frame kit):nnNew Anti Spark Filter to prevent rapid voltage and current spikes plugging in a batterynnSingle DJI VTX Antenna TPU to install the original DJI O3 set included antenna.
Upgrading your Nazgul F6 V1?
If you want to upgrade your Nazgul Evoque F6 V1 with the DJI O3 Air Unit read this:nn- The FC (Flight Controller) to O3 VTX connector is different than the older Caddx Vista/Polar plug. You’ll need to DIY.nn- The RX (Receiver) position changed. V1 antenna length is 75mm, V2 is 220mm. You’ll need to DIY.nn- The XT60 plug was changed, you’ll need to de-solder the V1 plug and install the V2 plug. Included in the frame kit.nn- If you’re going from F6X V1 to F6X V2 all motor wires will have the same length.nn- If you’re going from F6X V1 to F6D V2 the back motor wires need to be extended, since you change frame geometry.nn- The Antenna TPU in the back comes in 2 Versions; One for the original single DJI VTX antenna, or one for the dual antenna setup. The kit includes a dual antenna TPU. 2x 5.8G LHCP antennas need to be installed.nn- The Nazgul Evoque F6 V2 BNF comes with a new Anti Spark filter pre-installed. Please select the option to purchase separately; it’s not included in the frame kit.
Specifications
Product Name: Evoque F6 V2 Frame KitnnFrame wheelbase: 255mm (Squashed X) / 262 mm (DeadCat)nnFrame Dimension: L196*W164*H36 mm (Squashed X) / L209*W162*H36 mm (DeadCat)nnFrame Body Dimension: 36mmnnArm Thickness: 6mmnnBottom Plate Thickness: 3mmnnTop Plate Thickness: 2mmnnUpper Plate Thickness: 3mmnnCamera Plate Thickness: 3mmnnMax Flight Stack Height: 22mmnnMax VTX Height: 23mmnnFC Mounting: 20*20/Φ3mmnnMotor Mounting: 16*16/Φ3mmnnVTX Mounting: 25.5*25.5 φ1.6mmnnWeight: 252g/256g
Package included
1 x Evoque F6 V2 Frame Kitnn1 x O3 Air Unit Heatsinknn2 x O3 IPEX to RP-SMA Antenna Pigtailsnn1 x O3 Dual Antenna TPUnn1 x GoPro TPU Base Mountnn1 x Screw Bagnn4 x TPU Armguardnn1 x Front Bumper TPUnn1 x Rear Bumper TPUnn2 x Anti-slip Battery Padnn2 x Battery Strap (20*250mm)nn1 x Battery Strap(20*250mm)
Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

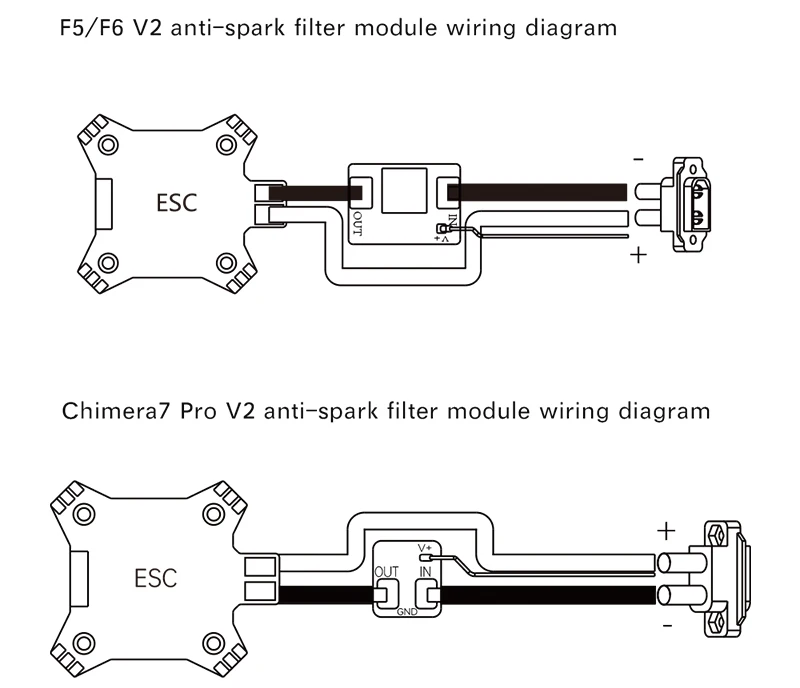

WIRING DIAGRAM
