iFlight SH CineFlow 5 O4 Pro FPV Frame Kit 5inch with 5mm Arm For Freestyle FPV Parts

Description

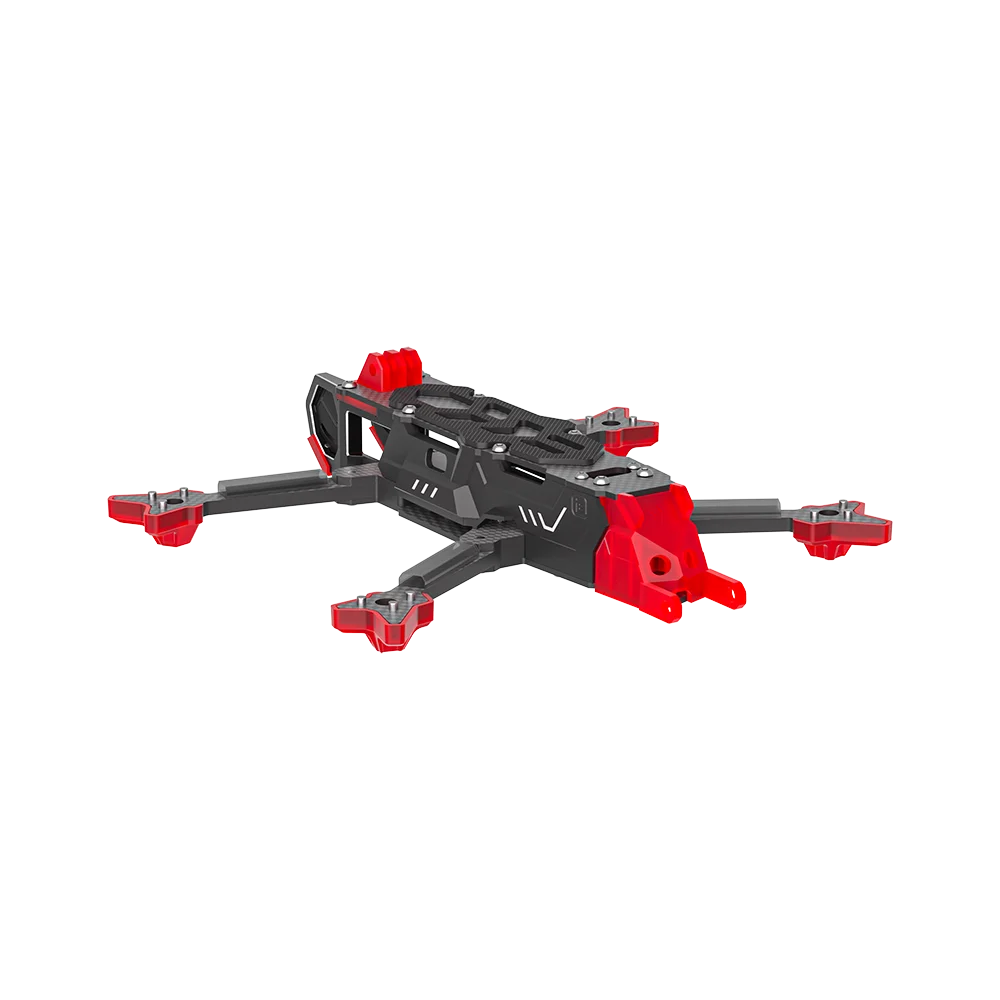

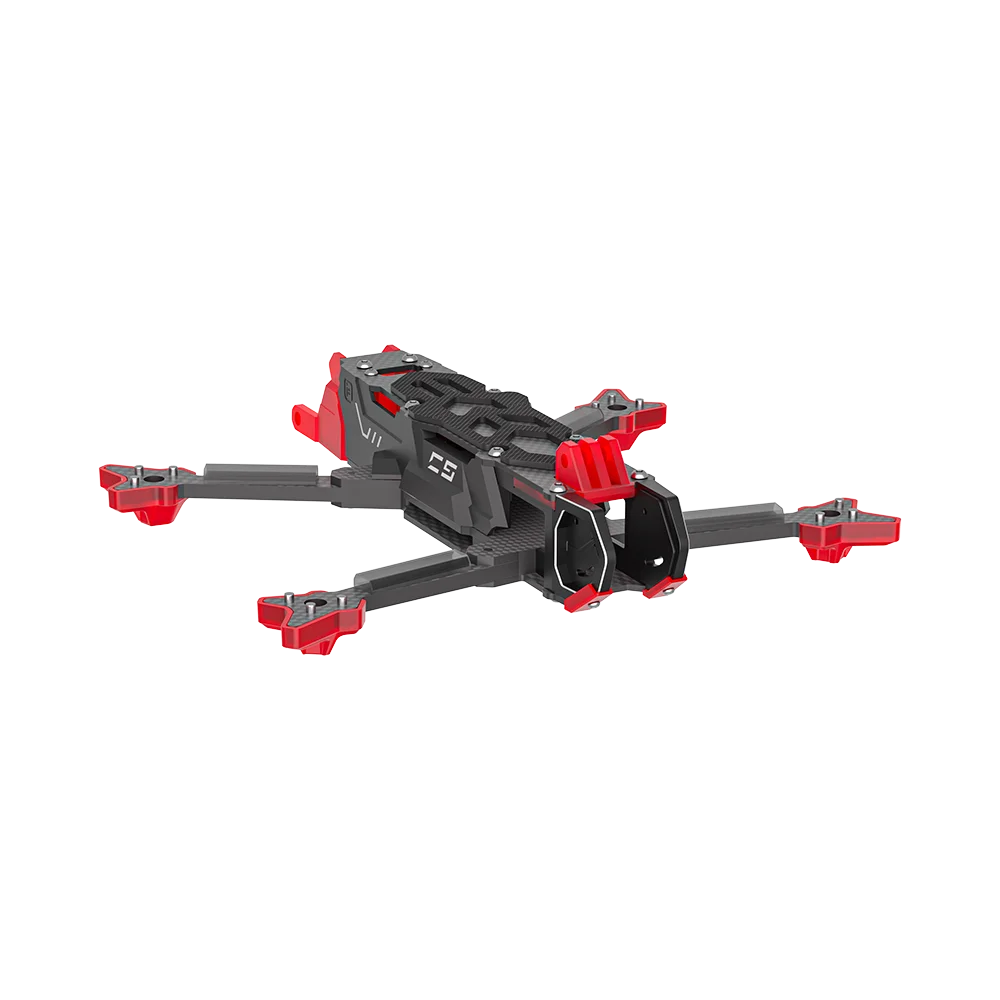

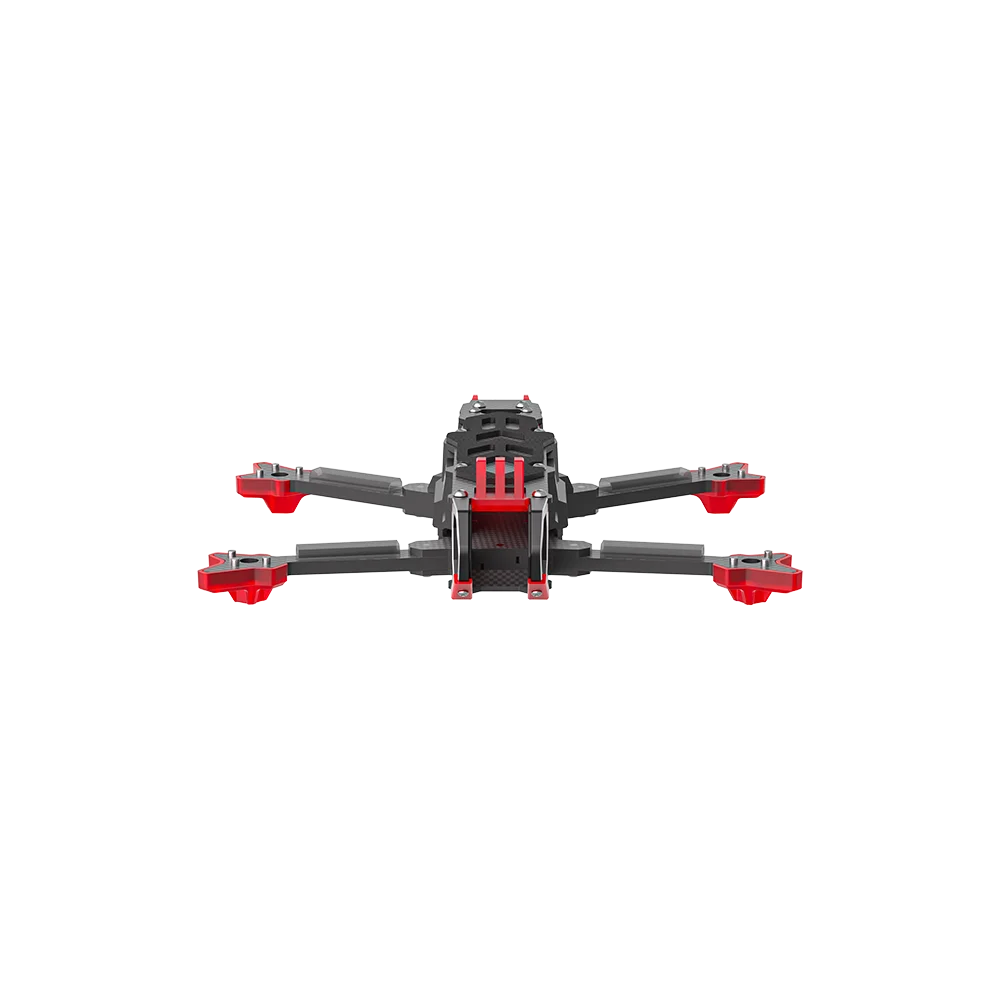

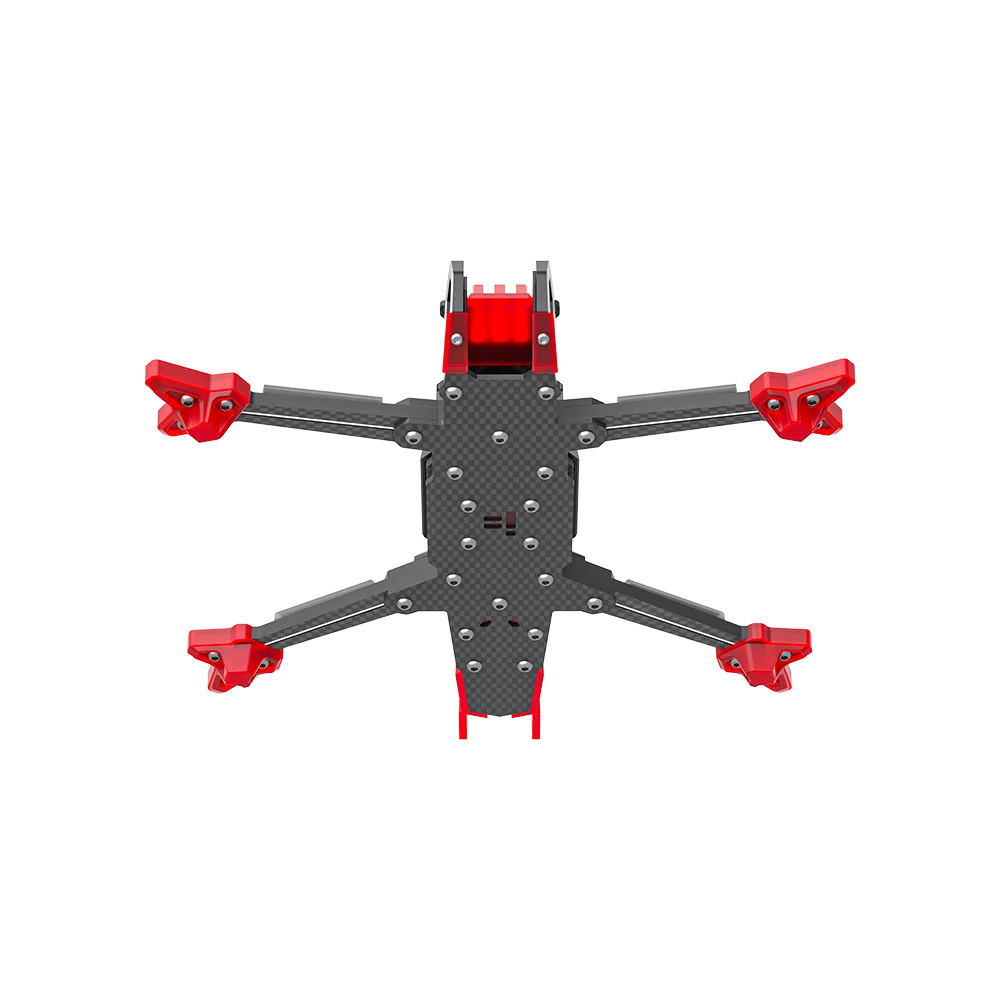

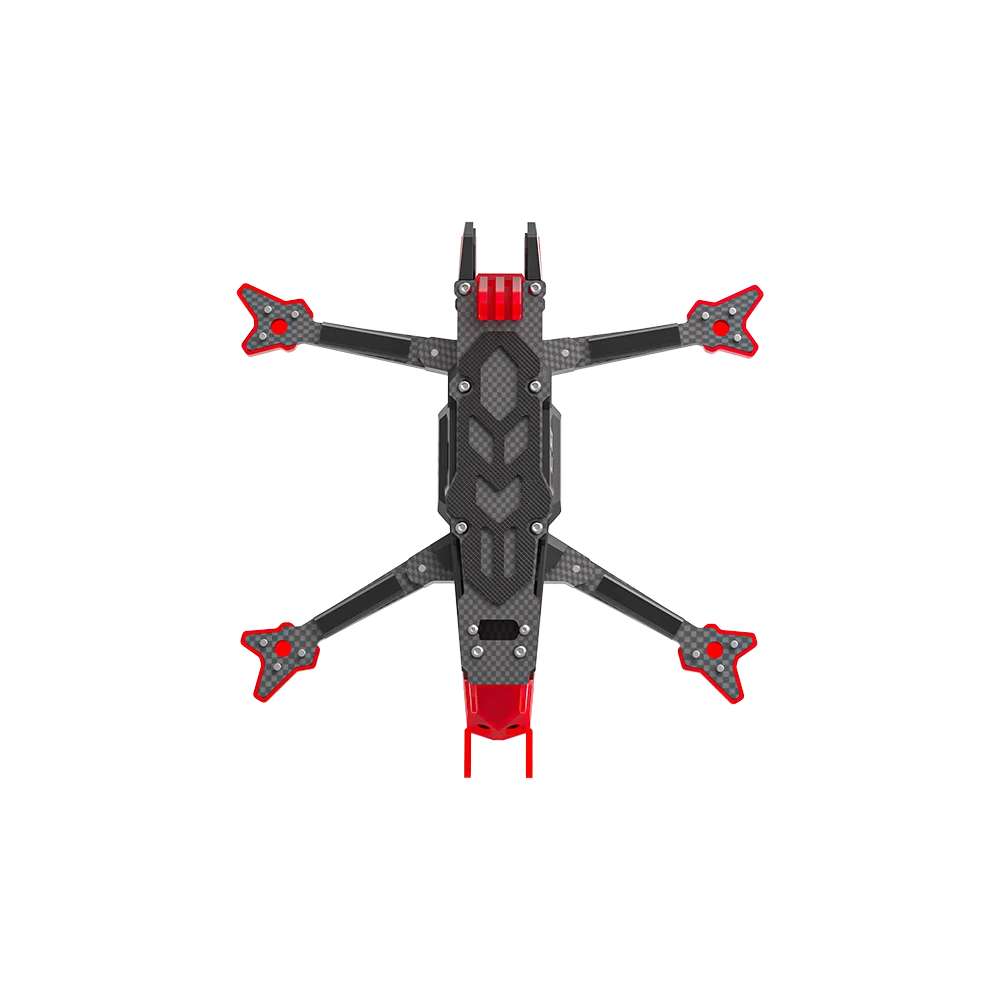

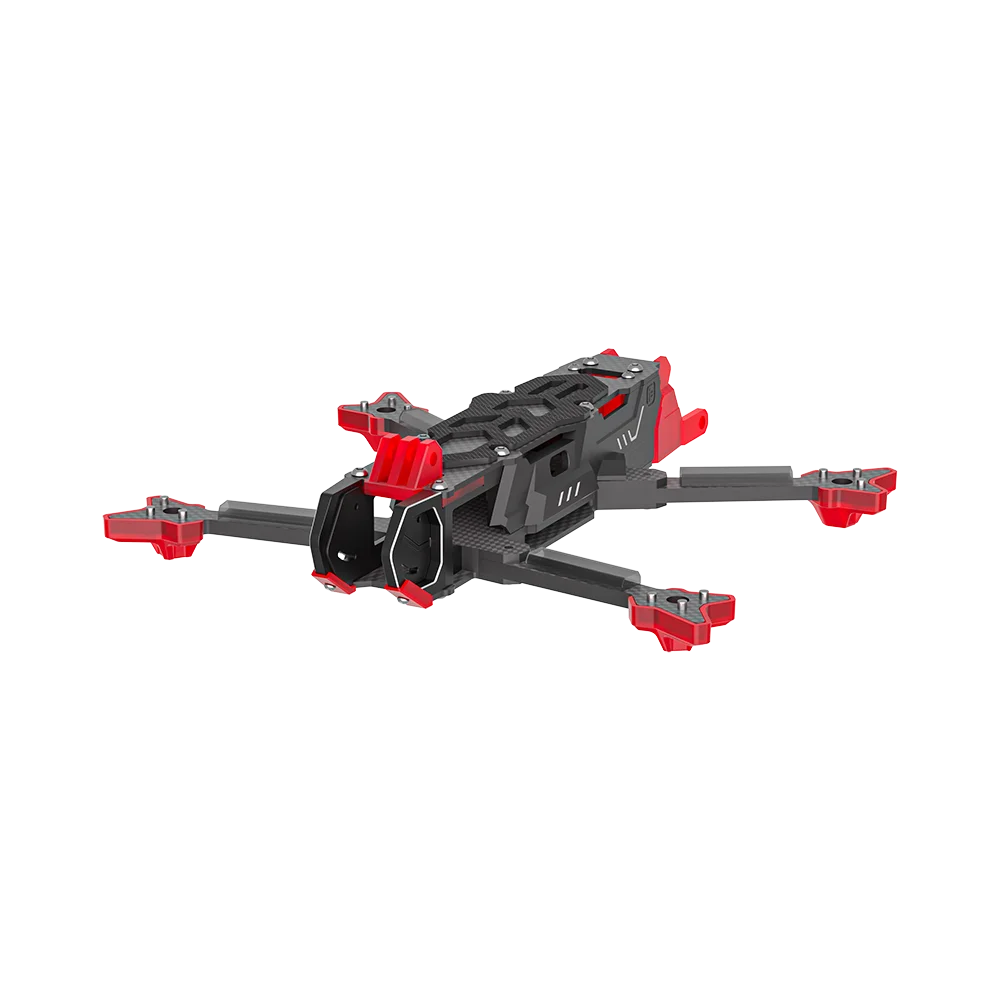

iFlight SH CineFlow 5 O4 Pro FPV Frame Kit 5inch with 5mm Arm For Freestyle FPV Parts
nDescription
nThe SH CineFlow 5 Frame Kit offers limitless possibilities, unleashing lightning-fast speed and unparalleled performance. When combined with the advanced DJI O4 Air Unit for video transmission, it delivers ultra-high-definition resolution, allowing you to explore vast landscapes and waterways. The SH Series features an innovative frame design that eliminates propeller visibility, enhancing your aerial experience.
nFeatures
nQuick-release side panels
nProvide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
nIntegrated Action Camera Base Mount
nSleek and integrated design, redefine aesthetics.
nRear-mounted Power Connector
nOptimized weight distribution for improved flight stability and precision.
nReinforced Arm Base
nStrengthened the connection between the arm base and the drone to improve durability.
nSpecificaiton
nProduct Name：SH CineFlow 5 O4 Frame Kit
nWheelbase: 222mm
nFrame Dimension: L182*W133*H42 mm
nArm Thickness: 5mm
nBottom Plate Thickness: 2mm
nTop Plate Thickness: 2mm
nUpper Plate Thickness: 3mm
nMid-Lower Plate Thickness: 5mm
nMax Flight Stack Height: 20mm
nMax VTX Height: 22mm
nFlight Stack Mounting: 20*20/Φ3mm
nMotor Mounting: 16*16/Φ3mm
nVTX Mounting: 25.5*25.5/Φ2mm
nWeight: 220g±5g
nCompatibility: DJI O4 Pro Air Unit/DJI O3 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
nTolerance Note
nDue to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
nPacking List
n1 x SH CineFlow 5 Frame Kit
n2x IPEX to RP-SMA Antenna Pigtails
n1 x TPU Set
n1 x GoPro TPU Base Mount
n1 x Screw Bag
n2 x Anti-slip Battery Pad
n2 x Battery Strap
