Description
PRODUCT DESCRIPTION
nXING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable.
nThis 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
nFeatures:

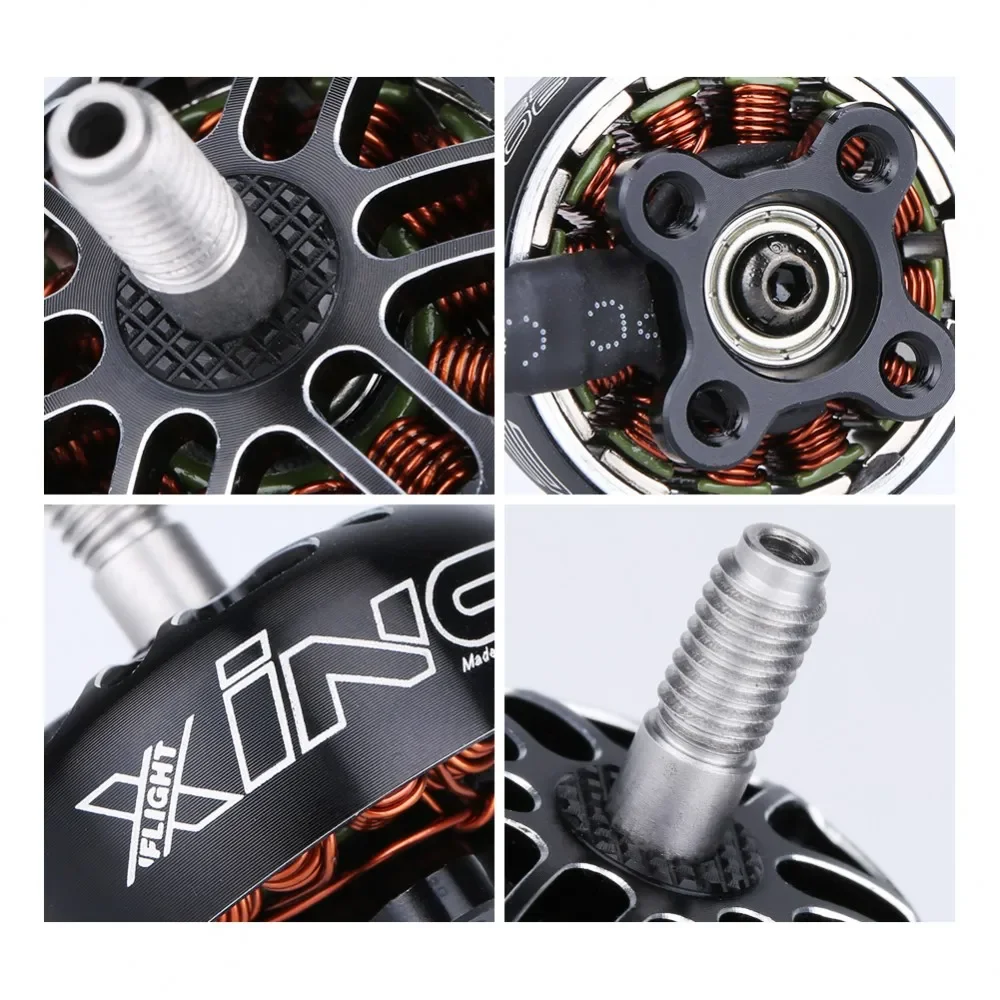

n-High-strength 4mm Steel shaft
n-N52SH High-temperature magnets, NSK bearings
n-16x16mm hole pattern
n-Single strand copper winding
n-6061 CNC machined aluminum top and base parts
n-Hex bolt shaft set screw
nSpecifications:
n-Configuration: 12N14P
n-Stator Diameter: 24mm
n-Magnets: N52SH Curved
n-Bearing Size: 9x4x4
n-Shaft Diameter: 4mm / Steel
n-Base Mounting Pattern: 16x16mm M3 Thread
n-Motor Dimension:29.5×18.7mm

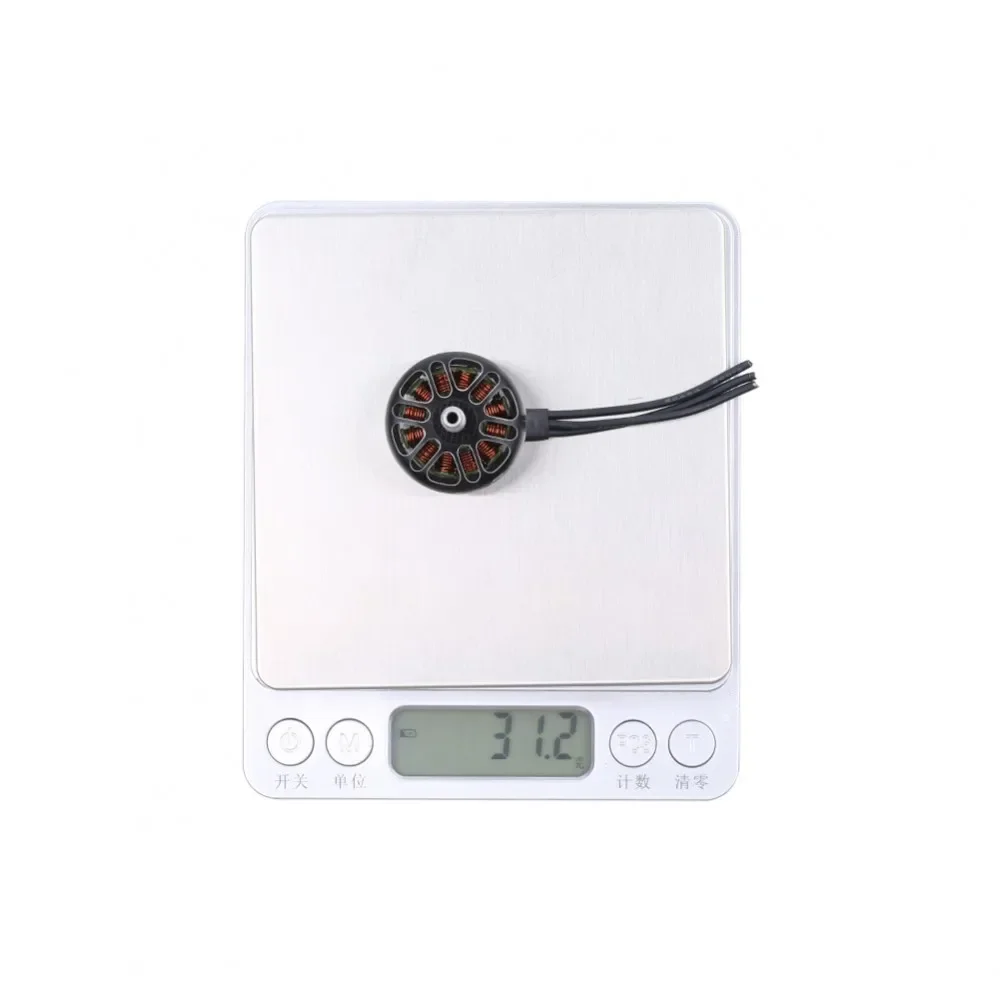

n-Weight:33.1g (150mm wires)
n-Idle Current @12.6v (Io):2.1A
n-Cells (LiPo): 2-6S
n-Max Burst Current <10s:55.22A
n-Max Power (W) 60s:885.4W
n-Internal Resistance (Rm): 40.6mΩ
n-Motor Wire Length: 150mm / 20AWG
n
n
