IFlight XING2 2306 1755KV/ 2555KV 4-6S Brushless Motor 5mm Titanium Alloy Shaft Compatible Nazgul 5inch Propeller for FPV Drone

Description

IFlight XING2 2306 1755KV/ 2555KV 4-6S Brushless Motor 5mm Titanium Alloy Shaft Compatible Nazgul 5inch Propeller for FPV Drone
nOur XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We’ve been copied and compared all these years, but now it’s time to set a new standard again! We’re finally ready to announce our predecessor the XING2!
n
nThe smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
n
nDue to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
nFeatures
n5mm titanium alloy shaft, our strongest prop shaft ever!
n
nCrash resistant 7075 aluminum bell
n
nSmooth and long-lasting NSK 9x4x4 bearings
n
nCenter slotted N52H curved arc magnets
n
nXING O-ring bearing gap protection
n
nMotor wires protector
n
nDynamically balanced

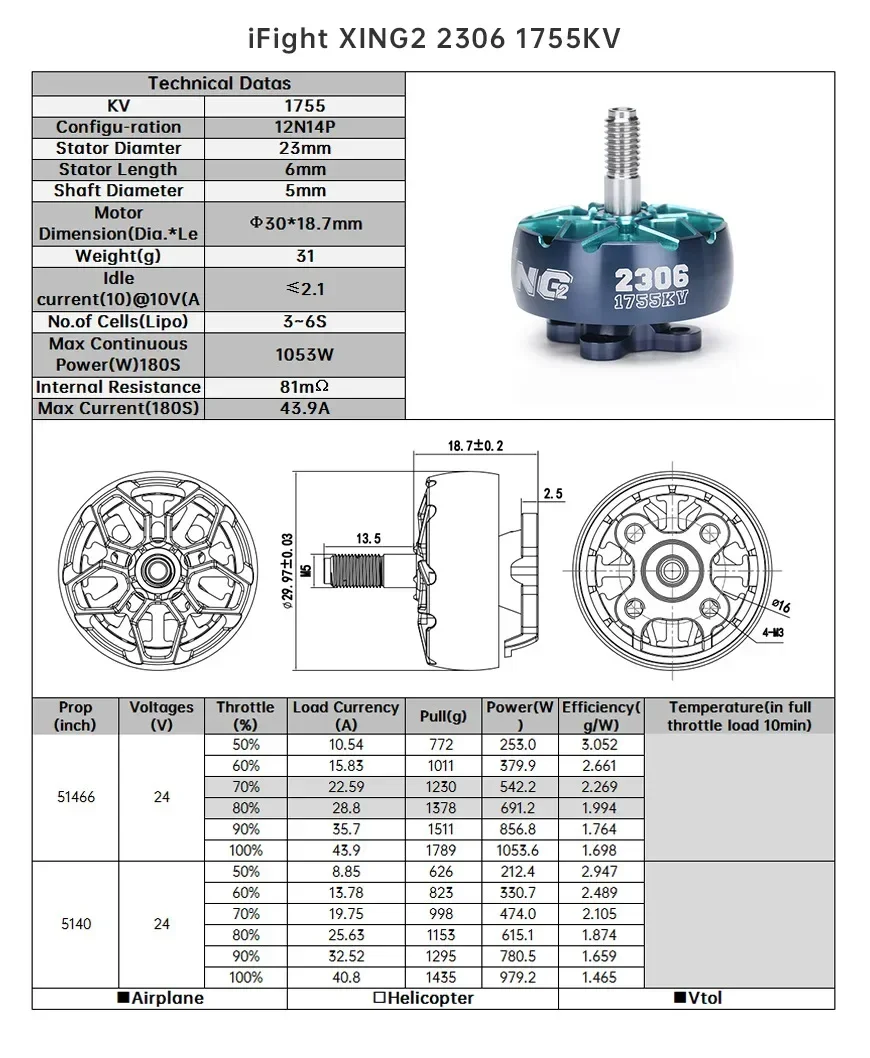

nSpecifications
nModel: XING2 2306 Motor
n
nKV: 1755KV / 2555KV
n

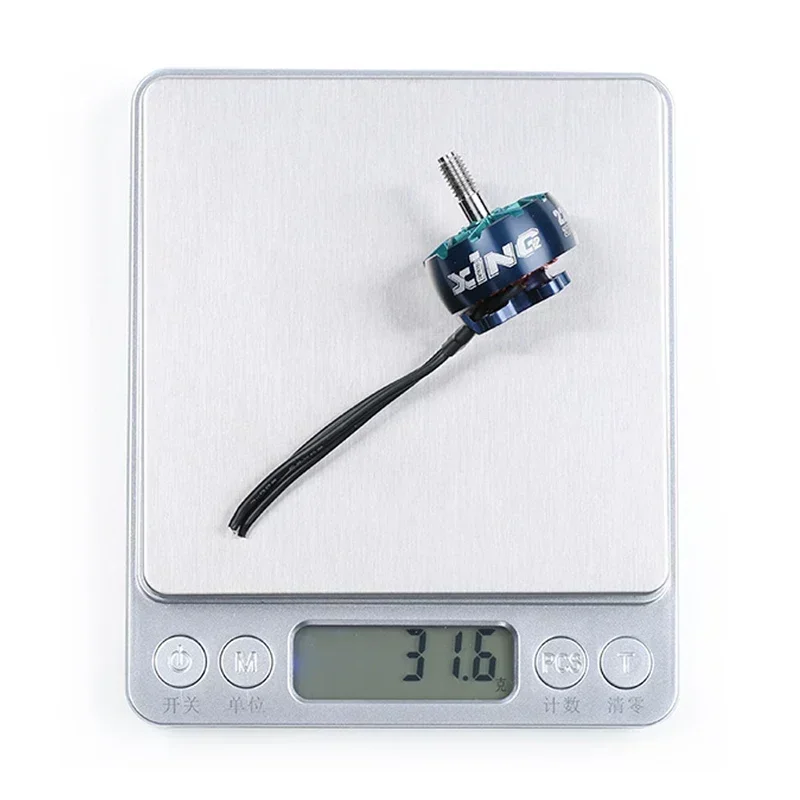

nWeight(included wire): 32.5g
n
nDimension: φ30*18.7mm
n
nInterphase Resistance: 76.4mΩ / 50mΩ
n
nInput Volts: 24V / 16V
n
nPeak Current: 36.21A / 51.3A
n
nMax Watt: 869W / 820.8W
n
nMounting Holes: 16*16 φ3mm
n
nRotor Specifications: Unibell
n
nShaft Diameter: 5mm
n
nShaft Protruding Length: 13.5mm
n
nLead: 160mm/20AWG
n
nMagnet: N52H Curved
n
nConfiguration: 12N14P
n
nBearing Type: NSK
n
nBearing Specification: φ9*φ4*4
n
nWinding: Single Strand copper winding

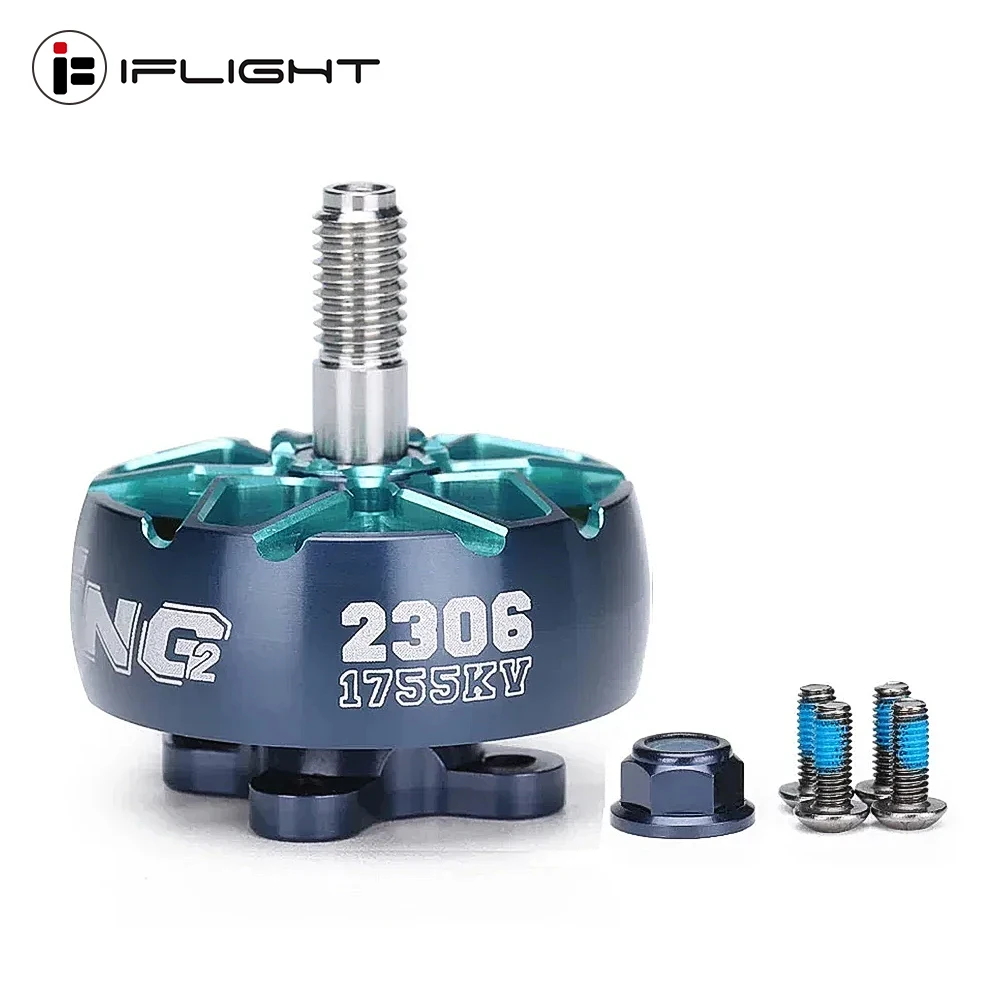

nPacking List
n1x XING2 2306 Brushless Motor (KV is optional)
n
n4x M3*8 screws
n
n1x M5 Flange Nut
