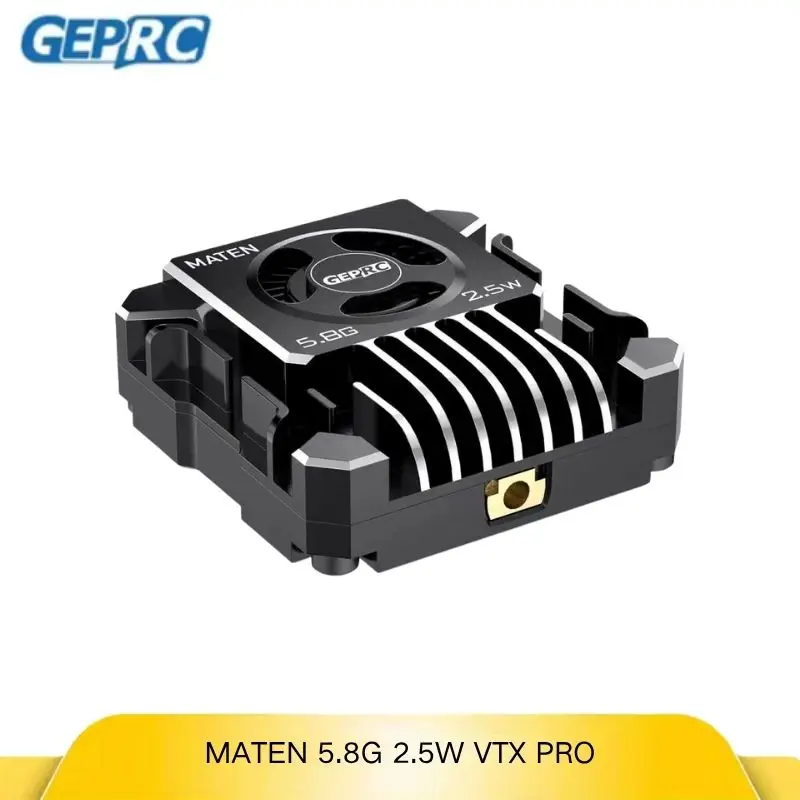

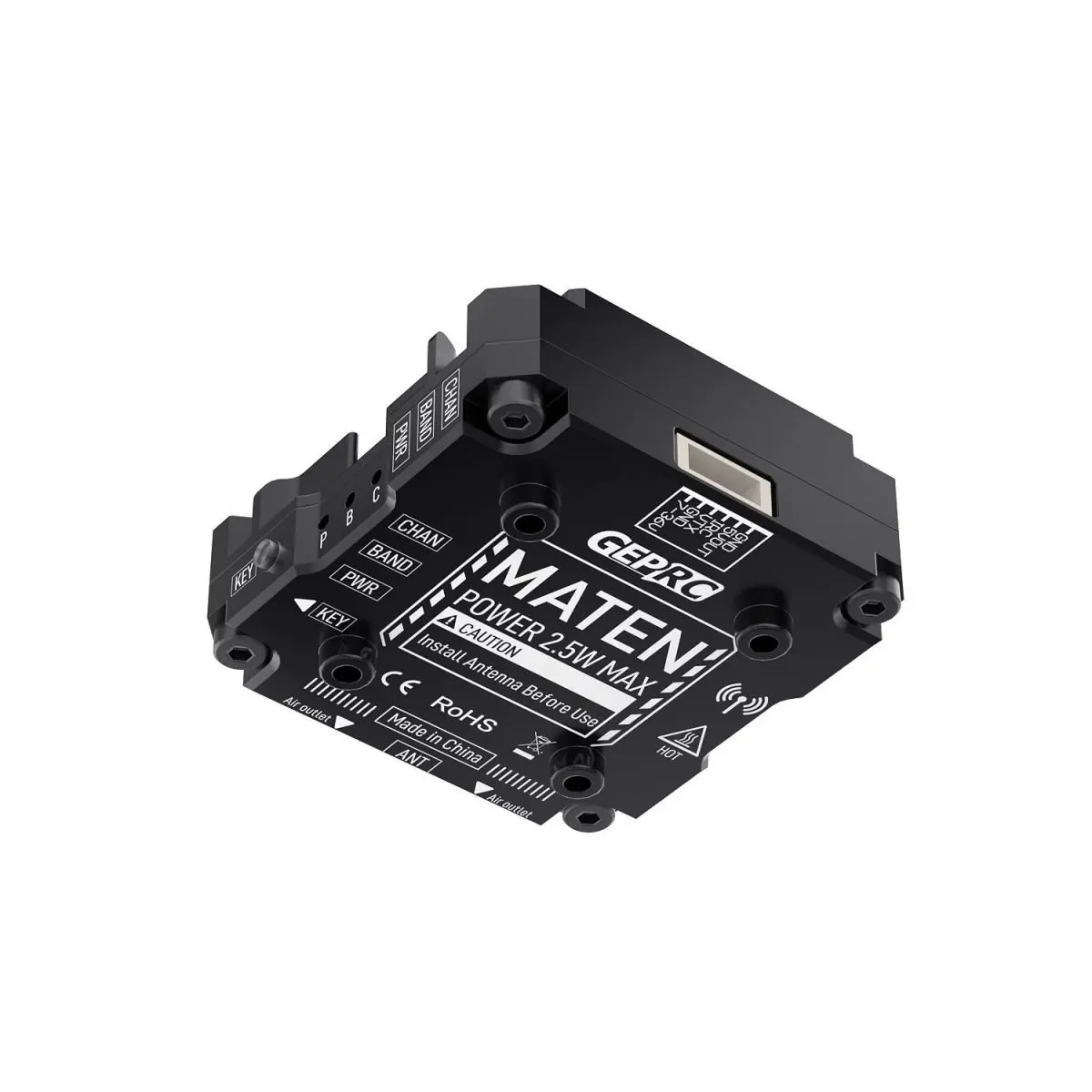

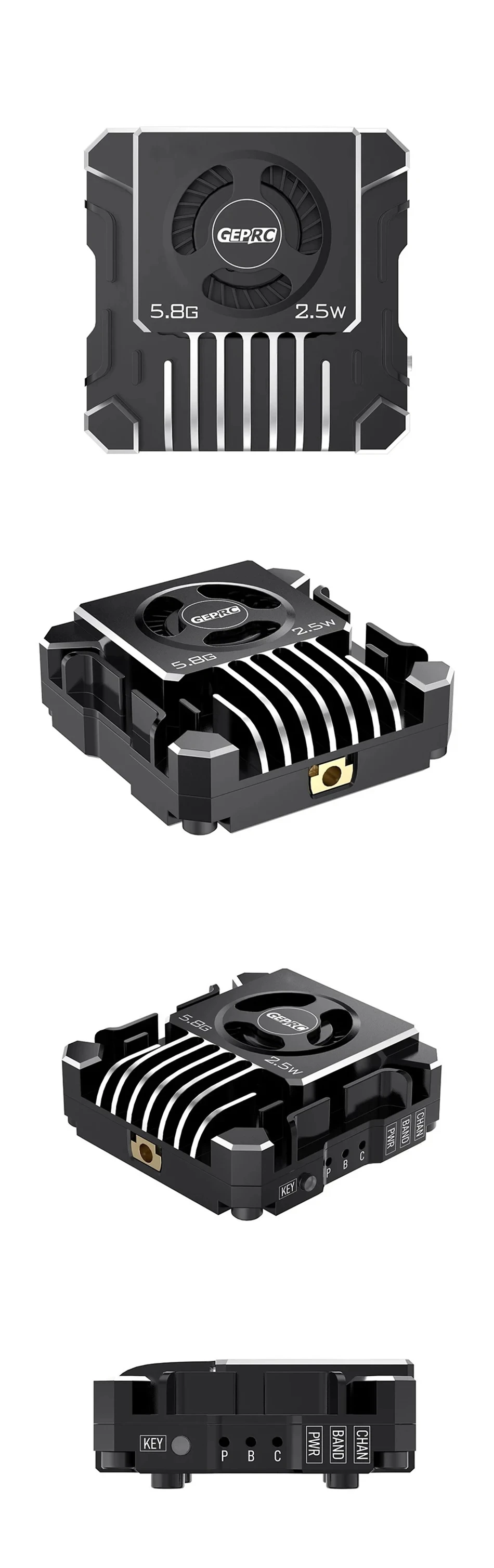

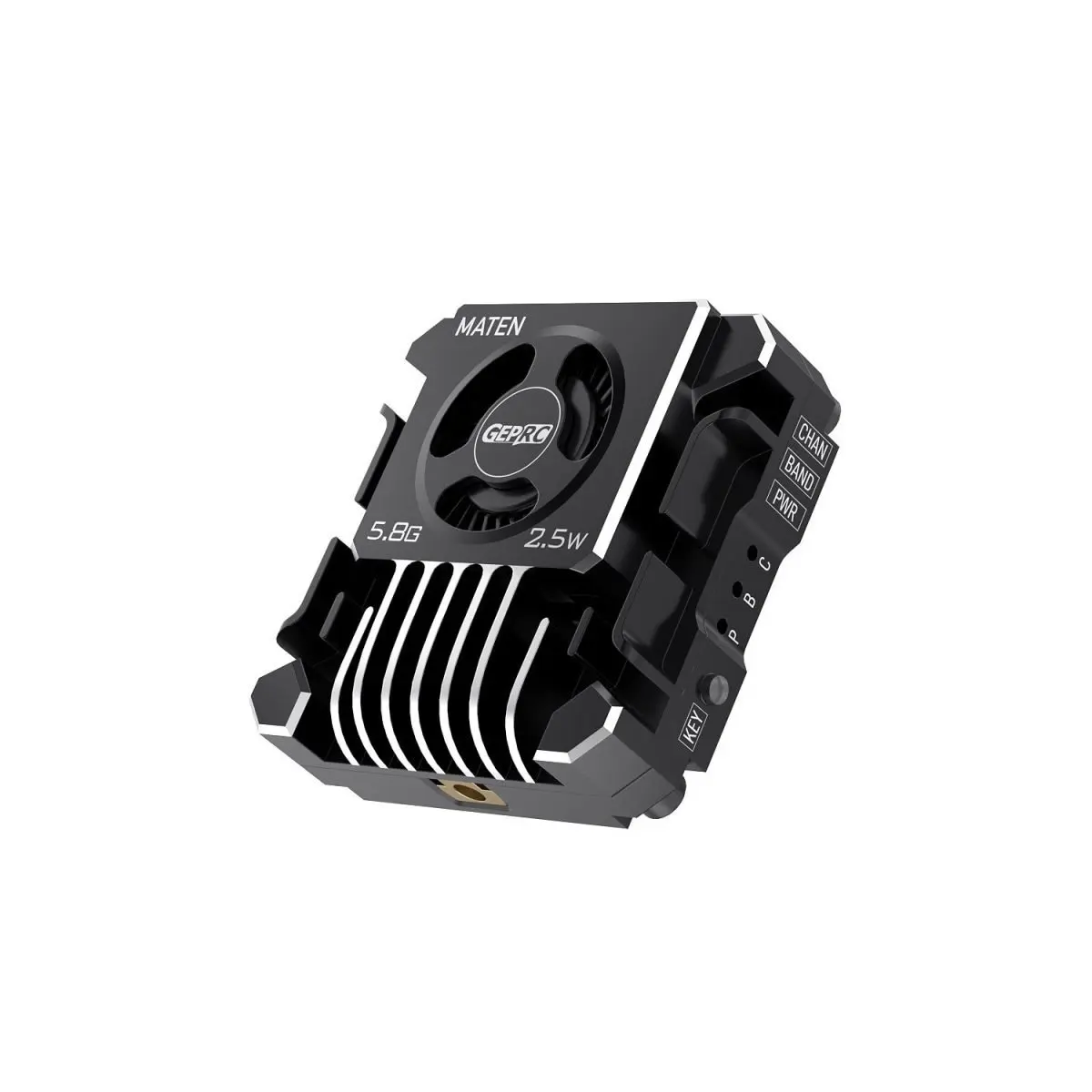

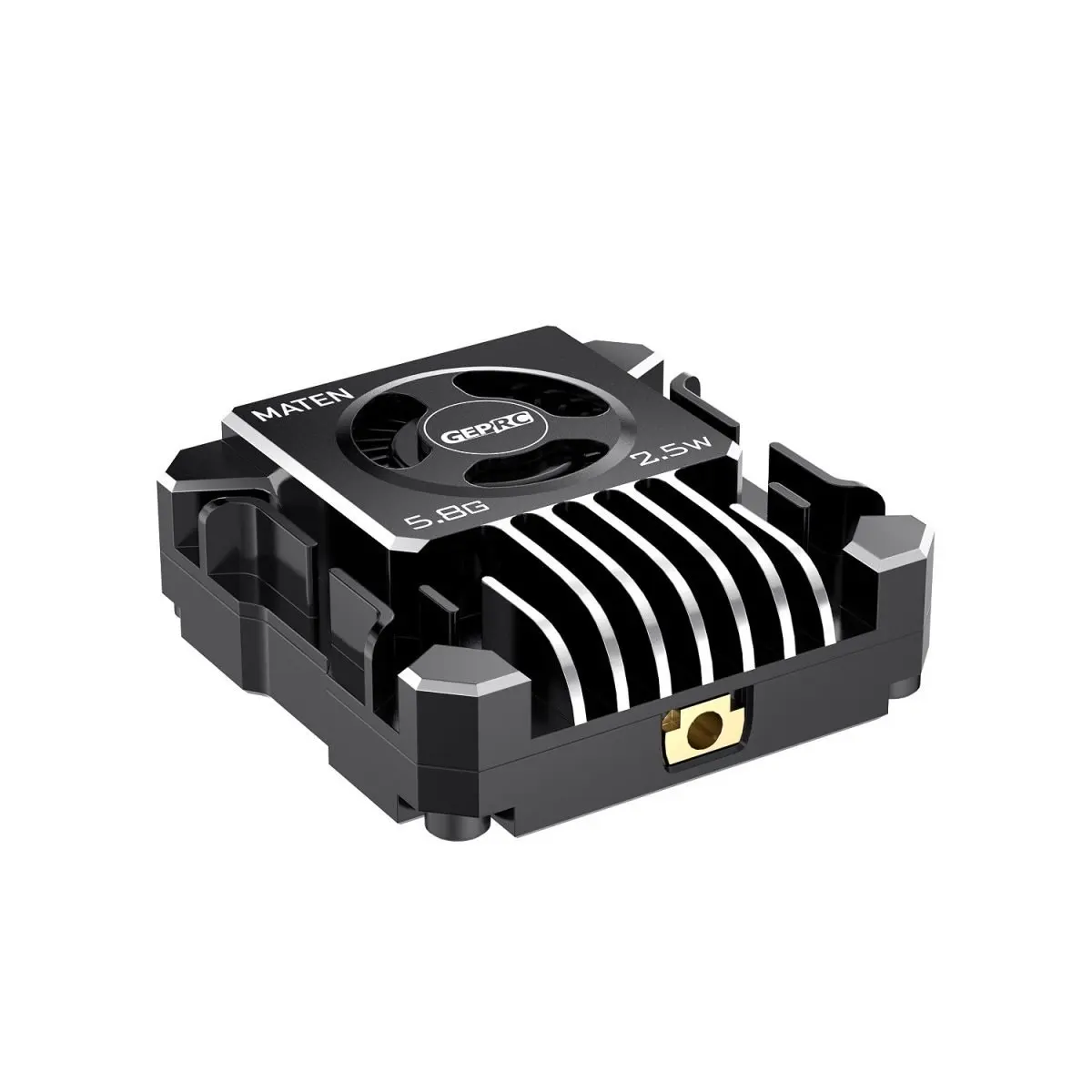

New GEPRC MATEN 5.8G 2.5W VTX PRO Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation Drones Accessories

Summary

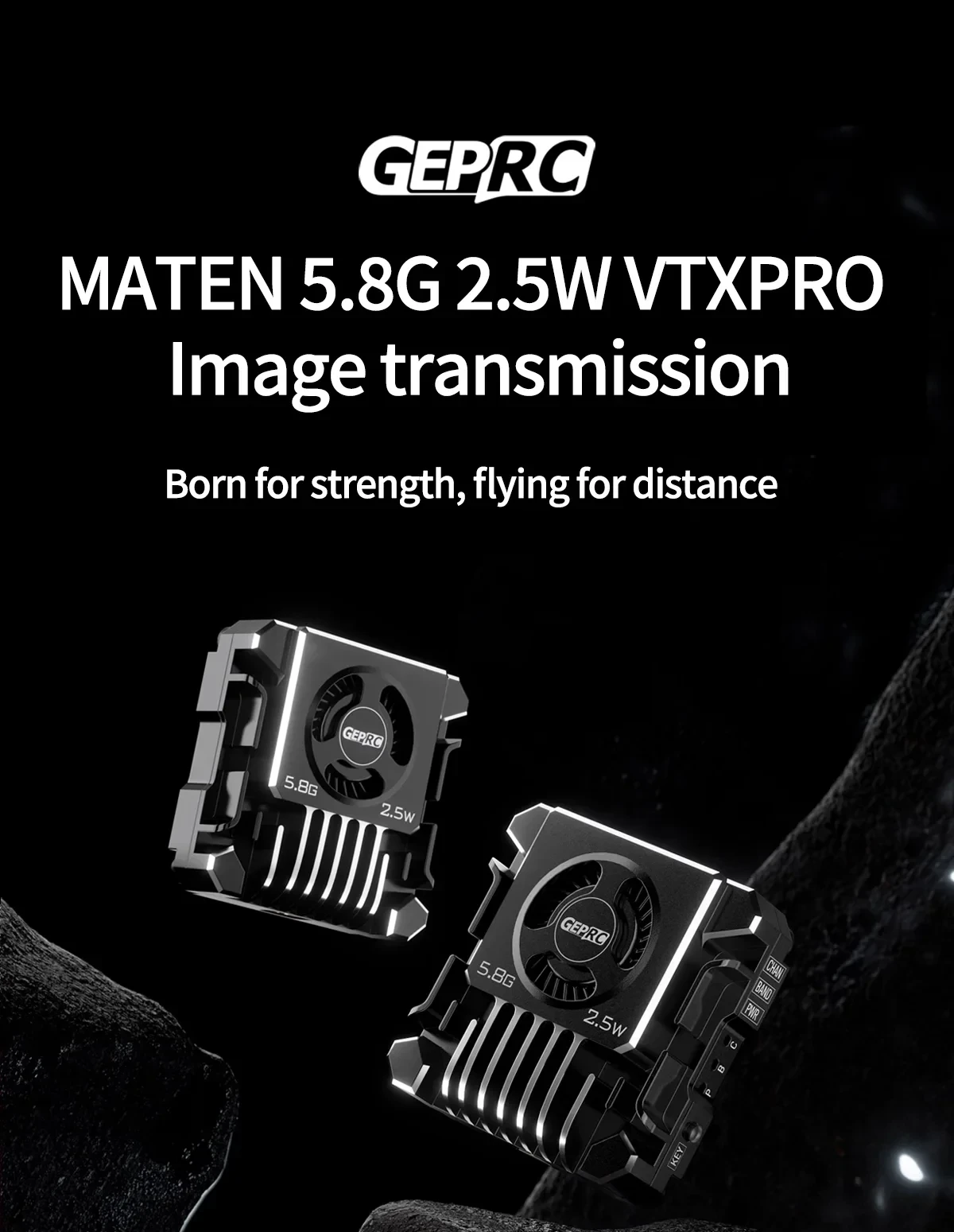

nThe MATEN 5.8G 2.5W VTX PRO high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW. The transmission signal is very stable and the penetration ability is excellent.

nMATEN 5.8G 2.5W VTX PRO uses high-strength aluminum alloy CNC shell to assist heat dissipation. The unique appearance design and active fan cooling provide stronger impact resistance and better heat dissipation performance. It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters. The built-in microphone can transmit the sound of the FPV drone in real time.
n
nIt has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burning.It supports 72 transmission channels. Supports two installation hole positions: 20*20mm and 30.5*30.5mm.
n
nChangelog
nJanuary 12, 2024: Channel changed from 48CH to 72CH.
n
nMarch 8 2024: The red Version has stopped production and updated to silver version for bettedr performance in heat dissipation.
n
nFeature

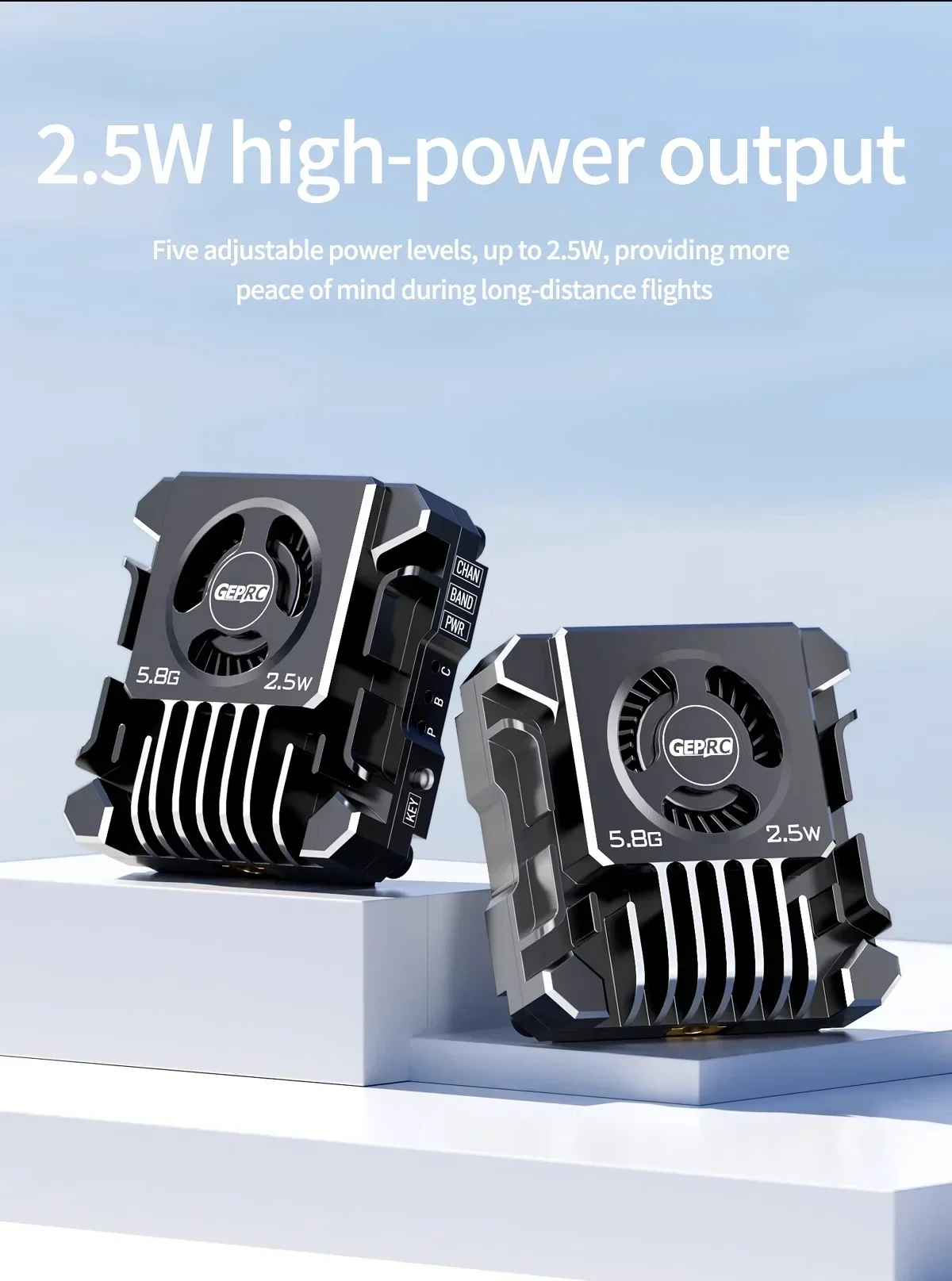

nFive levels of adjustable power, up to 2500mW, suitable for long distance flight

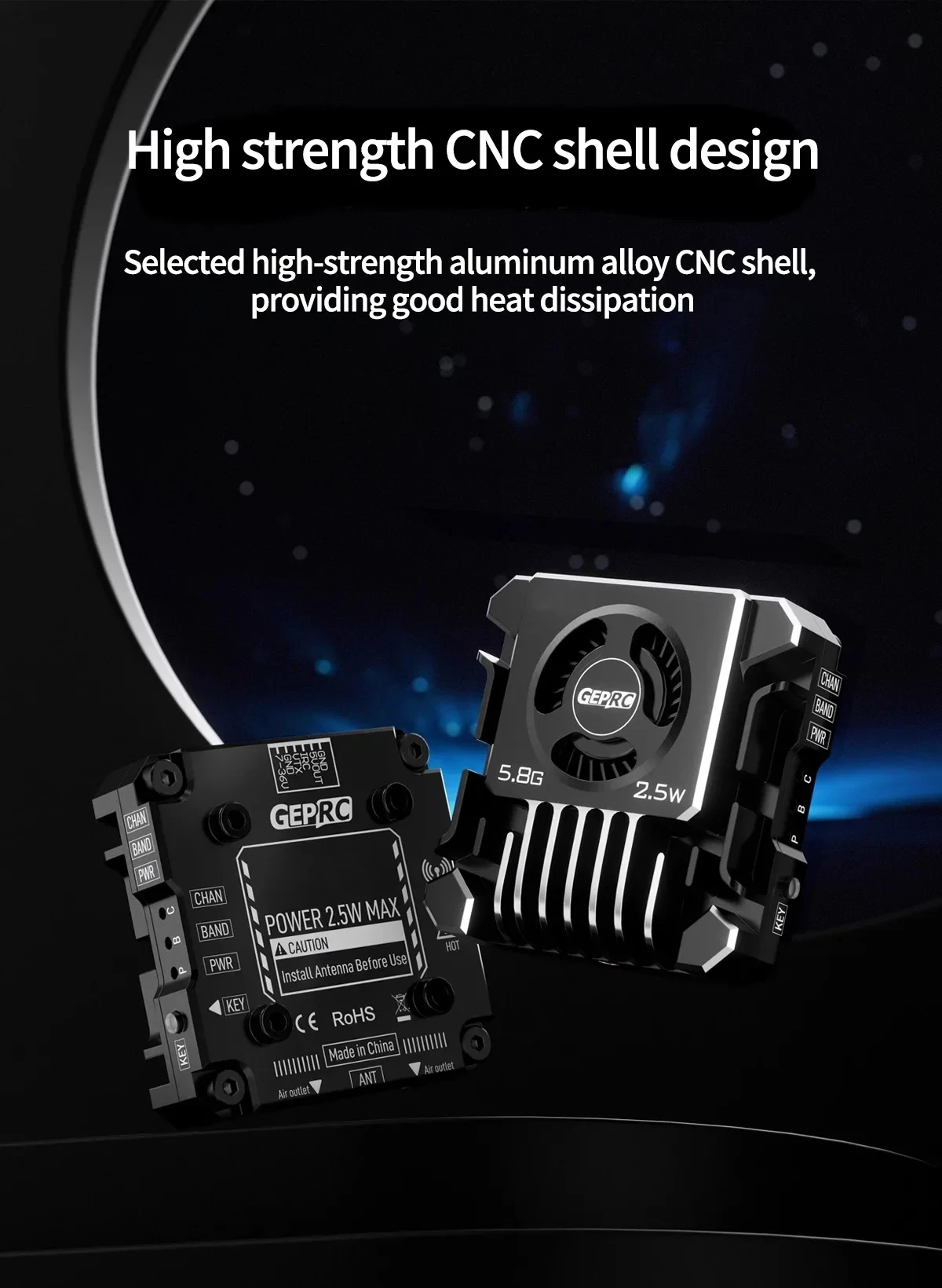

nSelected high strength aluminum alloy CNC shell, auxiliary heat dissipation

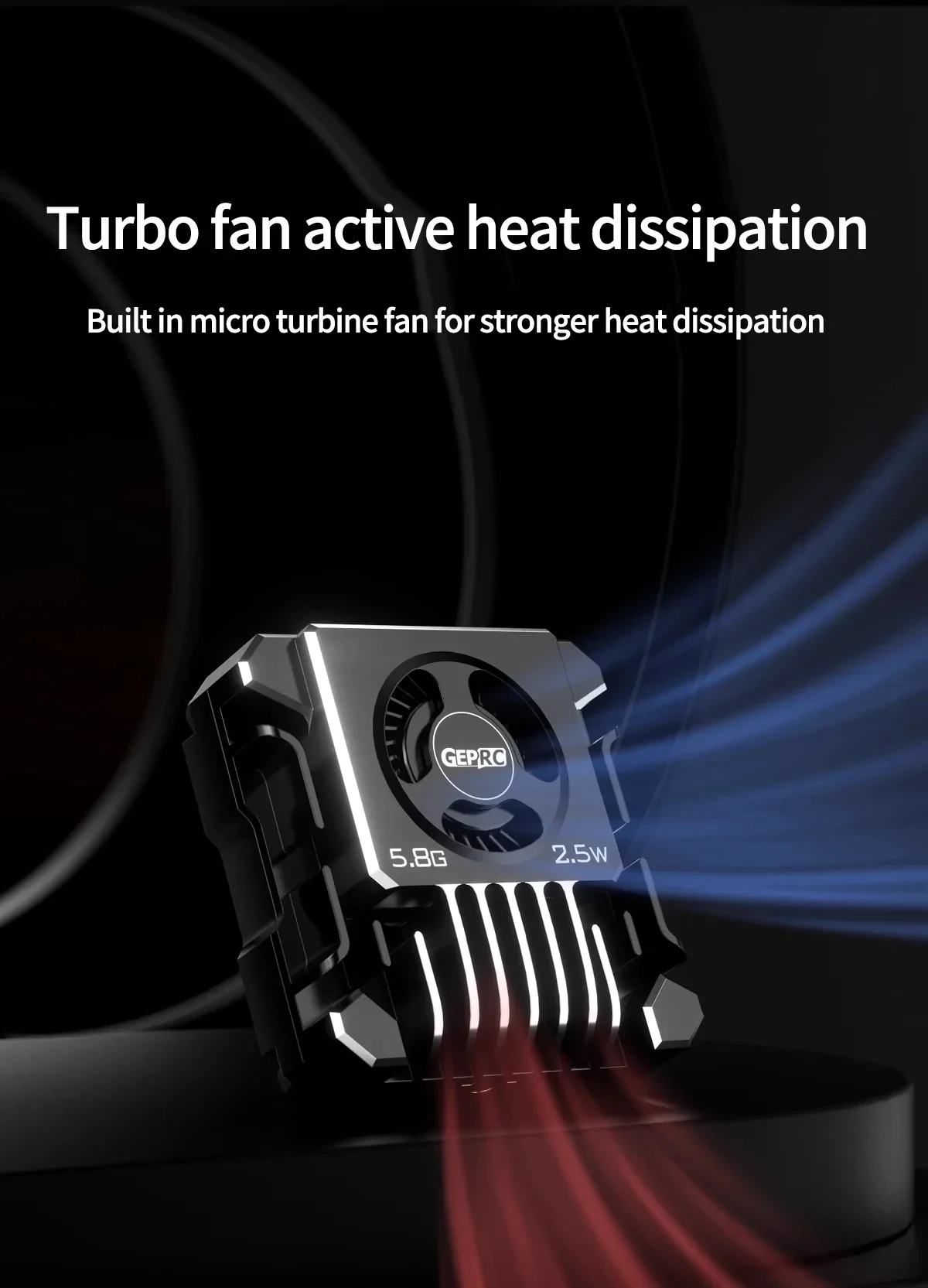

nThe built-in micro turbofan actively dissipates heat
nWide voltage input, Supports 7V-36V Voltage input.

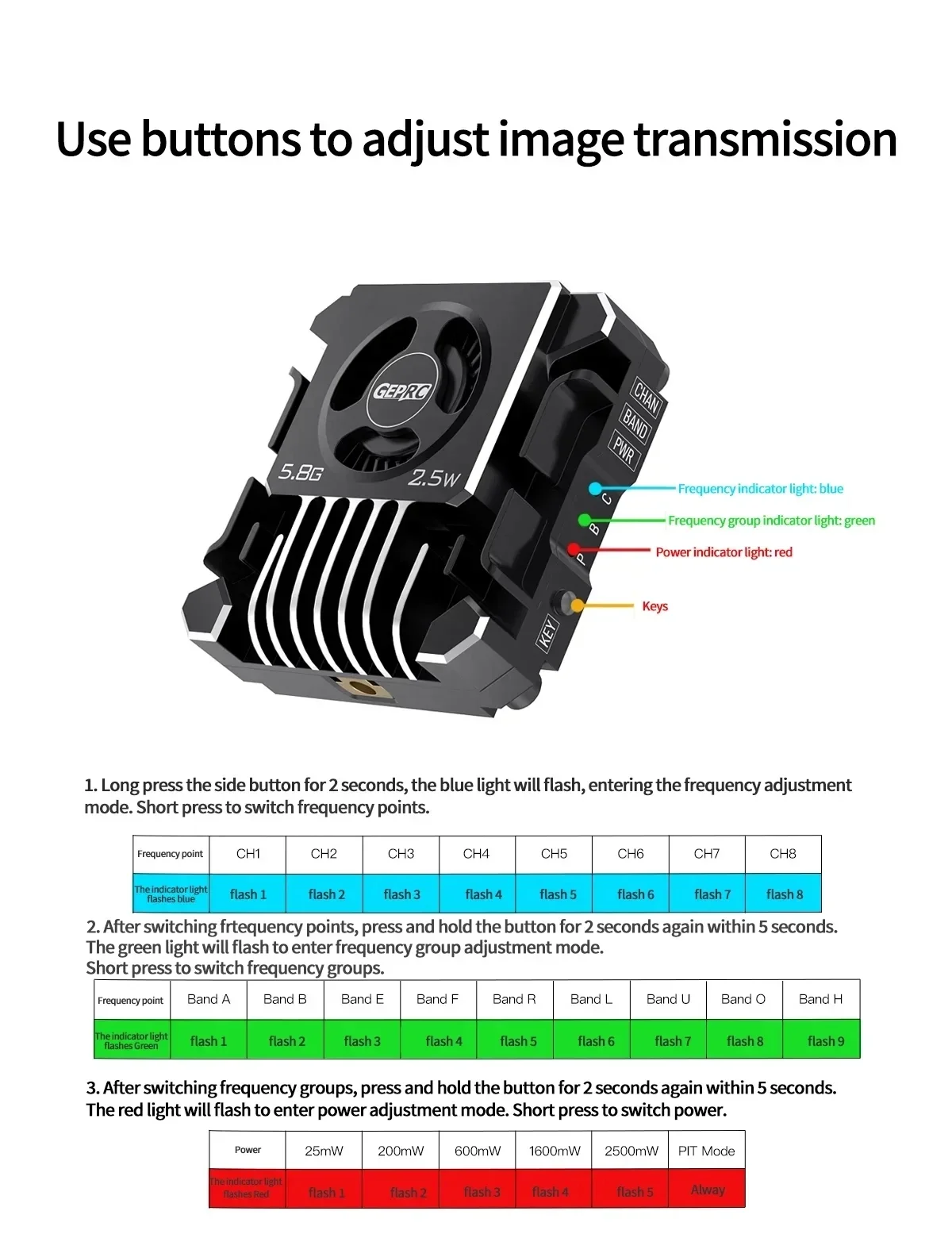

nOne function buttons, three indicator lights, easy to control.
nVTX control protocol is IRC Tramp,supports OSD parameter adjustment.
nTemperature control protection function that can prevent high temperature burning
nVTX built in microphone,Real-time transmission of Drone’s sounds.
nsupports 72 transmission channels

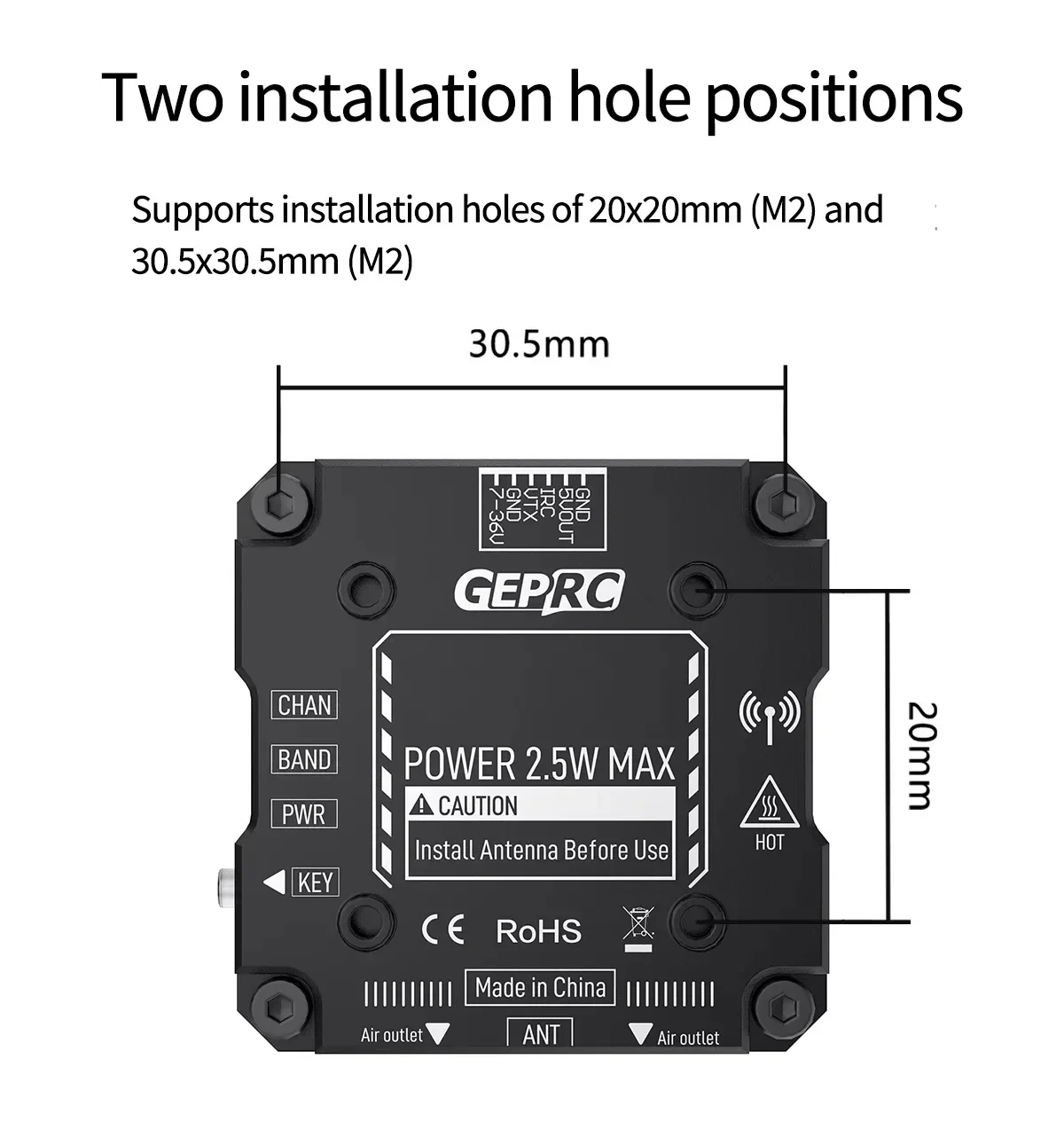

nSupport 20x20mm(M2) and 30.5×30.5mm(M2) installation hole position
n
nSpecifications
nModel：GEPRC MATEN 5.8G 2.5W VTX PRO
nSize：36.3×36.3×15.1mm
nMounting hole：20x20mm(M2),30.5×30.5mm(M2)
nOutput power：25mW/200mW/600mW/1600mW/2500mW/Pit mode
nFrequency：5.8G

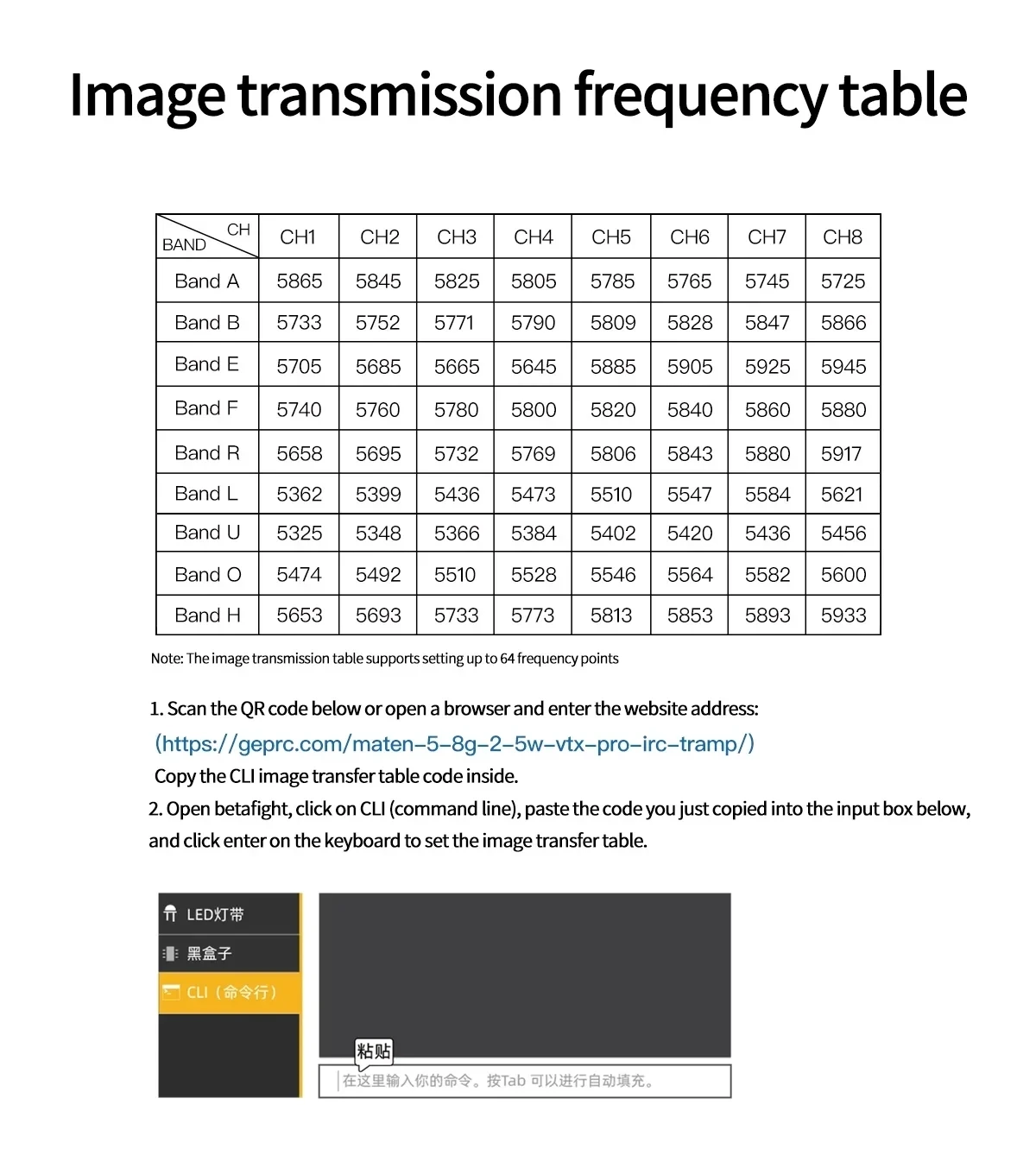

nChannel：72CH
nInput voltage：DC7-36V（2-8S Battery）
nOutput voltage：5V@600mA
nProtocol：IRC Tramp
nAntenna interface：MMCX
nCable interface：SH1.0 6pin
nVideo format：PAL/NTSC
nMicrophone: Built in microphone
nWeight：20g
n
nNotes
nInstall Antenna before use.
nTo prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
nThe 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.
n
nIncludes
n1 x MATEN 5.8G 2.5W VTX PRO
n1 x MMCX Copper tube antenna
n1 x MMCX to RP-SMA（Internal needle）connector
n1 x sh1.0 6P Connecting cable
n6 x M2*5 screw
n4 x M2*12 screw
