Description

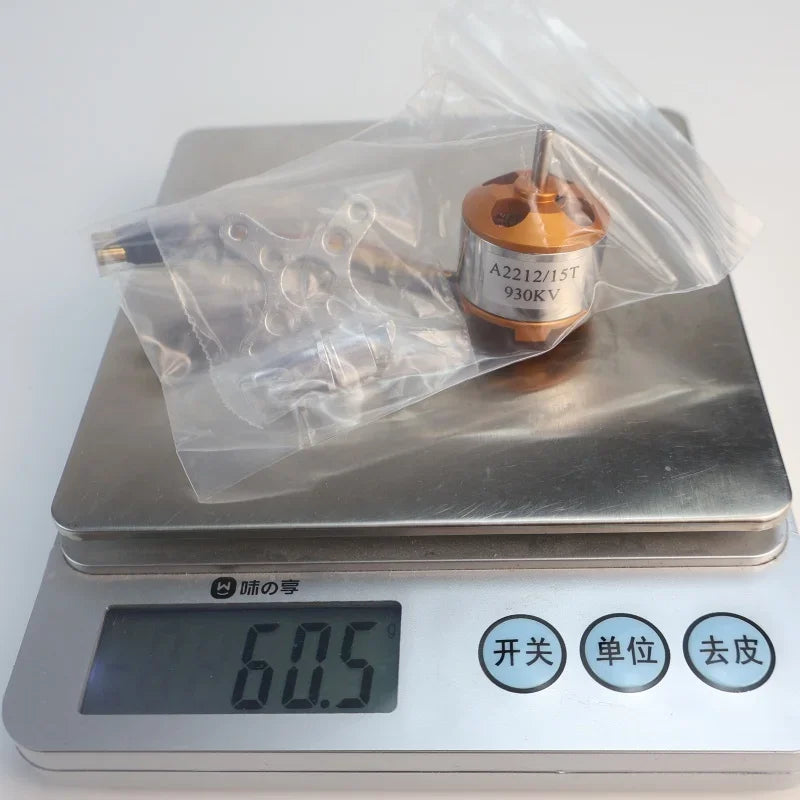

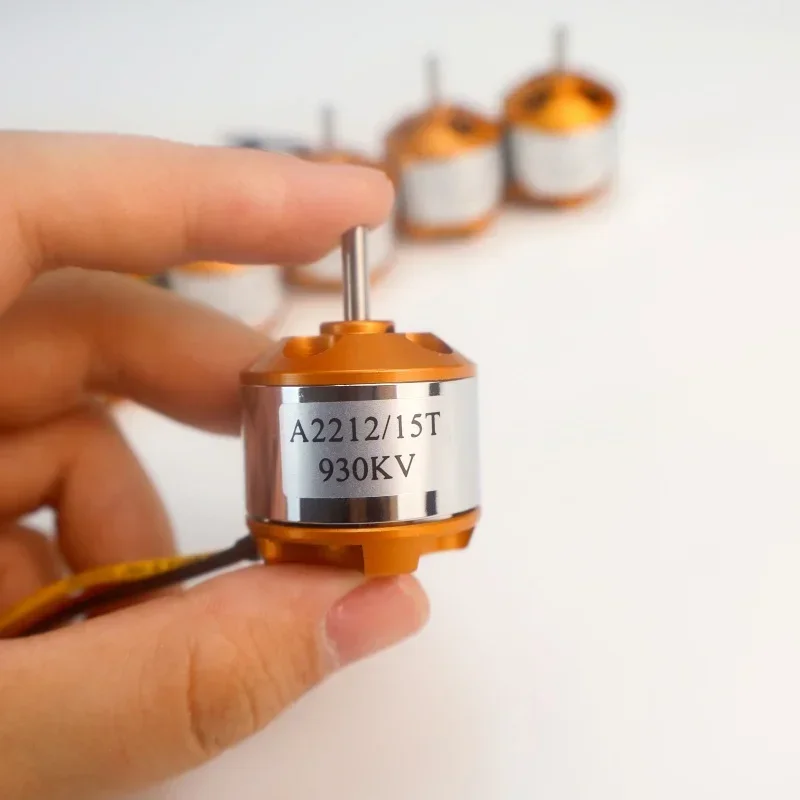

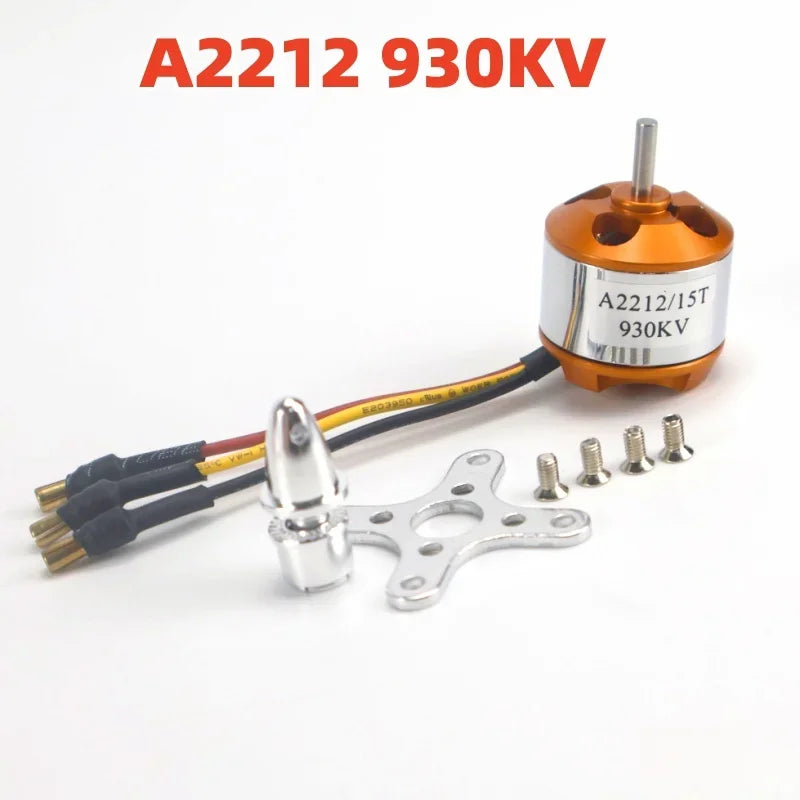

XXD A2212 930KV brushless outrunner motor:

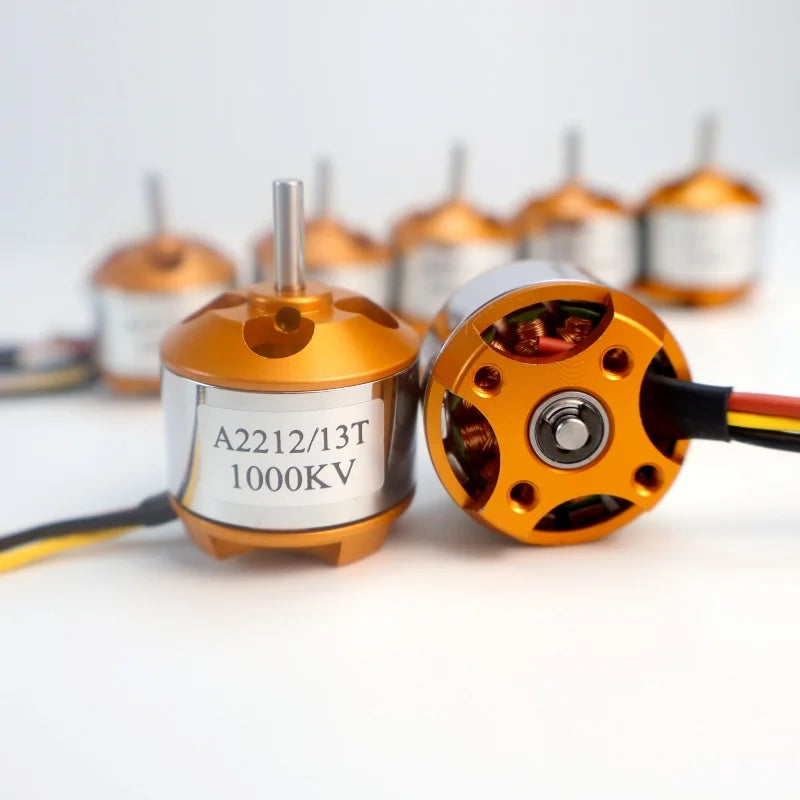

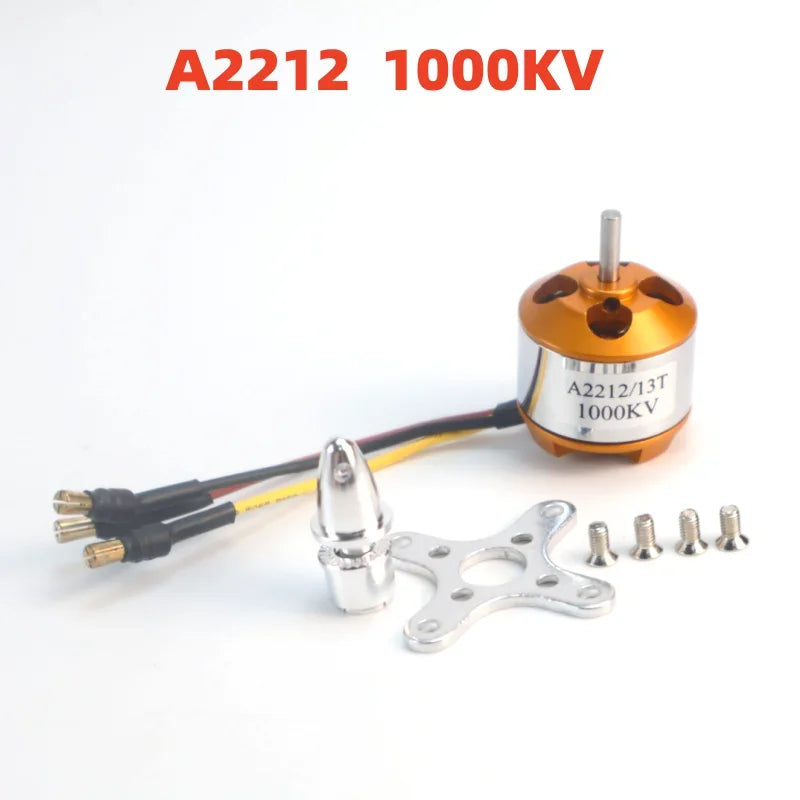

XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

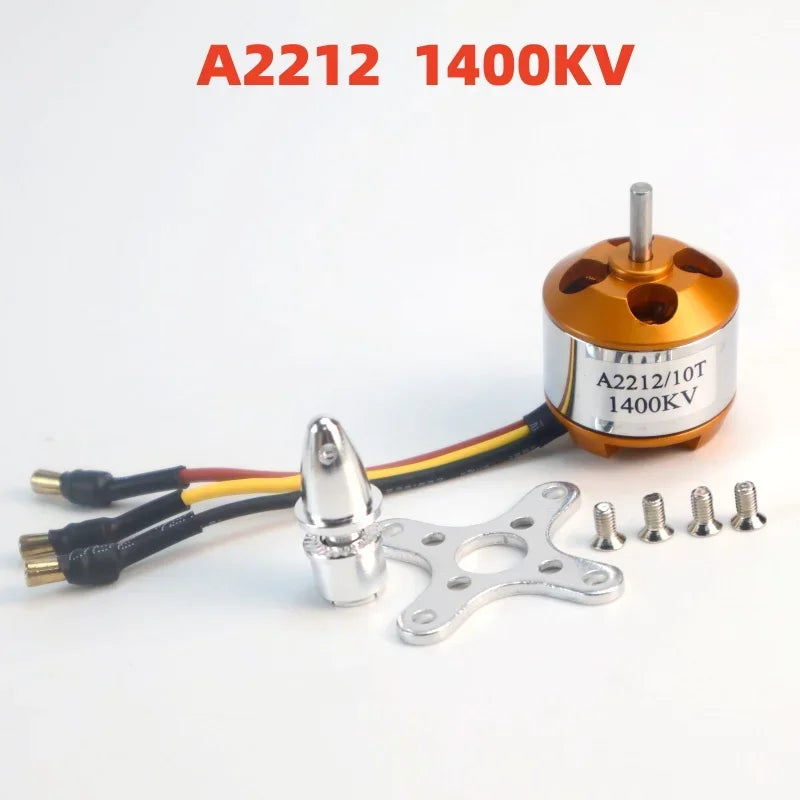

XXD A2212 1400KV brushless outrunner motor:
– Shaft diameter: 3.17mm
– Dimension : 27.8mm x 27mm
– Recommended Propeller: 2-cells 7*3.5 , 3-cells 6×3
– Weight: 48g

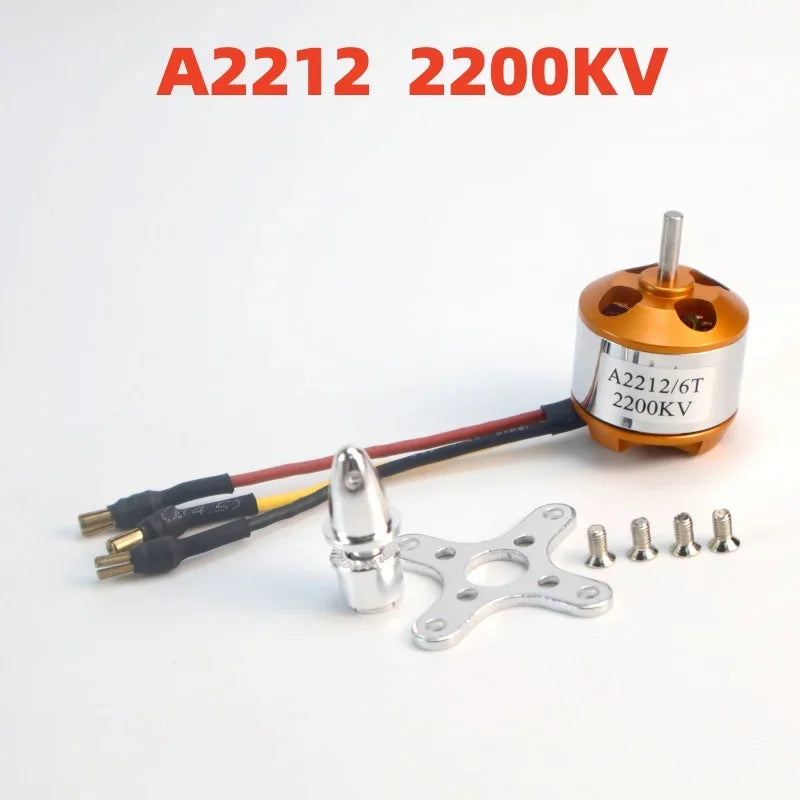

XXD A2212 2200KV brushless outrunner motor:
-
Max Efficiency: 80%
-
Max Efficiency Current: 4-10A (>75%)
-
Current Capacity: 12A/60s
-
No Load Current @ 10V: 0.5A
-
No. Of Cells: 2-3 Li-Poly
-
Motor Dimensions: ?27.5 x 30mm
-
Shaft Diameter: ?3.17mm
-
Weight: 47g

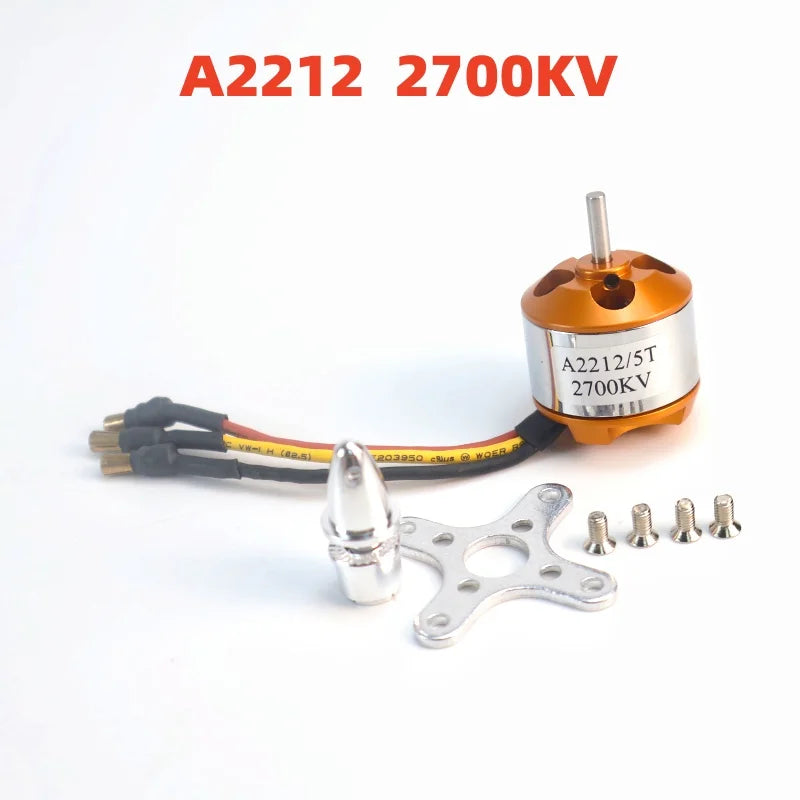

XXD A2212 2700KV brushless outrunner motor:
Rpm/V: 2700KV
Net Weight: 50g
Weight: 60g
Motor Dimensions: 27* 26mm
Battery Opernating: 2-3 Lipo
Idle current: 1.8A
Load current: 18.5A
Power (Watt): 240
ESC(A): 30A,20A
Peak.Amps :14-22 A
