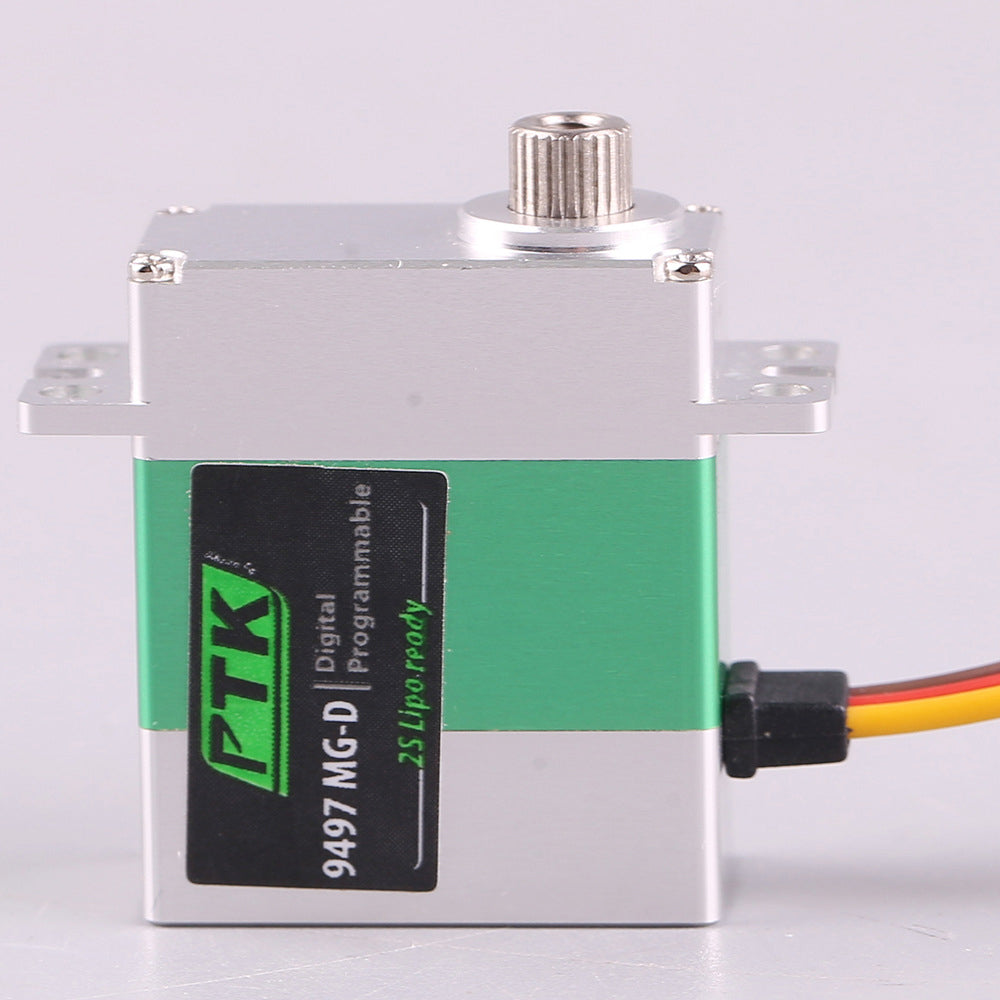

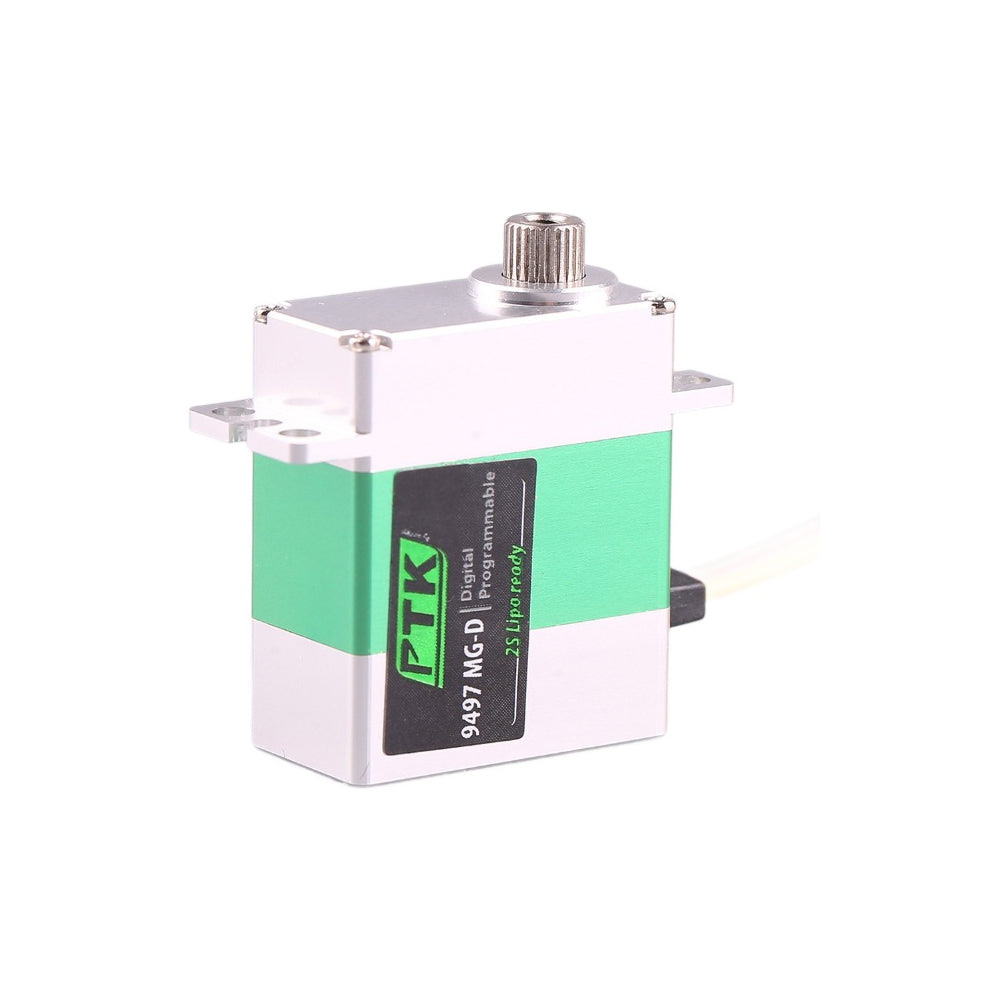

PTK 9497 MG-D 9g Micro Digital Servo Metal Steering Gear Coreless Motor for RC Airplane Fixed Wing Helicopter

Description

Specification:

Gears : Metal

Ball bearings : 2pcs

Motor : Coreless

Weight : 19,2g / 0,68oz

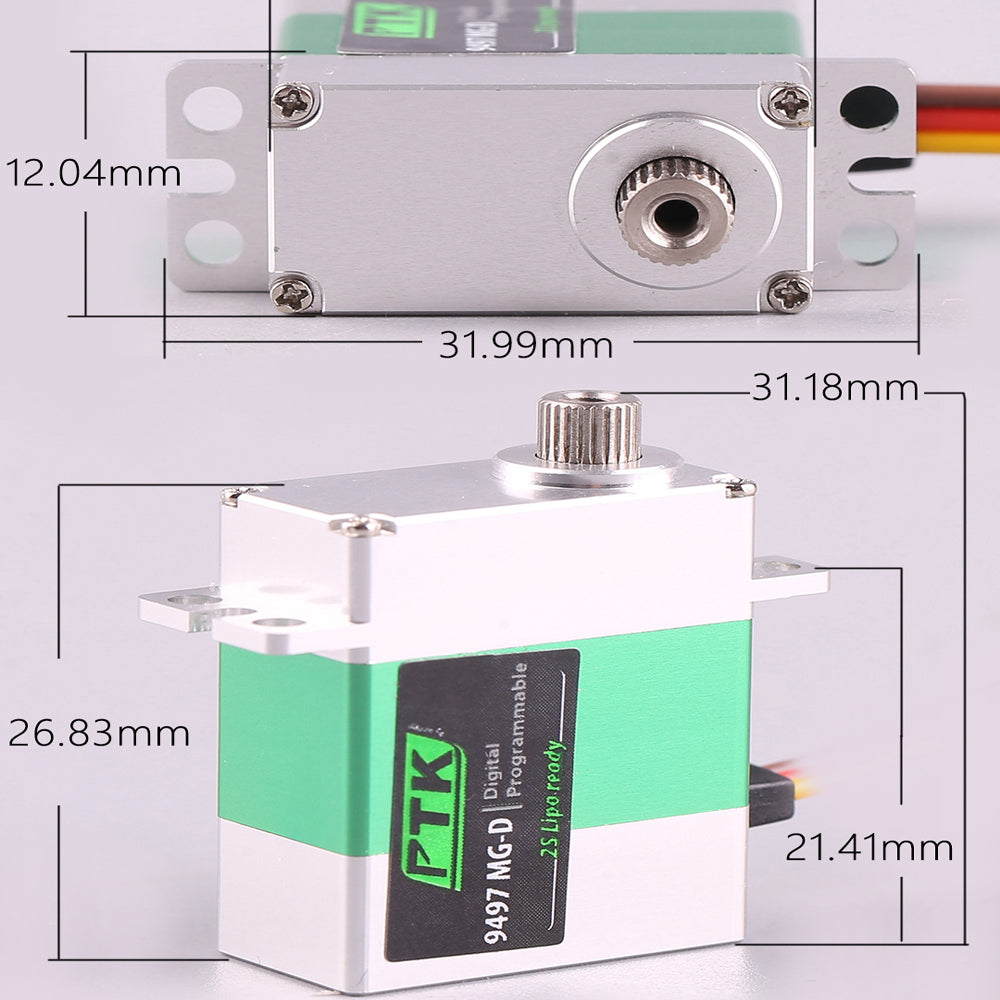

Dimensions : 22.9 x 26 x 11.9 mm

Speed/Torque@ 4,8V : 5,4kg/cm – 0,11s/60°

Speed/Torque@ 6,0V : 6,8kg/cm – 0,09s/60°

Speed/Torque@ 7.4V : 8,6kg/cm – 0,08s/60°

Input Voltage : 4.8V – 8.4V

Harness length : 225mm

Compatibility : Univers’al connector

Dead band : 1μs

Features:

powe r ul tra high-end specially designed for use in glid’ers or any other application requiring powe r, prec’ision and reliability.

The 9497 MG-D is the powe rful servo in its category.

Everything in this servo has been designed to offer the best performance.

Its thin enough to mount in composite glid’er wings.

Electronics, motor potentiometer and high quality.

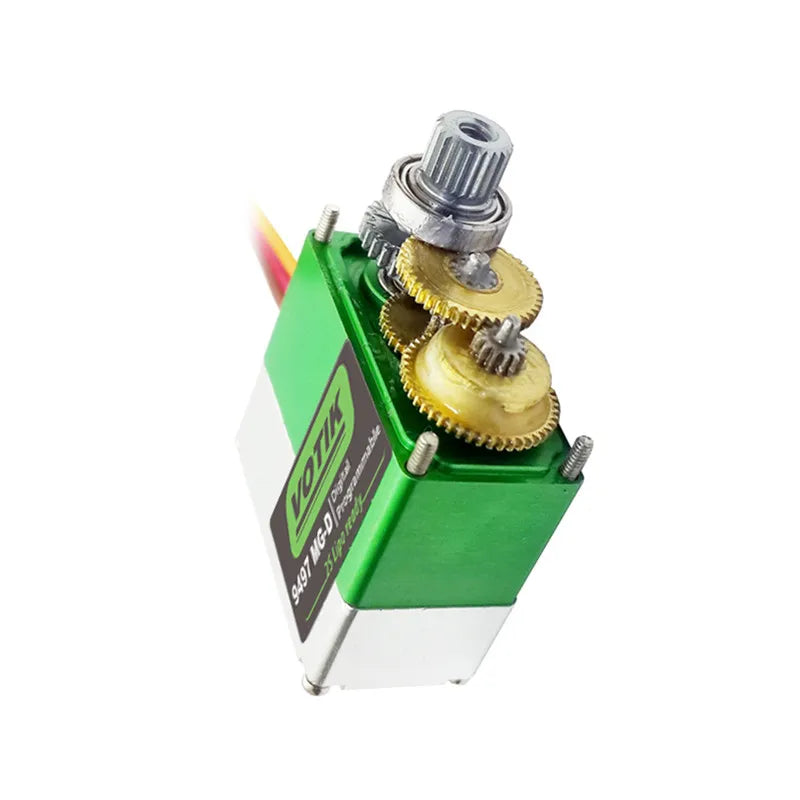

Metal gears mounted on two bearings combine robustness, preci’sion and reliability.

Digital

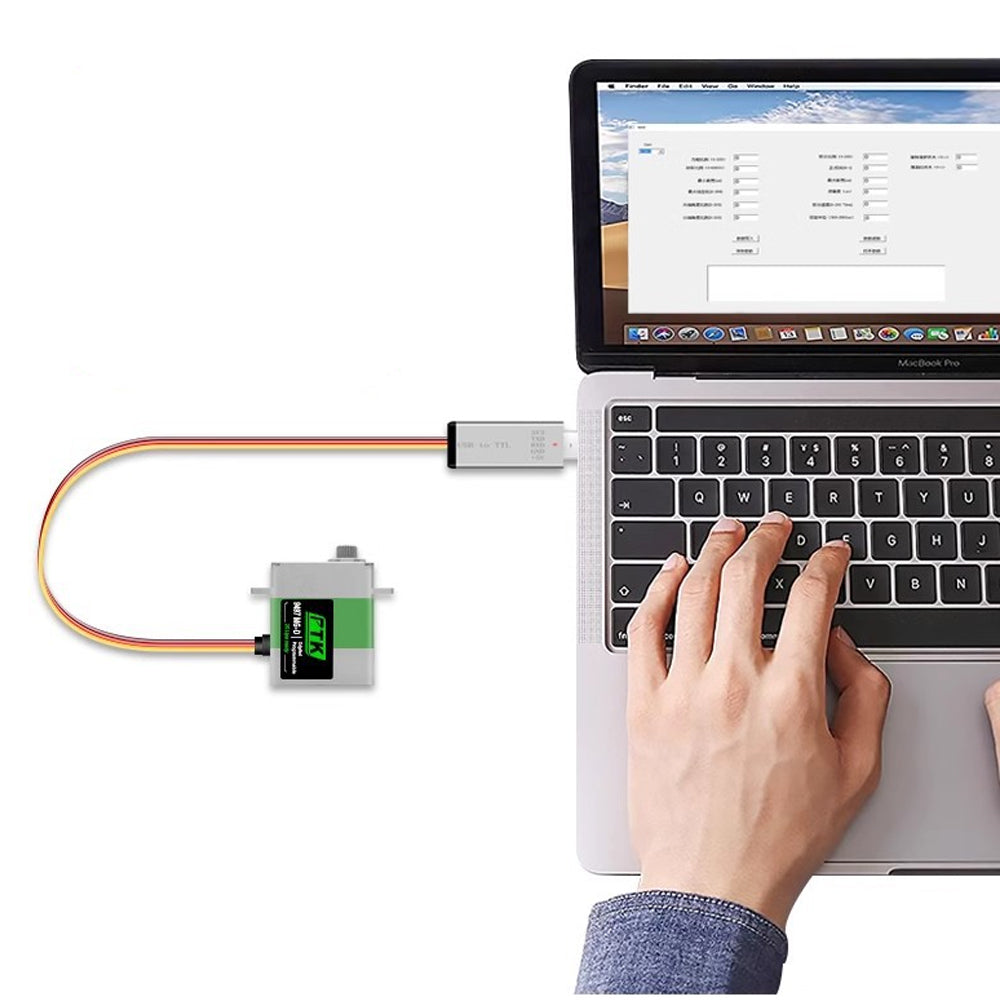

Programmable (card programming will be available on PC)

2S Lipo Ready”: optimized performance whether in 4.8V, 7.4V or 6V. HV for all!

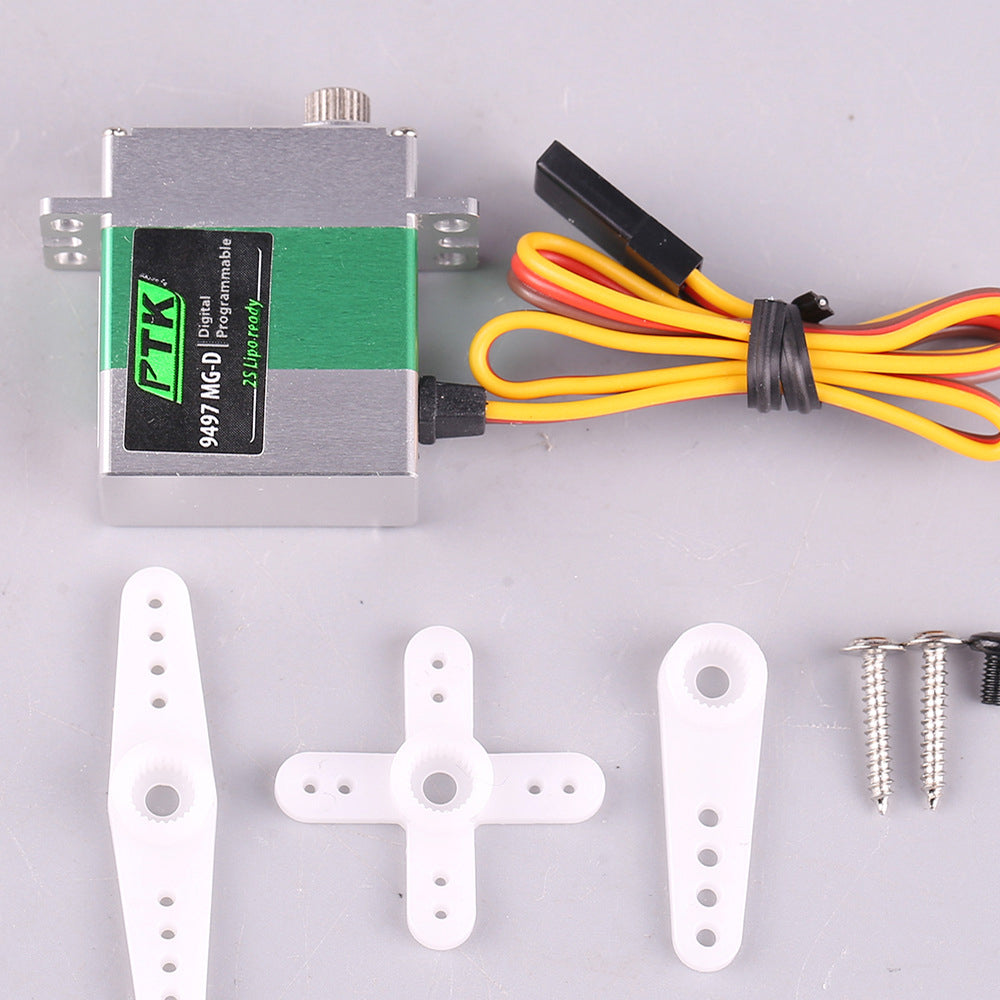

Package included:

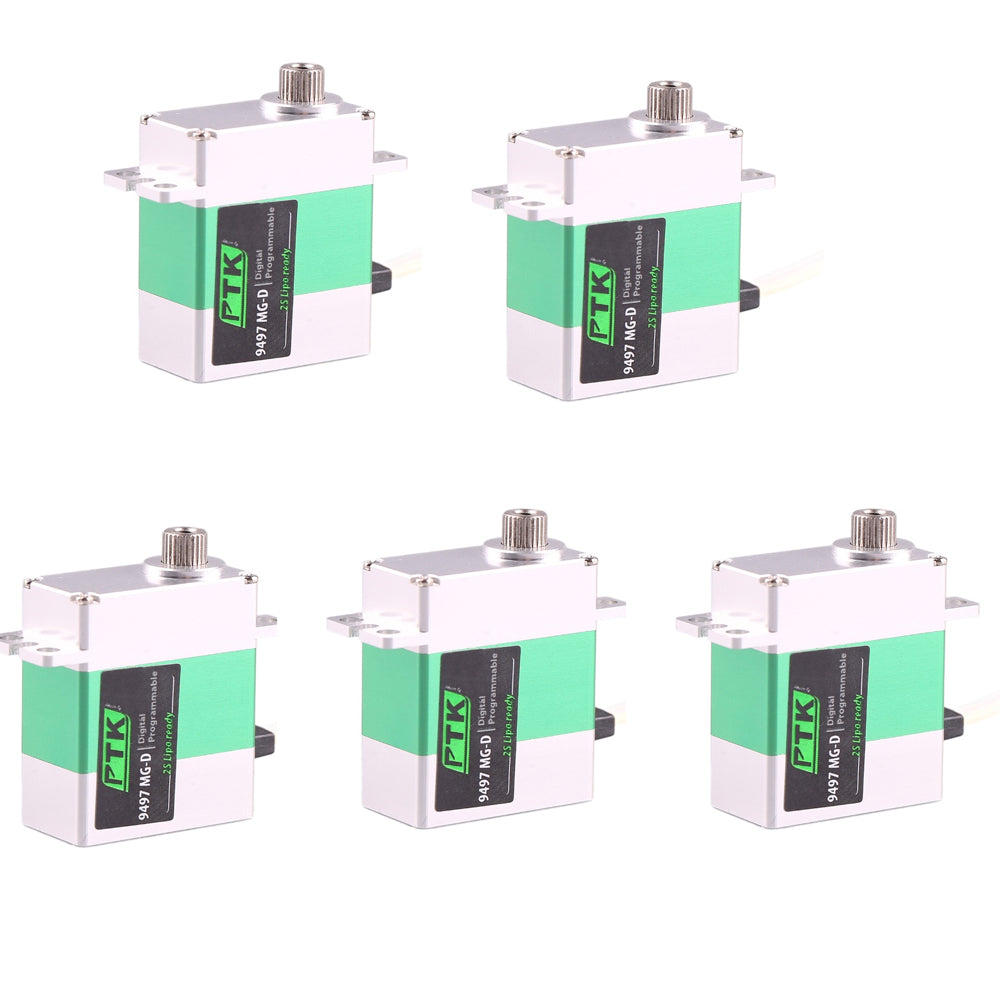

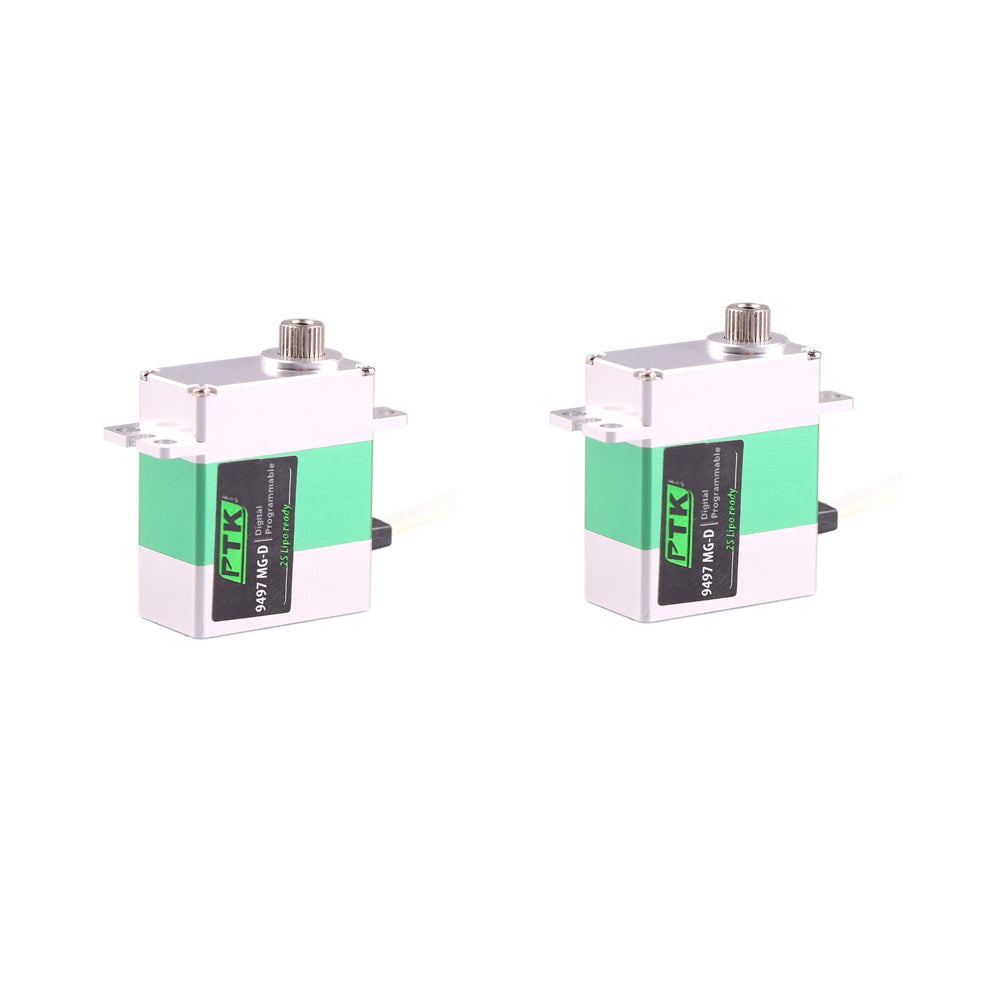

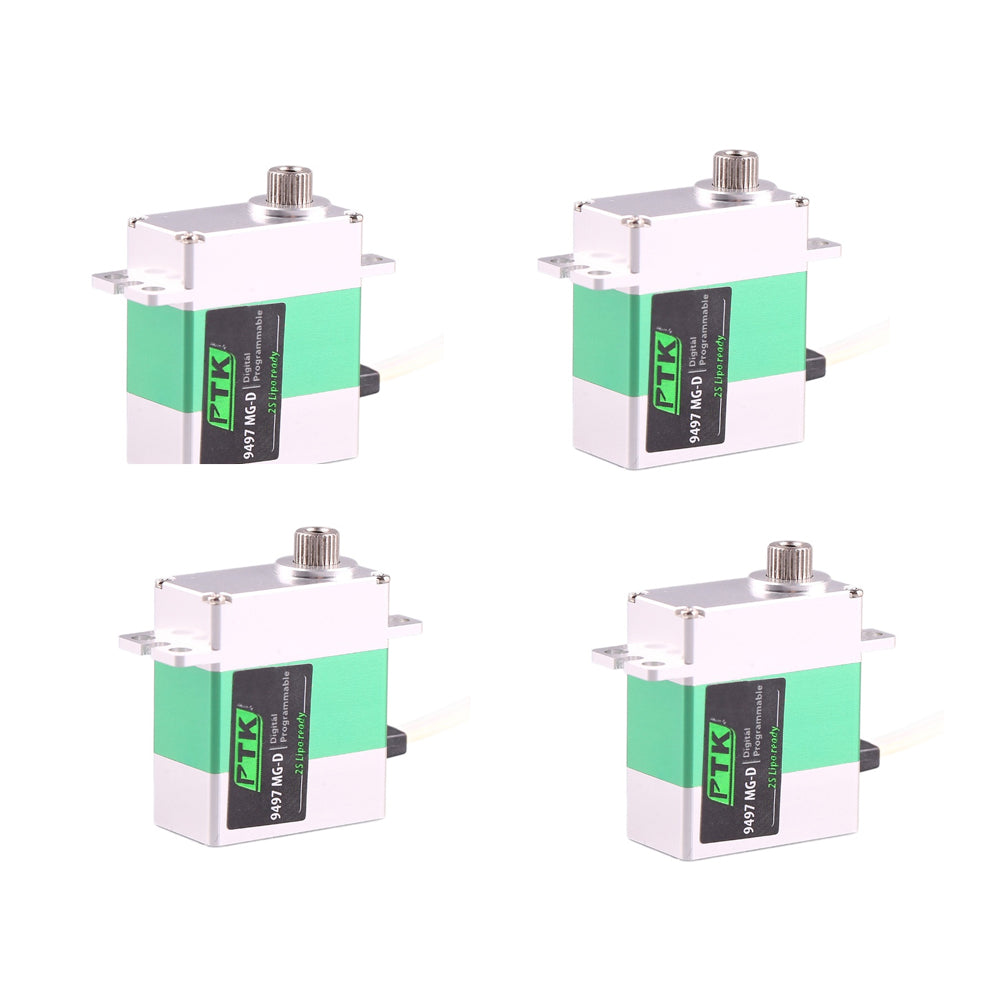

1/2/4/5PCS x PTK 9g Micro Metal Servo Steering Gear for RC Airplane Fixed Wing Helicopter Car (Optional)
