Description

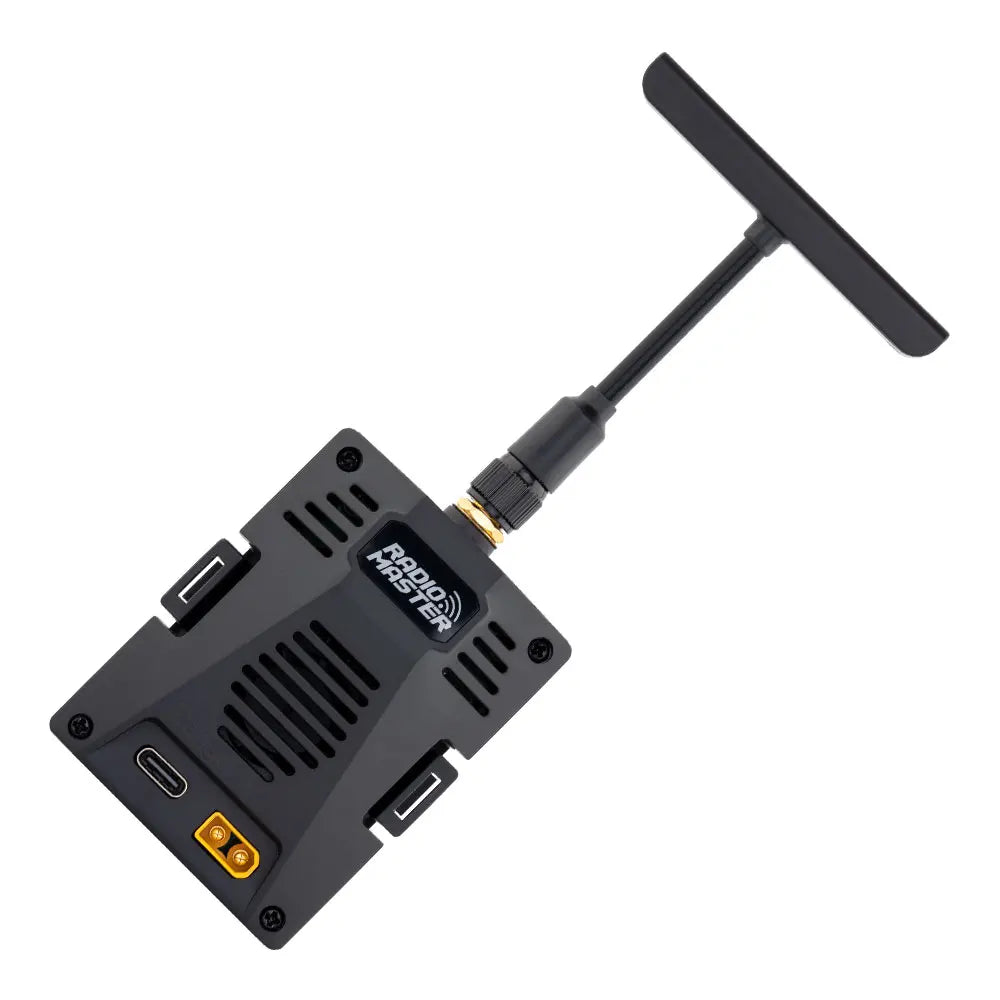

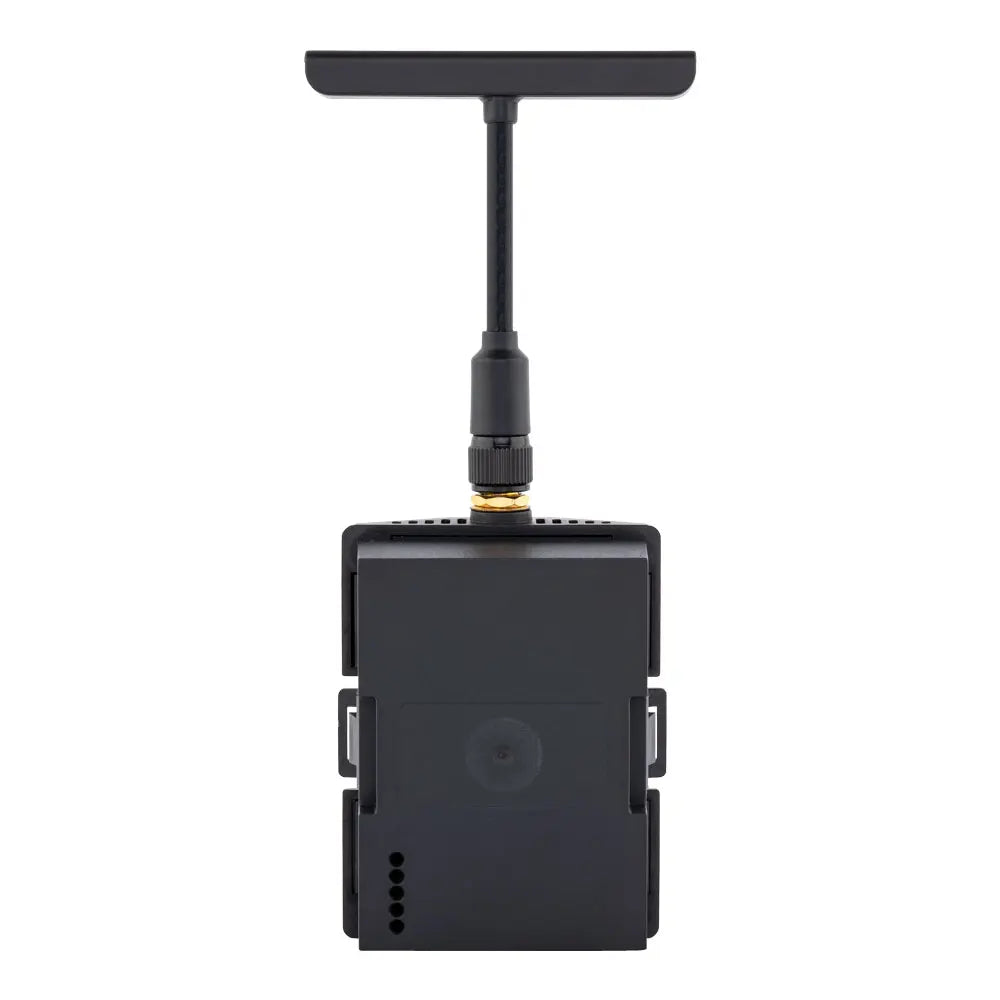

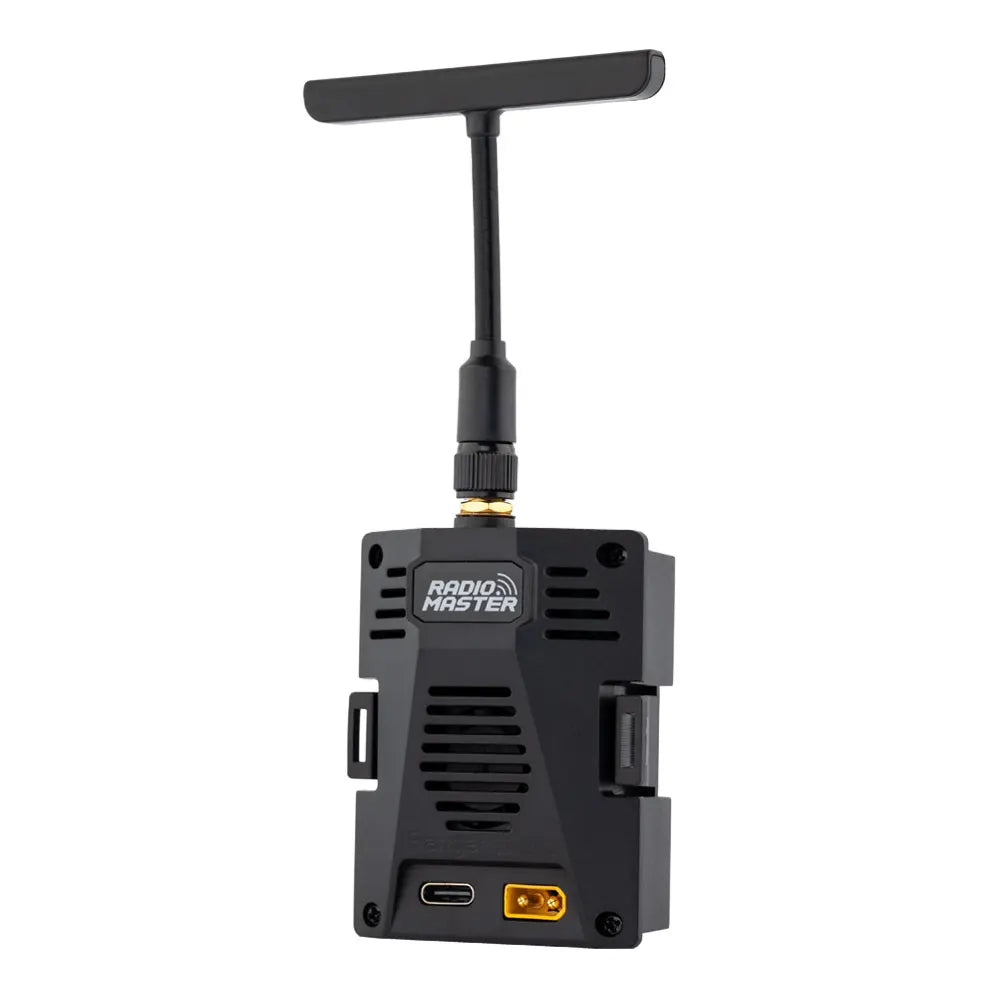

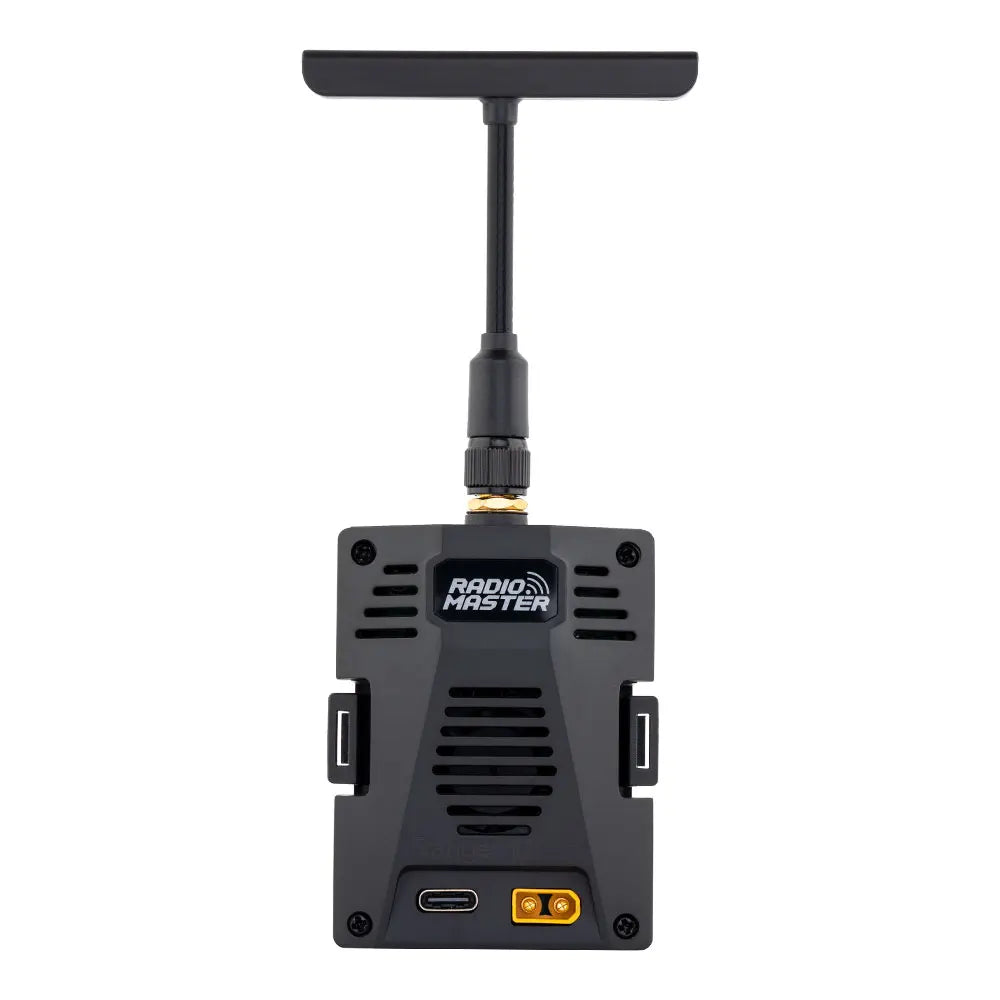

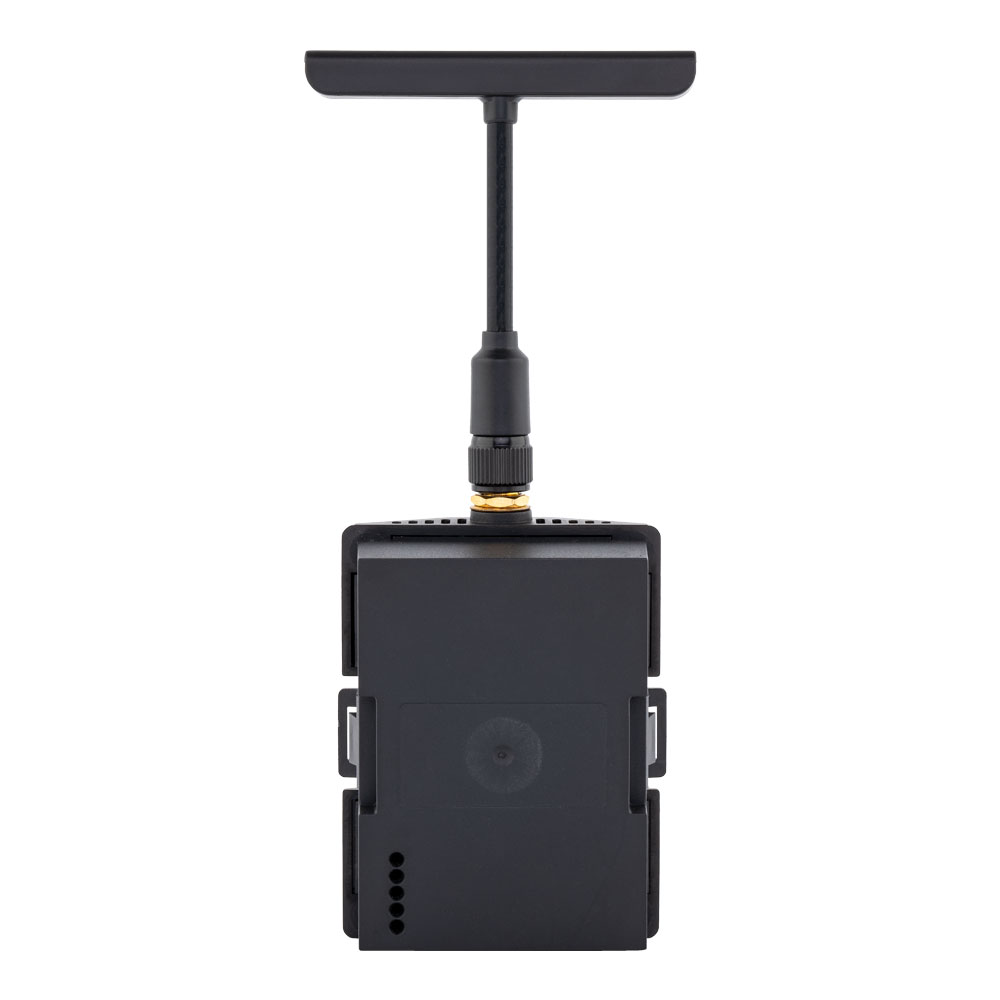

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered! the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules. For more information on the Ranger series, please click here
Combo Package

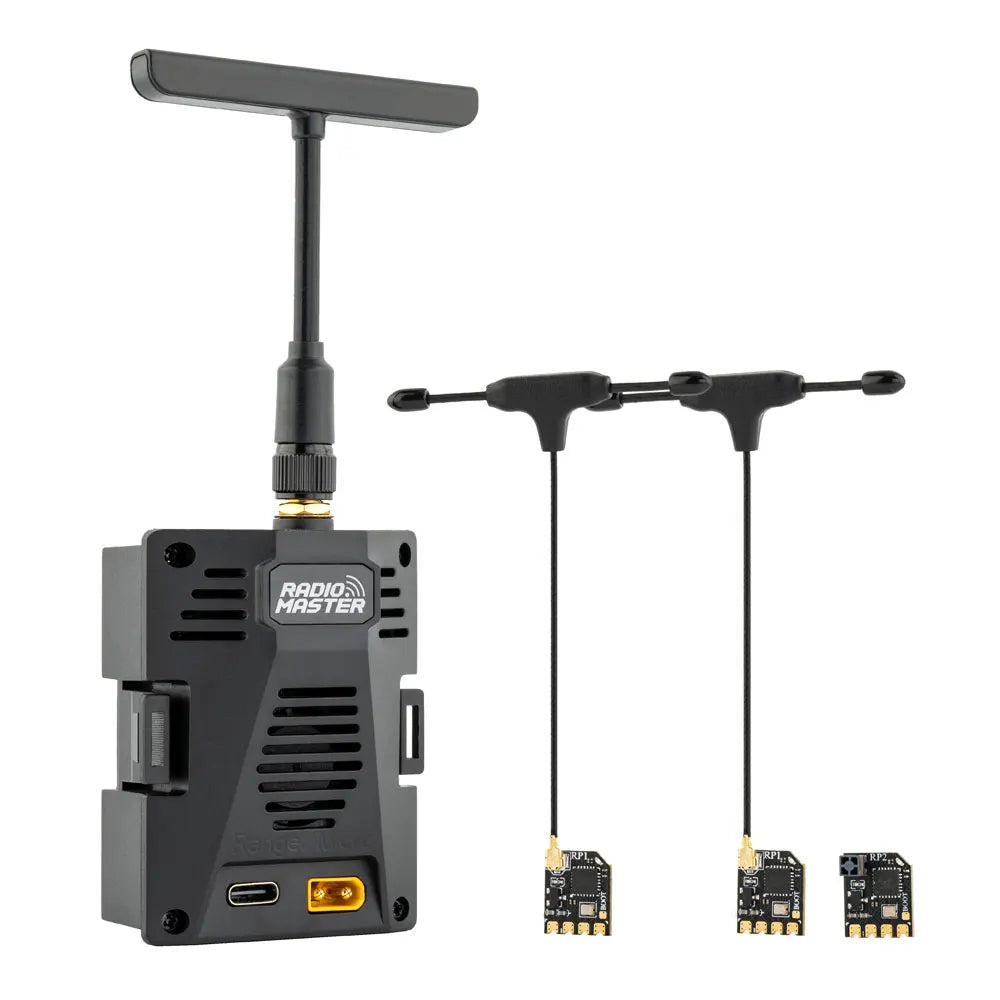

The Ranger Micro Combo package is the ideal way to get started in the world of ExpressLRS. A complete Ranger Micro module is provided along with two RP1 ExpressLRS receivers and one RP2 ExpressLRS receiver.
Features
High-efficiency cooling system
Wifi and Bluetooth support
T-antenna included
With the Micro connector, support TX16S MKII and TX12 MKII radio
Combo Package includes 1 x Ranger Micro Module, 2 x RP1 Receiver, 1 x RP2 Receiver
Specification
Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Minimum receiver refresh rate: 25Hz
Wifi Support: Yes
Bluetooth support: Yes

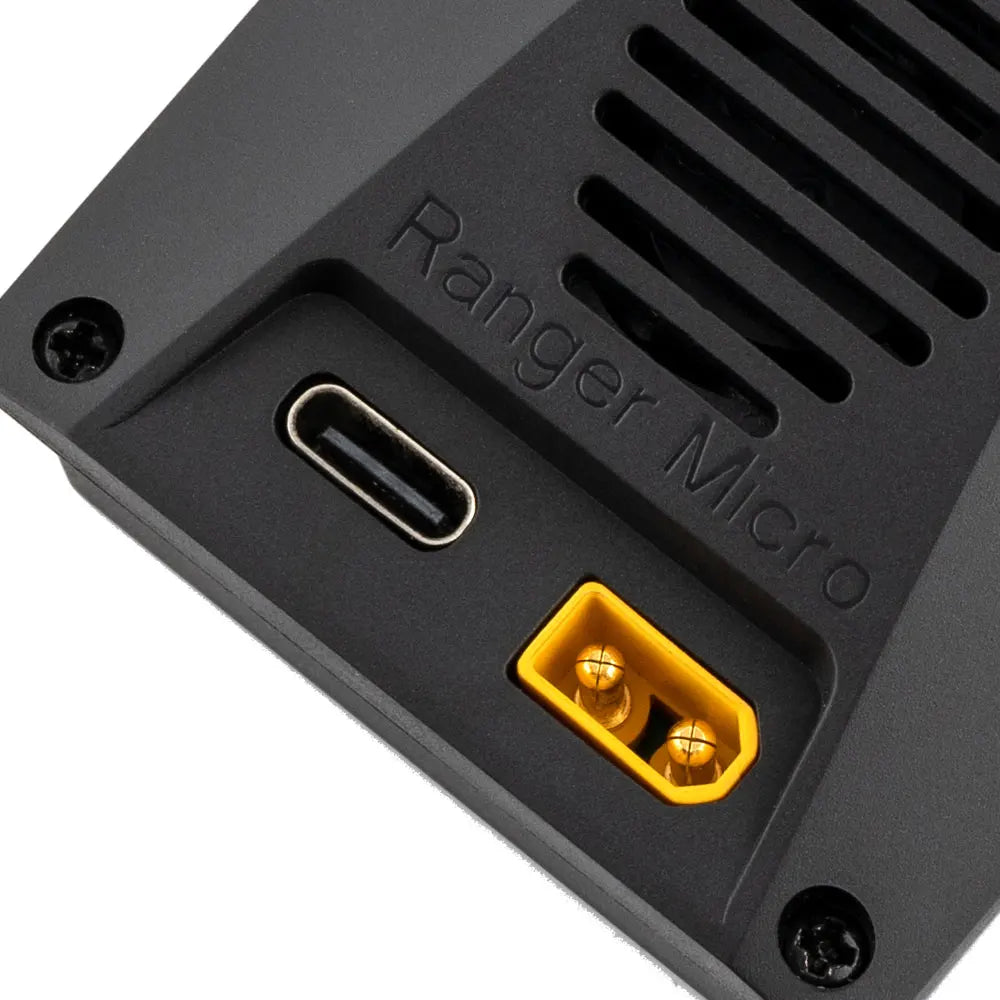

XT30 Power supply voltage: DC 6V – 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)

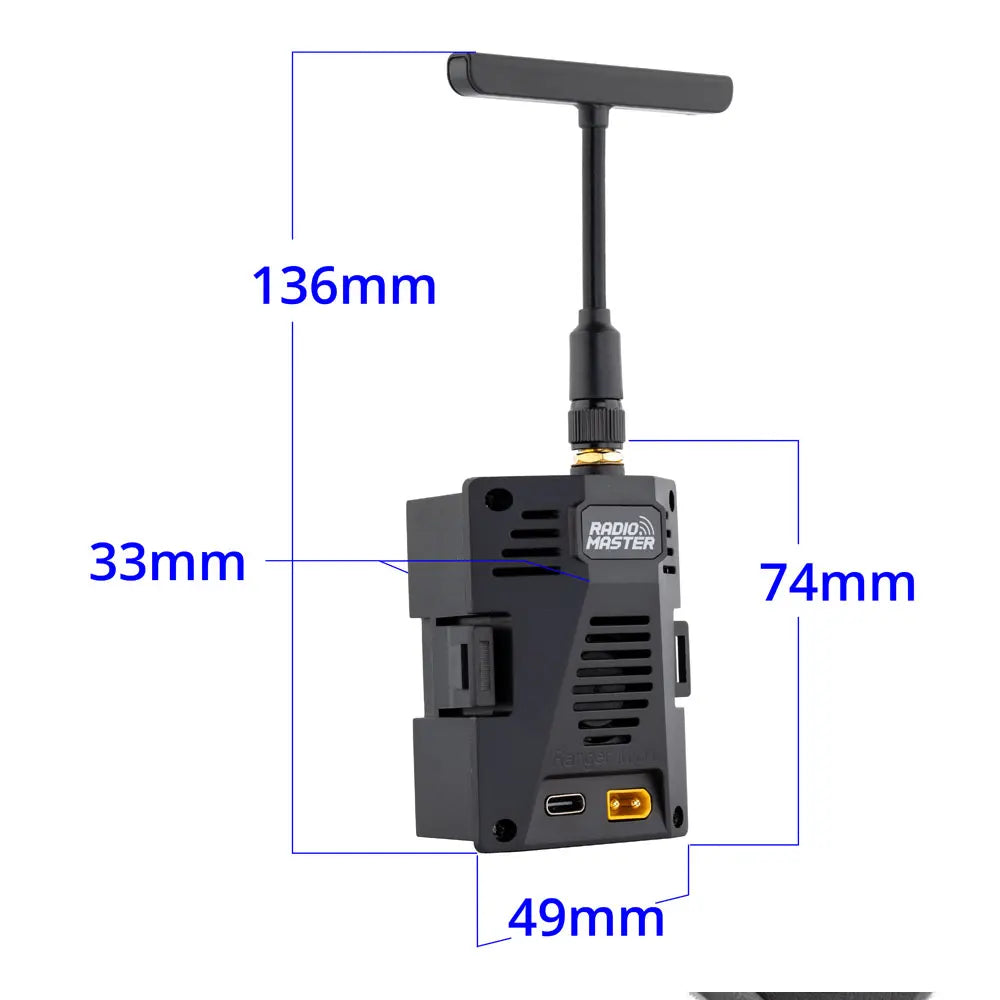

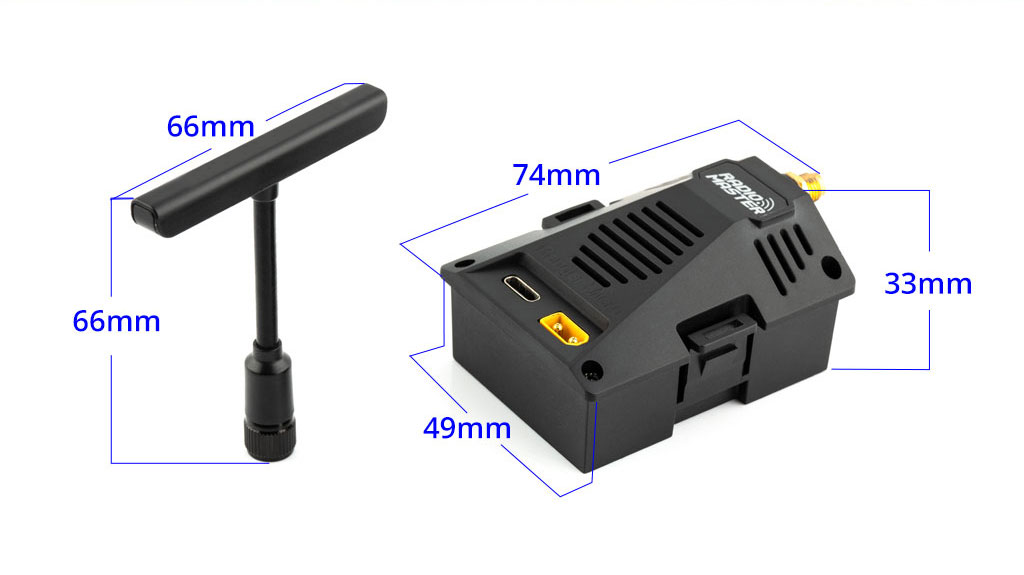

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
