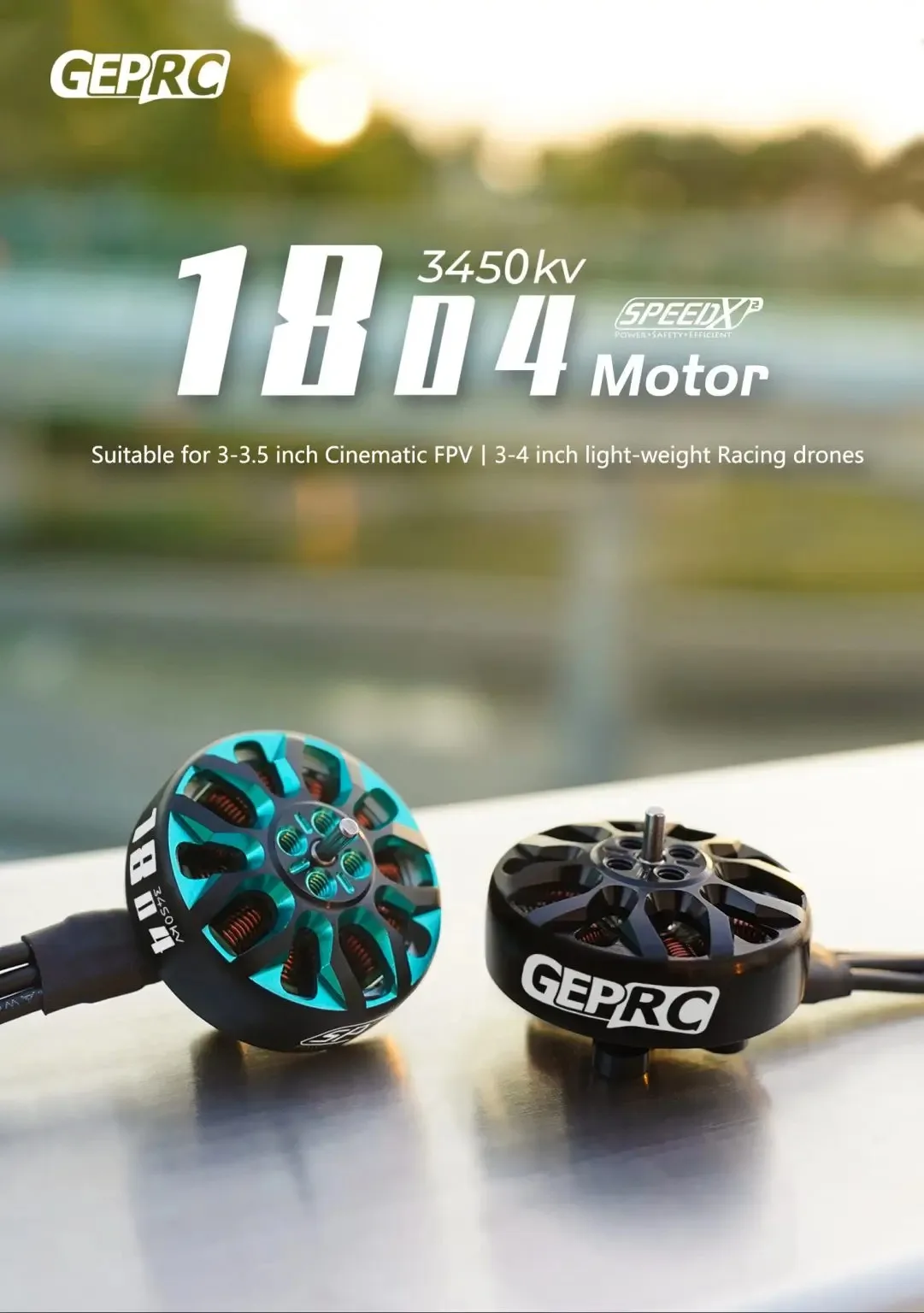

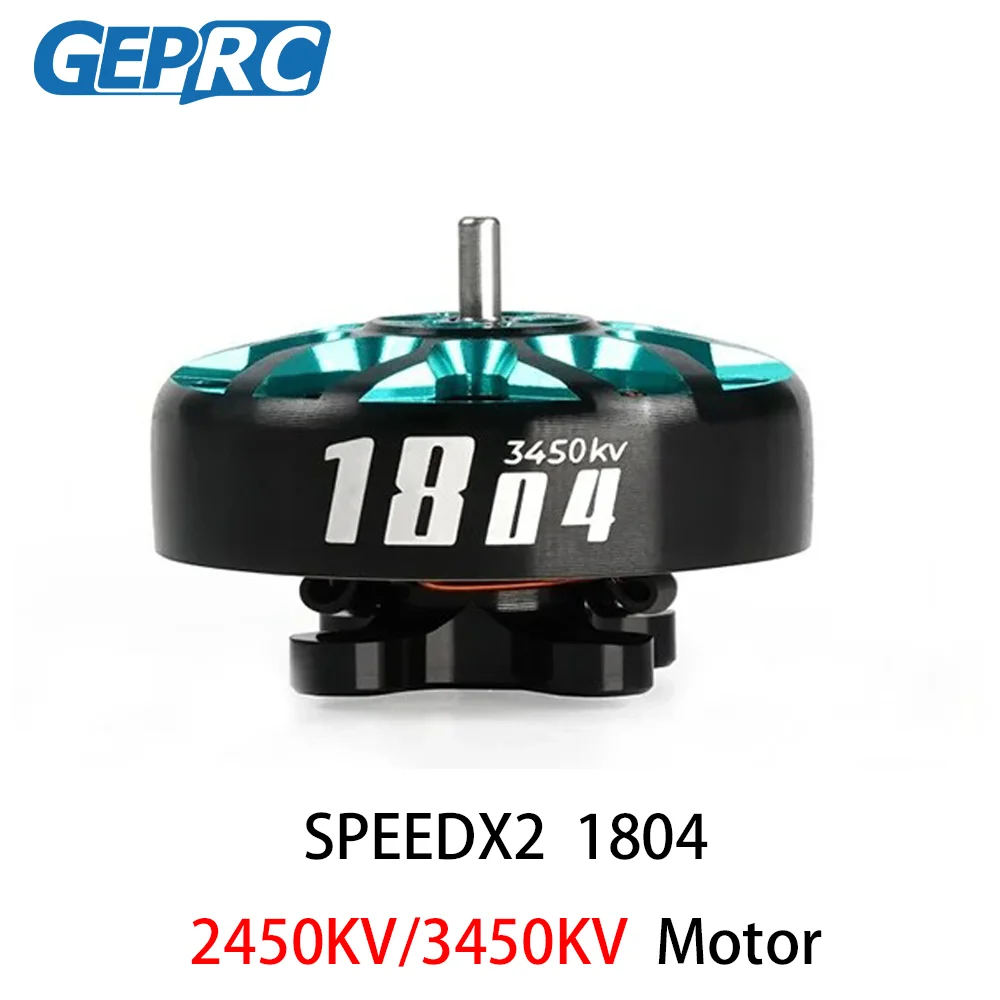

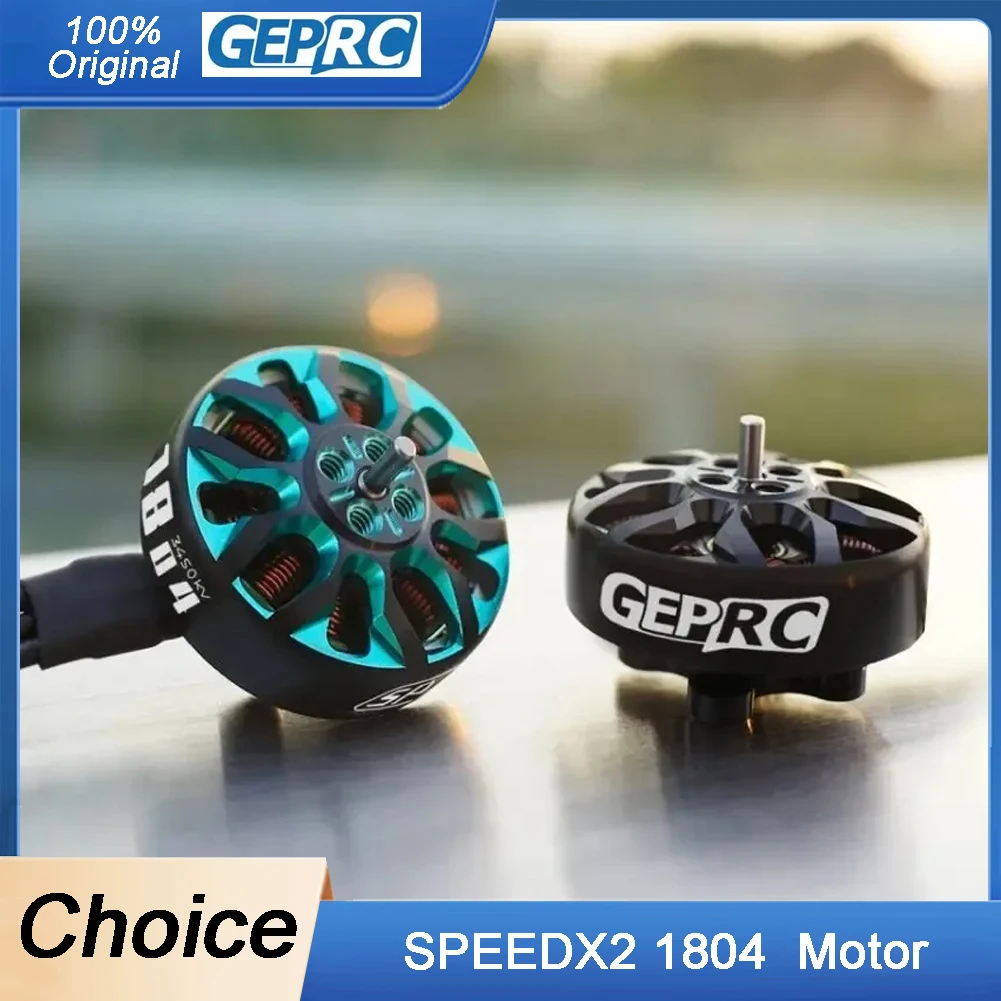

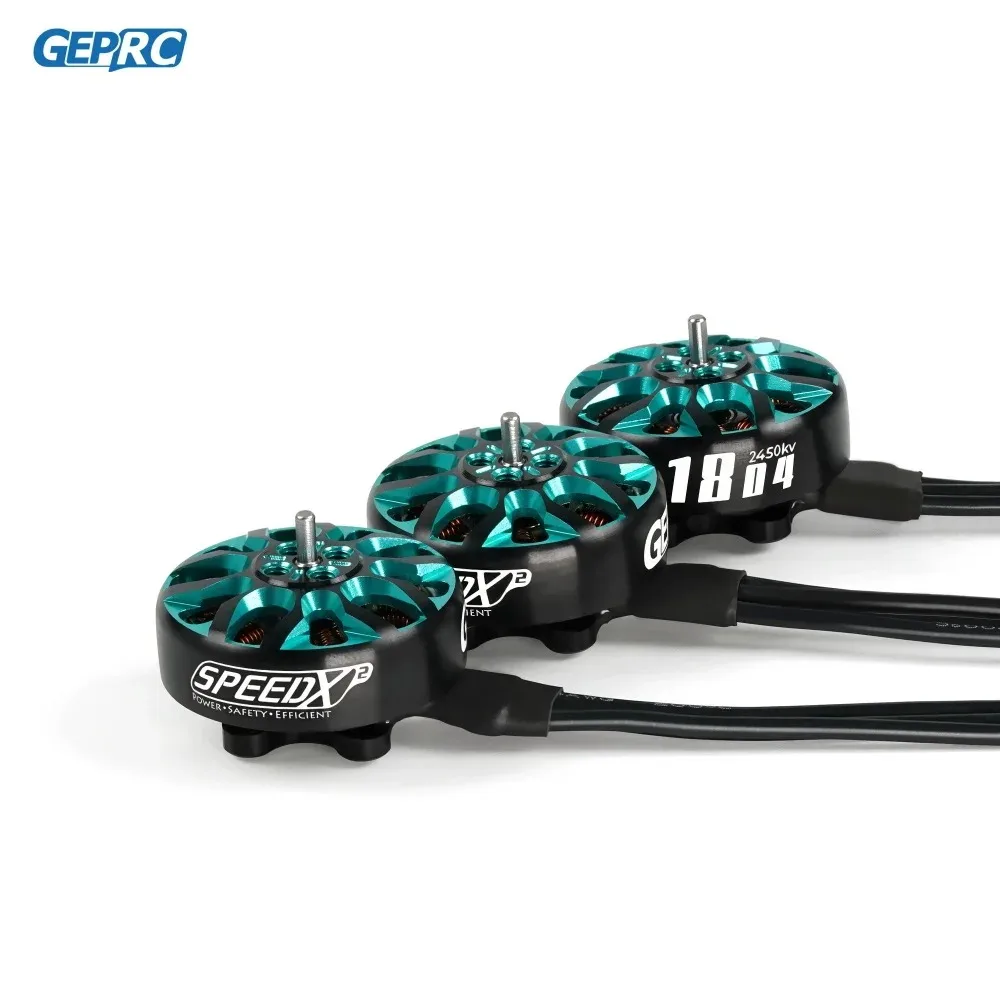

SPEEDX2 geprc 1804 Brushless Motor – 2450KV/3450KV 4S/6S High Performance for FPV RC Multicopter Racing Drone Parts

Description

Summary

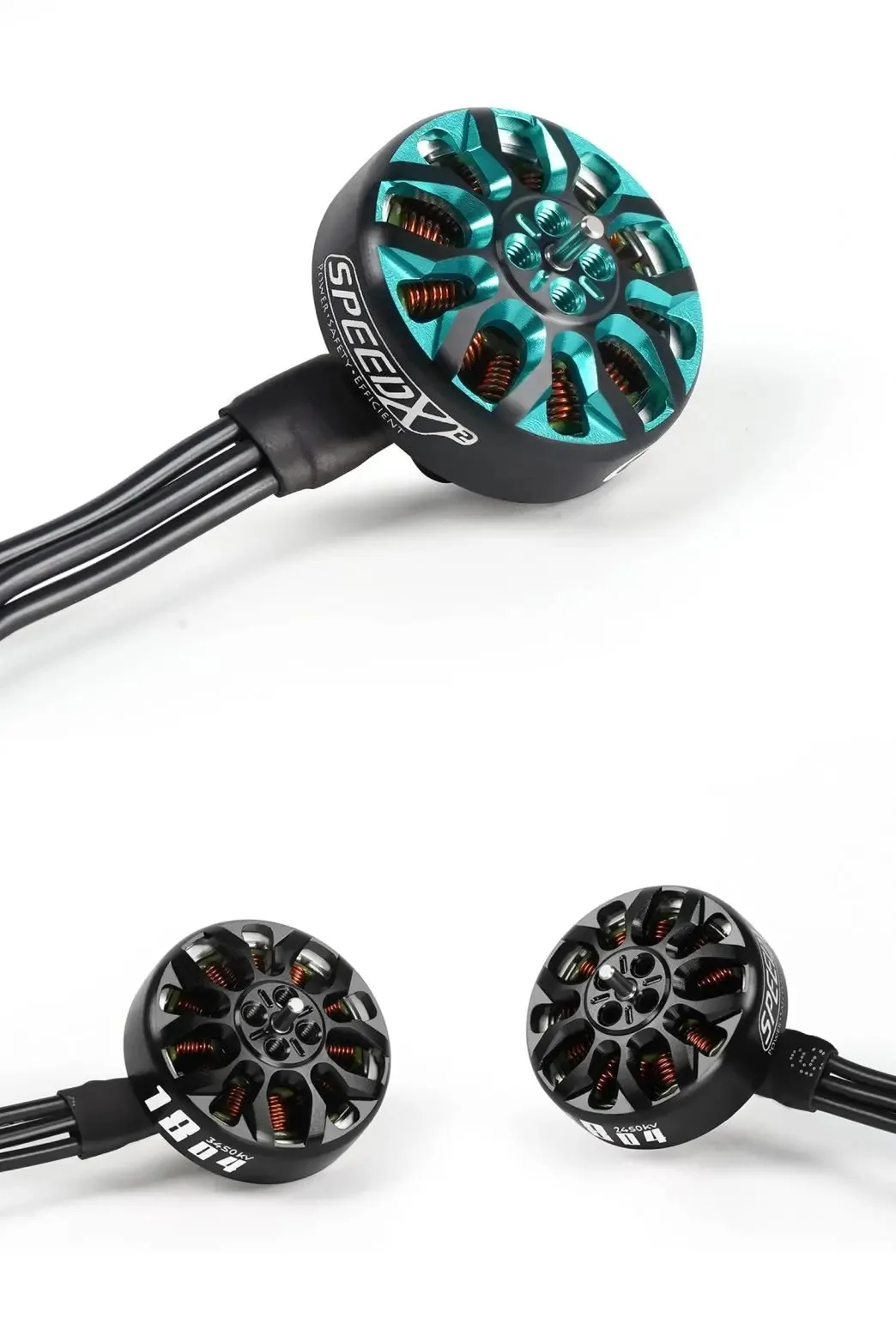

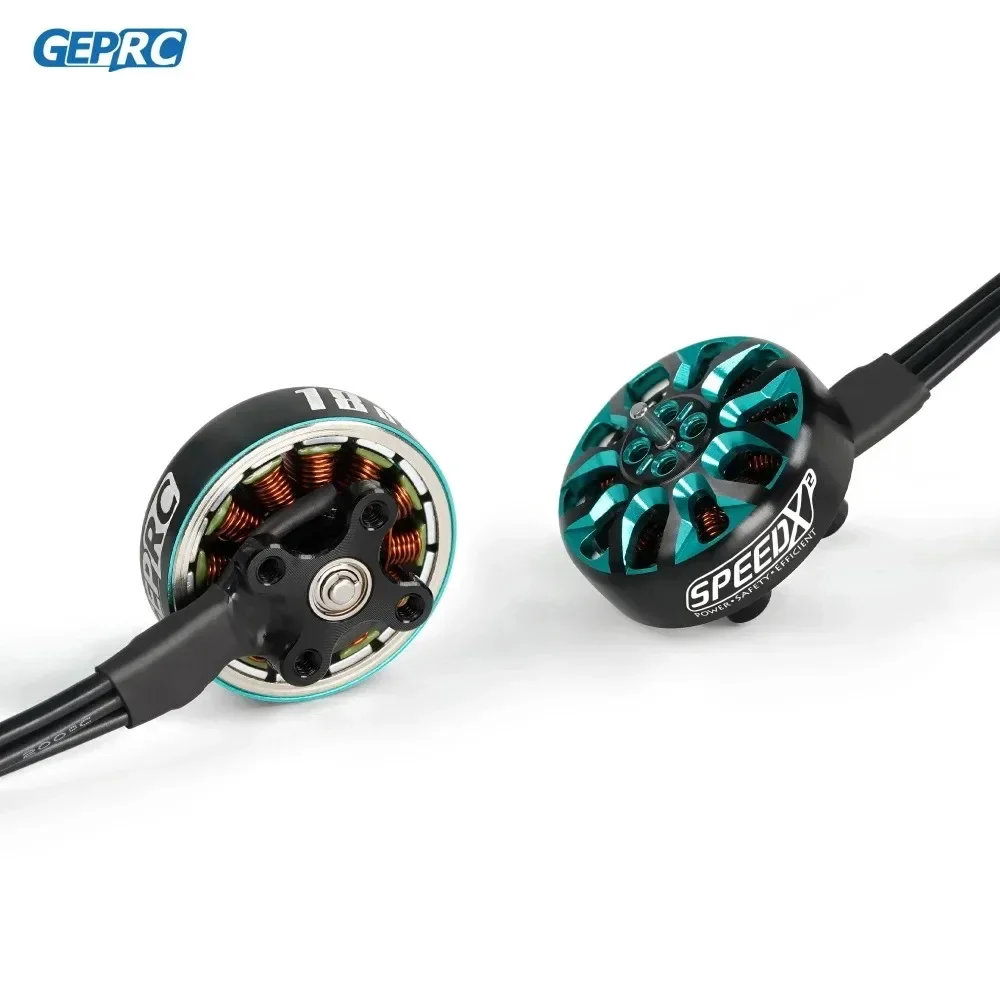

nToday we are going to introduce the 2nd generation of SPEEDX2 1804 brushless motor. SPEEDX2 1804 motor is a highly innovative brushless motor with new structure and unique design.

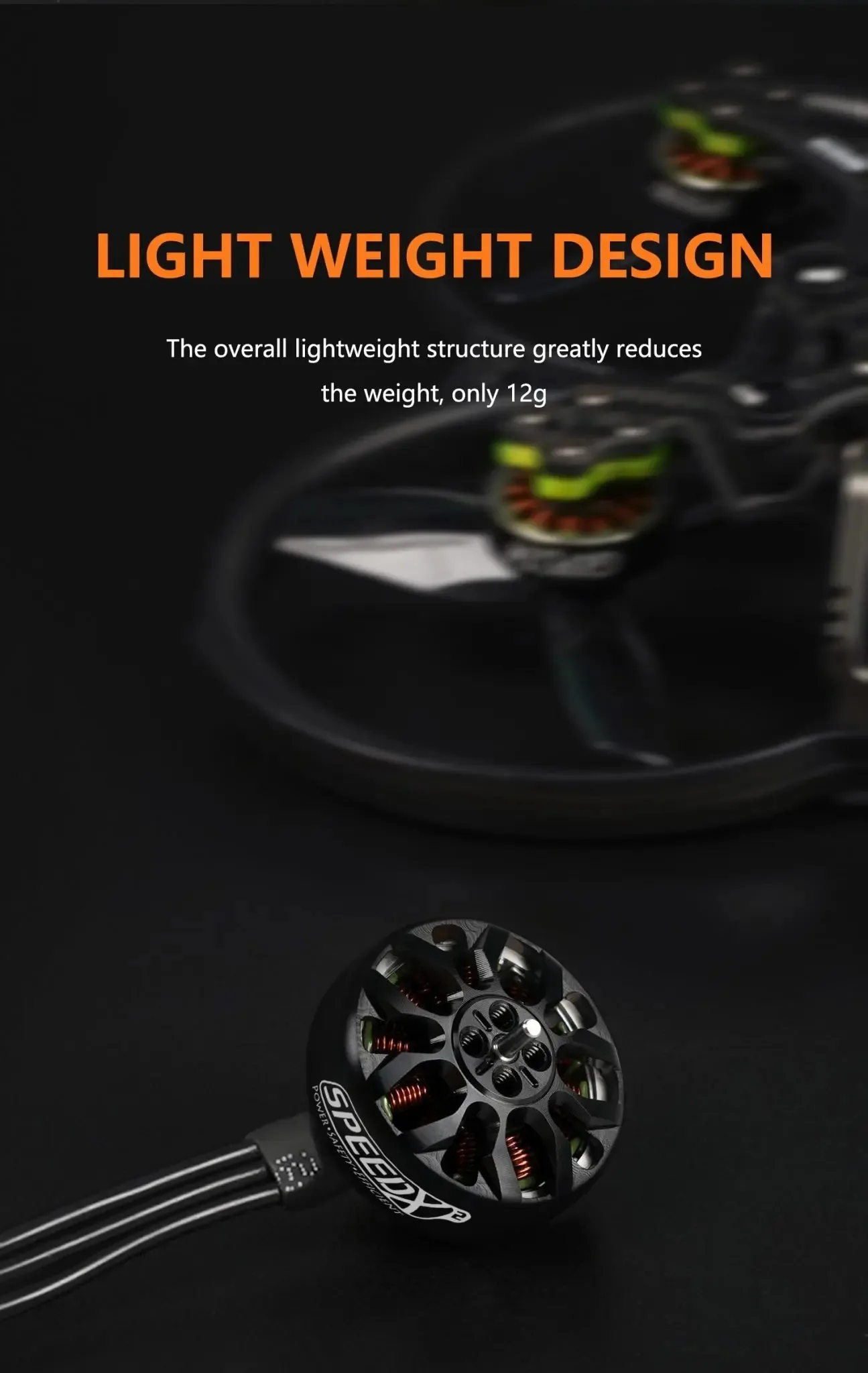

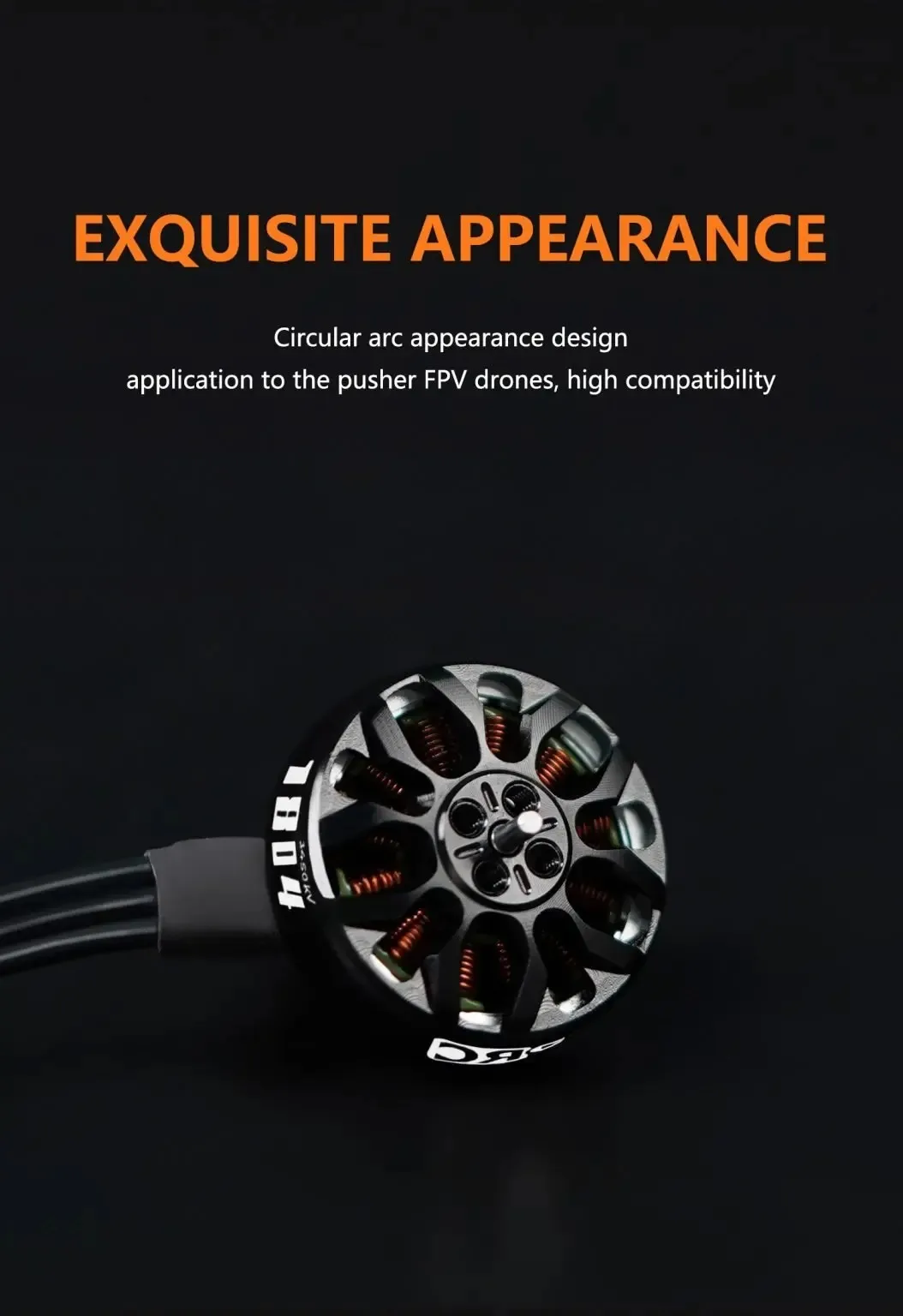

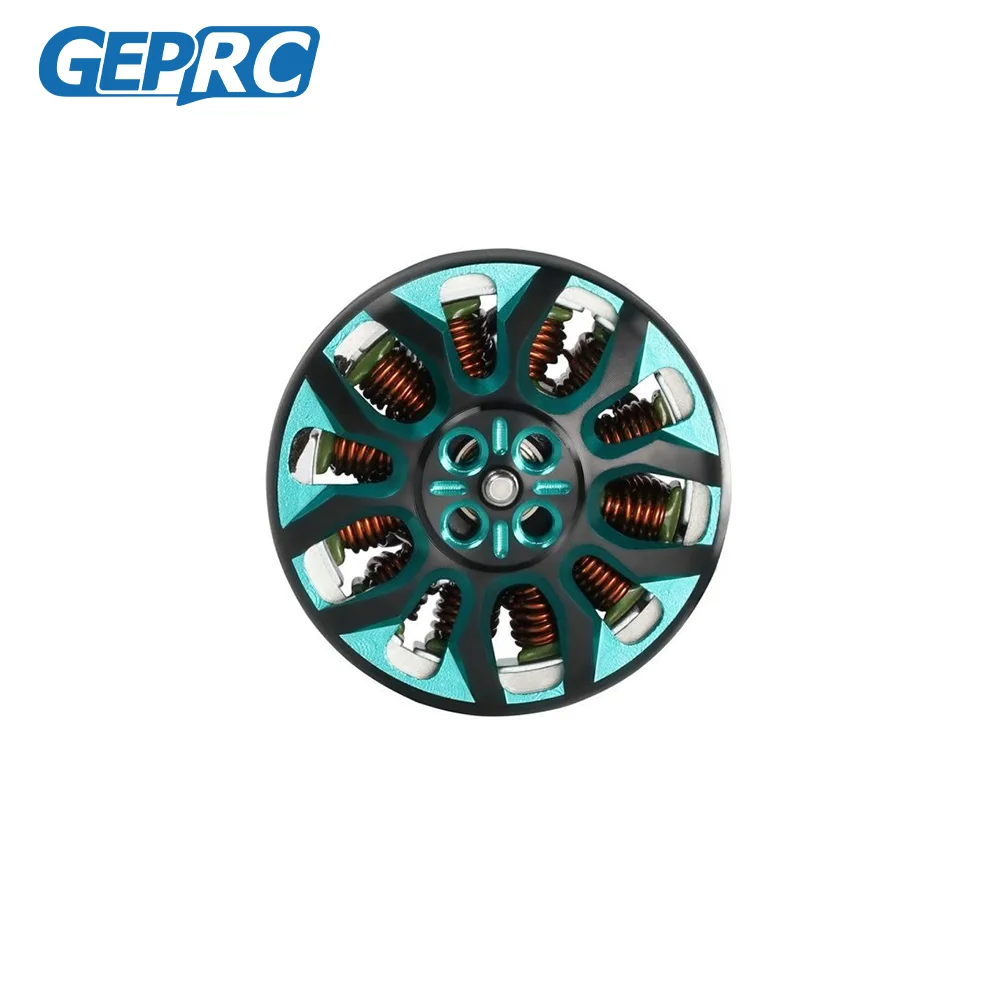

nThe overall lightweight structure greatly reduces the weight, only 13.2g (13CM wire). Circular arc appearance design, application to the pusher FPV drones, high compatibility. Avoid unbalanced propellers due to the contact between the large pitch propellers and the top of the rotor. A large area of hollowing out to reduce weight, so as to obtain good heat dissipation and efficiency, and effectively control the working temperature of the motor.

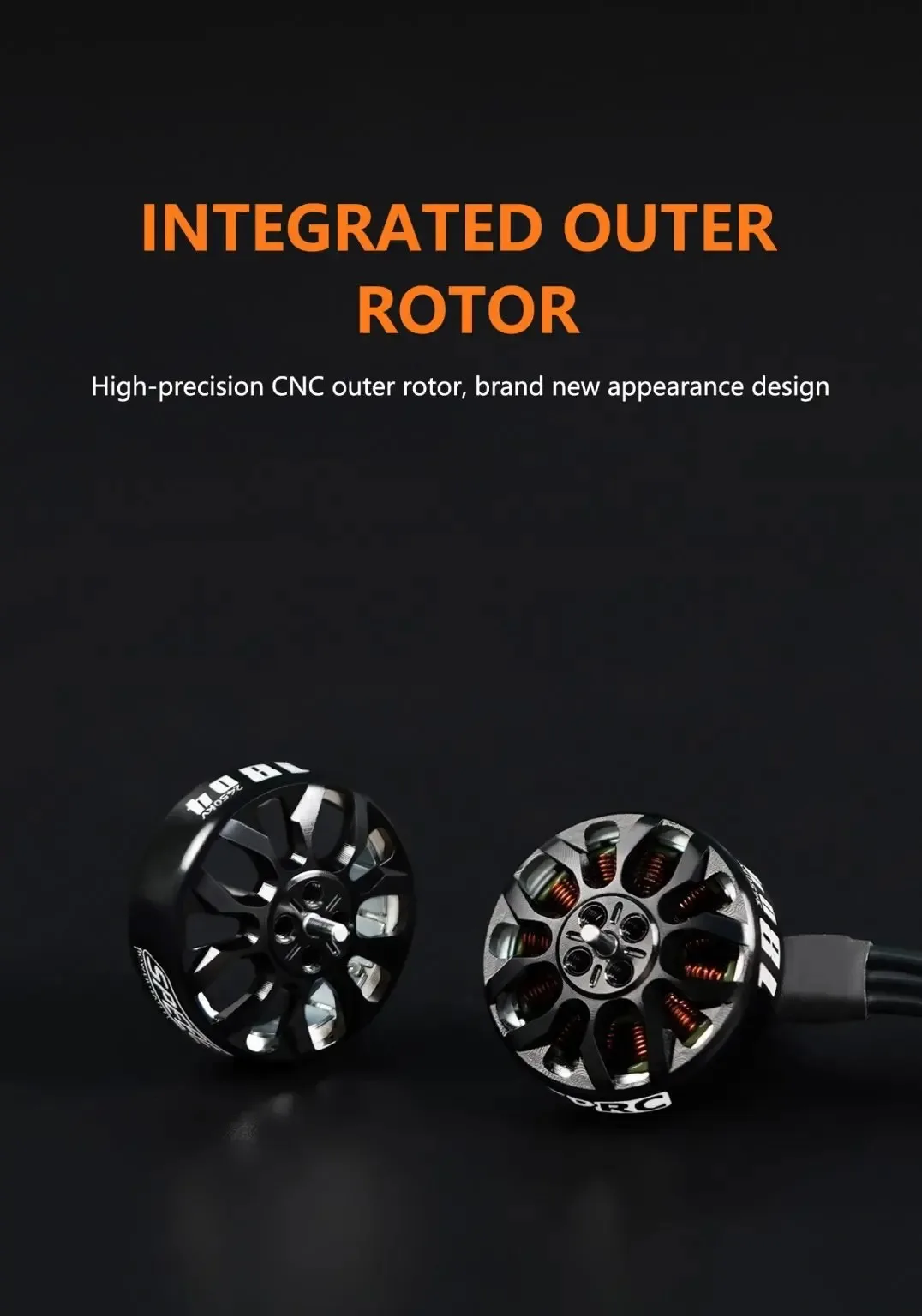

nAdopt high quality 7075-T aviation aluminum material, which brings better strength to the rotor. With highly efficient magnetic circuit design, SPEEDX2 1804 has great handling and stable explosive power, bringing pilots an ultra smooth flying experience. SPEEDX2 1804 motor is perfect for pilots to build their 3″ whoop FPV, 3-4″Toothpick & Long Range FPV.
nGEPRC is committed to providing pilots with brushless motors that are much lighter in weight, faster in response, higher in efficiency and higher in power.
nFeature
n1. Lightweight design, only 13.g (13CM Wire)
n2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.
n3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely fast response speed.

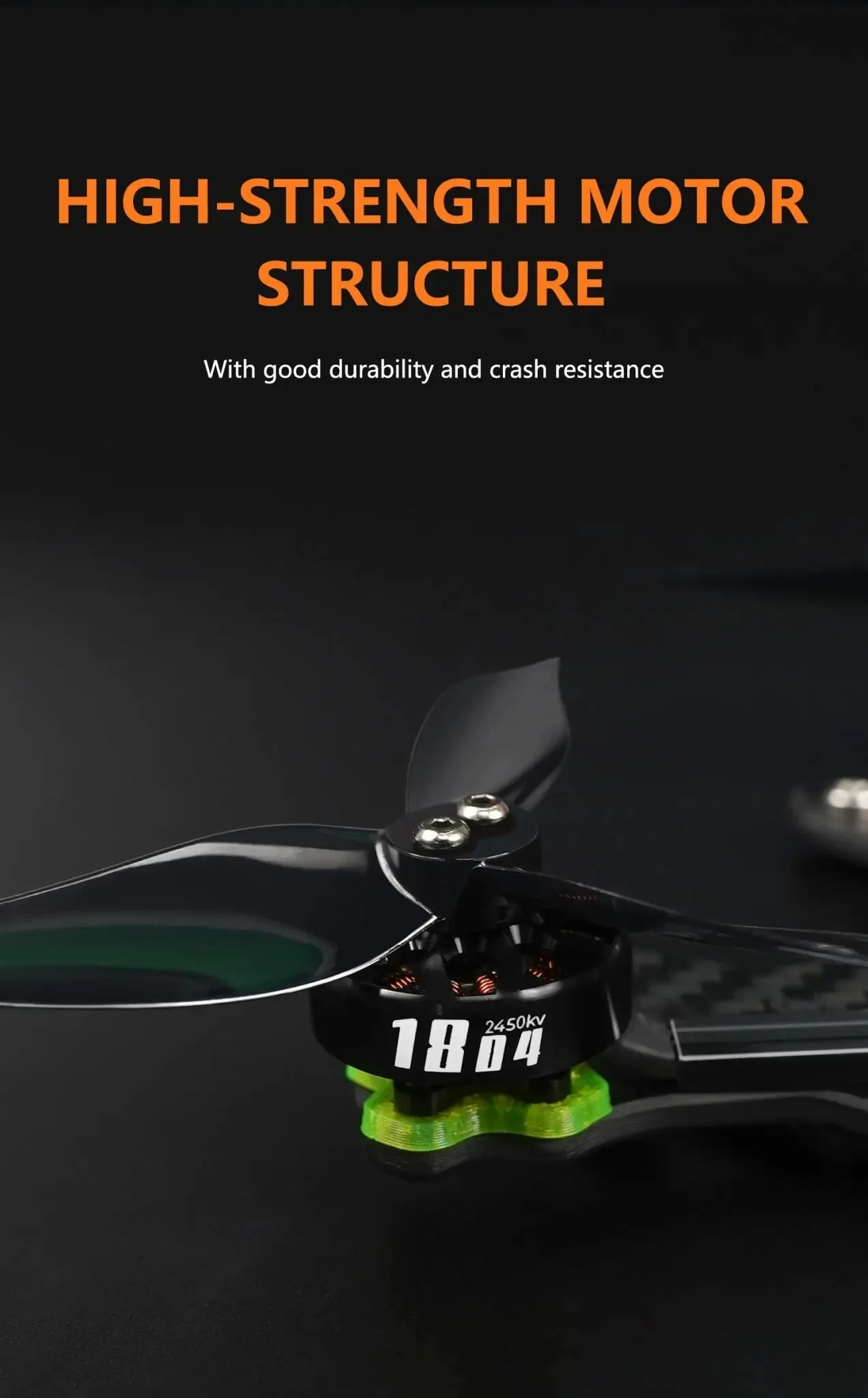

n4. High strength motor structure, outstanding durability.
n5. Suitable for 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV.

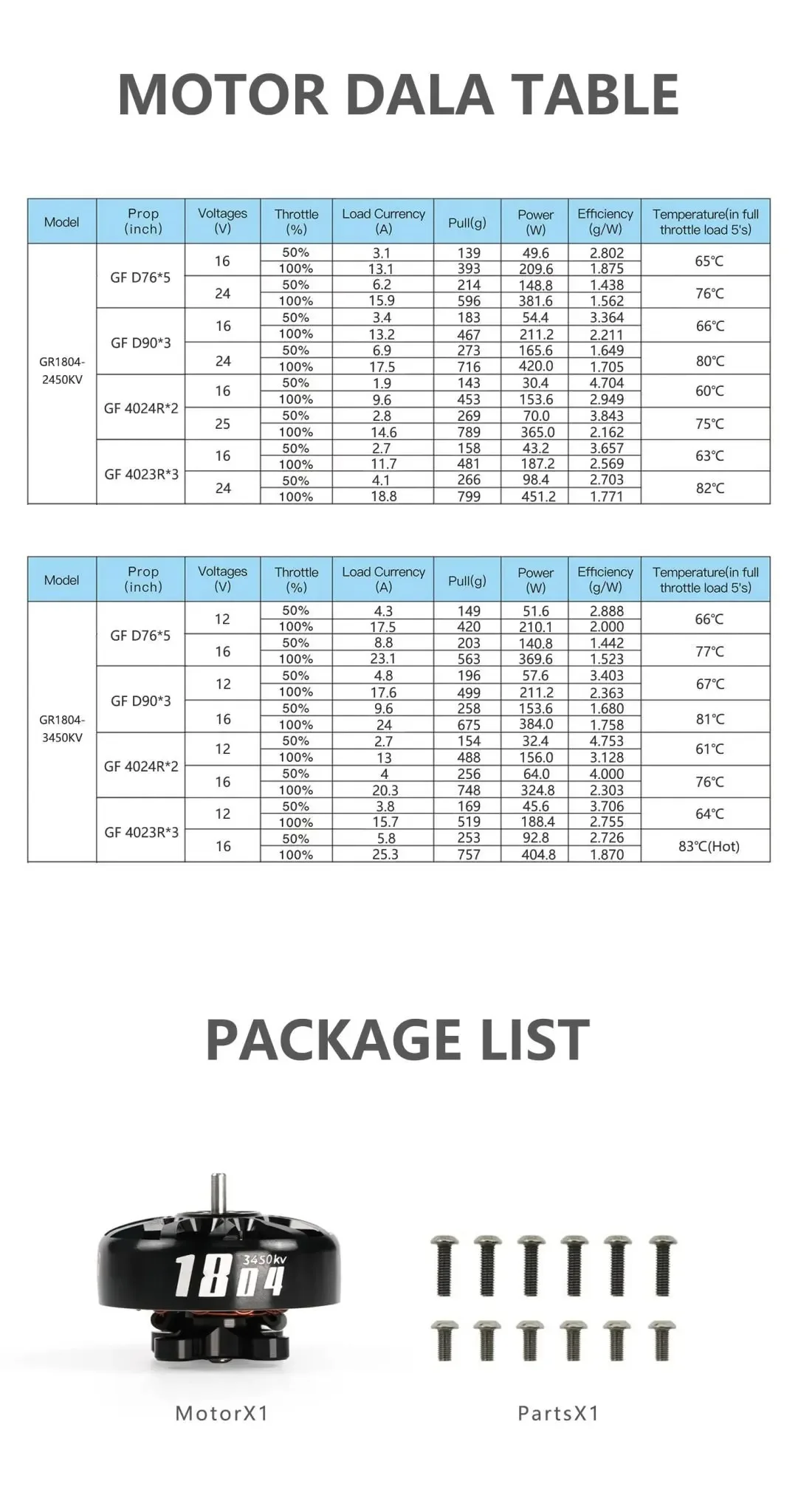

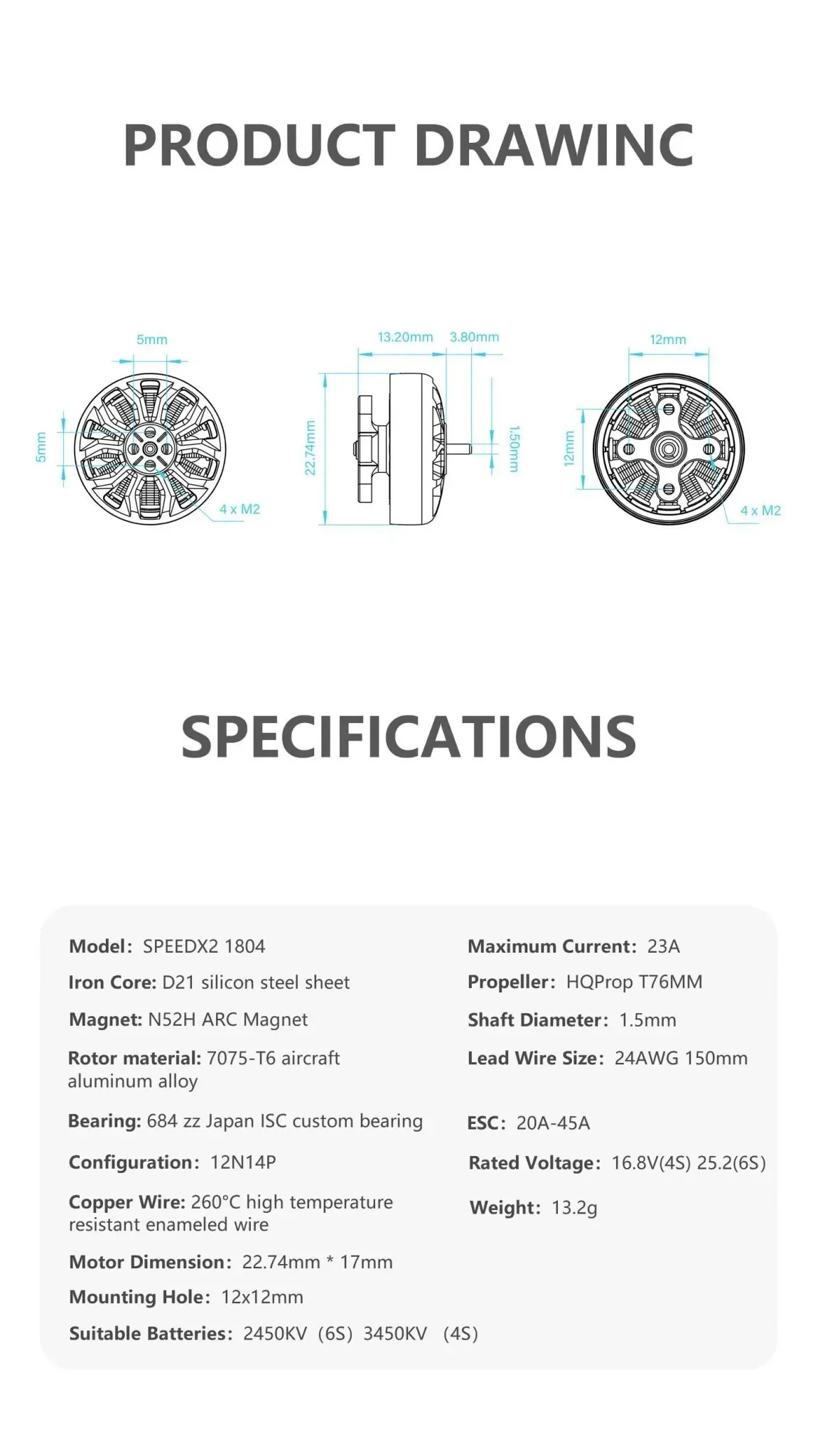

nSpecification
nItem: SPEEDX2 1804-2450KV
nConfiguration: 12N14P

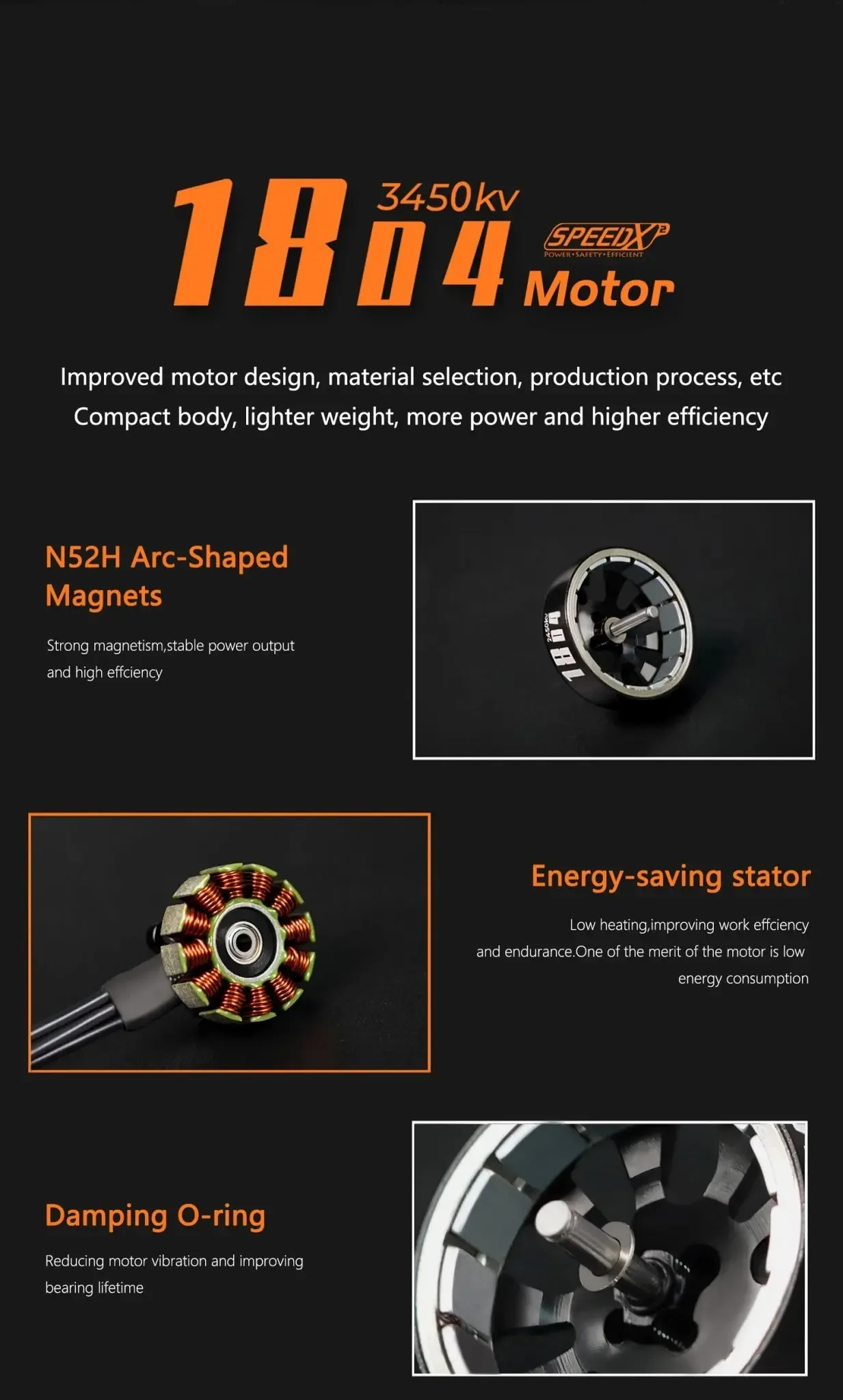

nMagnet: N52H ARC
nStator Diameter: 18mm
nStator Height: 4mm
nShaft Diameter: Φ2mm(in)Φ1.5mm(out)

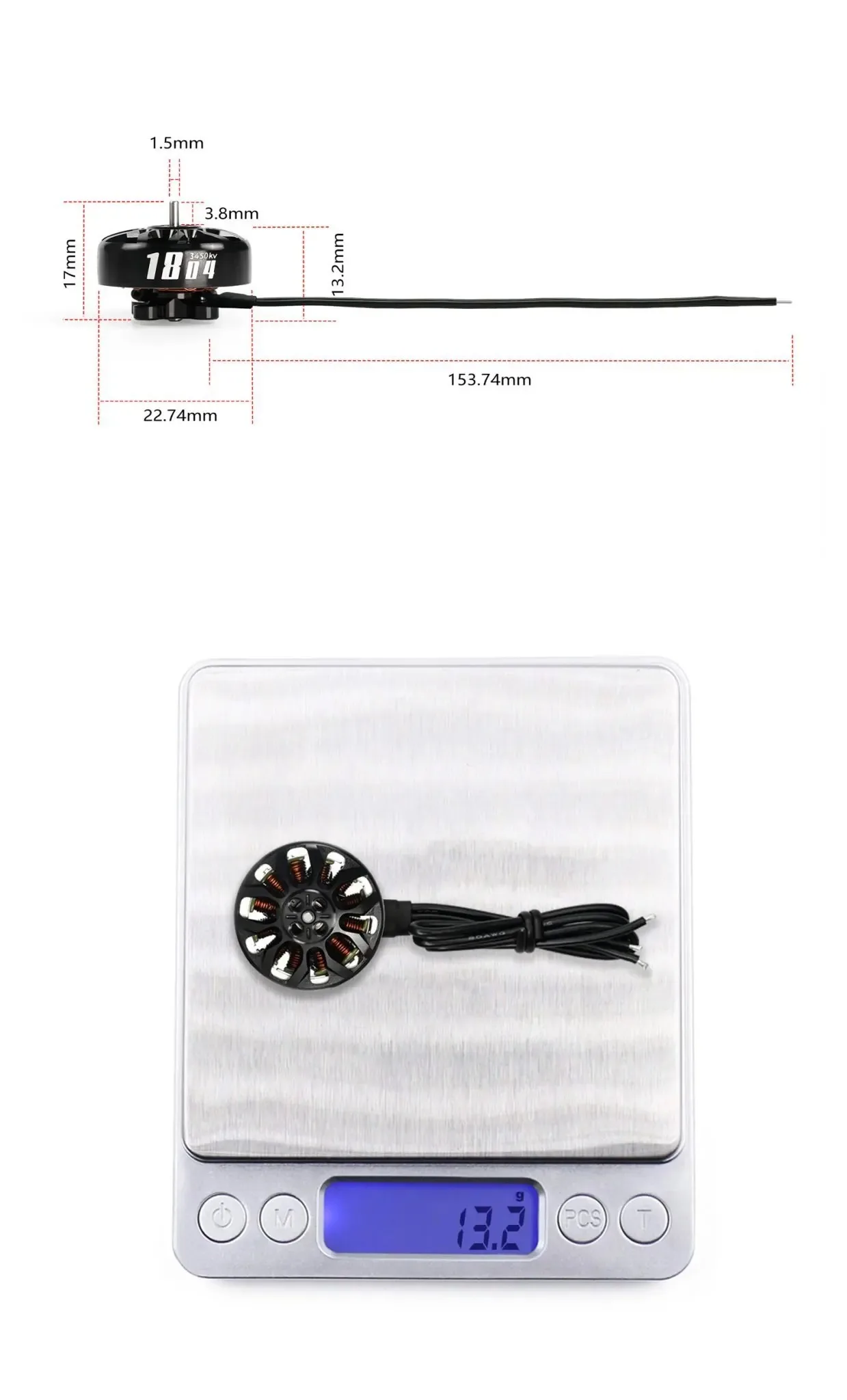

nSize: Φ22.74mm*13.2mm
nLead Wires: 24#AWG 150mm
nNo. of Cells (LiPo) : 4-6S
nMax Continuous Power(W) (3S): 452.2W
nMax Current (5S) : 18.8A
nMounting Holes: 12mm x 12mm(M2 Screw)

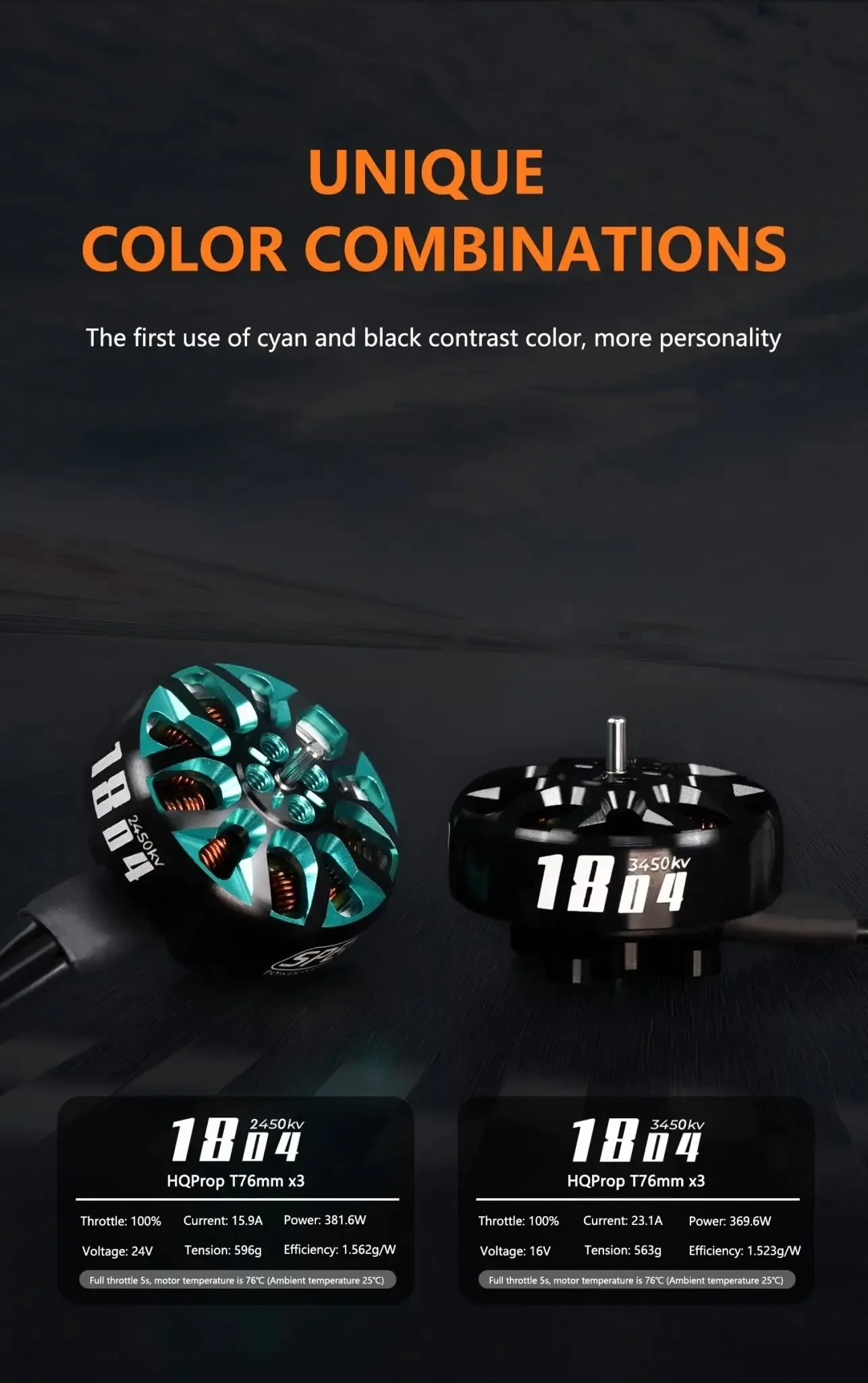

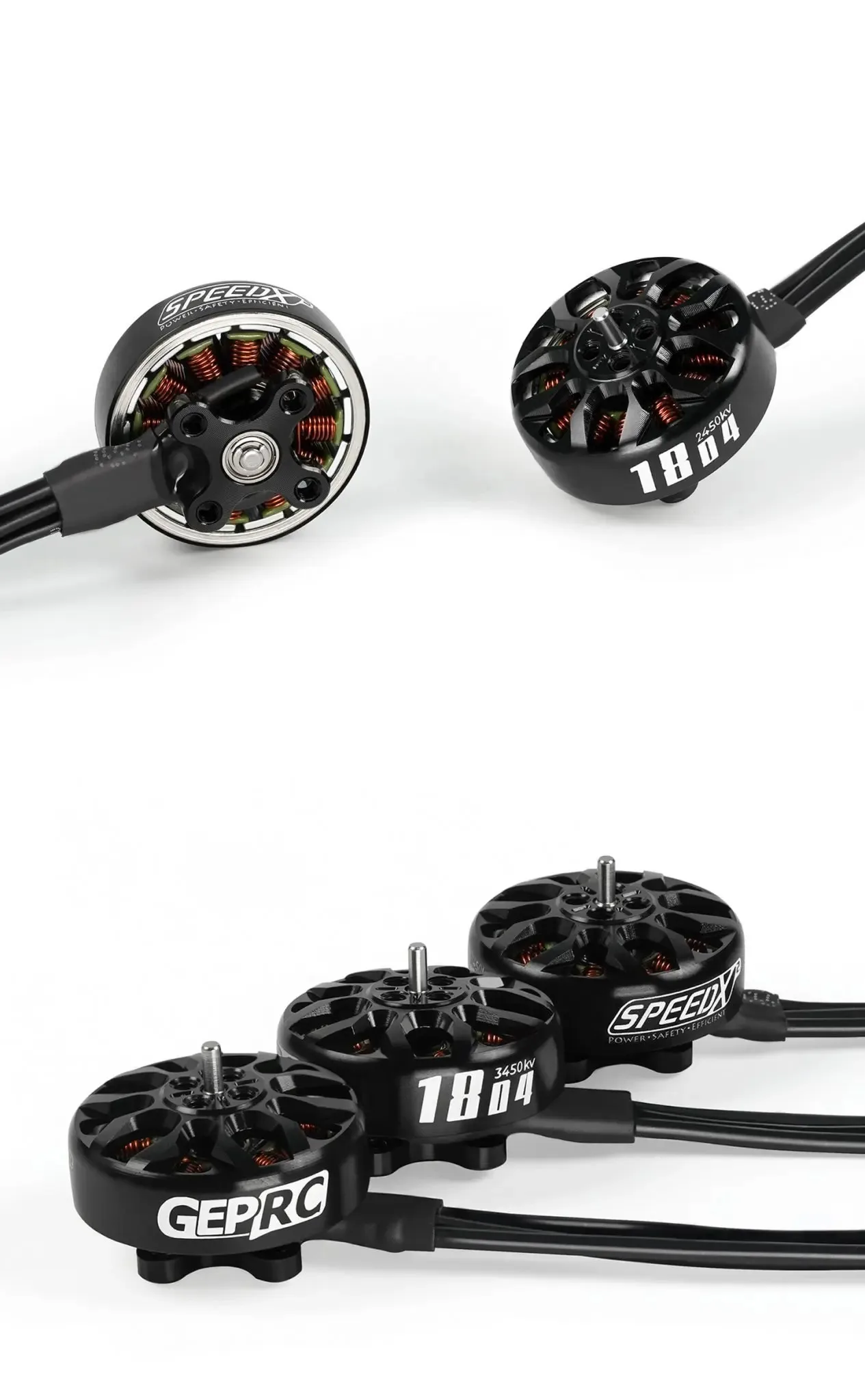

nColor: Black / Black + Cyan

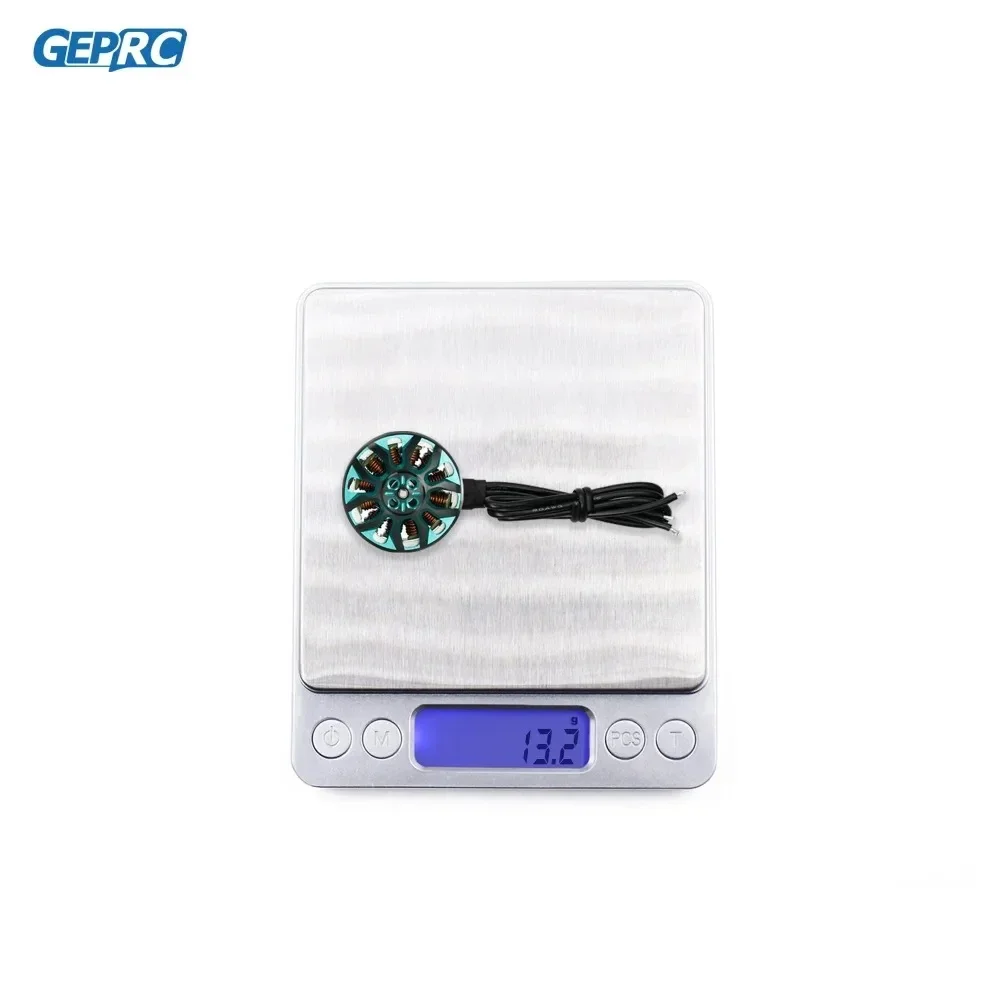

nWeight: 13.2 g （13CM Wire）

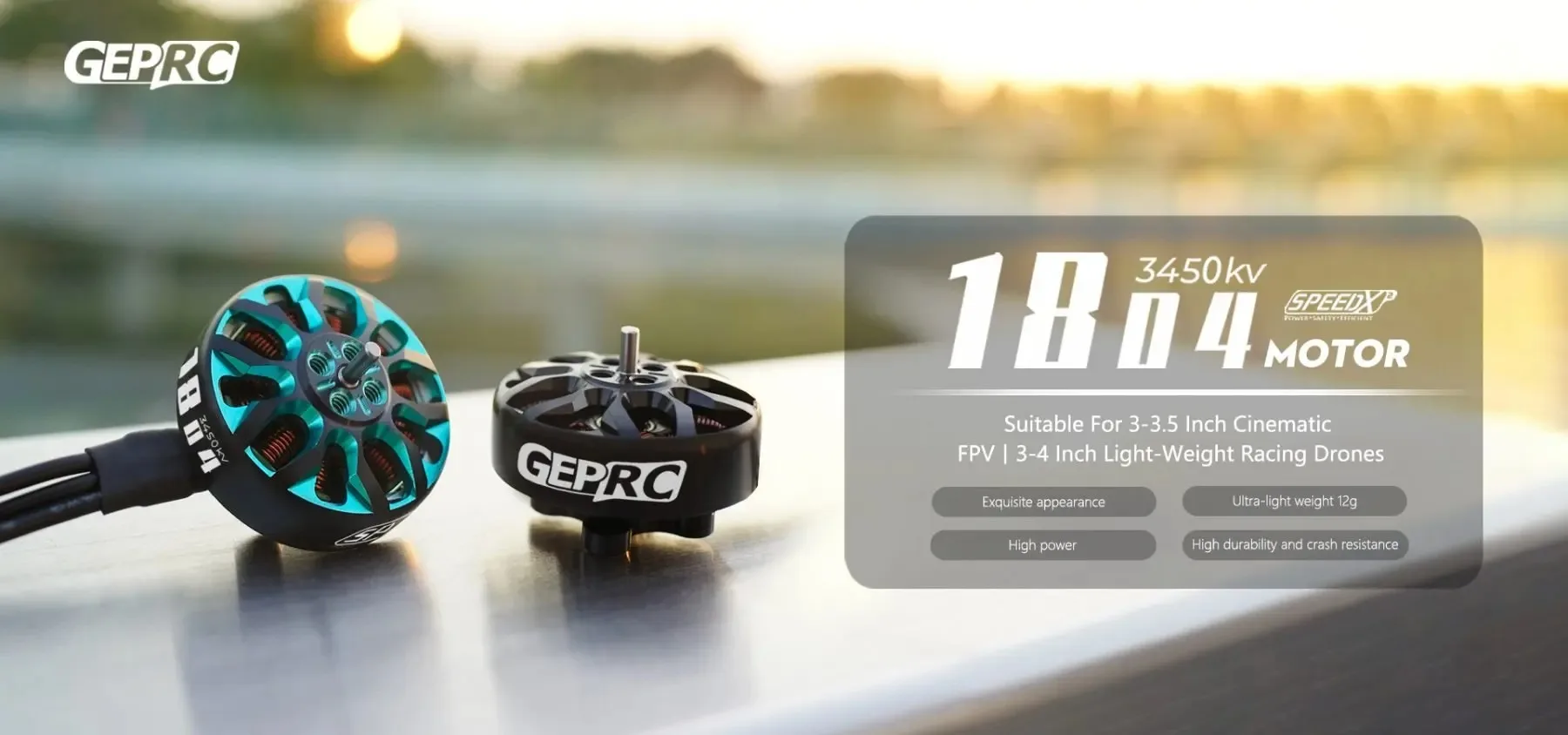

nSuitable Quadcopter: 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV

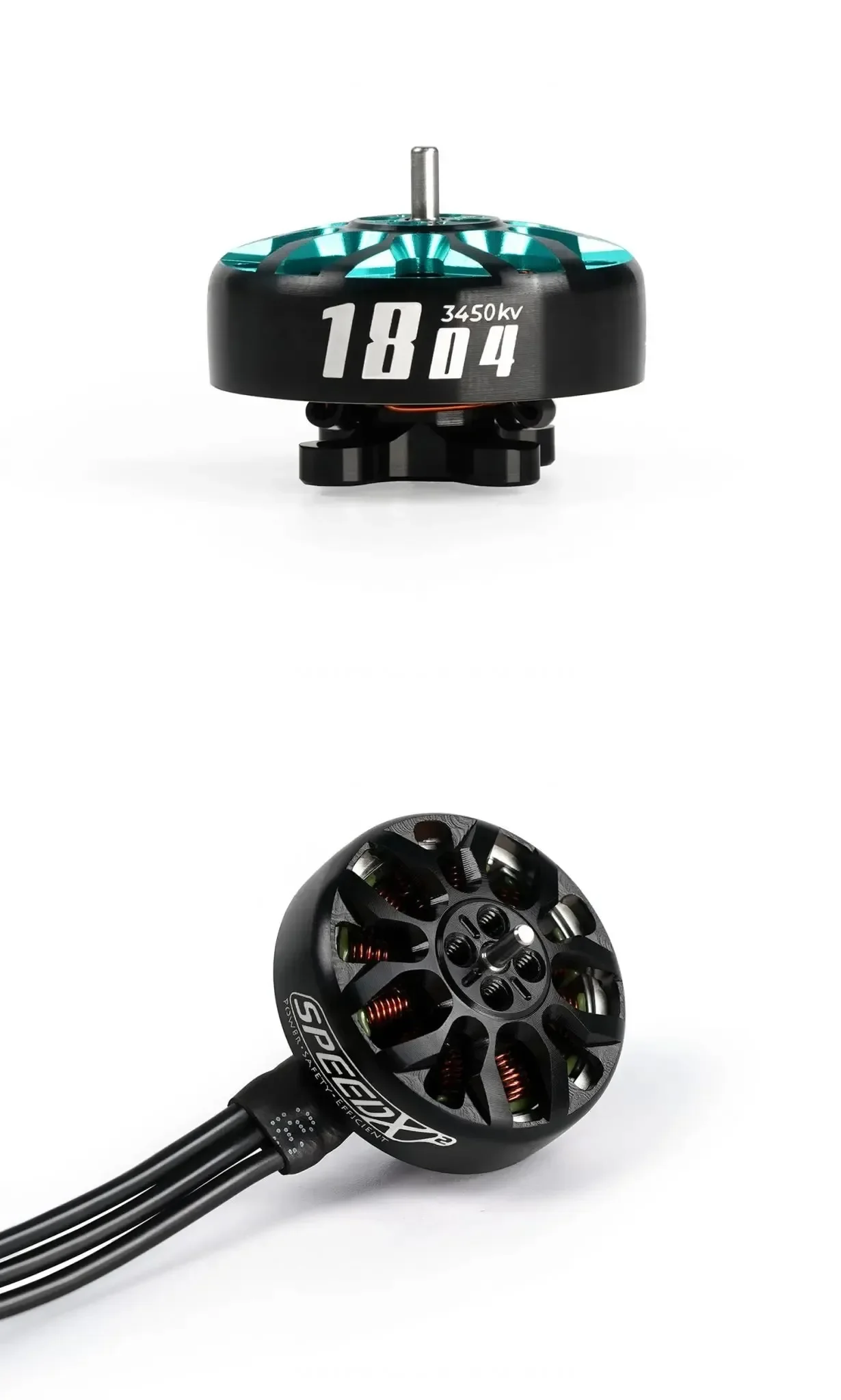

nItem: SPEEDX2 1804-3450KV
nConfiguration: 12N14P
nMagnet: N52H ARC
nStator Diameter: 18mm
nStator Height: 4mm
nShaft Diameter: Φ2mm(in)Φ1.5mm(out)
nSize: Φ22.74mm*13.2mm
nLead Wires: 24#AWG 150mm
nNo. of Cells (LiPo) : 2-4S
nMax Continuous Power(W) (3S): 404.8W
nMax Current (5S) : 25.3A
nMounting Holes: 12mm x 12mm(M2 Screw)
nColor: Black / Black + Cyan
nWeight: 13.2 g （13CM Wire）
nSuitable Quadcopter: 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV
nIncludes
n1 x SPEEDX2 1804 Motor
n5 x M2*6mm Screw
n5 x M2*8mm Screw
