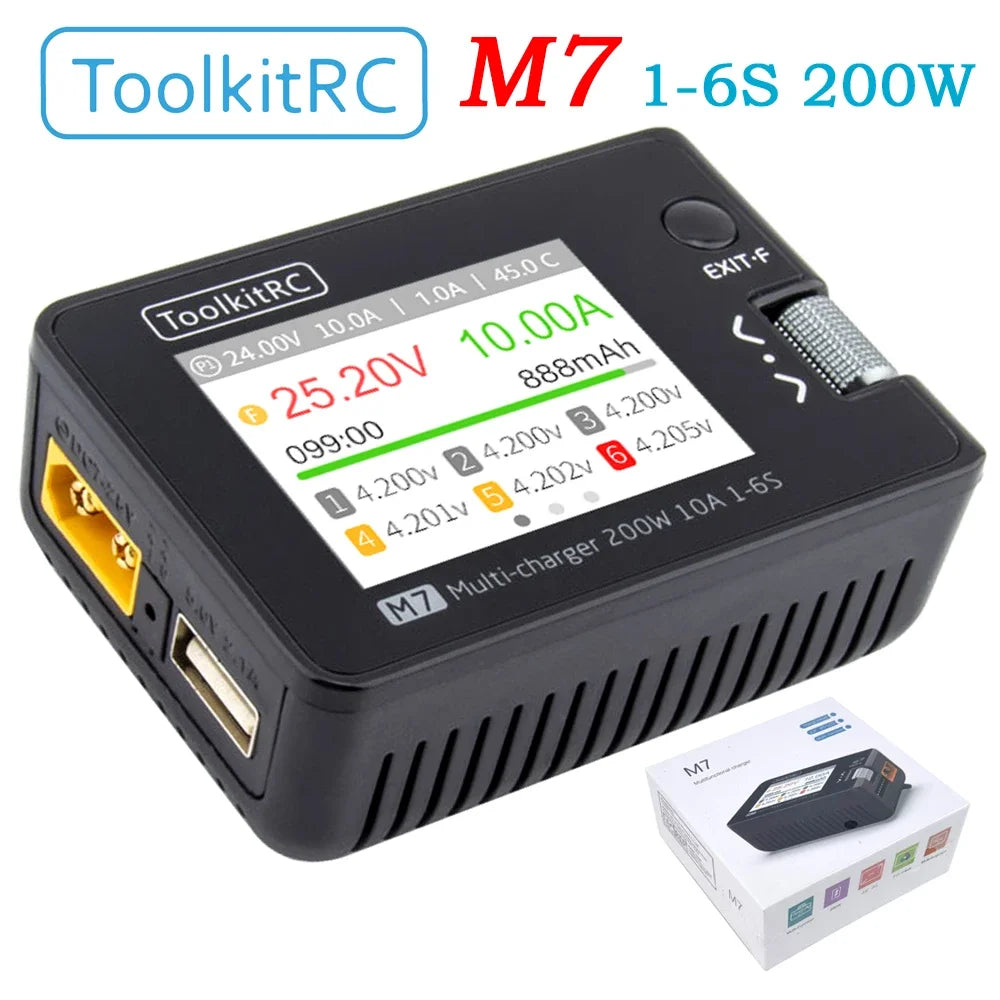

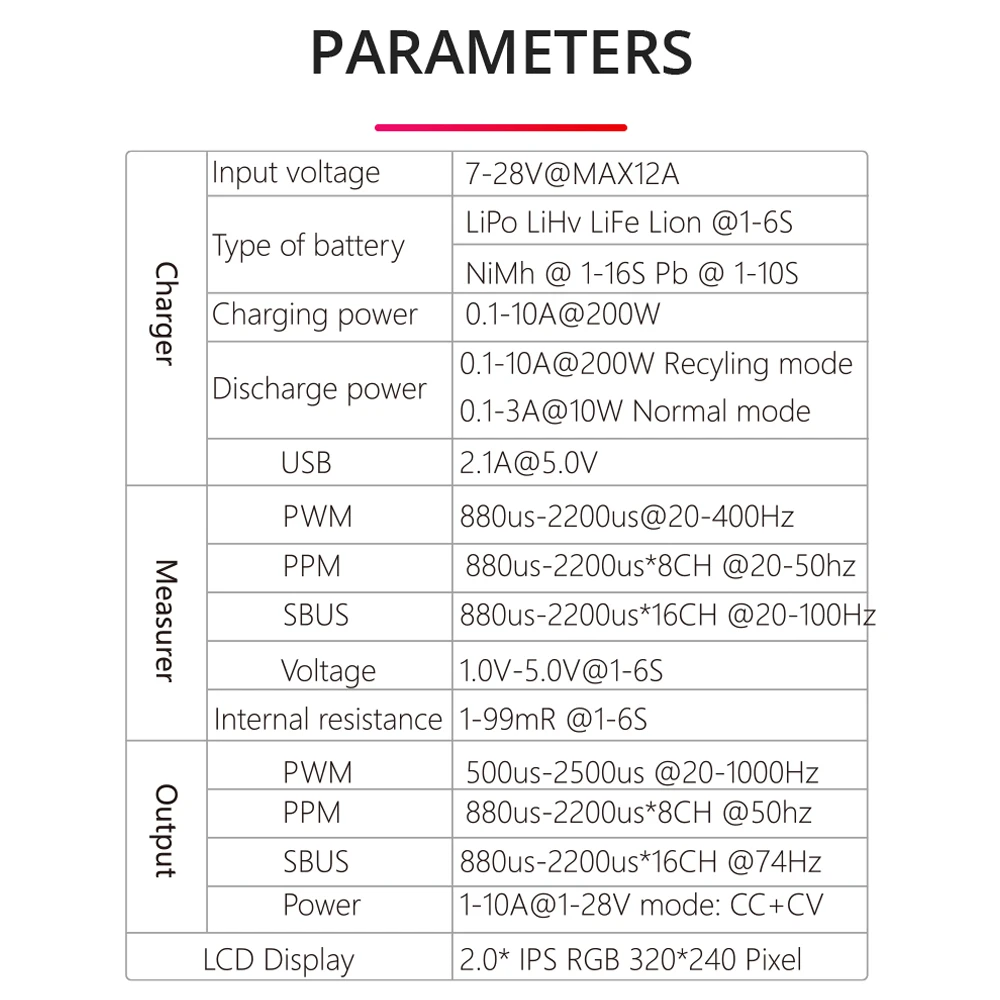

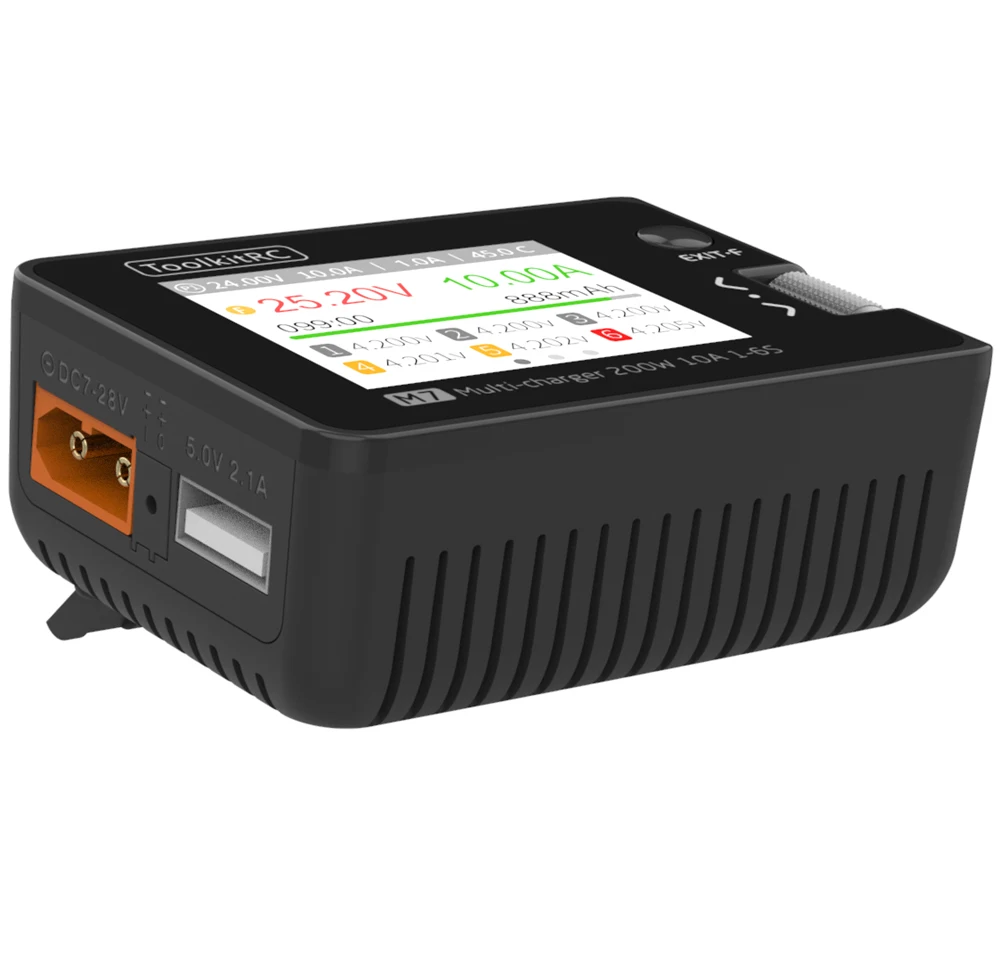

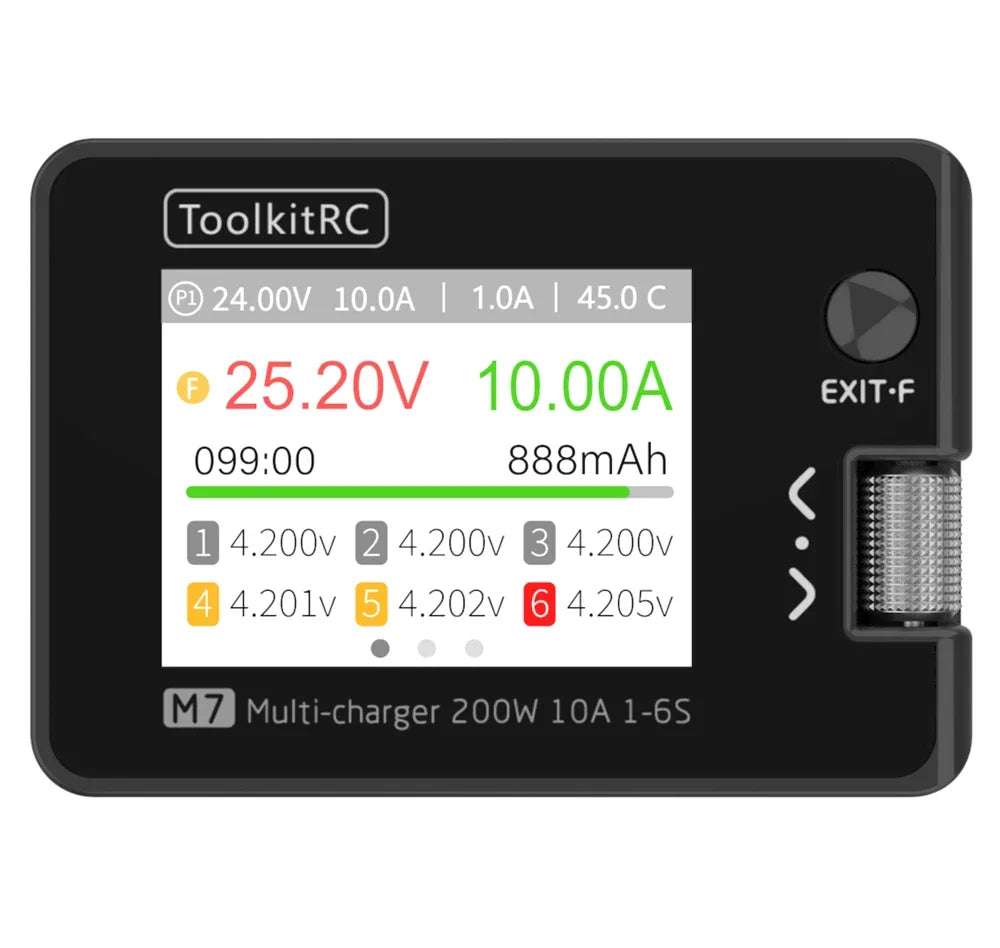

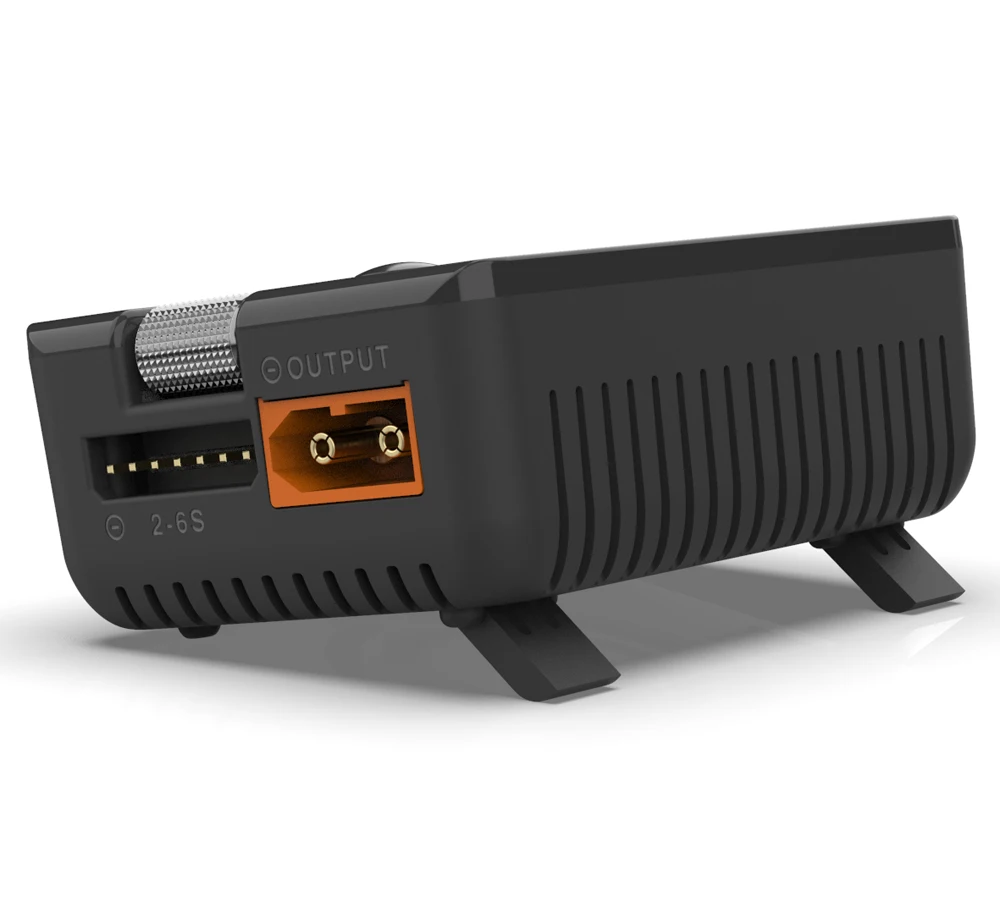

M7 SPECS:
Product size: 73*51*27 mm
Product weight: 90g
Pack size: 84*79*39 mm
Pack weight: 150g

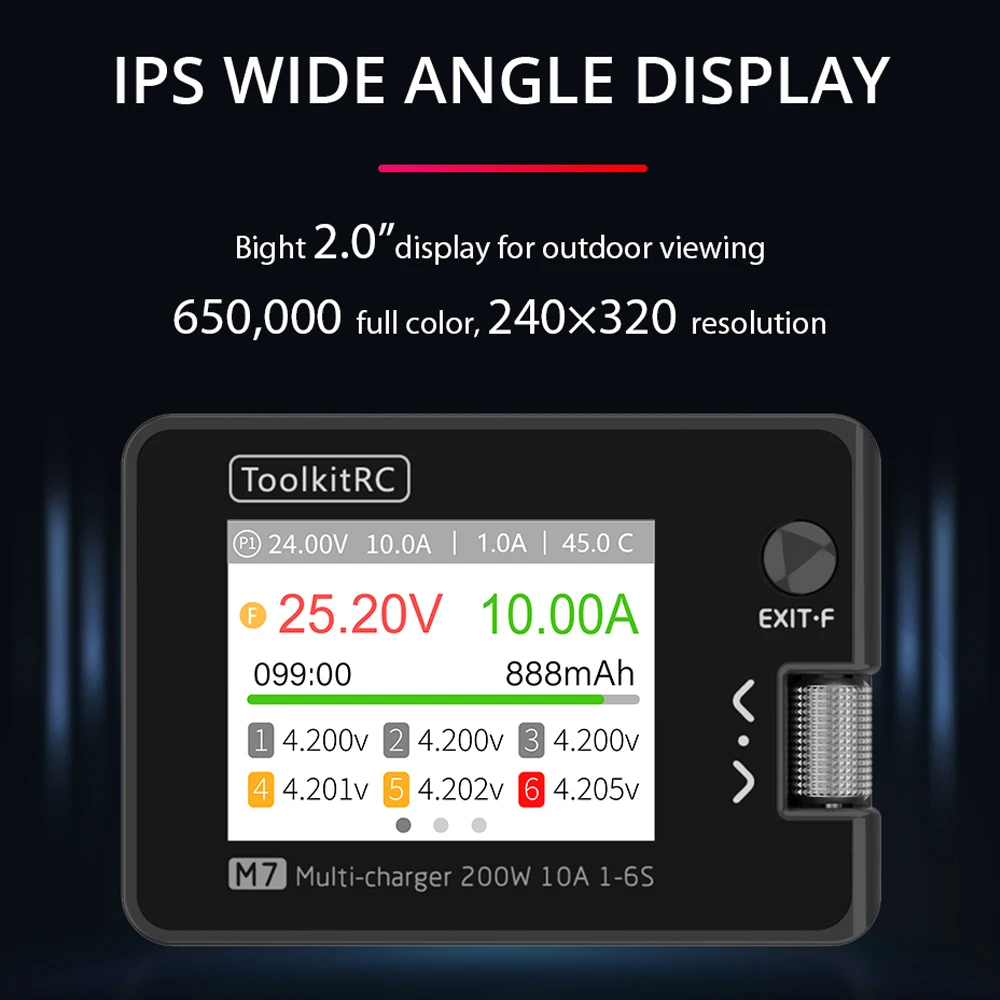

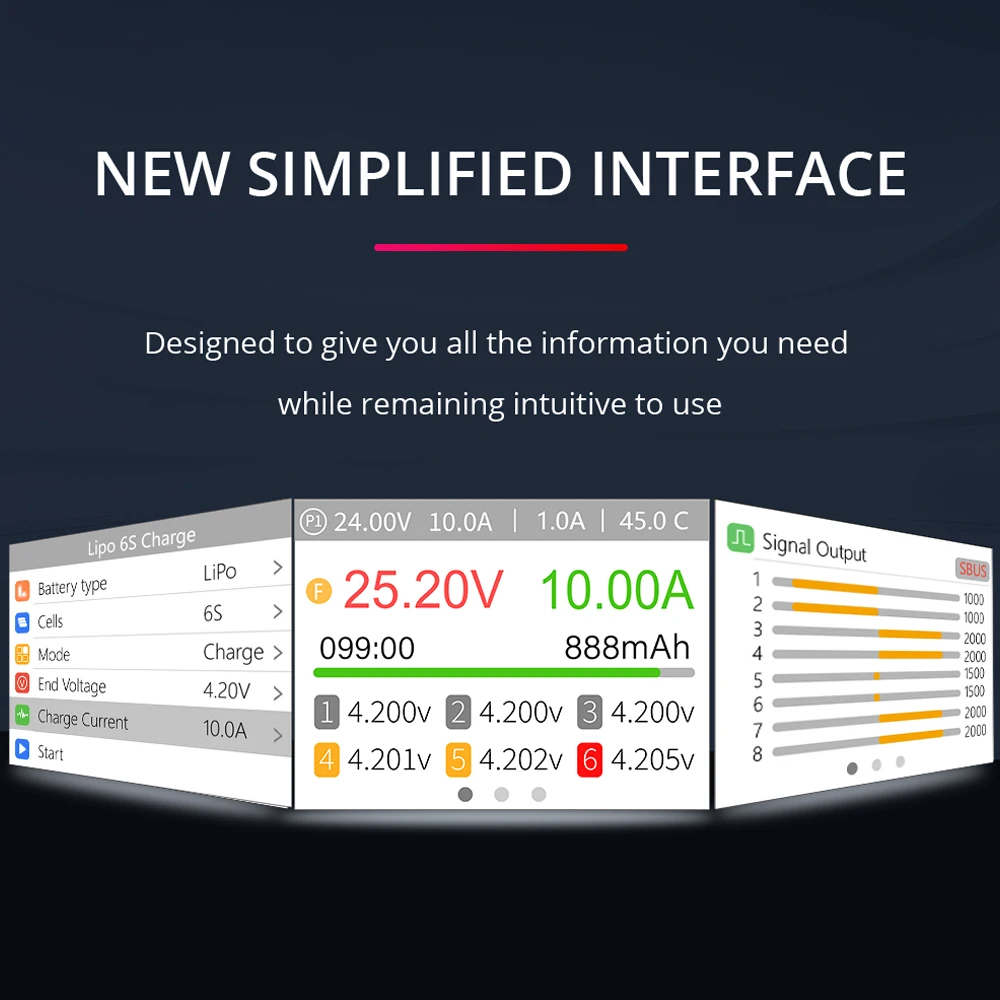

LCD: IPS 2.0inch LCD 320*240 Pixel

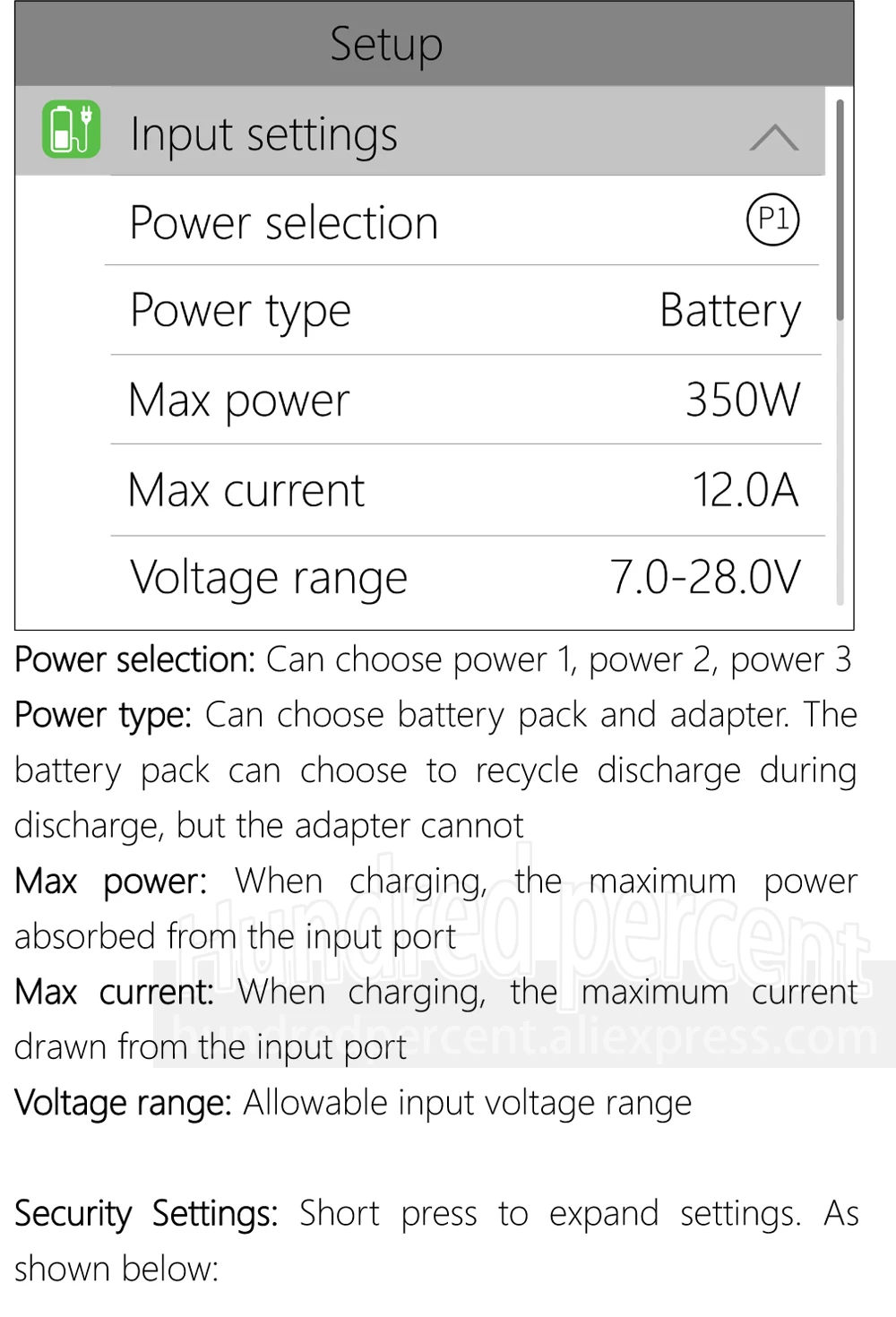

Input voltage: 7.0-28.0V @MAX 12A
Type of battery: Lipo LiHV LiFe Lion@1-6
NiMh @1-16S Pb @1-10S
Balance current: 400mA @2-6S

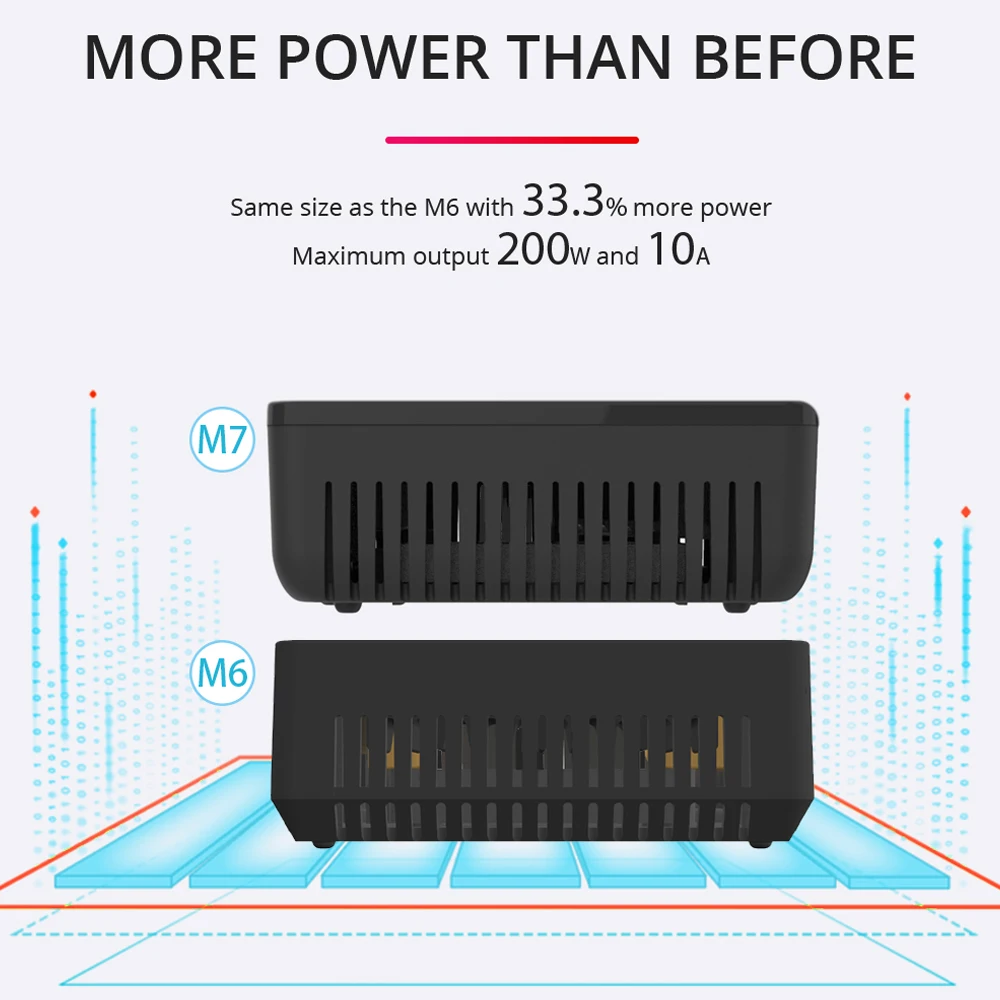

Charger power: 200W @MAX 10A
Discharge power: 200W @MAX 10A Recycle mode
10W@3A Normal mode

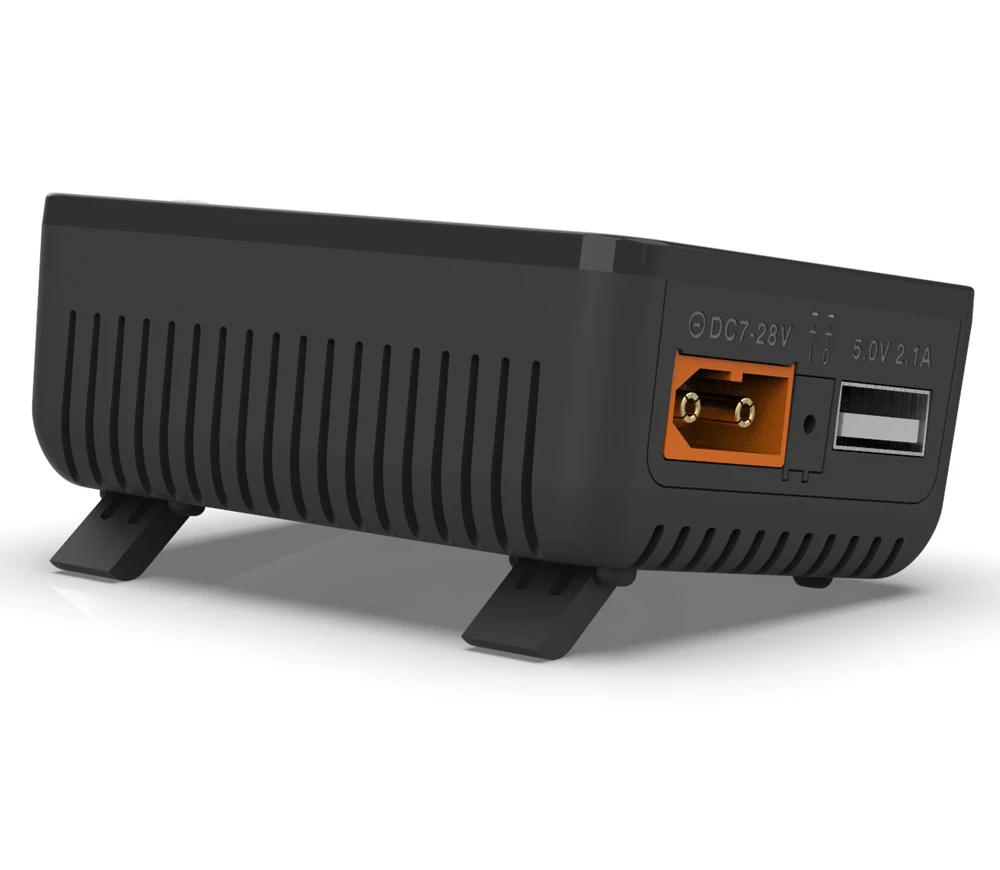

USB: 2.1A @5.0V or Upgrade
Input:
PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
Internal resistance: 1-99mR @1-6S

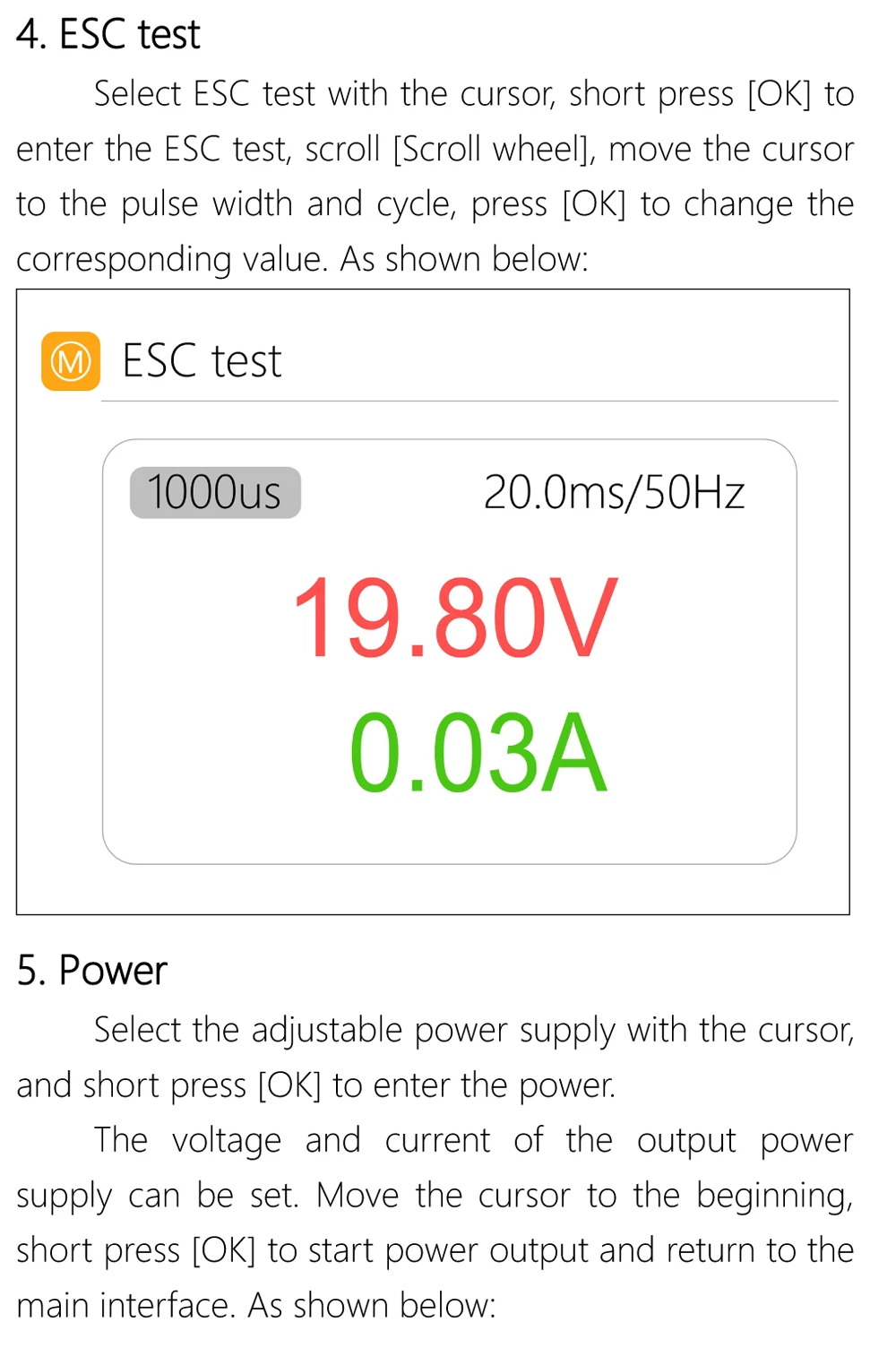

ESC: 200W@10A PWM Output
Output:
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
OverCurrent Cutoff time: <5ms

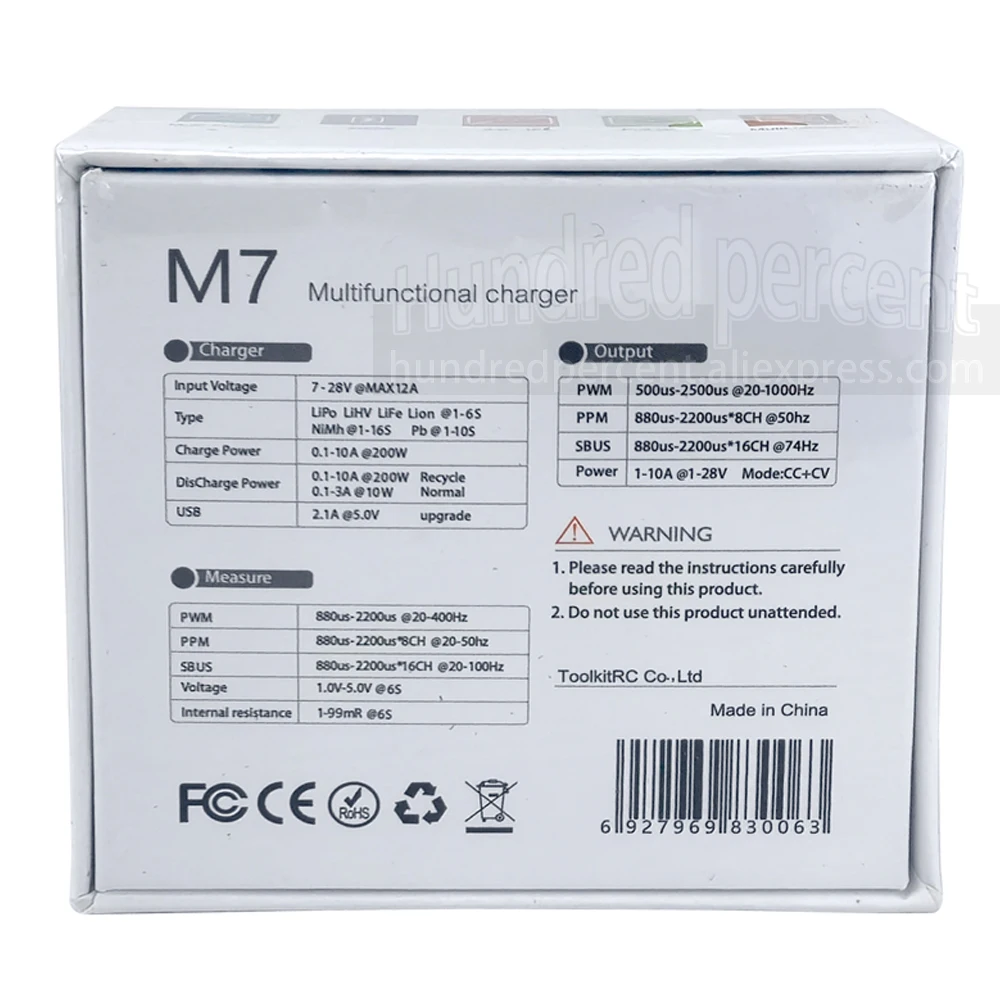

Packaging included:

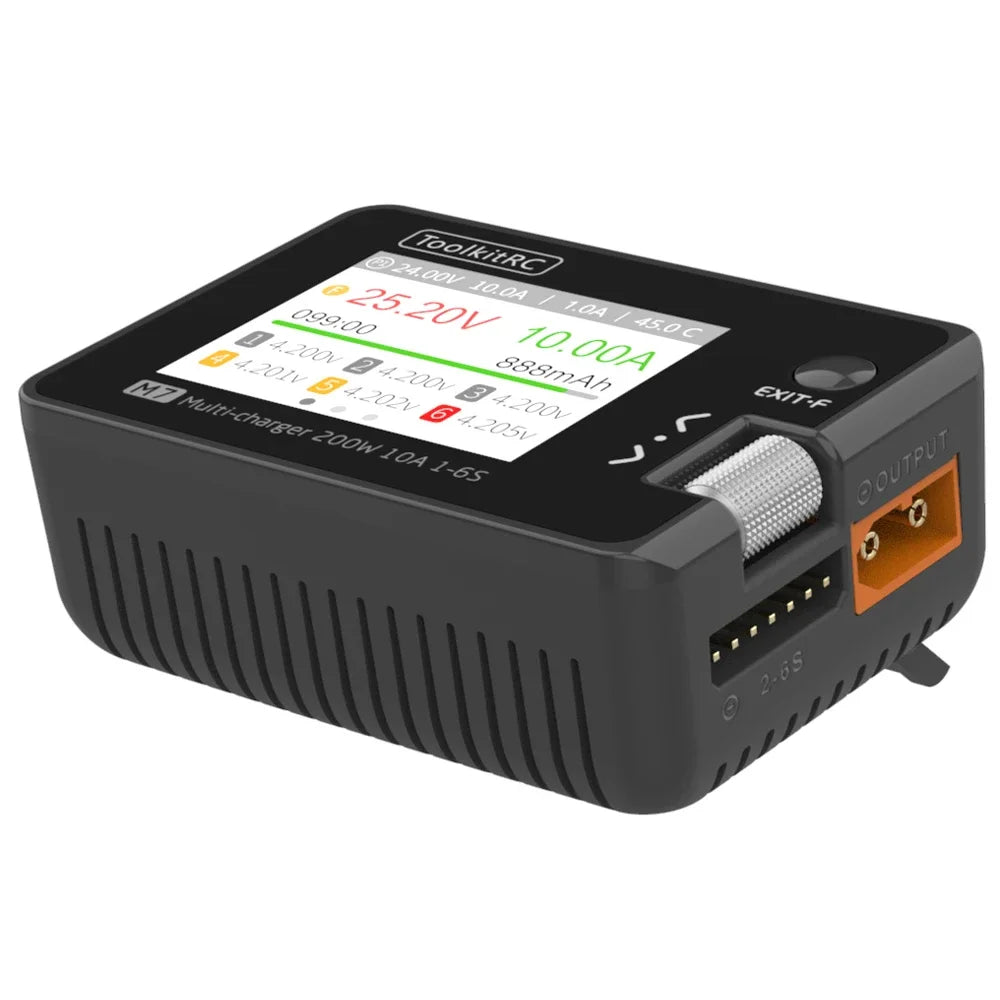

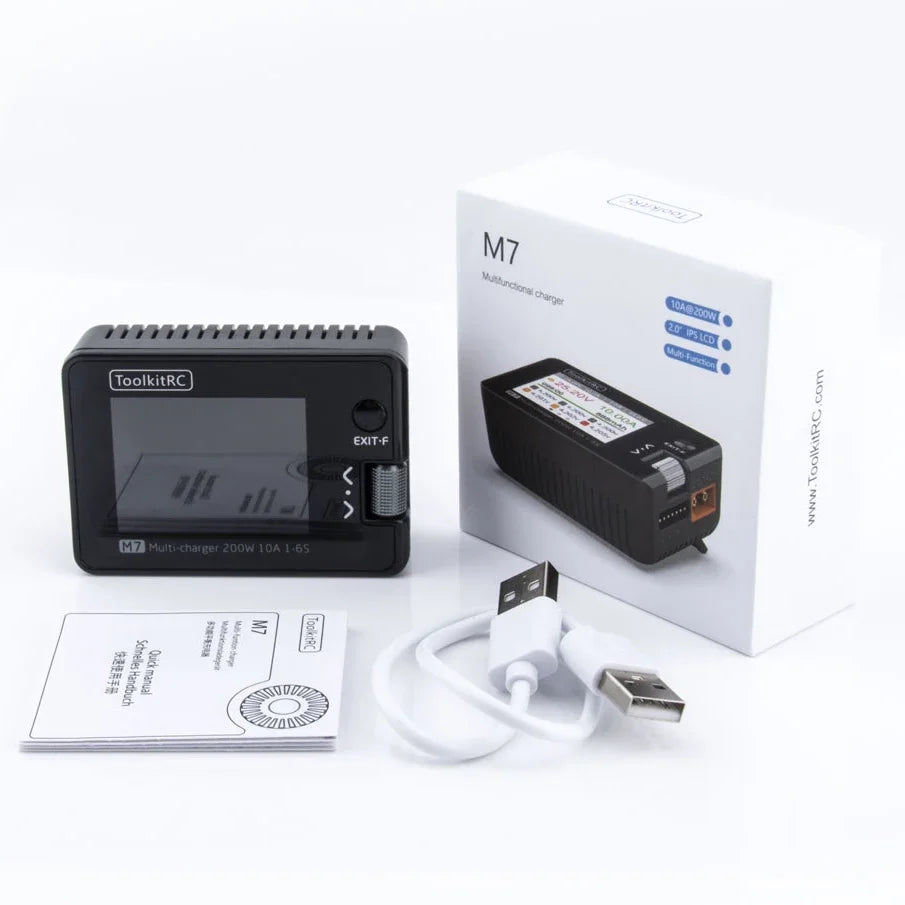

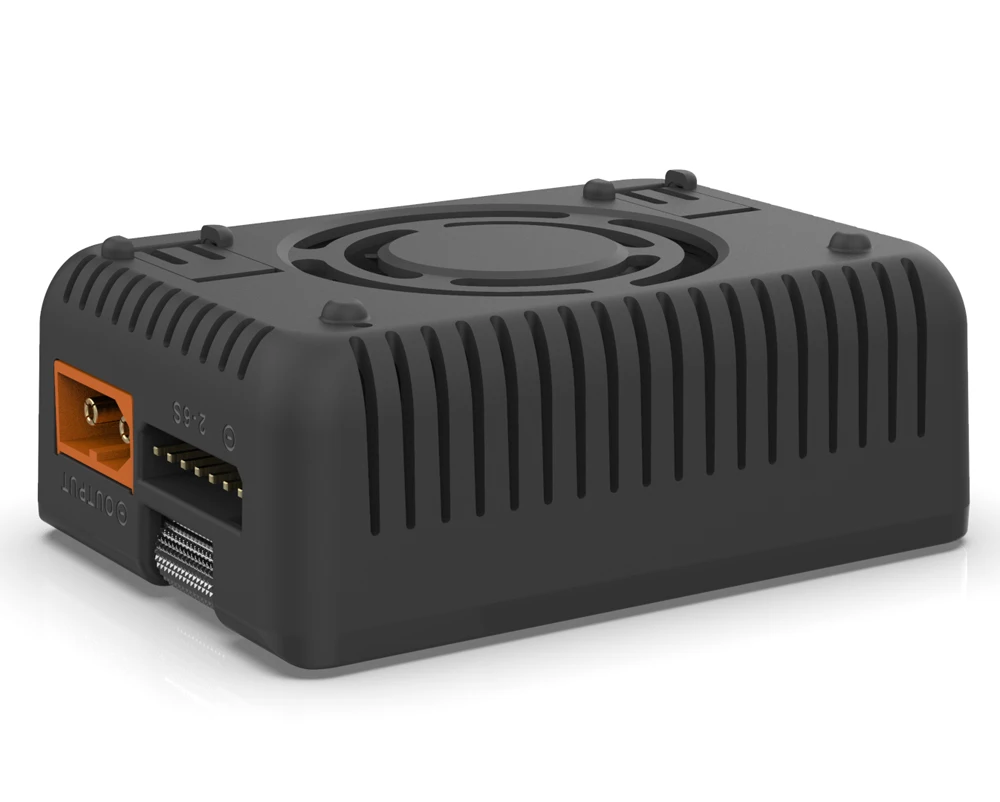

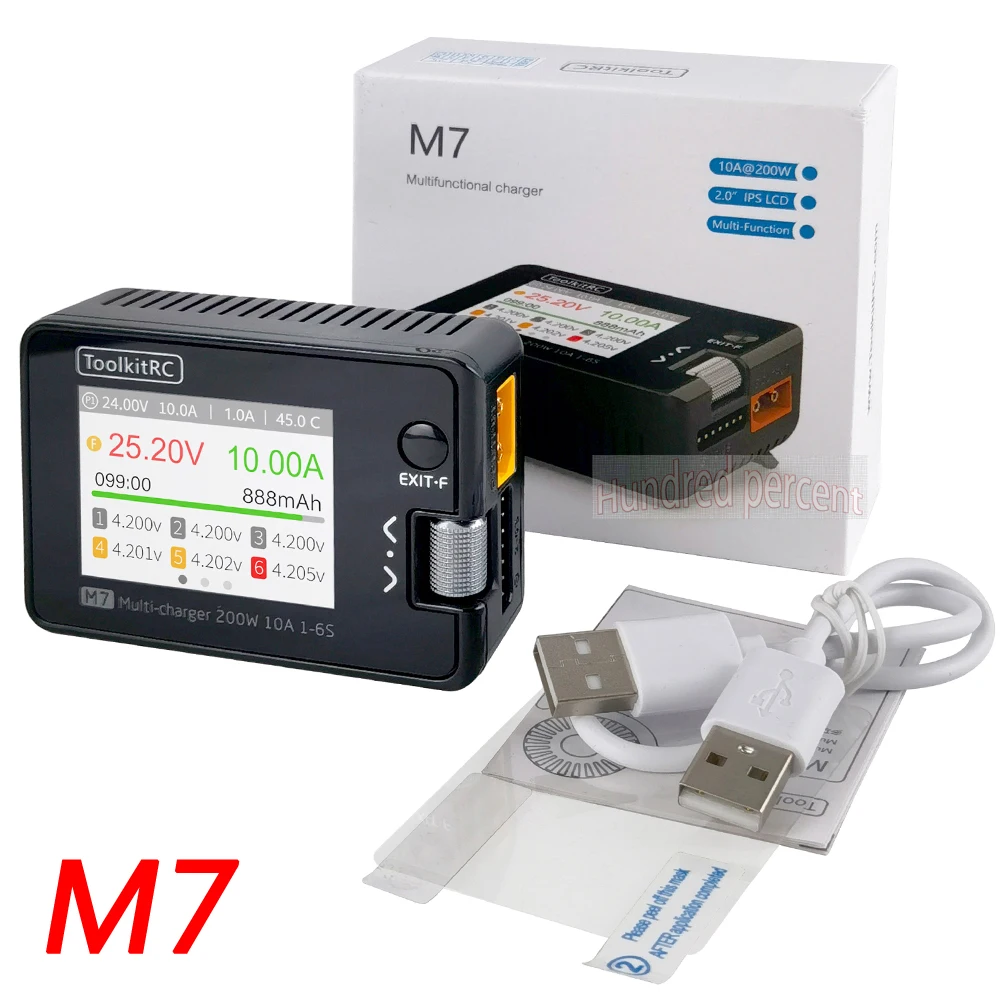

1X ToolkitRC M7 Charger

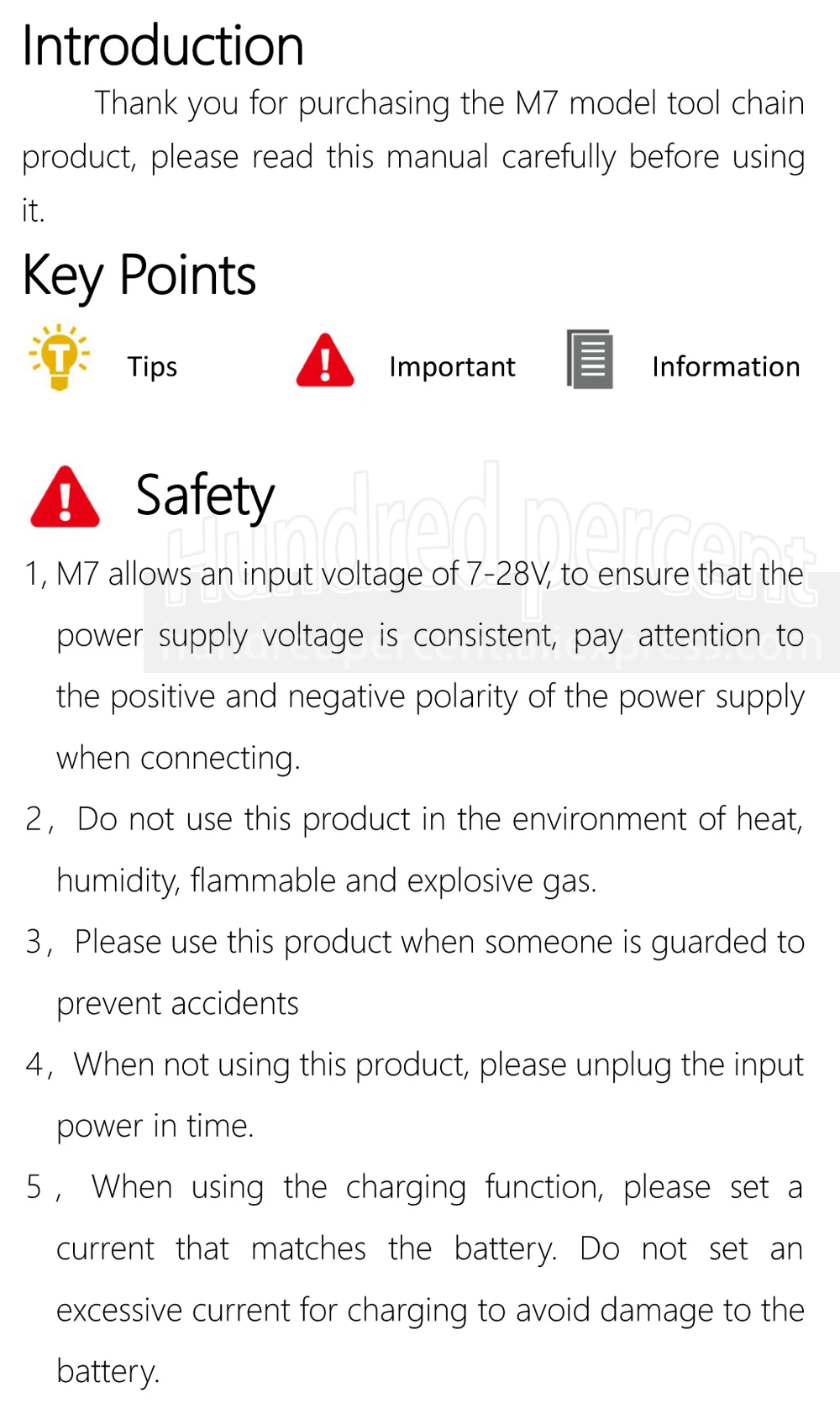

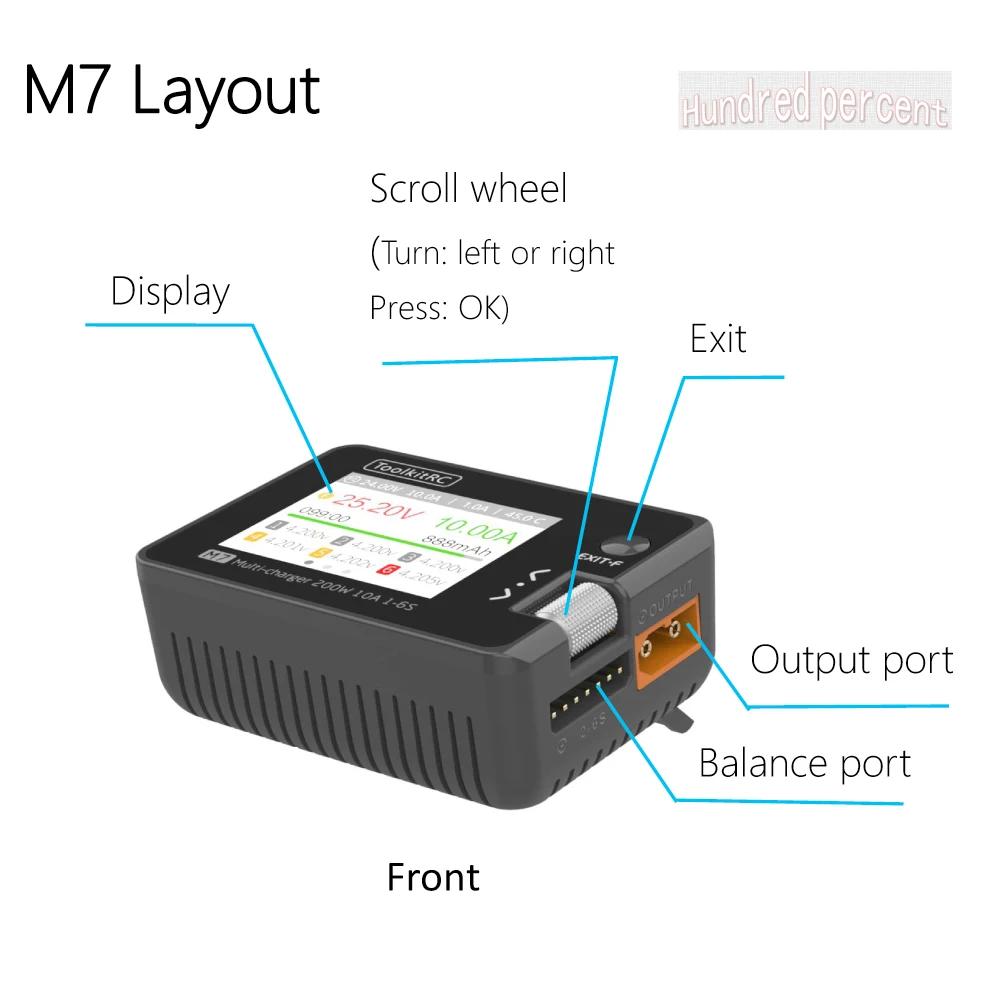

Product description

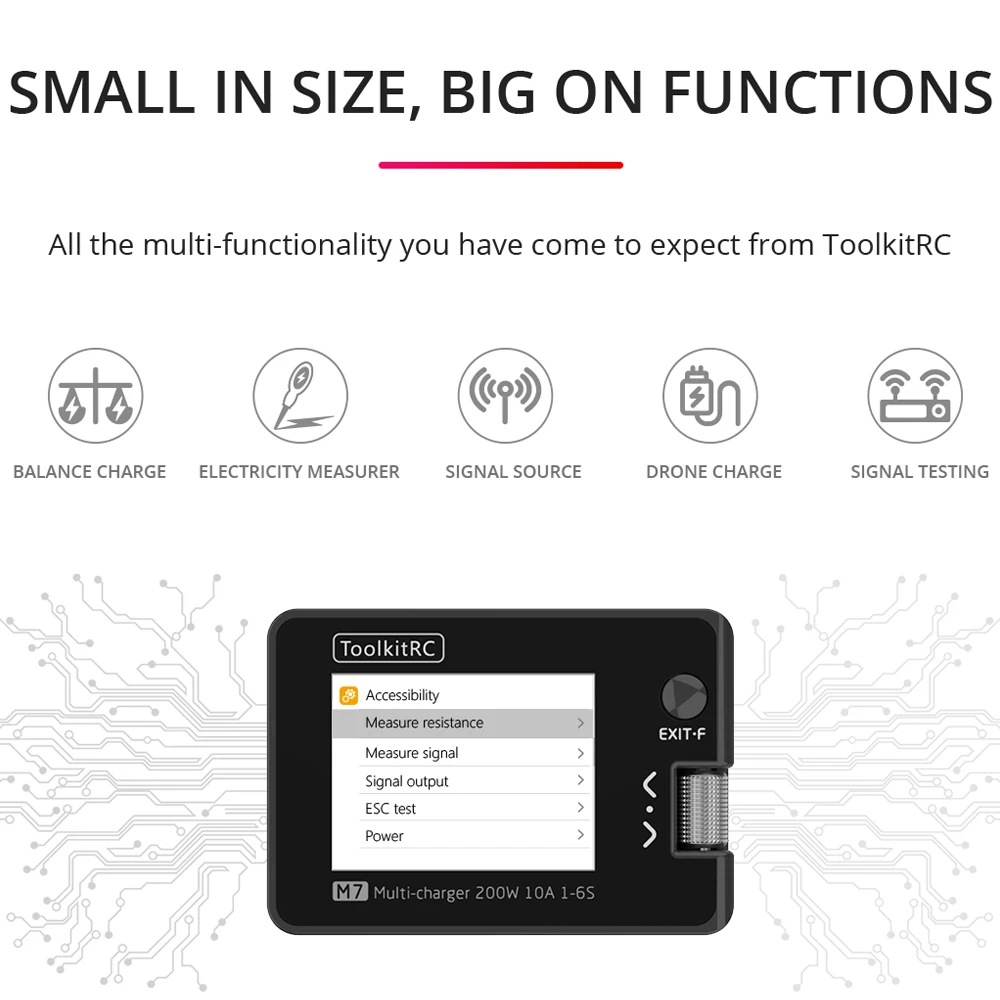

M7 is a multifunctional tool chain product that
integrates functions such as a balanced charger and
discharger , an electric display, a signal measuring device,
and a signal source.

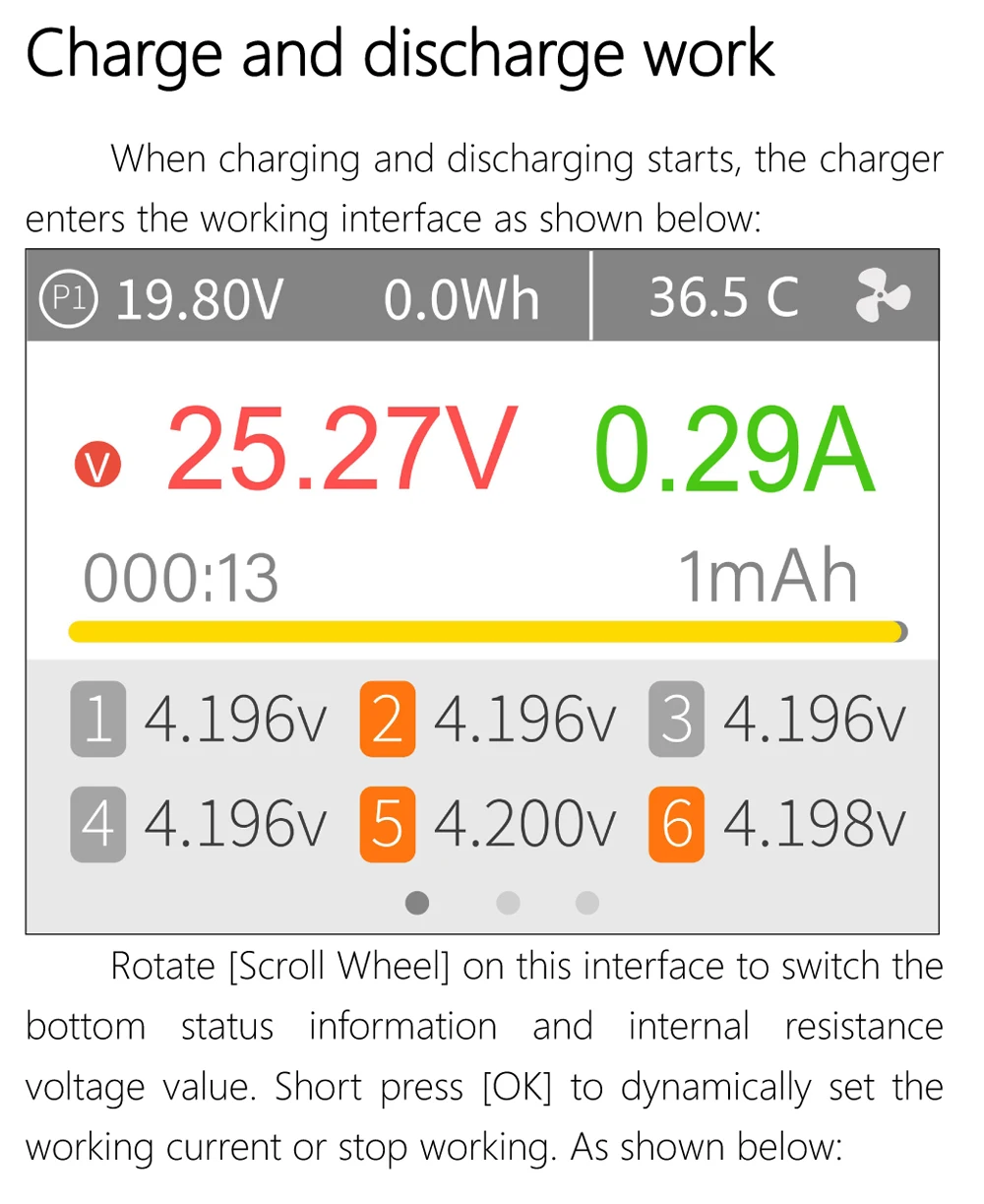

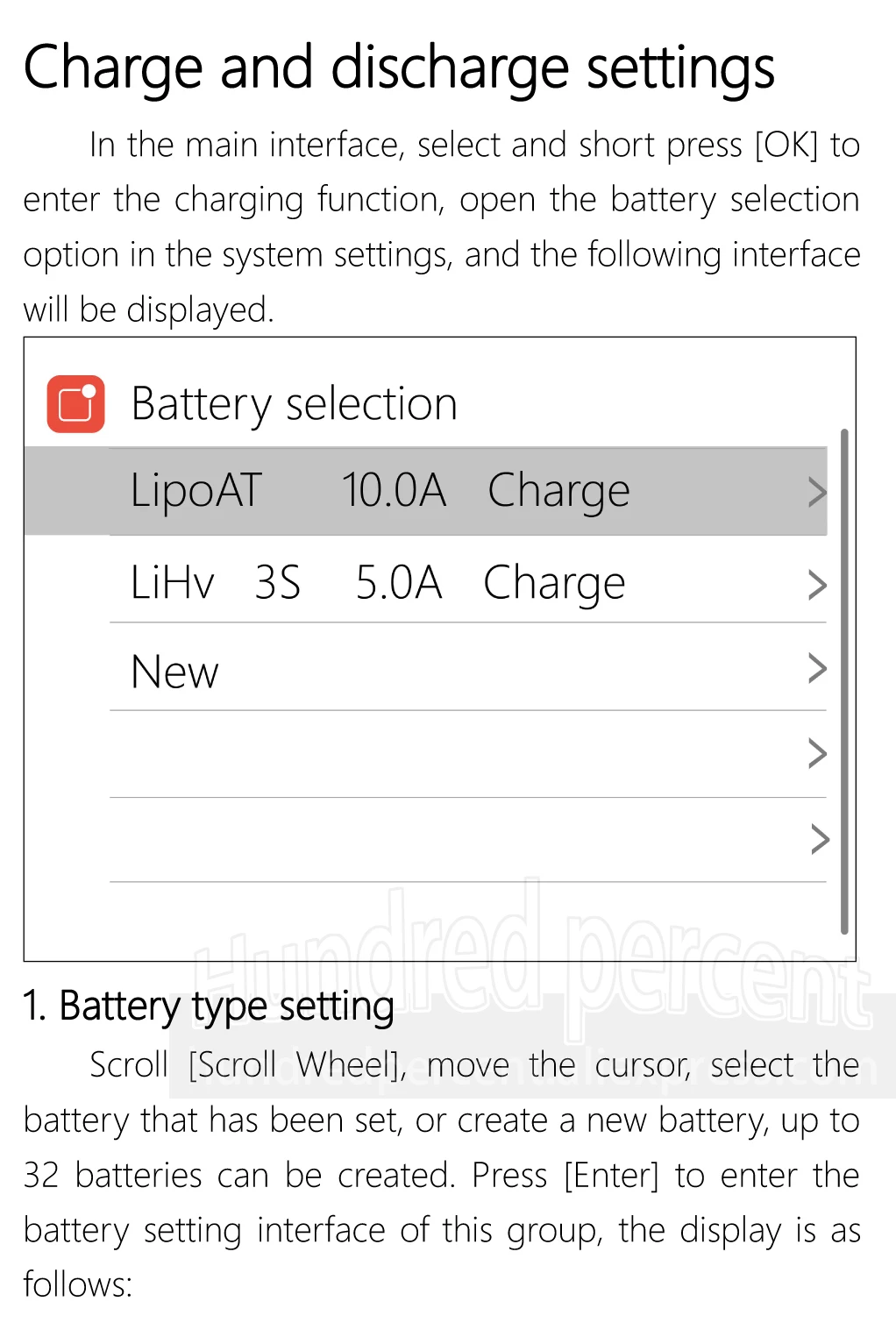

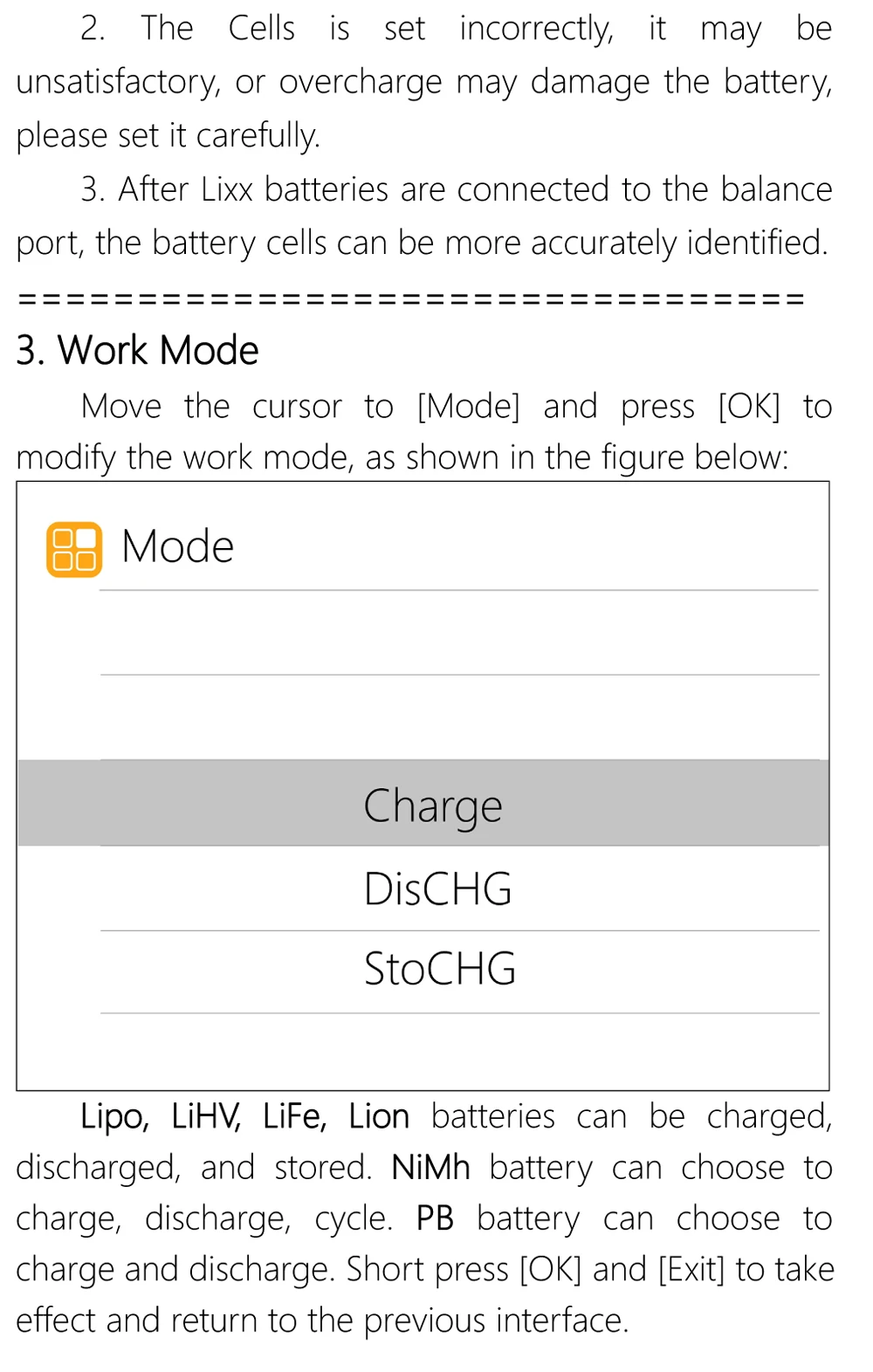

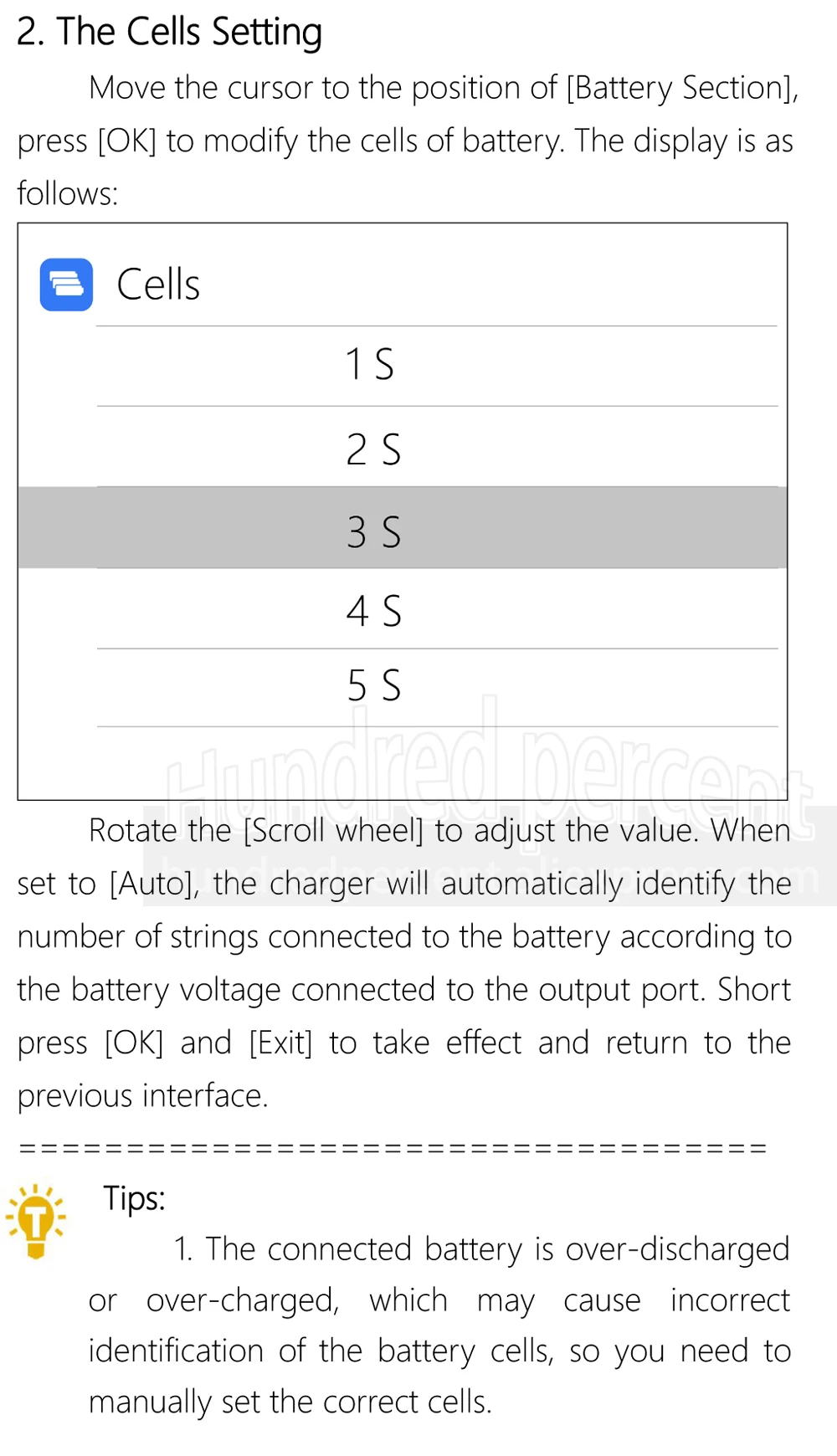

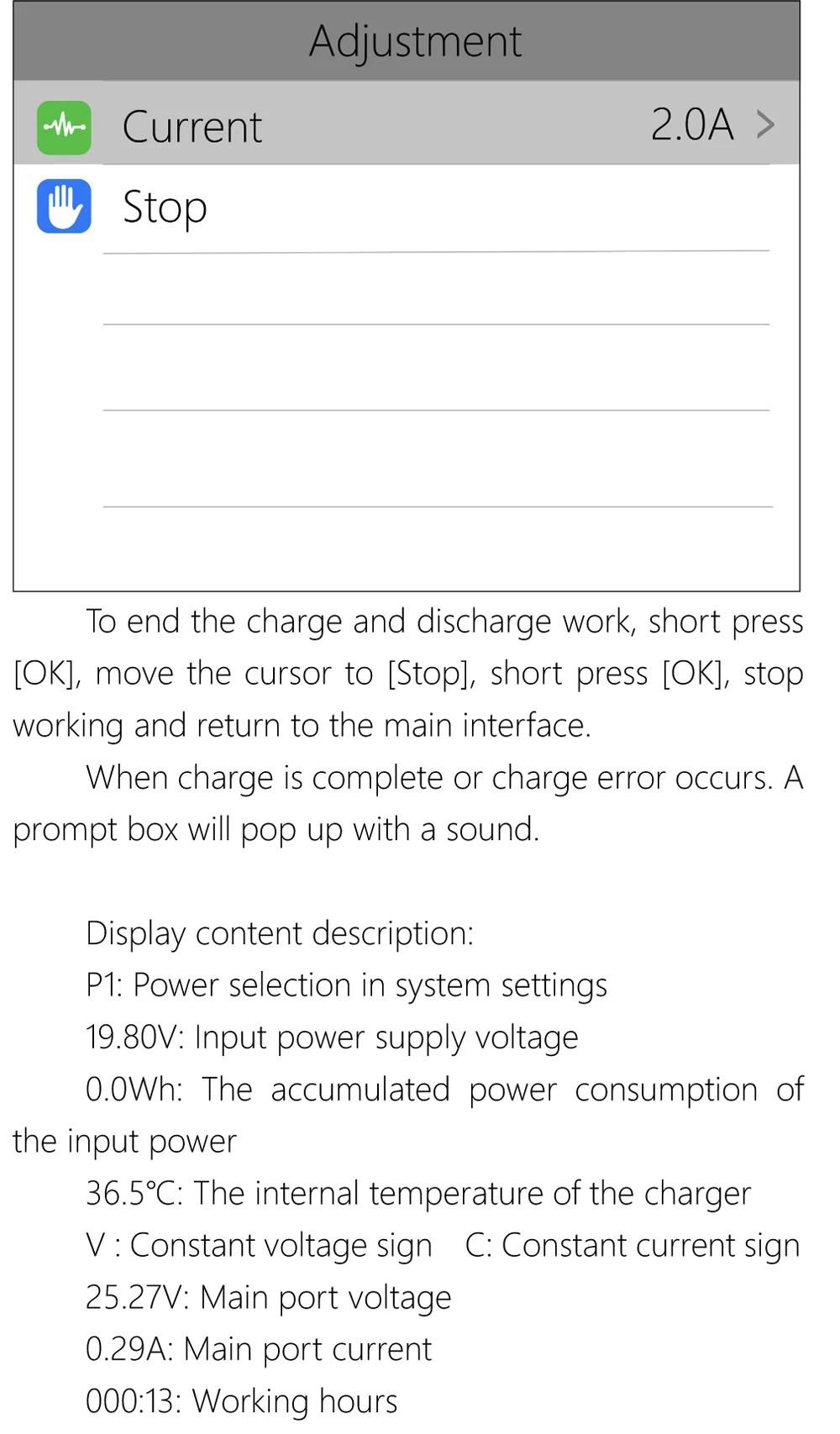

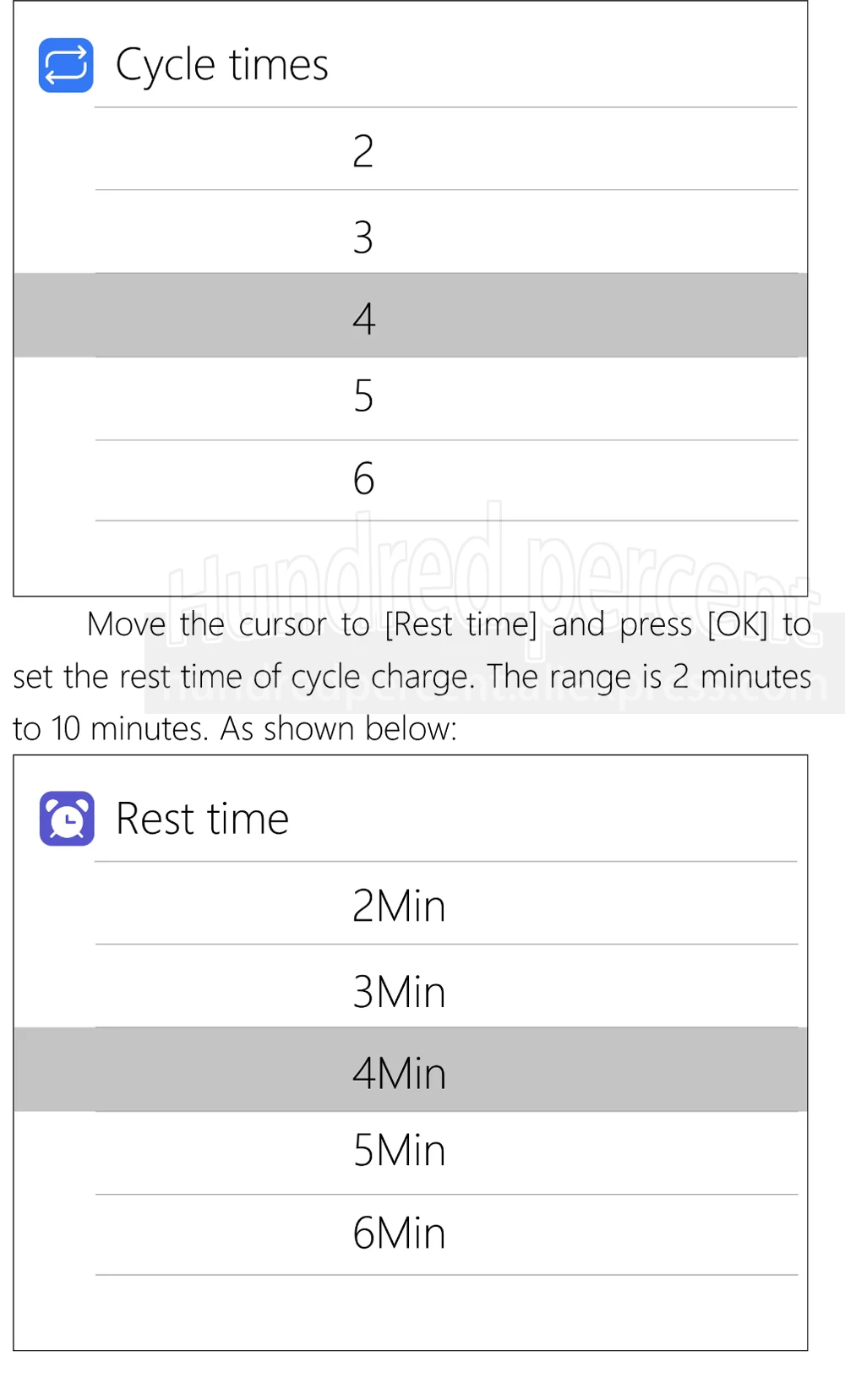

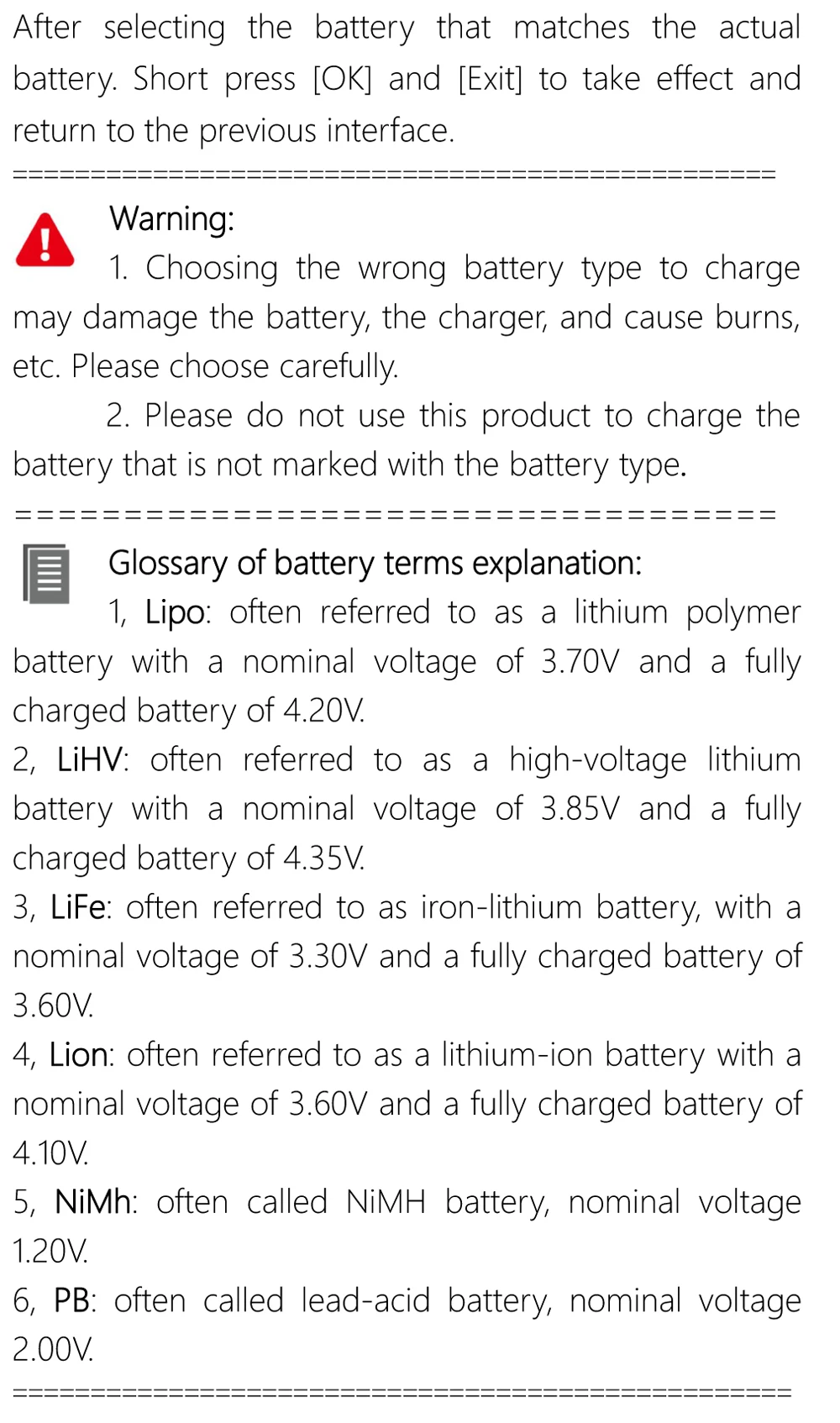

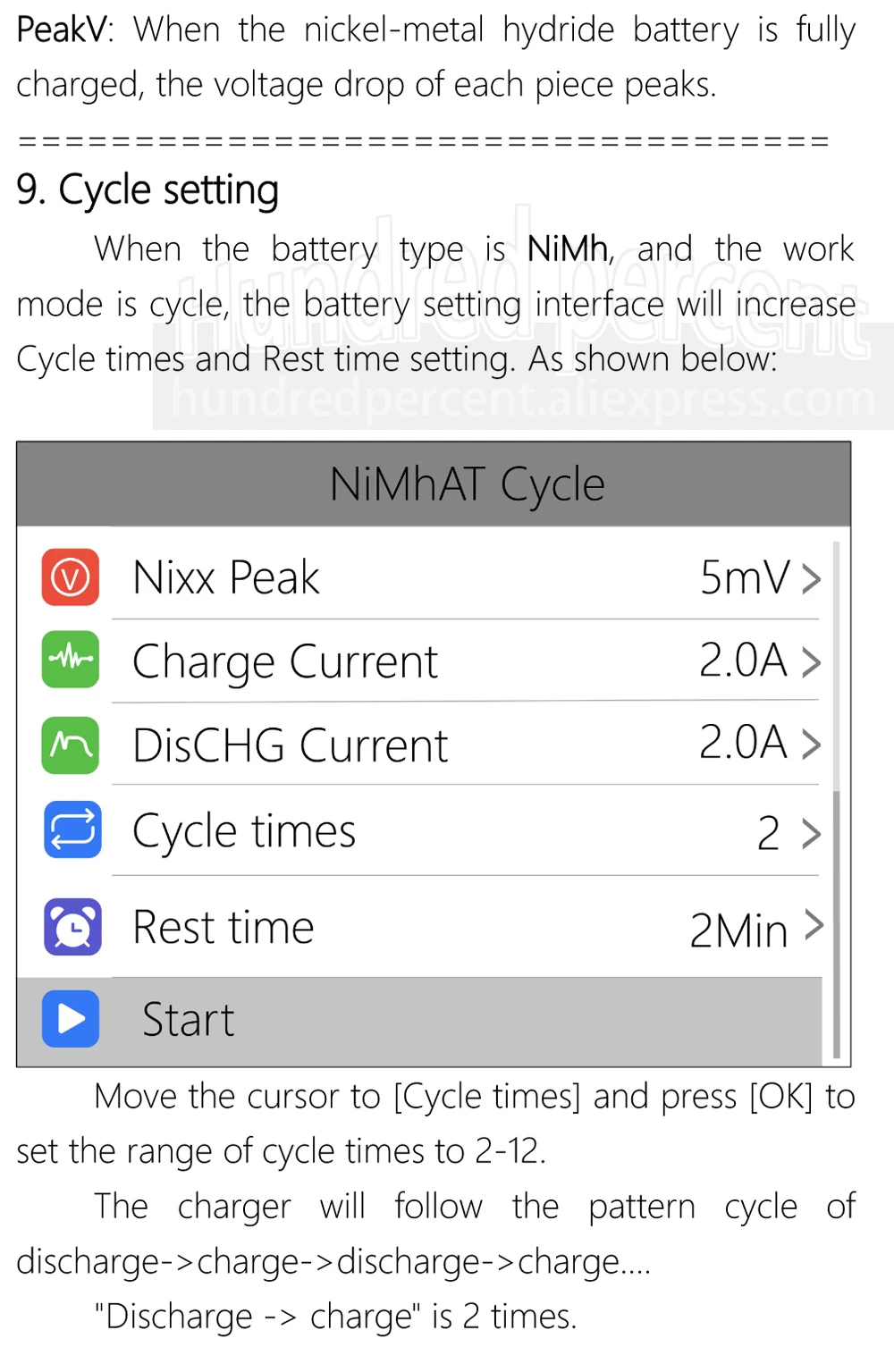

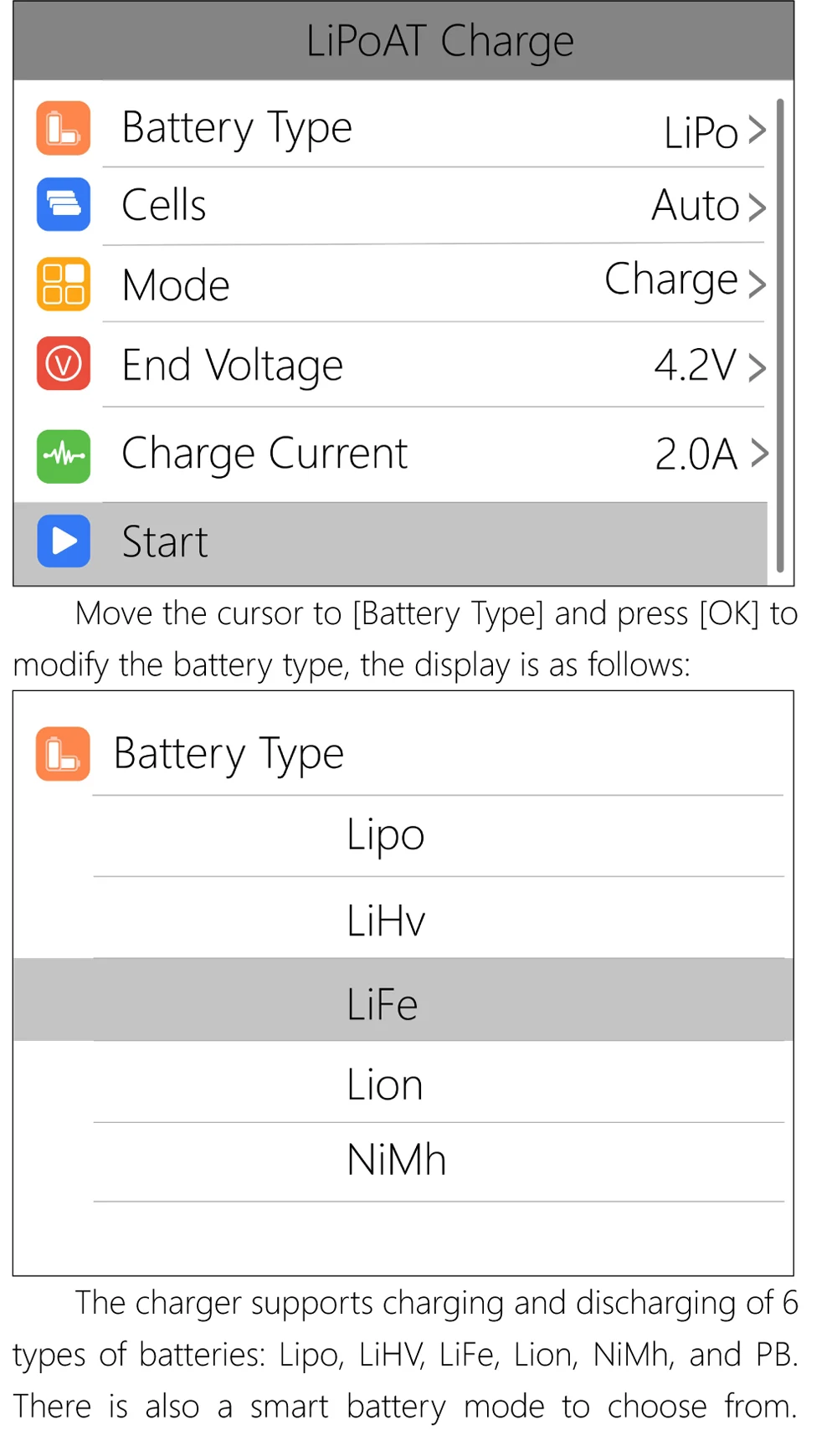

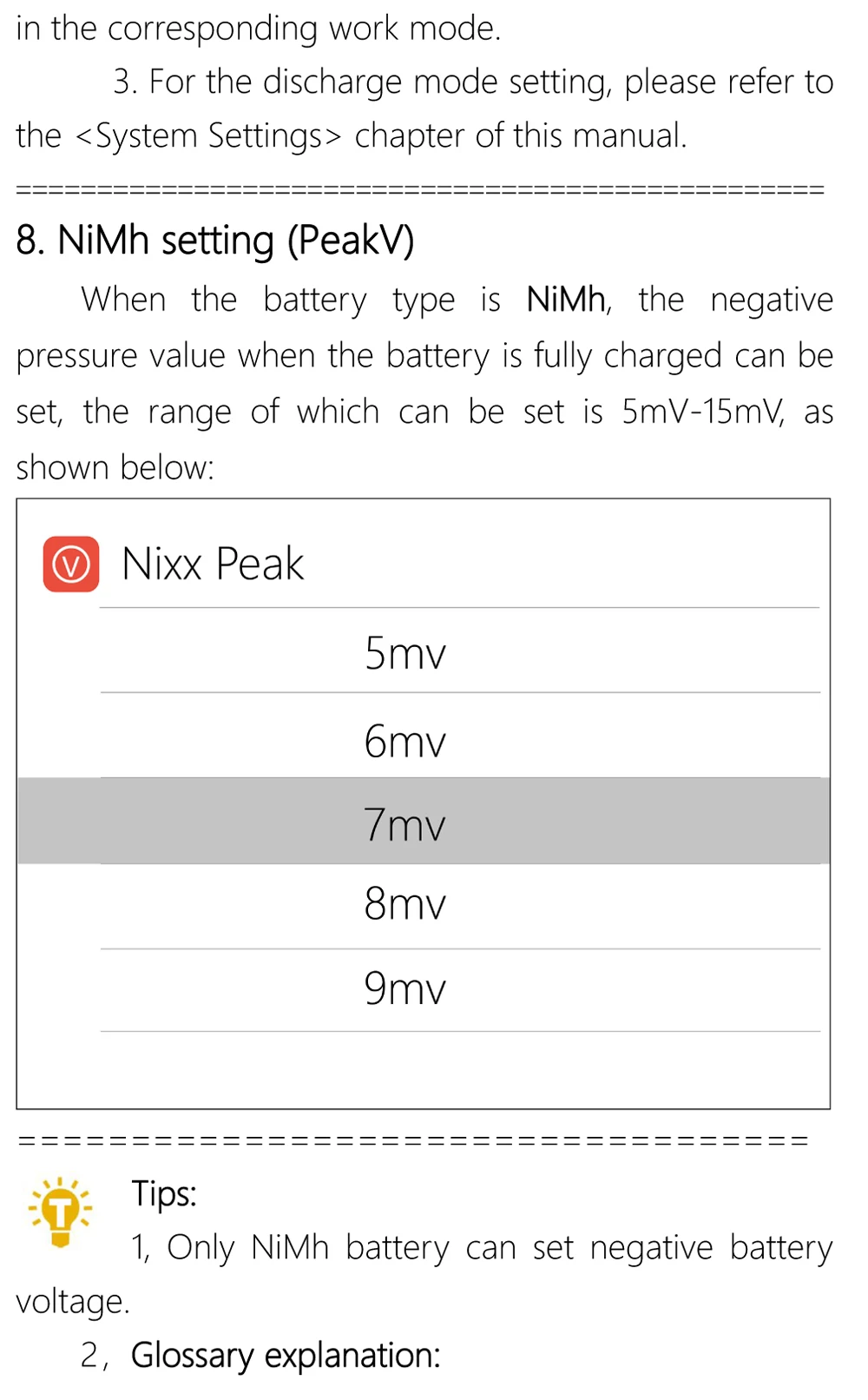

Can charge and discharge and balance
management of LiPo, LiHV, LiFe Lion 1-6S, NiMh
1-16S, PB 1-10S batteries

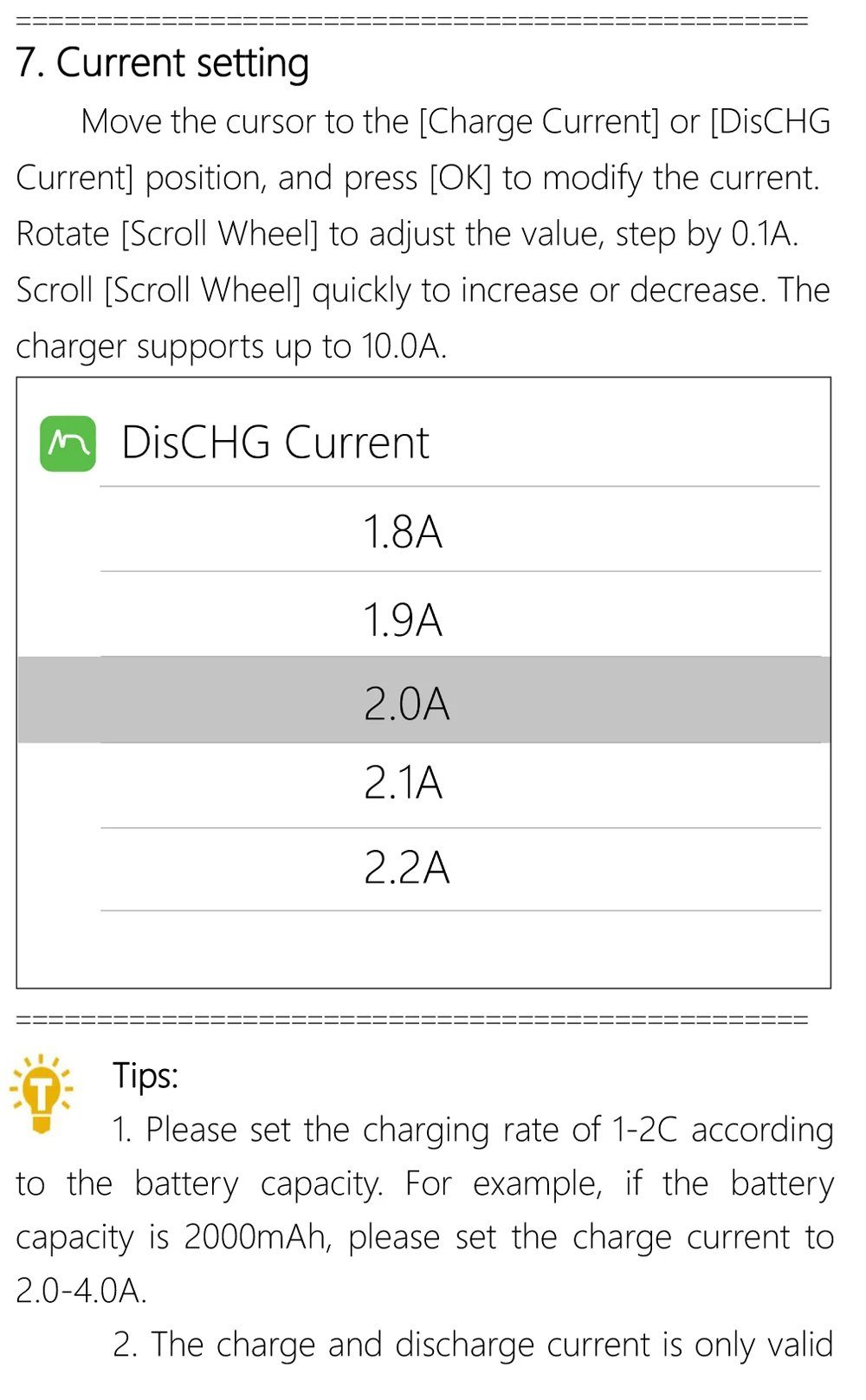

Charge current：MAX 10A @MAX200W

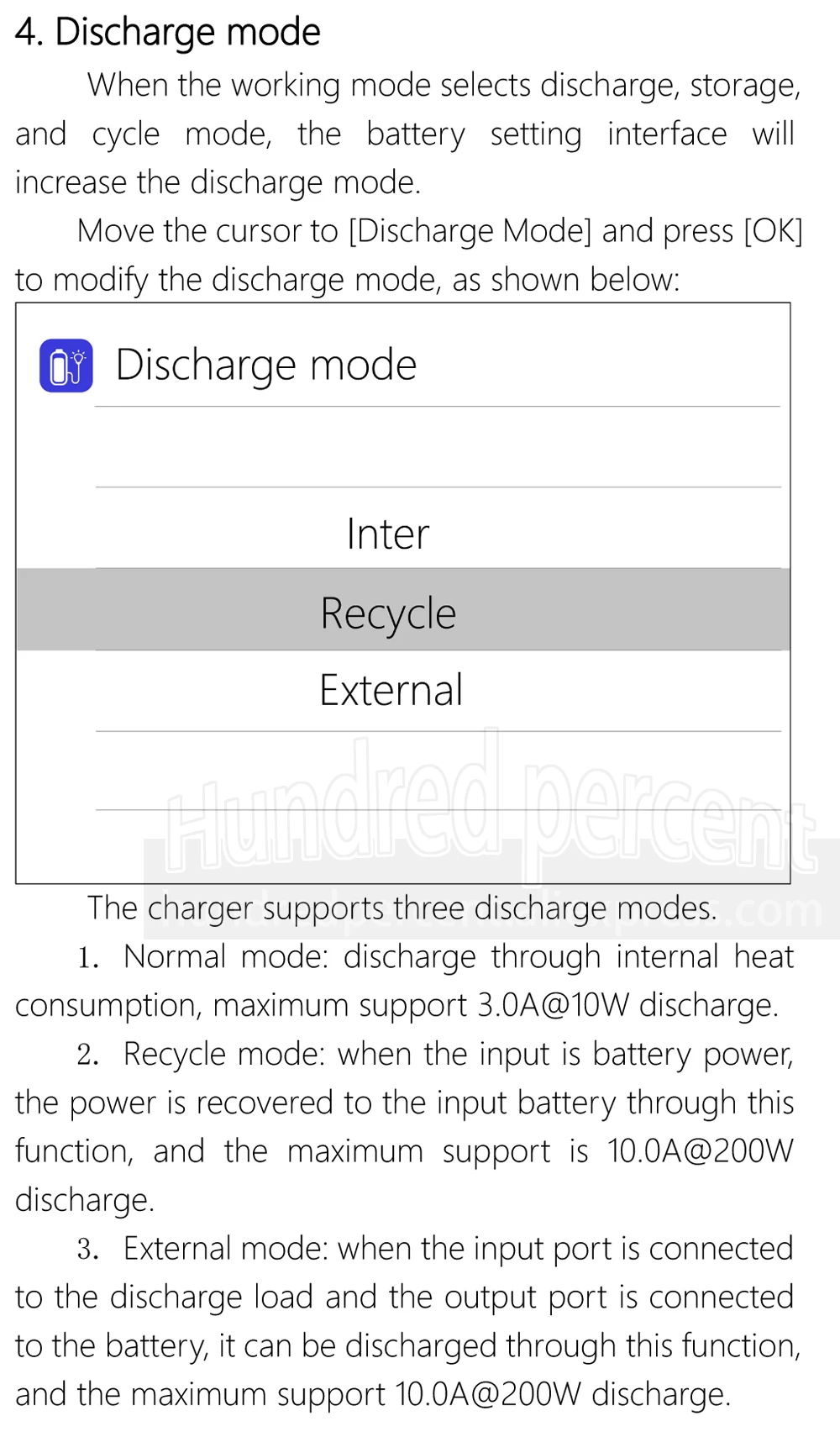

Discharge current：
Recycle mode Max 10A@200W

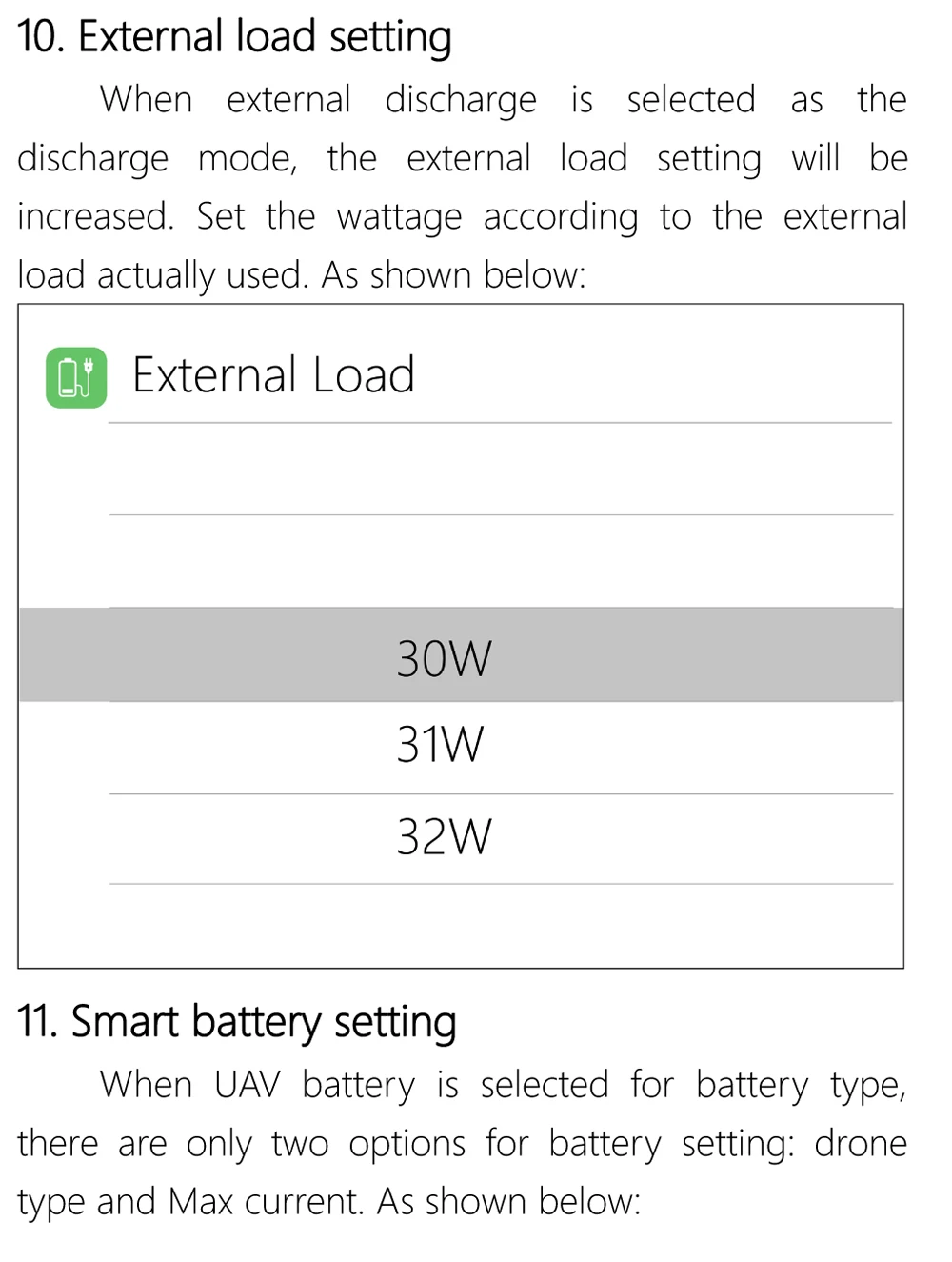

External mode Max 10A @200W
Inter mode Max 3A @10W

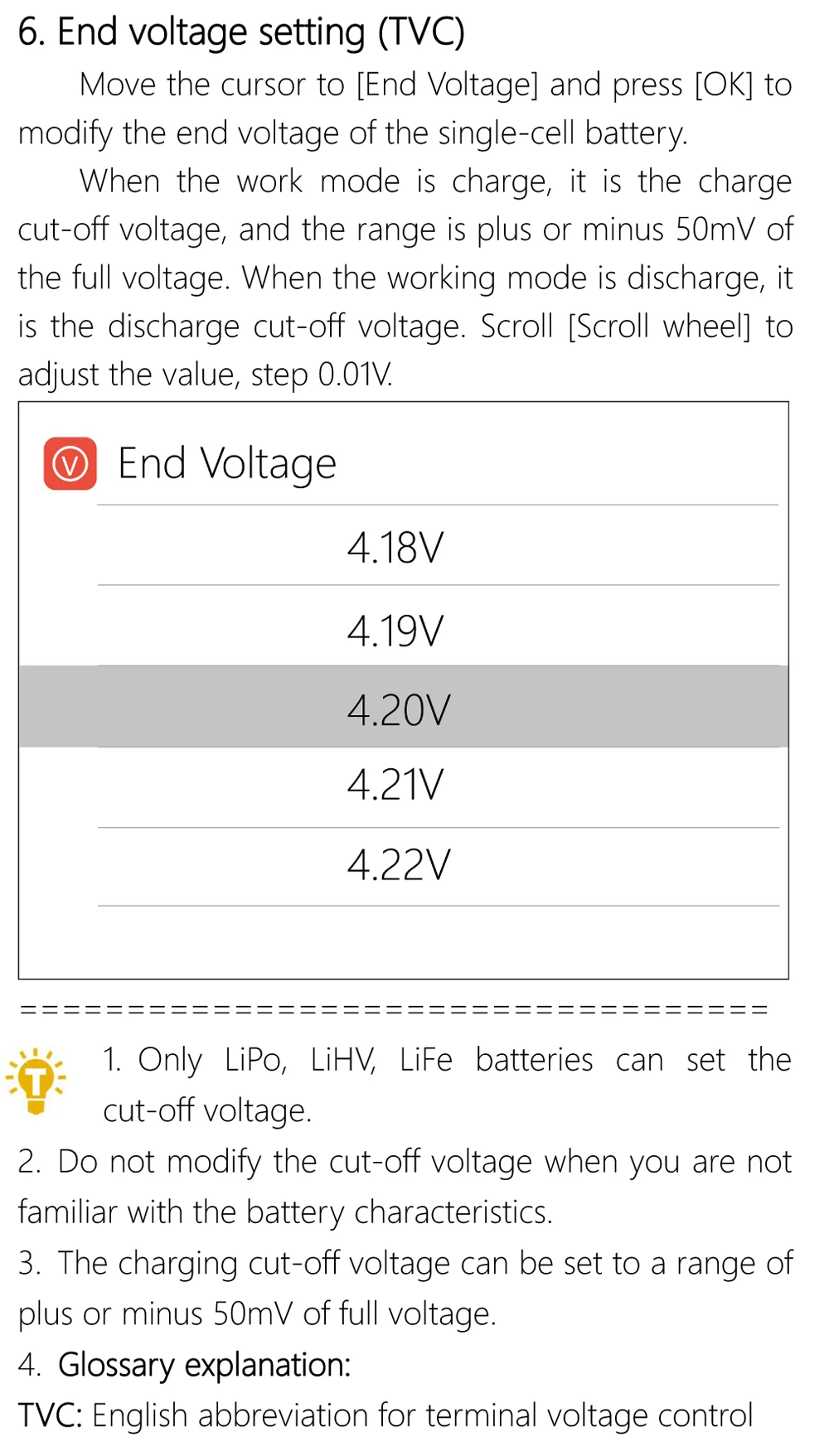

Lithium battery cut-off voltage can be set (TVC
function)

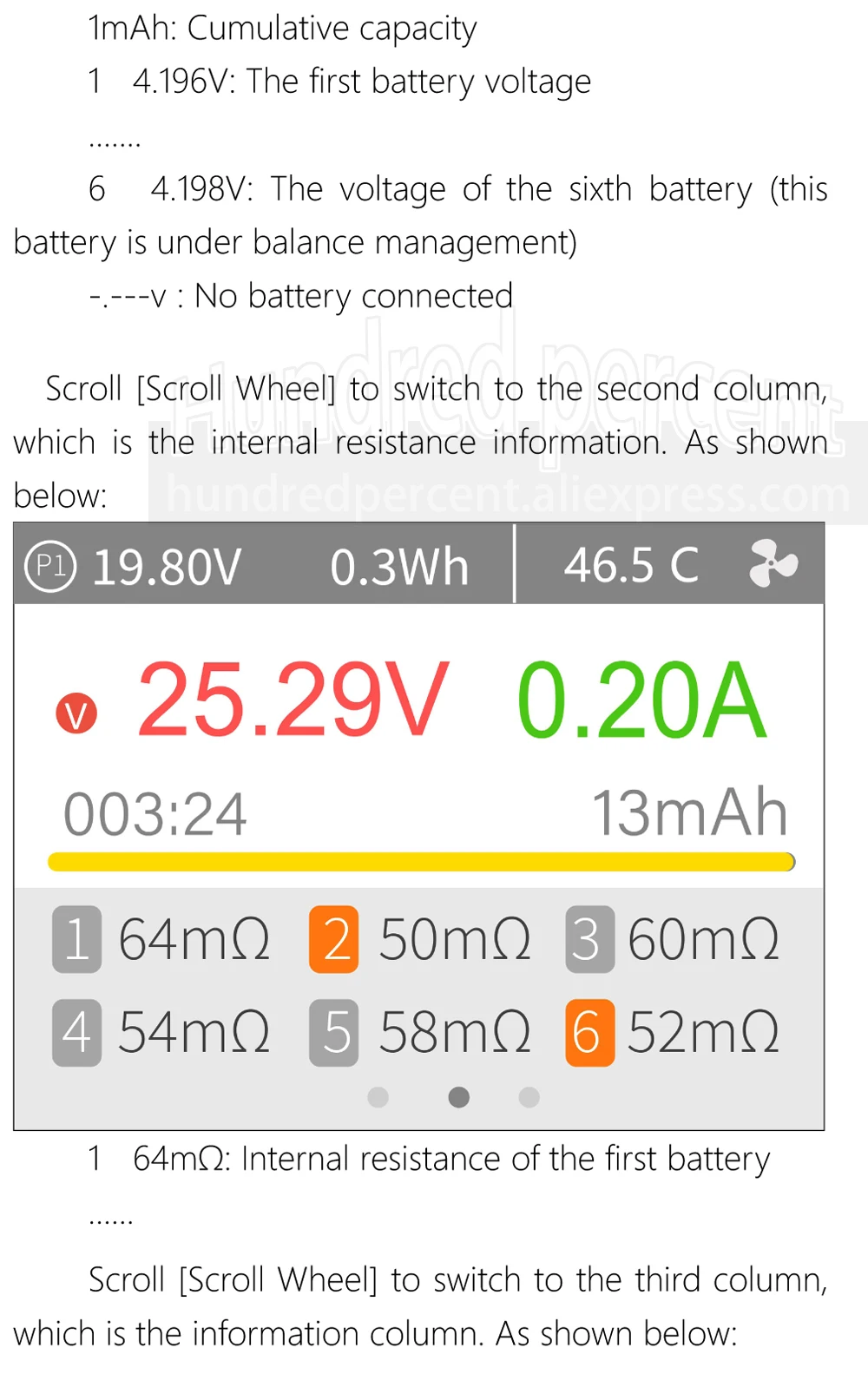

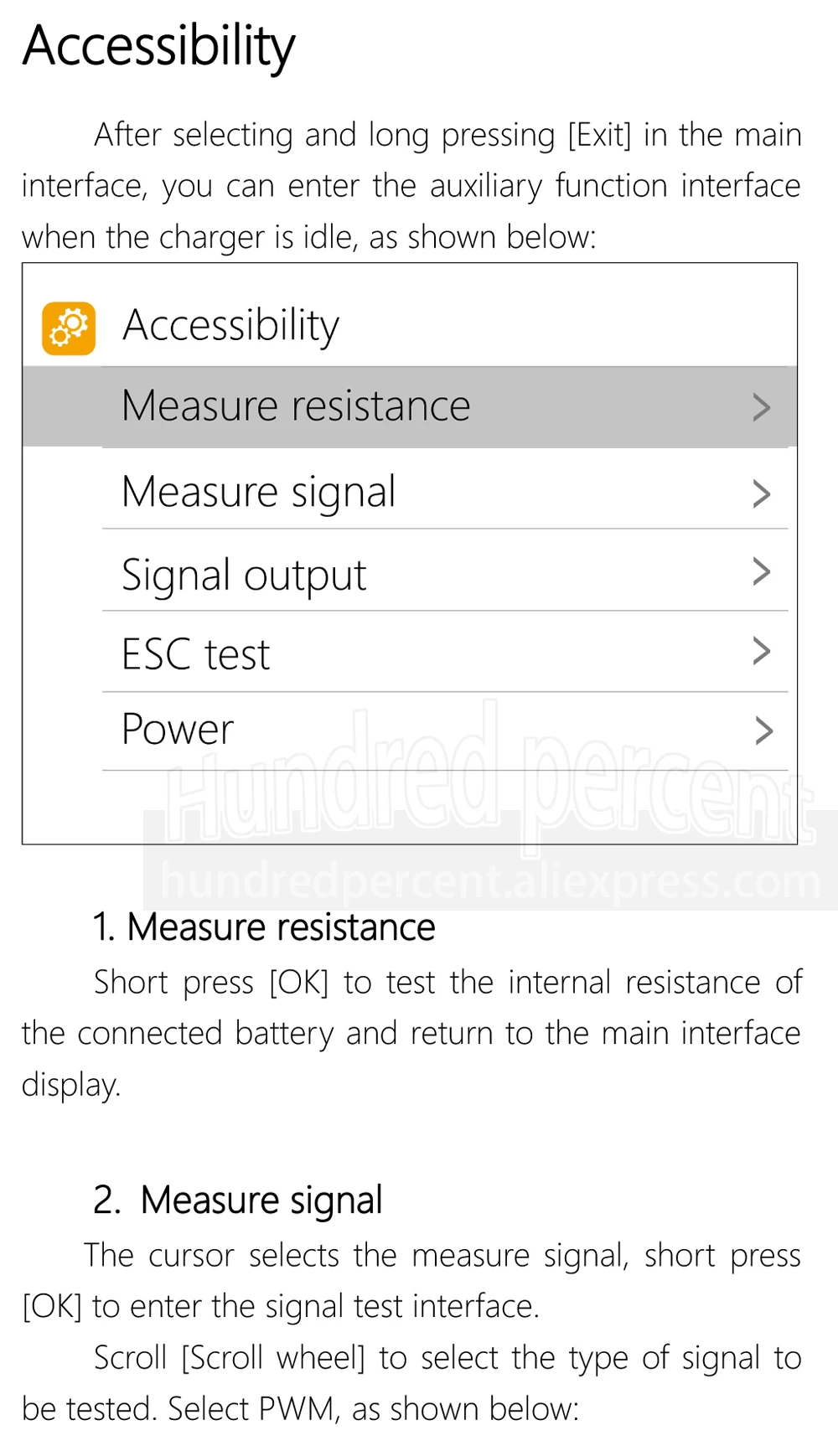

Can measure battery voltage, battery internal
resistance, lithium battery balance management

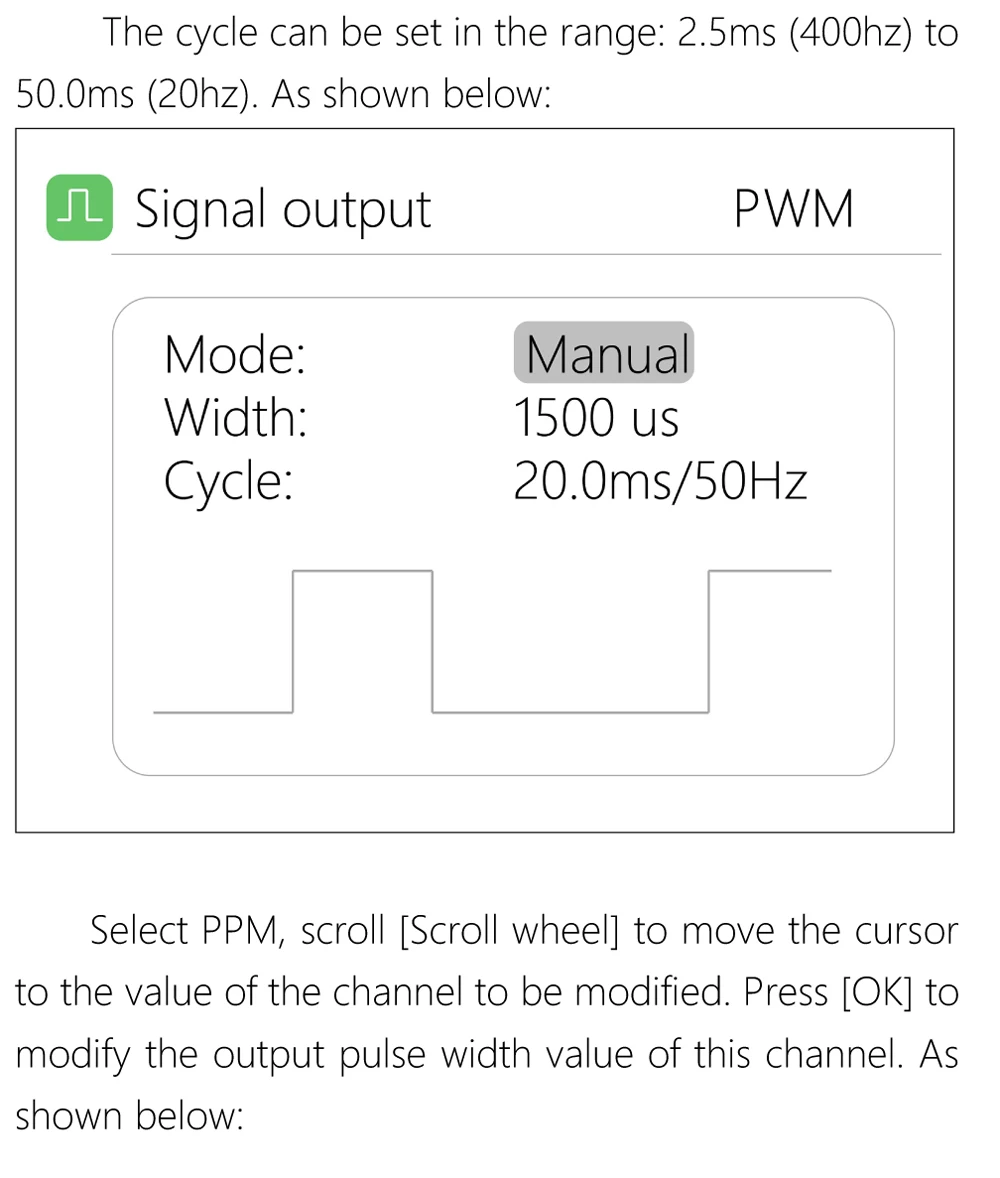

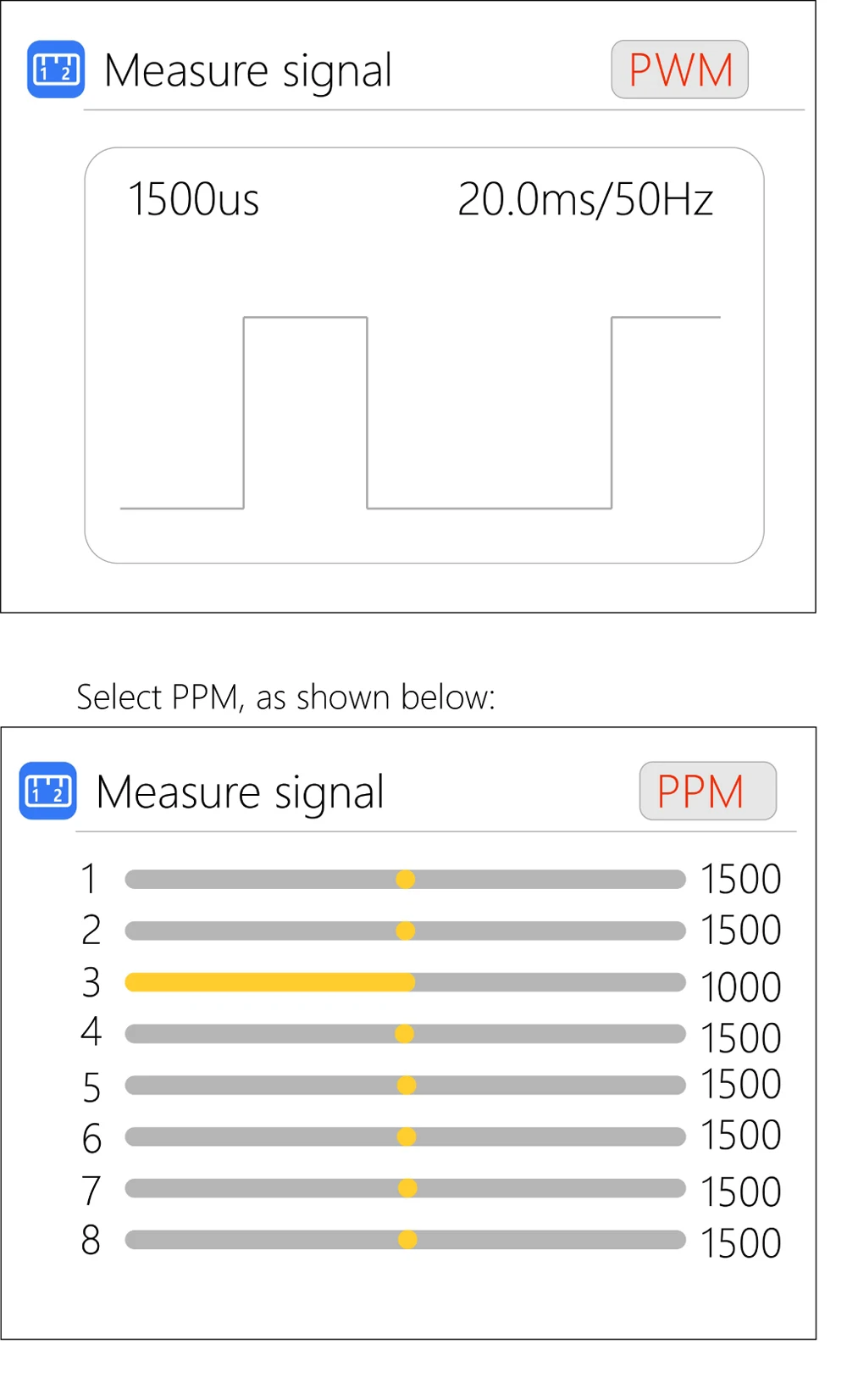

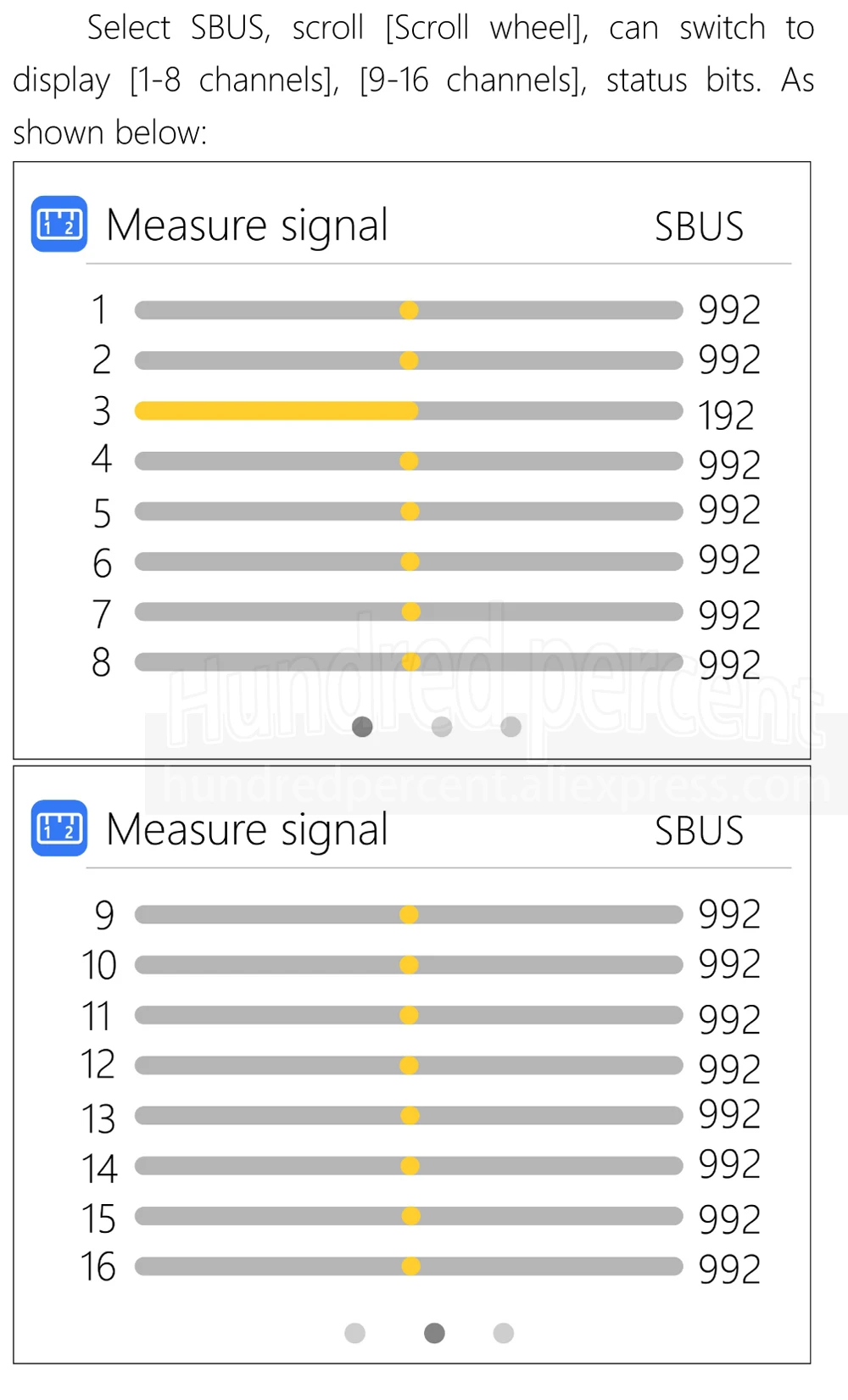

Can measure the signal value of PWM/PPM/SBUS,
with an accuracy of 1 microsecond

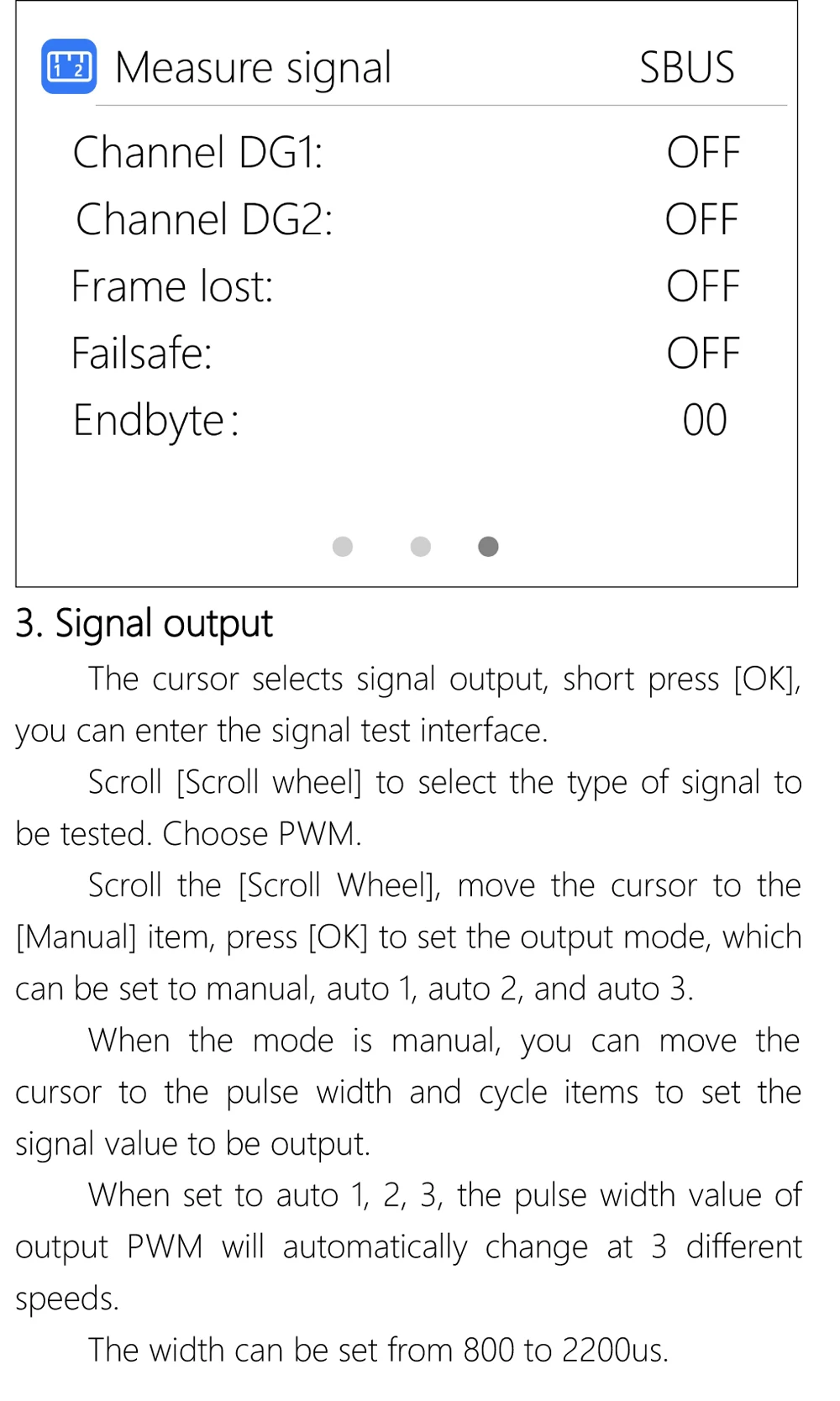

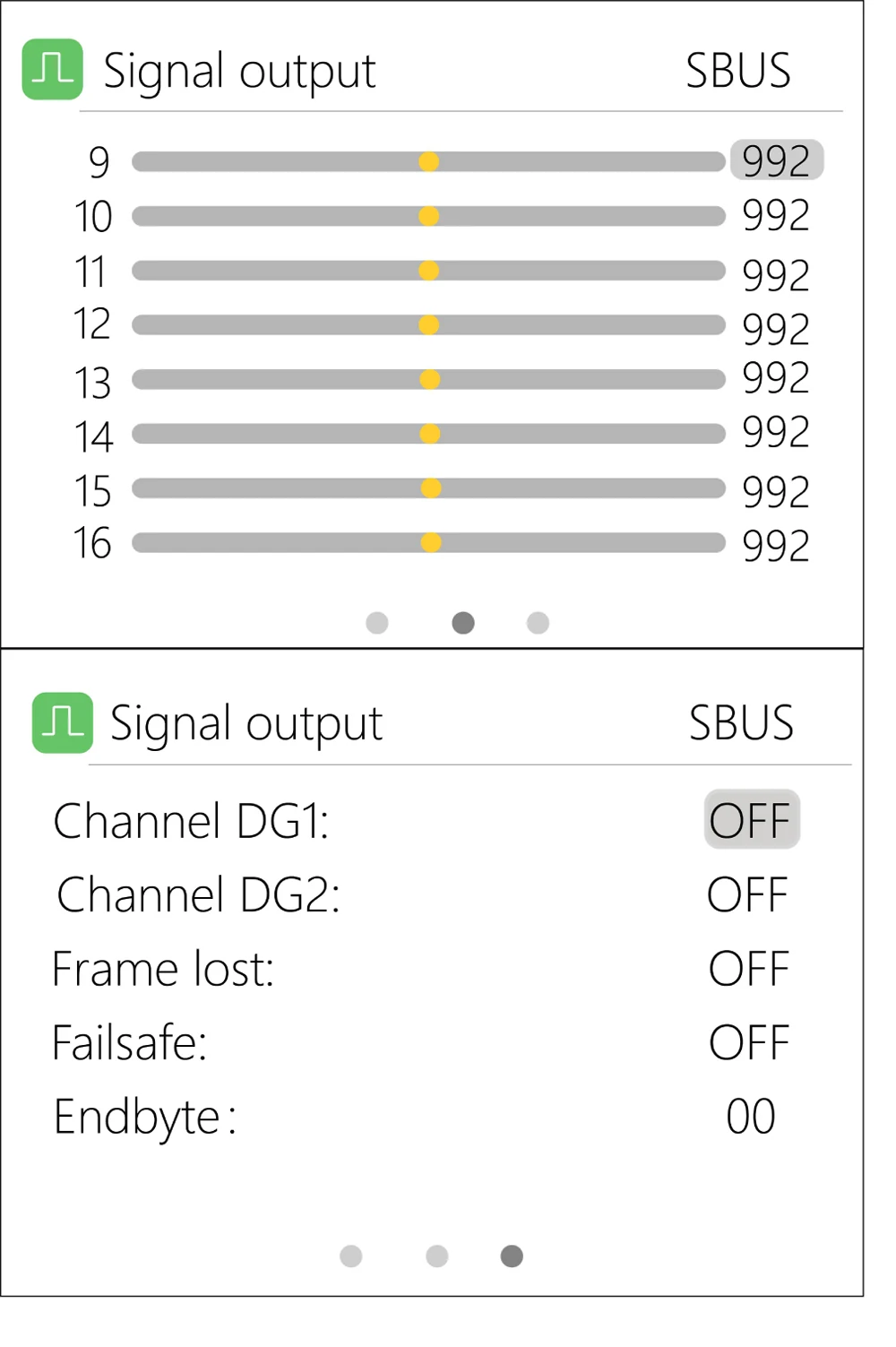

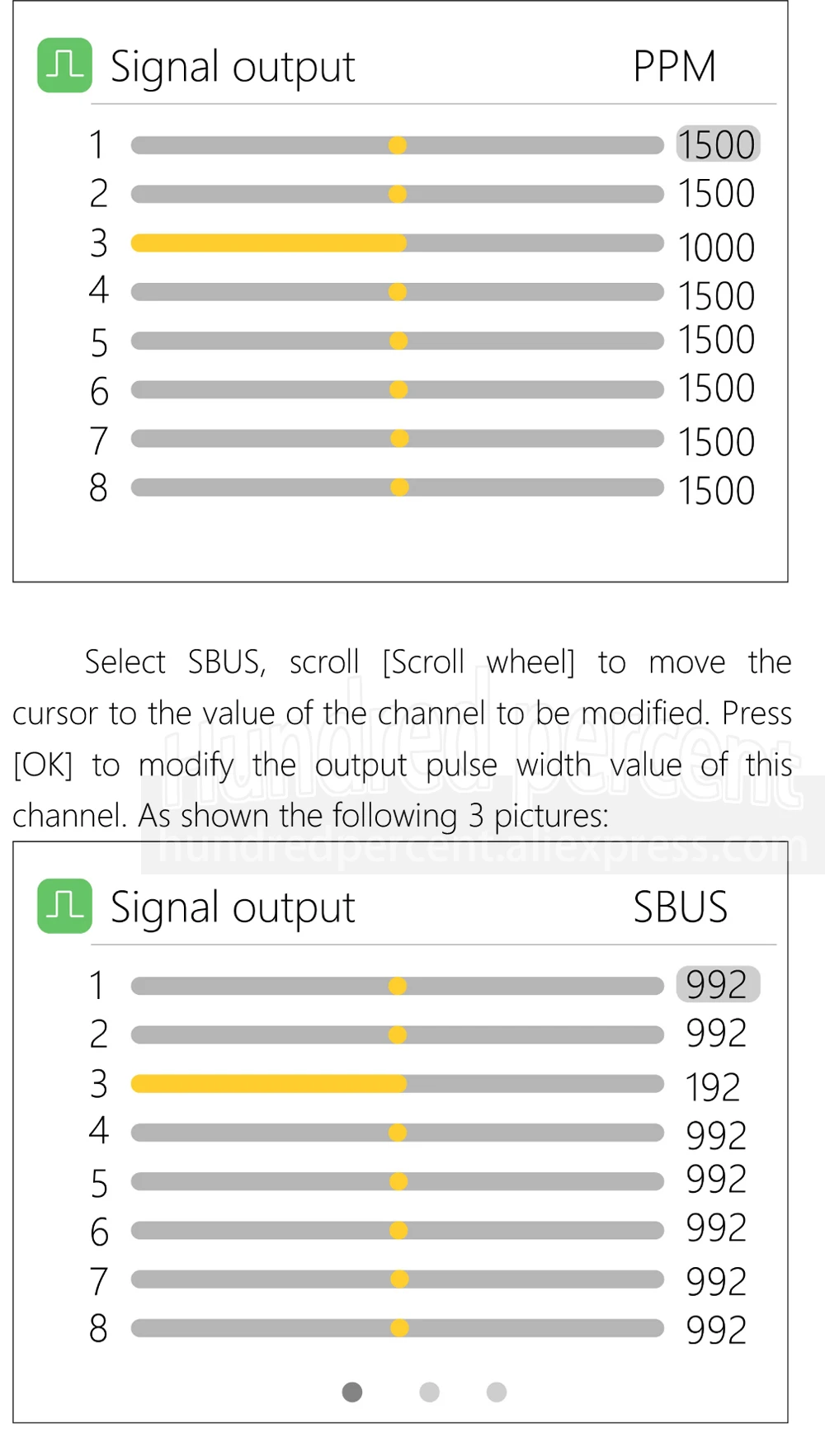

Can output PWM/PPM/SBUS standard signals with
an accuracy of 1 microsecond@ToolkiRC 2021 7

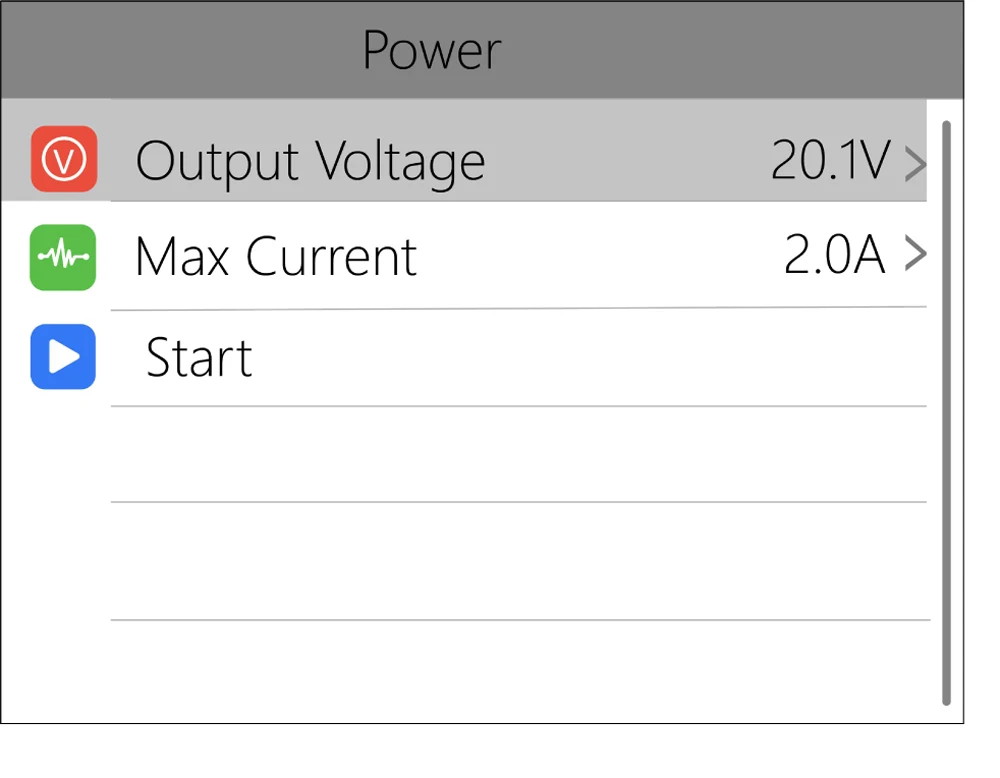

Constant current and constant voltage source
output, customizable 1-28V constant voltage, 1-10A
constant current

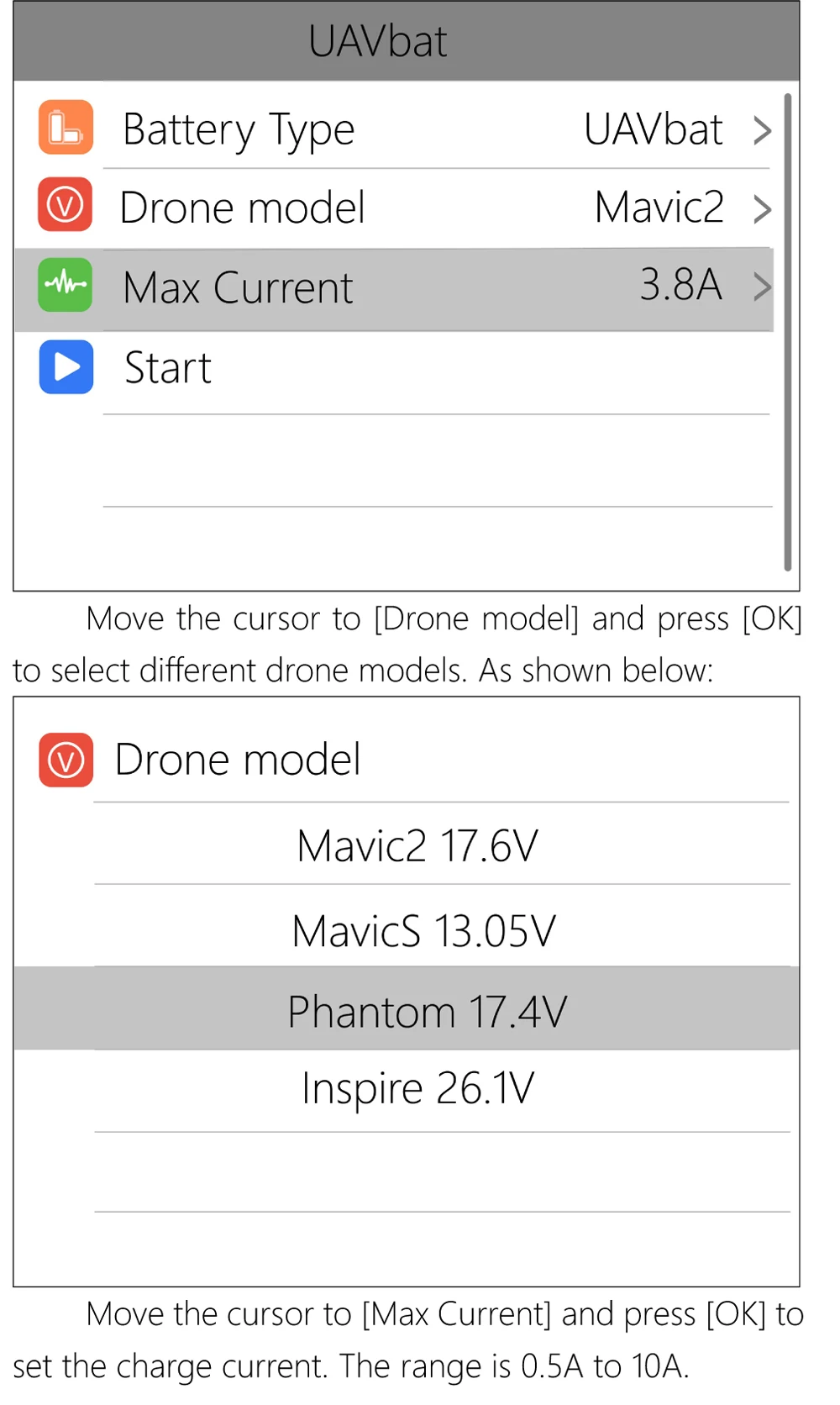

Can be adapted to mainstream drone batteries,
automatically activated and charged

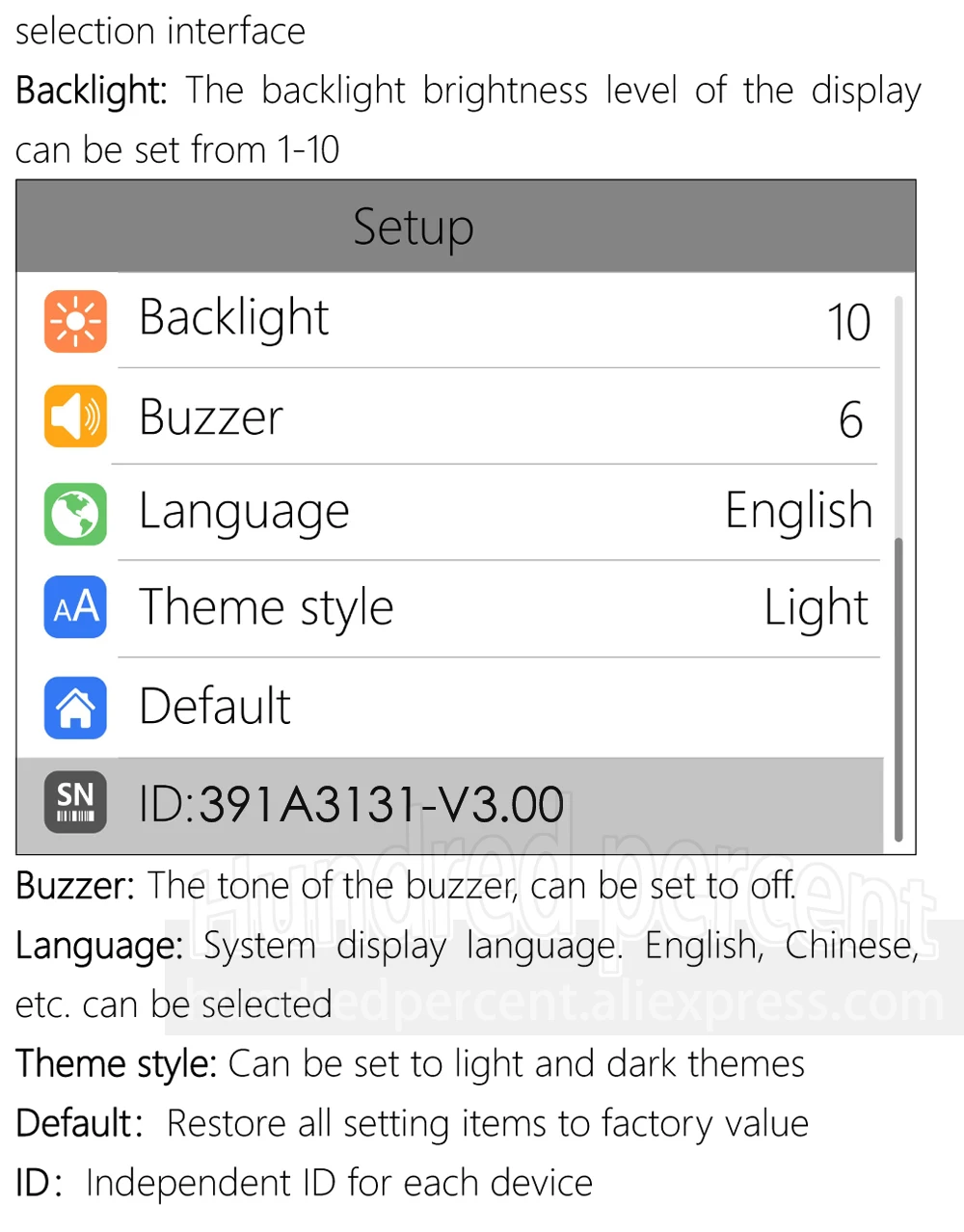

Multi-language system, you can upgrade any
language you need
USB 2.1A@5.0V output, rechargeable mobile
devices
The device is simulated as a U disk, and the
upgrade file is copied to realize the product
firmware upgrade

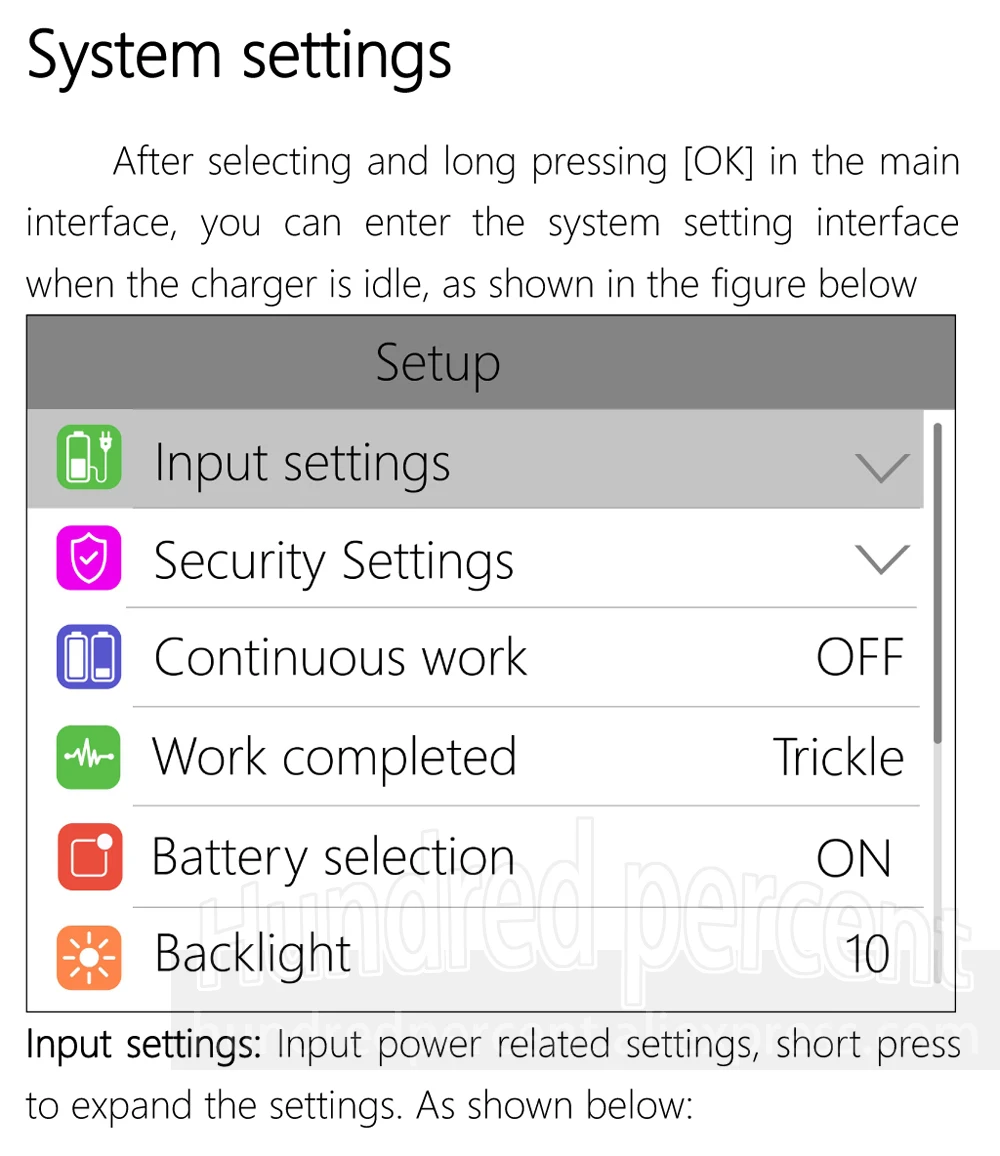

Other functions
1. Firmware upgrade

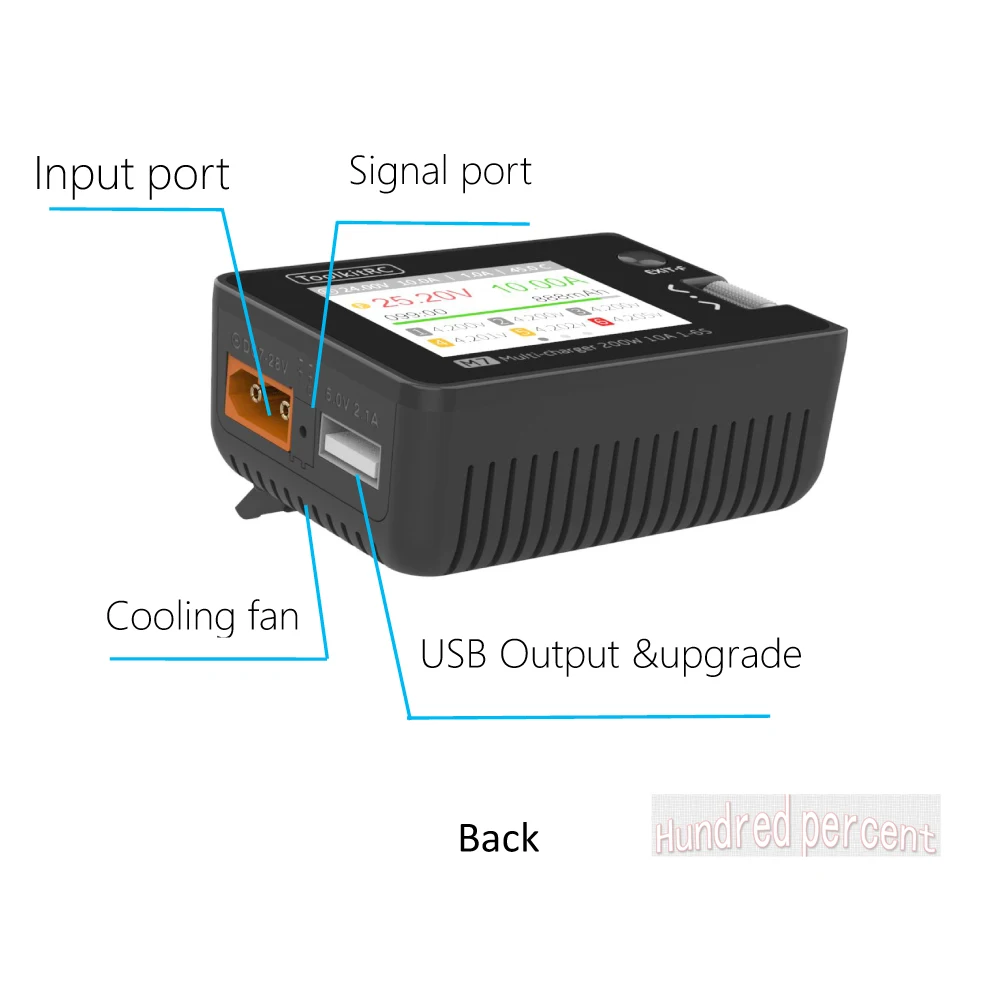

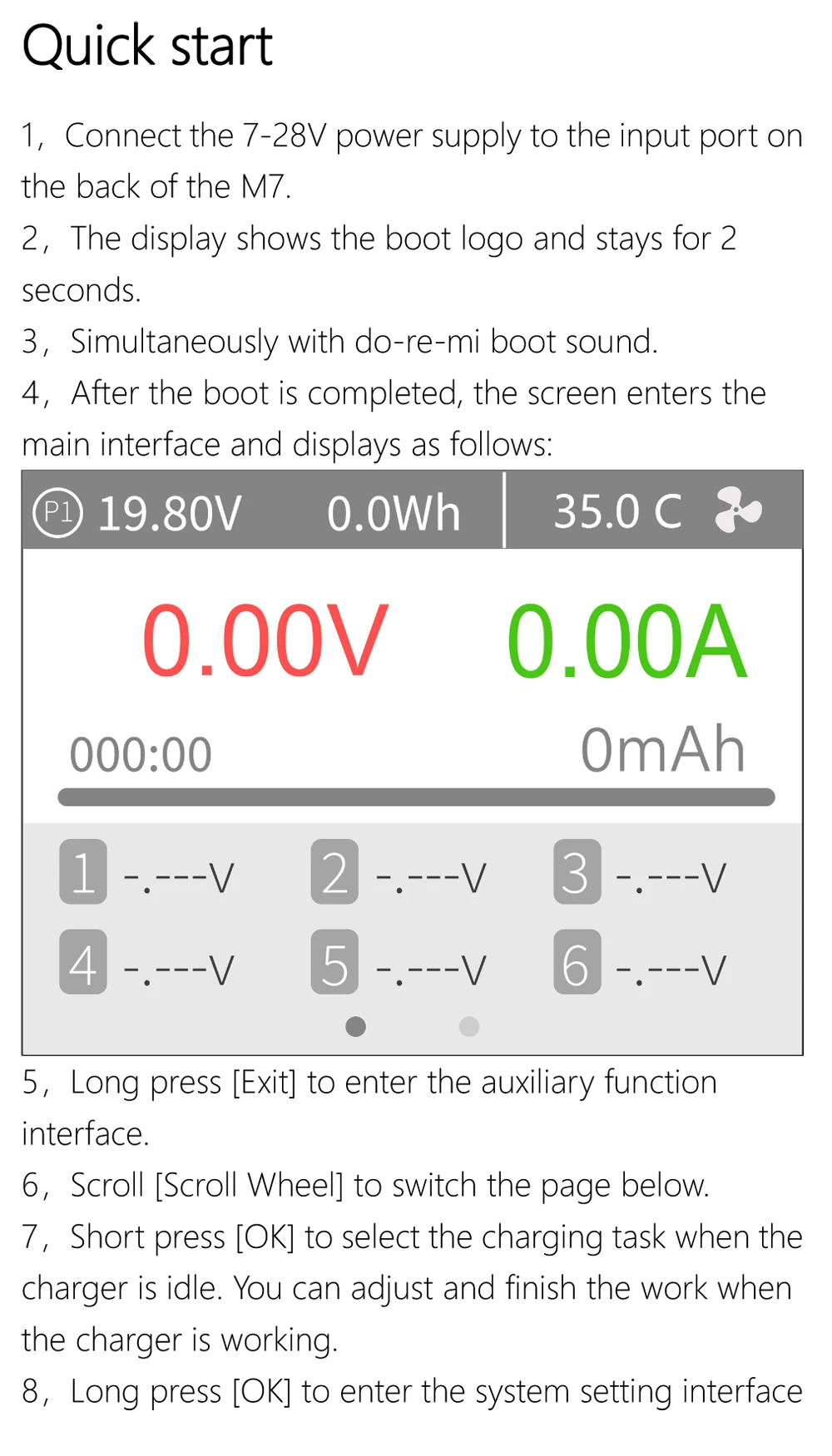

After connecting the M7 to the computer with the USB data cable in the box, the computer will recognize a U
disk named T oolkit. Download the upgrade file app.upg
on the official website and overwrite the files in the U
disk to upgrade the firmware.
2. USB 5.0V output
In addition to the above upgrade functions, the USB
interface can also output 2.0A current to charge mobile
devices.

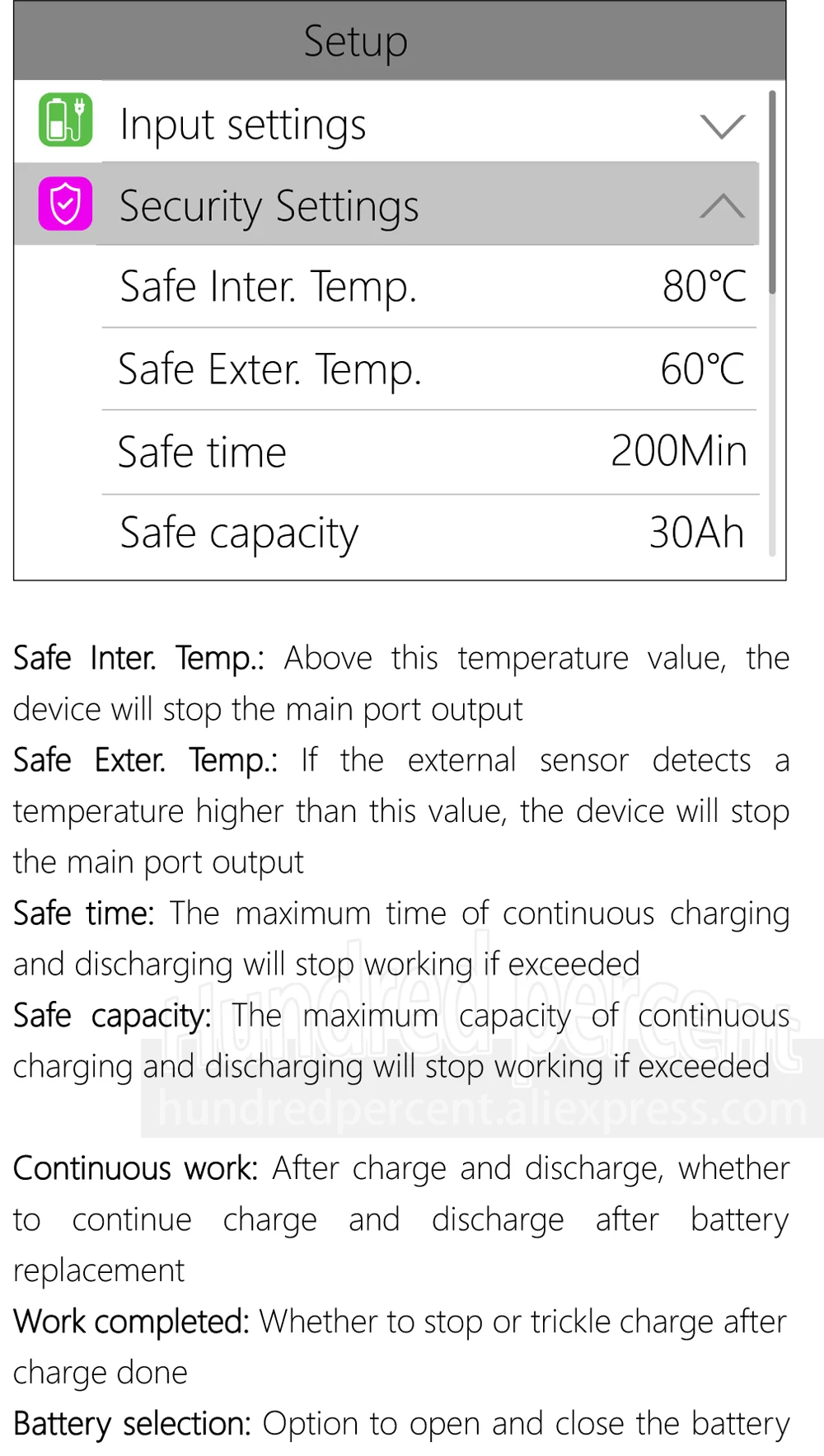

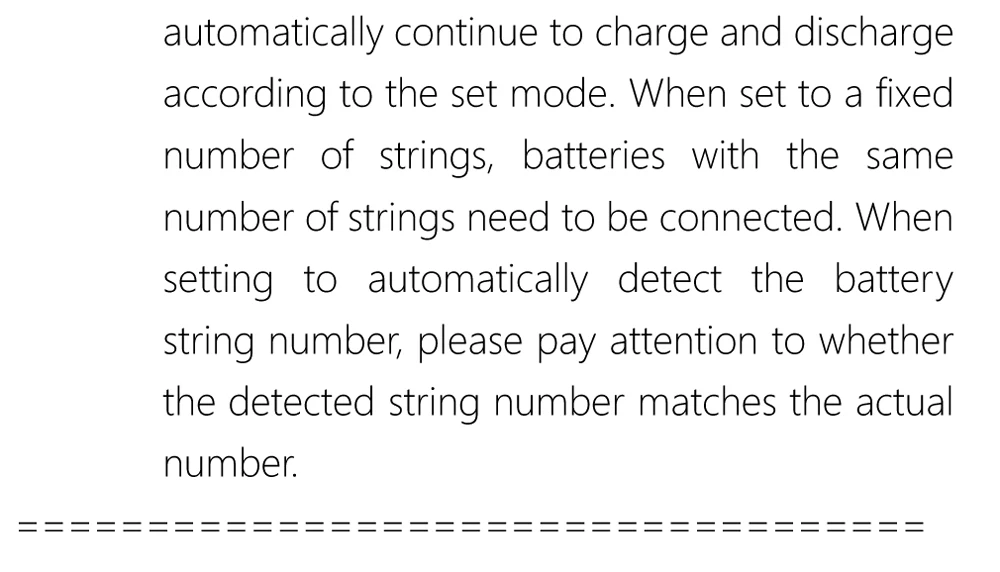

3. Automatically continue charging and discharging
When a battery is fully charged, after unplugging the
battery for 2 seconds, connect to the next battery, the
device will automatically continue to charge and
discharge, you can start and stop this function in the
settings menu

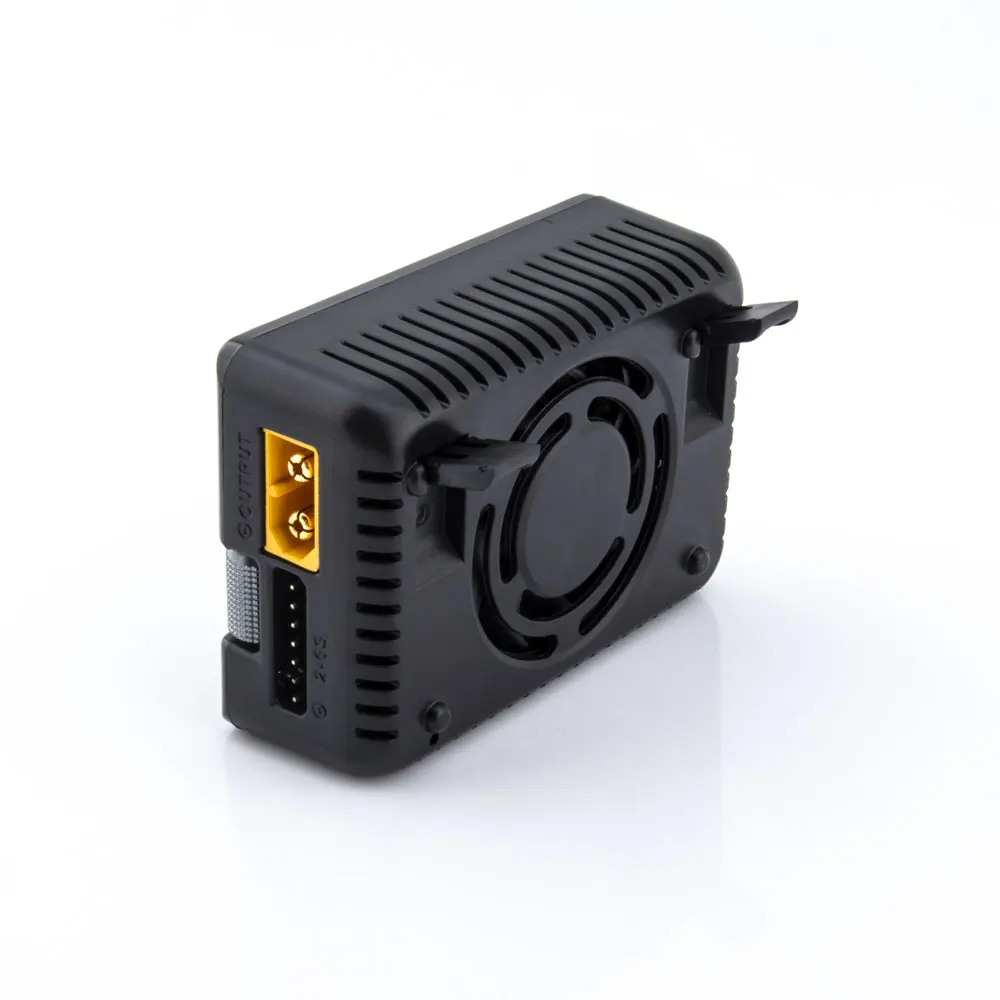

4. Fan level
When the internal temperature of the device exceeds
45°C, the fan turns on half-speed air volume to reduce
noise. When the internal temperature exceeds 53°C, the
fan turns on full-speed air volume to enhance heat
dissipation.

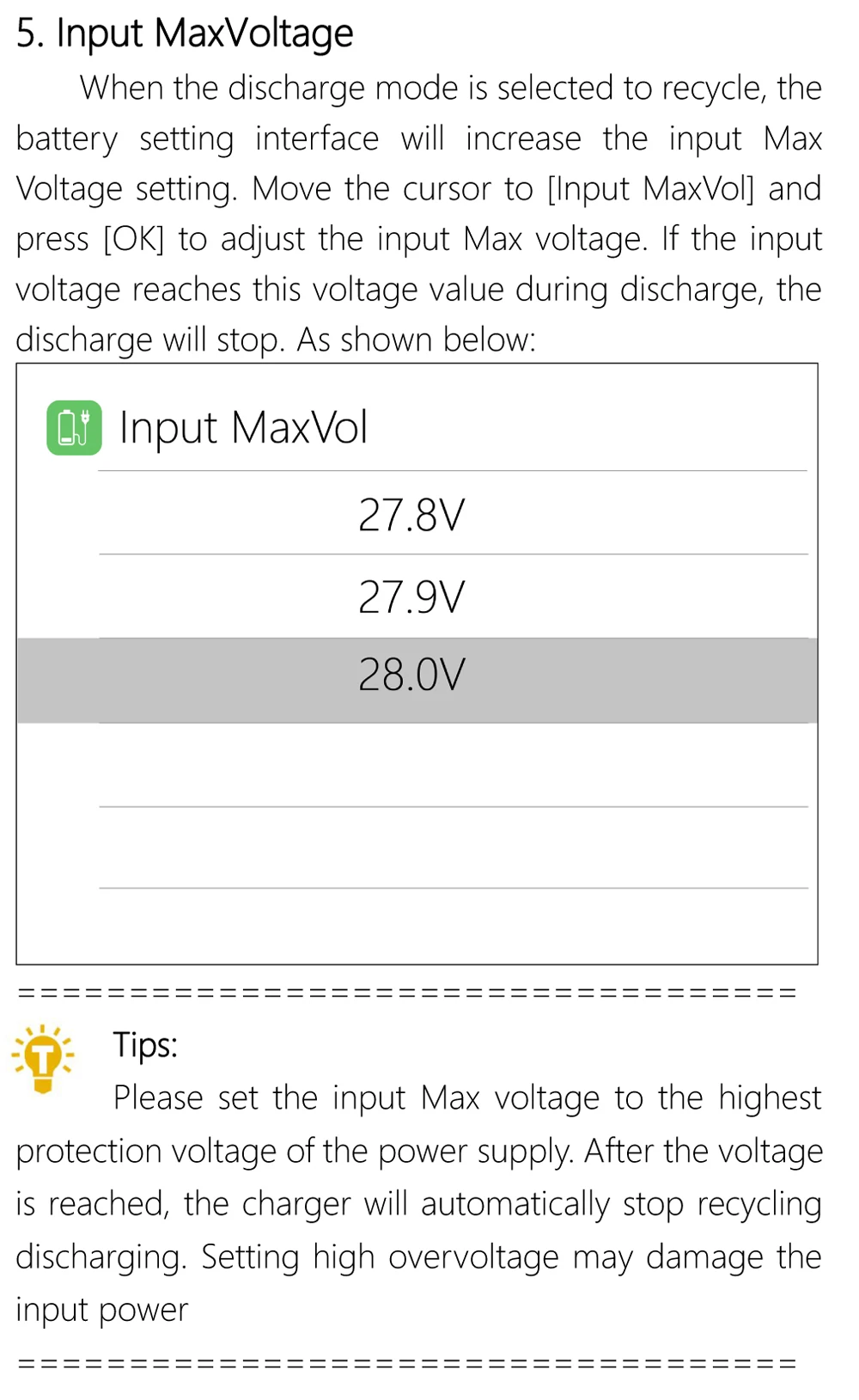

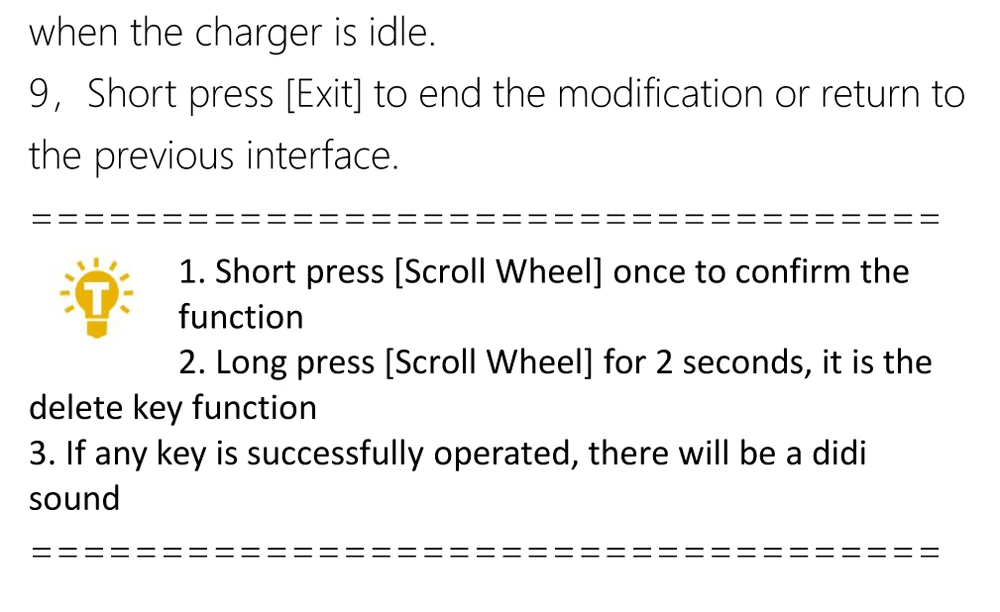

6. Manually calibrate the voltage

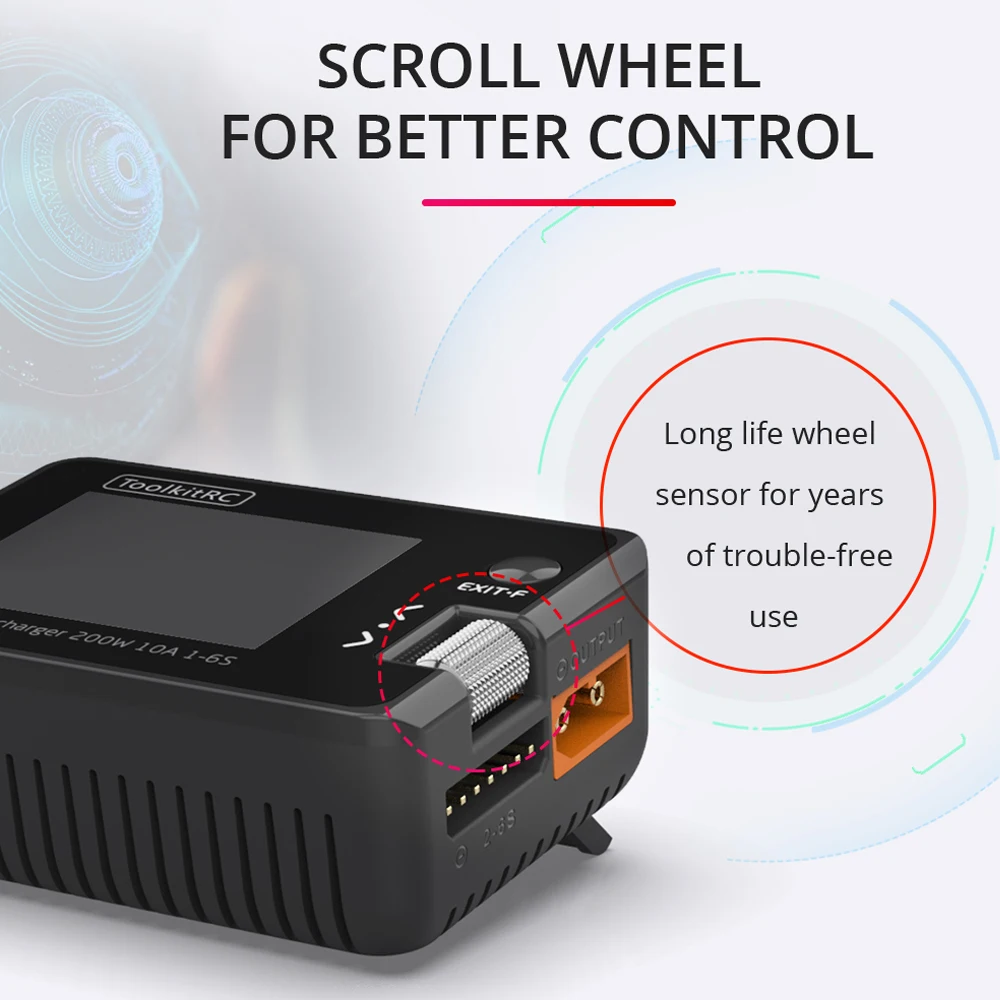

In the shutdown state, press and hold the [roller]
without releasing, connect the power supply, and the
system will enter the manual voltage calibration function.
Use a voltmeter to measure the actual voltage of each
battery, move the cursor to the corresponding voltage
value, modify the voltage value to be consistent with the@ToolkiRC 2021 44
voltmeter value, and achieve calibration. After the
calibration is completed, move the cursor to save, short
press once, the buzzer will beep once, the save is
successful. Just exit or shut down

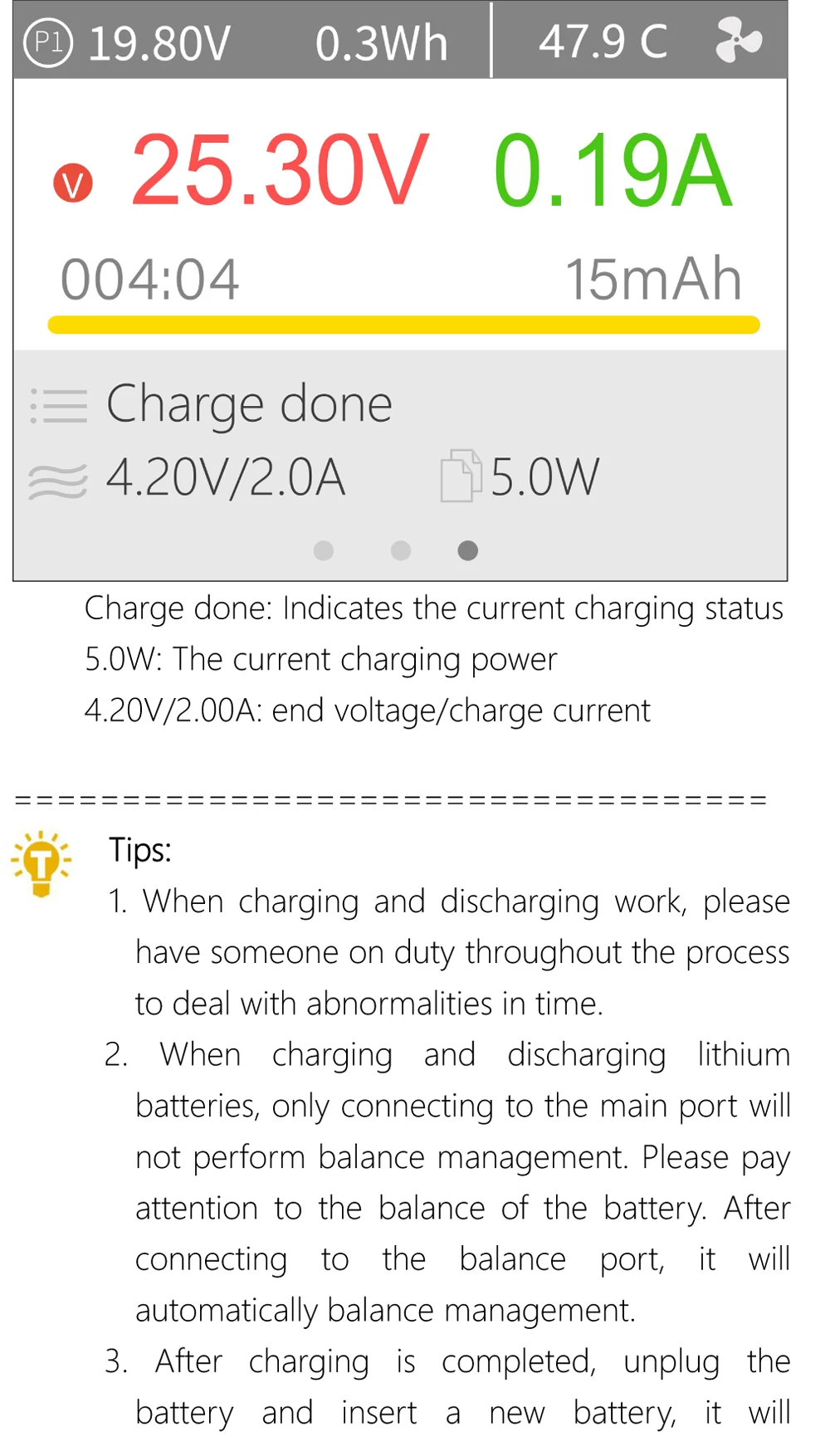

7, fully charged
When the lithium battery is fully charged, it will
prompt “Fast charge is done”. If the battery is not
removed, the constant voltage trickle charge will be
performed automatically to make the battery reach a
more full state.
