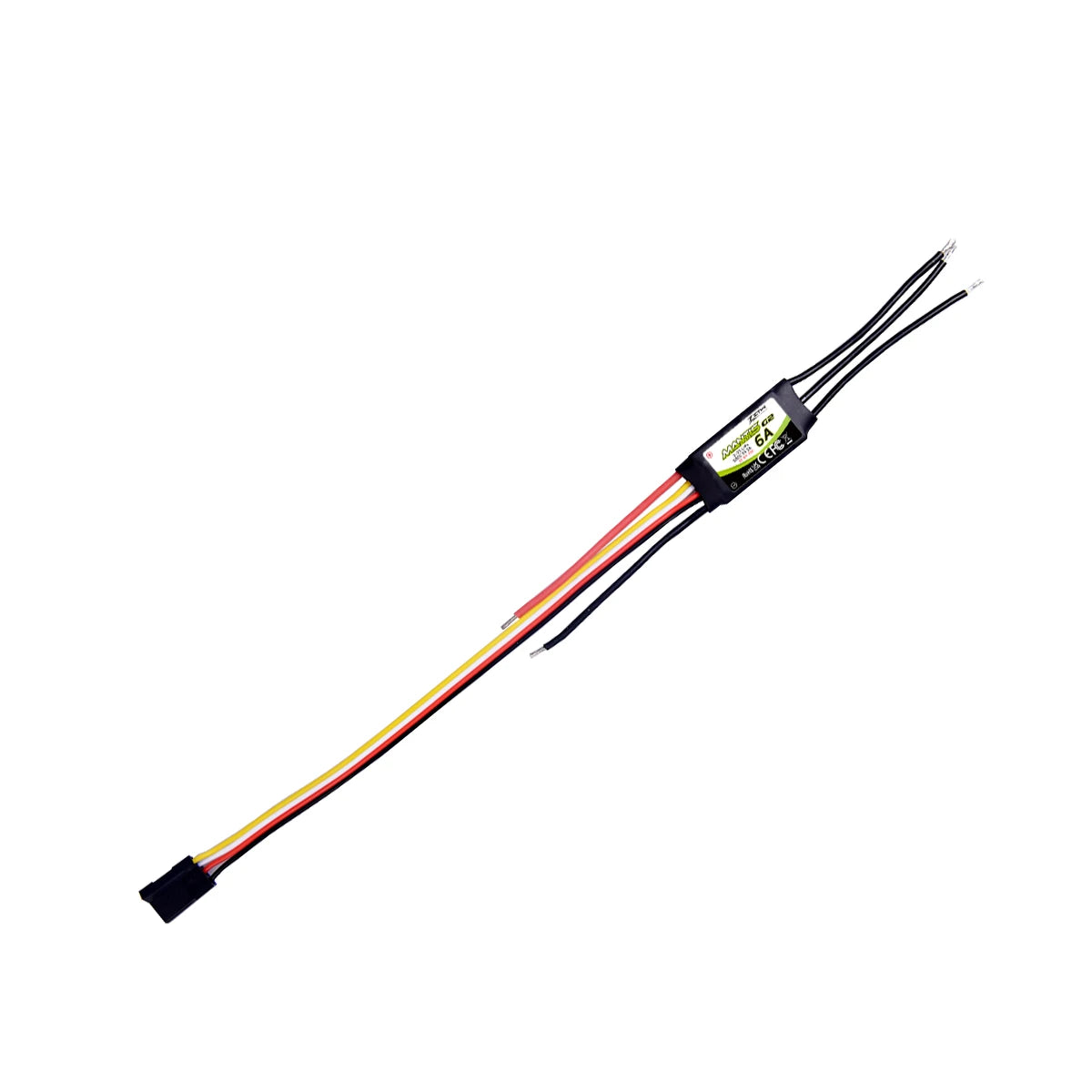

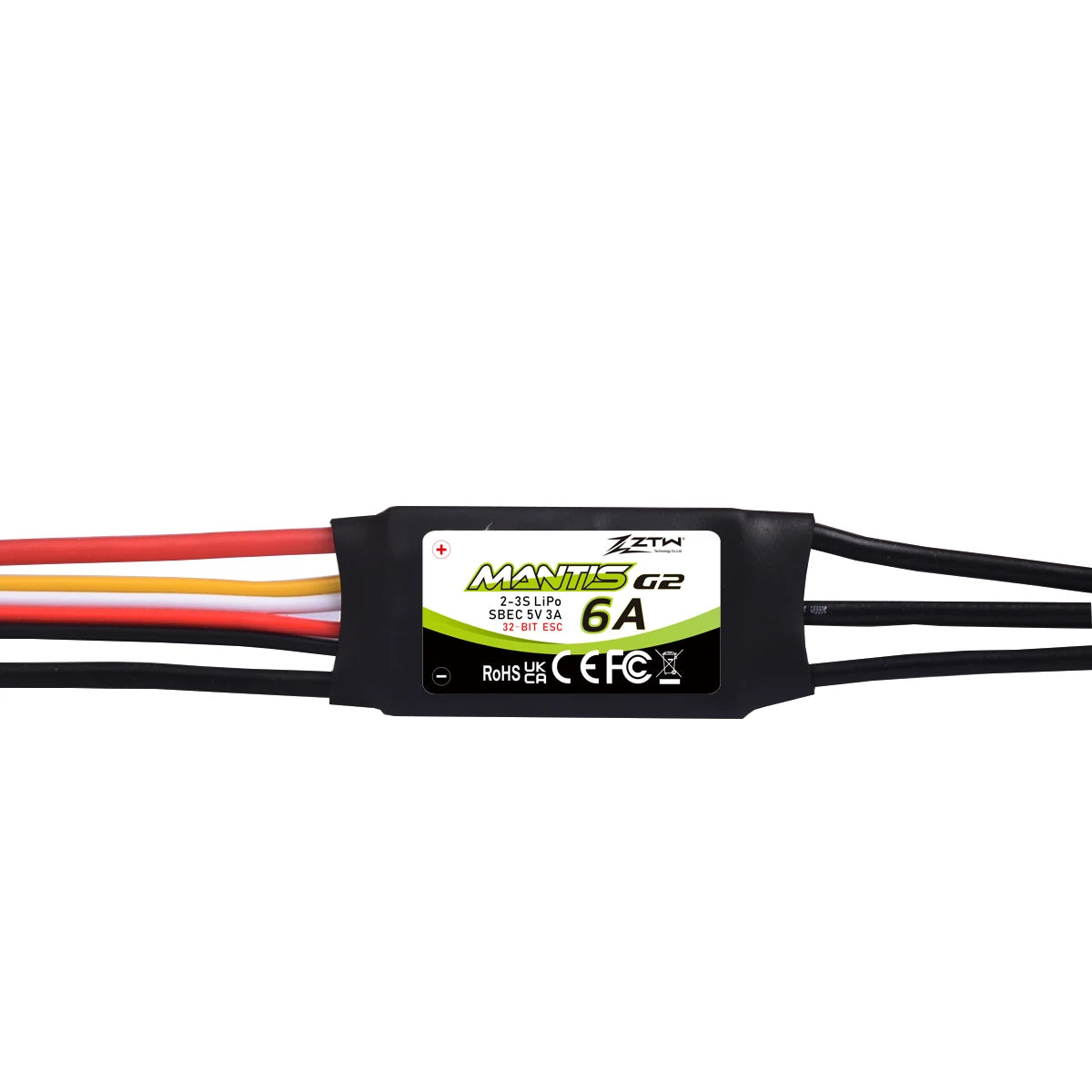

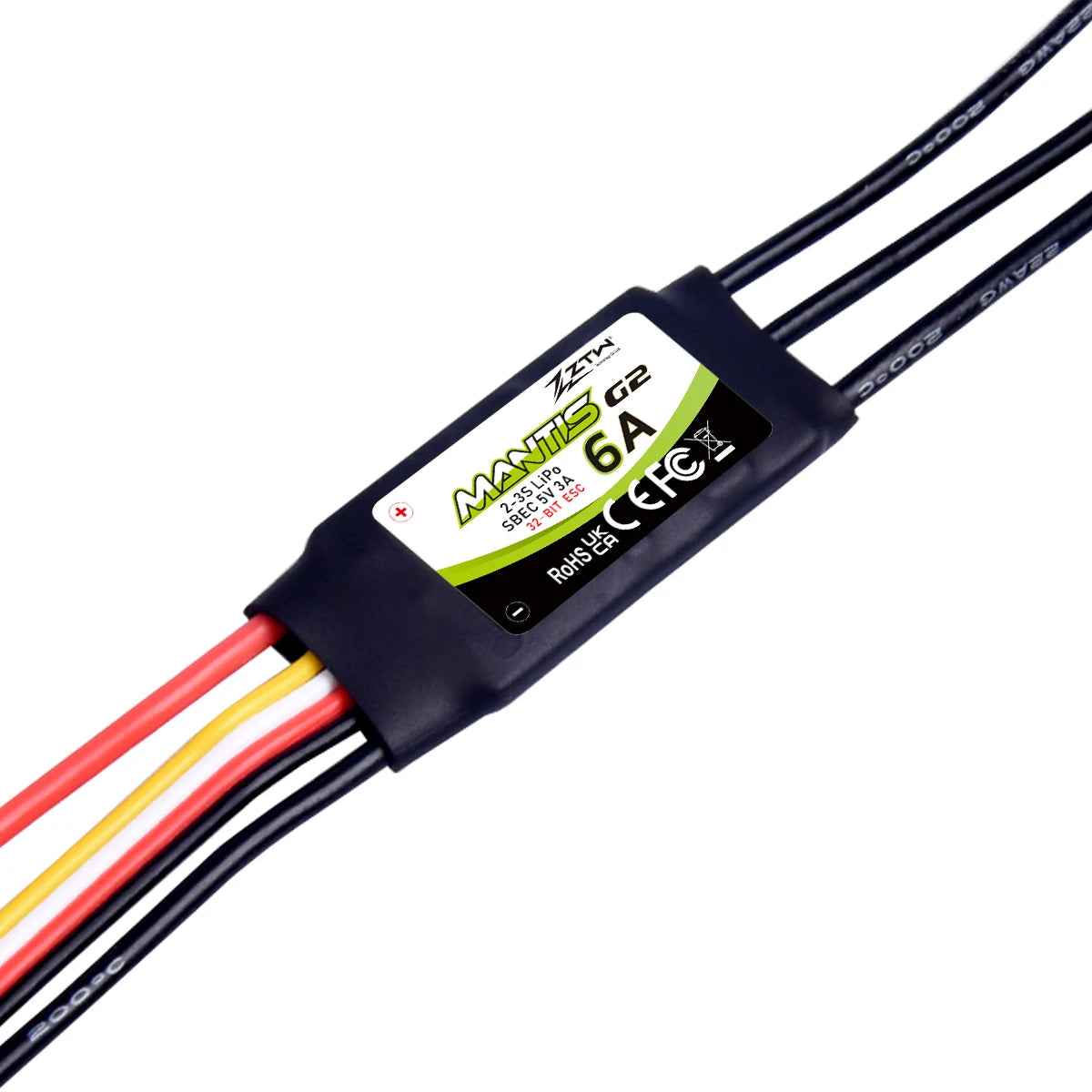

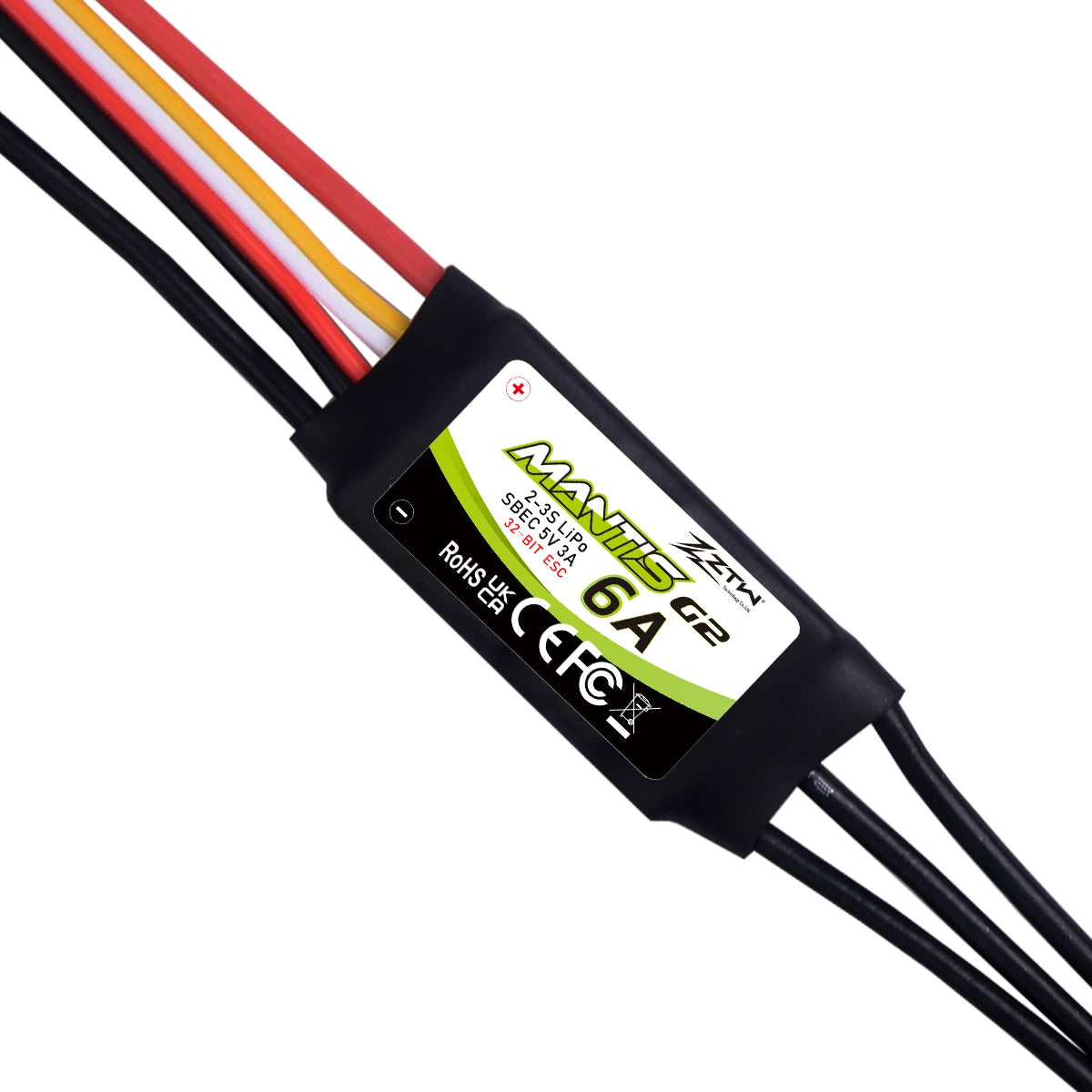

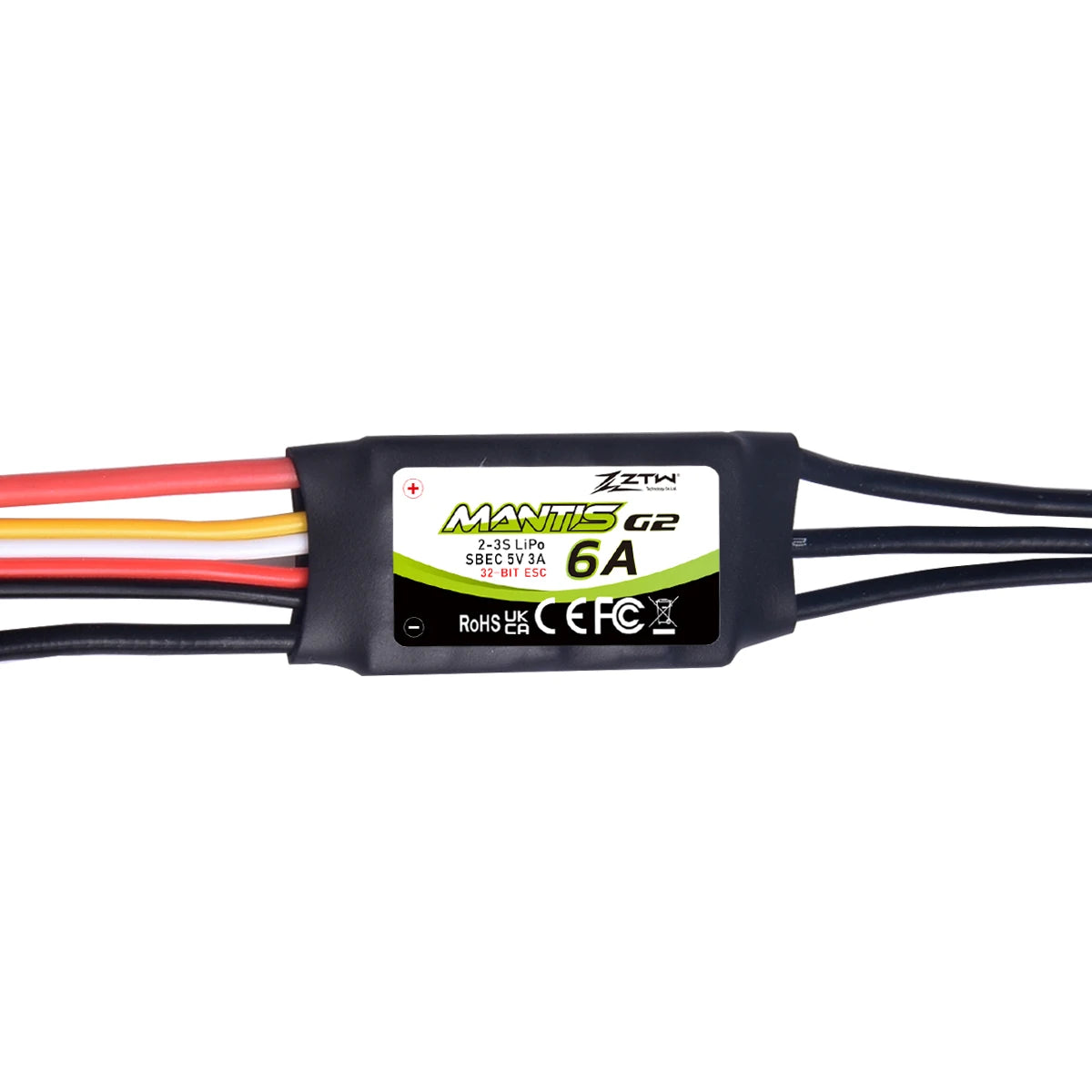

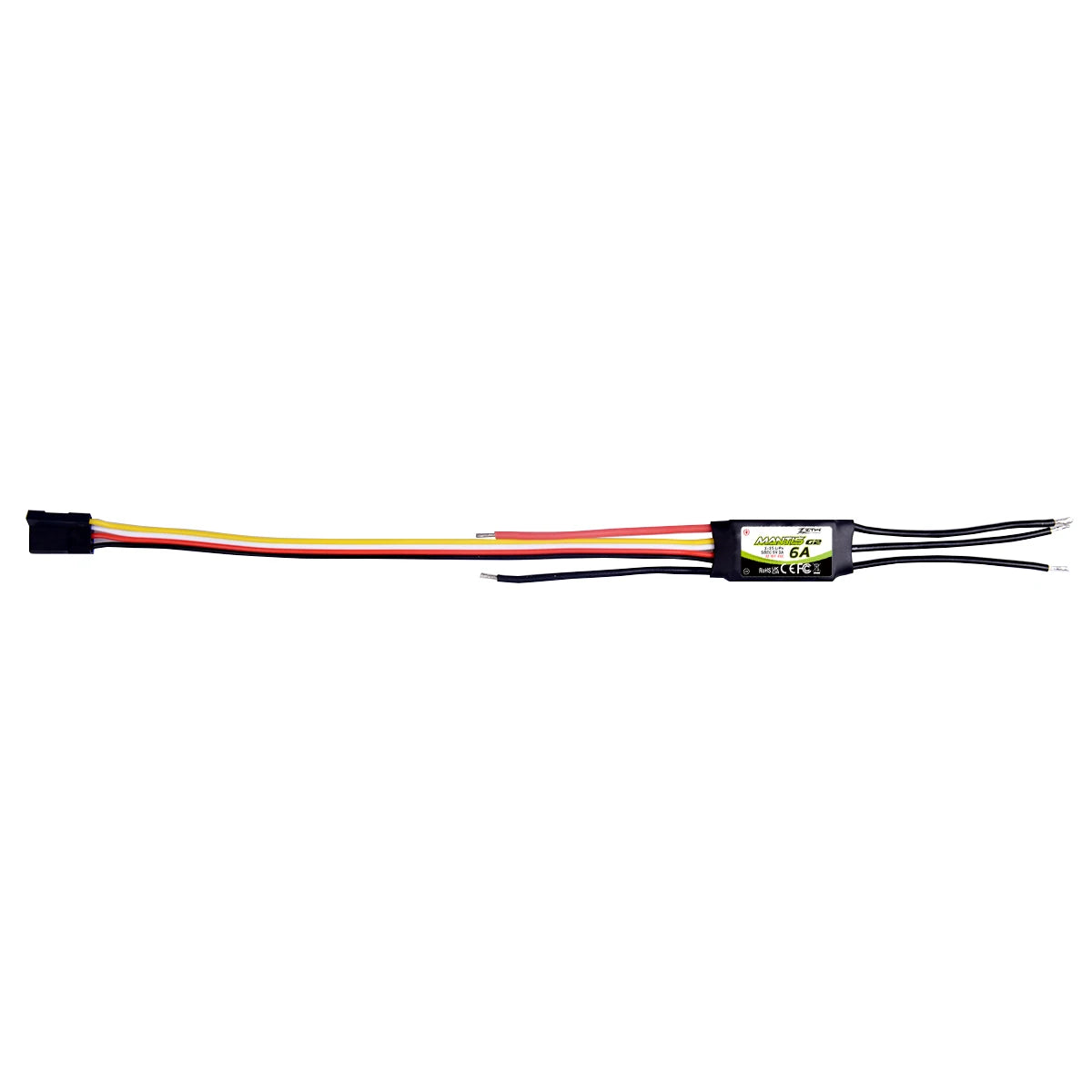

ZTW Mantis G2 6A ESC 2-3S Built-in Switching BEC 5V/3A Brushless Speed Controller For RC Airplane Aircraft Fixed-wing Drone

Description

ZTW Upgraded 32-Bit Mantis G2 6A ESC 2-3S Built-in SBEC 5V/3A Brushless Speed Control For RC Airplane Aircraft Fixed-wing Drone

Key Features:

1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.

2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.

3. Super smooth start-up and accurate throttle linearity.

4. Higher driving efficiency and more energy-saving.

5. Two modes: normal and soft acceleration. It is compatible with normal fixed-wing and EDF jet airplanes, please ensure to select the “Soft” acceleration when using EDF jet airplanes.

6. Multiple protections: start-up, over-heat, low-voltage cutoff, over-current and signal loss.

7. Support high RPM motors, and compatible with most motors in the market.

8. Support programming by ZTW LCD program card G2, easier to set parameters for the ESC.

Specification:

Continuous Current: 6A

Burst Current(10S): 10A

Battery NiXX/Lipo: 2-3Lipo/LiHV

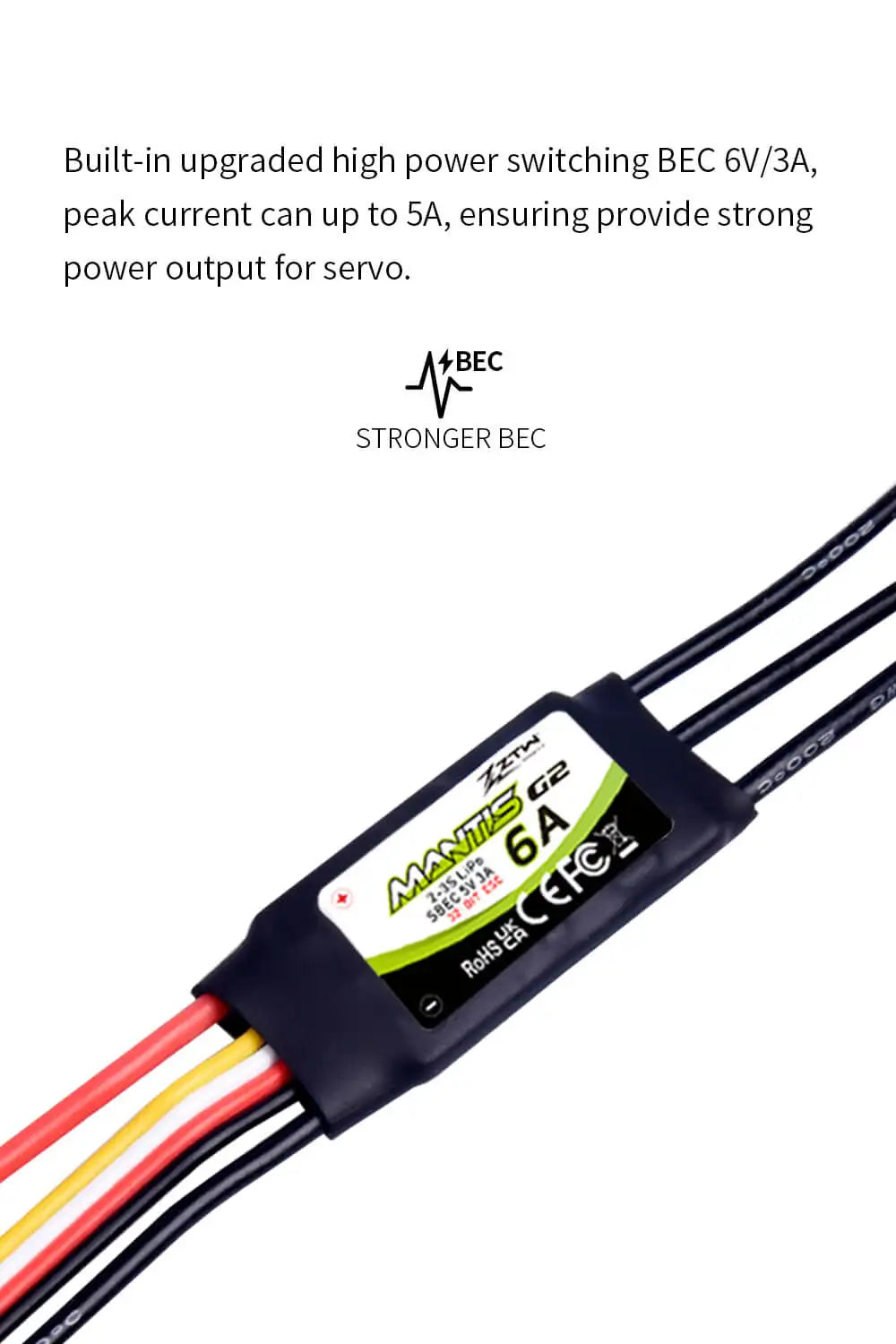

BEC Output: 5V3A

Size(L*W*H): 25*15*7mm

Weight: 7g

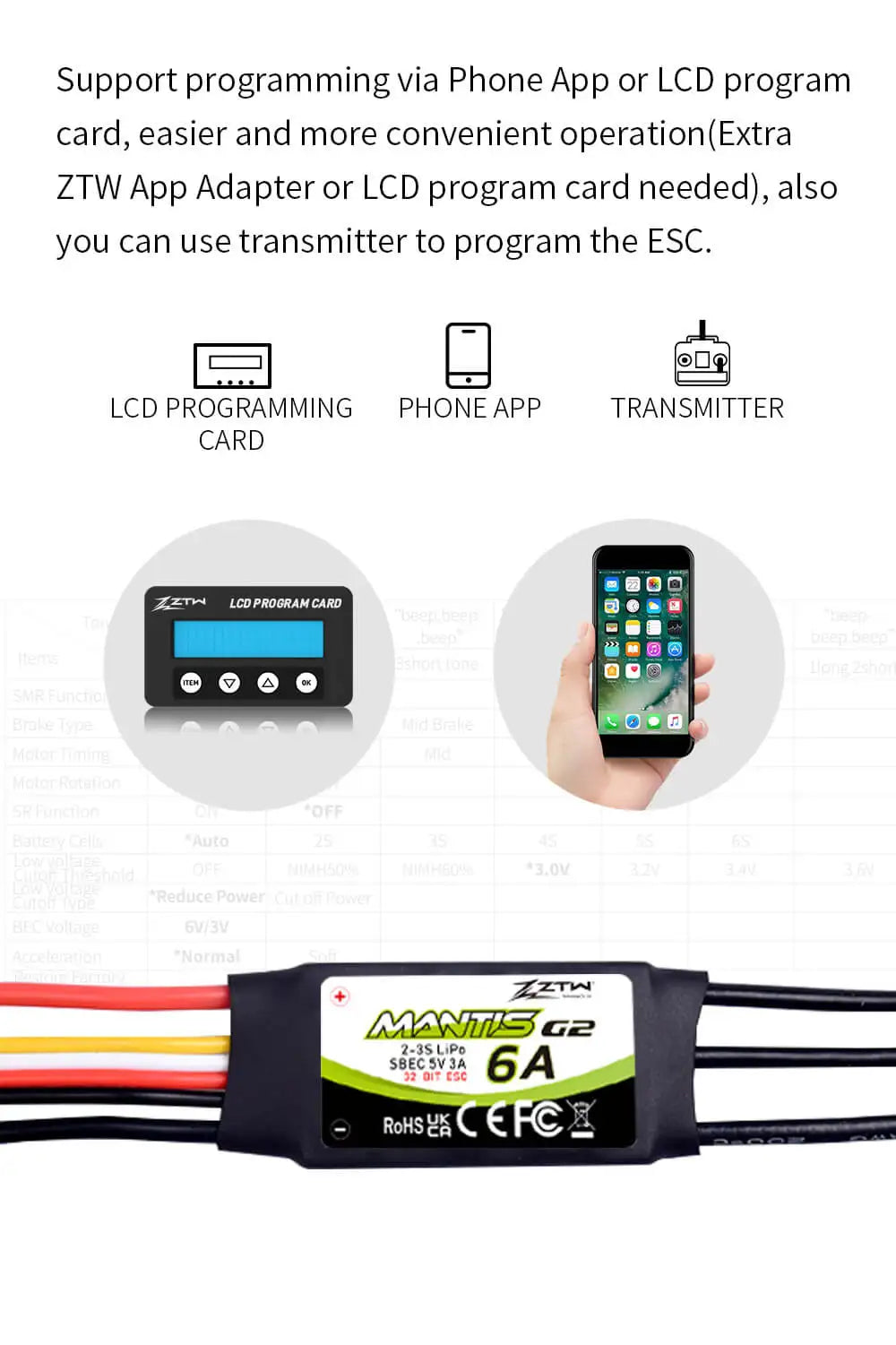

User Program: ZTW LCD Program Card G2 & Phone APP & Transmitter

Note: The ZTW New Upgraded 32-Bit Mantis G2 6A ESC can be programmed via cell phone APP or LCD program card. Please kindly note the separately bluetooth module will be needed if you want to use APP to program the ESC.

For iPhone users, please search “ZTW” in iPhone APP store.

For Android users, please search “ZTW Model” in Google Play store.
