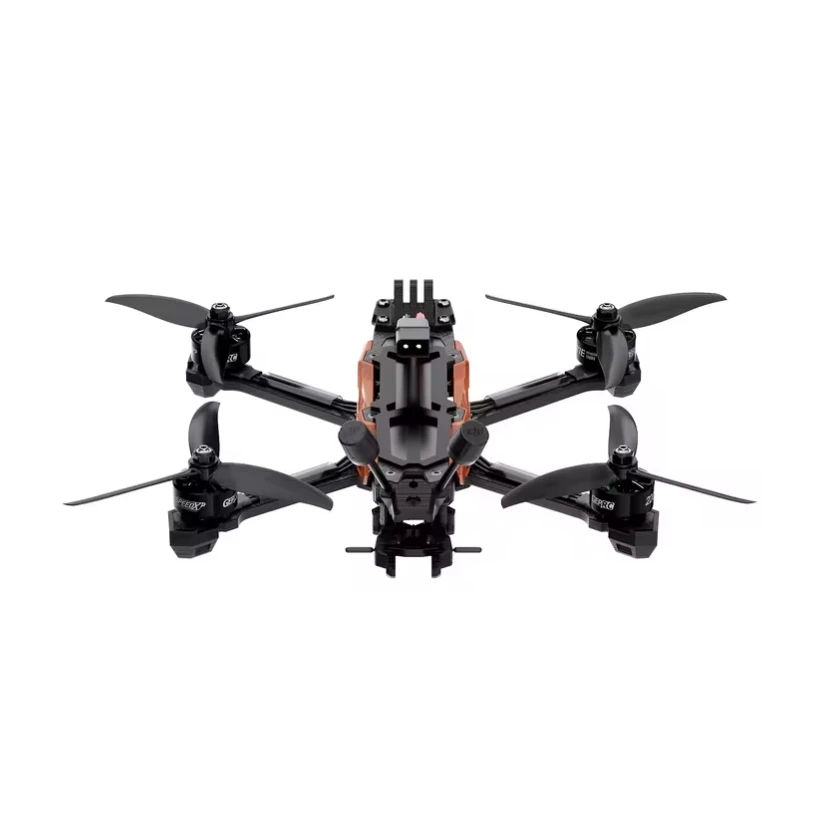

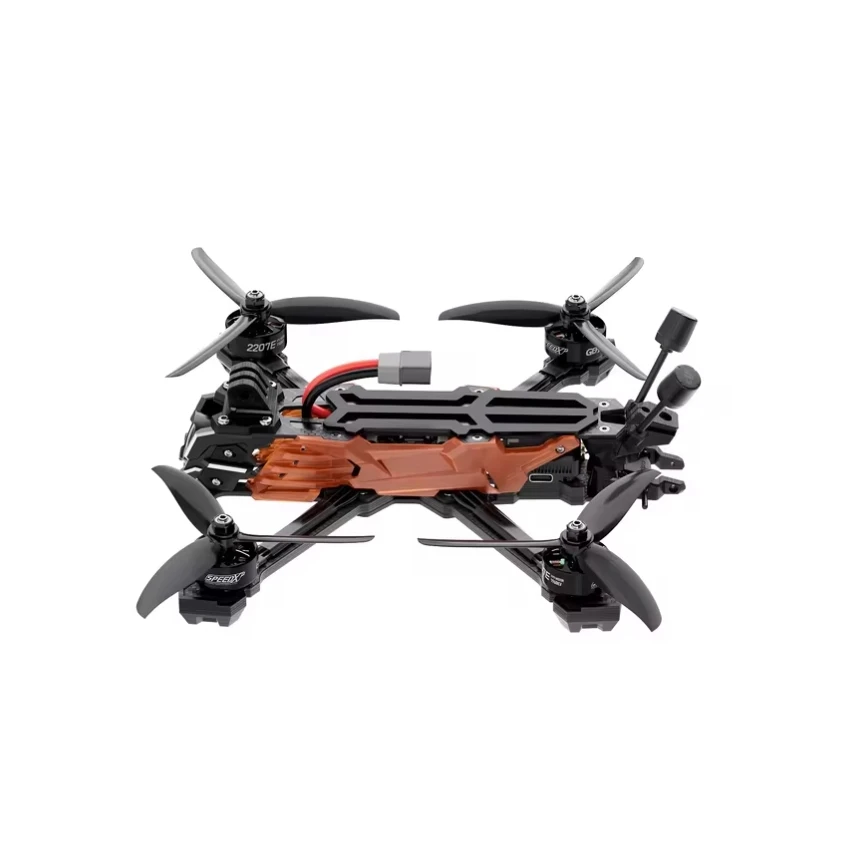

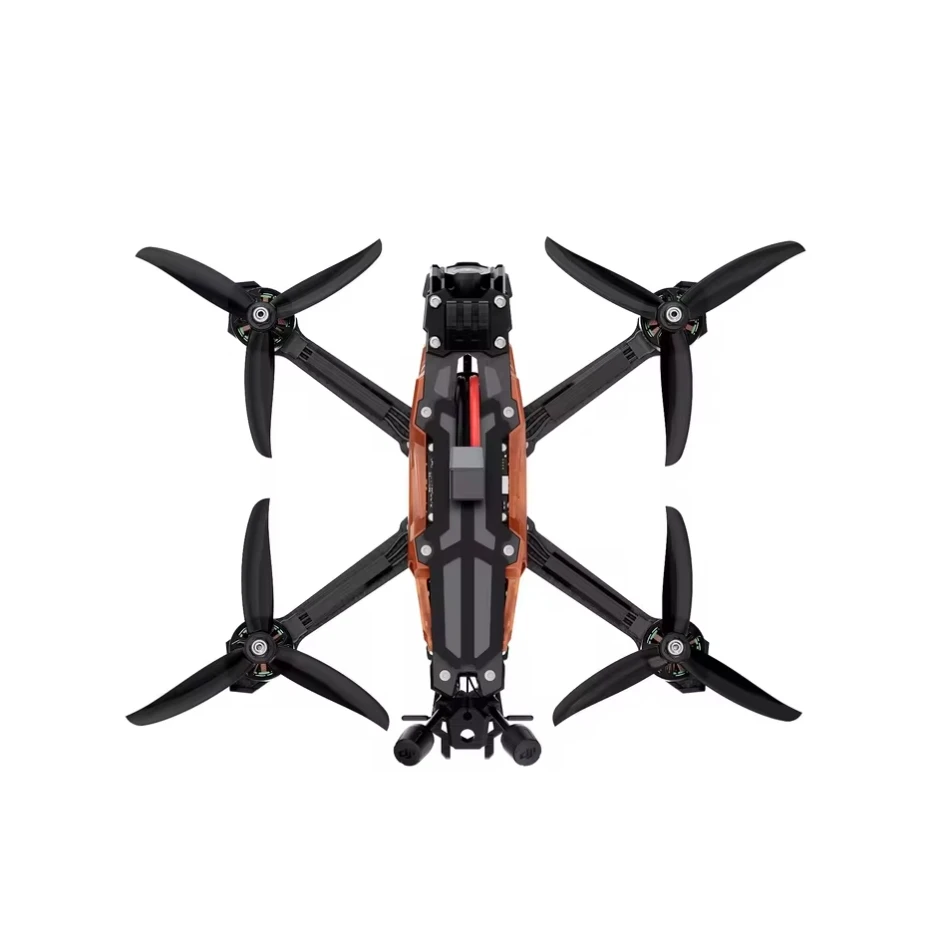

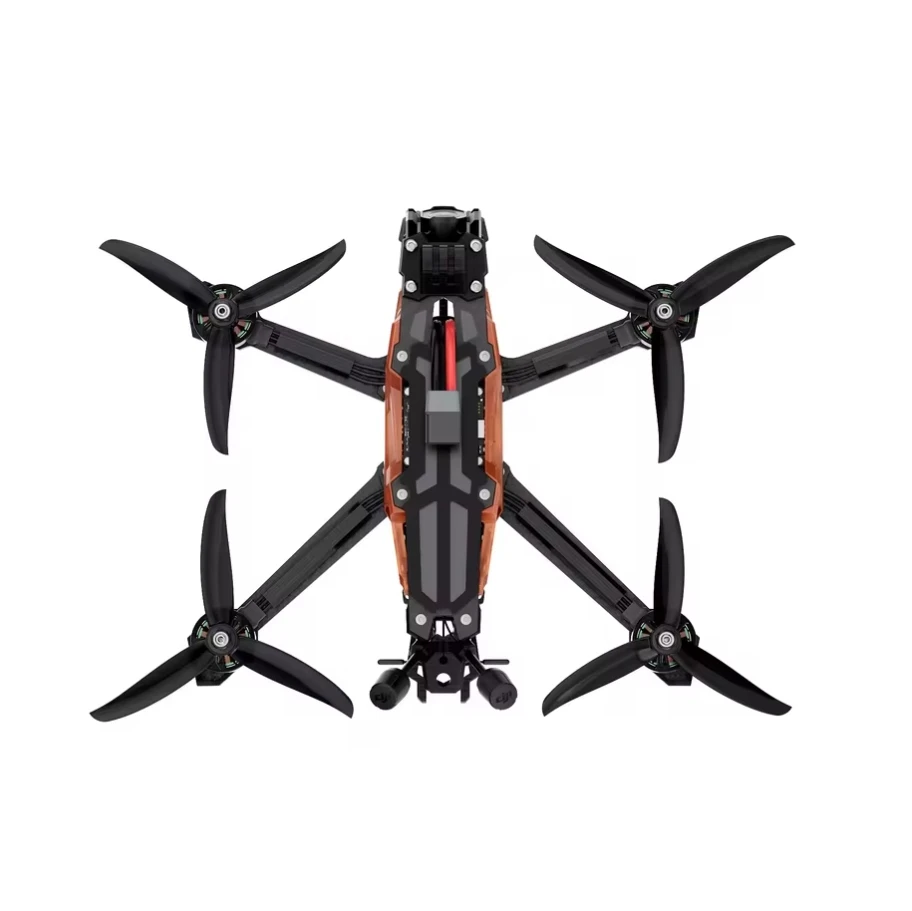

GEPRC Vapor-X5 O4 Pro HD Freestyle FPV Drone X/D-shaped Design 5Inch Digital Drone Toy SPEEDX2 2207E 1960 KV Brushless Motor

Description

Summary
nThe GEPRC team has redesigned the Vapor series for optimal compatibility with the D-J-I O4 Air Unit Pro VTX.

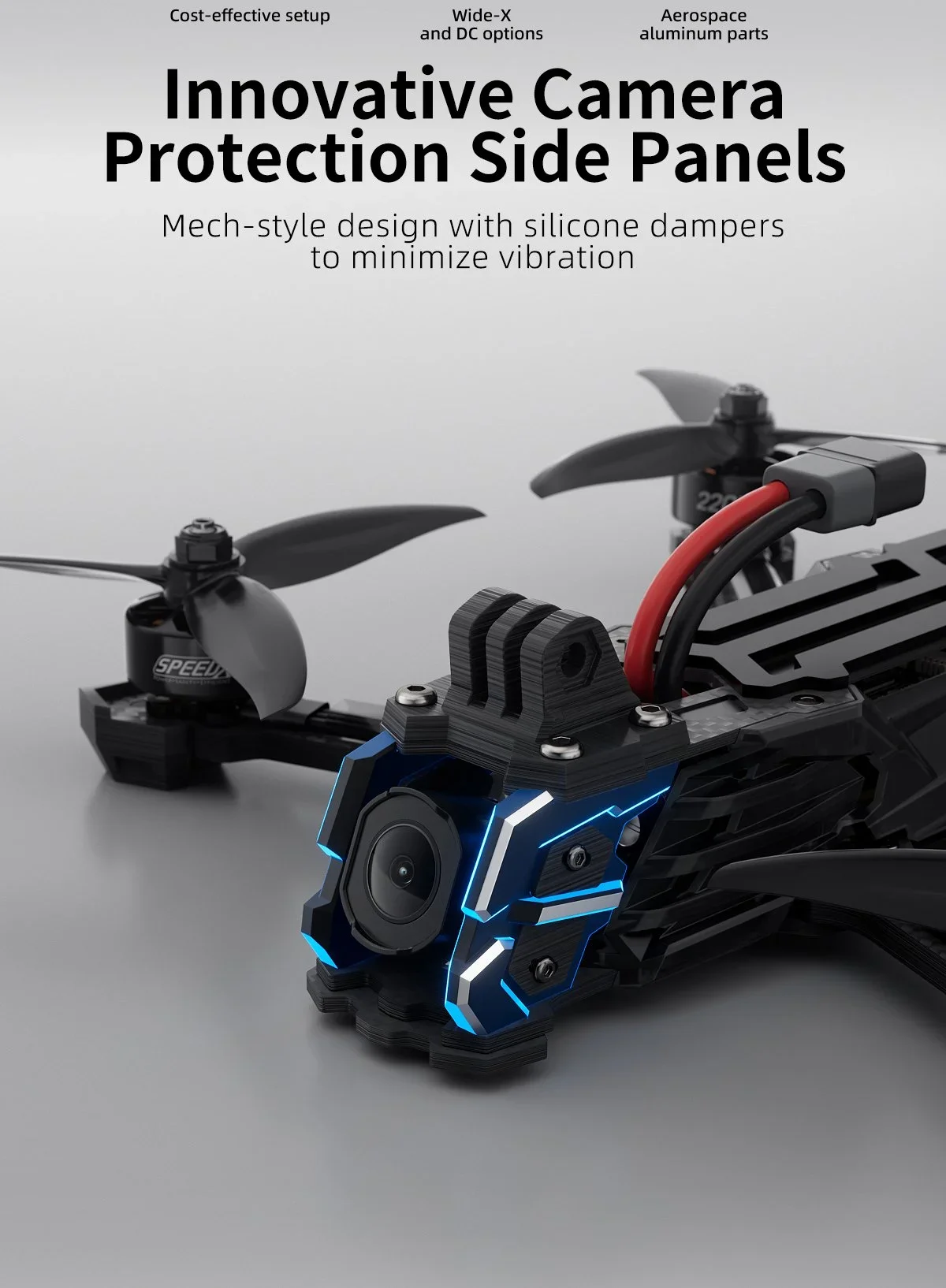

nNew aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The D-J-I O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

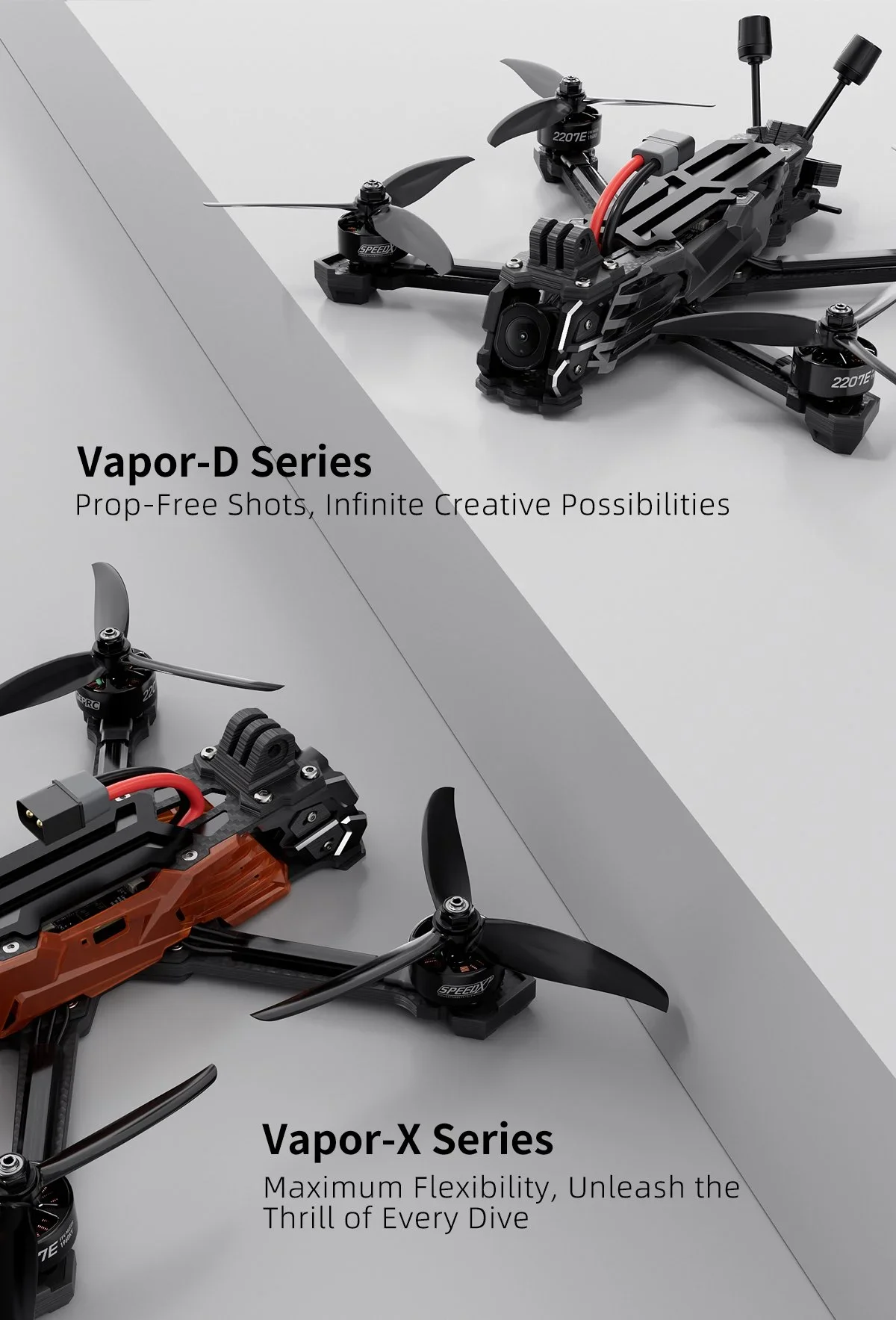

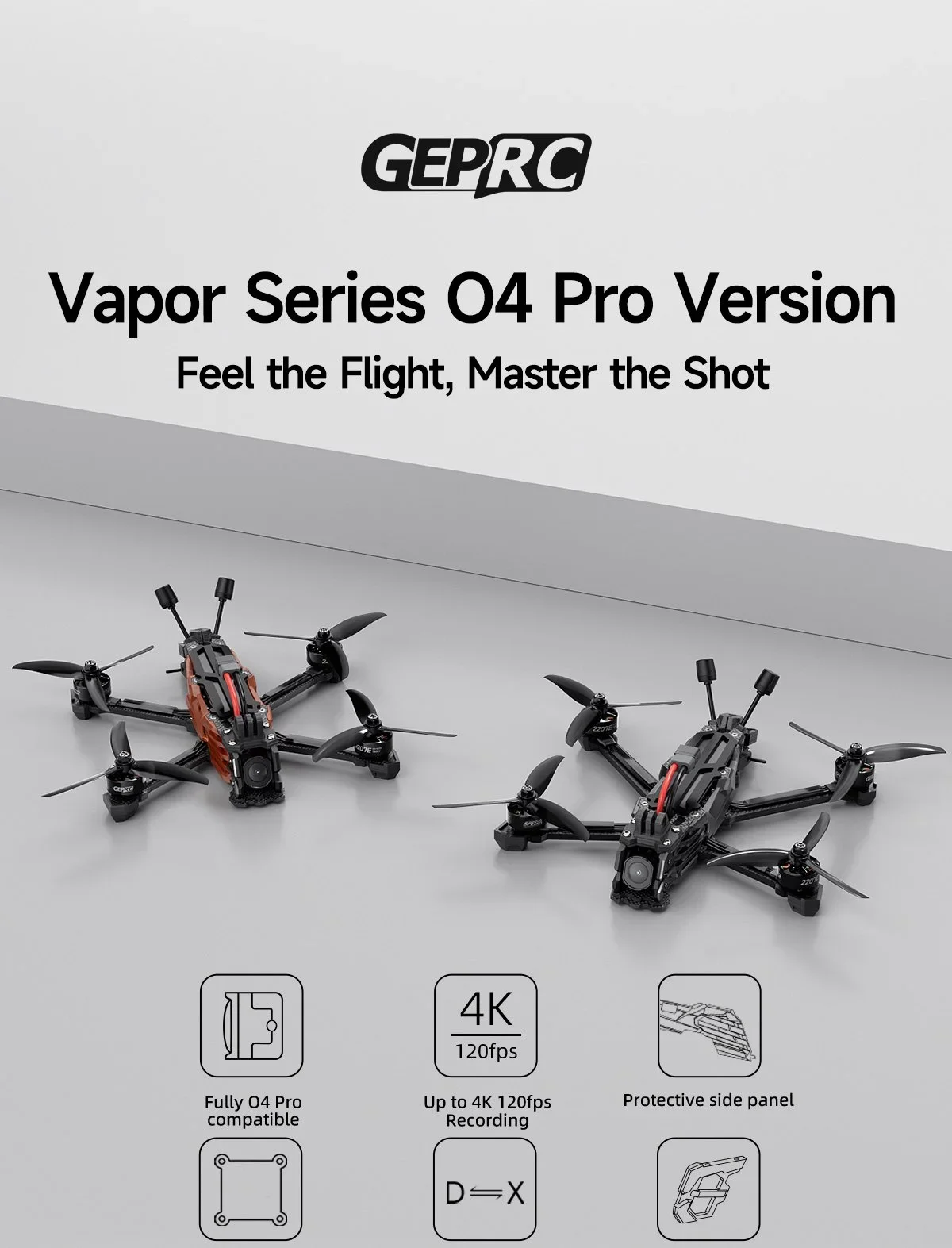

nAvailable in two models, Wide X and DC, to suit different flight needs.
nFeature

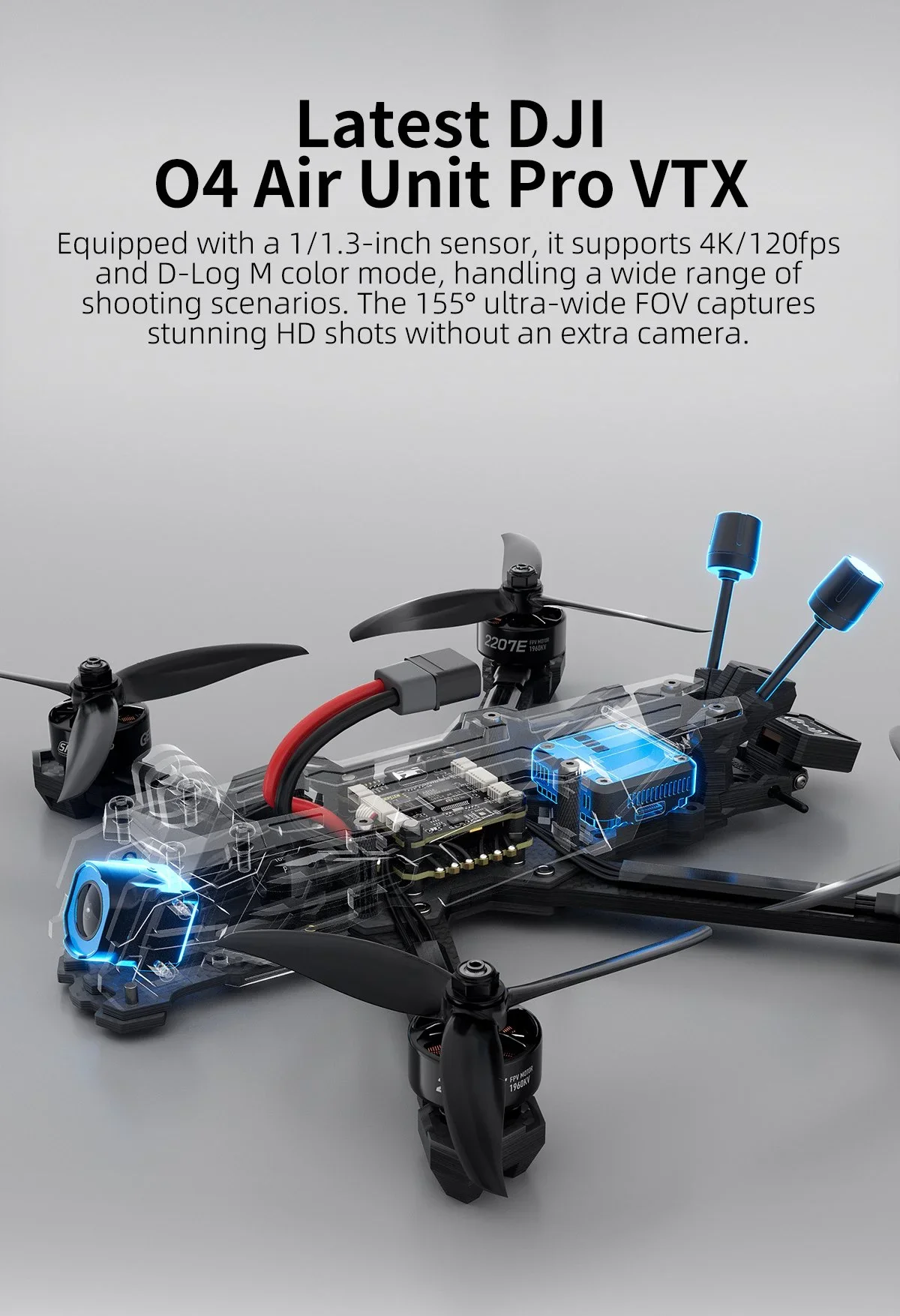

nD-J-I O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
nCNC aluminum lens housing for a durable, bold design.
nGEPRC SPEEDX2 E-series motors for smooth, powerful performance.
nFront lip design provides extra lens protection for confident flying.

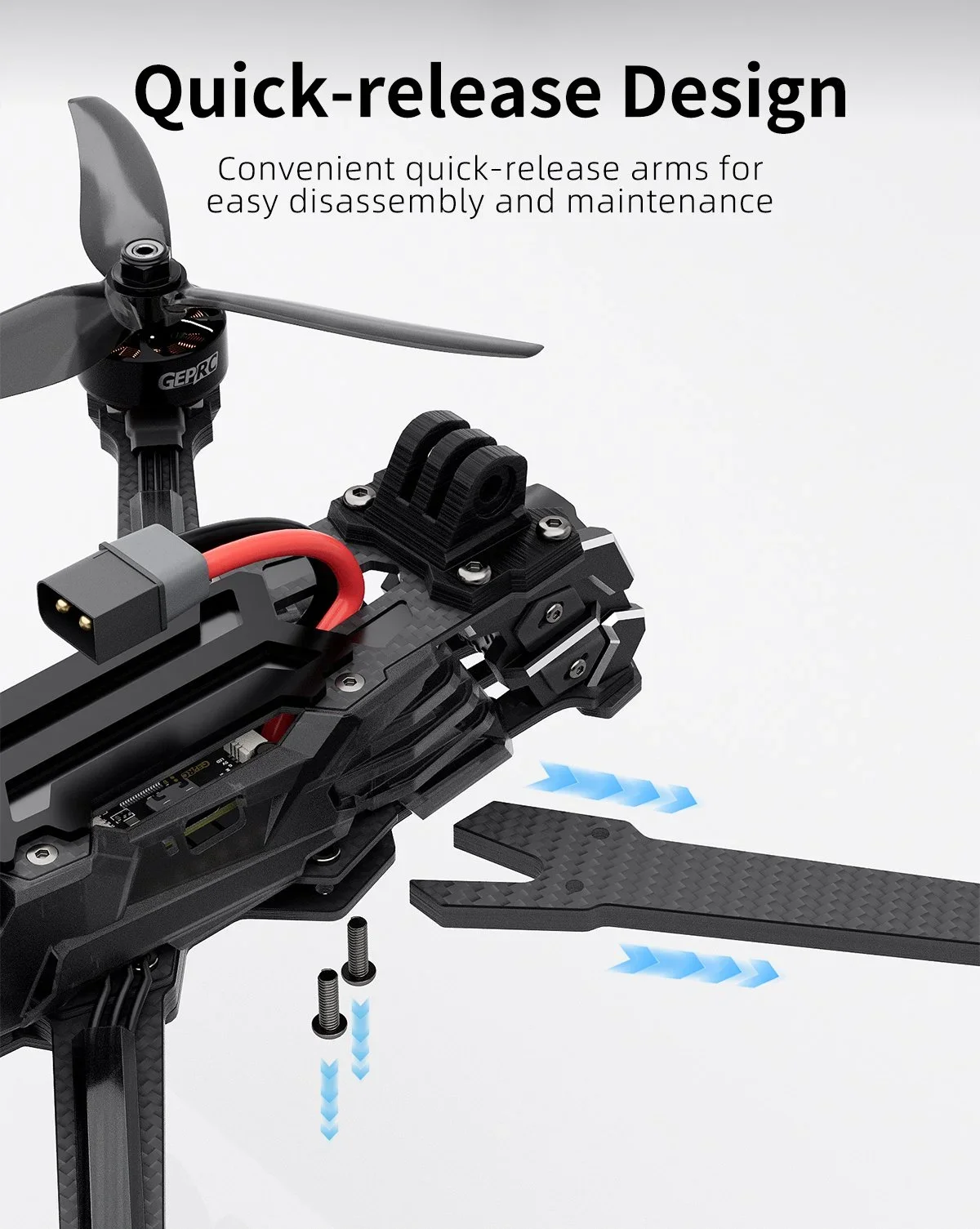

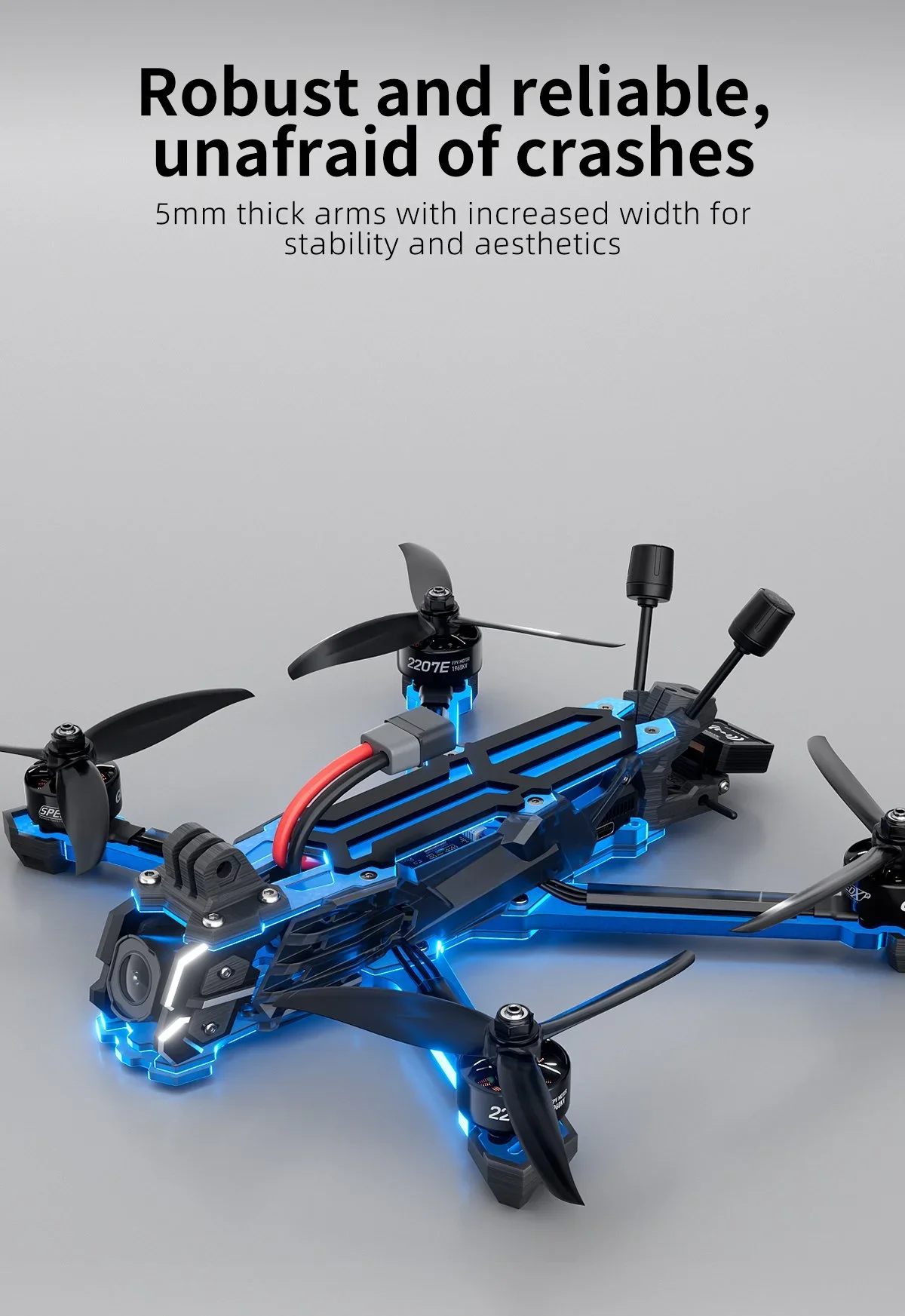

nWider 5mm carbon fiber arms for increased durability and a sleek build.
n1. Vapor-X5 O4 Pro Specifications
nModel: Vapor-X5 O4 Pro
nFrame: GEP-Vapor-X5 O4 Pro frame
nWheelbase: 230 mm
nTop Plate: 2.0 mm
nMiddle Plate: 2.0 mm
nBottom Plate: 2.5 mm
nArm Thickness: 5.0 mm
nFC: GEP-F722-HD v2
nMCU: STM32F722
nGyro: ICM42688-P(SPI)
nBarometer: YES
nOSD: Betaflight OSD w/AT7456E
nESC: TAKER H60_BLS 60A 4IN1 ESC
nVTX: DJI O4 Air Unit Pro
nCamera: O4 Pro Camera
nAntenna: O4 Pro original antenna
nConnector: XT60
nOptional GPS: GEP-M10 GPS
n5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
n5-inch Propeller: GEMFAN 5136
nVapor-X5 O4 PNP Version Weight: 409g±5g
nReceiver: PNP/GEPRC ELRS24/TBS Nano RX
nRecommended Battery: 6S LiPo1300mAh – 1800mAh
nFlight Time: 14-19min
n2. Vapor-D5 O4 Pro Specifications
nModel: Vapor-D5 O4 Pro
nFrame: GEP-Vapor-D5 O4 Pro frame
nWheelbase: 230 mm
nTop Plate: 2.0 mm
nMiddle Plate: 2.0 mm
nBottom Plate: 2.5 mm
nArm Thickness: 5.0 mm
nFC: GEP-F722-HD v2
nMCU: STM32F722
nGyro: ICM42688-P(SPI)
nBarometer: YES
nOSD: Betaflight OSD w/AT7456E
nESC: TAKER H60_BLS 60A 4IN1 ESC
nVTX: DJI O4 Air Unit Por
nCamera: O4 Pro Camera
nAntenna: O4 Pro original antenna
nConnector: XT60
nOptional GPS: GEP-M10 GPS
n5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
n5-inch Propeller: GEMFAN 5136
nVapor-D5 O4 Pro PNP Version Weight: 428 g±5g
nReceiver: PNP/GEPRC ELRS24/TBS Nano RX
nRecommended Battery: 6S LiPo1300mAh – 1800mAh
nFlight Time: 14-19 min
nIncludes
n1 x Vapor O4 Pro
n2 x GEMFAN 5136
n2 x Battery anti-slip pads
n1 x Spare screw pack
n1 x Vapor side panel
n2 x M20*250mm battery straps
n1 x L-shaped screwdriver 1.5mm
n1 x L-shaped screwdriver 2.0mm
n1 x GP mount
nThe spare screws include
n6 x M3*10mm round head screws
n6 x M3*8mm round head screws
n2 x M3*6mm flat head screws
n1 x M5*28mm thin head screw
n1 x M5 flange nut
n4 x M3 rivet nuts
