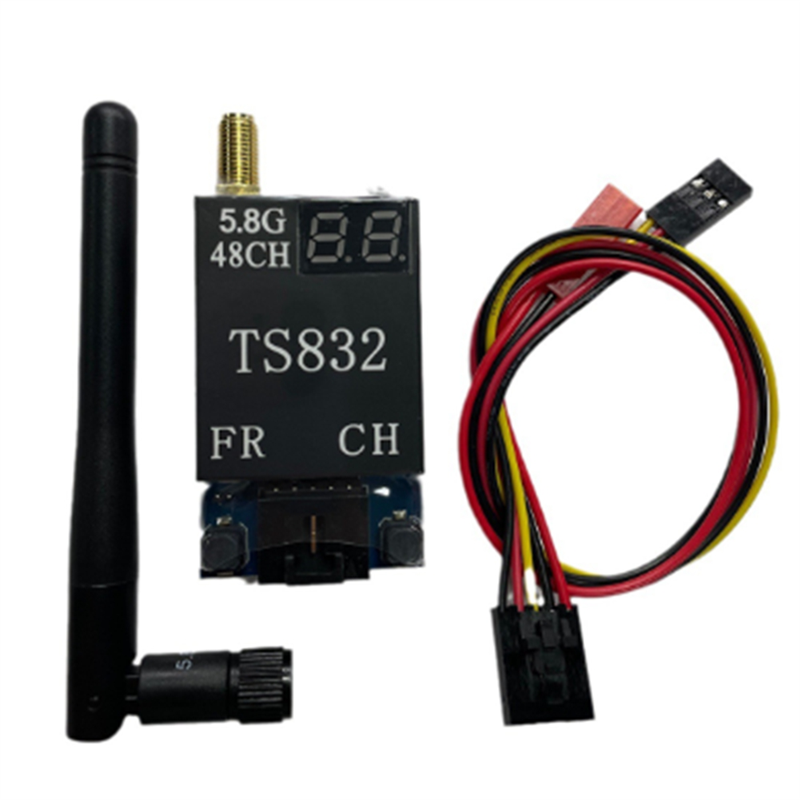

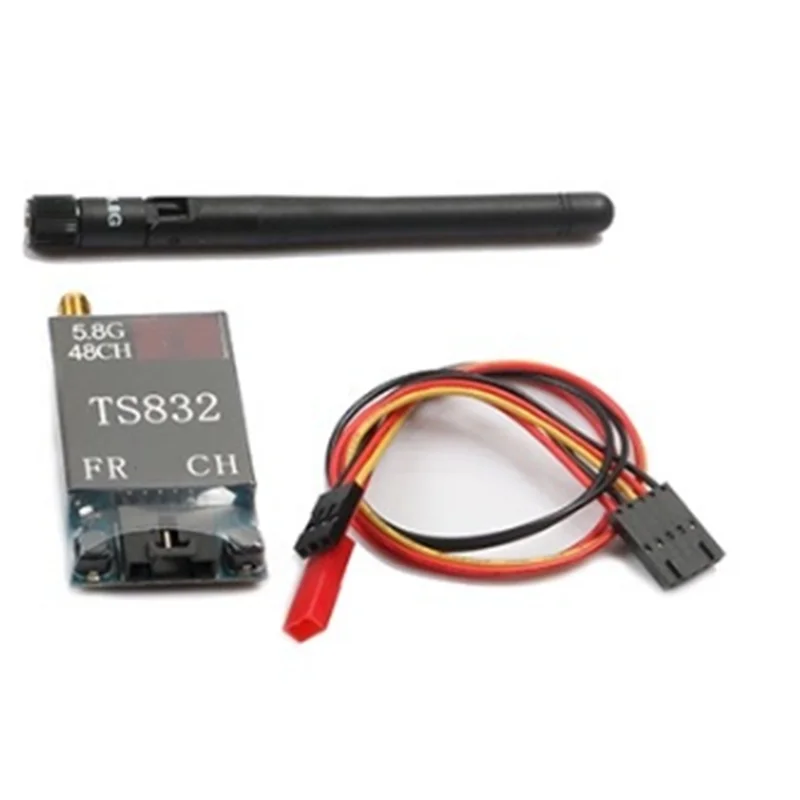

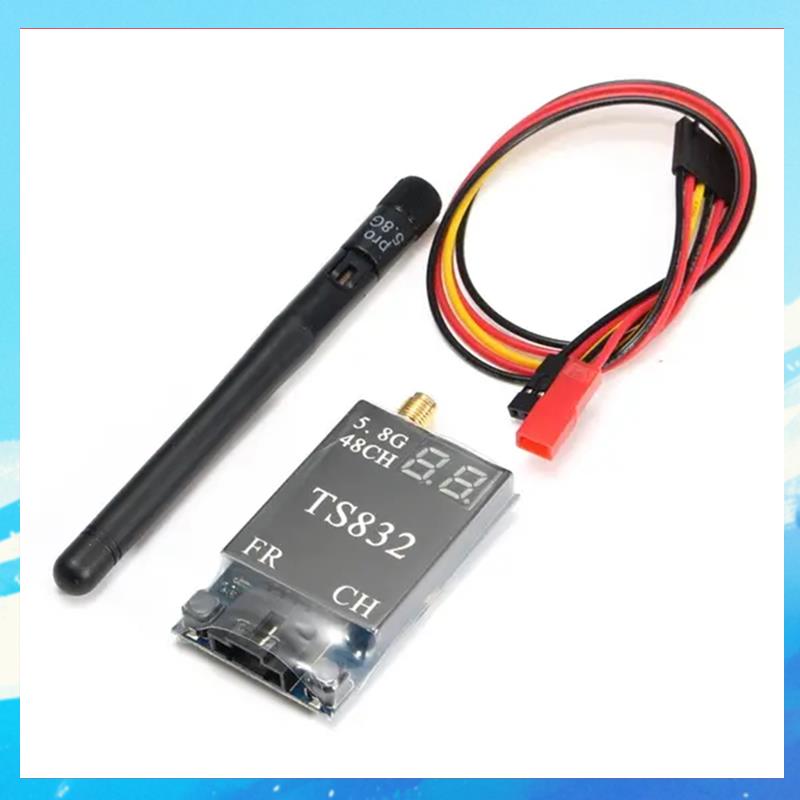

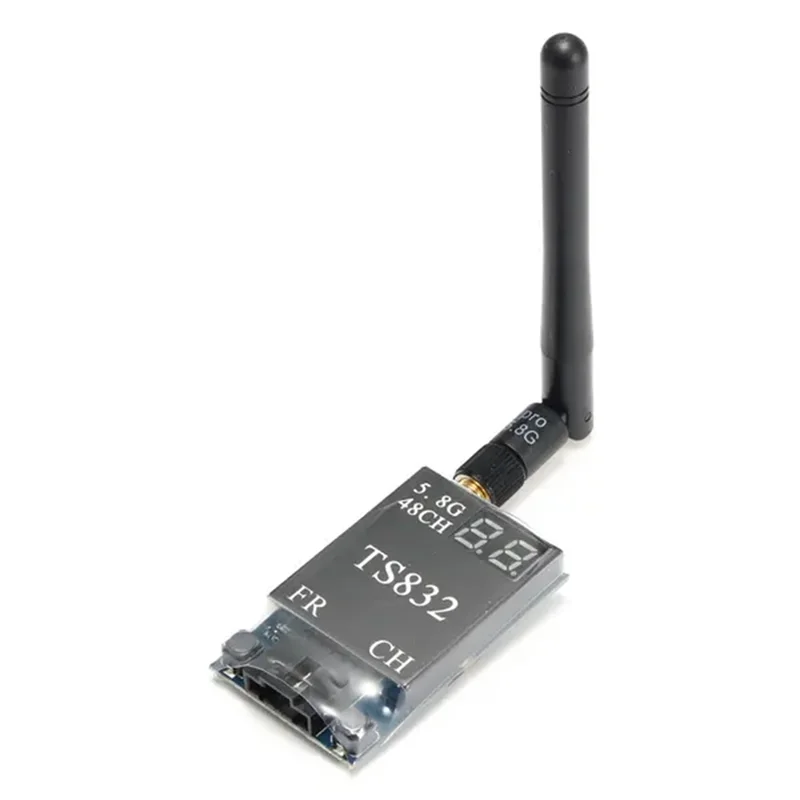

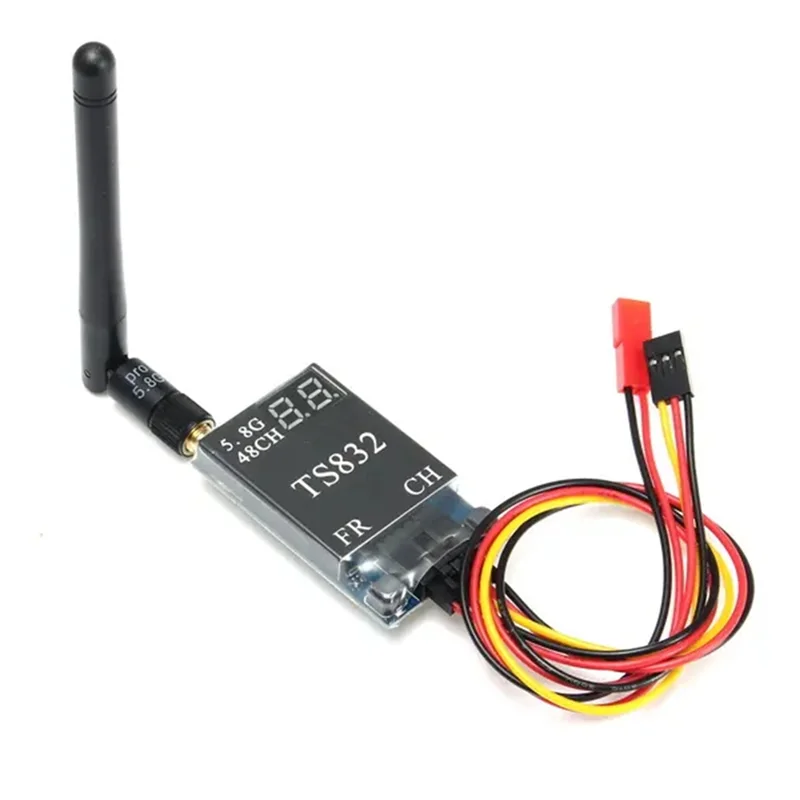

TS832 48CH 5.8G 600Mw 5Km Wireless AV Transmitter For FPV Multicopter RC Aircraft Quadcopter-[A49T]









48 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable

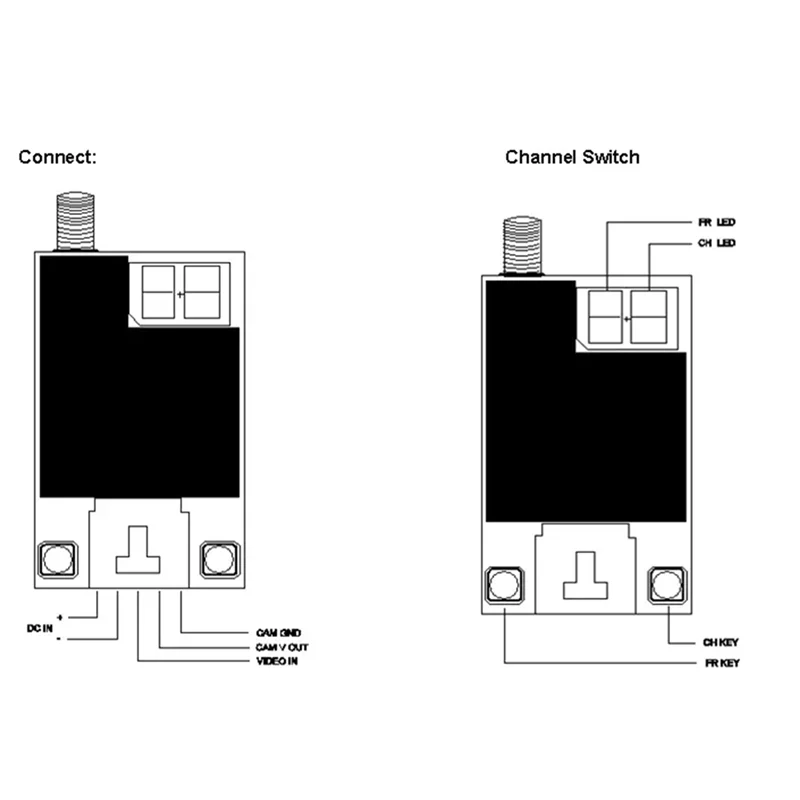

Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching
Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received
Power off memory: Replay the very last frequency band and channel
Independent video and audio signal outputs

THIS IS THE NEW 48-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.
TX TS832 specs:
Power input: 7.4-16V (3S Lipo suggested)
Transmitting power: 600mA
Antenna gain: 2db
Working current: 220mA at 12V
Video bandwidth: 8M
Audio bandwidth: 6.5M
Weight: 22g
Dimension: 54x 32x 10mm(excluding antenna)
Note:TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX
Due to different product batches, the words on the product and some accessory details may be different, which will not affect the use.
Color:As Shown
Material:Plastic+PC

Package Contents:
1 * TS832 48CH 5.8G Transmitter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
